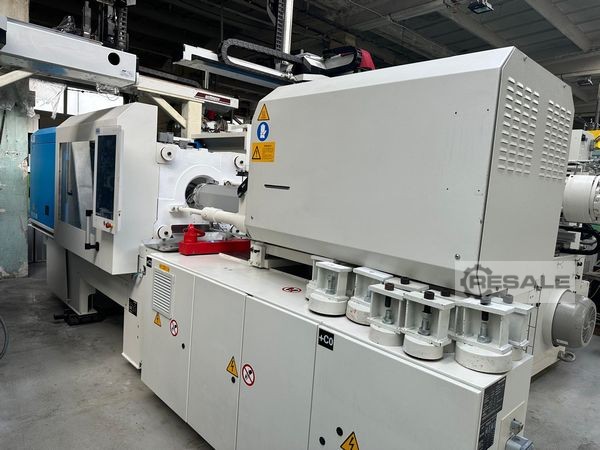

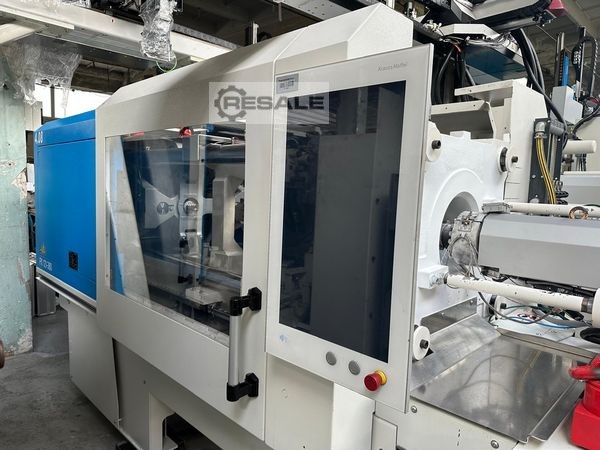

Injection molding machines KRAUSS MAFFEI KM 121-380

Clamping force: 1210 kN Krauss Maffei KM 121-380 PX / Electric Machine
Year of Make: 2019

Injection unit:
Screw diameter: 35 mm
Injection weight: 140 g
Spray pressure: 2429 bar
Dosing volume: 154 ccm

Clamping unit:
Clamping force: 120 t
Handlebar spacing: 470x420 mm
Size of the clamping plates: 640x590 mm
Ejector: electric
Clamping unit: toggle lever

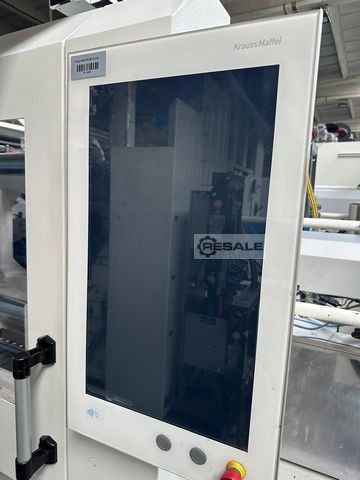

Control: MC6 - Touch Screen

Additional equipment:
Machine in very good technical condition
Electric machine: energy-saving and very quiet
Operating hours: approx. in automatic mode
Euromap 67
Robot interface
Air valve with vacuum x 2
Hydraulic core pull x 1
Control with hot runners x 15
Injection unit is wear-resistant and resistant to corrosion
Main motor of the machine - Servo motor driven by inverter - Energy saving
Central lubrication
Parallel movements
Automatic tool height adjustment

Dimensions:
Weight: 9400 kg
Length/Width/Height: 5.10x1.60x1.88 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
