HURCO VMX42i
Vertical Machining Center
Year of manufacture 2018
Control HURCO WinMax5
Travel X - 1,067 mm / Y - 610 mm / Z - 610 mm
ONLY approx. 3,600 spindle hours (as of 25.03.2026)
Equipment:

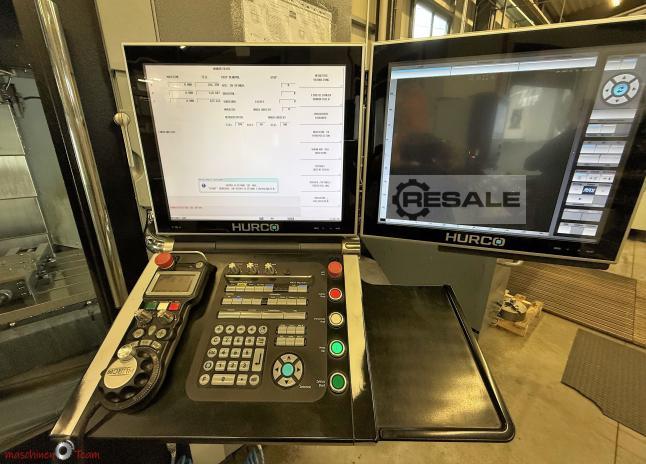

WinMax5 control with detachable electronic handwheel
2x 19" LCD color screens (text + graphics)
Network interface
2 Software Units
(1x plain text dialog programming on the machine
1x for ISO code programming by external programmer or CAD/CAM
system)
Pentium technology, SSD (solid-state drive) storage medium,
2 GB RAM, Ethernet interface, USB interface,
In-system self-diagnosis, WINDOWS platform
Adaptipath
Trochoidal milling for higher cutting performance,
Controlled delivery and residual material detection
Simulation Graphics
Tool and Material Library
Pocket milling machines with islands
Synchronous threading
(Threading without compensating chuck)
ISNC Extended NC Mode
RENISHAW touch probe
RENISHAW Workpiece & Tool Measurement
Spindle coolers
Chip conveyor
Chip splash guard booth
Coolant system
Cooling Water Spray Gun
Flushing system to aid chip removal
LED machine light in the work area
Signal light for the operating status of the machine
Set of machine shoes
Programming and maintenance instructions via the control auxiliary
function
High-pressure cooling system for coolant supply through the spindle
Cooling lubricant type emulsion
Coolant pressure 20 bar
Integrated hydraulic tool clamping system
WinMax PC Software
NC programming system WinMax PC
with 3D-plus and DXF interface
Technological features:
Simple programming through plain text full dialog
Easy operation via PC keyboard
Easy control by switching from
Text Display on Graphic Display
Simple programming of the precast contour
On-line help in German
Included in delivery:
2 Pieces Hydraulic Tension Vises
approx. 50 tool holders, some equipped with tools
Operating instructions
Machine parameters on USB stick
Technical data and control – see PDF. All technical information,
illustrations and content are non-binding and without guarantee.
Subject to changes, errors.
More photos on request.
All other accessories visible in the photos and video are not included
in the scope of delivery, so they are not part of this sale. The scope
of delivery only includes the accessories that are expressly listed
here, in the order confirmation and invoice.
FCA (Free Loading Truck) D-32457 Porta Westfalica
Packaging only
Delivery time immediately
Subject to prior sale / payment immediately upon completion of
purchase
Germany
32457 Porta Westfalica
