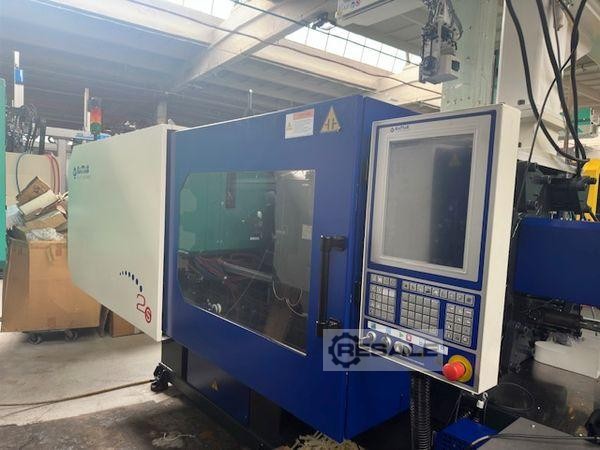

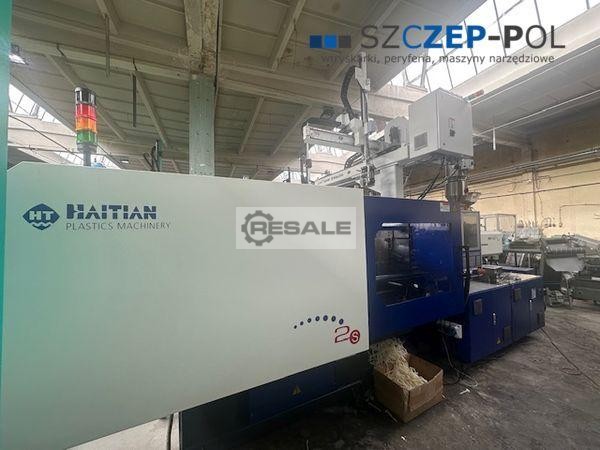

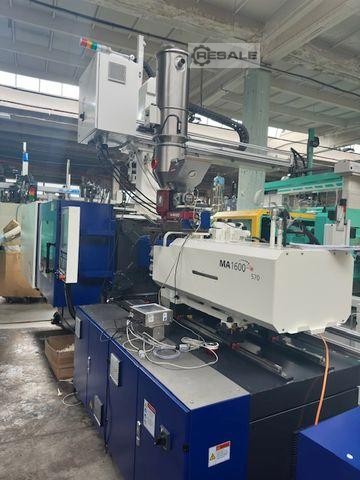

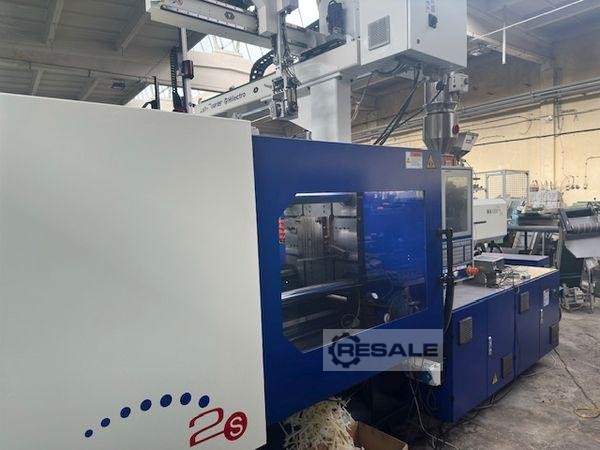

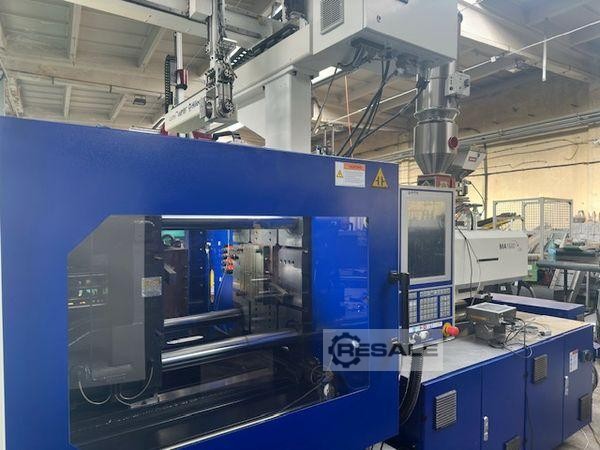

Haitian MA1600IIS with the Hilectro V-800IS robot / hybrid machine
Year of Make: 2020
Injection unit:
Screw diameter: 45 mm
Injection weight: 291 g
Spray pressure: 1780 bar
Dosing volume: 320 ccm
Clamping unit:
Clamping force: 160 t
Spar spacing: 470x470 mm
Size of the clamping plates: 700x700 mm
Ejector: hydraulic
Clamping unit: toggle lever

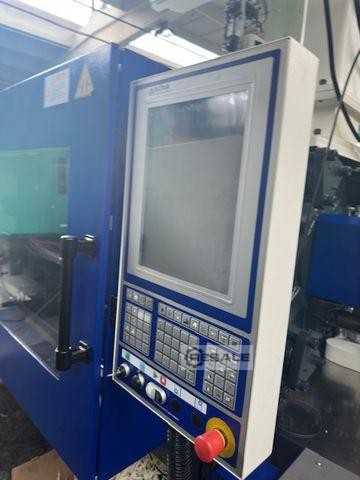

Control: Keba - Touch Screen
Additional equipment:
Machine in very good technical condition
Hybrid machine: high-speed, energy-saving and very quiet
Euromap 67
Robot interface
Air Valve x 3
Hydraulic core pull x 3
Main motor of the machine - Servo motor driven by inverter - Energy
saving
Central lubrication
It is possible to change the screw diameter

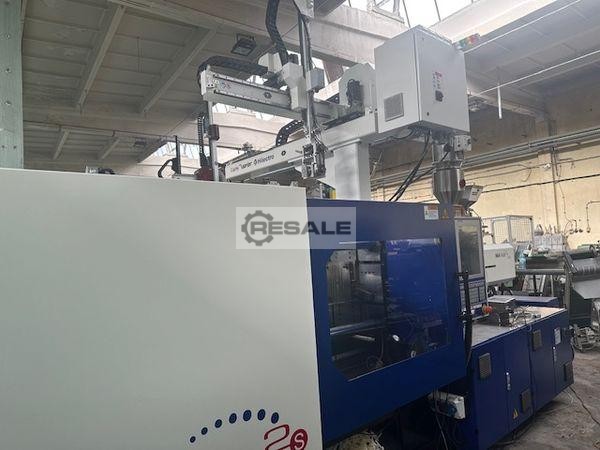

Hilectro V-800IS robot
Year of Make: 2020
5-axis robot: 4 axes are driven by servo motors (electric): X, Y, Z, B
(rotation)
Touch control panel
Robot S51231703 with adapter
Purchase of the robot at an additional cost
Metrics:
Weight: 5650 kg
Length/Width/Height: 5.42x1.90x2.19 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
Poland
91212 Lodz
