122,030 used machines on RESALE, but how to find them? Machine Search
used

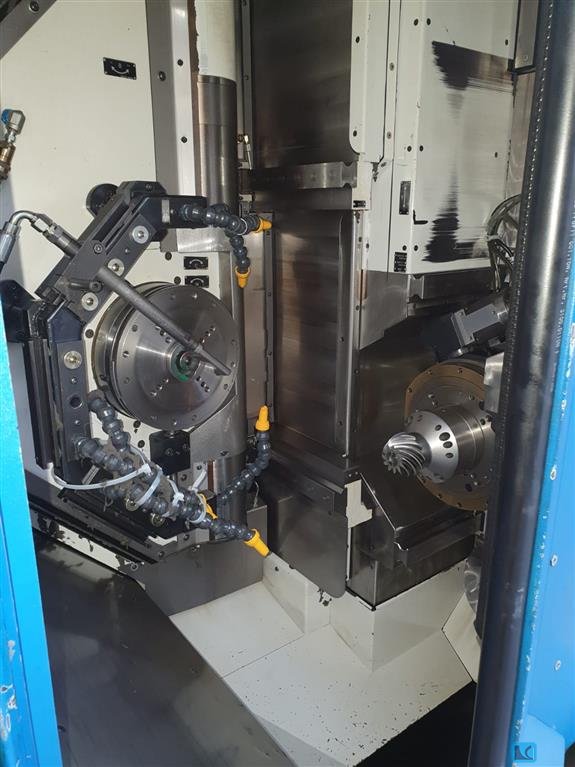

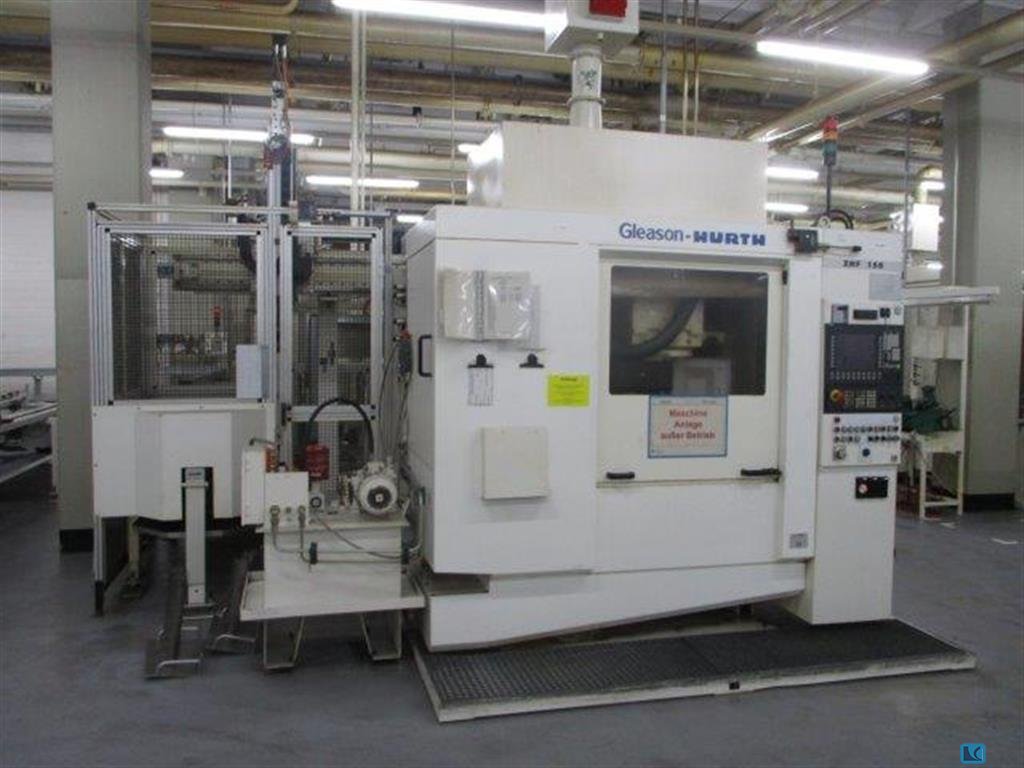

Chamfering and deburring machine for gears, type: zea-4, manufactured by gleason hurth, germany, 2009. Siemens cnc control. Technical condition - like new! The Gleason-Hurth ZEA-4 rotary deburring machine is designed for dry deburring of disc details up to 280mm in diameter and shafts up to 400mm in length, max. module 5. There is a set for the deburring machine. DTR.
used
For sale a used milling head of a Gleason Genesis 130 H
used
workpiece diameter: 125 mm module: 4 Control: SIEMENS 840 C x-axis: 105 mm y-axis: 40 mm z-axis: 500 mm total power requirement: 47 kVA weight of the machine ca.: 5,5 t dimensions of the machine ca.: 2,6x2,1x3,1 m with measuring and palletizing system from Hörzer & Fehrenbach for gearwheels (bore receiver) Workpiece diameter: 17-39.5 mm Component height: approx. 6-15 mm Oblique as well as straight toothed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Manufacturer Gleason Model Pfauter P 200 G Year 1999 Machine is in good condition
used
max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...
used
inner taper of milling spindel: Sk40 collet diameter: nein turning speed range: 300 bis 3000 U/min drive motor: 15 kW weight of the machine ca.: 0,8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm
used

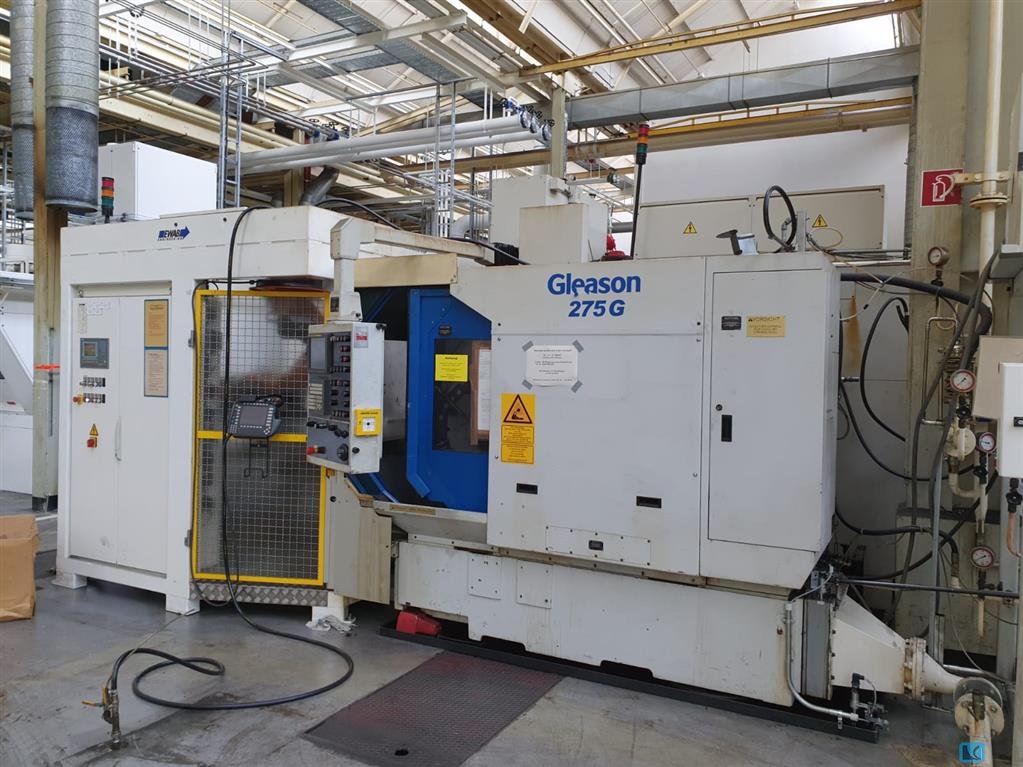

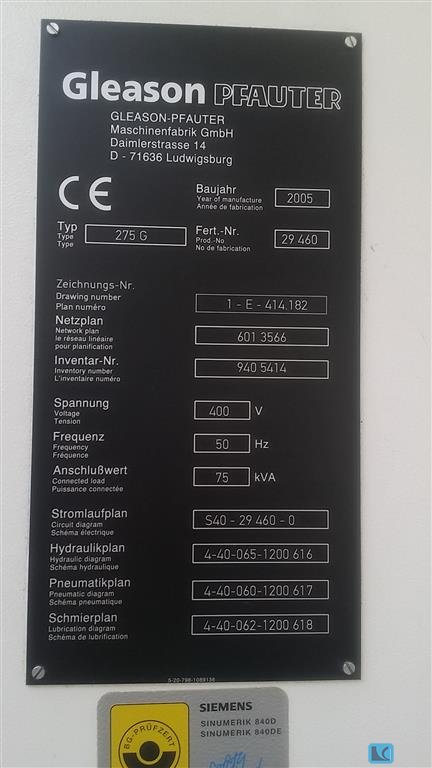

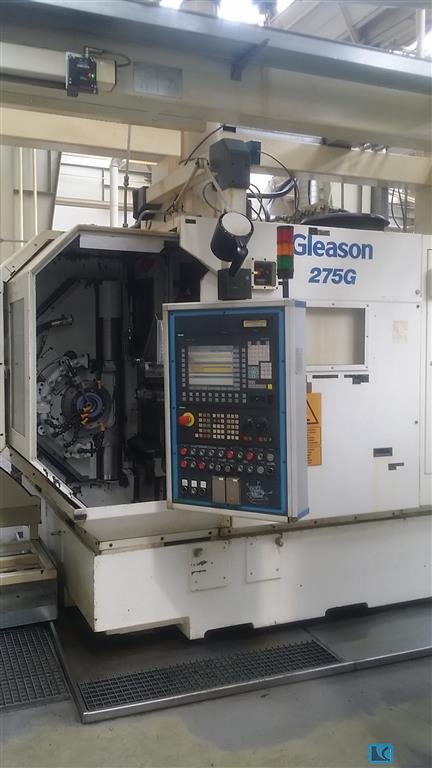

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
used
max. wheel diameter: 400 mm gear width: 0 mm module: pinion diameter - max.: 254 mm axial cross angle: 90 ° total power requirement: 15 kW weight of the machine ca.: t dimensions of the machine ca.: m This machine is very suitable for precision production testing of spiral and hypoid bevel gears with shaft angle 90°. The gear spindle is vertical and the pinion spindle is horizontal. The pinion cone distance can be adjusted while the machine is working in order to find the optimal mounting position whereby the gear is loaded with a preset torque. The axial pinion position can be adjusted until the quietest meshing position of the traction flank is found. Likewise, the thrust flank can be tested during the return run. Marking compound is sprayed on both sides of the teeth so the flank contact pattern can be seen. Working cycles, as well as the positioning in the tooth gap, are automat ...
used
max. wheel diameter: 215 mm gear width: 40,65 mm max. module: total power requirement: 20 kW weight of the machine ca.: 10 t Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. Extensive coolant equipment with filter system, band filter, etc. Driv ...
used
max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5
used
max. wheel diameter:40-160 mm gear width:90 mm max. module:3,5 min. module:1,25 weight of the machine ca.:5,6 t For detailed technical data, see PDF File Page 15-16
used
max. wheel diameter: 1010 mm gear width: 0 mm max. module: min. module: total power requirement: 15 kW weight of the machine ca.: 9,5 t dimensions of the machine ca.: m Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features Automatic roughing and finishing process via pre-settable counter and built-in feed cam. Counter for number of teeth. Counter for number of dressing cycles. 2 built-on dressing units with three dressing diamonds for radiu ...
used
Max. disk diameter: 275mm, connected load: 100kVA, weight: 10t, was maintained regularly, with cooling system, an on-site inspection is possible.
used
Weight: 10t, was maintained regularly, without cooling system, an on-site inspection is possible.
used
Weight: 10t, was maintained regularly, without cooling system, an on-site inspection is possible.
used
External gears workpiece diameter, max.: 130 mm Gear width: 25 mm Module, max.: 4 mm Control: SINUMERIK 840 D Spindle rotational speed: 0 - 30 U/min Helix angle: +/- 45 ? Radial slide travel X: 230 mm Y-axis (column - cross): +/- 25 mm Stroke length max.: 30 mm table turning speeds: 0 - 1000 U/min ram strokes 500 - 2500 Hub/min total power requirement 49 kW Machine Weight: 11500 Kg Required space (W x D x H) mm: 6400 x 4500 x 4400
used
External gears workpiece diameter, max.: 130 mm Gear width: 25 mm Module, max.: 4 mm Control: SINUMERIK 840 D Spindle rotational speed: 0 - 30 U/min Helix angle: +/- 45 ? Radial slide travel X: 230 mm Y-axis (column - cross): +/- 25 mm Stroke length max.: 30 mm table turning speeds: 0 - 1000 U/min ram strokes 500 - 2500 Hub/min total power requirement 49 kW Machine Weight: 11500 Kg Required space (W x D x H) mm: 6400 x 4500 x 4401
used
Hob: External gears workpiece diameter (tip diameter), max.: 100 mm Minimum circle of shell end mill arbor: 22 mm Maximum tooth length 180 mm Maximum length 140 mm Trolley race: Radial stroke (X axis): 90 mm Tangential stroke (Y axis): 80 mm Axial stroke (Z axis): 400 mm Races of auxiliary trolleys: Loading portal (X5 axis): 2268 mm Sliding headstock (Z4 axis): 360 mm Maximum swivel angle of the milling head: Direction -A: 45 degrees Direction +A: 118 degrees Work table: External diameter: 120 mm Bore: 40 mm Machine size(LxWxH): 5195 mm x 3142mm x 2928 mm Feed rates: X axes, and Z: 1 to fast forward mm/min Rapid traverse: X axis: 7500 mm/min Y axis: 5000 mm/min Z axis: 15000 mm/min Rotational speeds: Tool: 50 to 12000 rpm Workpiece spindle: 0 to 3000 rpmControl: SINUMERIK 840D sl Machine Weight: 8000 Kg
used
CONIFLEX CUTTER SHARPENER Make : GLEASON Model : 104
used
Coming for sale : Peacock P1200 S , 2002 Under power If interested please contact
used
number: 20 tool adaptor: 55 diameter: 9 Zoll total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Type Nr.30212024, F-Nr.F746550002933, Anz. Messer 20, Anz. d. Messerköpfe a. Lager 9 Type Nr.30212025, F-Nr.F746550002934, Anz. Messer 20, Anz. d. Messerköpfe a. Lager 18 Type Nr.30212026, F-Nr.F746550002935, Anz. Messer 20, Anz. d. Messerköpfe a. Lager 25 Type Nr.30212027, F-Nr.F746550002936, Anz. Messer 20, Anz. d. Messerköpfe a. Lager 1 Type Nr.30212006, F-Nr.F746550002939, Anz. Messer 12, Anz. d. Messerköpfe a. Lager 19 Type Nr.30233008, F-Nr.F746550299197, Anz. Messer 22, Anz. d. Messerköpfe a. Lager 2 Alle Werkeuge 9 Zoll The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
number: 31 tool adaptor: 55 mm diameter: 9 Zoll total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m GLEASON WEDG - AC 30 211 006 F7 4655 0003 366 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
diameter: 235 mm Number of knives: 12 z= tool adaptor: 12 Stück The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 40 - 160 mm gear width: 90 mm Control: SIEMENS SINUMERIC 840D Gear shaving - / deburring machine The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 40 - 160 mm gear width: 90 mm Control: SIEMENS SINUMERIC 840D Gear shaving - / deburring machine The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 40 - 160 mm gear width: 90 mm control: Siemens Sinumeric voltage: 400 V frequency: 50 Hz connected load: 34 kVA loading: 800 Euro The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
liter capacity: 3000 l range L-W-H: 1400 x 1400 x 1300 mm weight: ca. 100 kg total power requirement: 6 kW weight of the machine ca.: 450 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 2800 mm gear width: - mm max. module: 20/30 min. module: Control: Siemens 840 D total power requirement: 40 kW weight of the machine ca.: 50 t dimensions of the machine ca.: 7 x 4,5 x 4,75 m The machine has only a few working hours and is like new. The machine is under power and may be inspected by prior arrangement. CNC control Siemens 840 D Nominal workpiece diameter: 2800 mm Table diameter: 2500 mm Pitch wheel diameter: 2,200 mm Table bore diameter: 800 mm Table bore depth: 875 mm Machine nominal module Hobbing aprrox. 20 mm gear Milling approx.: 30 mm Smallest/largest distance between milling cutter and workpiece axis: 600/1,735 mm Largest axial slide path – special design: 1,000 mm Largest champable hob diameter: 350 mm Largest champable hob length: 375 mm Swivel range of the milling head: + 30/- 45o cutter arbor cone: HSK-B160 (hollow shank taper according t ...
used
workpiece dia.: 100 mm module: 3.0 mm fixture slide travel: 400 mm Control: Siemens - Sinumerik 840 D max. milling cutter diameter: 80 mm cutter length max.: 180 mm turning speed range: 50 - 12.000 U/min table turning speeds: 3.000 U/min Gear Hobbing Machine - Horizontal | GLEASON-PFAUTER - P90 equipped with magnetic chip conveyor for dry and/or wet machining. Furnishing: - attached extraction system: Ringler, - with platform, - subindulgence, - subsequent loading and unloading handling: Epson - LS6-602S (built 2018), - sorting unit, - Calibration unit: Stotz, control: Siemens - HMI, - Work cell: Eagle - AMZ, with workpiece tray, - position check, - exit conveyor belt, - Control cabinet, with cooling unit: Rittal - Workspace, - tailstock, - measuring device, - refrigeration system, - Industrial robots: Epson, - goods carrier, - conveyor belts, - control panel, The machine is in very goo ...
used
workpiece dia.: 80 mm module: 2,5 mm fixture slide travel: 220 mm Control: Siemens - Sinumerik 840 D max. milling cutter diameter: 100 mm cutter length max.: 160 mm turning speed range: 200 - 5.000 U/min table turning speeds: 3.000 U/min Gear Hobbing Machine - Horizontal | GLEASON-PFAUTER - P60 equipped with magnetic chip conveyor for dry and/or wet machining. Furnishing: - attached exhaust system for dry processing: Ringler, - Noise insulation for dry milling machine - with platform, - subindulgence, - subsequent loading and unloading handling: Epson - LS6-602S (built 2018), - sorting unit, - Calibration unit: Stotz, control: Siemens - HMI, - Work cell: Eagle AMZ, with workpiece tray, - position check, - exit conveyor belt, - Control cabinet, with cooling unit: Rittal - coolant device, - Automation unit: AMZ, The machine is in very good condition. For additional equipment information p ...
used
Key data: 3000 mm, 32
1 CNC Gear Milling Machine Make: Gleason-Pfauter Model No.: P2001/3000 Year of manufacture: 1980 / Retrovit 2000 Largest milling diameter: 3000 mm Largest module: 32 Face plate diameter: 1920 mm Power main drive: 30 kw. max. workpiece weight: 25 tons. Equipment / Accessories: CNC control made by Siemens Internal gear milling head Setting Stick - Counter Holder Workpiece fixtures Interchangeable wheels various milling cutters various cutter mounts Conveyor
used
cone distance (outside): 645 mm max. gear pitch diameter: 650 mm number of teeth: 999 total power requirement: 99 kW weight of the machine ca.: 25 t dimensions of the machine ca.: 3 x 3 x 4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 1200 mm gear width: 1000 mm max. module: 25/36 Modul min. module: 1 Control: Siemens 840 D PowerLine table diameter: 1200 mm table load: 15 t total power requirement: kW weight of the machine ca.: 24 t dimensions of the machine ca.: 6,5 x 4 x 3,75 m Gleason-PFAUTER CNC hobbing machine P 1200 for gear cutting of cylindrical and worm gears worm gears and all other rolling profiles and shapes that regularly occur on the cylindrical workpiece circumference. Remark: Machine designed for external milling, large milling head M3. Machine with counter stand. Scope of equipment: - Basic machine P 1200, Siemens 840D PowerLine (XP) - Motorised milling head M3 - Special speed series motorised milling head M3 - Extended software for fault diagnosis - Main stand - raised 1000mm - Power clamping device - 2 x fume separator make 3nine type EMMA - Chip scraper conveyor - Set of adjust ...
used
max. wheel diameter: 1200 mm gear width: 350 mm max. module: 16 min. module: 0,5 max. workpiece diameter: 1400 mm table diameter: 1200 mm table hole: 300 mm control: Siemens 840D Powerline total power requirement: 75 kW weight of the machine ca.: 24 t dimensions of the machine ca.: 5x3x3,8 m Gleason-PFAUTER CNC gear shaping machine P 1200 S for the production of internally and externally cylindrical gears with internal and external teeth and other rolling profiles and moulds profiles and moulds that regularly occur on the cylindrical workpiece circumference and for the production of profiles in the single part process. Special version with hydraulic shaping head H1 SCOPE OF EQUIPMENT: - Basic machine P1200S, Siemens 840D Powerline (XP) - Hydraulic shaping head H1 - Signal light (3-colour) - Extended software for fault diagnosis - Telephone diagnosis system - Chip disposal through table b ...
used
max. wheel diameter: 130 mm gear width: 25 mm max. module: 4 min. module: 0,5 Control: Siemens 840 D strokes - infinitely variable: 500-2500 Hub/min stroke: 30 mm work-spindle diameter: 85 mm total power requirement: 49 kW weight of the machine ca.: 11,5 t dimensions of the machine ca.: 6,4x4,5x4,4 m Counterhold without center hydraulically operated counter arm and Linear guides. For automatic ring loader, with 4 stations The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Max working diameter 660,4 mm Module max 16,9 Working width 106,7 mm Min. max no. of teeth 20 - 75 Machine weight 17700 Kg Equipped with Indexing discs Cutter heads Gauge Blade setting device
used
max. wheel diameter: 2400 mm gear width: 600 mm max. module: 30 Control: Sinumerik 840 D workpiece external diameter max.: 3400 rim strength max.: 500 radial slide travel: 1050 mm axial slide travel: 1600 mm swivelling range milling head: +- 15 ° table diameter: 1870 mm table hole: diameter: 600 mm depth: 875 mm table load capacity - central/maximum: 30000 kg workpiece: tip circle diameter: 440 mm root circle dia. min.: 310 mm cutter width - max.: 120 mm total power requirement: 100 kW weight of the machine ca.: 37,5 t dimensions of the machine ca.: 12,3 x 5,6 x 4,4 m machine can be used only for internal gears - dry cutting type Equipment/accessories: - column increased - internal head IKF2 - big clamping table - documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 1200 mm gear width: 1000 mm max. module: 25/36 min. module: 1 Control: Siemens 840 D table load: 15 t total power requirement: 75 kW weight of the machine ca.: 24 t dimensions of the machine ca.: 6,5x4x3,75 m Gleason-PFAUTER CNC hobbing machine P 1200 for gear cutting of cylindrical and worm gears worm gears and all other rolling profiles and shapes that regularly occur on the cylindrical workpiece circumference. Remark: Machine designed for external milling, large milling head M3. Machine with counter stand. Scope of equipment: - Basic machine P 1200, Siemens 840D PowerLine (XP) - Motorised milling head M3 - Special speed series motorised milling head M3 - Extended software for fault diagnosis - Main stand - raised 1000mm - 2 x fume separator make 3nine type EMMA - Chip scraper conveyor - Set of adjusting wedges - Dialogue program Milling in single-part process - Sw ...
used
Description: Gleason Pfauter hobbing and shaping machine combined Control Siemens 840C axes/spindles of the milling unit: X Radial Y tangential Z = Axial A = Swivel S = Milling cutter C = Table Cutter speeds: 125 - 1250 Table speeds: 0 - 1000 X-axis max. axis speed: 6000 mm/min Y-axis max. axis speed: 5000 mm/min Z-axis max. axis speed: 6000 mm/min A-axis max. axis speed: 500 degrees/min Axes/spindle of the slotting unit: X Radial 10000MM/1' MAX. Z Axial 3000MM/1' MAX. C table. 1000 revolutions B rotation knife 30 revolutions S 500÷2500 BATT./1' A 500+2500 separation W tilt 30° shock unit can be swiveled Machine ist already dismantled! Dimensions of the Gleason Pfauter: LxWxH in meters Basic machine: 4 x2.3 x2.95 Control cabinet: 2.5 x 0.6 x 2.3 Gripper: 3.5 x 1 x 2.9 Suction: 1.2 x 1.3 x 2 Hydraulics: 1.3 x 1 x 1.4 Portal: 4 x 1.5 x 1.6 control: Siemens 840 C, weight approx.: 15,0 ...
used
max. wheel diameter: 1200 mm profile depth: 80 mm radial slide travel: 770 mm tangential adjustment: 300 mm maximum axial offset: 1000 mm pivoting angle: +/- 45 Grad table diameter: 800 mm table hole: 182 mm spindle turning speed - stepless: 1200 - 8000 U/min table turning speeds: 0 - 10 U/min control: Siemens 840D total power requirement: 80 kVA weight of the machine ca.: 18 t dimensions of the machine ca.: 7,9 x 7,4 x 4,0 m Top condition, DIN 3 quality! Onboeard measuring system, filtering system. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 1600 mm gear width: 700 mm max. module: 25 min. module: 2 x-axis: 875 mm z-axis: 1000 mm control: Siemens 840 C weight: 38 t milling arbors: HSK-B160 table load: 15 to t arbor support: 900 verfahrbar total power requirement: 100 kW weight of the machine ca.: 27 t dimensions of the machine ca.: 7,9 x 7,4 x 4,0 m Sonderfräskopf M2 - Max Fräserdurchmesser 350 mm - Max Fräserlänge 375 mm - Max Fräserverschiebung 300 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
workpiece dia.: 100 mm Control: Siemens 840D weight of the machine ca.: 5 t Worm milling head with toothed belt drive. With infinitely variable high-performance drive and maintenance-free bearing. Spindle with hollow shank taper for holding milling arbor with counter bearing. - Workpiece spindle with direct and maintenance-free drive. Equipment: - CNC Siemens 840D - Cooling tank - chip conveyor Product data : - Diameter : 100 mm - Nominal module hobbing : approx. 3.0 mm Endless screw milling : approx. 5.0 mm - Max. axial movement : 320 mm - Cutting head orientation : -45 / + 115 ° - Main milling cutter max. diameter : 118 mm - Max. Max. cut-out length of the post cutter : 180 mm - Max. Mill movement ( shifting) : 160 mm - Max. Spindle speed of the workpiece carrier : 3000 t/mm - Min./max. distance between axes : 10/100 mm - Cutting head motor power : 14 kW - Main milling speed : 50-12 ...
used
max. wheel diameter: 1200 mm gear width: ca. 800 mm max. module: 25/35 Control: Simens 840 D PL workpiece diameter: 1200 mm Hobbing approx.: 25 mm tooth form milling approx.: 35 mm axial slide travel: 1000 mm table diameter: 1200 mm table bore diameter: 300 mm table load: 15000 kg total power requirement: 110 kW weight of the machine ca.: 24,5 t dimensions of the machine ca.: 8,1 x 6,2 x 3,8 m Equipment/Accessoires: - Motor milling head M3 special speed series - Colum - increased 1. 000 mm - Clamping device - Dialogue program Milling in single-indexing process” - Telephone diagnostic system - swivelable counter bearing holder - measuring device - machine with counter steady - documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
max. wheel diameter: 1200 mm gear width: 350 mm max. module: 16 control: Sinumerik 840 D max. swing diameter: 1400 mm max. table load: 15000 kg table bore diameter: 300 mm table diameter: 1200 mm total power requirement: 150 kW weight of the machine ca.: 24 t dimensions of the machine ca.: m Workpiece with external gearing Largest modulus (in steel with approx. 600N/mm²) 16 mm - Maximum gear width 350 mm - Largest outside diameter 1. 200 mm Workpiece with internal gearing Largest modulu (in steel with approx. 600N/mm²) 16 mm - Maximum gear width 350 mm - Maximum swing diameter 1. 400 mm - Maximum inner diameter 1. 200 mm Tool - Maximum impeller diameter 260 mm - Stroke length 50 mm – 380 mm Equipment/Accessoires: Special version with hydraulic cutting head H1 workpiece diameter: External gears 1. 200 mm Internal gears 1. 200 mm Largest workpiece swing diameter - without steady rest 1 ...
used
Description: Gleason-PFAUTER CNC Hobbing Machine for Gear Cutting of cylindrical and worm gears up to 2.4 m in diameter. Designed for internal milling Control system SIEMENS Sinumeric 840 D Working area Workpiece nominal diameter: 2000 mm Largest millable diameter: 2400 mm Distance between milling cutter and workpiece axis min./max.: 300 / 1400 mm Axial slide path max.: 1600 mm Radial slide path: 1050 mm Hob cutter length max.: 375 mm Hob cutter diameter max.: 350 mm Milling head Swivelling range: + 30 / -45° Cutter arbour taper: HSK-B160 (hollow shank taper according to DIN 69063) , Max. milling cutter displacement: 300 mm Nominal module hobbing approx.: 20 mm Nominal module tooth form milling approx.: 30 mm Internal milling head IFK2 , Workpiece table Table diameter: 1870 mm Table bore: 600 mm Chip removal through table bore Please take a l ...
used
Description: Gleason-PFAUTER CNC Gear Hobbing Machine for gear cutting of cylindrical and worm gears up to 1.2 m in diameter. , Control system and Machine number Control: SIEMENS Sinumeric 840 D Machine number: 30 190 Working area Workpiece nominal diameter: 1200 mm Axial slide path max.: 1000 mm (special version) Radial slide path: 800 mm Hob cutter length max.: 500 mm Hob cutter diameter max.: 450 mm Milling head Swivelling range: + 30 / -45° Cutter arbour taper: HSK-B160 (hollow shank taper according to DIN 69063) , Max. milling cutter movement: 450 mm Nominal module hobbing approx.: 25 mm Nominal module for tooth form milling approx.: 35 mm Workpiece table Table diameter: 1200 mm Table bore: 300 mm Please take a look at the t echnical data and layout plans in the PDF file . Travel of counterholder: 900 mm, module min./max.: max. 35, control: SI ...
used
Description: Gleason-PFAUTER CNC Gear Hobbing Machine for gear cutting of cylindrical and worm gears up to 1.2 m in diameter. , Control system and Machine number Control: SIEMENS Sinumeric 840 D Machine number: 30 024 Working area Workpiece nominal diameter: 1200 mm Axial slide path max.: 1000 mm (special version) Radial slide path: 800 mm Hob cutter length max.: 500 mm Hob cutter diameter max.: 450 mm Milling head Swivelling range: + 30 / -45° Cutter arbour taper: HSK-B160 (hollow shank taper according to DIN 69063) , Max. milling cutter movement: 450 mm Nominal module hobbing approx.: 25 mm Nominal module for tooth form milling approx.: 35 mm Workpiece table Table diameter: 1200 mm Table bore: 300 mm Please take a look at the t echnical data and layout plans in the PDF file . Travel of counterholder: 900 mm, module min./max.: max. 35, control: SI ...
used
Description: The Gleason-PFAUTER CNC Gear Shaping Machine P 1200 S offers an extensive working range and impressive technical data. With a nominal workpiece diameter of 1,200 mm for external and internal gears and a maximum workpiece diameter of 1,400 mm without a counterholder, it is extremely versatile. Control and Machine Number Control: SIEMENS Sinumerik 840D Machine number: 30 114 Working area Table diameter: 1200 mm Table bore: Ø 300 Workpiece specifications Max. orbital diameter: 1400 mm Nominal workpiece diameter (external and internal toothing): 1200 mm Nominal module max.: 16 mm Toothing width max.: 350 mm Shaping head specifications Max. stroke rate of shaping head: 80 min-1 Please take a look at the t echnical data and layout plans in the PDF file . max. wheel diameter: max. 1400 mm, module min./max.: max. 16, gear width: 350 mm, control: SIEMENS S ...
used
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
