emag karstens used for sale

grinding length:1500 mm weight of the machine ca.:12 t Karstens EMAG H310 Universal Grinding Machine Year of manufacture: 2004 Center distance: 1500 mm Center height: 325 mm Reinforced workpiece spindle, load capacity up to 250 kg Driven C-axis for polygon, thread, and eccentric grinding. 3 individually mounted grinding spindles. Siemens 840D control system

A Karstens cylindrical grinding machine from 1992, which was completely overhauled and modernized in 2014, is available. Center width: 1000mm, center height: 180mm, grinding diameter: 360mm, max. workpiece weight center/flying: 250kg/70kg, grinding wheel diameter: 400mm. Spindle holder: MK4, speed: 450rpm, swivel range: 90°, quill holder: MK4, quill stroke: 45mm, quill force: 600N. Table swivel: 10°, infeed spindle: 80mm, rapid traverse: 50mm, coarse adjustment: 280mm, weight: approx. 3800kg. Including 3x centering points and grinding wheels as good as new. Documentation available. On-site inspection is possible.

A Karstens cylindrical grinding machine with display is available. Center height: 180mm, grinding diameter: 360mm, center width: 650mm, max. workpiece weight flying/between centers: 70kg/250kg. Grinding wheel outer diameter: 400mm, face diameter: 250mm, peripheral speed: 35m/s, speed: 450rpm, mounting cone: MK4, quill diameter: 50mm, fine adjustment: 0.08mm. Machine dimensions X/Y: approx. 3250mm/2150mm, weight: approx. 3600kg. On-site inspection is possible.

grinding diameter: 360 mm grinding length: 650 mm centre height: 180 mm Control: SIEMENS 840 D total power requirement: 15 kW weight of the machine ca.: 9500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: 360 mm grinding length: 1600 mm centre height: 180 mm internal diameter: 0 mm grinding depth: 0 mm swing diameter: 0 mm total power requirement: 40 kW weight of the machine ca.: 10000 kg dimensions of the machine ca.: m K A R S T E N S (Germany) Universal CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3  ...

Digital Grinding diameter 250 mm Grinding length 650 mm Accessories

grinding diameter: 360 mm grinding length: 1000 mm centre height: 180 mm max. workpiece weight between centres: 250 kg total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Maschine mit sehr wenigen Betriebsstunden nach Überholung beim Karstens Fachbetrieb. Zustellsteuerung Jetter Digitalanzeige Innenschleifvorrichtung Reitstock mit Zylindrizitätsfeinverstellung Hydraulische Reitstockpinole Etc... Luftkissenschnellverstellung Schleifspindelstock The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A CNC cylindrical grinding machine Karstens including a coolant system Knoll VRF 150/620 (1997) and an emulsion separator KGH KFM-1200 (2000) is available. Grinding length: 650mm, center height: 190mm, max. grinding diameter: 3800mm, max. workpiece weight between centers/flying: 250kg/100kg, table swivel: +/-12.5°, table feed: 4m/min, machine dimensions X/Y/Z: approx. 3250mm/2150mm/1800mm, weight: approx. 3500kg, control: CNC 20. An inspection on site is possible.

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

GENERAL Project No.: 905398 Quantity: 1 pcs. Manufacturer: EMAG Type: VL 3 Control: Fanuc 18i TB Year of construction: 2001/2022 State of condition: Refurbished machine Layers approx.: 2-3 layers DESCRIPTION TURN circulation diameter over bed cover 210 mm chuck diameter 170 mm speed main spindle 7500 1/min power main spindle at ED 10-40/100% 25/16 kW torque main spindle at ED 10-40/100% 134/85 Nm Spindle diameter in the front bearing Main spindle 80 mm Spindle flange size main spindle size 5 (DIN 55026) Axes on the main spindle unit X/Z Travel in X/Y/Z main spindle unit 400/-/200 mm rapid traverse speed in X/Y/Z main spindle unit 60/-/30 m/min Feed force in X/Y/Z main spindle unit 5000/-/5000 N Direct displacement measuring system main spindle unit X/Z Full clamping cylinder on the main spindle Revolver bottom Number of stations/driven by 12/12 Tool ho ...

- - -: - - - - - - - - -: - - - - - - - - -: - - - - - - Vertical Turning Machine | EMAG - VL2 equipped with a workpiece conveyor belt. The machine is in very good condition. Technical data of the machine will follow soon. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL-2 | VL 2 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

power capacity: - kW tool adaptor: KOMET PKB 200-20-112 total power requirement: - kW weight of the machine ca.: 700 kg dimensions of the machine ca.: 1,6 0,7 1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A CNC vertical turning machine EMAG is available. Workpiece diameter: 100mm, max. workpiece length: 150mm, max. chuck diameter: 160mm, travel X/Z: 650mm/375mm, travel Y: +/-50mm, spindle power: 18kW, torque: 77Nm, speed: 6000rpm, tool stations: 12, rapid traverse: 30m/min. Machine dimensions X/Y/Z: approx. 2500mm/1800mm/2800mm, weight: approx. 4500kg, operating hours: approx. 28487h, spindle hours: 18640h. Including extraction system, 2 axial and 2 radial driven tools, 20x fixed tool holders, 3-jaw chuck, and measuring probe. Documentation available. On-site inspection possible.

- - -: - - - - - - - - -: - - - - - - - - -: - - - - - - Vertical Turning Machine | EMAG - VL2 equipped with a workpiece conveyor belt. The machine is in very good condition. Technical data of the machine will follow soon. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL-2 | VL 2 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bed length: 2790 mm bed width: 2 x 240 mm bed height over floor: - total power requirement: 0 kW weight of the machine ca.: 5,6 t dimensions of the machine ca.: 3,51,61,6 m No. 0302 2-station end trimming machine /cutting and centering machine EMAG, type TEC 2/1000 S SIEMENS System 3 control Working area: diam. 6.3-25 x 180-1000 mm, drive power: 12.5 kW Accessories: Loading gantry, chip conveyor, coolant device, internal coolant supply for station 1. coolant supply for station 1. The machine is equipped with 4 spindles, which are steplessly infinitely variable from 500-5000 rpm via separate DC motors. adjustable. Processing options: Grooving, peeling, turning, drilling (thread), thread chasing, chamfering, countersinking. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter:200 mm weight of the machine ca.:15 t Distance between tips:832,5 mm turning length:380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers

turning diameter:200 mm swing diameter:260 mm turning height:60 mm

turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!

turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!

Inv. Num. : 7575 Type: VL7 Produzent: Emag Erzeugt: 2010, GO 2012 Parametern: Steuerungssystem: Fanuc 32i TB Max. Drehdurchmesser: 420 mm Maximale Drehzahl der Spindel: 3400 1/min Verfahrwege X: 850 mm Verfahrwege Z: 315 mm Spannfuttergröße: 400 Länge: 5250 mm Breite: 3500 mm Höhe: 3500 mm Gewicht: 9000 kg Ausstattung: Kühlung Späneförderer Angetriebene Werkzeuge Messsonde

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control Other WEISS CNC Tip width [mm] 650 General: Control WEISS CNC Center width 650 mm Center height 200 mm Grinding wheel dimensions 400x60 mm + 500x60 mm Workpiece headstock: Speed 10 -650 rpm Workpiece weight max. 250 (100) kg Grinding diameter max. 390 mm

CNC vertical lathe Type: VL 5i F Manufacturer: Emag Year: 2016 number of axes : 2 max clearance diameter : 250 mm max part diameter : 220 mm machining height : 175 mm strokes (X/Z) : 660 / 300 mm quick feed (X/Z) : 60 / 30 m/min turret number of positions : 12 tool-holder : VDI40 spindle power : 28 /18 kW speed : 0 to 4.500 rpm index precision C axis : 0,001° part magazine capacity diameter 30 to 85 mm : 37 pos.,max 4.5 kg part magazine capacity diameter 30 to 160 mm : 22 pos.,max 8 kg part magazine capacity diameter 80 to 220 mm : 16 pos.,max 10 kg part height max : 175 mm voltage : 400 V installed power : 36 kW dimensions floor space: 2266 x 4184 mm height : 3200 mm weight : 7.500 kg Chip conveyor Machine in good condition, under power Find more here - / Contact us at -

Manufacturer: EMAG Model: VL 3 mLT Year of Manufacture: 2004 Type of Machine: Vertical Turning Lathe Data of VL3: - Lifetool available for powered tools - Interface for automation - additional inputs and outputs / M-functions - Shuttle operation - Machine was never driven wet (always dry) Electrical Specifications: - Working Voltage: 400/480 V - Control Voltage (General and Valves): 24 VDC - Frequency: 50/60 Hz - Current Supply: 3 AC - Rated Power: 31 kW - Rated Current: 48.40 A - Supply Fuse: 50 A Physical Specifications: - Total Weight: 5500 kg Find more here - / Contact us at -

Manufacturer: EMAG Model: VL 3 HW mLLT Year of Manufacture: 2008 Data of VL3: - Lifetool available for powered tools - Interface for automation - additional inputs and outputs / M-functions - Shuttle operation - Machine was never driven wet (always dry) Electrical Specifications: Current Supply: 3 AC Frequency: 50/60 Hz Working Voltage: 400/480 V Control Voltage - General: 24 VDC Control Voltage - Valves: 24 VDC Connection Value: 38 kW Rated Current: 58 A Supply Fuse: 80 A Physical Specifications: Total Weight: 5500 kg Find more here - / Contact us at -

An EMAG CNC vertical lathe is available. Chuck diameter: 250mm, orbital diameter: 260mm, travel X/Z: 570mm/200mm, rapid traverse X/Z: 60m/30m/min, feed force X/Z: 5kN, ball screw diameter X/Z: 40mm, spindle bearing diameter front: 110mm, speed: 4500rpm, power: 18/28kW, shank diameter: 40mm, power of driven tools: 12kW, speed: 6000rpm. Machine dimensions X/Y/Z: approx. 2700mm/2100mm/2400mm, weight: approx. 7000kg, switch-on time: 50416h, automatic time: 9016h. Documentation available. On-site inspection is possible.

Two identical Emag CNC machining centers including a chip conveyor, coolant tank, various holders, jaws and a new AGW are available. Chuck diameter: 200mm, max. circulation diameter: 290mm, max. workpiece length: 140mm, speed: 6000rpm, power: 34kW, torque: 480Nm. Travel X/Z: 550mm/200mm, rapid traverse X/Y: 30m/20m/min, feed force X/Z: 11kN. Tool positions: 12, drive tool power: 7.8kW. Machine dimensions X/Y/Z: approx. 2700mm/1150mm/2800mm, weight: approx. 6500kg. Documentation available. On-site inspection is possible.

turning diameter: 250 mm turning length: 100 mm control: SIEMENS 840 D total power requirement: 35 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m E M A G (Germany) Vertical CNC Controlled Hard Turning and Grinding machine with tool turret and workpiece handling System Model VSC 250 DS Year 2004 # M7 28.69324 _______________________________________________________ Turning Ø, max. 250 mm Turning length internal / external 100 mm Workpiece length min./max. 29 – 100 mm 6-positon tool turret Ø / swing-Ø 480/790 mm Workpiece spindle Slide travel, X / Z / stroke 680 / 400 / 200 mm Feed rate / Quick feed X/Z 45/30 m/min. Feed force X/Z 5,5/11 kN Spindle speed 4.300 / 6.000 rpm Spindle drive 28 kW Total electrical load, ...

Packing: ca. 2 1,25 2,3 m Shipping weight: ca. 500 kg floor space for switchgear cabinat: ca. 2,2 x 2,5 m switchgear cabinet: 2 teilig/Rücken an Rücken Content div. SIEMENS + INDRAMAT assemblies see PHOTOS The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning speeds: 6000 U/min x-axis: 550 mm z-axis: 200 mm rapid traverse: 30/20 m/min feed: 11 m/min control: Siemens 840 C total power requirement: 35 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: m - speeds: [1/min.] : 6.000 - torque [Nm]: 480 - swing diam.: 290 mm - power: [kW] 34 - chuck diam. 200 mm - turret: 12-fach, VDI 40, Sauter - driven tools 7,8 KW, - x -travel: 550 mm - z- travel: 200 mm - rapid travel: (X/Z) [m/min] 30 / 20 - feeds: (X/Z) [m/min.] 11 KN - connected load: [KW] 36 kW - machineweight: [kg] 6.500 - chip conveyor, pick up conveyor links,300mm wide, Auswurfhöhe 800mm - Messsystem direkt-linear, Glasmaßstäbe in allen Achsen, Heidenhain - parts conveyor for feeding parts into the machine - Specification: - Overhauled in 2007 for approx. €50,000, complete headstock replaced. - Feed unit replaced The data for this ad was created with ModulMW ...

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.

turning diameter: 400 mm swing diameter: 420 mm x-travel: 850 mm z-travel: 315 mm spindle head DIN 55026 - Size: 11 spindle bearing diameter: 140 mm turning speeds: max. 4000 U/min tool turret 12 times: C5 Capto rapid traverse x + z axis: 45 / 30 m/min feeding force: 11 kN total power requirement: 58 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 9,5 x 4,5 x 3 m Hard turning Dry machining Chip conveyor Promot Portal and Cellmaster No clamping device available No tools available no Cellmaster accessories available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

length: 2000 mm width: 1000 mm height over floor: 1000 mm total power requirement: 0 kW weight of the machine ca.: 600 kg dimensions of the machine ca.: 31,51,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8680 Type: VSC 250 DS Producer: Emag Created: 2007 Parameters: Control system: Siemens 840 SL Table diameter: 260 mm Feed length X-axis: 680 mm Feed length Z-axis: 200 mm Maximum turning length: 100 mm Max. turning diameter: 250 mm Maximum workpiece weight: 40 kg Motor power: 35 kW Length: 3800 mm Width: 2100 mm Height: 2400 mm Weight: 7500 kg Equipment: Chip conveyor

Inv. Num. : 8679 Type: VL 5S Producer: Emag Created: 2007 Parameters: Control system: Siemens 840 SL Feed length X-axis: 570 mm Feed length Z-axis: 200 mm Max. turning diameter: 220 mm Maximum workpiece weight: 120 kg Maximum spindle speed: 4500 1/min Max. workpiece height: 110 mm Weight: 6500 kg Equipment: Turret with Leiftool drive Chip conveyor

The following used CNC vertical lathe EMAG VL2 is for sale. Manufacturer: EMAG Type: VL2 Year of Make: 2014 Weight: 6000 kg Description: It is a reliable EMAG VL2 CNC vertical lathe, ideal for precision machining of small and medium-sized parts. The machine is in good technical condition, has been regularly serviced and is ready for immediate use. The machine is suitable for both one-off and series production.

Offered is a high-voltage switchgear device ZK8 System Calor Emag from Peters & Thieding. Year of construction 1994, standard series VDE 0670 (IEC 62271), rated voltage 24.2kV, insulation level 50/125kV, rated frequency 50Hz, operating current 630A, short-time withstand current 20kA, short-circuit duration 1s. Viewing is possible by arrangement.

A high-performance planetary gear production line EMAG including automation and peripheral equipment is available. 1) Raw parts storage (stacker) EMAG. 2) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 3) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 4) Vertical hobbing machine EMAG VLC200H, max. workpiece diameter: 200mm, max. module: 4, travel X/Y/Z: 790mm/120mm/ ...

A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible.

grinding diameter: 390 mm grinding length: 650 mm centre height: 200 mm workpiece weight: max. 250 kg x-axis: 380 mm z-axis: 1150 mm sanding disc diameter: 400 mm peripheral speed: 20-50 m/sec workpiece spindle stepless: 1 - 650 U/min tailstock quill taper MT: 4 quill stroke: 45 mm dia. of quill: 50 mm total power requirement: 22 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

chuck diameter: 500 mm swing diameter over bed slide: 700 mm control: Siemens travel -x axis: 630 mm travel -z axis: 500 mm CNC turning and milling center vertical | EMAG - VMC 450 MT The machine is in very good condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VMC450MT | VMC 450MT | VMC-450 | VMC-450MT The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-axis: mm y-axis: mm z-axis: mm turning diameter: mm control: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 220 mm Control: GE Fanuc 18i-TB x-travel: 400 mm z-travel: 450 mm tool taper: VDI 40 number of tool places: 12 Pos. spindle tunring speed: 6.000 U/min Number of working hours: 10741 h work stroke: 150 mm X-Achse EMAG VL5 vertical lathe, built in 2003, very good condition, ready for use, but currently not in operation. Accessories: Extraction system 9 tool holders, 4 of which are driven tools 1 pallet Various workpiece carriers The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This HARDINGE EMAG VL 5 was manufactured in 2001. It features a Fanuc Series 21i-T control, a chuck diameter of 260 mm, and a maximum turning diameter of 220 mm. The spindle can reach speeds up to 4,500 rpm, and it includes a 12-piece automatic tool changer. Ideal for precise vertical turning operations. Contact us for more information.

grinding diameter: 390 mm grinding length: 650 mm centre height: 200 mm total power requirement: 46 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 3x3x2,4 m Universal cylindrical grinding – Type WUG21 (W27) Grinding length 650 mm EMAG Weiss stands for high-end technology in universal cylindrical grinding between centres. With its CNC-controlled WUG 21 machines, EMAG Weiss offers the right solution for virtually every user. --> Technical data Max. grinding length: 650 mm --> Centre height: 200 mm --> External grinding diameter: 1 – 390 mm --> Max. weight flying MK4: 100 kg --> Max. workpiece weight between centres: 250 kg --> Feed: --> X-axis travel: 480 mm --> Z-axis travel: 1.150 mm --> Workpiece headstock --> Tailstock --> Grinding spindle headstock --> Coolant device, manufacturer HYFRA, --> Belt filter, manufacturer Knoll, type KF 200 - year of manufacture 2012 ...

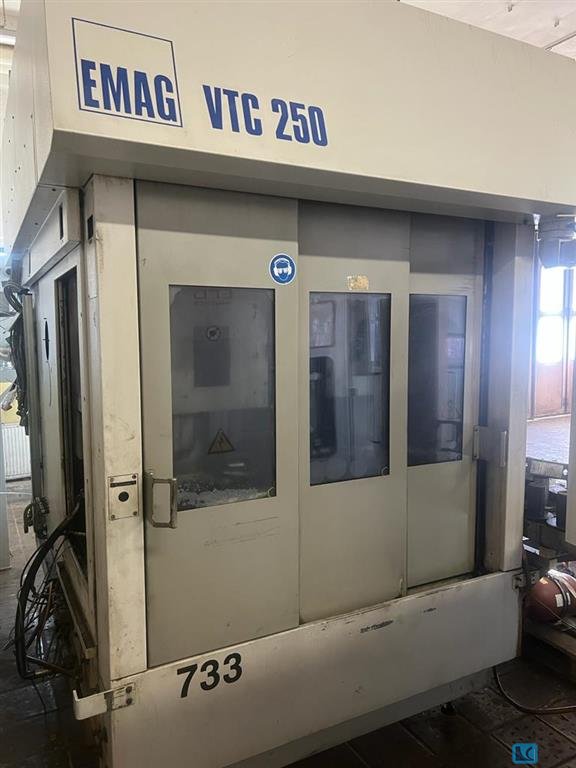

This EMAG VTC 250 Twin was manufactured in 2015. A robust vertical turning machine featuring a MINERALIT base, it handles workpieces up to 140 mm in diameter and 630 mm in length, weighing up to 20 kg. Integrated with an EMAG pick-up system and dual turrets, each with 11 tool stations. Maximum spindle speed reaches 5000 rpm, driven by a 29 kW power unit. Contact us for more information about this machine.

control: Fanuc 31/32 i : 2 chucking diameter: 170 mm swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm length: 2500 mm width: 1900 mm height: 2300 mm weight: 5500 kg turning height: mm turning diameter: mm swing diameter: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 28kW at 40% duty cycle, its ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us.
