elha used for sale

bore capacity in steel (diameter): 60 mm arm length: 1600 mm workpiece height max.: ca. 1300 mm borehole diameter: in Stahl 80 mm borehole diameter: in Guss 100 mm threading in St 60: M55 mm spindle turning speed range: 29-1.450 U/min Spindle Speed: 12 Stück boring spindle: 100 mm morse taper: MK5 spindle stroke: 350 mm total power requirement: 7,5 kW weight of the machine ca.: 4.600 kg dimensions of the machine ca.: 2600x1100x3200 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 50 mm bore capacity in cast iron GG 20: 70 mm arm length: 2000 mm morse taper: MK 5 Spindle Speed: 28-1.250 U/min. spindle stroke: 330 mm total power requirement: 8 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 80 mm arm length: 2000 mm workpiece height max.: ca. 1300 mm borehole diameter: in Stahl 80 mm borehole diameter: in Guss 100 mm threading in St 60: M 68 mm spindle turning speed range: 16 - 1250 U/min Spindle Speed: 32 Stück spindle bore diameter / taper: 110 mm / MK 5 spindle stroke: 550 mm number of feeds: 18 feed: 0,06 - 3,0 mm/U distance spindle/base plate: 480 bis 1800 mm column diameter: 500 mm spindle drive: 11 kW stroke drive: 4 kW total power requirement: 15 kW weight of the machine ca.: 8500 kg base area: 3190 x 1250 x 3600 mm with work table 1200 x 1200 x 720 mm, weight approx. 800 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pos. 1.0 Precision Rotary Table Make EIMELDINGEN with aerostatic axial bearing Specifications Table diameter 3,400 mm Total height approx. 1,230 mm Centering bore Ø 250H7X 25 mm Permissible transport load 20,000 kg Holding torque of the table clamping 2,400 daNm Table speed 0.002 – 2 min Net weight approx. 22,000 kg Operating voltage 380 V, 50 Hz. 3 phases Control voltage 24V Positioning accuracy (without control errors) ± 1" Plan accuracy 0.02 mm Axial running accuracy 0.01 mm Concentricity deviation of the centering bore 0.01 mm Resolution of the displacement measuring systems 0.0001° Pos. 2.0 3-Axis Cross Bed Boring Mill Specifications Column stroke transverse "X" 500 mm Carriage stroke horizontal "Z" 650 mm Spindle box vertical "Y" 800 mm Rapid traverse speed Y + Z 8,000 mm/min Feed speed (infinitely adjustable) 0-1000 mm/min  ...

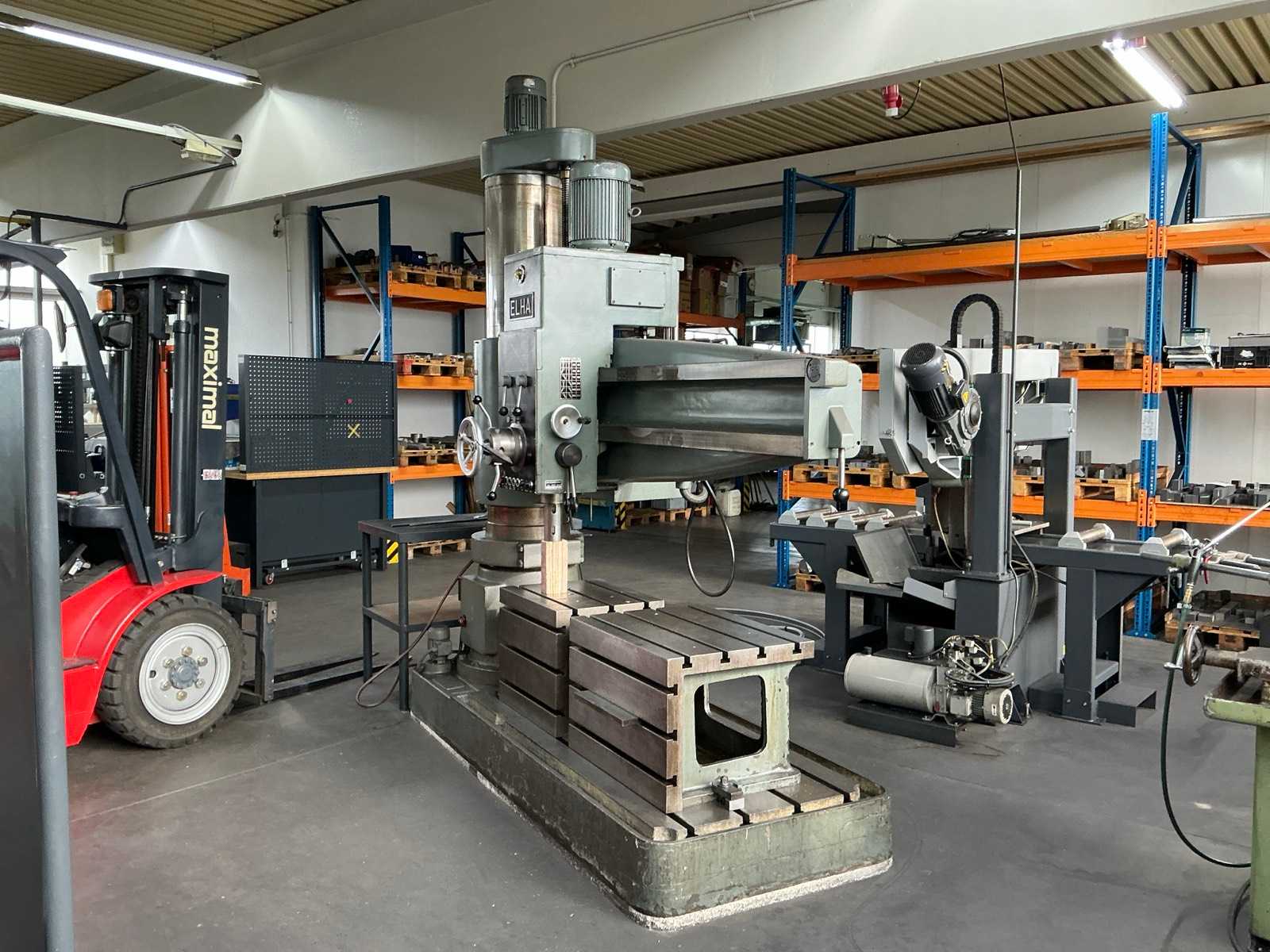

Technical data ELHA R55 Radial Drilling Machine Manufacturer: ELHA Year of Make: 1971 Serial number: 10/605 Drilling capacity steel: 55 mm Drilling capacity cast iron: 70 mm Boring capacity: 85 mm 12 RPMs Speed range: 28 – 1250 rpm 8 feeds Feed range: 0.1 – 1.12 mm/rev Morse Taper MK5 Drilling spindle stroke: 330 mm Drilling motor: 4 / 5 kW Projection: 450 – 1800 mm Bohradius: 650 – 2000 mm Column diameter: 400 mm Table work surface: 600 × 750 mm Base plate area: 1840 × 1000 mm Machine height: approx. 3100 mm Net weight: approx. 5500 kg Configuration Coolant Setup Automatic threading Universal Drilling Table Cubic Drilling Table Quick-change chuck Special base plates Optional electrical equipment Instruction manual available

Technical data ELHA R55 Radial Drilling Machine Manufacturer: ELHA Year of Make: 1971 Serial number: 10/605 Drilling capacity steel: 55 mm Drilling capacity cast iron: 70 mm Boring capacity: 85 mm 12 RPMs Speed range: 28 – 1250 rpm 8 feeds Feed range: 0.1 – 1.12 mm/rev Morse Taper MK5 Drilling spindle stroke: 330 mm Drilling motor: 4 / 5 kW Projection: 450 – 1800 mm Bohradius: 650 – 2000 mm Column diameter: 400 mm Table work surface: 600 × 750 mm Base plate area: 1840 × 1000 mm Machine height: approx. 3100 mm Net weight: approx. 5500 kg Configuration Coolant Setup Automatic threading Universal Drilling Table Cubic Drilling Table Quick-change chuck Special base plates Optional electrical equipment Instruction manual available Auction-ID: A7-46939-55
