edm wire used for sale

AGIE AGIECUT PROGRESS 2 Wire EDM machine Workpiece height: approx. 250 mm Workpiece weight: approx. 400–500 kg Table size: approx. 600 x 400 mm Supply voltage 3 × 400 V, frequency 50 Hz, power 12.1 kVA, rated current 17.5 A, short-circuit current 10 kA. Wire EDM technology, automatic wire feed, hydraulic systems, robust construction. Control panel, emergency stop, sensor monitoring.

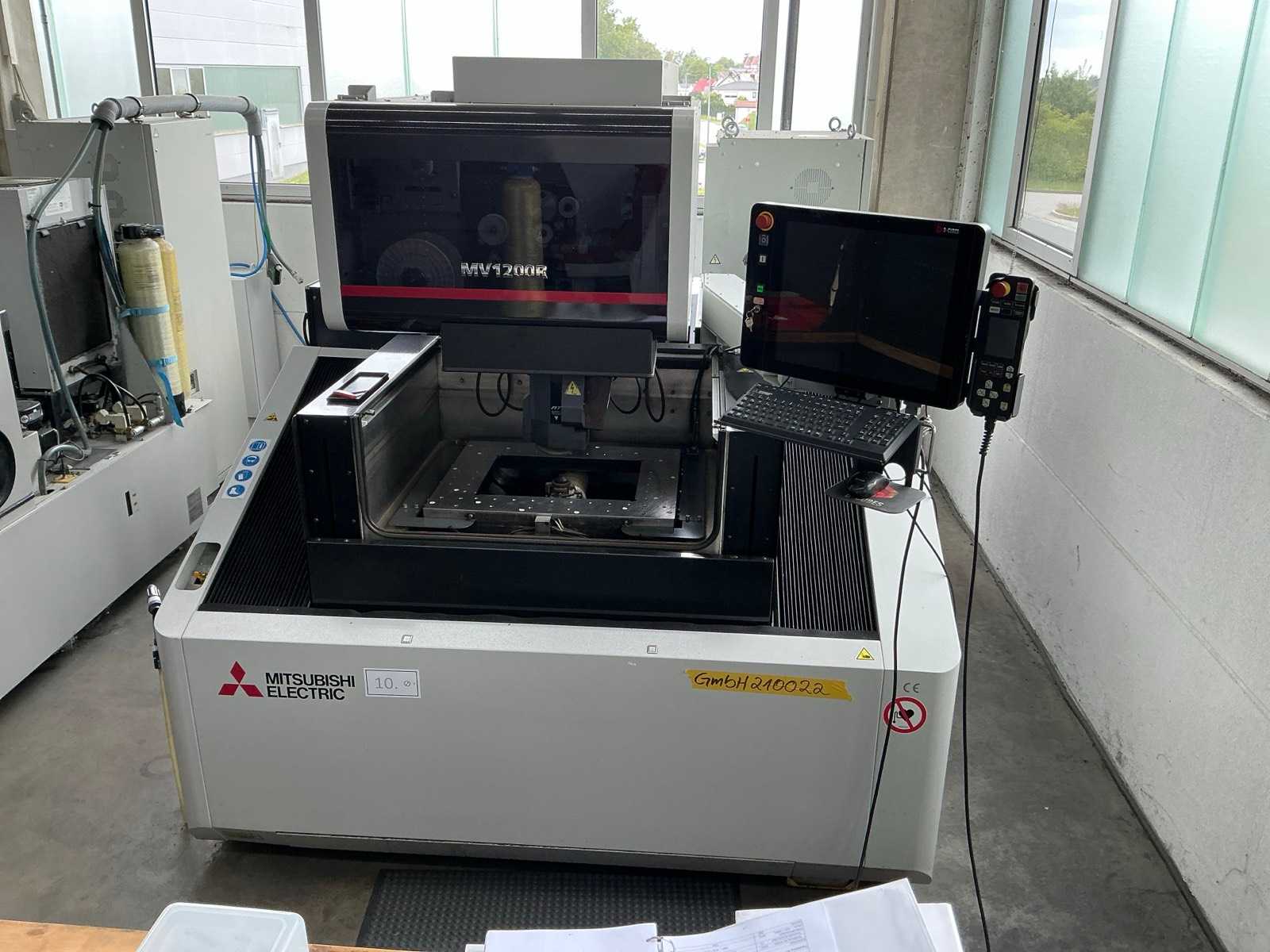

This Mitsubishi MV1200S wire EDM machine was manufactured in 2017. It features an X-axis travel of 400 mm, Y-axis travel of 300 mm, and Z-axis travel of 220 mm. The machine is equipped with automatic wire threading and the Mitsubishi D-CUBES control system, ensuring efficient and stable production. If you are looking to get high-quality wire EDM capabilities, consider the Mitsubishi MV1200S machine we have for sale. Contact us for further details.

This 5-axis Mitsubishi FA20 wire EDM machine was manufactured in 2004. It features an X-axis travel of 500 mm, Y-axis travel of 350 mm, and Z-axis travel of 300 mm. The machine can handle workpieces up to 1050 mm x 800 mm x 295 mm and has a maximum workpiece weight of 1500 kg. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi FA20 wire EDM machine we have for sale. Contact us for further details.

CONTROLS   CNC controls WORKING RANGE -WIRE CUTTING-   worpiece length max.: 1050 mm   worpiece width (max): 650 mm   workpiece height (max): 420 mm   X-axis travel: 500 mm   Y-axis travel: 350 mm   z-axis travel (vertical): 426 mm   conical operation for max.: 30 °   U-axis travel: 140 mm   V-axis travel: 140 mm WIRE SYSTEM   wire diameter (min): 0.15 mm   wire diameter (max): 0.33 mm ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1940 mm   space requirements -front/back-: 2300 mm   total height: 2600 mm   total weight approx.: 4200 kg Features: Automatic wire threading and rethreading Water bath machine (fully immersed processing possible) AGIE Jogger hand box (operating unit) Travel: Up/Down ±70 mm

Wire EDM System GF AgieCharmilles CUT 2000 with loading robot (WorkPartner) General Information Machine type: CNC wire EDM machine with automation Model: CUT 2000 Automation: GF WorkPartner loading robot Control: Vision 5 (Windows XP) Generator: AGIE IPG-V high-performance generator Operating Hours Power On:  91,716 h Work On: 17,889 h Working Area / Travels X-axis: 350 mm Y-axis: 250 mm Z-axis: 256 mm U/V Axes Travel: ±70 mm Workpiece Data Max. workpiece size (W × D × H): 750 × 550 × 250 mm Max. workpiece weight: 200 kg (standard), 400 kg (optional / bath load) Working table: 700 × 450 mm Machining Parameters Taper: 30° at 100 mm workpiece height Available wire diameters: 0.10 – 0.30 mm Best achievable surface finish: Ra 0.05 µm Wire threading: automatic Dielectric System Dielectric capacity: 700 liters Flushing: coaxial flushing system Cooling: external cooling ...

wire EDM machine, year 2016, CNC Schermo TFT 19 pollici, sistema operativo Windows 7. Used machine. More info & price on IndustrialBuyer.

wire EDM machine, year 2015, CNC Schermo TFT 19 pollici, sistema operativo Windows 7. Used machine. More info & price on IndustrialBuyer.

X-axis: 570mm, Y-axis: 370mm, Z-axis: 350mm, working area dimensions: 1050x720mm, U/V-axes: 120x120mm, taper angle: ±20°, max. workpiece dimensions: 770x520x340mm, max. workpiece weight: 1t, wire diameter: 0.15-0.3mm, wire tension: 3-23N, max. wire feed: 420mm/s, floor-to-table distance: 995mm, dielectric tank external dimensions: 725x2550mm, weight empty: 600kg, capacity: 800l, connected load: 15kVA, control: Sodick LQ33W, length: 2600mm, width: 2740mm, height: 2390mm, machine footprint: 3700x3900mm, machine weight: 4.6t, cutting time: 13,775h, machine-on time: 62,484h, with Super-Pika, wire chopper, SMS box with wall-mounted enclosure, an on-site inspection is possible.

Technical details Manufacturer: AGIE Model: AGIECUT 200 Control system: AGIEMATIC-C Type: CNC wire EDM machine Configuration: - CNC wire electrical discharge machining system - Dielectric work tank - Automatic wire feed system - Wire handling mechanism - AGIEMATIC-C CNC control cabinet - Separate electrical cabinet - Enclosed machining area Application: - Precision machining of electrically conductive materials - Tool and die manufacturing - Mould production - Precision profile cutting Construction: - CNC-controlled wire EDM technology - Integrated dielectric tank - Automatic wire transport system Dimensions: - Length: Approx. 2600 mm - Width: Approx. 2200 mm - Height: Approx. 2450 mm Weight: Approx. 3900 kg Condition: Used Observed condition: - Machine structure appears complete - Original AGIEMATIC-C control cabinet installed - Working tank intact - Col ...

Technical details Manufacturer: AGIE Model: AGIECUT 200 Control system: AGIE CNC100 Type: CNC wire EDM machine Configuration: - CNC wire electrical discharge machining system - Dielectric working tank - Automatic wire feed system - Wire transport reels - Upper wire guide assembly - Flushing system with flow meters and pressure gauge - Hand pendant - Separate axis display - AGIE CNC control cabinet Application: - Precision machining of conductive materials - Tool and die manufacturing - Mould production - Precision component manufacturing - Profile cutting Construction: - CNC-controlled wire EDM technology - Integrated dielectric tank - Automatic wire transport system Dimensions: - Length: Approx. 2600 mm - Width: Approx. 2200 mm - Height: Approx. 2400 mm Weight: Approx. 3800 kg Condition: Used Observed condition: - Machine appears mechanically complete - ...

General Description CNC sinker electrical discharge machine (EDM) manufactured by AGIE , equipped with an AGIEMATIC 4 CNC control and AGIEPULS pulse generator. Designed for precision machining of conductive materials using shaped electrodes, making it suitable for toolmaking, die manufacturing and precision component production. Technical Details Manufacturer: AGIE Model: Agiematic 4 Machine type: CNC sinker EDM Control: AGIEMATIC 4 Pulse generator: AGIEPULS ELESTA X/Y/Z digital axis display CRT operator terminal Dielectric work tank Dielectric filtration and circulation system Separate generator and electrical cabinets Integrated Z-axis ram head Condition Used industrial condition. The machine appears complete with AGIEMATIC 4 control, AGIEPULS generator, dielectric filtration system, work tank and electrical cabinets installed. Electronics show normal age-related we ...

General Description CNC wire electrical discharge machine (Wire EDM) manufactured by AGIE , model AGIECUT 200 . Designed for precision cutting of conductive materials using a continuously fed wire electrode, making it suitable for toolmaking, die manufacturing and precision component production. Technical Details Manufacturer: AGIE Model: AGIECUT 200 Machine type: CNC Wire EDM machine Control system: Agiematic-C Work tank Complete wire head Automatic wire feed system Dielectric tank Filtration and pump unit Hand pendant Condition Used industrial condition. The machine appears complete with Agiematic-C control, wire head, dielectric system, filtration unit and hand pendant. Operational status, axis accuracy and EDM performance have not been tested. Auction-ID: A7-50745-38

FANUC ROBOCUT α-C800iB Wire EDM Machine Technical Specifications: Max. Workpiece Dimensions: 1,250 × 975 × 300 mm Max. Workpiece Weight: 3,000 kg Wire Diameter: 0.10–0.30 mm Max. Taper Angle: ±30° / 150 mm Max. Wire Spool Weight: 16 kg

wire EDM machine, year 2015, 17190 operating hours, CNC Mitsubishi Electric, schermo a colori con tastiera e telecomando portatile. Used machine. More info & price on IndustrialBuyer.

Charmilles Robofil 510 Wire EDM & Eroding Machine Type: Wire EDM and eroding machine Manufacturer: Charmilles Model: Robofil 510 Year of manufacture: 1995 Workpiece weight max.: 300 kg Electric connection: 380 V Approx. machine weight: 3350 kg Table dimensions: approx. 700 x 500 mm Maximum workpiece height: approx. 310 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-68

wire EDM machine, year 2019, CNC 31i-WB. Used machine. More info & price on IndustrialBuyer.

wire EDM machine, year 2005. Used machine. More info & price on IndustrialBuyer.

Fanuc Tape Cut Model WO CNC Wire EDM Machine Manufacturer: Fanuc Ltd. Model: Tape Cut Model WO Type: A04B-0248-B042 Equipment type: CNC Wire EDM Machine Year: 1991 Serial number: P918W0443 Country of manufacture: Japan CNC wire electrical discharge machining (Wire EDM) machine designed for precision cutting of electrically conductive materials using a continuously fed wire electrode. Technical specifications: X-axis travel: 200 mm Y-axis travel: 350 mm Z-axis travel: 160 mm Connected load: 9 kVA Electrical supply: 200–550 V, 50/60 Hz Equipment / features: Fanuc CNC control Automatic wire-feed system Wire tension/feed equipment Dielectric / flushing system Enclosed machining tank and work area Operator control panel Approx. dimensions (L × W × H): 1,800 × 1,600 × 2,000 mm Approx. weight: 1,800 kg Condition: Used. Main machine, CNC control, ...

Type: A04B-0312-B001#E5. Power: 13 KVA. Auction-ID: A1-51529-18

Type: A04B-0309-B001/E5. Power: 13 KVA. Auction-ID: A1-51529-19

Layer-reeled solid wire for welding under inert gas in all positions. Shielding gas types: Ar, CO2 / Ar, CO2, O2 / CO2. Welding wire roll MAG wire electrode, unused, original shrink-wrapped in foil, ovp in cardboard! 15kg 1.2mm Manufacturer Union Type A600IG Probably for deposition welding Multiple available. For complete acceptance special price! Special price!

Wire electrode, welding wire, welding wire, flux-cored wire -Welding wire: flux-cored wire, drum with unwinding device -Wire: Aluminum Ø 2.4 mm -Roller: Ø630 x 460 mm -Transport dimensions: 680/640/H690 mm -Weight: 238 kg

Jig

Key data: 2050 , 1150 , 170

Year of manufacture 2001 generator multi pulse - 70 amp + 100 amp booster Control Mitsubishi 32 bit - CNC travel (X, Y, Z) 900 x 1,780 x 550 mm Bowl (W x D x H) 1300 x 2200 x 730 mm workpiece clamping table (B x T) 1150 x 2050 mm accessories 13-fach pick-up linear changer, CO2 fire extinguishing status completely overhauled

AGIE AGIECUT CLASSIC 2S wire EDM machine built in 2004 in Switzerland is used for the production of, among others, precision dies, tools and punches. Workpieces with a maximum weight of 450 kg are machined using electrical erosion, which can achieve complex shapes in even the hardest materials. This process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.33 mm, which is threaded through a special AGIEJET system. The workpieces machined in this way do not require any other secondary processes such as polishing to be undertaken. The AGIECUT CLASSIC V2 wire EDM machine also features an intuitive CNC control with many useful functions. It is possible to purchase the dedicated cooler shown in the photos at an additional cost – price negotiable. The AGIE EDM machine weighs 2580 kg. Technical specifications of the AGIE AGIECUT CLASSIC 2S EDM machi ...

NOVICK AF1300 die-sinking EDM was built in 2012 in China by Novick Digital Equipment Co., Ltd. The machine is used to produce parts with complex geometries that have applications in, among others, aviation and aerospace industries. The machining process is performed by means of electrical erosion, which minimises or completely eliminates the need for other secondary processes, such as polishing. The combination of a full closed-loop control system and dual feedback compression, in turn, guarantees exceptional machining accuracy in even the most demanding applications. The NOVICK AF 1300 sinker EDM weighs 2300 kg. Technical specifications of the NOVICK AF 1300 die-sinking EDM - feed in the X/Y/Z axis: 520/300/300 mm - work table dimensions (L x W): 600 x 400 mm - generator: NOVICK 560F - power: 10 kVA - power supply: 3x 380 V; 50/60 Hz - weight of the NOVICK AF1300 machine: 2300  ...

Key data: 1000 kg, 6800

OPS INGERSOLL GANTRY EAGLE 800 Year of construction 2013 EAGLE Powertec PC/NC Controller 3060 22" screen with touchscreen operation MultiProg Powertec technology programming on PC/NC Powertec Easy Burn Quick Programming Powertec Handheld Multifunctional Handheld Controller Manual EDM with Powertec Handheld EAGLE Powertec - Fine Finishing Generator PT 60, 60 Ampere High Speed Jump max. 18,000 mm/min. Travel (X, Y, Z) 550 x 850 x 450 mm Distance table / electrode chuck min. 135 mm / max. 585 mm Electrode changer 20-fold pick-up disc magazine Work container (W x D x H) 800 x 1,100 x 480 mm Work table (W x D) 760 x 1,000 mm Load capacity 2,000 kg Top load 200 kg Machine dimensions W x D x H 1,436 x 2,940 x 2,730 mm Integrated cartridge filter system Accessories: CO2 fire extinguishing system incl. fire damper Electrode clamping system EROWA ITS ECOTEC Energy Saving Func ...

Key data: 500 mm, 3 0, 3500 kg

Travel X 500 mm / Y 350 MM / Z 300 mm Water bath machine Automatic wire threading incl. radiator

X/Y/Z axis travel (mm):750 x 500 x 400 U/V axis travel (mm):770 x 520 Work tank dimensions (W x D x H, mm):1264 x 973 Max. workpiece weight (kg):1500 Distance from floor to table top (mm):1000 Machine dimensions (W x D x H, mm):2100 x 2860 x 2390 Machine weight (kg):5600

Generator: MGH5 max.travel range: X 800mm Y 500mm Z 400mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 32 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGF2 max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGH max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

Generator: MGH max.travel range: X 800mm Y 500mm Z 400mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 32 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Erow

Generator: MGH5 max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGH max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

Plunge EDM CDM ROVELLA mod. Eldis 3.40 Features: X-axis: 400 mm. Y-axis: 300 mm. Z-axis: 200 mm. Table length: 650 mm. Table width: 400 mm. Weight: 1,400 kg.

Key data: 800 mm, 1900 kg

A favourable price and quality are not a contradiction at Hanst Tec - after all, there is the FORMAXX Z series. Conventional die-sinking EDM systems designed in such a way that their price enables cost-effective hourly rates, while the technology fulfils all the quality criteria that are typical for Hanst Tec: - easy to operate - reliable Traverse paths: X - 500, Y - 400, Z - 350 mm maximum distance Table - working head: 275-625 mm Workpiece load: 1900 kg The machine is in good condition, and available immediately!

Inv. Num. : 7688 Type: 203 F2 Producer: HITACHI Generated: 2000 Parameters: Control System: MARK-10W Max. travel length of the X-axis: 320 mm Max. travel length of the Y-axis: 250 mm Max. travel length of the Z-axis: 170 mm Feed length in U-axis (-): 20 mm Feed length in the V-axis ( -): 20 mm Maximum wire thickness: 0.25 mm Dielectric container capacity: 160 l Max. workpiece dimensions: 450 x 350 x 170 mm Max. workpiece weight: 200 kg Machine height: 1880 mm Machine length: 1525 mm Machine width: 1810 mm Machine weight: 1500 kg

SODICK AG40L die-sinking EDM was built in 2011. This highly efficient machine is used for precision electrical discharge machining of workpieces with a maximum weight of 550 kg, enabling complex shapes to be achieved in even the hardest materials. Furthermore, workpieces machined in this way do not require other secondary processes to be undertaken, such as polishing. The installed CNC control has a useful perfect active control” function for simultaneous control of high-speed electrical discharges and axis movements, using 1 Gbit/s serial communication technology. The SODICK AG40L LN2 sinker EDM is offered with extensive equipment, consisting of, among others, an EROWA measuring probe, a 4-position linear tool changer and tooling. The total weight of the machine is 3900 kg. Technical specifications of the SODICK AG40L die-sinking EDM - feed in X/Y/Z axis: 400/300/270 mm - work ta ...

SODICK AQ325L wire EDM was built in 2002 in Japan by Sodick Co., Ltd. The machine, distinguished by its exceptional precision and reliability, is an excellent choice for the production of parts with complex geometries, i.e. dies, punches and tools. The electrical erosion technology used in the machining process enables difficult shapes to be achieved in even the hardest materials. This method also minimises or completely eliminates the need for other secondary processes, such as polishing. The SODICK AQ325L is designed for machining workpieces with a maximum weight of 450 kg. The machining process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.30 mm. The workhead moves in five axes X,Y,Z,U,V with feeds of 350 mm, 250 mm, 220 mm, 80 mm and 80 mm respectively. The use of a dielectric increases the surface quality and dimensional accuracy of the w ...

The machine is in good technical condition, after prior agreement it is possible to test it. Maximum size of the machined part mm 1330 x 900 x 595 Max. weight of the machined part kg 5000 Axis travel X/Y/Z/U/V mm 800 / 600 / 400 / 150 / 150 Diameter of the wire used mm 0.15-03 Continuously controlled 4 axes X, Y, U, V Drive system using AC servo drives Max. cut cone 22.5 / 100 mm Accuracy class of ball screws rpm C1 - highest Filtration system capacity l Main tank 1630l, secondary tank (Z=600) 1280 l Max. cutting speed mm/min 250 Dielectric conductivity measurement Auto – 5 ~ 200 kW-cm Dielectric temperature measurement Auto with accuracy 1C Power input kVA 15 Machine footprint mm 4350 x 3600 Height mm 2740 Machine weight approx. kg 8500 • Windows CE control system (described above) • vertical leveling device • paper filter 2 pcs • deionization resin - 1st fill • deionizati ...

Machining tank inner dimensions (W x D) 1040×780 mm X,Y,Z Strokes 600,400,270 mm U x V axis stroke 80×80 mm Max. taper angle ± 15° (Thickness: 120 mm)

No tool changer.

Electrode diameter 0.5 to 3mm Travels 300x400x350mm CE certification proves the best possible safety Complete series in above-ground construction Electrodes Ø 0.5-3mm Travel X-axis 300mm Travel Y-axis 400mm Travel Z-axis 350mm Travel W-axis 300mm Speed C-axis 30-60mm/min Rapid traverse Z-axis 120mm/min Aspect ratio 300:1 Table dimensions 320x440mm max. working current 30A

AGIE CHARMILLES FORM E 600 die-sinking EDM was built in 2024 in China by Beijing Agie Charmilles Co., Ltd. The machine is designed for precision EDM machining of workpieces with a maximum weight of 1000 kg. Electrical discharge machining enables complex shapes to be made in even the hardest materials, as well as minimises or completely eliminates the need for further finishing processes, such as polishing. The AGIE CHARMILLES FORM E 600 is a state-of-the-art solution for companies looking for high efficiency, precision and low operating costs. The stable design is based on a rigid ‘C’ shaped frame and a cross table that performs movements in the X and Y axes. Precise positioning in all linear axes is ensured by servo drives that work with ballscrews, encoders and measuring scales with a resolution of 0.1 μm. The accuracy of the movements is additionally controlled with a laser in ...

Inv. Num. : 8066 Type: AGIECUT CLASSIC 2S Producer: AGIE Created: 2003 Parameters: Max. travel length of the X-axis: 350 mm Max. travel length of the Y-axis: 250 mm Max. travel length of the Z-axis: 256 mm Maximum workpiece length: 750 mm Maximum workpiece height: 250 mm Maximum workpiece height: 550 mm Maximum table load: 450 kg Machine height: 2305 mm Machine length: 1670 mm Machine width: 2040 mm Machine weight: 2580 kg

AGIE CHARMILLES CUT 30 P wire EDM was built in 2012 (launched in 2013) in China by Beijing Agie Charmilles Co., Ltd. The machine is designed for the production of precision dies, cutting dies, punches and other parts with complex geometry. Workpieces with a maximum weight of 1000 kg are machined by means of electrical discharge machining, which enables the creation of complex shapes even in the hardest materials. The process involves the removal of material by means of controlled electrical discharges between the wire and the workpiece submerged in a dielectric. This results in a high-quality surface finish without the need for additional finishing operations, such as polishing. The AGIE CHARMILLES CUT 30 P performs machining with a cutting head that moves in the X, Y and Z axes with feeds of 600 mm, 400 mm and 350 mm respectively. Maximum cutting accuracy is ensured by a HANS SCHMIDT ...

CHARMILLES FI 440 CC wire EDM was manufactured in 2007 in Switzerland by Charmilles Technologies SA. The offered machine is an excellent choice for the production of precision dies, cutting dies and punches. It enables the efficient machining of workpieces made from even the hardest materials by means of electrical discharge machining. During machining, material is removed through controlled electrical discharges occurring between the wire and the workpiece submerged in a dielectric. This results in a high-quality surface finish without the need for additional finishing operations, such as polishing. The CHARMILLES FI 440 CC performs machining with a 5-axis cutting head. All axes of the machine are equipped with measuring systems in the form of linear scales and an anti-collision system. This solution guarantees the highest positioning accuracy and safe operation, even at high movemen ...

A Fanuc CNC wire EDM machine is available. Travel X/Y: 350mm/500mm, max. workpiece dimensions X/Y/Z: 450mm/650mm/300mm, max. workpiece weight: 500kg, machine dimensions X/Y/Z: approx. 2600mm/2550mm/2200mm, weight: approx. 2300kg, operating system: Fanuc Series 16-WA. Documentation available. An on-site inspection is possible.

Max. workpiece dimensions (W x D x H) 1050 x 820 x 305 mm Max. workpiece weight 1500 kg Table dimensions (W x D) 860x640 mm Machine travels (X x Y x Z) 600 x 400 x 310 mm Machine travels (U x V) ±75 x ±75 mm
