Key data: 2 , 1300 mm

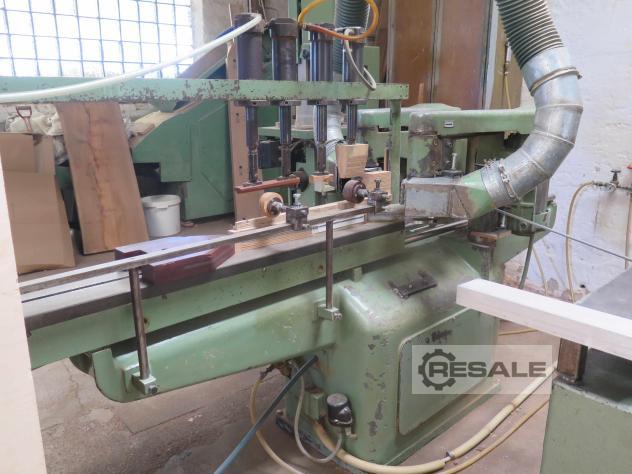

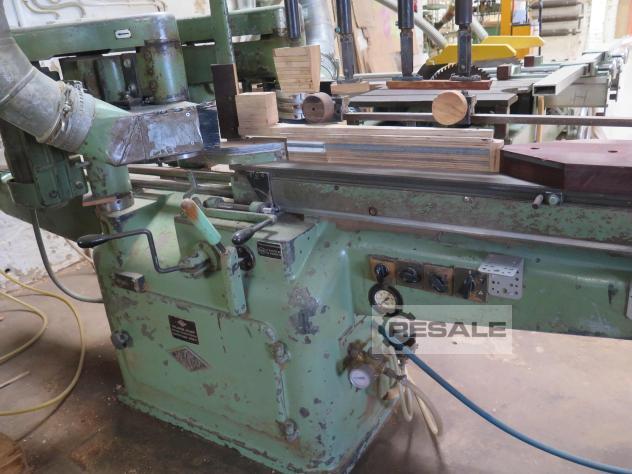

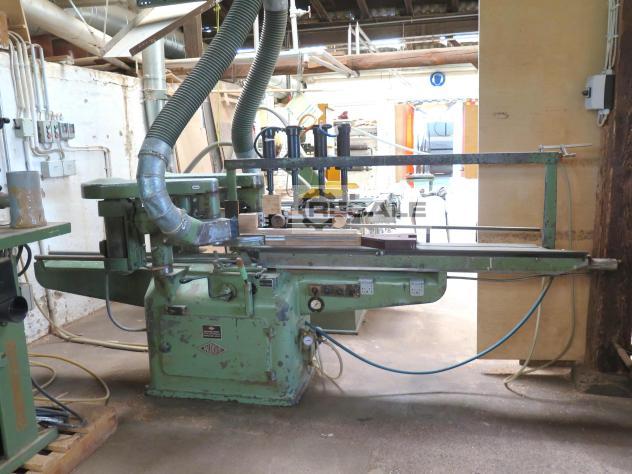

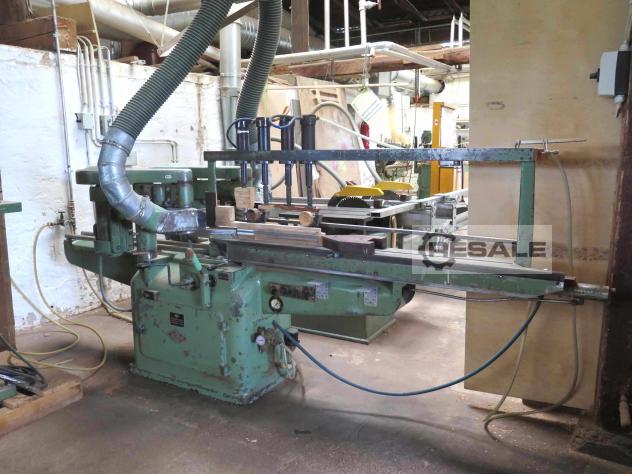

Copy milling machine Longitudinal copy milling machine Wigo Automatic Double Copy Milling Machine Type: 1075 For milling 2 opposite sides, including rounding of the front Maximum working length for workpieces with straight ends: 1300 mm Maximum working length for workpieces with rounded ends: 1000 mm Working width maximum 200 mm Processing height 90 mm, including milling heads 90 mm 2 milling motors motor power approx. 5 kW Spindle diameter 30 mm With thrust rings Continuous table feed 0.5 – 12 m/min Hydraulic motor feed 1.1 kW Return speed 25 m/min. Speed of the milling spindles optionally 7500/9000 rpm. Tool diameter maximum 120 mm 4 pneumatic clamping cylinders from above Operating pressure max. 6 bar Weight approx. 900 kg Dimensions approx. 3200 mm x W 1200 mm x H 1600 mm It is particularly suitable for precise and serial processing of symmetrical wo ...
work table:: 905x770 mmcolumn arm: 915 mmWeight: 650 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 2
Wigo Copy Milling Machine Type: 1075 1 milling motor each on the right and left 5.5 kW each Spindle diameter 30 mm Milling spindles run in the same and counter-rotation Running direction can be switched Milling process via scanning with thrust ring Working length max. 1400 mm Working width max. 210 mm Working height max. 90 mm 2 pneumatic clamping cylinders from above 2 x pneumatic side pressure with 2 straight milling heads milling height 50 mm Dimensions Length 3200 mm x W 1200 mm x H 1600 mm Weight approx: 1000 kg
Number of milling agregates: 1 St.Motor output: 5,5 kWSpeed: 10000/20000 U/min.weight of the machine ca.: 650 kgYear: 1978 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Carousel milling machine Comec FGS-1T Number of generators 1 Unit system: milling unit Pneumatic material central clamp Motor power 11kw Rotational speed adjustable by variator Net price
Dimensions (L/W/H): 800x650x450 mmWeight: 40 kgTotal power requirement: 0,8 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Cross milling machine Wigo 1016 Working length 750mm Maximum milling height 150 mm Spindle diameter 50 mm 15kw spindle motor 3kw Hydraulic Pump Motor Pneumatic material pressure Pedal control machine dimensions 1450 x 1600 x 1800h mm
Dimensions (L/W/H): 1200x750x1150 mmWeight: 50 kgTotal power requirement: 1,05 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Lathe Centauro Copy lathe Type: T 2 Model: C 140/4 Clamping length 1400 mm Center height 250 mm automatic feed infinitely adjustable feed rate 0 – 1.5 m/min. Spindle speed adjustable via belt Speeds: 900 / 1200 / 1500 / 1800 / 2400 / 3000 rpm. 2 knife holders with bezel with workpiece holder for long workpieces 2 molded steel holders 3 x 3 jaw chuck with a lot of tools Dimensions 3000 mm x 580 mm x H 1260 mm Weight approx. 650 kg
Dimensions (L/W/H): 2750x1800x2200 mmWeight: 2500 kgTotal power requirement: 11 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
BACCI FC 8 2500 linear milling machine Working length 2500mm Working width 200mm Working height 180mm Number of units 8 Milling 7.5kw Milling 7.5kw Milling 5.5kw Milling 5.5kw Grinding/milling 4.5/3.3kw Grinding/milling 4.5/3.3kw Sanding 3kw Sanding 3kw Hydraulic feed Working speed 0-15m/min Return speed 50-100m/min Year of production 2004 CE Certified Machine weight 5100kg
Dimensions (L/W/H): 1050x730x1380 mmWeight: 350 kgTotal power requirement: 1 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Copy milling machine - Copy longitudinal milling machine Functionally tested Incl. Tools
