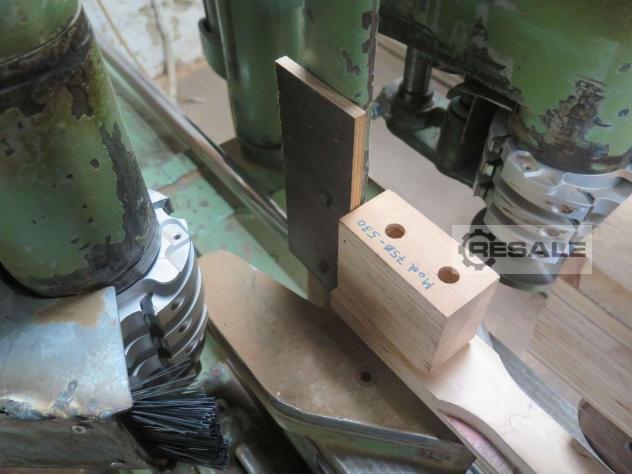

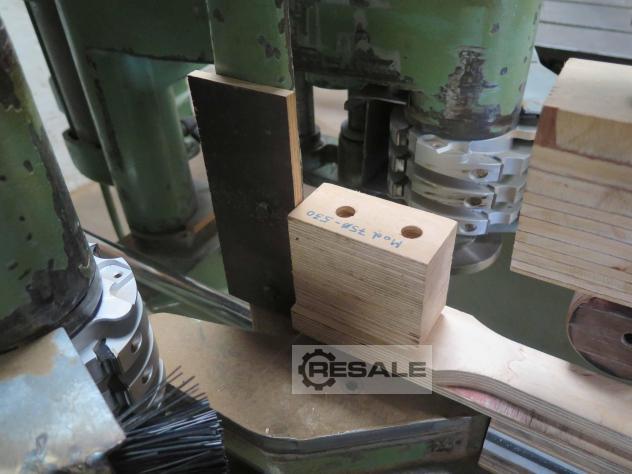

Copy milling machine Longitudinal copy milling machine Wigo
Automatic Double Copy Milling Machine
Type: 1075
For milling 2 opposite sides,
including rounding of the front
Maximum working length for workpieces with straight ends: 1300 mm
Maximum working length for workpieces with rounded ends: 1000 mm
Working width maximum 200 mm
Processing height 90 mm, including milling heads 90 mm
2 milling motors motor power approx. 5 kW
Spindle diameter 30 mm
With thrust rings
Continuous table feed 0.5 – 12 m/min
Hydraulic motor feed 1.1 kW
Return speed 25 m/min.
Speed of the milling spindles optionally 7500/9000 rpm.
Tool diameter maximum 120 mm
4 pneumatic clamping cylinders from above
Operating pressure max. 6 bar
Weight approx. 900 kg
Dimensions approx. 3200 mm x W 1200 mm x H 1600 mm
It is particularly suitable for precise and serial processing
of symmetrical workpieces such as table and chair legs,
Furniture parts or fence slats.
Germany
32683 Barntrup
