122,046 used machines on RESALE, but how to find them? Machine Search
maximum number of results exceeded > 1000
please refine your search
new
Power: 0.85, 1.5kW; Speed range: 300 - 4000 rpm; Speed levels: infinitely variable; Spindle mount: MK-3; Drilling stroke: approx. 105 mm; Spindle projection: 200 mm; Weight: 152 kg; Smooth-running and powerful electric motor Two speed settings clockwise/anticlockwise rotation V-belt cover with safety switch Digital speed display integrated in the housing concentricity guaranteed less than 0.015 mm measured in the drill quill Height-adjustable chuck guard with microswitch for the greatest possible protection of the user Machine light integrated in the drill head Drilling spindle with precision ball bearing High-quality quick-release drill chuck as standard Precisely machined drill table with diagonally running T-slots, 360Â rotatable with circumferential cooling water chute Thick-walled cast iron column for high force absorption and stability Solid base plate, large dimensions st ...
new
Power: 1.1kW; Drilling capacity steel / continuous drilling capacity: 30mm / 25mm diameter; Speed range: 120 - 1810 rpm; RPMs: 9; Spindle mount: MK-4; Drilling stroke: 120 mm; Spindle projection: 254 mm; Table size: 475 mm x 425 mm; Tilt / rotate drilling table sideways: 45Â left / 360Â; Column diameter: 80 mm; Quick-release chucks: 1 - 16 mm; Weight: 132 kg; Industrial motor User-friendly safety switch according to IP 54 Digital drilling depth and speed display integrated in the housing Separate emergency stop impact switch Precision spindle bore Safety electrical system in 24 V DC voltage Guaranteed concentricity less than 0.02 mm measured in the drill quill Drilling spindle with precision ball bearings High-quality high-speed drill chuck Drilling depth stop Precision-crafted, stable drill table with diagonal T-slots and circumferential cooling water channel V-belt cover ...
new
Formwork inclined columns newly hot-dip galvanized 2,10-3,50m a 40,90EUR/ pcs. New galvanized or painted construction supports 3.00m, 3.50m, 4.00m at great conditions directly from the factory. From 21,50€/ piece.+ VAT Construction support painted 1,60m - 2,90m = 21,50€/ piece reinforced version 2,00m - 3,50m = 23,50€/ piece reinforced version 2,30m – 4,00m = 26,50€/ piece reinforced version Construction support galvanized 1,60m - 2,90m = 25,90€/ piece reinforced version 2,00m - 3,50m = 26,90€/ piece reinforced version 2,10m – 4,00m = 29,90€/ piece reinforced version 1 frame for construction supports new, painted 70,00€ New inclined supports, painted 1,70m - 3,00m = 29,50€/ piece Inclined supports new, painted 2.10m - 3.50m. = 35,50€/ Piece Inclined supports new, painted 2,40m - 4,10m. = 38,50€/ Piece New inclined supports, ...

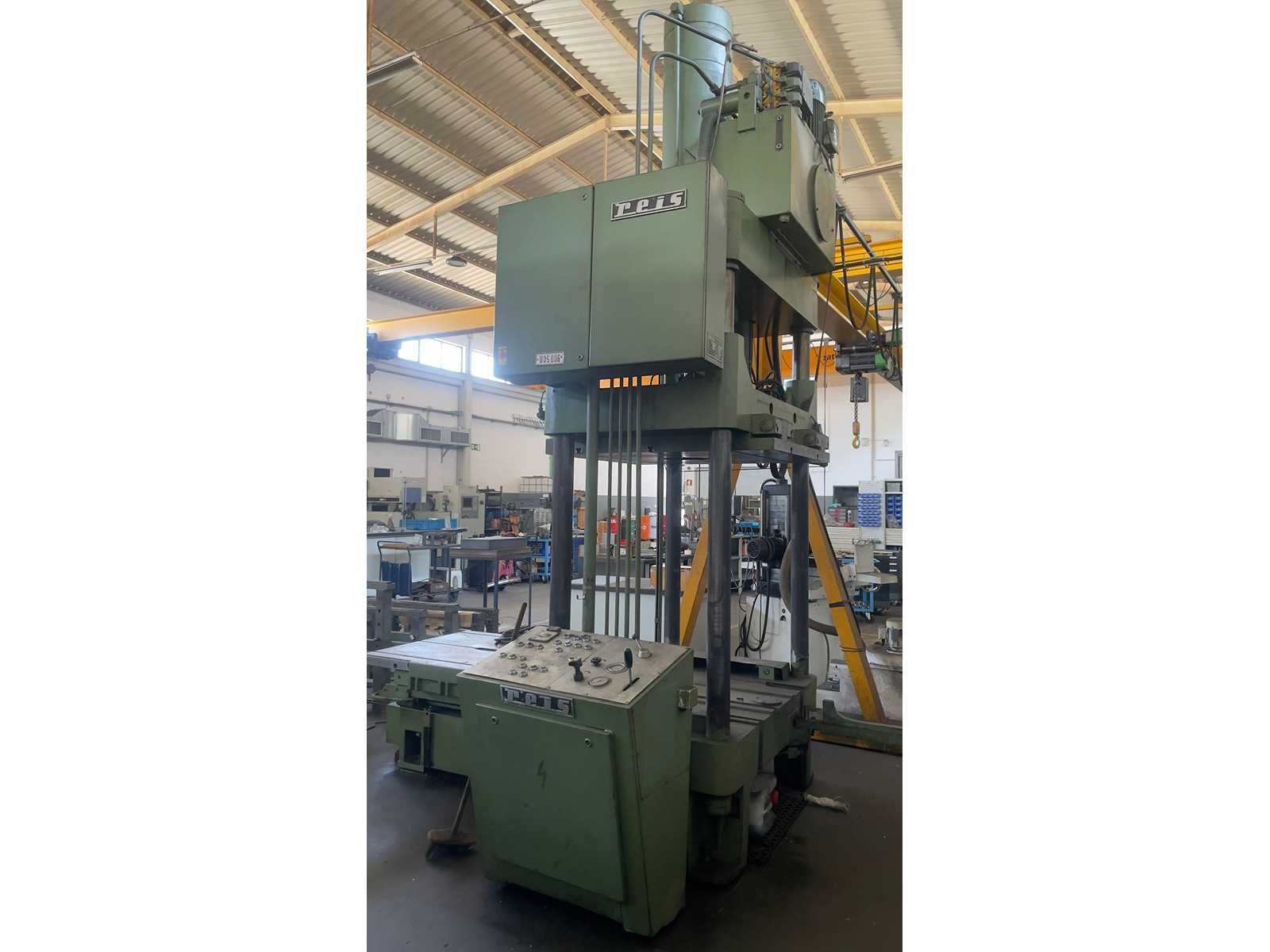

HL 450 ton 4 column press
HL 450 ton 4 column press
HL 1000 ton 4 column press
HL 1000 ton 4 column press
HL 1000 ton 4 column press
HL 1000 ton 4 column press
HL 1000 ton 4 column press
HL 1000 ton 4 column press
used
Column-Mounted Crane DEMAG Capacity 500 kg Arm travel 3400 mm Manual arm rotation Column height 3000 mm Column base diameter 700 mm - with base discs (see photo) Electric hoist I beam dimensions: 220 x 100 mm (see photo) Total weight approx 2 T MACHINE IN OUR STOCK IN FRANCE.
used
Column-Mounted Crane VERLINDE type XC2 Capacity 500 kg Column Ø 250 mm Column height 4400 mm Height under arm 3700 mm Trolley useful length 2700 mm Delivery with one fixing plate Ø 810 mm (see photo) Weight Total weight approx 2 T MACHINE IN OUR STOCK IN FRANCE.
used
Table diameter: 3100 mm Turning diameter: 3200 mm Turning height: 2000 mm Motor power: 0 HP/kW Positions ATC: 00 Positions APC: 0 MACH-id 5352 MAKE BOST SA SPAIN TYPE HYPRO 10 YOP 2000 SPECIFICATIONS Max. turning diameter Ø 3200 mm Table Ø 3100 mm Control Conventionel Horizontal movement support 2000 mm Stroke ram left 1250 mm Stroke ram right 1250 mm Angle adjustment / ram swivable 30 ° Single column or double column Double column Maximum turning height & ...
used
Table diameter: 1250 mm Turning diameter: 1500 mm Turning height: 1245 mm Motor power: 40 HP/kW Positions ATC: 15 Positions APC: 0 CNC Brand: Siemens CNC Model: 840 D MACH-id 407 MAKE Feichter Austria TYPE SKQ 12 YEAR 2000 Rebuild SPECIFICATIONS Controll Siemens 840D Max. turning diamter Ø 1500 mm Table / chuck size Ø 1250 mm Workpiece height 1245 mm Work piece weight 8000 Kg Horizontal movement support / ram 1000 mm ATC tool changer 15 Singel column or double column Singel column Spindle speeds / ranges 250 Rpm Power 40 Kw DIMENSIONS ...
used
Table diameter: 7100 mm Turning diameter: 8000 mm Turning height: 3240 mm Motor power: 0 HP/kW Positions ATC: 0 Positions APC: 0 MAKE STANKO 3KTC TYPE 1580 L YEAR Overhauled 2006 SPECIFICATIONS Controll Conventionel Max. turning diamter Ø 8000 mm Table / chuck size Ø 7100 mm Workpiece height 3240 mm Work piece weight 125000 Kg Horizontal movement support / ram 4400 mm Stroke support left ram 2000 mm Stroke support right ram 2000 mm Angle adjustment / ram swivable - 15 / - 30 Gr Live tooling Milling spindlel 650 Rpm Singel column or double column Double column Spindle speeds / ranges 19.6 Rpm DIMENSIONS Length 9000 mm Width 14000 mm Height ...
used
Table diameter: 1400 mm Turning diameter: 1600 mm Turning height: 1000 mm Motor power: 25 HP/kW Positions ATC: 0 Positions APC: 0 SPECIFICATIONS Max. turning diamter Ø 1600 mm Table / chuck size Ø 1400 mm Workpiece height 1000 mm Work piece weight 8000 Kg Horizontal movement support / ram 700 mm Stroke support left ram 850 mm Angle adjustment / ram swivable 35 Gr Singel column or double column Single column Spindle speeds / ranges 5 - 200 Rpm Power 25 Kw DIMENSIONS Length 3500 mm Width 4200 mm Height 4750 mm
used
Table length: 9500 mm Table width: 1200 mm Longitudinal X: 9000 mm Cross Y: 1500 mm Vertical Z: 1500 mm Positions ATC: 60 CNC Brand: Heidenhain CNC Model: TNC 430 MACH-id 3515 MAKE CME Spain TYPE FCM 9000 YEAR 2000 SPECIFICATIONS X - Travel 9000 mm Y - Travel 1500 mm Z - Travel 1500 mm bed / plano / portal / moving column Moving column bed milling Controll TNC 430 Table Length x Width 9500 x 1200 mm Table load in kG 5000 / M Kg Spindle Taper Bt 50 kW power on spindle 40 kW Spindle speeds / ranges 3000 Rpm ATC tool changer 60 Coolant true spindle / Bar 20 Bar Number off controlled axis 3 + 2 = 5 Axis CNC Automatic milling head / Gr.1 Gr. Orthogonal DIMENSIONS Length 16000 mm Width 6000 mm Height 7000 mm ...
used
Iberdrill Gear Column Drill Series T, TL25 drilling capacity for steel (ST 60) at continuous power S1: D25mm drilling capacity for grey cast iron (GG 20) with continuous power S1: D30mm thread cutting capacity for steel (ST 60) with continuous power S1: M 18 thread cutting capacity for grey cast iron (GG 20) with continuous power S1: M 22 Tool holder in the spindle: MK 3 spindle stroke (drilling depth): 120 mm Motor power spindle: 0.82/1.2 kW Drive: 8-speed gearbox with pole-shiftable motor Speed adjustment: manual Speed range for 50 Hz motor, n=1,500/3,000 rpm, pole switchable 65 -125 -185 - 365 - 540 - 1,055 - 1,560 - 3,060 rpm Feed: 300 mm x 270 mm Column diameter: 100 mm Distance spindle center / column (projection) 250 mm Machine weight (net) 250kg Gross weight 310kg Dimensions transport packaging (LxWxH) 2.14m x 0.6m x 0.8m Gearbox ...
used
Column crane, slewing crane, column slewing crane used Manufacturer: VETTER (presumably) Type: WIZARD AS10-5.0 (presumably) Year of construction 5/2006 Payload 1000 kg Swivel range 270° Projection from column: approx. 5.4 m, boom profile height approx. 37 cm Bottom edge boom to floor: approx. 3.8 m Total height: approx. 4.3 m Base plate diameter approx. 1.2 m The previous owner has mounted a smaller base plate. In order to really use the 1000 kg, a 1450 mm base plate must be mounted (as can also be seen on the type plate)
used
Column Mounted Crane 2 T MANUTENTION CONNECTION type PFSP Capacity: 2 Tons Arm travel: 2000 mm Year of construction: 2001 Column diameter: 400 mm Max height under hook 2200 mm Column height: 3100 mm Height under beam 2800 mm Electric hoist 2 T
new
bore capacity in steel (diameter): 50,0 mm throat: 360 mm bore stroke: 220 mm morse taper: 4 MK table:: 570 x 480 mm threading: M 42 Stahl turning speeds: 50 - 2.200 U/min feed: 0,08 - 0,50 mm/U column diameter: 180 mm total power requirement: 3,0 kW weight: 575 kg range L-W-H: 750 x 950 x 2380 mm The gear column drilling machine GB 50 NC Vario is standard with a infinitely variable speed control, reducing the cutting speed can be optimally adapted to the workpiece. Because of the heavy, massive It is designed primarily for use by professional users or ideally suited in mechanical engineering or workshops. - Equipped with motorized table height adjustment as standard - 6 automatic drilling feeds switchable via electromagnetic clutch - Hand-scraped drilling table made of solid gray cast iron, swiveling from -45° to + 45 ° - Ground base plate with T-slots - for clamping particularly tal ...
used
Key data: 400 t, 800 mm
Oil-hydraulic double-column press 400 T with sliding table Press type: Double column press Thermally neutral 80 – 120 °C Number of operating pages 1 page Forces Pressing force max. 4000 kN Free tear-off force max. 400 kN Print build-up time Closed tool steel on steel Max. 4 sec. Dimensions: 3,800 mm long and 4,475 mm wide Max. opening width 800mm Stroke 800mm Table height above floor 1100mm Height above ground (height) approx. 4300 mm Hall height min. 5500 mm Parallel deviation at 20°C +/- 0.1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of the press without consumables and table top approx. 28 tons Press table Table size 1500x1500 mm Velocities Quick closing at 100 mm sec. Pressing speed 8 – 3 mm sec. Acoustic pressure Sound pressure level, measured at a height of 1.5m on the control pane ...
used
Rectification column, copper rings - 300mmx300mm - 29pcs, each copper column fragment equipped with 2x7 caps and reflux mechanism, Stainless steel rings 300x300 - 9pcs with separating sieves. Total column height 11.20m. In addition there is a deflegmator and two coolers.
used
Key data: 40 mm, 315 mm, 200 mm
Solid column drilling machine of the brand WMW, model BS 25 B Mk4 Ready to use. Technically flawless Machine Type: Column Drilling Machine Make: WMW Saalfeld Type: BS 25 B Year of construction: 1962 Control Type: Conventional Freight base: ex-site, freely loaded Location: 17034 Neubrandenburg Shipping time: immediately Price: 2.250,00 net Technical details Drilling performance in steel (diameter): 6 - 40 mm Projection: 315 mm Drilling stroke: 200 mm Headstock adjustment: 280 mm Spindle speeds - infinitely variable: 63...1000 rpm Spindle mount MK: MK 4 Feed: 0.08...1.2 rpm Clamping surface table L x W: 700 x 600 mm Clamping surface of the base plate: 440 x 490 mm Distance Spindle / Base Plate: 1100 mm Total Power Requirement: 2.61 kW Machine weight approx.: 1000 kg Dimensions machine approx. LxWxH: L:1010 x 700 x 235 ...
pressure:500 t passage width:2100 x 1500 mm stroke:1000 mm total power requirement:62 kW weight of the machine ca.:39 t dimensions:5100 x 2800 x 4040 mm return capacity:40 t Main cylinder:2 Stück column diameter:Hauptzylinder 360 mm Table dimensions:2100 x 1500 with T-Nute mm Ram size:2100 x 1500 mm table height over floor:850 mm pre-running speed:300 mm/sec return speed:300 (bei 20T Stößelgewicht) mm/sec Pressure Speed:200T = 28 mm/sec Oil Tank Capacity:ca. 1000 l Auxiliary cylinder:2 Stück column diameter:Hilfszylinder 120 mm Total size Table Tops:ca. 2750 x 1600 mm Total size of plunger plates:ca. 2750 x 1600 mm Pressure Speed:300T = 20 mm/sec Pressure Speed:500T = 6 mm/sec Retract force of the plunger:40 t Tension of the control chain:24 V voltage:400 V Frequency:50 Hz Axial piston pump (REXROTH/Bosch A4VSO125):290 lt/min Daylight Opening:1500 mm Hydraulic block:REXROTH pressure ...
used
warehouse no.: 501284 manufacturer: KRAUSS MAFFEI Typ: Saeule Nr. 6400007 year of construction: new Column for pressure intensifier match to the machine size Krauss Maffei KM 110 and KM 125. Total there are 6 columns available, they are brand new and unused. Overall length 1138 mm, piston diameter 140 mm, rod diameter 95 mm. Krauss Maffei Order No. 6400007 detailed description: Column for closing side of size KM 110 and KM 125 are to check the dimensions drawings with exact measurements available.
used
used spare part IMM - Column warehouse no.: 501285 manufacturer: KRAUSS MAFFEI Typ: Saeule year of construction: neu Column for intensifier match the machine size Krauss Maffei 501285 There are a total of 6 columns available, they are brand new and unused. Total length 965 mm, diameter 124 mm piston, piston rod diameter 85 mm.
new
Dauerbohrleistung: 25 mm Standard ALB ear performance: 30 mm Thread cutting performance: M 14 (option) Spindle: MK 3 Drilling depth: 130 mm Throat depth: 250 mm Infinitely variable spindle speed: 230-2700 RPM Table size: 460 x 360 mm Column diameter: 100 mm Total height: 1800 mm Weight: 230 kg Power supply: 400 v, 50 Hz Motor power: 1,5 kW Facilities: -Digital display for speed as standard -Light machine -Stepless speed adjustment with digital display -24 V electrical system -Height-adjustable spindle protector -Base plate with T-slots -Drilling table rack with worm gearbox - adjustable and swiveling around column -Reversers for R/L rotation (option gg. Extra charge) -Emergency off pushbutton -Motor protection -Star handle -CE compliant
new
Modern, precise production column drilling machine according to proven UNIMAX 3 concept with infinitely variable feed drive, automatic tool ejector and standard chip breakage control. The digital display displays feed, speed and drilling depth. Turn switch Right/Left Run. Emergency-off-stroke button. Motor protection. Pre-configured machine with optional equipment thread cutting device, free cutting function and LED lamp. Normal drilling capacity in E 335: 30 mm Thread cutting power: M 20 Spindle: MK 3 Feed infinitely adjustable in the range: 30 - 400 mm/min Drilling depth programmable: 125 mm Extension: 260 mm Distance spindle/table: 90 to 840 mm Table area: 500 x 365 mm Column diameter: 110 mm Total height: 1,900 mm Weight: 280 kg Motor can be switched on pole: 0.8/1.5 kW Spindle speeds infinitely variable Drilling Range A: 80 - 1,440 rpm Drilling Range B: 180 - ...
Key data: 1250 Fanuc, 1600 18-T, 900
Table diameter: 1250 mm Turning diameter: 1600 mm Turning height: 900 mm Motor power: 45 HP/kW Positions ATC: 0 Positions APC: 0 CNC Brand: Fanuc CNC Model: 18-T Work load 5000 Kg Package BT 50 tool holders Tool size L 380 x 50 Kg Closed housing with front door Free 03.2022 Max. turning Ø: 1.600mm Table Ø: 1.250mm Horizontal movement support: 900mm ATC / revolver: 12 Single column or double column:singel Speeds / ranges: 350Rpm Power: 45kW Maximum turning height: 1.200mm C-Axis: &n ...
new
weight max. in kg: 1000 kg arm length: 4000 mm height: 3000 Unterkante Ausleger total column height: 3790 mm swivelling range: 270 Grad weight: 560 kg Description: - Trolley power supply - Trailing cable, cable slack approx. 800 mm - Operation from the hallway using a pendant control including: - ABUS electric chain hoist - Chain hoist type GM 4 1000.5-2, 2-leg - painted in color RAL 5017 traffic blue - Load capacity 1 t - hook path 3000 mm - highest hook position 2442 mm - Calculation basis FEM 9.901 - Drive group 2m / M5 - Lifting, 2-stage (pole switchable) 1.3 / 5 m / min - Lifting capacity 0.22 / 0.9 kW - duty cycle 60% ED - Circuits 360 c / h Overload protection The crane system complies with the requirements of the Machinery Directive 2006/ 42 / EC as well as the currently valid UV regulations DGUV regulation 52 (formerly BGV D6). included : - Anchor rods L200 (set) size LS 200 - C ...
new
weight max. in kg: 500 kg arm length: 4000 mm height: 3425 Unterkante Ausleger total column height: 4215 mm swivelling range: 270 Grad Description: - Trolley power supply - Trailing cable, cable slack approx. 800 mm - Operation from the hallway using a pendant control including: - ABUS electric chain hoist - Chain hoist type GM 2 500.4-2, 2-leg - painted i color RAL 5017 traffic blue - load capacity 500 kg - hook path 3000 mm - highest hook position 2965 mm - Calculation basis FEM 9.901 - Drive group 2m / M5 - Lifting, 2-stage (pole switchable) 1/4 m / min - Lifting power 0.09 / 0.35 kW - duty cycle 60% ED - Circuits 360 c / h Overload protection The crane system complies with the requirements of the Machinery Directive 2006/ 42 / EC as well as the currently valid UV regulations DGUV regulation 52 (formerly BGV D6). included : - Anchor rods L200 (set) size LS 200 - Consists of 8 pieces M ...
new
bore capacity in steel (diameter): 32 mm throat: 200 mm bore stroke: 120 mm spindle taper MT: 4 MK table:: 290 x 270 mm column diameter: 92 mm turning speeds: 150 - 2450 U/min feeds: 0 mm/U total power requirement: 1,1 kW weight of the machine ca.: 95 kg range L-W-H: 0,66 x 0,8 x 1,7 m Column drilling machine with: ARBO / CE approved protective cover. Quick release chuck with pin. Tiltable work table. Deep stop. Ejector wedge. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
new
bore capacity in steel (diameter): 30 mm throat: 255 mm bore stroke: 110 mm spindle speed:: 80 - 3490 U / min table-size: 400 x 400 mm spindle taper MT: 4 turning speed range:: 2 x 12 Stufen column diameter: 88 mm base plate: 600 x 370 mm total power requirement: 1,1 kW weight of the machine ca.: 155 kg dimensions of the machine ca.: 1,15 x 0,65 x 0,32 m Topline type heavy duty column drilling machine. For easy, frequent use. The drill chuck cover is made of high quality polycarbonate, and complies with the latest safety standards. It is equipped with an autostop switch. Separate emergency stop can be reached easily. Fitted out with a cooling table, softgrips,, adjustable depth stop and quick-acting drill chuck. The machine is equipped with a thermal cut-out. quick-acting drill chuck 1- 16 mm engraved nonius machine stops when drill chuck cover is opened depth stop autostop switch when o ...
used
Column drilling machine ALZMETALL type AB 3 ESV Masch. No. 15967 Year of construction 1977 Drilling capacity 32 mm Spindle holder MK 3 - short quill projection 290 mm Pinol stroke 160 mm Table size 545 mm Column diameter 220 mm Spindle speed 55 - 1450 rpm infinitely variable Motor power 1 / 1.6 kW Mains connection 380 Volt, 50 Hz. - Spindle speed via 2 gear stages, 2 motor speeds and infinitely variable via variator gearboxes - Countershaft stage for high torque at low speeds - MK adapter from MK3 to MK4 - automatic feed 0.1 - 0.2 - 0.3 mm/rev - rotatable drilling table - Table height adjustment via hand crank - Machine foot with machined workpiece contact surface - Lighting for the work area Space requirement L x W x H 1150 x 650 x 2000 mm Weight 850 kg good condition; used
new
bore capacity in steel (diameter): 16 mm throat: - mm bore stroke: - mm spindle taper: MT2 spindle turning speed range: 400 - 4000 U/min Table dimensions: 365 x 455 mm base plate: 530 x 365 mm voltage: 400 V column diameter: 75 mm total power requirement: 0,75 kW weight of the machine ca.: 130 t dimensions of the machine ca.: m Heavy duty v-belt driven column drilling machine with variable speed. table and head height adjustable swivelling head flexible LED light quick-acting drill chuck 3-16 mm (B16) t slots high speed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
ERFURT PKZZ 315 double column press manufactured in 1984 in Germany is used for, among others, cutting, machining, bending and punching sheet metal and strip metal. Features such as the ability of extensive workpiece machining, a large work table and a 315-tonne operating slider make the crank press ideal for mass production of things such as washing machine parts, agricultural machinery or other types of vehicles. The ERFURT mechanical press is also distinguished by its high-quality welded steel construction, ensuring excellent stability during the production process. The machine uses a slider with a beam ejector, which is adjustable within a range of 400 mm via a motor reduction gear with overload protection. In order to increase the life of the tools and the quality of the parts produced, the 2500 mm long and 1400 mm wide work table has been equipped with hydropneumatic cushions. ...
used
Column drilling machine ALZMETALL type AB 4 SV Masch. No. 14805 Year of construction approx. 1980 Drilling capacity 40 mm Spindle mount MK 4 - short quill Projection 340 mm Quill stroke 180 mm Table size 710 x 560 mm Column diameter 160 mm Spindle speed 30 - 765 rpm infinitely variable Motor power 2.3 and 3.4 kW pole switchable Mains connection 380 volts, 50 Hz spindle speed via 2 gear stages and infinitely variable via variator gear - Counter stage for high torque at low speeds - Spindle on/off via rotary switch or electric foot switch - Automatic feed 0.1 - 0.2 - 0.3 mm/U - Table height adjustment via hand crank - Machine foot with machined workpiece contact surface - LED lighting device Space requirement L x W x H 1200 x 725 x 2050 mm Weight 615 kg good condition; used
used
Column drilling machine IXION type BS 30 Masch. No. 00120669 Year of construction approx. 1995 Drilling capacity 30 mm Adapter MK 3 - short quill Projection 260 mm Quoil stroke 120 mm Table size 500 x 350 mm Column diameter 110 mm Spindle speed Level 1 80 - 140 - 230 - 380 - 700 rpm Spindle speed level 2 160 - 280 - 460 - 760 - 1400 rpm. Motor power approx. 1.1 and 2.0 kW pole-switchable Mains connection 380 volts, 50 Hz - Spindle speed over 2 motor speeds and 5 V-belt steps - Table height adjustment via hand crank - quick-release chuck RÖHM Supra 3 -16 mm Space requirement L x W x H 800 x 520 x 1880 mm Weight 230 kg very good condition; used
used
Table length: 5500 mm Table width: 1500 mm Longitudinal X: 6000 mm Cross Y: 1400 mm Vertical Z: 2400 mm Positions ATC: 90 CNC Brand: Heidenhain CNC Model: iTNC 530 MACH-id 4145 MAKE MTE Spain TYPE FBF-M 6000 YEAR 2014 SPECIFICATIONS X - Travel 6000 mm Y - Travel 1400 mm Z - Travel 2400 mm bed / plano / portal / moving column Moving column Controlli TNC 530 Table Length x Width 5500 x 1500 mm Table load in kG 15.000 Kg Spindle Taper Sk50 kW power on spindle 36 / 1750 Nm kW Spindle speeds / ranges 4000 Rpm ATC tool changer &nbs ...
used
Table length: 32550 mm Table width: 650 mm Longitudinal X: 2500 mm Cross Y: 630 mm Vertical Z: 700 mm Positions ATC: 30 CNC Brand: Siemens CNC Model: 840 D MAKE Hedelius TYPE BC 60 YEAR 1997 SPECIFICATIONS X - Travel 2500 mm Y - Travel 630 mm Z - Travel 700 mm bed / plano / portal / moving column Moving column Controll Siemens 840 D Table Length x Width 3250 x 650 mm Spindle Taper Bt 50 Spindle speeds / ranges 5000 Rpm ATC tool changer 30 Number off controlled axis 3 DIMENSIONS Length 7500 mm Width 3500 mm Height 3600 mm
used
Table diameter: 1900 mm Turning diameter: 0 mm Turning height: 1800 mm Motor power: 0 HP/kW Positions ATC: 0 Positions APC: 0 Make OM 4000 mm Type TSM2 20 / 40 Year 70 er Single column vertical borer Centre height (mm) Table = 1.900 Center distance (mm) Swing = 4.000 Spindle bore Height = 1.800 Displacable column
used
Column drilling machine IXION - MAXION type Unimax 3 Fabr. No. 201516 Year of manufacture 2009 Drilling capacity 30 mm Spindle holder MK 3 - short quill projection 260 mm Pinol stroke 125 mm Table size 360 x 500 mm Column diameter 110 mm Spindle speed 80 - 3200 rpm infinitely variable Motor power 0.8 / 1.5 kW Mains connection 400 volts, 50 Hz spindle speed via 2 V-belt stages, 2 motor speeds and infinitely variable via variator drive - Motor speed level 1 for right-hand and anti-clockwise rotation, motor speed level 2 for clockwise rotation - Handwheel for quill fine feed - Drill table Height adjustment via hand crank - Quick-action drill chuck RÖHM 1 - 16 mm - Emergency stop button Space requirements L x W x H 800 x 530 x 1800 mm Weight 230 kg very good condition; used
used
Column Drilling Machine make GILLARDON type R 30 VEMasch. -No: 0123213 Year of construction Dec./1976Special machine for processing flanges or rings on the outer edgeDrilling capacity: 40/50 mmTapping performance: M 42 / M 60Spindle mount: MK 4Spindle stroke: 240 mmSpindle speeds: 60 - 1000 rpm.Column diameter: 160 mmHeight adjustment: 680 mmDrive power: 1.1 / 1.6 kWWith- pneumatic additional sleeve stroke- Mot. rotatable, vertical, positioned under the spindlexa0xa0 Three-jaw chuck Roto-Rekord Drm. 475 mm, bore 190 mm- without lower part- without a tableused, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
new
Double column press with 200 T output, Idle speed 45 mm/sec Opening speed 60 mm/sec Starting press speed 9 mm/sec Table size 2000x600mm Plunger size 2000x600mm OIL temperature monitoring Manual lubrication Free positioning of the plunger ( adjustable via adjustable sensors ) PILZ photoelectric sensors 14.1 mm on front and back Circulatory oil cooling Pressure retaining valve 0 to 600 sec. Mechanical plunger protection at the upper breakpoint T-grooves according to DIN, and according to customer requirements Pressure adjustment from 40 T to 200 T (adjustable via rotary knob) Travel limitation optionally via pressure or position Set-up operation, single stroke ( adjustable via key switch ) Two-hand operation Construction, commissioning, instruction against separate calculation Design Press design double column press Therma ...
new
Lifting Column for charging machines or for transferring various containers. Incl. ceiling fixing. Ceiling height: approx. 7300 mm. Lifting column consisting of: Lifting mast, lifting trolley, lifting, swivelling and load drive, control panel. Max. load 800 kg. Unit is new (unused).
new
bore capacity in steel (diameter): 40 mm throat: 350 mm bore stroke: 180 mm bore capacity in cast iron: 50 mm spindle taper MT: 4 table-size: 560 x 560 mm spindle turning speed - stepless: 0 - 1800 U/min transmission ratio: 2 : 730 x 500 mm thread dia.: 27 mm base plate: 730 x 500 mm column diameter: 150 mm spindle feeds:: 0,1 - 0,2 mm/U : M 24 total power requirement: 1,5 kW weight of the machine ca.: 460 kg dimensions of the machine ca.: 730 x 560 x 2400 mm description Industrial gear column drilling machine. The Gears are hardened and ground. The table is rotatable, equipped with T-slots and one Coolant device. The drilling depth stop can by means of the automatic depth stop. T he chuck protection is secured by a switch. Features: - stepless speed - Electromagnetic quill feed - 2-stage motor - Spindle with left / right rotation - Tool ejector - Machine lighting - automatic thread cutt ...
new
Dear customers currently we offer you a refurbished columns or column drilling machine from F. Zimmermann for sale. The special feature of the machine is the work table adjustable in 3 levels. Here are the other technical data of the machine: Speeds: 100 - 2,250 rpm Work light MK3 recording (new) Swivel radial: 360° Swivel axisial: 2x 90° Quill stroke: 160 mm Projection column spindle center: 500mm Table: 490 x 400 mm Centering disc Ø: 55 mm H7 working height swivel table: 715 mm working height base plate: 1,215 mm Base plate and table with T-slot 12 mm Dimensions: 600 x 1,120 x 1,930 mm Power: 1.5 kW Weight: approx. 500 kg After the overhaul, the machine has a completely new electrical system including engine brake, is painted light grey in RAL 7035 and comes with a drill set. We look forward to your questions and inquiries! If you have any questions, please ...
new
Single-column press with 15 T power suitable for continuous shift operation (a) travel speed 10 mm downwards; b) Opening speed up to 25 mm/sec c) Starting pressing speed 10 mm/sec d) Table size 400x400 mm e) Ram size 200x200 mm, with T slots and central cylinder tension f) Total size approx. 1150x800x1750 mm g) Oil temperature display on the oil tank h) Pressure adjustment from 5 T to 17 T (adjustable via rotary control) i) Two-speed hand lever operation j) Machine body powder-coated, or double painted k) Control cabinet supply cable from above with 3000 mm cable and 16 ampere plug l) Installation, commissioning, instruction against separate charge Press type single-column press Thermally neutral 80 – 120 °C Number of operating pages 1 page Forces Pressing force max. ( at 250 bar ) 150 kN Free tear-off force max. 10 kN Pressure build-up time Closed tool Stee ...
