coating laminating used for sale

Paint roller machine, roller coating machine, powder coating system -Drying and exhaust air: used for slat/blind production -Dimensions: 2950/800/H1920 mm -Weight: 484 kg

Coating roller machine, roller application machine -Transfer in current condition as seen -Manufacturer: Giardina -Max. Width: 1260 mm -Casting gap: adjustable -with: 3x brush units -Connection power: 11 kW -Dimensions: 4600/2360/H1600 mm -Weight: approx. 4000 kg

Thickness gauge, coating thickness gauge -Manufacturer: PCE, thickness gauge with case -Type: PCE-CT 27FN -Measuring range: 0 - 1250 µm -Accessories: see photos -Dimensions: 250/210/H55mm -Weight: 0.7 kg

Painting cell with ABB robot Year of construction: 2016 Robot ABB IRB 1600 Payload: 6 kg Arm area: 1200 mm Control: IRC5 Number of axles: 6 Axis range: J1 +180° – 180° J2 +136° – 63° J3 +55° – 235° J4 +200° – 200° J5 +115° – 115° J6 +400° – 400° Turntable Suction Automatic V5 HVLP paint sprayer DO Combo Diaphragm Pump

Specially designed for medium-sized companies and rim coaters. Plant complete consist of: Powder furnace width X height x depth 1200 x 1600 x 1200 mm 15 KW Powder cabin width X height x depth 2000 x 2240 x 920 Latest powder gun from romer ProfiGun PM-1 All together for 12,700.00 net plus freight costs and assembly Delivery time approx. 16 weeks.

Acuum coating system ZZS 800 PVD Vacuum Coating Line Complete system incl. high-voltage source and 14KW chiller. Electron beam evaporation system with 2 E-guns 3 stages vacuum: rotary vane, roots, and diffusion vacuum pump With this system, metal oxide layers were applied to glass substrates. ZZS 800 PVD Coating System Manufacturer: XDNG Year:2010 Designation: ZZS 800 Machine number: 2010-426 Dome-based PVD coating system PVD High Vacuum Coating System with 2 Electron Beam Evaporators for thermal evaporation processes. Fully functional ! With this system, optical interference filters were produced on glass substrates as multilayer systems with defined controlled UV-vis and IR transmission. Three Stages Vacuum Pump System Stage 1 Rotary Vane Vacuum Pump Stage 2 Roots pump and Stage 3 Diffusion pump for high vacuum. Vacuum Chamber Size D=800mm H=900mm The facil ...

Steel tank with inner coating (epoxy resin) Can be used above or below ground Volume: 32 m³ Dimensions: Ø 2.50 m × 7.00 m long can be ordered on request with extinguishing water connections or as a rainwater tank with inlet and overflow

Roll containers with thermal coating Auction-ID: A7-45677-29

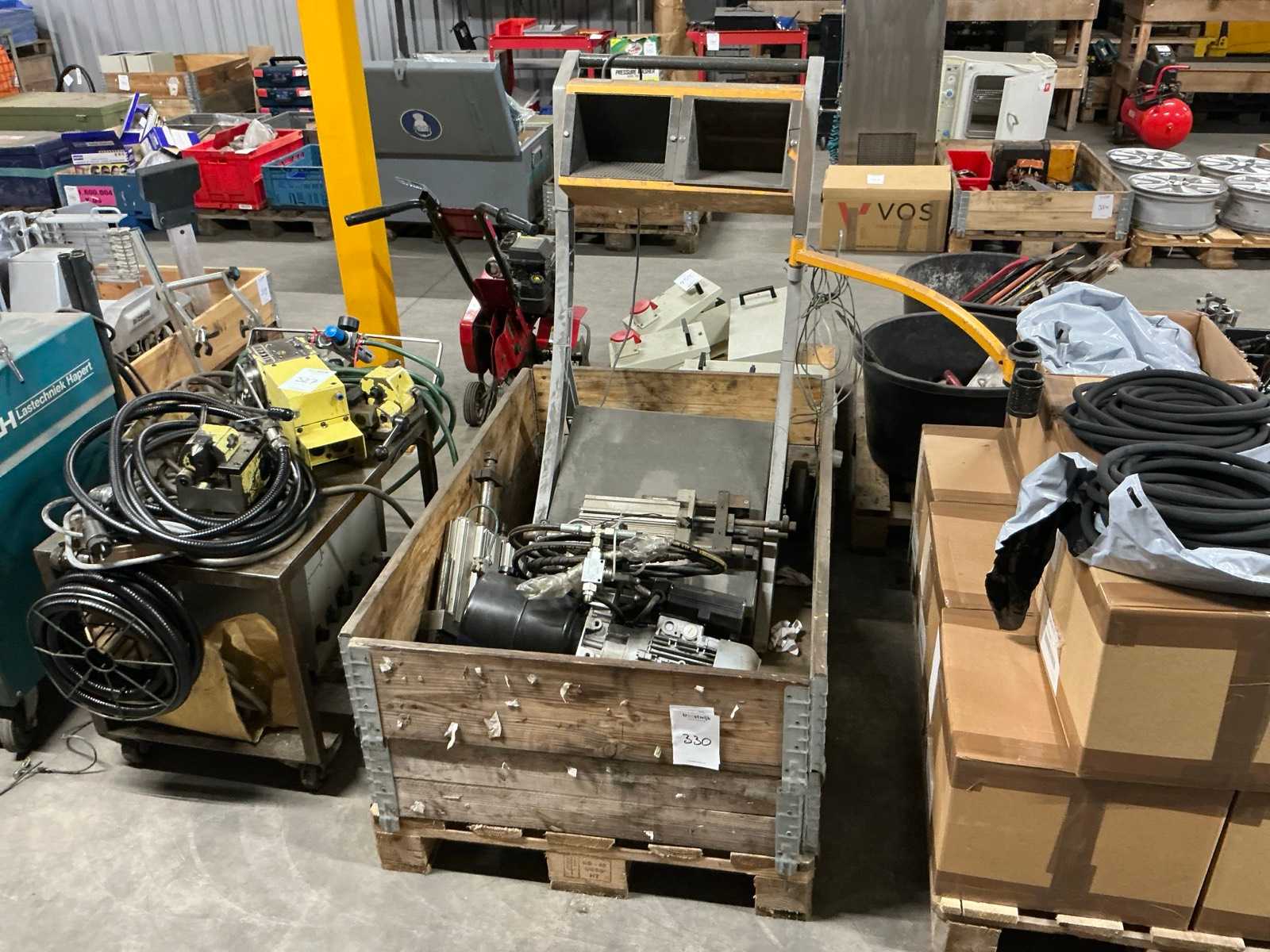

Powder coating system incomplete, hydraulic pump and pneumatic shaft

including 1 x PBS fluid reservoir.

including 2 x PBS fluid tanks.

Degree of protection: IP 54 (dust protection and splash water protection) Extraction capacity: 4000 m³/h Filter area: 30 m² Extraction capacity: 4000 m³ Dimensions cabin: 1900 x 1720 x 2720 mm (L/W/H)

Steel tank with inner coating (epoxy resin) Can be used above or below ground Volume: 30 m³ Dimensions: Ø 2.50 m × 6.60 m long can be ordered on request with extinguishing water connections or as a rainwater tank with inlet and overflow

Food extrusion product coating, drying and cooling line SCHAAF TECHNOLOGIE GMBH TYPE 318 COATING DRUM 1600 For the application of various taste and aroma giving materials by using various aromatising techniques. The special drum profile offers the following main advantages: - optimal Rolling of the product for uniform coating - minimum possible friction/damage of the product surface - no hidden corners, easy to clean, bacteriologically optimal surface. Adjustable drum speed, by frequency controlled AC gear motor 1.5 kW. Drum diameter: 1600 mm Drum length: 4000 mm Drum height: 3270 mm TYPE 284 DRUM DRIER/ROASTER 1600 PTFE Newly developed short and medium range infrared roaster for special thermal post treatment of expanded extrudate. The whole drum is coated with a low-wear PTFE layer. This ensures processing of extremely sticky coated extrudates. Unlike the conve ...

Manufacturer: MONTI ANTONIO Laminating-Coating Model: hot melt mod. 908 Type: Fleece and Foam LAMINATION & Coating with COATEM Foam make to inject direct to fabric for Coating. Working widh: 1800 mm Manufacture Date: 2003 (like new with new spare cylinder -hotmelt spareparts) With new spareparts Complete Modernisation in year 2016 with new electricity and software. description: working with SL1 Pleva weftstraitner go to 2 line Lamination Foam or fleece to Fabric

ELEKTRISCHER KASTENOFEN Verwendungszweck : Pulverhärtung Maximale Temperatur : 220ºC Das Heizsystem des Ofens ist als Zwangskonvektionssystem ausgelegt. Es basiert auf dem Prinzip, dass die Luft des Ofenvolumens mit Hilfe eines Umwälzgebläses in den Ofen gepumpt wird und die Ofentemperatur durch die Wärmeübertragung der Luft, die durch die Heizeinheit strömt, erhöht wird. Die Wände des Ofens und der Heizeinheit bestehen aus modularen Blechen und hochdichten Isolierplatten. Luftverteilungskanäle mit regulierbaren Klappen im Inneren des Ofens sorgen dafür, dass die Ofentemperatur an jedem Punkt gleichmäßig ist. Die Temperaturregelung ist digital und ermöglicht eine präzise Einstellung der Ofentemperatur. Die Heizeinheit wird seitlich, hinten oder oben am Ofen angebracht und besteht aus einer isolierten Heizkammer, einer Heizzelle mit Widerstand im Inneren, eine ...

1. RETRACTABLE LIQUID SPRAY BOOTH Retractable spray booths are designed for manual painting application with side draft ventilation, for extraction of applied liquid paint overspray. The benefit of the retractable liquid spray booths is that saves space in the workshop. STRUCTURE It is manufactured from scissor system body, made of electro galvanized rectangular and circular tube structures and covered by PVC fabric material from outside. Moving system includes industrial wheels or rail & wheel system, recommended according to outdoor or indoor use and spray booth length. A curtain door is designed for closing the door during the painting application. VENTILATION SYSTEM Side draft ventilation provides high efficiency during painting application. The filter wall is manufactured modular from galvanized sheet metal, designed with shelves and emergency door at the two sides. Extraction  ...

1. AKKORDEON-LACKIERKABINE Einfahrbare Spritzkabinen sind für manuelle Lackierarbeiten mit seitlicher Belüftung konzipiert, um überschüssigen Flüssiglack abzusaugen. Der Vorteil der einfahrbaren Flüssiglackspritzkabinen besteht darin, dass sie Platz in der Werkstatt sparen. AUFBAU Sie bestehen aus einem Scherenmechanismus aus elektroverzinktem Rechteck- und Rundrohr und sind von außen mit PVC-Gewebe verkleidet. Das Bewegungssystem umfasst Industrierollen oder ein Schienen- und Rollensystem, das je nach Außen- oder Innenbereich und Länge der Spritzkabine empfohlen wird. Eine Vorhangtür dient zum Schließen der Tür während des Lackiervorgangs. BELÜFTUNGSSYSTEM Die seitliche Belüftung sorgt für hohe Effizienz während des Lackiervorgangs. Die Filterwand ist modular aus verzinktem Blech gefertigt und mit Regalen und einer Notfalltür an beiden Seiten ausgestattet. Der Abs ...

1. CONTAINER TYPE LIQUID SPRAY BOOTH Spray booth type : Side draft, enclosed type Air speed : 0,50 m/sec (empty spray booth) EXTERNAL DIMENSIONS Length (mm) : 6.058 Width (mm) : 2.438 Height (mm) : 2.591 INTERNAL DIMENSIONS Length (mm) : 5.900 Width (mm) : 2.350 Height (mm) : 2.390 SPRAY BOOTH BODY Entry doors : 2-leaf hinged door 1x leaf G3 filter for air inlet 1x leaf service and emergency door with a panic bar Body material : Mild steel and rectangular iron tube metar structure Insulation : 50mm PIR polyurethane filled sandwich panels, B1 class flammability Window : 2 set of 600 x 600mm waterproof PVC window Container base : Aluminum sheet, non-slip Lighting system : 2 pcs, 2x36W enclosed type armatures, Ex-proof Zone 2 Lifting : Lifting eyes at the top corner areas, forklift fork openings at the base HEATING SYSTEM Source : Electricity He ...

CABLE POWDERING MACHINE FOR ELECTRICAL CABLES EXTERNAL DIMENSIONS Length : 1.000 mm Width : 1.000 mm Height : 2100 mm CABLE PASSAGE Size : 100 mm diameter Height from ground : 1.000 mm Cable insulation material : PVC, PE, XLPE to be used Cable size to be powdered: 5–70 mm diameter HIGH VOLTAGE UNIT Input voltage : 14V 16kHZ Output voltage : 100 kV Max. current : 120 µa Polarization : Negative TECHNICAL SPECIFICATIONS OF THE MACHINE Input : 220V 50 Hz Installed power : 1 KW Extraction fan : 3.000 m³/h 0,75KW Vibration : 0,15KW 220V Compressed air : 6-10 bar Air consumption : 300 lt/min Filtration : 320x300mm polyester filter Filter cleaning : Automatic Powder recycling : Vibration sieve Powdering method : Application by 2 electrodes, electro static application

PICKLING CABINET FOR CLEANING INOX PRODUCTS BEIZSCHRANK FÜR DIE REINIGUNG VON INOX-PRODUKTEN CABINET INTERNAL DIMENSIONS Length : 5.000 mm Width : 2.800 mm Height : 2.900 mm Material : Insulated sandwich panels, fire protected Basement : 150mm Illumination : 2x36W Exproof Zone-2 Entry door : Insulated sheet metal door Emergency door : 1 set Working temperature: RT WORKBENCH Length : 1.800 mm Width : 800 mm Height : 900 mm Ventilation : AISI304 extraction fan, circular air duct Material : PP material body, removable splash covers Grid : AISI304 stainless steel Sink : PP material Accessories : Hose reel, wardrobe Droplet separator WASTE WATER ROOM Length : 2.000 mm Width : 2.800 mm Height : 2.900 mm Basement : 150mm Illumination : 2x36W Exproof Zone-2 Entry door : Insulated sheet metal door Working temperature: RT Emergencydoor  ...

VM PLC CONTROLLED POWDER COATING RECIPROCATOR The powder coating reciprocator is designed for automated painting applications. It ensures perfect coating of the work pieces passing in front of it by moving the spray guns up and down in a single axis. It moves in one axis along the vertical guide column, providing maximum performance under daily working conditions withstanding continuous load. The brake drive motor and gearbox have been choiceed to ensure the reciprocator’s long life and performance under heavy working environment conditions. The mechanical system design with chain or belt provides silent and vibration-free vertical movement. Perfect coating is achieved with easy adjustment of stroke and speed. RECIPROCATOR CONTROL UNIT • Remote control panel 7" 65K color hand touch LCD screen, • Two reciprocators can be controlled independently from the same display, � ...

c

1. ELECTRICAL BOX TYPE OVEN Purpose of use : Powder curing Maximum temperature : 220ºC The furnace heating system is designed as forced convection system. It is based on the principle of pumping the oven volume air into the oven with the help of a circulation fan and increasing the oven temperature with the heat transfer provided by the air passing through the heating unit. The walls of the furnace and heating unit are made of modular sheet metal and high density insulated panels. Air distribution ducts with regulated flaps inside the oven ensure that the oven temperature is homogenous at every point. The temperature control device is digital type and provides precise adjustment of the oven temperature. The heating unit is placed on the side, rear or top of the oven and consists of an insulated heating chamber, heating cell with resistance inside, circulation fan that can opera ...

Gema, Wagner COMPATIBLE 100kV COST-EFFECTIVE AND VERY LONG LIFE POWDER GUN CASCADES MADE IN TURKEY

Used chocolate coating machine type OB-1 with type TECHO-1 cooling tunnel. Technical data of the coating machine: - length 1400 mm - width 1300 mm - height 1900 mm - length of infeed conveyor 1430 mm - width of infeed conveyor 990 mm - height of entry conveyor 900 mm Technical data of the cooling tunnel: Overall dimensions: - max. length 13000 mm - max. width 1150 mm - max. height 1580 mm - belt width 850 mm - height of conveyor belt from the ground 920 mm Technical and operational parameters: - conveyor belt speed infinitely adjustable from 0.671 to 0.922/min, - Electricity requirement: conveyor belt drive 1.1 kW, fans in coolers 4 x 50 = 0.2kW, blower fan motor 0.55 kW, conveyor belt adjustment mech. motor 0.12 kW Freon condensing unit + compressor motor 4 kW - it is adapted to be supplied with R12 freon

ELEKTRISCHER KASTENOFEN Verwendungszweck : Pulverhärtung Maximale Temperatur : 220ºC Das Heizsystem des Ofens ist als Zwangskonvektionssystem ausgelegt. Es basiert auf dem Prinzip, dass die Luft des Ofenvolumens mit Hilfe eines Umwälzgebläses in den Ofen gepumpt wird und die Ofentemperatur durch die Wärmeübertragung der Luft, die durch die Heizeinheit strömt, erhöht wird. Die Wände des Ofens und der Heizeinheit bestehen aus modularen Blechen und hochdichten Isolierplatten. Luftverteilungskanäle mit regulierbaren Klappen im Inneren des Ofens sorgen dafür, dass die Ofentemperatur an jedem Punkt gleichmäßig ist. Die Temperaturregelung ist digital und ermöglicht eine präzise Einstellung der Ofentemperatur. Die Heizeinheit wird seitlich, hinten oder oben am Ofen angebracht und besteht aus einer isolierten Heizkammer, einer Heizzelle mit Widerstand im Inneren, eine ...

Pulverbeschichtungsanlage für Autofelgen Kann 4 Stück 22"-Felgen in 1 Charge pulverbeschichten Komponenten der Anlage: 1,5x1x1,28m Pulverbeschichtungsofen, 18KW elektrisch VFK-2 einseitige manuelle Pulverbeschichtungskabine Förderstrecke und Ladewagen Manuelle Pulverbeschichtungsanlage Lieferung - 8 Wochen EXW Istanbul Fabrik Inklusive Montage und Schulung Wir bieten die besten technischen Lösungen und wettbewerbsfähige Preise Deutschsprachige Kontaktperson in Deutschland verfügbar. Kontaktieren Sie uns für weitere Informationen und Angebote VOGAMAKINA Ltd. infovogamakinacom Powder coating line for car wheels Able to powder coat 4 pcs of 22" rims in 1 batch Line components: 1,5x1x1,28m powder coating oven, 18KW electrical VFK-2 single sided manual powder coating booth Conveyor track and load trolley Manual powder coating equipment ...

PATRONENFILTER FÜR PULVERBESCHICHTUNGSKABINEN Die Filter bestehen aus 100% reinem Polyester. Nachstehend sind die verfügbaren Standardgrößen aufgeführt 320x600mm 320x650mm 320x1000mm 320x1200mm Andere Größen und Spezifikationen können ebenfalls angefertigt werden. Kontaktieren Sie uns für weitere Informationen und Preise. für Pulverkabinen für Staubabscheider für automatische Maschinen für Pulverbeschichtungsanlagen hoher Wirkungsgrad antistatische Option Option Bajonettanschluss POWDER COATING BOOTH CARTRIDGE FILTERS Filters made of 100% pure polyester. Available standard sizes; 320x600mm 320x650mm 320x1000mm 320x1200mm Available polyester filter media density; 160 g/m2 200 g/m2 260 g/m2 Demands of different sizes and specifications can also be manufactured.

Altronic Surface Coating Swiss manufacturer As good as new, very precise system ca 300 Bh Year of construction 2009 New price of the system 334.000,- € lt invoice / without commissioning was developed for the solar industry to apply wafer-thin coatings of sulfur to solar modules, here it was important to achieve exact distribution, and it had worked. equipped with 9x linear vibrators type E-PLF-0.65-IP54 Total dimensions of the coating system: 180 w x 220 t x 210 h Dimensions: approx. 130w x 160 cm incl. control and adjustment table, possibly a belt conveyor is also available Shipping: 650,00 International shipping only on request, not EU can be very different, will be billed exactly

Qty. 1 Second-hand paper coating machine Mfc.: SBL Model: HCUV-350 automatic coating machine Built: 2003 Max. sheet size: 1060 x 740 mm. Min sheet size: 450 x 360 mm. Max. coating area: 1050 x 730 mm Spot coating Speed: 7200 sh/h Automatic feeder with vacuum IR dryer for better varnish heating UV dryer with 3 lamps and cooling system delivery stacker

Ultraviolet Document Coater Coating speed 11 - 20 m/min. Max. speed 4440 sheets / hour Paper thickness/weight 120 - 350 g/m2 Min. sheet size 216 × 270 mm (A4) Max. sheet size 508 × 710 mm (B2) Automatic setting for coating rollers from 120 up to 350 g/m2. Ait fixing for low weight paper, touch control panel for the operator. Automatic cleaning system.

Comexi solvent-free laminating system Coating width = 1320 mm , Speed = 350 m/min, With 2 unwinders (turnstile) With 1 rewinder (turnstile) With Doypag vario mixer. Mixing plant 4 heaters Pre-treatment AFS corona type. G 60 S,

horizontal steel tank with very good inner coating (epoxy resin), food coating Volume: 45,000 l Dimensions: Ø 2.80 m × 7.70 m long Weight: 6.3 tons

Thank you for your interest in our used machines, which we are able to offer you as follows: Manufacturer: Sollich Model: 100F Chocolate Tempering Machine "Mini Temper" Year of construction: 1992 Masch. Nr.: 2241 Capacity: up to 80 kg/h Miscellaneous: good condition Chiller New in 2023 With the 100 F, you can keep 25 kg of couverture at a constant temperature and process it ideally pre-crystallized for several hours, or produce up to 80 kg of pre-crystallized couverture per hour. We offer this machine for sale "as is". from Hess warehouse. Lichtenau, unpackaged

Inv. Num. : 5805 Type:- Producer: EKOL Created: 2004 Parameters: Suitable for surface treatment of aluminium profiles with maximum dimensions of 3500 x 1350 x 600 mm Annual capacity: 20-25000 m2 Heating medium: Natural gas Equipment: KOS 2 x 6 x 20 Chamber Degreasing Machine Continuous dryer Transient 2 pieces Application cabin (suction capacity 10000 m3/h) Hardening furnace (4400 x 4400 x 3700 mm) Transport Demi-Water Production Wastewater Treatment Plant

Chocolate grating machine Model: QM 210 NEW - for 2 blocks - Rasp thickness 0.1 - 3 mm - Easy to use - Blades can be replaced individually - Speed control for knives - Block dimensions: 17-40 mm wide, 145-210 mm deep, 40-330 mm high - Efficient, fast work suitable for large production - Chocolate shavings machine in stainless steel design - Motor power 90 W - Connection 220V ready to plug in - Dimensions 400 x 450 x 710 mm, WxDxH DGUV V3 tested New machine with 24 months warranty + service package Option: Driving table Maintenance contract More bakery equipment in stock!

T14 - used approx. 22 m³ / 22,000 L steel tank, repainted inside and out, with heating coil, lying on steel bases. Technical details: Content: approx. 22 m³ / 22,000 litres Material: Steel tank with inner coating Dimensions: approx. Ø 2.30 m × L 5.30 m / H total 2.70 m Other: Used steel tank, repainted inside and out, with heating coil. In good condition. Horizontal, above-ground storage tank on 2 steel bases, dome on the top of the tank, several inlets and outlets. Only the pure tank is sold, without add-on parts such as pipes, fittings and accessories. The container can be used as a storage tank for many different media such as water, liquid feed, whey, potato steam husks, molasses, manure, leachate, rapeseed oil or as a rainwater collection tank, etc., or e.g. as a firefighting water tank. Price on request. Transport can be organised at a reasonable price. It is ...

horizontal pressure tank, steel tank with inner coating Can be used underground with anti-corrosion coating, e.g. for extinguishing water or rainwater or above ground with brackets, e.g. for molasses, AHL, ASL, water, corn mixture Volume: 32,000 L Dimensions: Ø 2.50 × 7.0 m long

POLYMERISATIONSOFEN Höchsttemperatur: 220ºC NÜTZLICHE INNENABMESSUNGEN Länge : 2.500 mm Breite : 1.150 mm Höhe: 500 mm Material der Außenfläche: 1mm Karbon-Blech Material der Innenfläche: 1 mm verzinktes Stahlblech Dicke der Isolierung: 150 mm Isolierung: Steinwolle (50 kg/m³) Wärmeübertragung : Konvektion durch geschlossenen Luftkreislauf Art der Beheizung : Direkte Beheizung mit elektrischen Heizkörpern Temperaturregelung : Ein/Aus, 0-400ºC Digitaler Thermostat, Fe-Const (J-Typ) Thermoelement Umgebungstemperatur : +10ºC (während des Betriebs) Gleichmäßigkeit des Ofens: ± 2,5ºC (5ºC insgesamt) Regelgenauigkeit: ±1ºC Aufheizzeit : 25-30 Minuten, leerer Ofenzustand Ofentür : Isoliert mit Steinwolle, automatische pneumatische Guillotine-Tür Manuelle Steuerung des Öffnens/Schließens über Joystick Beschickung/Entnahme : Manuelles Einschieb ...

Bakon Apricot/Fondant Coating Belt Line Year of construction 2000 Continuous flow device, with round belt spreader belts with instantaneous water heater system and jelly instantaneous water heater Working width 550mm Apricot station with airless nozzles Fondant station with splash device and nozzles for zigzag pattern with drying tunnel with melting tank for approx. 100l fondant with spared material pump - Bakery condition not cleaned - partially. in need of overhaul

Continuous flow device, with round belt spreader belts Working width 550mm with instantaneous water heater system Fondant station with splash device with melting tank approx. 200l with separate transfer pump (built in 2006) - Tested and cleaned immediately available

2.1.1. Walk-in cleaning booth, pre-treatment for steel and aluminium The cleaning booth is designed for automatic cleaning. Spraying can be done at medium pressure. There are 7 different spray tanks in the cabin. The part sizes are max. L= 6,000mm, W= 2,000mm, H= 2,300mm. 1 Dimensions of the cab length 6,500 mm Width 3,000 mm Height 3,600 mm 2 dimensions of the pre-treatment complete Length 6,600 mm Width 4,640 mm Debpm0Nom Height 4,300 mm 2.1.1.1. 1. Degreasing/Neutral Pickling Process Heated bowl, 50-55°C, time = 3-6 minutes, draining time = 80 seconds 2.1.1.2. 2. Process Acid Mineral Pickling Heated bowl, 50-55°C, time = 3-6 minutes, draining time = 80 seconds 2.1.1.3. 3. Rinsing Process 1 in this chamber rinsing is done at ambient temperature, time = 0.75-1.5 minutes, draining time = 1 minute 2.1.1.4. 4. Rinsing Process 2 in this chamber is rinsed at ambient tem ...

Glotter Metal Temperature control unit with chocolate pump and vibrator - Chocolate pump GM 950 - for pouring, filling or coating -Stainless steel - Vibrator EM 3045 - Tabletop appliance with drainer tray - With manual regulator - Temperature control unit with water bath heating - 20 to 50°C adjustable - Container with 15 liters - Ready to plug in Connection 220V, 1500 Watt Used machine cleaned More chocolate machines in stock!

Powder Coating Booth Open Spray Stand Dimensions of powder level Width 2,000 mm Depth 2,100 mm Height 2,200 mm Fan 1 pc. 6000 m³/h Power 3 kW (electric motor) Filter 4 type filter cartridges (à ⌀325 x 600 [mm]) Electromagnetic valves 2 Pcs. 1" "Turbo" Italy Absolute filter 1 pc. type bag filter Powder Pistol Wagner "Prima Sprint" Mains Standard 230 VAC Frequency 50 – 60 Hz Input compressed air 6-8 bar Output compressed air 0.05 – 5.5 Nm³/hr. Powder curing furnace Inner dimension length 3,225 mm Inner dimension width 1,400 mm Inner dimensions height 2,000 mm Insulation rock wool 150mm [75 Kg/m³] Temperature max. 220°C Fans 1 pc. 4,500 m³/h Electric Motors 1 pc 1.5 kW, 1450 rpm, 3 F, 50 Hz Thermal power 39 kW Doors on both sides 2 pcs. Manual, insulated with rock wool 150mm 70Kg/m³ Heating indirectly via thermoblock, Heating Cha ...

1.Powder curing furnace 2,000 x 1,900 x 2,000mm, manufacturer Kigo O.E.! 1 Inner dimension length 2,000 mm 2 Inner dimensions width 1,900 mm 3 Inner dimension height 2,000 mm 4 Outer dimensions incl. thermoblock length 2,300 mm 5 Outer dimensions incl. thermoblock width 2,300 mm 6 Outer dimensions incl. thermoblock height 2,700 mm 7 Substructure 1 set of steel profile 50 x 50 mm 8 walls 1 set of double-sided galvanized sheets 1mm, outside RAL 5005 9 Insulation walls, ceiling 1 set of rock wool 150mm 75Kg/m² 10 floor stove gets 2 entry rails for tray wagons 11 Temperature 220°C 12 fans 1 pc. 6,000 m³/h 13 electric motors 1 pc 1.1 kW , 1450 rpm, 3 F, 50 Hz 14 Thermal output 36 kW = 30,960 kcal/hour 15 wing doors on one side 2 pcs insulated with rock wool 150mm 70Kg/m² Heating Indirectly via thermoblock Thermoblock 1 set stainless steel INOX AISI 316 heat-resistant fa ...
