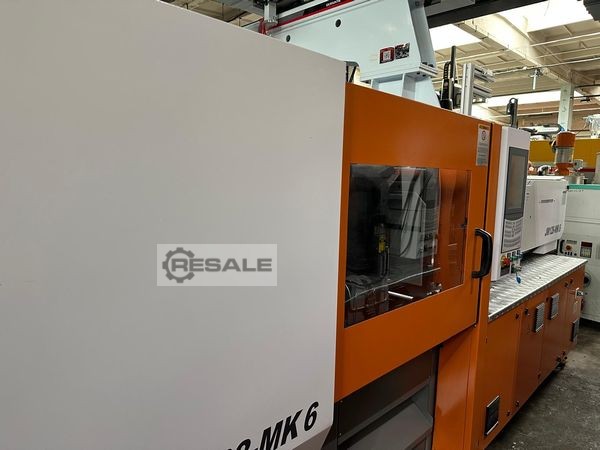

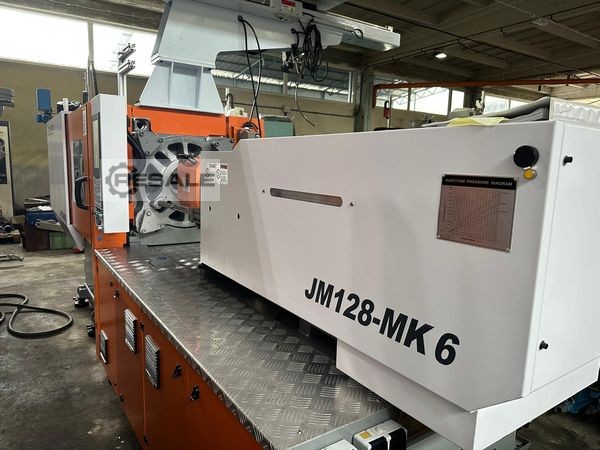

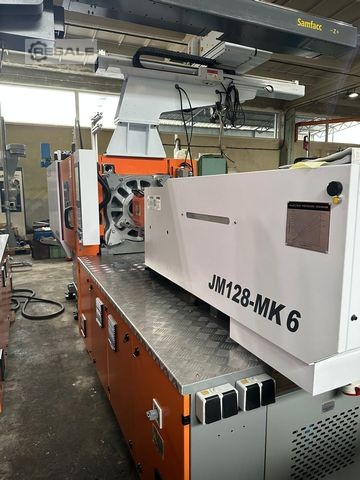

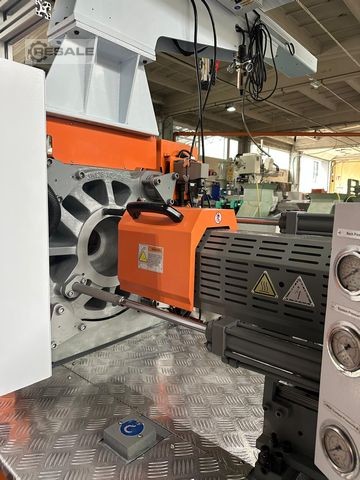

Chen Hsong JetMaster 128-MK6 with the Samfacc robot / hybrid
machine
Year of Make: 2021
Injection unit:
Screw diameter: 41 mm
Injection weight: 246 g
Spray pressure: 1890 bar
Dosing volume: 271 ccm
Clamping unit:
Clamping force: 128 t
Tiebar spacing: 410x410 mm
Size of the clamping plates: 620x605 mm
Ejector: electric
Clamping unit: toggle lever
Control: BECKHOFF - Touchscreen
Additional equipment:
Hybrid machine: high-speed, energy-saving and very quiet
Euromap 67
Robot interface
Air Valve x 2
Hydraulic core pull x 2
Control with hot runners x 8
Hardened injection unit - Bimetal
Main motor of the machine - Servo motor driven by inverter - Energy
saving
Central lubrication
Automatic tool height adjustment
Rexroth Hydraulics
The machine was serviced in Germany
Robot Samfacc
Year of Make: 2022
4-axis robot: 3 axes are driven by servo motors (electric): X, Y
(telescopic), Z; Axis C – pneumatic
The safety package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost
Dimensions:
Weight: 4000 kg
Length/Width/Height: 4.90x1.30x1.80 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
Poland
91212 Lodz
