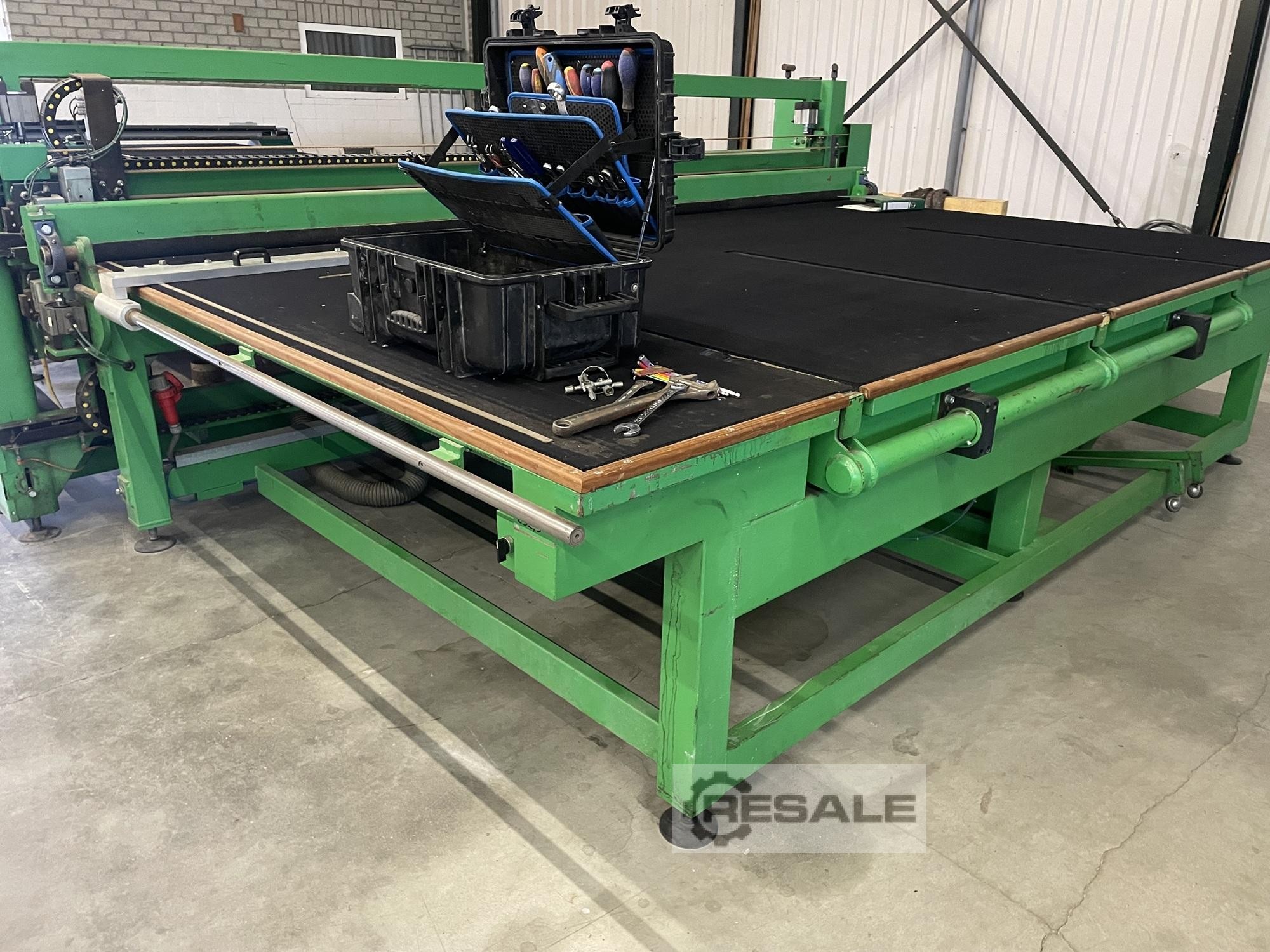

The Bottero 301C is a laminated cutting table, specifically designed
for cutting and separating laminated glass. Key specifications
include: weight approximately 2.8 tons, power 10–11 kVA, max.
cutting length 3400 mm, glass thickness 3–10 mm (monolithic up to 19
mm), 380V/50Hz connection.

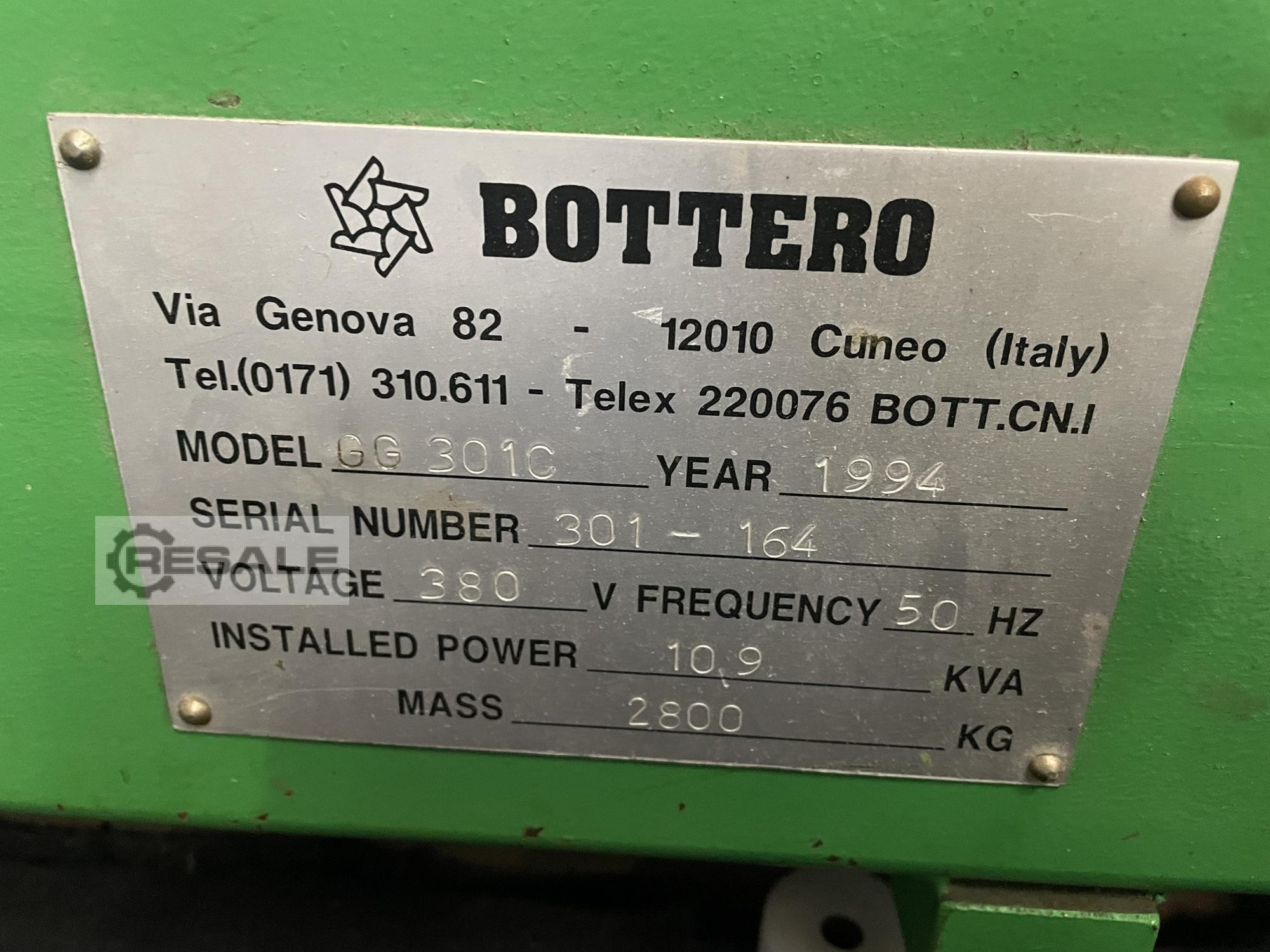

Technical specifications Bottero 301C
Brand / Type Bottero 301C
Chassis number GG301C-164
Year of construction 1994
Machine type Cutting table for laminated glass (semi-automatic)
Weight ± 2,800 kg
Power 10.9 kVA – 50 Hz
Electrical connection 380V
Machine dimensions: Length 4900 mm, width 3350 mm, working height 930
mm
Transport dimensions approx. 4.2 × 2.4 m + 4.8 × 1.0 × 1.6 m
Glass thickness range 3 – 10 mm laminated, 33.1 – 66.2 mm
PVB; monolithic up to 19 mm possible
Max. cutting length 3400 mm
Functions Cutting, breaking and separating laminated glass
with patented PVB system

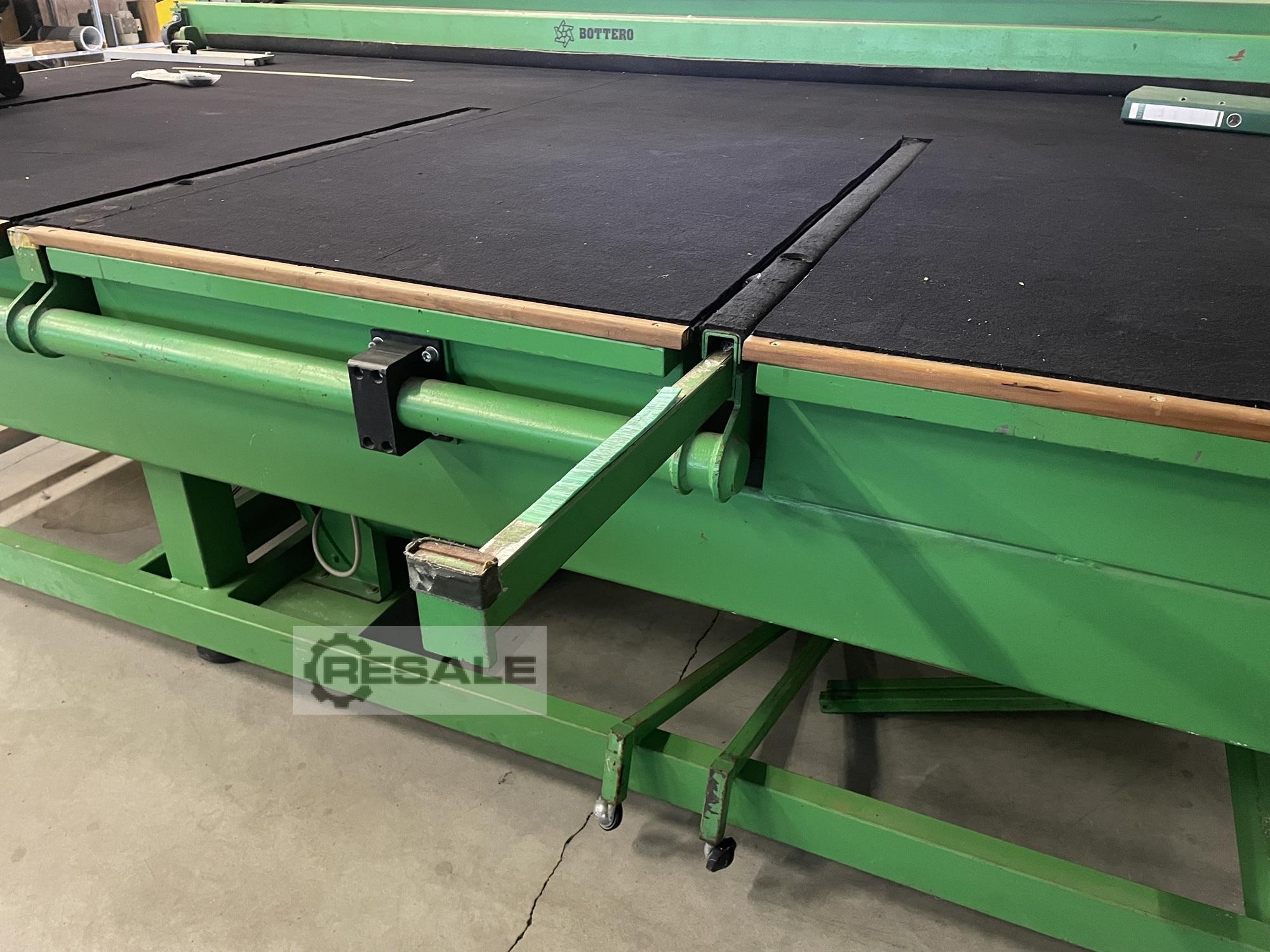

Work table Pneumatic air cushion,
covered with wool felt for optimal flatness
Lifting arms Pneumatic, max. 280 kg

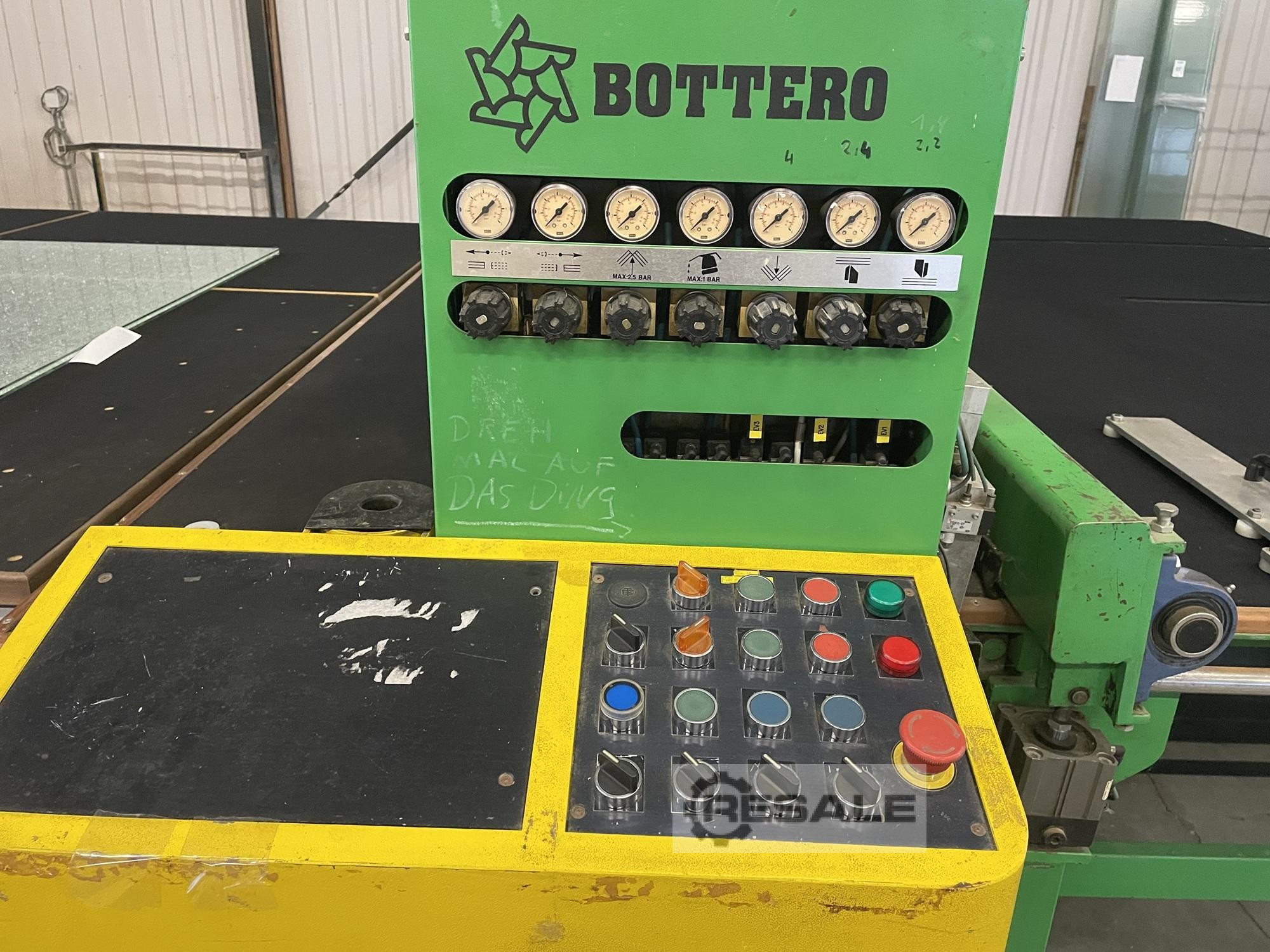

Control Electromechanical, manual pressure adjustment
and photocell for glass size
Practical features
Air cushion system: powerful fan creates an air cushion for easy
movement of glass panels.

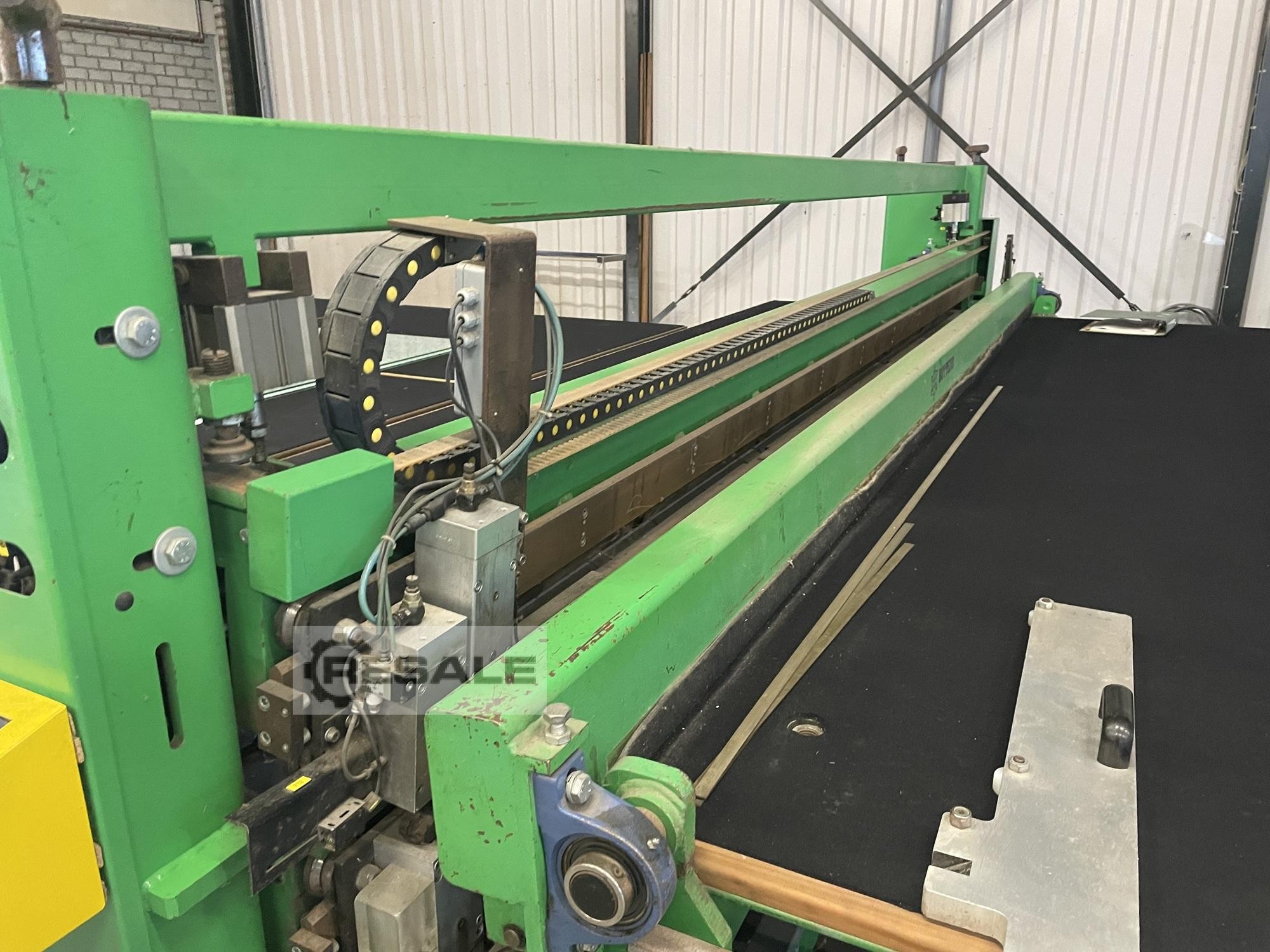

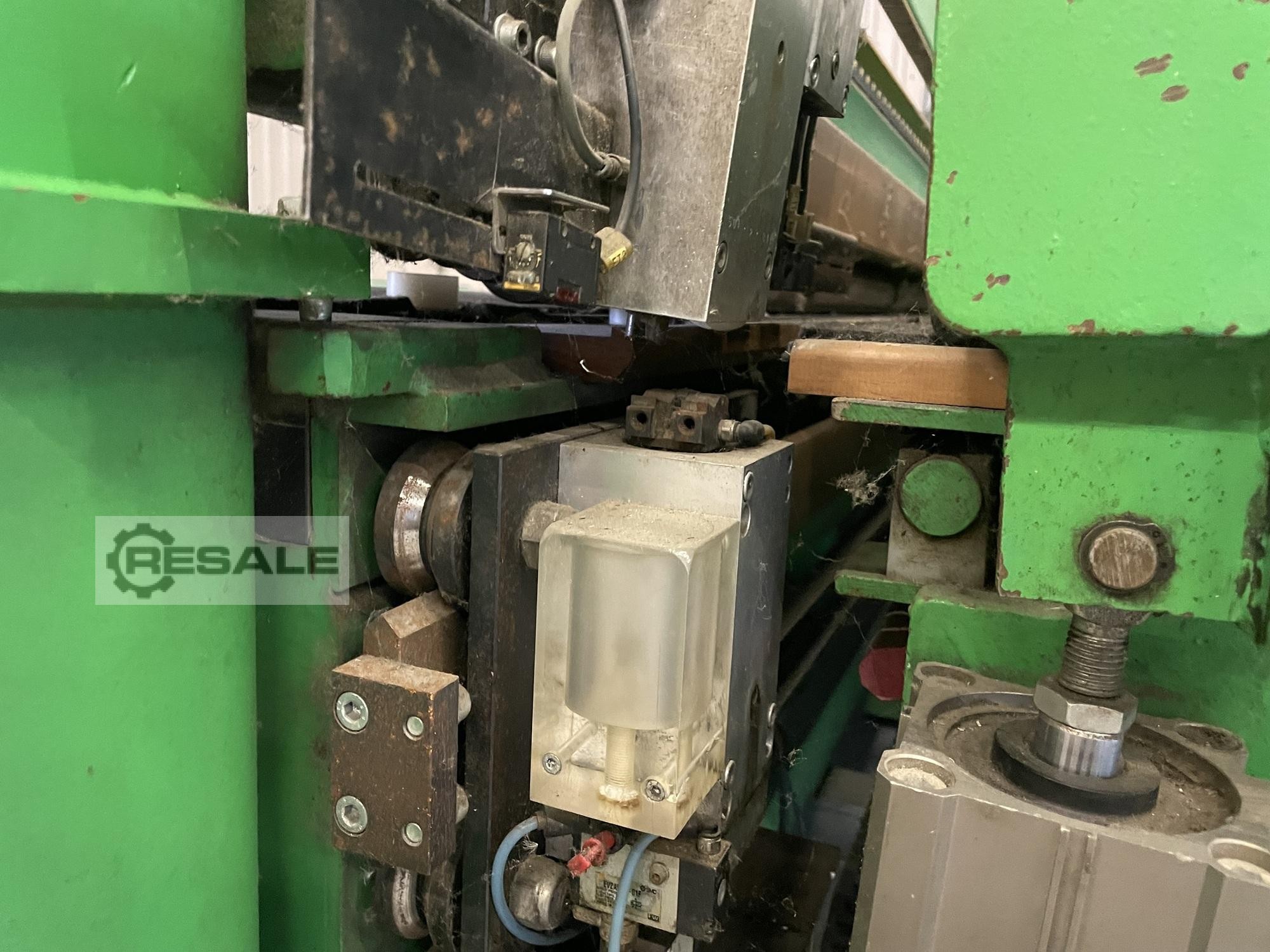

Cutting module: patented Bottero system with heating unit for PVB
separation, automatic T51256971 lubrication and adjustable cutting
pressure.
Flexibility: can cut both laminated glass (with PVB) and monolithic
glass.
Lifting arms: pneumatically operated, suitable for plates up to 280
kg.
Work table: covered with wool felt for minimal friction and precise
flatness.
⚙️Application
The Bottero 301C is ideal for companies that process a large volume of
laminated glass (e.g., safety glass or insulating glass). Thanks to
its semi-automatic cutting and separation system, the glass can be
separated efficiently and without splinters, increasing productivity
and quality.
