automatic grinding machine used for sale

Long belt sanding machine, veneer sanding machine, Specifications: Table width 2800 mm Grinding width 2500 mm Table depth approx. 2000 mm Sanding belt length 9500 mm Pressure lamellar belt length 10 mm x 7750 mm Sanding belt dimensions 150 mm x 9500 mm Belt speed 25 + 12.5 m/s Suitable for intermediate paint sanding Workpiece height 6 - 220 mm Grinding engine power 24 kW Total power 27 kW Machine dimensions approx. L 5000 x W 2300 x H 2400 mm Space requirement of the machine in width is 3500 mm Machine weight 2600 kg TOP condition, technical documentation, sanding belt.

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

Technical data of the used Equiptop ESG-1228ASD Tangential Rectification: Magnetic plane: 712 x 330 mm Automatic working stroke: 760 mm (manual 830 mm) Grinding wheel diameter: 355 mm Grinding wheel thickness: 50 mm Engine: 7 1/2 hP Automatic diamond maker Increased working height CE certified; Year: 2000 Machine in excellent condition, CE certified.

grinding length:900 mm grinding width:400 mm workpiece height:450/530 mm table clamping surface LxW:1.320 x 300 mm magnetic plate size:880 mm x 280 mm mm Finimatic Creep speed Add-on for Diaform Rectifier system Coolant device Infinitely variable grinding clamping drive

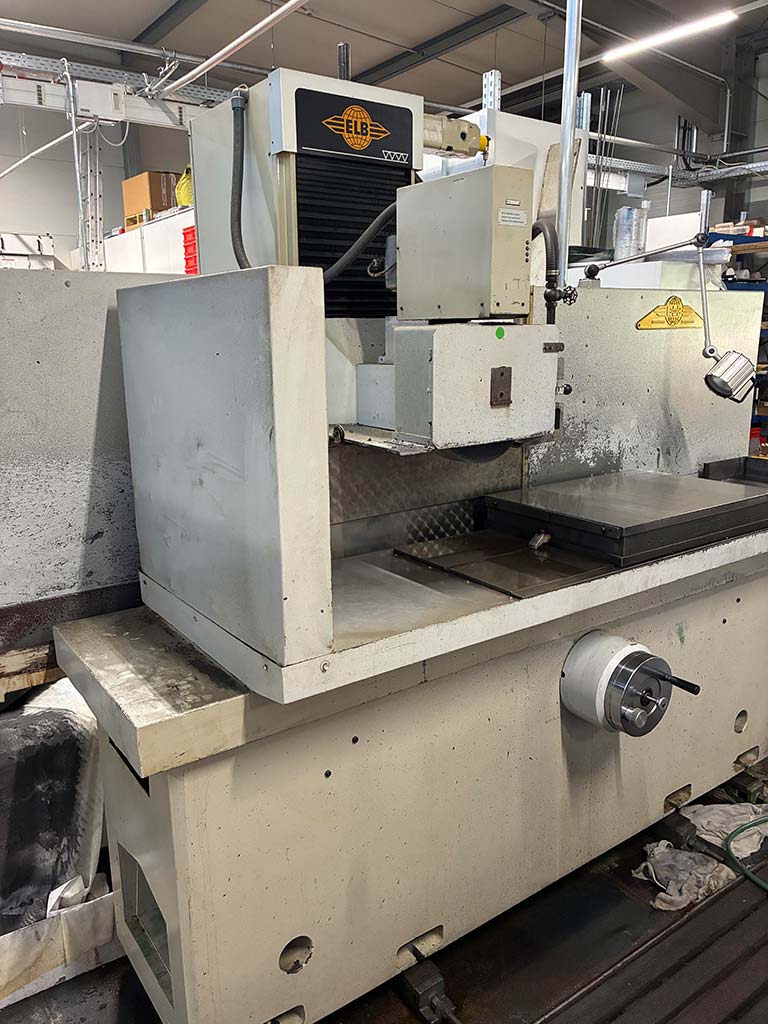

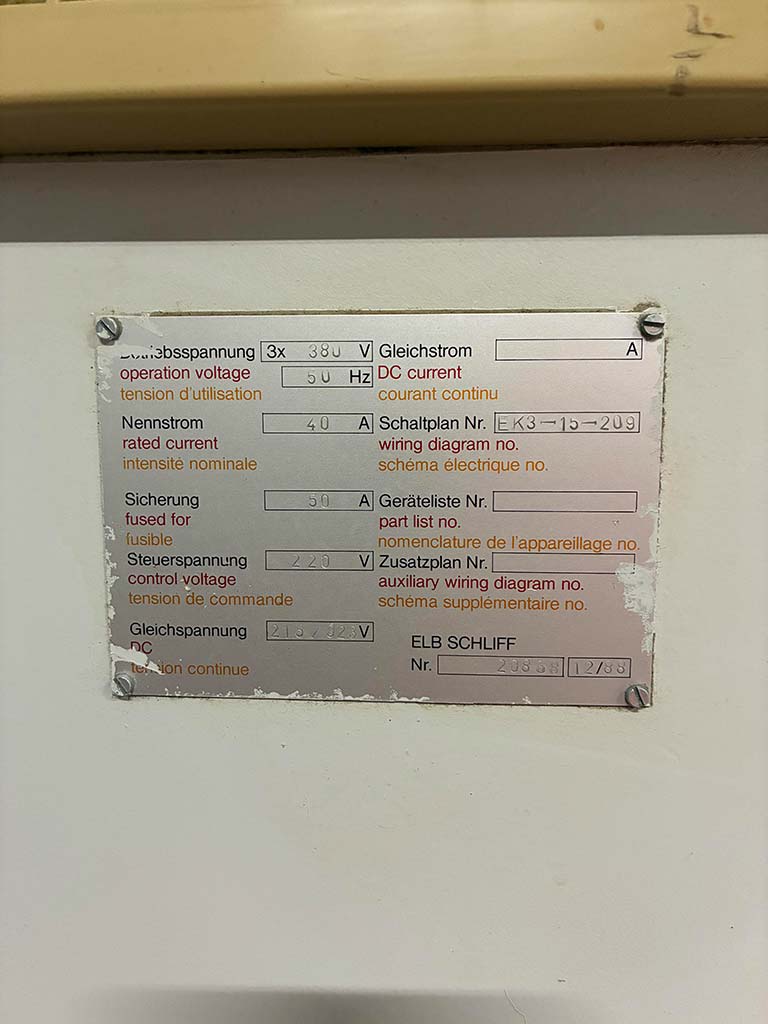

- E L B - HIGH-PRECISION ROTARY TABLE SURFACE GRINDING MACHINE TYPE: ROTARY 80 SPS-NK / YEAR OF CONSTRUCTION 2002 = GRINDING DIAMETER : 800 mm GRINDING HEIGHT : 400 mm (from work table) TABLE LOAD : 300 kg Machine dimensions : 2800 X 2800 X 2660 mm ( WxDxH) Machine weight : 5,500 kg Motor version : DS flange motor Grinding spindle drive : 10 kW Grinding spindle speed : adjustable via frequency controller Grinding spindle cone : 60 mm Grinding wheel : 400x100x127 mm Control voltage : 24V DC Installed power : 20KW Fuse : 50A FULL ROOM COVERAGE

centre height:500 mm centre distance:2000 mm control:CNC Grundig Numerik total power requirement:400 V, 50 Hz, 22,5 kW weight of the machine ca.:3300 kg dimensions of the machine ca.:2500 x 4000 x 2400 mm

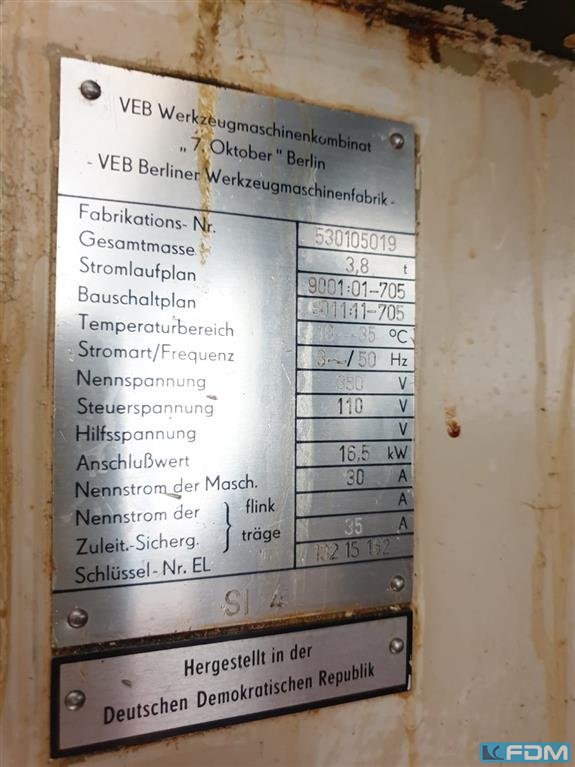

total power requirement:16,5 kW weight of the machine ca.:3,8 t

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

grinding diameter:4000 mm centre height:310 mm weight of the machine ca.:17 t dimensions of the machine ca.:10.5 x 3.6 x 1,9 m

grinding diameter:3 - 150 mm grinding length:200 mm total power requirement:380V, 50Hz, 30 kW dimensions of the machine ca.:5 x 3 x 2,5 m

grinding diameter: 0,2 - 190 mm grinding length:400 mm centre height:100 mm weight of the machine ca.:1,6 t dimensions of the machine ca.:2 x 1,5 x 1,8 m

Cross belt grinding machine Ashton AIS / XDIA Model AIS/3350 / XDIA S/N XP 20100082 (by Glasmek AB Sweden, renovated in 2005) Manufacture: Ashton Industrial Sales LTD / UK Year of manufacture approx. 2000 Professional high-performance glass grinding machine 2x diamond bracelet transverse straps High-speed abrasives and diamond abrasives 400 V , 50 Hz Ball roller tables for easy movement of the glass panes. Table dimensions: L x W x H = 3.85m x 1.20m x 0.9m Weight 600 kg CE marked

Workpiece holder head compatible with STUDER S30 and S40 grinding machines, completely rebuilt, overhauled and repainted by specialists in grinding machinery retrofit. The unit has undergone a complete reconditioning process to ensure excellent mechanical condition and a presentation in keeping with a rebuilt machine. Features: - Completely rebuilt and overhauled. - Mechanical components inspected and adjusted. - Revised engine and assembly. - Completely renewed paint. - Excellent general condition. - Ready for installation. - Compatible with STUDER S30 / S40. An excellent choice for replacing a worn head or for repair and retrofit projects of STUDER grinding machines. Immediate availability. For more information, photographs, technical characteristics or price, contact us.

Complete disassembly Cylindrical grinding machine STUDER RHU 500 – MIRA Retrofit We have a complete exploded view from a STUDER RHU 500 cylindrical grinding machine, ideal for spare parts, repair or maintenance. The machine has been dismantled by MIRA Retrofit, specialists in the reconstruction and modernization of grinding machines, preserving its main assemblies and components for sale as spare parts. Available, among others: - Workpiece holder head and its components. - Tailstock headstock. - Grinding head and grinding assemblies. - Motors and drives. - Spindles and mechanical elements. - Trolleys, guides and moving elements. - Steering wheels, controls and mechanisms. - Hydraulic and pneumatic components. - Electrical elements. - Protections, supports and accessories. - Different original STUDER parts. Sale by individual components or possibil ...

SPECIFICATIONS: Max. machining width: 800mm Working height: 150mm Installed power Kw: 3.0 2 brushing units consisting of 4 counter-rotating brushes Ø250mm x 220 mm Transport carpet with speed control Controller

Technical data of Used Universal cylindrical grinding machines Cometa HSP 2000: Wheel diameter: 762 mm Max diameter working: 800 mm Center height: 410 mm Working lenght: 2000 mm Wheel power: 15 hP Weight: 11 ton

Sharpening machine for band saw blades Manafacture: Alber Sharpening machine for band saw blades Sharpening circuit Fabr. Alber Model: TB1 - AE2 Year of construction: 1978

SPECIFICATIONS: Workspace: Maximum width: 1600 mm Minimum length: 550 mm Working height: min. 10 mm - may. 120 mm PLC control COMPOSITION: I. Group: 02 Side brushes with automatic adjustment II. Group: 01 Transverse rotation brush (immersion brush) III. Group: 03 Interchangeable heads with disc brushes or brushes IV. Group: 02 edge strip heads V. Group: 03 Interchangeable heads with disc brushes or brushes VI. Group: 01 Transverse rotation brush (immersion brush) EQUIPMENT: 01 Motorized transport carpet: 2200 x 1600 mm 01 Self-cleaning motorized unloading belt (conveyor belt) 2500 x 1600 mm

Disc grinding machine Grinding machine for plates, bowls, rings, wheels, etc. Manufacturer: Hempel Model No.: PQ-4 Year of construction: 1982

NC – controlled precision rotary table surface grinding machine with horizontal grinding spindle and transverse slider - brand new Rotary table diameter 1,000 mm Largest grindable diameter 1,150 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 800 kg Circumferential grinding wheel Ø 450/203 mm x W 80 mm Highest workpiece height with new grinding spindle 700 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 14.7 kW Rotary table drive power 5 kW Torque 30 Nm Weight approx. 15,000 kg

Gear grinder REISHAUER OZA with change gears.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm current capacity: 380 kVA power capacity - grinding motor: 1,1 kW speeds of grinding spindle: 2 - 10.000 U/min total power requirement: 2,2 kW Mechanic: very good: Optical condition: very good: Condition: general reconditioning: The machine can be viewed under current.: operating key and instruction: Machine and accessories completely overhauled with CE marking 400 V, 50 Hz, with CEE plug and cable BASICMACHINE! built of year 1988 / overhauled in 2023 Color: 2 K repainting Stand RAL 7005 mouse gray Structure and accessories RAL 7035 light gray motorized height adjustment, axial grinding spindle adjustment Complete electrical conversion includes: > Fi circuit breaker > new three-phase drive > new brake motor > new frequency regulation > new touch-safe built-in electronics > EMV screw ...

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: Please notice: We would be happy to make you a free offer. However, please understand that we only process inquiries with complete address details. 1218 400 V, 50 Hz, with CEE plug and cable Colour: light grey RAL 7035 Stand traffic grey RAL 7042 (new paint) axial grinding spindle adjustment Accessories: Machine stand and carrier plate ground Complete electrical conversion included: > new three-phase drive > new brake motor > new frequency controller > new built-in electrics touch-proof > Fi circuit breaker >  ...

1 center grinding machine Make: Technica Model: 5100-810 Year of construction: 1988 Workpiece diameter: 150 mm Grinding depth: 5.0 mm Workpiece length: 1,100 mm Grinding spindle speed: 45,000 rpm Operating voltage: 380 V Total power requirement: 0.5 kW Machine weight approx.: 490 kg Dimensions approx.: 1,00 x 0,85 x 1,85 m

grinding length: 900 mm grinding width: 510 mm workpiece height: 400 mm table surface area: 800 x 400 mm longitudinal feed of the table: max. 980 mm table speed -stepless-: 1 - 35 m/min grinding wheel size: 355 x 51 x 127 mm cross feed of the table: 460 mm cross feed: 1 - 40 mm/Hub vertical feed autom.: 0,005 - 0,04 mm/Hub rapid traverse vertical: 0,5 m/min grinding spindle speed: 1450 U/min grinding spindle drive: 5,6 kW table load capacity: max. 1000 kg total power requirement: 10 kW weight of the machine ca.: 4,4 t Accessories: magnetic plate 800 x 400 mm, various grinding wheels with and without flanges, wet grinding attachment with paper band filter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 12000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: operating key and instruction: 2189 400 V, 50 Hz, with CEE plug and cable Colour: body pastel turquoise RAL 6034 Stand blue-grey RAL 7031 Motorized height adjustment, axial grinding spindle adjustment Machine like new Accesories: Sk 40 dividing head with 24 R dividing disc Graduated disc 20 R Tightening screw M 16 69871 Spiral and relief grinding device with rack housing Counter bearing with 4 tailstock centres Center point with driver Dressing device Dressing diamond Radius grinding device SK 40 complete w ...

Technical data (subject to change) Space requirement 4,200 x 2,600 mm Tape measure 7,800 x 150 mm Table size 2,900 x 1,400 mm usable working length between the uprights max. 2700 mm Table lift by means of handwheel 340 mm Offset right 1100 mm Weight approx. 1300 kg (Compressed air connection required)

Grinding and polishing machine for the shoemaker's profession, cleaned and tested.

Technical data of the Favretto TU 500 Grinding: Max grindable length: 5000 mm Max grindable width: 1500 mm Max grindable height: 1300 mm Passage between uprights: 1530 mm Load capacity: 4500 kg Approximate weight: 20000 kg Voltage: 380 V Approximate installed power: 60 kW Grindstone: Normal dimensions: 500x203 mm Thickness: 100 mm Rotation speed: 1400 rpm/1' Steerky transverse feeds: 1 to 10 mm/stroke Transverse displacements adjustable continuously: from 0.1 to 6 m/1' Table: Useful dimensions of the support surface: 1200x5000 mm Continuously adjustable speed: from 2 to 30 m/1'

Key data: 1300 mm, 5

Wide belt snding machine Manufacturer: Heesmann Model: LSM 8 Equipment: - Transverse sanding unit - Longitudinal sanding unit - Longitudinal sanding unit - Brush unit - Brush unit

Profile grinding machine / strip grinding machine Manufacturer: DIMA Model: LPS /9 Year of construction: 1994 9 grinding units / disc grinding units

Grinder Schaudt BHU 40A Swing diameter: 400mm Center distance: 630mm The technical data can be found in the pictures. approx. transport dimensions and approx. weight: 3.5m x 2m x 2m, 3,500 kg Location of the machine: 76661 Philippsburg The machine can be viewed on site. It is in pristine condition. You can make an appointment for a viewing at any time. We'd love to hear from you.

Grinding wheel dimensions (od x id x width): Ø350 x Ø200 x 150 mm, Ø min/max to be rectified: 1.5 - 75 mm, Peripheral speed of grinding wheel (m/s): 1,700 RPM, Regulating wheel width: 150 mm, No. of regulating wheel speeds: 4, Min/max speed of regulating wheel (r.p.m.): 21, 30, 42, 310, Regulating wheel dimensions (od x id x width): Ø250 x Ø140 x 150 mm, Grinding wheel width: 150 mm, Maximum length to be rectified in plongeé: 150 mm, Grinding wheel head motor power: 15 HP, Total power: 16.5 hp, Long: 1.654 mm, Width: 1.500 mm, Tall: 1.535 mm, Weight: 2.200 kg

Grinding wheel dimensions (od x id x width): Ø 508 x 304.8 x 250, Regulating wheel dimensions (od x id x width): Ø 255 x 155 x 250

Ref. -No.: 10332 Manufacturer: GEORG MüLLER Year of construction: 1969 Type of control: Konventionell Control: N/A Storage location: Halberstadt Country of origin: Germany Machine length: 1200 mm Machine width: 800 mm Machine Height: 1800 mm Grinding height: 120 - 200 mm Max. Grinding length: 310 mm Grinding Width: 175 mm Total Power Requirement: 2,8 kW Weight Of The Machine Ca.: 0,4 t Grinding head adjustment (vertical): 165 mm Max. grinding head infeed: 12 mm magnet clamping surface: 250 x 150 mm Grinding wheel dimensions: 170 x 100 x 76 mm Grinding spindle - speed: 2850 RPM Grinding spindle drive: 2,2 kW Drive motor power: 380 V

Ref. -No.: 10316 Manufacturer: TOS Year of construction: 1996 Type of control: Konventionell Control: n/a Storage location: Halberstadt Country of origin: Slovakia Machine length: 3450 mm Machine width: 2236 mm Machine Height: 2000 mm Weight Of The Machine Ca.: 4,4 t Grinding wheel: 260 mm Table Dimensions (Lengthxwidth): 1500 x 400 mm Height of grinding with new grinding wheel (without magnetic plate): 500 mm Grinding wheel fx width x bore: 350 x 40 - 80 x 127 mm Width of the composite grinding wheel: 200 mm Max. load on the work table: 5000 N Table surface: 400x1000 / 1500 mm Max. distance of the spindle axis: 675 mm Max. length of grinding: 1000/1500 mm

Ref. -No.: 10301 Manufacturer: TITAN Year of construction: 1990 Type of control: Konventionell Storage location: Halberstadt Country of origin: USA Max. Grinding length: 1.500 mm Max. Workpiece Weight: 300 kg Grinding Diameter: 350 mm Max. Dia. Of Grinding Wheel: 280-500 mm Grinding Wheel Width: 80-100 mm

Ref. -No.: 10159 Manufacturer: KELLENBERGER Year of construction: 1974 Storage location: Halberstadt Country of origin: Schweiz Grinding Length: 1000 mm Grinding Diameter: 250 mm

Ref. -No.: 10265 Manufacturer: PROTH Type of control: Konventionell Storage location: Halberstadt Country of origin: Taiwan Serial no.: 0011G-05 Max. Grinding length: 600 mm Grinding Width: 300 mm Workpiece Height: 312 mm Travel X: 700 mm Travel Y: 340 mm grinding wheel dimension: 355 x 25 x 127 mm

Ref. -No.: 10120 Manufacturer: BRIERLEY Storage location: Halberstadt Country of origin: Deutschland Workspace: 2,5- 32 mm

Ref. -No.: 10235 Manufacturer: VIOTTO Year of construction: 1985 Type of control: Konventionell Control: N/a Storage location: Halberstadt Country of origin: Italy Serial no.: 1024 Further information: disc grinder

Ref. -No.: 10233 Manufacturer: DISKUS Year of construction: 1973 Type of control: Konventionell Control: N/a Storage location: Halberstadt Country of origin: Deutschland Serial no.: 6984 Weight Of The Machine Ca.: 3 t Further information: Discuss - surface grinding machine

Total length with gutter for cooling liquid mm 15000 Overall width mm 11380 Overall height mm 5780 Grinding width mm 2500 Clamping surface of the table mm 4500х2240 Distance between columns mm 2680 Maximum length of grinding mm 4000 Grinding length at table speed 1-40 m/min Grinding height mm 1250 Number of T-shaped slots pcs. 9 Distance between T-shaped slots mm 36 H 12 T-slot width mm 8x250 Workpiece weight kg 40 000 Machine weight kg 125 000

grinding diameter: 350 mm grinding length: 1500 mm centre height: 175 mm total power requirement: kW weight of the machine ca.: 3 t dimensions of the machine ca.: m Overhauled and modernized machine -DRO in x and z-axis -New BEMA tailstock with 0,1mm cylinder compensation -Park position for the tailstock -New automatic switch off when diameter is reached -Automatic switching from rough to finish grinding -Finish grinding feed electrical infinitely variable from 0-100% -Modernized infeed handwheel like on the new machines -swiveling operator panel -Splash doors -coverd x-axis with possibility to set an exhauster on top -New internal grinding device like on the new model -new hydraulic aggregate -New electric cabinet -Scontrol voltage 24V instead of 220V Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrS ...

High-quality construction The drive roller is convex (this automatically centers the abrasive belt in the middle of the roller), fully vulcanized for longest service life and best running smoothness, Tool-free and therefore quick, uncomplicated change of the sanding belt, infinitely variable height adjustment for optimal setup of the belt sander to the user, freely adjustable metal stop for optimal and safe guidance of workpieces when using the large surface grinding area, Optimized belt speed in terms of design, so that burning of the workpiece during machining can be excluded as far as possible, Motor protection switch with CEE collar plug incl. phase changer, 5-year warranty on the engine Strip length 2000 mm Belt width 75 mm Surface grinding range 600 mm Belt speed 30 m/s Colour RAL 9007 Three-phase motor 400 V 3.0/3.75 kW Machine dimensions (W x D x H) 1100 x 550 x  ...

grinding length: 1500 mm grinding width: 900 mm workpiece height: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm current capacity: 380 kVA power capacity - grinding motor: 1,1 kW speeds of grinding spindle: 2 - 10.000 U/min total power requirement: 2,2 kW Mechanic: very good: Optical condition: very good: Condition: general reconditioning: The machine can be viewed under current.: operating key and instruction: ! We have almost all spare parts for Deckel S 11 machines in stock ! Machine and accessories overhaul year of construction 2023 with CE marking and 12 months warranty (domestic)! LID S 11 TOOL GRINDING MACHINE - UNIVERSAL 400 V, 50 Hz, with CEE plug and cable Color: 2 K new paint Stand RAL 7005 mouse gray Body and accessories RAL 7035 light gray Motorized height adjustment, axial grinding spindle adjustment Complete electrical conversion includes: > Fi circuit breaker > New three-p ...

Key data: 299 mm, 620 mm, 150 mm

Technical data of the machine: - Workpiece headstock: MK5 - Tailstock: MK3 - Center height: 150 mm - Center width: 680 mm - Grinding length: 620 mm - Grinding wheel left: 350 x 50 x 127 - Grinding wheel right: 250 x 25 x 127 . Geometry: The machine is completely dismantled up to the guides. Before the geometry of the individual tables and assemblies can be restored, both guides of the Z and X axes are scraped by hand and restored to a like-new condition. After completion, the machine receives a measurement report according to the manufacturer's specifications Equipment of the machine (standard): • 1 workpiece headstock MK5, swivel • 1 tailstock MK3 • 2 grinding wheel holders • 1 abrasive headstock Ø 127, swivel • 1 hydraulic power unit • 1 set of operating tools and instruction manual The machine and equipment shown in this il ...
