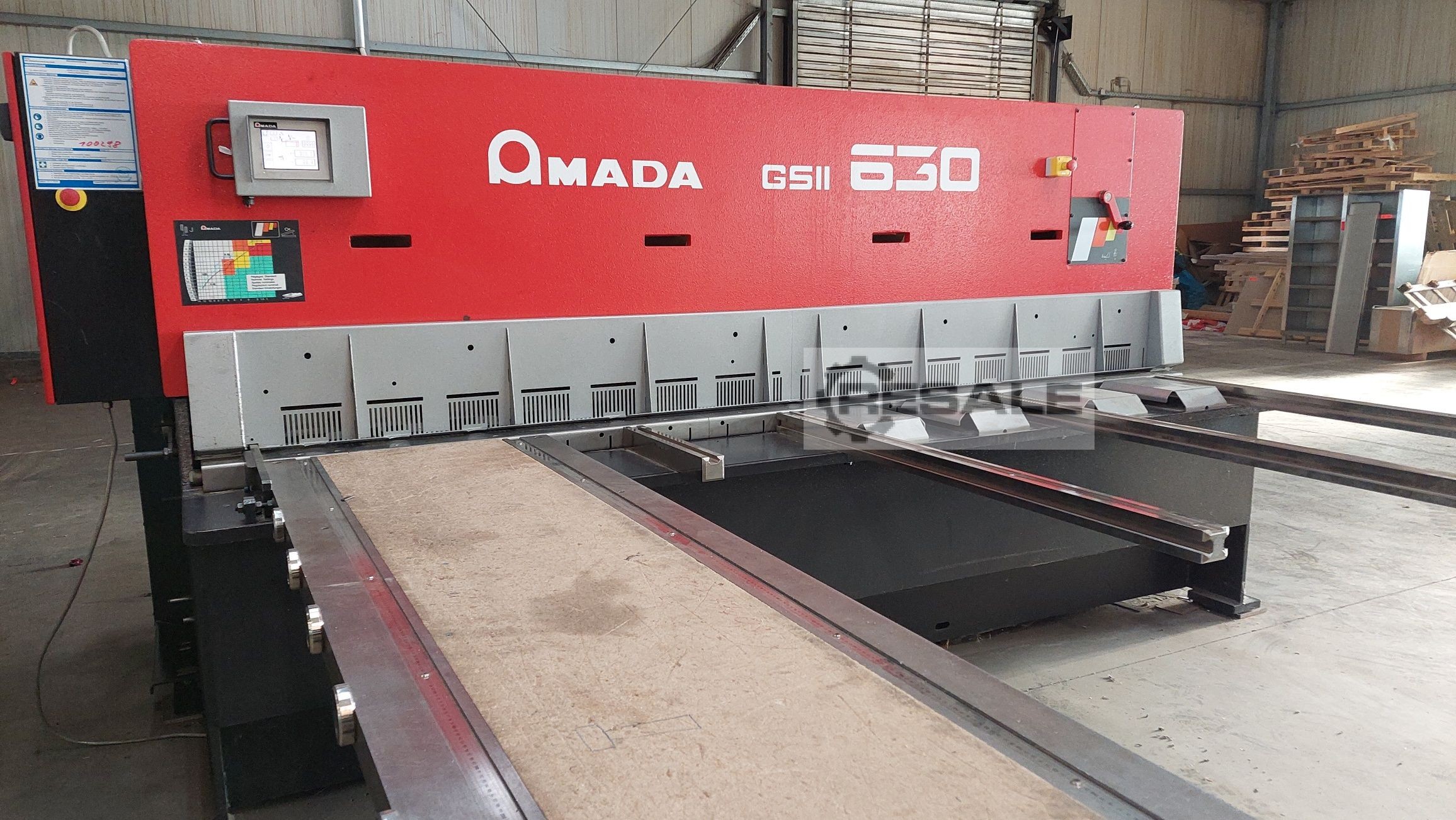

Hydraulic Shear AMADA GU II 630

Offer 26007

Technical data:

- max. working width 3050 mm - max. cutting capacity - for sheet steel 6.35 mm
- 4 mm for stainless steel
- 8 mm for aluminium
- Adjustable cutting angle
- Cutting length adjustment
- Cut line illumination
- Number of hydraulic hold-downs 14 pcs
- Back gauge with positioning control AMADA 10 - 1000 mm
- Front angle stop 3000 mm

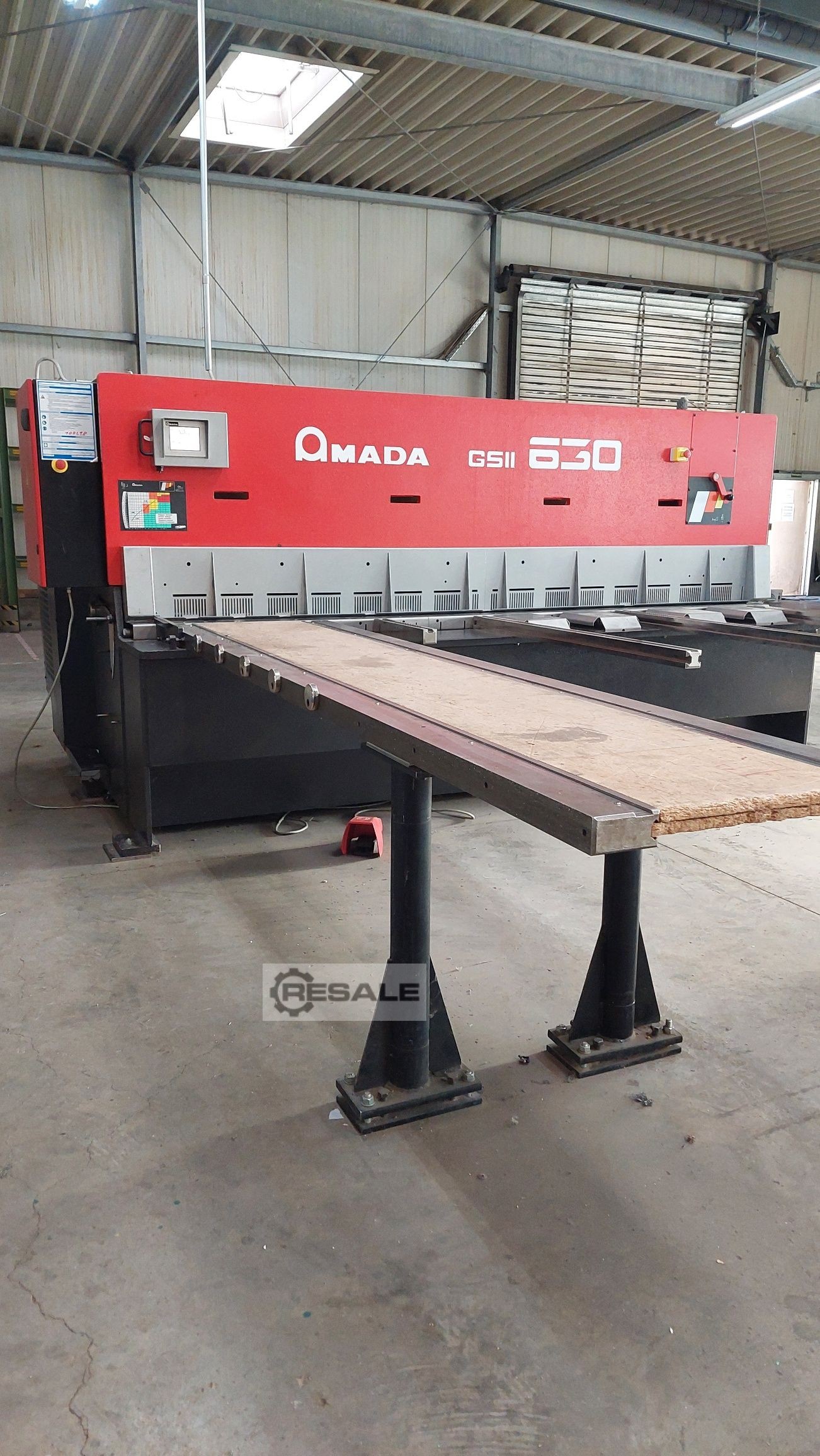

- Support arms 1500 mm

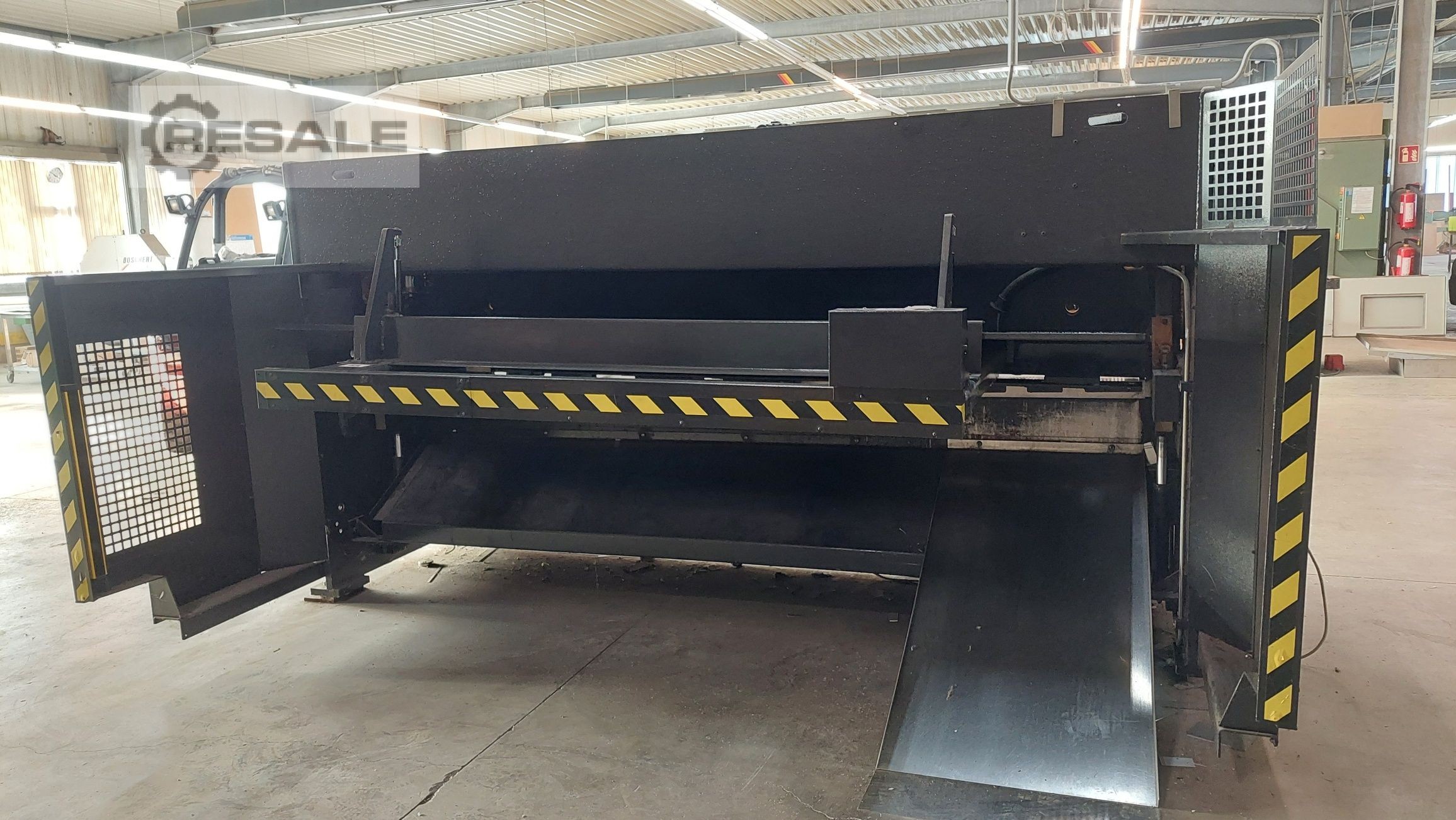

- Rear space protection with light barrier
- E-foot switch
- Stroke rate 12 - 26 rpm
- Drive M6237496 400 V / 5.5 kW
- Table M6237496 height approx. 860 mm
- Space required including back gauge, without front support arms
- approx. W 3800 x H 1950 x D 2300 mm
- Weight approx. 6500 kg


seller offer No. resale Lg.-Nr. 26007
