used

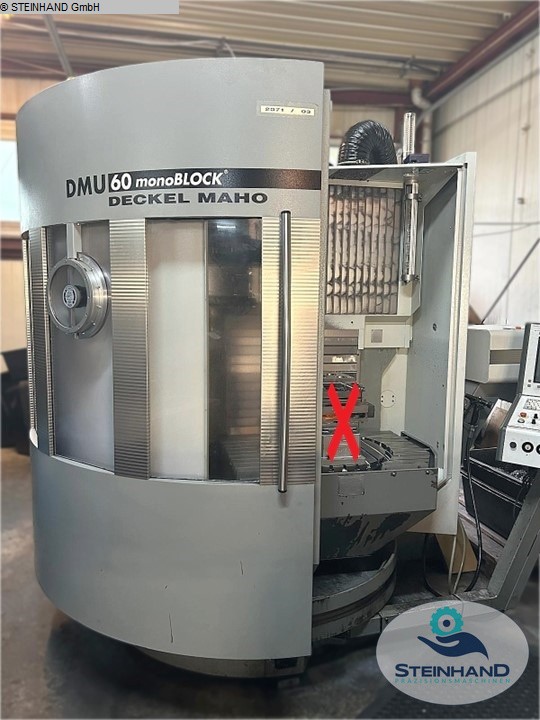

DMG DMU 60 monoBlockYear of manuf. : 2008 Control : Heidenhain iTNC 530 Speed : 12000 rpmMovement X/Y/Z : 630/560/560 mmTool holder : SK 40 ____________Description:Spindle:Technology:MotorspindleSpeed:12.000 rpmPower:15 kWTorque:130 NmTaper:SK 40NC-Swivelhead:B-Axis:0,001°Swivelrange:-120°/+30°NC-Roundtable:C- Axis:0,001°Clamping surface:ø600 mmTableloading (max.):500 kgIn general:Toolmagazine:24 StationsRapid travers in X/Y/Z:30 m/minClamping surface Static table:1.000 x 600 mmEquipment/Accessory:Positionsensor:Direct scales in X/Y/ZChipmanagement:Chip conveyorCoolingmanagement:Internal cooling unit with Paperbeltfilter and High-pressure, 40 barWorkpiecemeasurement:Infrared-Touchprobe, Heidenhain TS649Oilmistseparation:Mechanical extraction, ifs IFE 2000Processobservation:Operation mode 4Setup operation:Electronic handwheelFurther Equipment:Rinsing pistolFurther Accessory:Mis ...
used

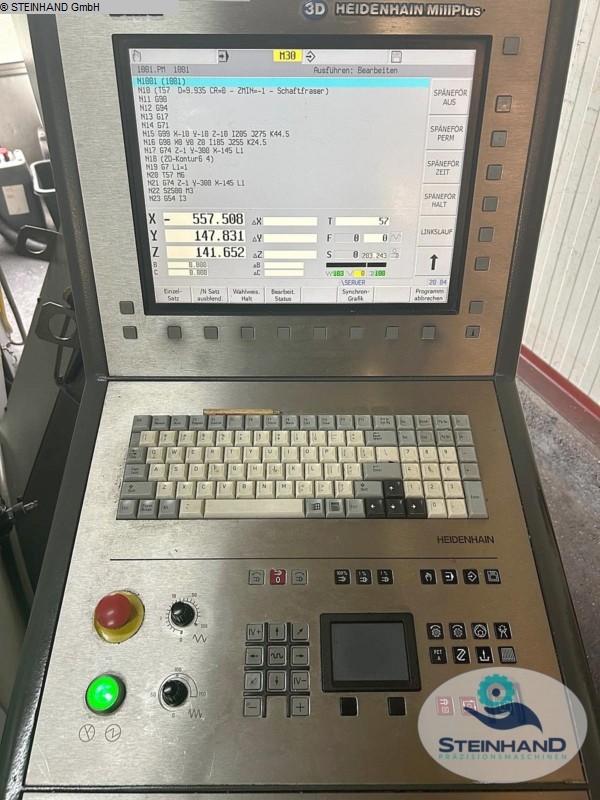

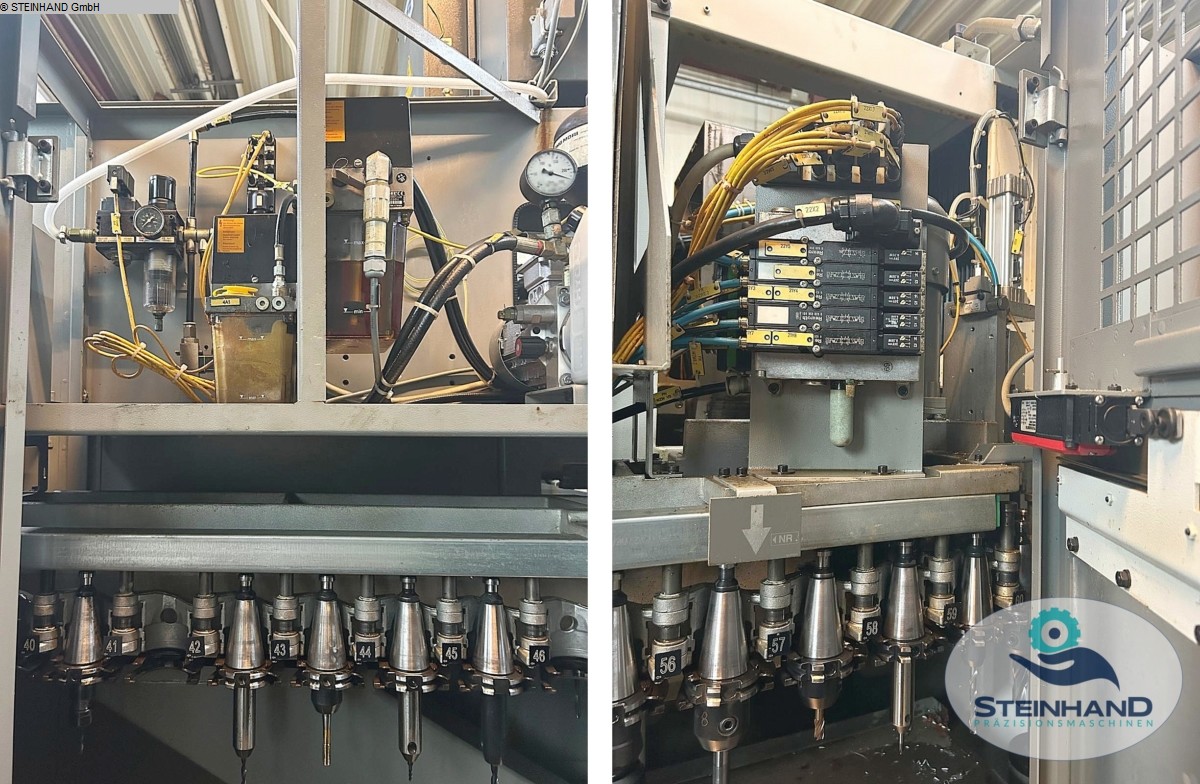

travel -x axis: - mm travel -y axis: - mm travel -z axis: - mm B-axis swival range +/-: -90° / +12 ° C-axis: 360 ° control: HEIDENHAIN - Millplus number of spindle speeds: 12.000 U/min numbers of positions in the tool changer: 60 tool taper: SK40 NC rotary table diameter: 600 mm fixed clamping table: 1.000 x 600 mm max. table load: 500 kg 5-axis simultaneous machining center | DMG - DMU 60 monoBlock equipped with ITC (40bar), a 60-way tool changer, NC - rotary table, Renishaw measuring probe and chip conveyor. Additional equipment information: - NC swivelling head B-axis - NC rotary table C-axis integrated in the fixed table - Direct position measuring system in X/Y/Z (glass scales) - Extraction system - 3D Quickset - Handwheel HR 410 The machine is in a well-maintained condition and can be inspected at any time under power. The machine video from the production plant will be shared ...
used
Control Heidenhain ... TNC 530 Clamping table surface ... 600x1000mm Axis X ... 630mm Axis Y ... 560mm Axis Z ... 560mm Spindle speed ... 0-12000 rpm controlled axes ... 5 cooling HSK 63 Table diameter ... 600mm Magazine spaces ... 24 Main engine power ... 15/10kW Max. workpiece weight ... 500kg The machine is in good condition, possible to test under power.
