DMG MORI nlx used machines

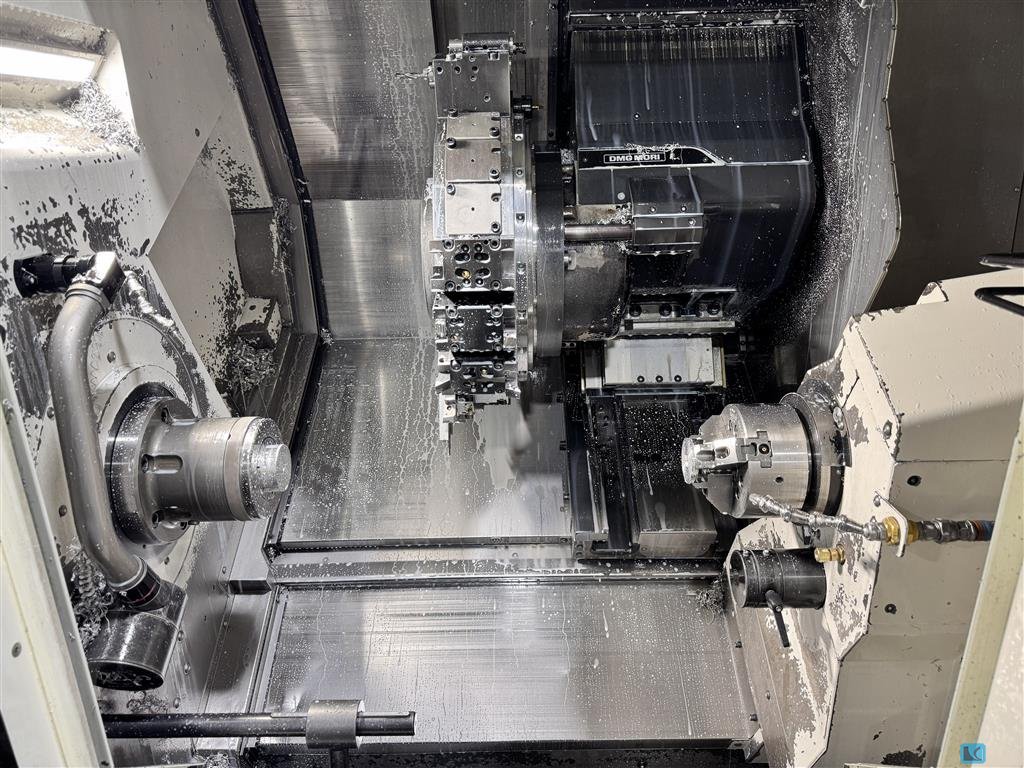

CNC lathe DMG MORI NLX 2000 SY/500 With DMG MORI M730 UM MAPPS CELOS CONTROLLER Year of Make: 2016 Max. workpiece diameter: 366 mm Max. workpiece length: 510 mm Travel in X: 260 mm Travel in Z: 590 mm Travel in Y: +- 50 mm Spindle bore: 65 mm Main spindle speed range: 4000 rpm Speed range sub-spindle: 6000 rpm Speed range of driven tools : 10000 rpm With the following accessories: Workroom door with interior lighting 20-fold turret with 20 driven stations C Axis , Y Axis Touch Probe ( Marposs ) Sub-spindle, parts catcher Tool presetter manual ( HS ) Collet Chuck Hydraulic with Foot Pedal (HS) Collet Chuck Hydraulic with Foot Pedal (GS) Bar Feeder LNS Move S2 30 tool holders Various powered tools Direct displacement measuring system X, Y, Z axis Signal lamp 4 colours Chip conveyor Coolant Setup Operating Instructions

turning diameter: max. 366 mm turning length: 705 mm control: M 730 BM MAPPS IV greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A-8 spindle bearing diameter: 140 mm spindle bore: 91 mm max. usable bar diameter: 80 mm chucking diameter: 250 mm Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle nose: JIS A2-5 spindle bearing diameter: 85 mm spindle bore: 43 mm max. usable bar diameter: ( - ) mm chucking diameter: 170 mm axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. tool taper: BMT 60 Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: ...

turning diameter: max. 356 mm turning length: 705 mm control: M730 UM Mapps CELOS greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bore: 80 (91) mm C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle bore: 43 mm C-Axis: 0,001 ° axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: 0,27 sec. Driven Tool Positions:: Spindle speed - driven tools: max. 10.000 min -1 power capacity - driven tools: 5,5 / 4,2 kW total power requirement: 41 kVA weight of the machine c ...

turning diameter: max. 356 mm turning length: 705 mm control: M730 UM Mapps CELOS greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bore: 80 (91) mm C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle bore: 43 mm C-Axis: 0,001 ° axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: 0,27 sec. Driven Tool Positions:: Spindle speed - driven tools: max. 10.000 min -1 power capacity - driven tools: 5,5 / 4,2 kW total power requirement: 41 kVA weight of the machine c ...

GeneralMilling Specification; Control: Control M730UM with CELOS CharacteristicsMax machining diameter278 mmDimensions (L x W x H)2,82 x 2,09 x 2,15 mDrive power tool spindle5,5/5,5/3,7 kWDrive power main spindle11/15/15 kWRapid feed X / Z30/30 m/minInput precision of C-axis on Mainspindle0,001 degreeRotary tool spindle speed10000 rpmMovements X / Z260/590 mmNumber of tool stations12 Speed max.6000 rpmBar diameter max.52 mmSwing- Ø, max.755 mmMax. Turning Length192 mmWeight approx.4900 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pHigh-output spindle (Left Spindle) 15/ 11 kW, 6,000 min-1(Left Spindle) High-Output Spindle 15/11 kW (20/15 HP), 6,000 min-1 The NLX ...

GeneralMilling Specification; Control: Control M730UM with CELOS CharacteristicsMax machining diameter278 mmDimensions (L x W x H)2,82 x 2,09 x 2,15 mDrive power tool spindle5,5/5,5/3,7 kWDrive power main spindle11/15/15 kWRapid feed X / Z30/30 m/minInput precision of C-axis on Mainspindle0,001 degreeRotary tool spindle speed10000 rpmMovements X / Z260/590 mmNumber of tool stations12 Speed max.6000 rpmBar diameter max.52 mmSwing- Ø, max.755 mmMax. Turning Length192 mmWeight approx.4900 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pHigh-output spindle (Left Spindle) 15/ 11 kW, 6,000 min-1(Left Spindle) High-Output Spindle 15/11 kW (20/15 HP), 6,000 min-1 The NLX ...

GeneralCNC Turning Centre; Control: Control M730UM with CELOS CharacteristicsMax machining diameter406 mmDimensions (L x W x H)3,35 x 2,11 x 2,2 (3,99 x 2,11 x 2,2) mDrive power main spindle22/18,5 kWRapid feed X / Z30/30 m/minMovements X / Z260/795 mmRotary tool spindle speed10000 rpmNumber of tool stations12 Speed max.2500 rpmBar diameter max.102 mmSpindle bore111 mmMax. Turning Length705 mmWeight approx.6400 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pLeft Spindle through-spindle hole dia. 111 mm (spindle speed 2,500 min-1, 22/ 18.5 kW)(Left Spindle) Through-Spindle Hole Dia. 111 mm (4.37-inch) (Spindle Speed 2,500 min-1, 22/18.5 kW) The NLX 2500 adopts a h ...

With C and Y axis Max. workpiece diameter 366 mm Max. workpiece length 708 mm Max. bar capacity diameter 105 mm Max. X-axis stroke 260 mm Max. Y-axis stroke 120 mm Max. Z-axis stroke 795 mm Controller Siemens

DMG MORI NLX2500/700 with tool drive and C-axis Universal lathe with 3-axis Turning length 700 mm Main spindle with integrated motor spindle ISM (rod diameter in mm) Hydr. Clamping devices, clamping cylinders, chucks C-axis with hydr. Spindle brake 10-speed BMT star revolver 10-speed tool drive NC tailstock CELOS with Mitsubishi control M730UM

This 3s DMG Mori Seiki NLX1500MC/500 horizontal turning machine was manufactured in 2014. It features a maximum turning diameter without interference of 366 mm, X-axis travel of 260 mm, and Z-axis travel of 590 mm. With a spindle speed of 6,000 rpm and a turret with 12 driven stations, consider the opportunity to buy this DMG Mori Seiki NLX1500MC/500 horizontal turning machine. Contact us for further details.

Key data: 254 mm, 700 mm

Turning milling center Manufacturer: DMG Mori Type NLX 2500/700 Control M730UM Mitsubishi with Celos Turning length 700mm 12 tool stations, all 12 of which are driven Y-axis Bar passage 91mm Program runtime Head1 4036h Cumulative cutting time Head 1 2058h Machine running time 8605h Bar loading magazine TOP Automazioni 3m Incl. tool package NP 64.000 euro Machine is in TOP condition

turning diameter: 356 mm turning length: 510 mm control: M 730 BM total power requirement: 40 kVA weight of the machine ca.: 6,6 t dimensions of the machine ca.: m CNC control: Mitsubishi 730 BM Main spindle: Speed: 5000 rpm Power: 15/11 kW (15% duty cycle / constant) Bar diameter: 65 mm Sub spindle: Speed: 6000 rpm Power: 11/7.5 kW (25% duty cycle / constant) Turret: 12 stations Tool spindle speed: 10000 rpm Power: 5.5/3.7 kW (5 minutes / constant) Y-axis travel: +/- 50 mm Equipment: Machine with gantry loader: Left-hand installation, 14-station storage, 20-pallet workpiece storage, Double gripper conveyor 3-jaw hydraulic KITAGAWA power chuck, 210 mm diameter High/low pressure chuck system for main and counter spindles MABEO high-pressure pump with 1.5 MPa filter unit Coolant gun Coolant sprayer on the chuck for main and counter spindles Coolant sprayer for the machine bed cladding Oil  ...

Used machine Machine Type: CNC Turning Center Model No.: NLX3000Y/3000 Manufacturer: DMGMORI Control: Celos Year of Make: 2020 #001355 Turning diameter max. approx. 420 mm Turning diameter standard approx. 310 mm Chuck size approx. 300 mm Turning length approx. 3,123 mm Rod diameter max. approx. 90 mm Turret stations approx. 12 X-axis approx. 280 mm Z-axis approx. 3,170 mm Y-axis approx. 120 (±60) mm Tailstock approx. 3,164 mm Spindle speed max. approx. 3,000 rpm Speed AGW max. approx. 6,000 rpm Rapid traverse X/Z approx. 30 m/min Rapid traverse Y approx. 10 m/min Rapid traverse C approx. 300 rpm Power consumption approx. 54 kVA Compressed air bar,L/min approx. 5, 100 bar,L/min Footprint L x W x H approx. 8.30 x 3.50 x 2.41 m (without chip conveyor) Machine weight approx. 14,200 kg Main spindle 22/18,5KW • 3jaw chuck set • rpm 3000 • 12 station turre ...

Used machine CNC Turning and Milling Center Machine Type: CNC Lathe Model No.: NLX2500Y/700 Manufacturer: DMG MORI Control: CELOS Year of Make: 2016 #001252 - Main spindle 4,000 rpm - Clamping cylinder main spindle - 3 cheek chuck - Foot switch (double) for main spindle - Y-axis - 12-speed BMT60-star turret for powered tools - Cantilever length X-axis driven tools 100mm - Scraper belt chip conveyor, rear discharge - High-pressure cooling system (800/1,100 W) 5bar - Line filter for coolant - Mechanical interface for oil mist separator 150mm - Without in-machine tool presetter This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

CNC controller: Mitsubishi M730UM (CELOS - ERGOline Touch) Capacity X-axis travel mm: 260 Y-axis travel mm: ±50 Z-axis travel mm: 795 Turning length mm: 705 Max. turning diameter mm: ø: 366 Swing over bed mm: ø: 920 Swing over cross-slide mm: 740 Bar work capacity mm: 80 Tool magazine Magazine places: 20 Tool holder: BMT40 Upper turret Number of tool slots St .: 20 Speed driven tools RPM: 10.000 Drive power driven tools kW: 5.5/4.9/4.2 (3 min/5 min/cont) Rapid Feed Rate: 30 Main spindle Speed spindle rpm: 4.000 Drive power spindle kW: 18.5/18.5/15 (25%ED/50%ED/cont) Maximun torque Nm: 49 Counter spindle Speed spindle rpm: 5.000 Drive power spindle kW: 11/7.5 (25%ED/cont) Maximun torque Nm: 22 Counter spindle travel mm: 734 Coolant system Tank capacity liter: 366 Equipment Electronic Handwheel Chip conveyor Signal lamp High pressure pump Measuring probe  ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Cross650 mmLongitudinal735 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.12400 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring systemTable surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9Rotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +120/-120 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeRot ...

GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50h6 mmMaximum load (table centre) 600 KgDirect measuring systemDir ...

GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgDie and Mold Package linearDie and Mold Package linear Dynamic package V-type Eagle timing belt for Z axisPackage Mill / TurnPackage Mill / Turn (only available for Siemens 840D solutionline) NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1 in C ...

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmDimensions (L x W x H)2,72 x 4,22 x 2,52 mSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMaximum load (table centre)400 KgSwivelling range360 x 0,001 degreeTable size400x400 mmDrive power (100% DC)18,5 kWWeight approx.7600 Kg(For Europe) European Edition(For Europe) European Edition (NHC4000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signalInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mountin ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmWeight approx.11100 KgSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z730/730/880 mmPalett changer with2 PalletMaximum load (table centre)500 KgSwivelling range360 x 0,001 degreeTable size500x500 mmDrive power (100% DC)18,5 kWDimensions (L x W x H)3,1 x 4,86 x 2,84 m(For Europe) European(For Europe) European Edition (NHC5000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signal transmissioInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mou ...

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralHorizontal 5-axis universal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal850 mmCross900 mmVertical1150 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDrive CNC swivel rotary table direct drive C-axis with pallet carrier Permissible load: 800 kg / 1,760 lbs C-axis: 80 min-1 direct drive A-axis: 15 min-1 single drive Rotation C axis: endlessly turning Swivel range A axis: +120°/-120° (replacement of base machKi ...

GeneralCNC Turning Centre; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways620 mmTransverse stroke260 mmLongitudinal stroke795 mmClamping chuck diameter max.315 mmWork spindle (left)Spindle bore91 mmSpindle diametre on front bearing140 mmMain drive 1Drive power (100% DC)22 kWSpeed range- 4000 rpmMax. torque (40% DC)525 NmTorque (100% DC)410 NmAccuracy at point stopping0,001 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-6000 rpmPower max. (100% DC)10 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,03 x 2,2 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control)Y-Axis PartingTechnology cycle to parting off the workpiece by the Y-axis to ac ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmLongitudinal stroke850 mmTransverse stroke300 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle diametre on front bearing130 mmSpindle bore87 mmMain drive 1Drive power (100% DC)33 kWSpeed range20 - 4000 rpmTorque (100% DC)580 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,69 x 1,99 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...
