9 DECKEL universal milling and boring machines used machines

Universal Milling & Drilling Machine DECKEL MAHO DMU 50 M With control Heidenhain TNC 124 Year of construction: 2001 Travels: X 500 Y 400 Z 400 Speed range: 20 – 4,500 rpm infinitely variable With the following accessories: Manual swivel – rotary table with digital display for C + B axis 700 mm x 500 mm clamping surface Electronic Handwheel for X, Y, Z Axis Splash protection booth Machine light 4 pcs. Height-adjustable machine shoes Coolant system Operating instructions THE MACHINE WAS ONLY USED FOR APPRENTICESHIP TRAINING !! THE MACHINE IS IN GOOD CONDITION !!

Key data: 500 mm, 400 mm, 400 mm

Universal Milling & Drilling Machine DECKEL MAHO DMU 50 M With control Heidenhain TNC 320 Year of Make: 2001 Travel: X 500 Y 400 Z 400 Speed range: 20 – 4,500 rpm infinitely variable With the following accessories: Manual swivel – rotary table with digital display for C + B axis 700 mm x 500 mm clamping surface Electronic handwheel for X, Y, Z axis Splash guard cabin Machine Light 4 Height Adjustable Machine Shoes Coolant Setup Operating instructions

Universal tool milling machine DECKEL FP 3 With 3 axes active digital display Heidenhain TNC 11 Year of Make: 1984 Travel: X 500 Y 300 Z 400 Speed range: 25 – 2500 rpm With the following accessories: Rigid angle table 850 mm x 400 mm clamping surface Swivel rotary table 0 450 mm with dividing discs Bumper Sliding vertical milling head Extendable drill quill Stepless feed via potentiometer Various milling mandrels SK 40 / S22 x 2 Chip tray Automatic lubrication pump for X,Y,Z axis Machine Light Coolant Setup 4 pcs machine shoes Operating instructions

3 Axis Digital Display FAGOR Year of Make: 1975 Travel: X 500 Y 200 Z 400 Speed range: 40 – 2000 rpm With the following accessories: Universal table 660 x 380 mm clamping surface Vertical milling head Extendable drill quill Milling cutter protective housing Machine Light Various tool holders SK 40 Chip tray Coolant Setup 4 pcs machine shoes Operating instructions THE MACHINE IS IN VERY GOOD CONDITION !!

Universal tool milling machine DECKEL FP 4 MK with 3 axes active digital display Heidenhain TNC 113 Year of Make: 1990 Travel: X 500 Y 400 Z 400 Speed range: 50 – 2500 rpm With the following accessories: Rigid angle table 800 mm x 460 mm clamping surface Sliding vertical milling head Extendable drill quill Stepless feed via potentiometer Hydraulic tool clamping Hydraulic vise GRESSEL 125 mm Various SK 40 milling mandrels Splash guard cabin Automatic lubrication pump for X,Y,Z axis Machine Light Coolant Setup 4 pcs machine shoes Operating instructions

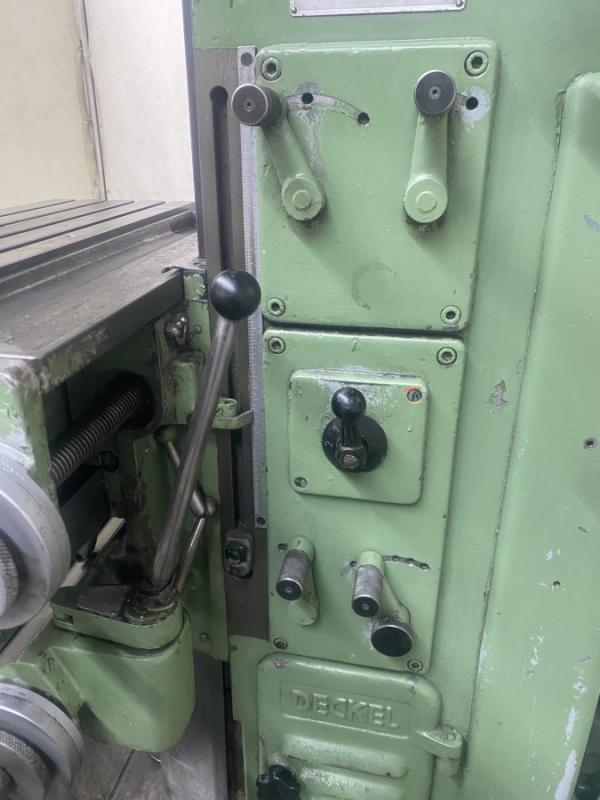

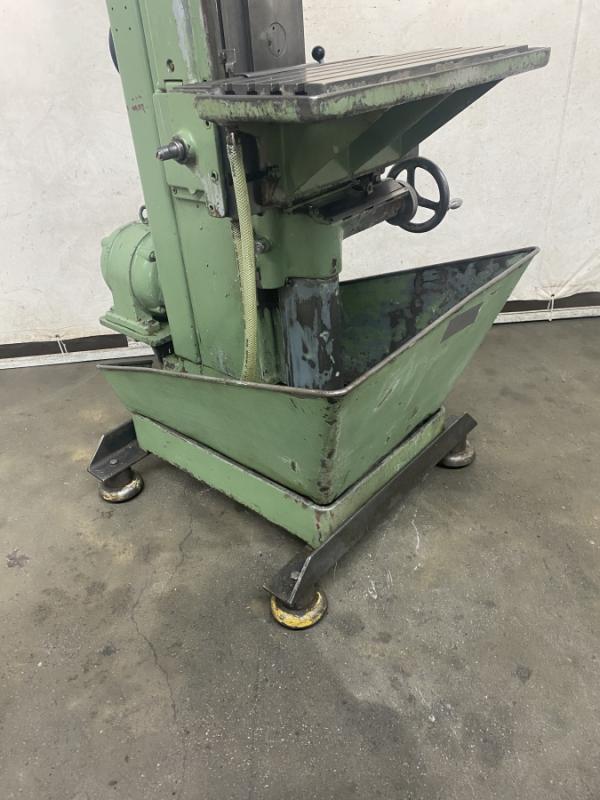

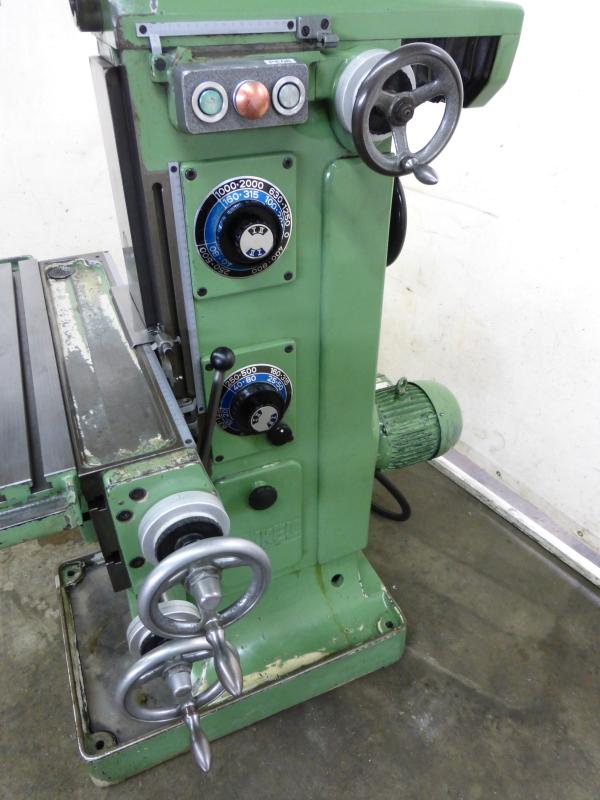

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 52185/08 Year of construction 1968Travel distances X: 300 mm Y: 150 mm Z: 340 mmTable size 600 x 250 mmSpindle holder SK 40 - S20 x 2Spindle speed 40-2000 rpm. 16 stagesMotor power 1.0 and 1.4 kW pole-switchableMains connection 380 volts, 50 Hz- Feed in the X and Z axis- Two motor speeds and 8 gear stages- Pinol shift on the vertical milling head 60 mm- Fixed angle table- Coolant device in the machine foot- Adjacent control cabinet- Counter holder

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 51265/08 Year of construction approx. 1967Travel distances X: 300 mm Y: 150 mm Z: 340 mmTable size 600 x 2100 mmSpindle holder SK 40 - S20 x 2Spindle speed 40-2000 rpm. 16 stagesMotor power 1.0 and 1.6 kW pole-switchableMains connection 380 volts, 50 Hz- Feed in the X and Z axis- Spindle speed over 2 motor speeds and 8 gear stages- Pinol shift on the vertical milling head 60 mm- Fixed angle table- adjacent control cabinetSpace requirement L x W x H 1100 x

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 28317 Year of construction approx. 1960Travel distances X: 245 mm Y: 150 mm Z: 340 mmTable size 600 x 210 mmSpindle holder horizontal MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 0.8 and 1.1 kW pole-switchableMains connection 380 volts, 50 Hz spindle speed over 2 motor speeds and 6 gear stages- Feed in the X and Z axis coolant device with mechanical pump in the machine base

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 28317 Year of construction approx. 1960Travel distances X: 245 mm Y: 150 mm Z: 340 mmTable size 600 x 210 mmSpindle holder horizontal MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 0.8 and 1.1 kW pole-switchableMains connection 380 volts, 50 Hz spindle speed over 2 motor speeds and 6 gear stages- Feed in the X and Z axis coolant device with mechanical pump in the machine base

Univ. Tool Milling Machine DECKEL Type FP 1Masch. No. 28317 Year of construction approx. 1960Travel distances X: 245 mm Y: 150 mm Z: 340 mmTable size 600 x 210 mmSpindle holder horizontal MK 4 - S20 x 2Spindle speed vertical 95-1900 rpm. 12 stepsSpindle speed horizontal 60-1200 rpm. 12 stepsMotor power 0.8 and 1.1 kW pole-switchableMains connection 380 volts, 50 Hz spindle speed over 2 motor speeds and 6 gear stages- Feed in the X and Z axis coolant device with mechanical pump in the machine base

x-travel: 1170 mm y-travel: 500 mm z-travel: 370 mm table load: 2 t spindle turning speed range: 25 - 2500 U/min feeds: 4 - 2000 mm/min rapid traverse:: 4000 mm/min taper ISO: 40 total power requirement: 12,5 KVA weight of the machine ca.: 4 t dimensions of the machine ca.: 2,3 x 1,9 x 1,75 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created wit ...

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg

Control: Dialog 11 with new MCP card Travel range: x-800 y-600 z-550 mm Spindle speeds: 18 – 6300 rpm Pinole by hand: 80 mm Recording: SK 40 Feed: 2 to 10000 mm/min Rapid response: 10000 mm/min Weight: approx. 4050 kg With full cab, chip conveyor, electr. Handwheel Installation dimensions: L: With controller and chip conveyor approx. 4200 mm (without conveyor approx. 3200 mm) B: approx. 3800 mm (With space to open door E-cabinet approx. 4600 mm) H: approx. 2400 mm Can be visited under electricity.

DECKEL FP2 NC Dialog 11 Universal Milling Machine Milling Machine Travel X/300 Y/300 Z400 mm (340 mm for universal table in Z-axis) Speed infinitely variable 31.5 ... 5000 rpm Feeds 2-4000 rpm Rapid traverse 4000m/min Tool holder SK 40 Pinole stroke 80 mm Machine weight 1345 kg Main drive 5.5 kW Power consumption 11 kW The machine is currently being revised.

Universal milling machine Deckel FP1 Machine Operating voltage: 380/400 volts without feed in y direction, with angle table, work surface with 4 T-slots Condition see pictures Errors excepted!

Lid FP4A Id No. 2284-0242 CNC 2301 control x 560 y 500 Z 450 Weight 2.2 t Hydraulic Data Machine has a malfunction in the startup procedure !!!!!

Dialog 11 Control Speed range 40 - 4000 rpm Rapid traverse 4 m/ min Tool holder SK 40 Feed rate 2 - 3600 mm /min, infinitely variable Connected load approx. 10 kVA Travel X/Y/Z 300 / 300 /400 mm Working spindle vertically and horizontally Extendable quill 80 mm Milling head swivel +/- 90° Accessories: coolant device, electr. Handwheel Cabin with protective device ( When opening of the cabin door stops the milling spindle ). Very good original condition! The axes and milling spindle run quietly and precisely. Geometry in X/Y/Z axis 0.015/0.01/0.015 mm Spindle concentricity to 300 mm/0.012 mm Price: 8500,- EUR excl. VAT free loaded from warehouse Tirschenreuth

Key data: 630 mm, 560 mm, 560 mm

Year of construction 2003 Heidenhain control MC 422 18200 Spindle hours NC rotary table installed in rigid table 1000 x 600 mm Controlled B-axis 24-fold tool changer Workspace Tool holder SK40 Motor spindle 12000 rpm Incl. coolant system, chip conveyor (auger) Top condition! Machine weight 6500 kg Transport dimensions: 3.5 x 2.7 x 2.21 m

Key data: 500 mm, 400 mm, 300 mm

Year of manufacture 1985 with CNC control 432 The machine is in good condition, the second machine is available as spare part machine Two identical machines available !

Deckel Maho Universal Milling Machine DMU 125 P 1,250 x 880 x 800 mm Motor spindle 18,000 1/min. Tool holder SK 40 Automatic Swivel Milling Head Horizontal tool changer setup Double gripper 30 magazine slots Coolant tank 600 litres Internal cooling IKZ Form AD Conveyor Rotating viewing panel 3D path control TNC 430 NC rotary table diameter 1,250 x 1,000 mm Universal milling head with controlled B-axis Electronic handwheel Probe Infrared Heidenhain TS 631

Year of manufacture 2001 Heidenhain TNC 310 Travel distances 350 x 240 x 340 Spindle speed 20 - 5000 Drive power 6.3/10 KW Total connected load 15 kW Tool holder SK40 Accessories: el. Handwheel Universal swivel rotary table 400 x 280 mm, Rotation range 360°, swivel range +105/-15° with electronic angle display Coolant Setup

Key data: 600 mm, 525 mm, 200 mm

Tool Milling Machine - Universal DMU 60 E Machine x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm Serial No.033 Table clamping surface: 1000 x 543 mm Spindle holder: SK 40 Spindle holder: DIN 69871 Spindle speeds - infinitely variable: 20 - 12,000 rpm Feeds X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Table load: max. 350 kg Control: HEIDENHAIN Head swivel +/-: 90 ° Total power requirement: 26 kVA Machine weight approx.: 4.2 t Machine dimensions L x W x H: 2.95 x 2.1 x 2.26 m Coolant Setup Machine was dismantled Machine is sold as a defect

Key data: 600 mm, 525 mm, 500 mm

Tool Milling Machine - Universal DECKEL-MAHO DMU 60 E Machine x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm Serial no.023 Table clamping surface: 1000 x 543 mm Spindle holder: SK 40 Spindle holder: DIN 69871 Spindle speeds - infinitely variable: 20 - 12,000 rpm Feeds X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Table load: max. 350 kg Control: HEIDENHAIN Head swivel +/-: 90 ° Total power requirement: 26 kVA Machine weight approx.: 4.2 t Machine dimensions L x W x H: 2.95 x 2.1 x 2.26 m Coolant Setup Machine was dismantled

Key data: 600 mm, 525 mm, 500 mm

Tool Milling Machine - Universal DECKEL-MAHO DMU 60 E Machine x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm Serial.no.063 Table clamping surface: 1000 x 543 mm Spindle holder: SK 40 Spindle holder: DIN 69871 Spindle speeds - infinitely variable: 20 - 12,000 rpm Feeds X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Table load: max. 350 kg Control: HEIDENHAIN Head swivel +/-: 90 ° Total power requirement: 26 kVA Machine weight approx.: 4.2 t Machine dimensions L x W x H: 2.95 x 2.1 x 2.26 m Coolant Setup Machine was dismantled
