4 TECNA spot welding machines used machines

Machine type point welding pliers Make TECNA Type Power Pointer 7900 Connection voltage 1 x 400 V switch-on time 50% ED at 2.0 kVA current setting infinitely variable max. pointable material thickness 2.0 + 2.0 mm Version portable handheld device with built-in control Fuse 16 amperes, sluggish Short-circuit power 7.2 kA discharge min. 125 mm max. 500 mm Weight 12 kg Age 12 months Condition as good as new Warranty 18 months from delivery date New price €1,210.00 + VAT Price €720.00 + VAT Car MobiDrive €75.00 Copper rod 10 mm, 1 mtr. long 40.00 €/mtr. Item No. n355.0.0051 Copper rod 12 mm, 1 mtr. long 47.00 €/mtr. Item No. n355.0.0053 Copper rod 14 mm, 1 mtr. long 60.00 €/mtr. Item No. n355.0.0055 Electrode sharpener for drill 34,00 € Item No. n353.5.3910 Electrode sharpener for hand cutting 129.00 € Item N ...

Machine type point welding pliers Make TECNA Type Power Pointer 7902P - Pulse Connection voltage 1 x 400 V switch-on time 50% ED at 2.5 kVA current setting infinitely variable max. pointable material thickness 2.5 + 2.5 mm Version portable handheld device with built-in control Fuse 16 amperes, sluggish Short-circuit power 8.2 kVA discharge min. 125 mm max. 500 mm Special accessories incl. pulse current, especially for galvanized sheets Weight 13 kg Age 12 months Condition as good as new Warranty 18 months from delivery date New price €1,490.00 + VAT Price €890.00 + VAT Car MobiDrive €75.00 Copper rod 10 mm, 1 mtr. long 40.00 €/mtr. Item No. n355.0.0051 Copper rod 12 mm, 1 mtr. long 47.00 €/mtr. Item No. n355.0.0053 Copper rod 14 mm, 1 mtr. long 60.00 €/mtr. Item No. n355.0.0055 Electrode sharpener for drill 34,00 €  ...

Offer 25128 Specifications: - Rated power at 50% ED 25 kVA - Max. welding power 68 kVA - Adjustable projection 280 to 450 mm - Stroke 5 to 40 mm - Welding values of sheet steel approx. 3 + 3 mm - Electrode force adjustable up to 240 daN - Required air pressure 6 bar - Cooling water volume 4 l/min - Connection 400 V - Space requirement approx. W 800 x H 1700 x D 1050 mm - Weight approx. 220 kg - with: - Single-phase control T 90 Mark II - E. foot switch - Separate cooling water recooling unit

Key data: 20 kp, 160 , 187

Rated power at 50%ED: 20kVA Short-circuit current: 19kA Electrode force: 187daN / single stroke Projection: 160mm --- Welding control: TE 91 (12 times, 2 programs) --- Incl. additional options: -Foot switch -Main switch -Table --- Warranty 6 months --- Training + commissioning on request --- Spot welding electrodes + spare parts available from stock

manually operated, air-cooled Rated power at 50%ED: 2.5kVA Short circuit current: 8.2kA Electrode force max.: 120daN Projection: 125mm --- equipped with: - 3m connection cable - Standard electrode arms 125mm - Thyristor performance, time, and Pulse controller built-in. --- Warranty 6 months --- Training + commissioning on request --- Spot welding electrodes + spare parts available from stock

Spot welding machine, spot welding system, spot welding gun, resistance spot welding machine, lever-action spot welding machine -Manufacturer: Tecna, Spot welding machine: Type 4161 -Rated power: 31 kVA -Operation: via foot pedal -Dimensions: 780/250/H1500 mm -Weight: approx. 130 kg

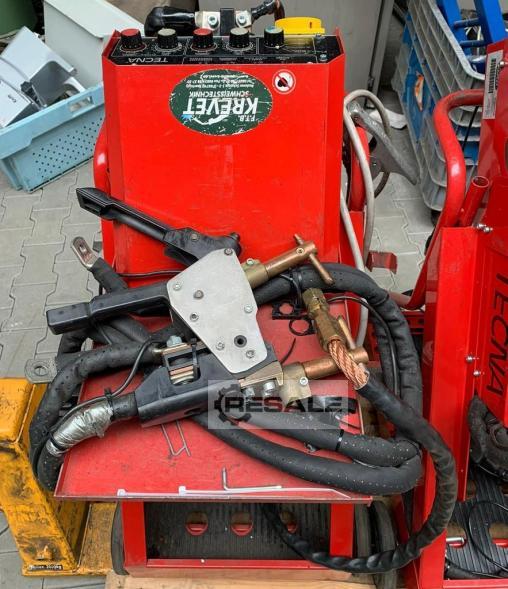

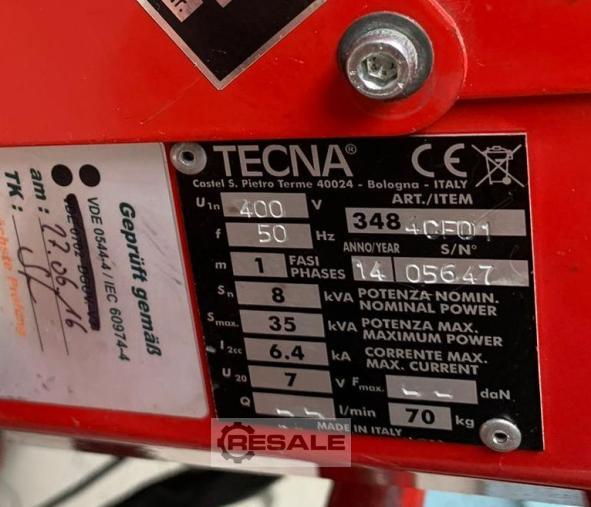

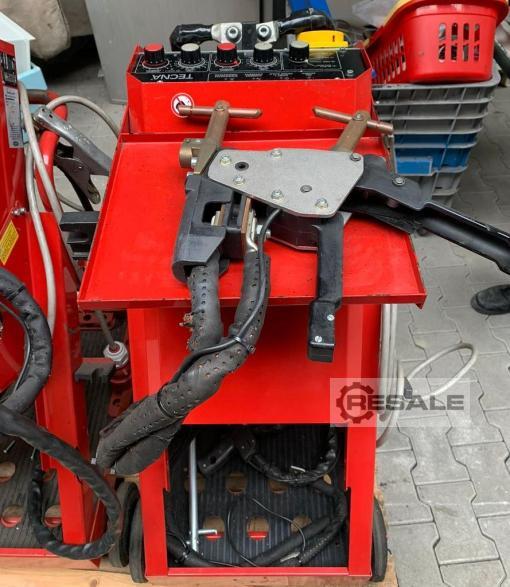

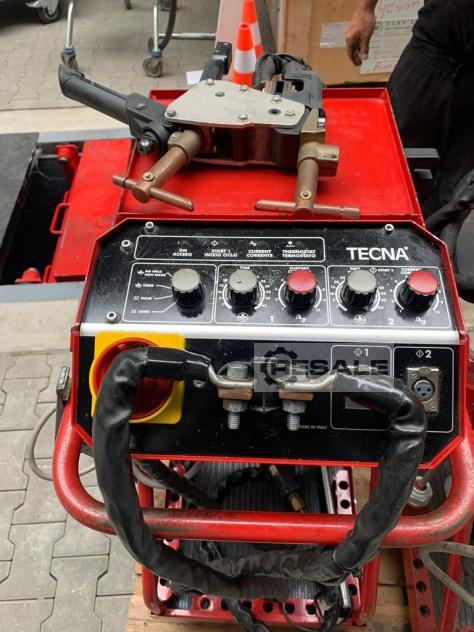

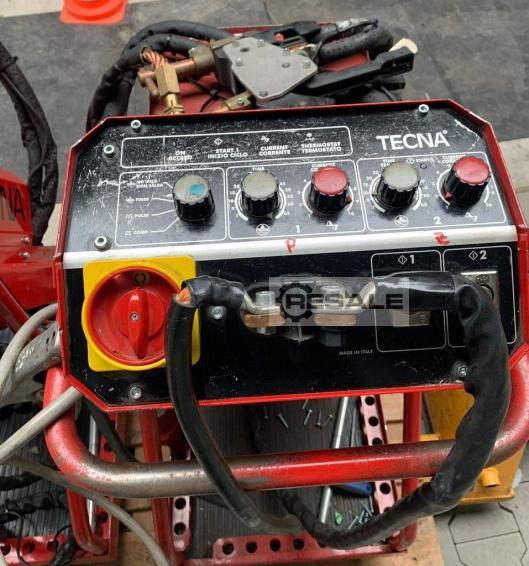

Tecna 3484 Universal spot welding system 8 kVA Universal welding station 8 kVA, hand-operated gun, double program. Simultaneous connection of two tools with automatic recall of the corresponding welding program, which saves time and avoids errors in terms of a simple and safe workflow. Body repairs: resistance spot welding of sheet metal, smoothing with dent spotter (nails and washers), local heating (carbon electrode), screw and rivet welding, denting of stainless steel sheet. Synchronous SCR welding control, adjustment of welding time in cycles and pulses, adjustment of welding current and compensation function. Power supply: 400V Mains frequency: 50 / 60 Hz Fuse: 25 A Rated power at 50 %DC: 8 kVA Max. welding power: 35 kVA Max. secondary current: 6.4 kA Heat flow 100 %: 0.88 kA Year: 2014 Weight: 85 kg More items - new and used - can be found in our shop! Interna ...

8008 CM Art. item / Anno/Year: 06-01/90, Hz 50, 380 V, 100 KVA 50%, 250 KVA, 8200 Amp 100%, 36000 Amp short circuit, 710 da N pressure, 300 l/h H2O Water Cooling - Made in Italy The spot welding machine was used weekly about 10 years ago and was fully operational at that time. The machine can be connected at any time and can be checked by qualified personnel by the potential buyer with the product to be manufactured in the future. The machine can be picked up at the current location – as it stands – without warranty and other services for 2800.00€ VHB or shipped plus shipping costs. Alternatively, we can have the machine checked by external specialists, in which case the price is approx. 4500,00€.

MF welding machine with water-cooled impact pointMedium frequency impact pointManufacturer: TECNA (Italy) Type 3670 E CF00Serial No.: 00022 Year of construction 2014Nominal welding capacity 25 kVAMax. Welding power 160 kVANnet connection 400 volts, 50 Hz- Welding control TE750 or TE760- Impact point for one-sided spot welded joints- Ideal for repair work in the body area with the best welding quality- Water-cooled type 2BHPLN- Mobile transport trolleyWeight approx. 155 kgvery good condition - As good as new;

Unwinding, cutting, stacking and depositing on a conveyor belt consisting of: 1x u550 divertler, slicer/stack system c23s25 (middle cut-out) and 1 x conveyor belt tray 2m and an extraction system GR 140.2 x trolley for paper rolls. Specifications: Dispenser u550: Umwinder u550 Outfeedplate Airshaft 70mm/520 Lifting KIT Offline KIT 2 trolleys for the paper rolls Cutting line C23S25: Cutter c23 Middle knife Gutter cut 6mm c20/23 Extraction side trim-c23 v2 Conn.parts Gutter cut c23 v2 Stacker s25: Aassy Automatic stop plate Conveyer/conveyor belt 2000/634 v-speed Extraction system GR 140 Appointment You have the opportunity to inspect the objects before buying. Location Location: Im Schorrenfeld 8 in 76661 Philippsburg-Hüttenheim Disclaimer The sale of used items takes place as the item stands and lies, to the exclusion of any warranty for material defec ...

HIGHLY AUTOMATED, MODULAR SYSTEM FOR DIGITAL BOOK PRODUCTION ("BOOK ON DEMAND") AND SHORT RUNS – TECNAU LIBRA 800 Intended Use: Suitable for the conversion and processing of short runs and single copies ("books of one") with variable sizes, page counts, and covers. Performance: from print run 1; up to 800 copies per hour Book Format: min. 100 x 125 mm / max. A4 Thickness: min. 2 mm / max. 60 mm Equipment / Further Details: Line Configuration: 1.Roll-to-Stack Feed: Unwinder, merger, Dupla cutter, and book assembly station for the production of book blocks with 2-up printing. 2.Sheet Feeder: A variable number of loose sheets can be added as inserts to the book block. The sheets must have the same size and print run as the book block being processed. 3.Infeed to Binder: Manual feeding station for pre-fabricated book blocks, conveyor with scanning station, book turnover module,  ...

Height=1.1 m, Overall length= 0.65 m, Overall width= 0.51 m,

Balancer, machine balancer, spring balancer, cable extension, weight balancer -Manufacturer: Tecna, spring balancer type 9181 in original packaging -Load capacity: 10 - 14 kg -Rope length: 2500 mm -Quantity: 2x spring balancer available -Price per piece -Dimensions of cardboard: 270/200/100 mm -Net weight: 3,8 kg

balancer, machine balancer, spring balancer, cable extension, weight compensator -Manufacturer: Tecna, spring balancer type 9190 -Load capacity: 0.4 - 1 kg -Rope length: 1600 mm -Number: 1x spring balancer available -Dimensions: 180/110/H55 mm -Own weight: 0.6 kg

Balancer, machine balancer, spring balancer, cable extension, weight compensator -Manufacturer: Tecna, spring balancer type 9312 -Load capacity: 1 - 2 kg -Rope length: 1600 mm -Number: 1x spring balancer available -Dimensions: 200/110/H55 mm -Own weight: 0.6 kg

Spot Projection Welding Machine NIMAK Type PMP 5 / 35Spot Welding Machine, Projection Welding MachineFabr. No. 88100 Year of construction approx. 1988Power at 50% ED 35 kVAArcharge 250 - 450 mmWorking stroke 40 mmElectrode force 100 - 460 kp infinitely adjustableElectrode force at 6 bar 460 daNBobedience air pressure 2 to 6 barElectrode arm 60 mmElectrode holder 30 mmInsert electrodes cone MK 2 17.78 mmArm spacing 200 / 400 mmAdjustability of the electrode holder 200 mmConnected load 83

Spot Projection Welding Machine NIMAK Type BMP 20/150Spot Welding Machine, Projection Welding MachineMasch. No. 81692 Year of construction approx. 1980Power at 50% ED 150 kVAAf clamping plate lower 200 x 160 mmClamping plate upper 200 x 160 mmPower setting infinitely variableThroat max. 150 mmElectrode force 200 - 2000 kp infinitely adjustableOperating air pressure max. 6 barConnected load 600 kVANnet connection 380 volts, 50 Hz- welding control DTW 4Z 2P- single points and series points- bounce

Spot Projection Welding Machine NIMAK Type BMP 20/150Spot Welding Machine, Projection Welding MachineMasch. No. 81692 Year of construction approx. 1980Power at 50% ED 150 kVAAf clamping plate lower 200 x 160 mmClamping plate upper 200 x 160 mmPower setting infinitely variableThroat max. 150 mmElectrode force 200 - 2000 kp infinitely adjustableOperating air pressure max. 6 barConnected load 600 kVANnet connection 380 volts, 50 Hz- welding control DTW 4Z 2P- single points and series points- bounce

Spot Projection Welding Machine NIMAK Type BMP 20/150Spot Welding Machine, Projection Welding MachineMasch. No. 81692 Year of construction approx. 1980Power at 50% ED 150 kVAAf clamping plate lower 200 x 160 mmClamping plate upper 200 x 160 mmPower setting infinitely variableThroat max. 150 mmElectrode force 200 - 2000 kp infinitely adjustableOperating air pressure max. 6 barConnected load 600 kVANnet connection 380 volts, 50 Hz- welding control DTW 4Z 2P- single points and series points- bounce

Spot Projection Welding Machine NIMAK Type BMP 20/150Spot Welding Machine, Projection Welding MachineMasch. No. 81692 Year of construction approx. 1980Power at 50% ED 150 kVAAf clamping plate lower 200 x 160 mmClamping plate upper 200 x 160 mmPower setting infinitely variableThroat max. 150 mmElectrode force 200 - 2000 kp infinitely adjustableOperating air pressure max. 6 barConnected load 600 kVANnet connection 380 volts, 50 Hz- welding control DTW 4Z 2P- single points and series points- bounce

Spot Projection Welding Machine NIMAK Type BMP 20/150Spot Welding Machine, Projection Welding MachineMasch. No. 81692 Year of construction approx. 1980Power at 50% ED 150 kVAAf clamping plate lower 200 x 160 mmClamping plate upper 200 x 160 mmPower setting infinitely variableThroat max. 150 mmElectrode force 200 - 2000 kp infinitely adjustableOperating air pressure max. 6 barConnected load 600 kVANnet connection 380 volts, 50 Hz- welding control DTW 4Z 2P- single points and series points- bounce

Spot welding machine DALEX type SL 16 EAMasch. No. 68611900-5 Year of construction 1986Nominal output at 50 % ED 16 KVASwelding capacity max. 50 KVA charge max. 500 mmElectrode force max. 17 - 278 daNElectrode arm 45 mmElectrode holder 25 mmArm spacing 140 mm / 280 mmCircuit breaker 8 stagesControl 4 times with single and series pointsOperating pressure 1-6 barOpen circuit voltage 1.8 to 3.6 voltsConnected load 37 kVANnet connection 400 volts, 50 Hz- Triggering of the welding cycle via

Rated output at 50% ED: 63kVA Short circuit current: 31, 5kA Eletrodenkraft: 100-600daN / EH Projection: 250-550mm --- Control: MPS 10 (5 times, 8-program) --- incl. additional options: -Foot switch "unpowered setting up" -Main switch --- Warranty 6 months --- Training + commissioning on request --- Point welding electrodes + spares available from stock

Rated output at 50% ED: 100kVA Short circuit current: 41, 5kA Eletrodenkraft: 100-600daN / DH Projection: 350-650mm --- Control: MPS 200multiR1 (8 times, 8-program) --- incl. additional options: -Foot switch -Double stroke cylinder -Flow switch -Main switch --- Warranty 6 months --- Training + commissioning on request --- Point welding electrodes + spares available from stock

Weber, Masch. No. 1109226, orbital riveting machine with RT-stand Motor M 631 / 4 0.18 kW 1360 RPM KMT - APK T-3-S-60-Z SN 307 89 01 Riveting time - adjustable 0.15-3 s Control - Siemens Simatic S 7-200 External dimensions 30 x 20 x 86 cm - riveting machine Panel 50 x 40 x 30 cm More info and details. Photos upon request I am retailer offers to similar machines interested in financing through leasing or hire-purchase request send data protection
