Model
(Manufacturer: INDEX)
Fully functional CNC turning and milling center CNC Lathe Manufacturer: Index Type: G250 G 250 Year of Make: 2004 Location of the machine: 76661 Philippsburg The machine can be viewed on site. It is still energized and works perfectly. You can make an appointment for a viewing at any time. We would love to hear from you. We will be happy to answer any questions you may have at any time. We are looking forward to a good cooperation and thank you for your interest in advance.
Control Siemens 840 Dsl Main spindle: Motor spindle technology Speed 6,000 rpm Power (max.) 20 kW Bar passage 65 mm Workpiece Clamping Collet Chuck, Hainbuch Clamping Top Modular Size 65 Tool carrier I (X/Z): Technology Turret with 8 stations Tool holder VDI25 Tool drive 6,000 rpm, 4.2 kW, 10 Nm Complete machining synchronous spindle with 3-jaw chuck, ø95 mm Travel in X/Z 90/280 mm Rapid traverse in X/Z 27/36 m/min Tool carrier II (X/Z): Technology Turret with 8 stations Dovetail tool holder Tool drive 6,000 rpm Travel in X/Z 81/80 mm Rapid traverse in X/Z 27/36 m/min Residual apparatus: Technology Rear Drilling Facility with 5 Stations Powered tools 2 stations Tool drive 6,000 rpm Equipment/accessories: Chip Management Chip Conveyor Coolant supply KSS pump with high pressure, 20 bar Raw material feed short bar loader, Breuning Irco ILS-MUK 7012 III R ...
Key data: 65 mm, 660 mm

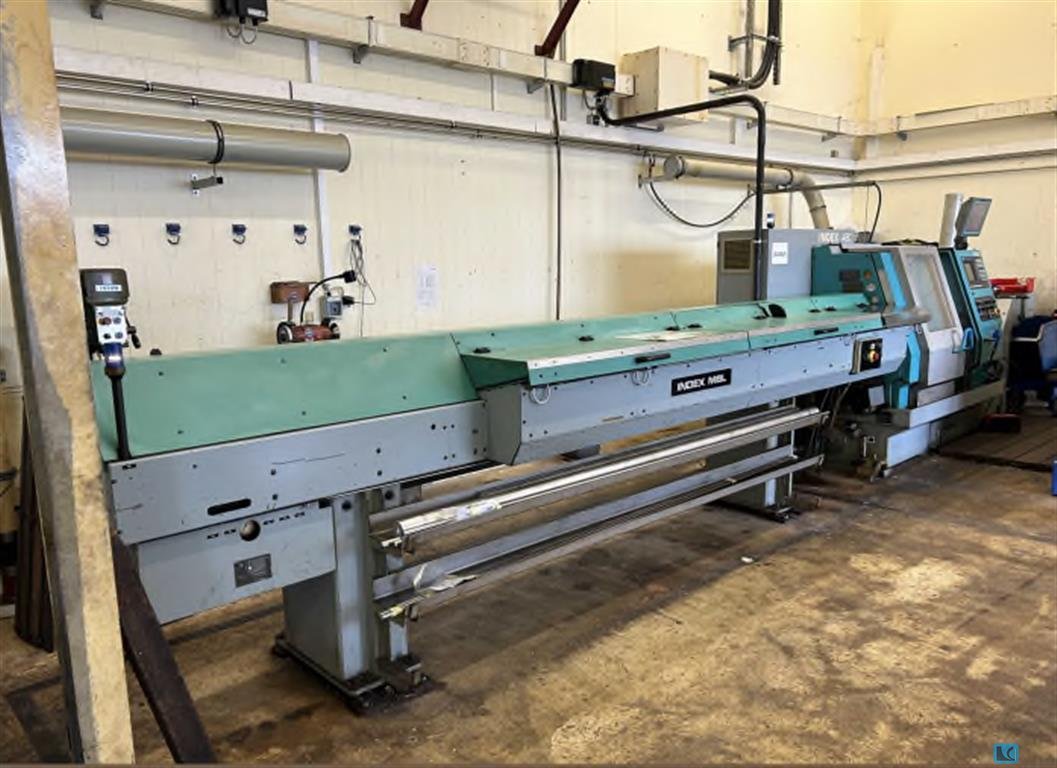

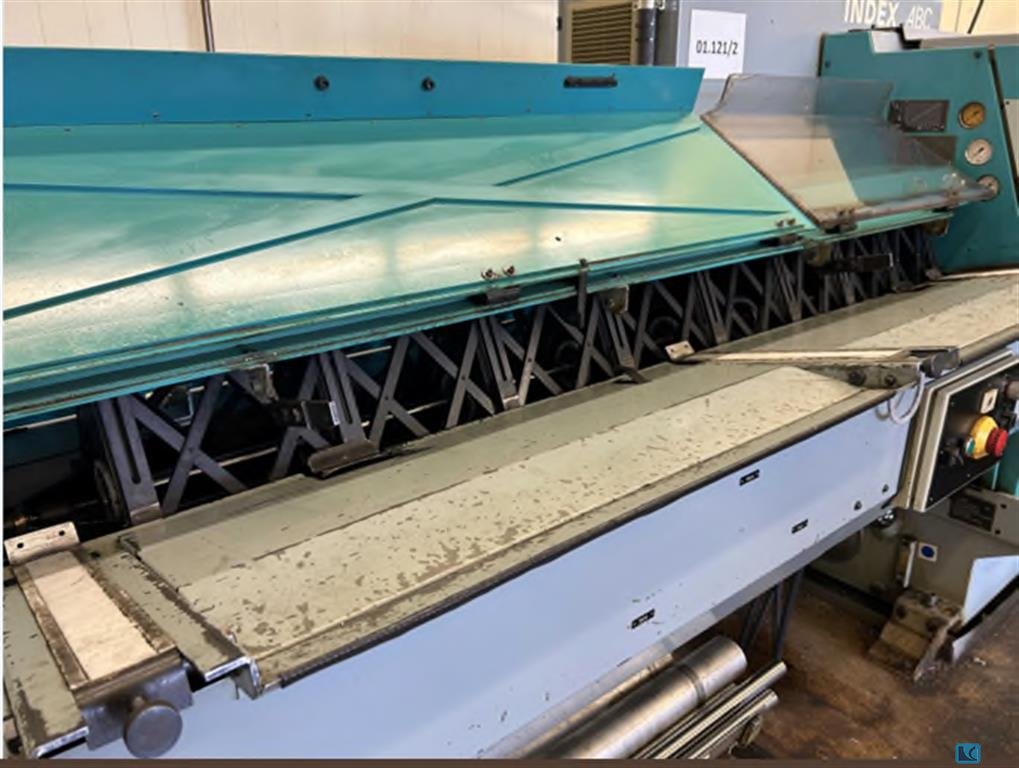

Control: SIEMENS Spindle passage: 65 mm Max. speed: 6,000 1/min Sub-spindle Z= 700 mm TOOL CARRIER 1 with milling spindle Milling spindle: 7,200 1/min B-axis 360° 14 stations with powered tools Speed Tools 7,200 1/min Travel: X= 230 / Y= +- 65 / Z= 845 TOOL CARRIER 2 14 stations with powered tools Speed Tools 7,200 1/min Travel: X= 140 / Y= +- 45 / Z= 810 Chip conveyor Filter Bar feeder INDEX MBL
INDEX C 200 Horizontal lathe GENERAL Project No.: 905493 Quantity: 1 pcs. Manufacturer: INDEX Type: C 200 Control: Fanuc 31i MA Year of Make: 2009 Condition: Used machine Spindle Approx (Hrs): 23200 Program run approx. (hours): 28742 DESCRIPTION TURNING Max. chuck diameter 160 mm Max. speed main spindle 5000 1/min Max. power main spindle at ED 10-40/100% 32 kW Max. torque main spindle at ED 10-40/100% 190 Nm Spindle aperture main spindle 65 mm Spindle Flange Size Main Spindle A2-6 Axes on the main spindle unit C Hollow clamping cylinder on the main spindle Max. speed sub-spindle 5000 1/min Max. power sub-spindle at ED 10-40/100% 24 kW Max. torque sub-spindle at ED 10-40/100% 190 Nm Spindle Diffuser Sub-Spindle 65 mm Spindle flange size sub-spindle A2-6 Axes on the sub-spindle unit C/Z Revolver top left Number of stations/powered by 12/12 Tool h ...
7 pcs Index VD30 mounts with capto interface, 3 pcs driven by it, mint condition!

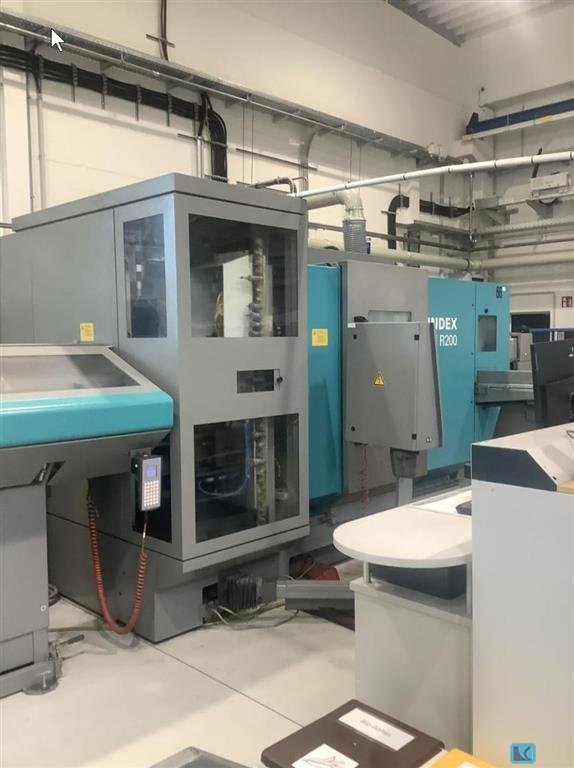

2 pieces (identical) used lathes Turning center milling center INDEX R200 INDEX VirtualLine Year of construction 2011 and year of construction 2009 At that time, the original price of both machines together: €1,385,647.90 gross Regular service only from the manufacturer INDEX. Service and parts exchange alone between 17.04. and 05.08.2025 in the amount of € 96,305.41 (invoices are available for inspection). Therefore, the machines are in absolutely excellent condition. Spindle hours (as of 21.11.2025) Year of construction 2011: S1: 4,114 h S2: 3,064 h S3: 2,535 h S5: 4,170 h Spindle hours (as of 21.11.2025) Year of construction 2009: S1: 2,951 h S2: 953 h S3: 3,524 h S5: 5,990 h Turning-milling centre with roller bearing slide guides Work spindles can be moved on slides. Tool carrier integrated into recesses in the machine bed, all linear axes arranged at ...
Control Siemens SINUMERIK 840D, C200-4D Speed 6000 1/min Travel X/Y/Z 280/280/145 mm- Number of revolvers: 1 with 6 seats Number of tool positions: 2x4 Conveyor Pallet Conveyor Belt Palettes
1x INDEX ER25 (built in 1974) with milling device (IRCO bar feeder with weight feed) 3x INDEX 25 (model years 1973-76) 4x INDEX C29 (years 1970-81) 3x INDEX DG12 (years 1972-75) 1x INDEX DG20 (built in 1972/73)
2 pieces Revolver automatic lathes, Fabr. Index, Type OR with many accessories Specification: Largest diameter 12 mm Number of spindles 6 Number of spindle speeds: 10 pieces Minimum spindle speed 950 1/min Maximum rotation speed of the spindle 7500 1/min Weight of the machine 1 t (for more data see nameplate)

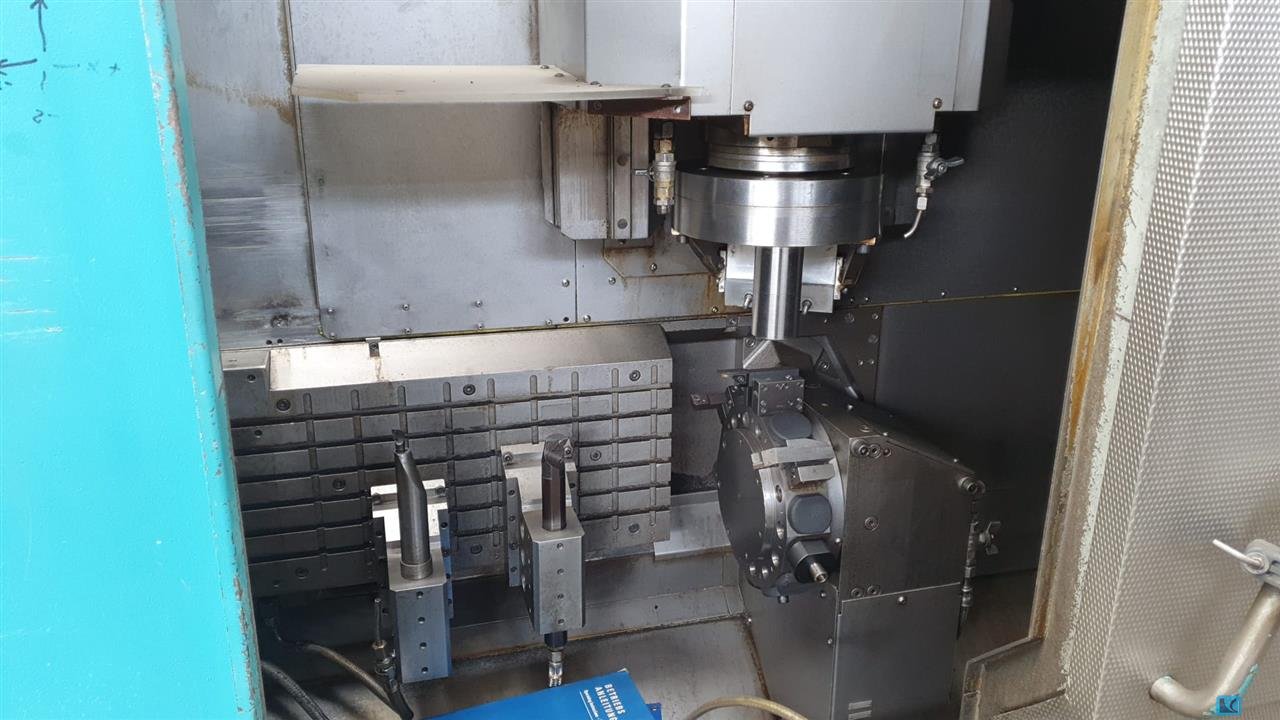

Machine Details Stock-No. 1105-04032 Type of machine Vertical Turning Machine Make INDEX Type V 160 C Year of manufacture 2005 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight basis ex site Price Technical details turning diameter 250 mm swing diameter 300 mm turning height 210 mm control SIEMENS 840 D Travel -X Axis 490 mm Travel -Z AXIS 260 mm external spindle dia. In forward position 110 mm turning speed range - spindle 5000 rpm Turret (X-Stations) 12 weight of the machine approx. 7.3 t dimensions of the machine approx. 3.2 x 2.3 x 2.3 m Accessories Chip conveyor Coolant system Additional information CONTROL SIEMENS 840 D WHIT TURRET 12 POSITION VDI 30 AND 2 FIXED TOOLS SUPPORT EXTR MOOWING TOOLS AND C AXIS WITH LOADING AUTOMATION
We currently have an Index MS25 (cam-controlled multi-spindle lathe), which received completely new spindles about 6 years ago. Last year in the summer, we had it completely examined by the company Index and no defects were found.
Fully functional Index Lathe Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.
Fully functional Index Lathe Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.
Fully functional Index Lathe year 96 Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.
Fully functional Index Automatic Lathe Year 99 Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.
Fully functional Index Lathe Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.
Inv. Num. : 7802 Type: G300 Producer: INDEX Created: 2003 Parameters: Control system: Siemens Maximum turning length: 710 mm Maximum turning diameter: 270 mm Number of axles: 9 pieces
INDEX GSC 65 CNC Lathe YOM 1997, installed 1998 Turning diameter in chuck 250 mm Swing Ø above bed, max. 300 mm Turning length 400 mm Control: Index C 200-8 (Sinumerik 880) Axes X/Z/C Travel of Slides: Turret 1- X / Z travel 163 / 550 mm Turret 2- X / Z travel140 / 250 Spindle bore, approx. 65 mm Tool holder bore 30 mm Spindle speeds 25 - 5000 rpm Feed range 0 - 15000 rpm Spindle drive 0.5 - 40 kW Total electrical load 60 kW - 380 V - 50 Hz Weight, approx. 8,500 kg Accessories & Spare parts -SIEMENS CNC Continuous Path Control, Model 880 (INDEX C 200-8). Changed monitor. -Hydraulic high-power chuck ROHM HS 200/3 -Tailstock -Turrets: 3 -Rotation tools in Turret 1- 2, in Turret 2- 3. -Milling spindle- tool in Turret 2 -Tool stations: 8 / 12 / 8 + 28 tools in magazine -Coolant device with chip conveyor. -A lot of spares and accessories
Used multi-spindle machine INDEX MS36E built in 1996 including a lot of accessories (collets, synchronizer guns, interchangeable wheels, various working curves, etc.) The plant is virtually ready for dispatch, in a dismantled state for inspection. For photos, technical data and a list of accessories, see Appendices. It has no major defects, is basically ready for operation, only the rubber hoses should be changed before commissioning and the coolant-lubricant system should be thoroughly cleaned and rinsed throughout. Accessory listing MS36E Iemca Loading Magazine Oil filter system (+3 rolls of filter paper) Collets Synchronizer Clamps (sentences) Ø 24 Ø 16 Ø 26 Ø 20 Ø 27 2x Ø 23 Ø 28 2x Ø 26 Ø 30,5 2x Ø 27,5 Ø 31 Ø 32 div. jaws Ø 33 for 3-jaw chuck Ø 34 Ø 36 SW 24 1x spindle stop (currently layer 4) 3 sets of rod guide tubes Various reductions f ...

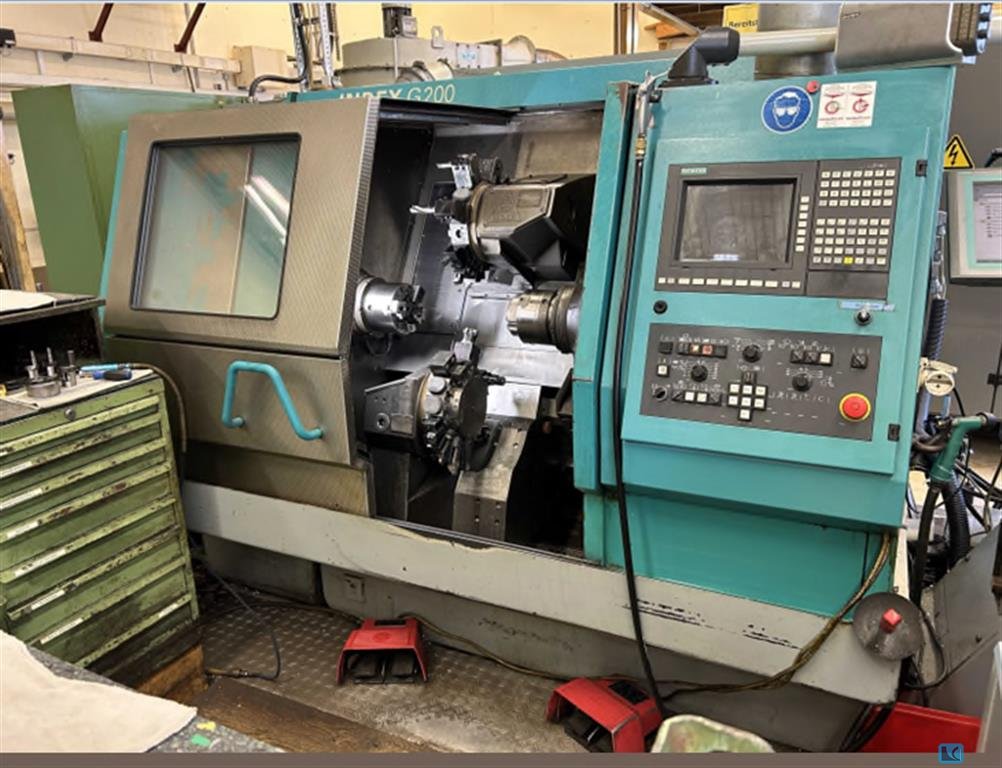

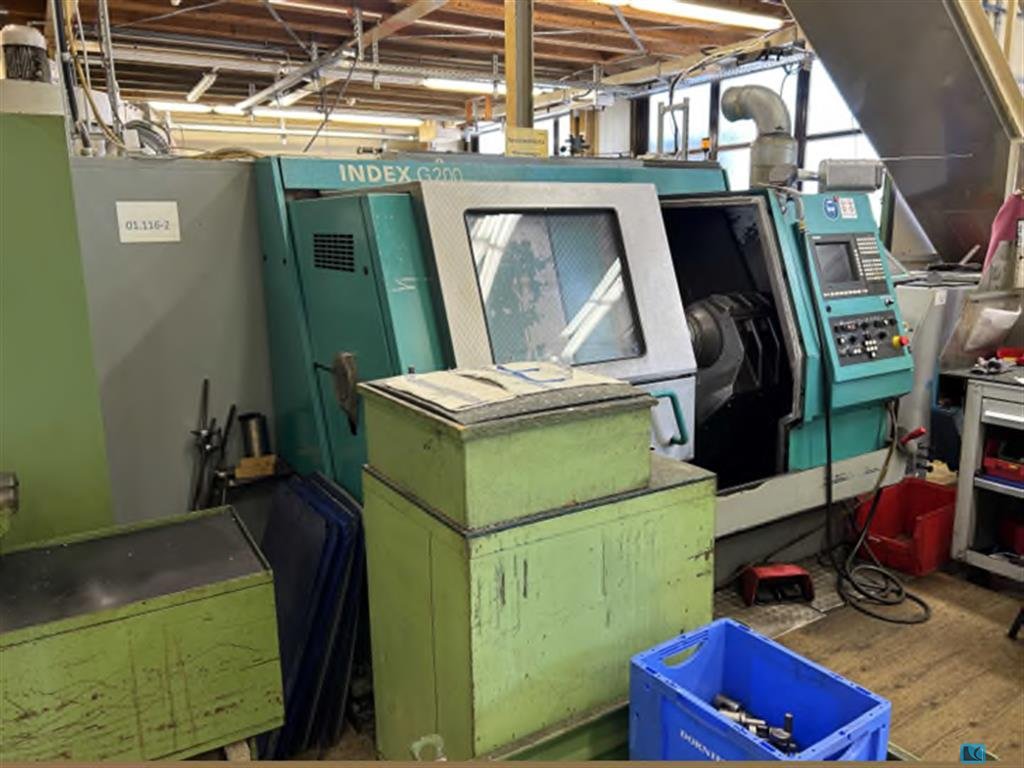

Machine Details Warehouse number 1105-03632 Machine type CNC turning and milling center Make INDEX Type G 200 Year of construction 1997 Control type CNC Controller C200- Siemens 840 C Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from location Technical details Turning diameter 200 mm Turning length 400 mm Controller C200- Siemens 840 C Circulation diameter 420 mm Rod diameter 65 mm Chuck diameter 165 mm Speed range - spindle ~ 6,000 rpm Drive power - Spindle motor 100% ED= 7.5/13/20 kW Drive power - Spindle motor 40% ED= 13.3/22/29 kW Rod diameter 65 mm Spindle bearing diameter 100 mm Chuck diameter 165 mm Speed range - spindle ~ 6,000 rpm Drive power - spindle motor 100% ED= 7.5/13 kW Drive power - Spindle motor 40% ED= 13.3/22 kW C - axis 0.001 ° Number of revolvers 2. Turret head (x-fold) 2 x 14 pos Travel - x ...
Index HE 25 with rod feed hydraulically controlled with long turning device
Curve lathe INDEX B60 - not complete - as spare part dispenser - see pictures
Curve lathe INDEX ER60 - see pictures More: turnover machine MANURHIN Traminer TR22B
turning diameter: n mm turning length: n mm control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

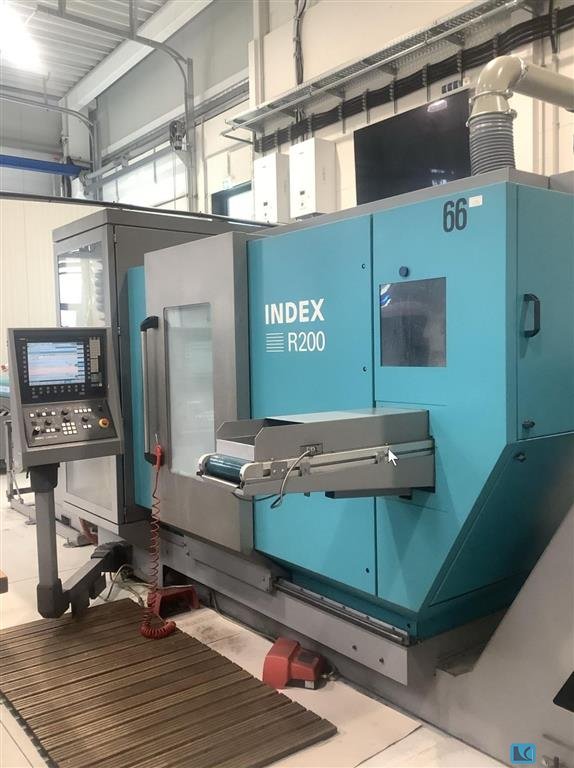

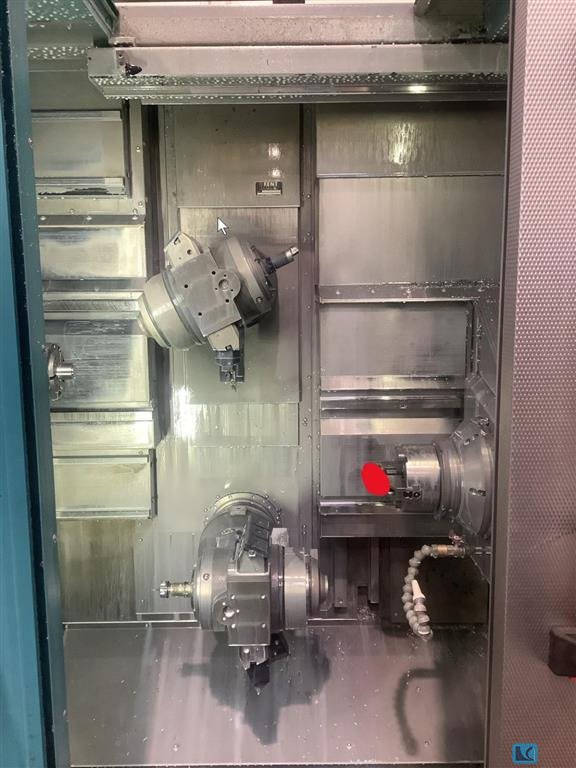

Index R 200Year of manuf. : 2009 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2009Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of ...
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
