5 INDEX abc used machines

weight of the machine ca.:2,5 t spindle passage:65 mm

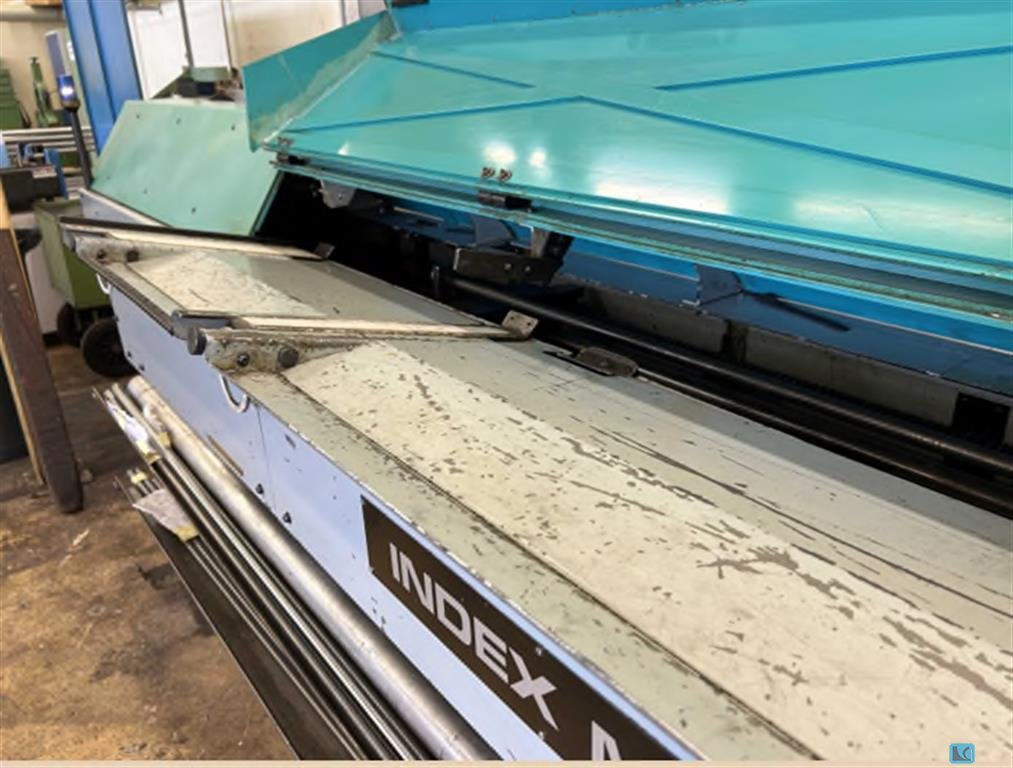

Year of Manufacture: 2017 | Control System: Fanuc 32i-B | Operational Status: Fully operational | Operating Hours: approx. ___ hours | Technical Data | Spindle Bore: Ø 42 mm | Travel and Feed Data: | X-Axis Travel: approx. 90 mm | Z-Axis Travel: approx. 280 mm | Rapid Feed X: approx. 27 m/min | Rapid Feed Z: approx. 36 m/min | Upper Turret (Main Tool Carrier): | Number of Stations: 8 (1 synchronizable) | Tool Holder: VDI 25 | Supports driven tools | Lower Turret: | Number of Stations: 6 | Non-driven | Rear Side: | 5 stations for back-side operations | Simultaneous Machining: Up to 3 tools simultaneously | Coolant System & Chip Conveyor | Bar Feeder: IRCO ILS MUK 7012-II, Year 2015 | Accessories / Tools / Manuals | Machine Dimensions & Weight | Machine: approx. 2830 × 1500 × 2200 mm, Weight: approx. 3500 kg | Coolant System & Chip Conveyor: approx. 1600 × 1250 × 1780 mm, Weight: appr ...

This 5-axis Index ABC horizontal turning machine was manufactured in 2012. It features a main spindle with a maximum speed of 6000 rpm and a sub spindle with a speed of 4500 rpm. The machine includes two turrets, each equipped with X and Z axes, and a powerful tool drive. If you are looking to get high-quality turning capabilities, consider the Index ABC machine we have for sale. Contact us for further details.

This 5-axis Index ABC horizontal turning machine was manufactured in 2012. It features a main spindle with a maximum speed of 6000 rpm and a sub spindle with a speed of 4500 rpm. The machine includes two turrets, each equipped with X and Z axes, and a powerful tool drive. If you are looking to get high-quality turning capabilities, consider the Index ABC machine we have for sale. Contact us for further details.

Manufacturer: INDEX Model: INDEX ABC Year of Manufacture: 1997 - With bar feeder and chip removal Electrical Specifications - Power Supply: 3-phase, 50 Hz - Rated Voltage: 400 V - Control Voltage: 24 V - Rated Current: 32 A Synchronous Spindle - Collet Clamping - Max. torque (Md max. 25%): 10 Nm - Max. speed: 4500 rpm - Max. collet diameter: 42 mm - Clamping depth at max. collet diameter: 38 mm - Spindle bore diameter: 15.5 mm - Max. ejector stroke: 36 mm - Max. clamping pressure: 65 bar Synchronous Spindle - Chuck Clamping - Max. torque (Md max. 25%): 10 Nm - Max. speed: 4000 rpm - Max. chuck diameter (external): 75 mm - Max. ejector stroke: 42 mm - Max. jaw stroke: 0.6 mm - Max. clamping pressure: 20 bar Rear Tool Carrier for Backworking Operations - Capacity: up to 5 fixed tools - Capacity driven tools: up to 3 fixed and 2 driven tools - Max. speed (driven tools): 6000 rpm  ...
