used ZPS mc

travels: longitudinal 1650mm transverse: 810 mm vertical: 810 mm max. table load 1750 kg desk clamping area 1800 x 780 mm working feed 0-20000 mm.min rapid traverse 20000 mm.min spindles conical cavity ISO 50 speed range 30-6000 min. working feed 0-20000mm. min rapid traverse 20000mm.min distance of the forehead from the table surface 110-920mm main engine power 17.0 / 20.5 kW tool tray number of places in the magazine 2x16 max. tool diameter 130 mm max. tool diameter at free adjacent points 220 mm max. tool length 300mm max. tool weight 12kg total input 34.0kVA dimensions 4120x 2440x3700 mm weight 11400kg

Key data: 1610 mm, 810 mm, 810 mm

Machining center ZPS Tajmac MCFV 1680 Trend The machine worked in a single shift, toolmaking. Spindle changed in 2020. The machine is basically in good condition. Manufacturer: ZPS Tajmac Model: MCFV 1680 Trend Year of construction: 2004 Control system: Siemens Sinumerik 840 D Final drives x-1610mm Y-810mm z-810mm Table 1800x780mm Spindle taper: ISO 50 Speed: 0-8000 rpm Tool change magazine: 24 places 4. Full Nikken axle, diameter 400mm Accessories: Chipbringer Cooling High-pressure central cooling with filtration Steering wheel Documentation The machine contains 24 pieces of ISO 50 tools!! Weight 13800 kg

Key data: 1050 mm, 640 mm, 750 mm

Machining Center ZPS-Tajmac MCFV 1060 Contour Manufacturer: ZPS Tajmac (Czech Republic) Model: MCFV 1060 Contour Year of construction: 2007 Control system: Heidenhain TNC 530 Specifications: Table clamping surface: 1,270 x 600 mm X-axis travel: 1,050 mm Y-axis travel: 640 mm Z-axis travel: 750 mm Spindle speed: max. 18,000 rpm Torque/Power: 159/197 Nm; 25/31 kW Spindle: Kessler Deutschland GmbH Spindle clamping cone: HSK 63 Number of positions in the tool tray: 30 Dimensions L x W x H: 3,900 (with chip ejector) x 2,300 x 2,950 mm Machine weight: 7000 kg Accessories: Heidenhain HR410 Drive Wheel External cooling with flushing of the work area Central lubrication of the guide surfaces Measuring rulers in 3 axes Inventor of chips Documentation 20 pieces tool holder HSK63 The machine is in good technical condition under power in my warehouse in Jirkov.  ...

a used vertical BAZ made ZPS, type MCFV 100, Y.O.M. 1995, table 1270 x 600 mm, Travel X/Y/Z 1020/600/635 mm, milling spindle 15 kW (100%), 30-6000 rpm, feeds up to 20 m/min., tool changer 20-fold ISO40, chip conveyor, CNC control Heidenhain TNC 407, emulsion cooling by external spray nozzles

Key data: 1000 mm, 800 mm, 850 mm

Inv. Num. : 6941 Type: MCFH63 Producer: ZPS Created: 2001 Parameters: Control system: Siemens X-axis travel: 1000 mm Y-axis travel: 800 mm Z-axis travel: 850 mm

Key data: 1016 mm, 610 mm, 635 mm

ZPS MCFV 1060 LR, Built in 1998, Control Heidenhain TNC 426, Travel X/Y/Z 1016/610/635 mm, Table size 1270 x 590 mm, max. table load 900 Kg, Tool changer 24 times, Mounting SK 40, Spindle speed up to 8,000 rpm, refrigerant equipment, Conveyor

x-travel: 1.650 mm y-travel: 810 mm z-travel: 810 mm control: TNC 426 Heidenhain Main spindle:: turning speed range - main spindle: 30 - 6.000 min/-1 power capacity - main spindel: 20,5 / 17 kW transmission ratio: 2 max. Torque: 650 Nm tool taper: SK 50 spindle bearing diameter: 90 mm distance spindle /table: 110 - 920 mm distance spindle center to column: 990 mm work height max.: 1.000 mm work table:: table surface area: 1.800 x 780 mm number of T-slots: 5 T-slot - width: 18 mm T-slot - distance: 150 mm max. table load: 1.750 kg max. workpiece sizes: 1.650 x 810 x 450 mm feeds:: feed speeds: 0 - 20.000 mm/min rapid traverse: 20 m/min Tool-Presetter:: number of toolpositions: 16 pos. max. tool weight: 12 kg max. tool diameter: 130 mm max. tool-dia with free toolbox: 220 mm max. tool length: 300 mm change-time tool to tool: max. 9 sec total power requirement: 51 kW weight of the machi ...

Inv. Num. : 7363 Type: MCFV 2080 NT Producer: ZPS Generated: Parameters: Control system: Heidenhain Work table length: 2200 mm Work table width: 780 mm X-axis travel: 2030 mm Y-axis travel: 810 mm Z-axis travel: 810 mm

Control Fanuc ... 18i - MB5 Clamping table surface ... 1320 - 620mm Axis X ... 1050mm Axis Y ... 640mm Axis Z ... 800mm Spindle speed... 0-8000 rpm controlled axes ... 4 cooling ... 25-70bar ISO 50 workpiece weight... 1350kg Machine weight ... 6900kg overhauled: in 2022 Chip Conveyor Rotary table Nikken series CNC260B Workpiece touch probe MP12 The machine is in good condition, possible to test under electricity.

The machine is in good technical condition. Axis X= 1016mm Axis y= 610mm Axis z= 710mm Table size: 1270 x 590 mm Control system: Heidenhain TNC 426 Table load: 900 kg Spindle taper ISO-40a Spindle drive power: 15 KW Maximum spindle speed: 8000 rpm. Tool change: 24-fold / SK40 Equipment: Chip conveyor Machine dimensions: 3200 x 2600 x 2200 mm Weight: approx. 7.5 t By prior arrangement, the possibility of a tour in progress.

The machine is in good technical condition, after agreement the possibility of testing. OS accessories: GE Fanuc series 18i-MB5-including manual, chip ejector, Nikken series CNC260B rotary table and support bearing, 70 bar high pressure pump, spindle center cooling, air cooling, additional plate, MP12 workpiece probe. X and Y axis laser compensation was made on the machine in 2021, a ball bar is available. The machine is normally worn. Renishaw workpiece probe cycles purchased for the machine. The machine will be released from production after the delivery of a new machine.

The machine is in good technical condition. Travel in X,Y,Z axes: 1650 x 810 x 810 mm Table clamping surface: 1800 x 780 mm Max. table load: 1750 kg Max. spindle speed: 24000 1/ min. Spindle motor power: 51 kW Number of places in the tool tray: 24 Steering system: Heidenhain 530 Machine dimensions L x W x H: 7000 x 4000 x 3600 mm Machine weight: 14500 kg By prior arrangement, the possibility of a tour in progress.

Key data: 560 mm, 510 mm, 560 mm

Inv. Num. : 5374 Type: H 40 TREND Producer: ZPS Created: 2004 Parameters: Control system: Siemens 840 D Work table length: 400 mm Work table width: 400 mm Tool magazine: 45 pieces Maximum spindle speed: 10000 1/min X-axis travel: 560 mm Y-axis travel: 510 mm Z-axis travel: 560 mm Cone: SK 40 Machine height: 2616 mm Machine length: 4730 mm Machine width: 2540 mm Machine weight: 9 t 2020: new spindle and new table (the parts) 2022: new table clamp

Key data: 1010 mm, 800 mm, 1010 mm

Inv. Num. : 6942 Type: H63 Producer: ZPS Created: 2005 Parameters: Control system: Siemens Work table length: 800 mm Work table width: 630 mm X-axis travel: 1010 mm Y-axis travel: 800 mm Z-axis travel: 1010 mm

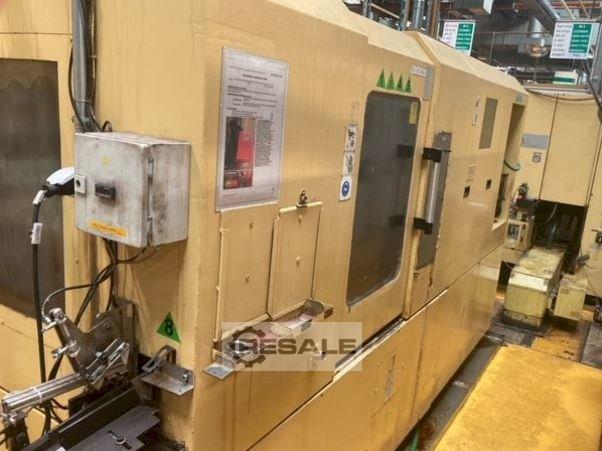

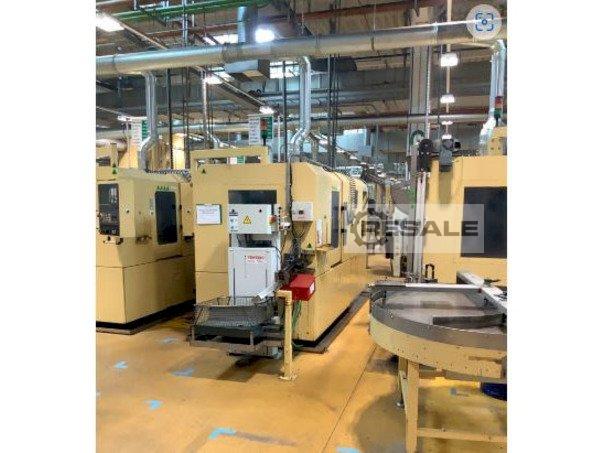

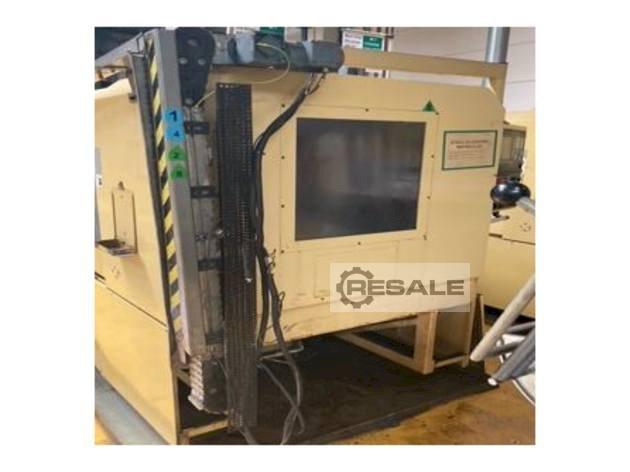

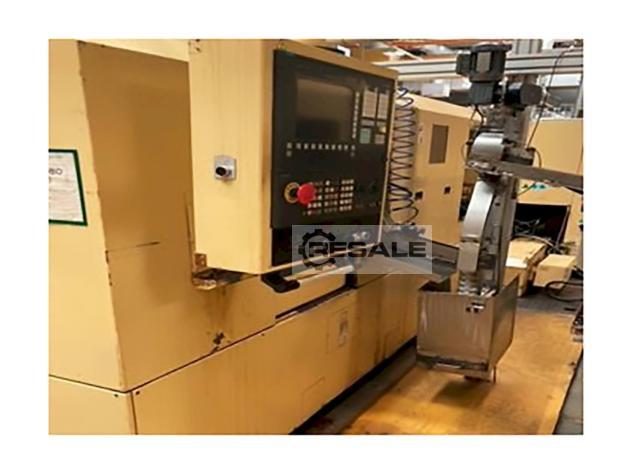

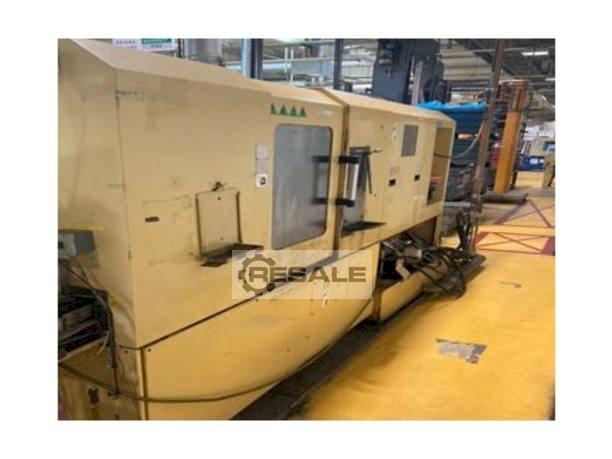

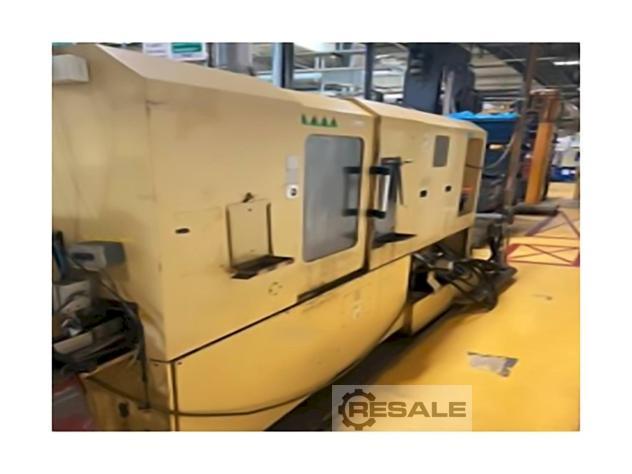

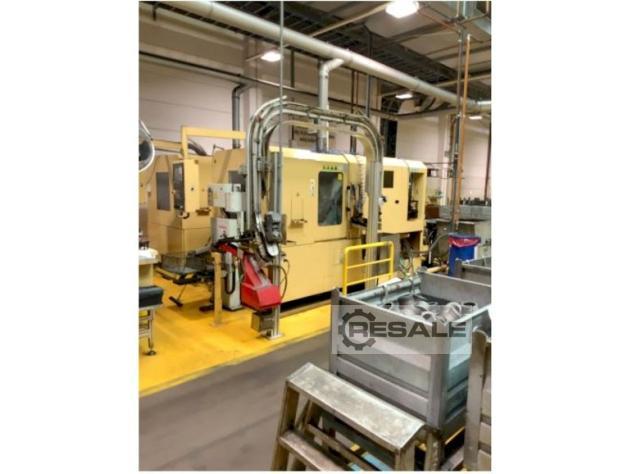

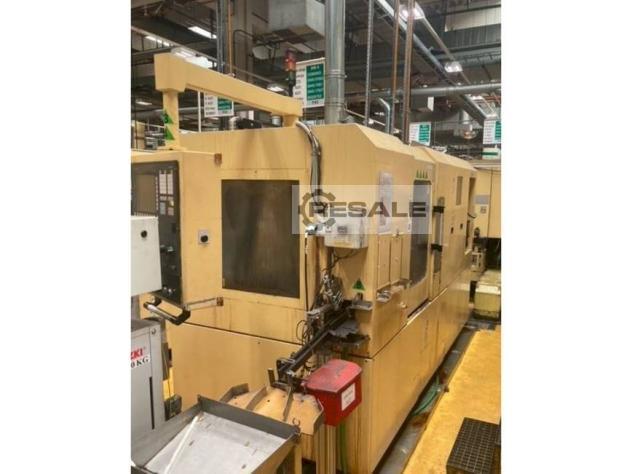

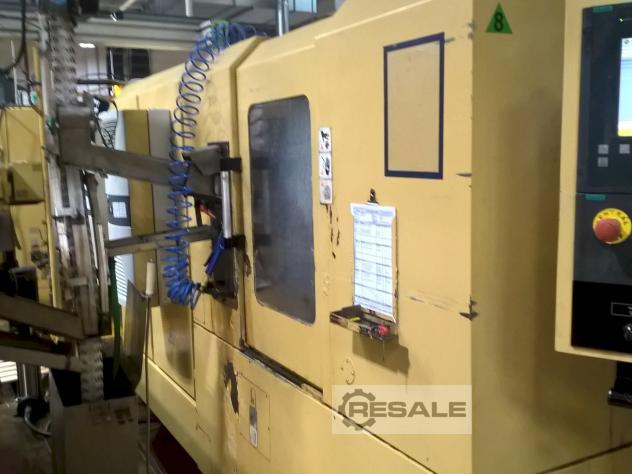

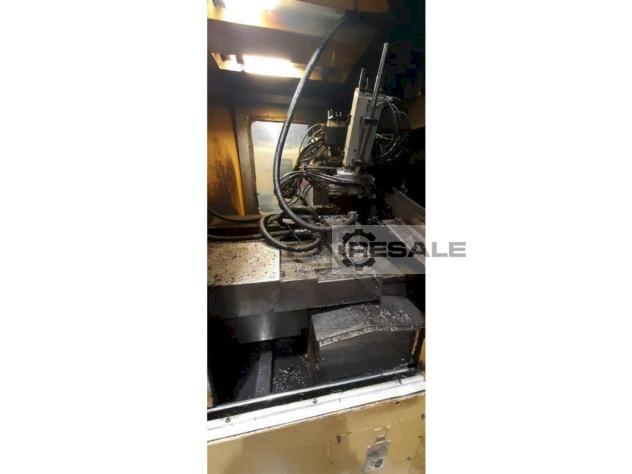

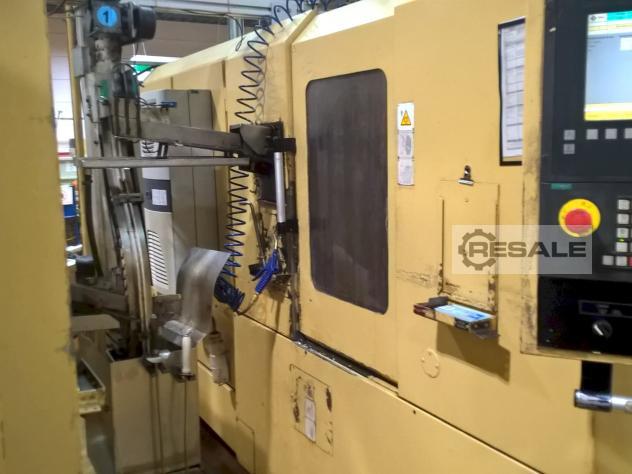

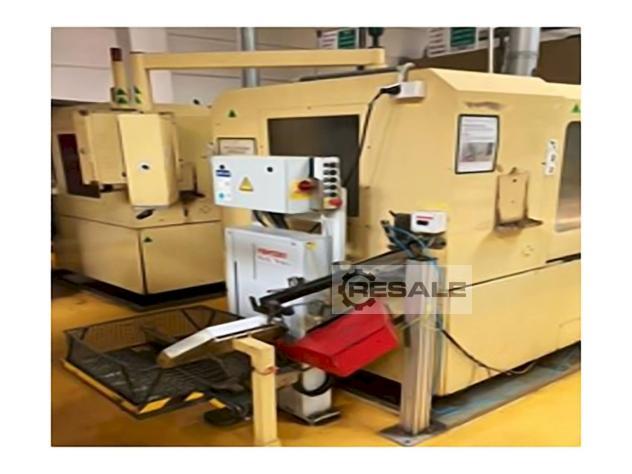

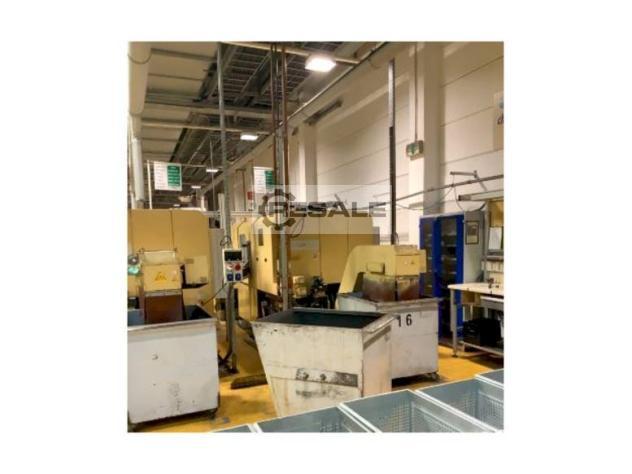

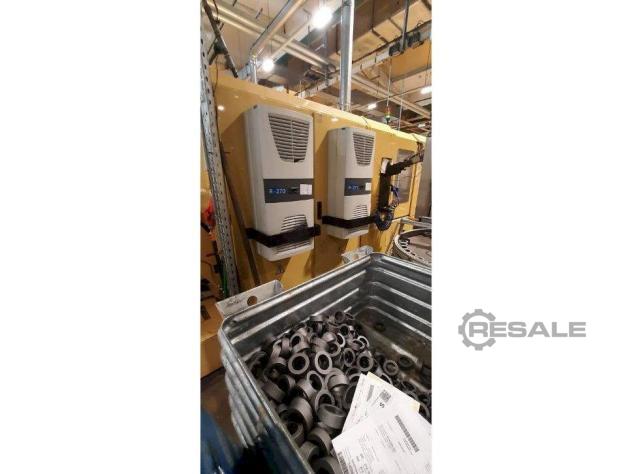

BRAND: TAJMAC-ZPS YEAR: 2011 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE NUMBER OF AXIS: 4 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2008 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE NUMBER OF AXIS: 4 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2007 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2006 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE NUMBER OF AXIS: 4 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2008 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE NUMBER OF AXIS: 4 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2011 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE NUMBER OF AXIS: 4 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2006 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2006 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2006 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2006 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information MAIN DRIVE NUMBER OF AXIS: 4 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT

BRAND: TAJMAC-ZPS YEAR: 2006 MODEL: SAL 100/4 APPLICATION TYPE: TURNING LOCATION: SLOVAKIA MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MACHINING WITH GEOMETRICALLY DEFINED CUT
