used ZOLLER venturion

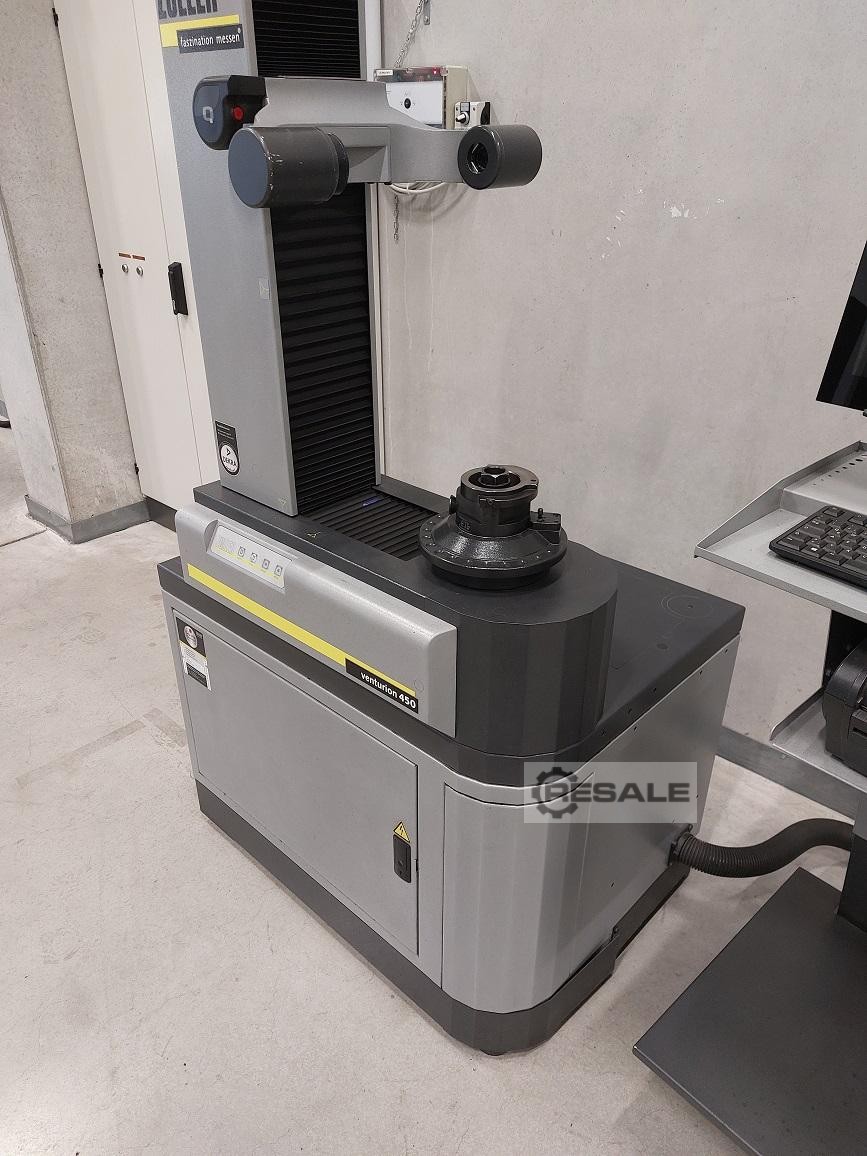

Tool presetting device Brand: Zoller Type: Venturion 400 Without computer,software. Mechanics only This item is only sold to traders.

This Zoller Venturion 800 Measuring machine was manufactured in the year 2009 in Germany. It is equipped with a 840 D control unit.

Hersteller:Zoller Typ: Venturion 800 Baujahr : 1995 zum Einstellen und Messen von Bohr- und Ausdrehwerkzeugen, Fraesern und Drehwerkzeugen mit digitaler Anzeige; einsatzbereit

Tool adjuster, adjustment and measuring instrument used Manufacturer E. Zoller Type: V420D2-00172 EC Type: V420D2-00294 VENTURION 500 Built: 2003 Dimensions: approx. 1600 x 1000 x 2000 mm

BRAND: ZOLLER YEAR: 2009 MODEL: VENTURION 800 APPLICATION TYPE: MEASURING LOCATION: GERMANY MACHINE TYPE: MEASURING MACHINE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 470 KG CONTROLLER MODEL: 840 D Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - PNEUMATIK: 4-6 BAR - POWER: 1000 VA - PILOT3 VERSION 1. 8. - A. C. E. SPINDLE (POWER-OPERATED CLAMPING) - AUTOFOCUS (CONTROLLED SPINDLE) - SOFTWARE FUNCTIONS (TOOL MANAGEMENT STANDARD, DATA OUTPUT (VIA THE NETWORK), ONE OUTPUT FORMAT FOR AN 840D CONTROLLER - ATTACHMENT HOLDER SK40

Technical details: Max. tool length 450 mm Max. tool diameter 420 mm Max. throat diameter 70 mm Transmitted light camera HR 50 High-precision spindle –ace- 0.002 mm Equipment: - CNC control for fully automatic axis adjustment - Tool inspection: incident light processing with centered LED illumination - Premium image processing - CNC drive in the C-axis - Rotary encoder - Measuring instrument control –cockpit- - Measurement program package – inspection Premium - Standard function –pilot 4.0- - Shelf - Holder SK 40 - Bracket HSKA 63 - Holder HSKA 50

measuring range X-axis: 600 mm measuring range Y-axis: 430 mm Table dimensions: 745 mm tool diameter: SK 50/SK45 div. mm Dimensions (L/W/H): 2,16x1,45x1,9 m mm weight: 730 kg voltage: 230 V output:

Suitable for measuring and presetting all types of cutting tools as well as for measuring grinding wheel packages. The extensive and comprehensive software solution with intuitive graphical user guidance guides users quickly and safely to precise measurement results., Accessories:, ZOLLER measuring device control »pilot 3.0« with 17” monitor,, Autofocus/venturion 800,, Rotary encoder (ROD=) for high-precision position determination,, Tool inspection (incident image processing with centered LED lighting),, High-precision spindle “ACE” concentricity 0.002 mm,, Standard functions pilot 3,, Tool management standard,, FORED manual measuring programs,, 3 used attachment holders., Z-axis travel: 800 mm, Traverse X-axis: 200 mm, X axis travel: 200 mm, Workpiece diameter: Max. 1000 mm, workpiece length: Max. 800 mm, Workpiece length: Max. 400 mm, Max. snap gauge diameter: d = 200mm, Max.  ...

measuring range X-axis: 612 mm measuring range Z-axis: 800 mm tool diameter: 1200 mm weight of tools max.: 250 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

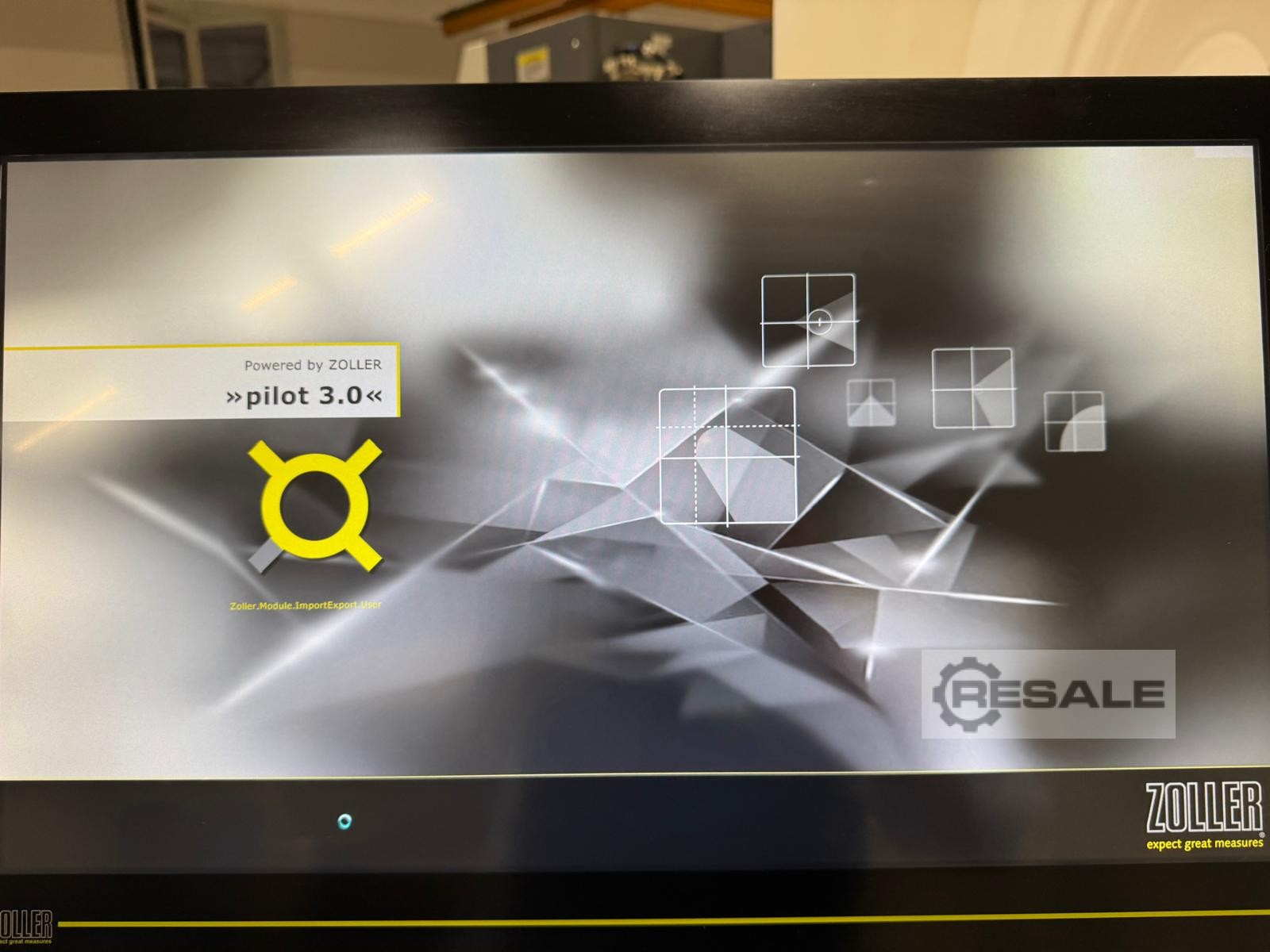

ZOLLER SMILE / PILOT 3.0 presetting and measuring machine was manufactured in 2019 in Germany. The machine is a professional tool measuring and presetting device, whose easy operation and precision guarantee flawless results. A telecentric lens and a CCD camera with integrated LED ring for measurements in reflected light (blade inspection) are used to perform the measurements. ZOLLER SMILE 420 is equipped with the CNC controller ZOLLER »pilot 3.0« and functions such as automatic blade recognition, measurement of radial run-out and axial run-out, maximum contour function and cutting edge control. The tool to be measured can have a maximum length of 420 mm and a maximum diameter of 420 mm. Specifications of the ZOLLER SMILE / PILOT 3.0 presetting and measuring machine - maximum tool length Z: 420 mm - maximum tool diameter D: 420 mm - diameter measurement according to Abbe’s p ...

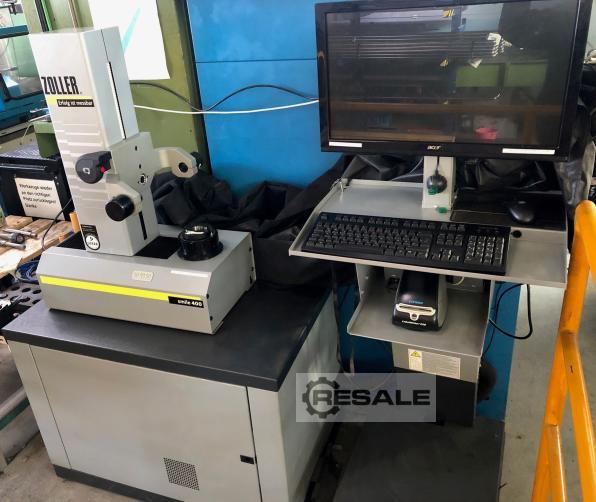

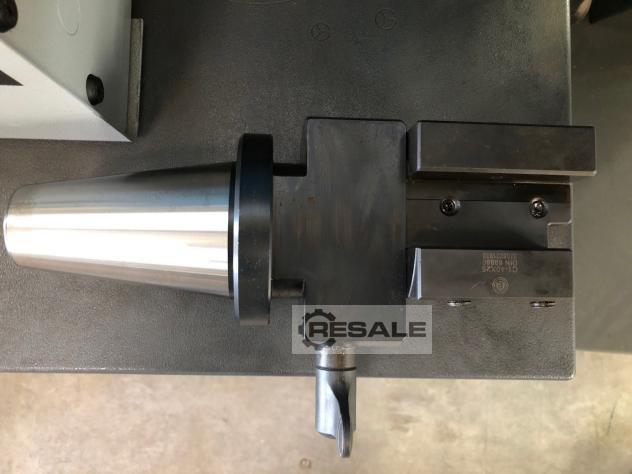

BRAND: ZOLLER YEAR: 2012 MODEL: SMILE 400 APPLICATION TYPE: MEASURING LOCATION: GERMANY MACHINE TYPE: TOOL PRESETTER AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: ZOLLER MODEL: PILOT 3.0 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MEASURING RANGE: Z:400 MM, MEASURING RANGE D:400MM - WINDOWS 7 INSTALLED, UPGRADE TO NEWER SOFTWARE OR OPERATING SYSTEMS , SUCH AS WINDOWS 10 POSSIBLE YOU ACQUIRE A FULLY FUNCTIONAL DEVICE. - IMAGE PROCESSING >PILOT 3. 0 COCKPIT-PILOT < ADAPTER: - 6300040 = SK 50/VDI 40DIN 69880 6302030 = SK 50/VDI 30DIN 69880 LABEL PRINTER - COVER FOR THE SYSTEM

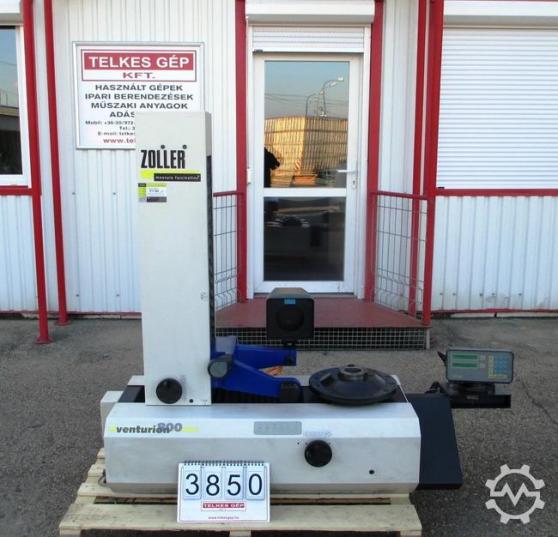

+++ ATTENTION - PRICE DROP!!! +++ Prices are rising, ours are falling!!! +++ Our prices are reduced by 50% now, +++ due to warehouse restructuring!!! +++ Also, consider taking a look at our other offers in stock. Tool presetter Zoller V 520 manufacturer: Zoller type: V 520 year of construction: 2000 comm.-nr.: 0200/133/083/0416 stock-nr.: 1909 +++ Regular Price: 3.850,- € > Reduced Price: 1.925,- € BN +++ All prices are shown without taxes (net price) Technical Data (According to manufacturer) Measuring area X-Axis: 210 mm Measuring area Z-Axis: 620 mm (tower height 800 mm) tool reception: SK 50 / 0300106 / Z=+20.000 current: 220 V / 50-60 Hz weight: ca. 400 kg standing area: W 1,40 x D 0,70 x H 1,90 mm voltage: 220 V / 50 Hz weight: ca. 350 kg standing area: W 950 x D 1005 x H 1600 mm features * Digital measuring device “Heidenh ...

measuring range X-axis:150- 300 mm measuring range Y-axis:* mm Table dimensions:* mm measurement range Z =:450 mm enlargement:20 X fine adjustment:+/- 5 mm compressed air:6 bar dimensions:2 x 1,5 x2 m machine weight ab.:150 kg

Tool adjuster, adjustment and measuring instrument used Manufacturer E. Zoller V420magnum Type: V425D Built: 1997 Dimensions: approx. 1600 x 1000 x 2000 mm

Compressed air supply: 4-6bar, weight: 6000N, with documentation.

No. 5007: 1 gebr. Posten div. Spare Parts - Power Supply Board / Optics / Pneumatics Fabr. ZOLLER, type probably suitable for V 400 / V 402, accessories: - Power supply board 00521 / 05E6011 / 85-1433-03 - Control panel / membrane keyboard 00932 / 05E6007 - 2 x 2 bellows - Pneumatic ET - Camera module 02717 / 05E6116.1 - Optics 07436 / 05E6118.2 Other: Shipping weight approx. 8 kg

measuring range X-axis: 300 mm measuring range Y-axis: 300 mm Table dimensions: 800 x 800 mm taper ISO: 30 voltage: 220 V / 50 Hz total connected load: 0,3 kW weight: 0,5 t dimensions of the machine ca.: 1,5 x 1 x 1,6 m Use: no definition: : • Tool presetter with taper SK 30, SK 40 is also optionally possible, • Display of measured value ZOLLER DA 6050 / 0266, serial no: H320/066 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

measuring range X-axis: 540 mm measuring range Z-axis: 400 mm table diameter: 740 mm enlargement: 20fach range L-W-H: ca. 1,70 x 1,00 x 1,70 mm weight: ca. 600 kg acc.: DRO on 2 axis The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

measuring range X-axis: . mm measuring range Y-axis: . mm Table dimensions: . mm tool diameter: . mm digital readout: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tool presetting device make ZOLLER type H 4000Machine -No: FC II 4000/039, built in 1985Measuring range: 320 x 270 mmProjector diameter: 150 mmMagnification: 20 timesMeasuring system: Heidenhain LS 503 DOutside dimensions: 1490 x 650 x 1850 mmelec. Connection: 220 V / 50 HzWeight: 350 kgWith- Input unit type 6080- Tool holders ISA 50usedPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

measuring range X-axis: 500 mm measuring range Y-axis: 500 mm control: ZOLLER 6052 manual operated rotary table: 600 mm voltage: 220 V weight: 500 kg dimensions of the machine ca.: 1,70 x 1,00 x 1,70 m - serial-no.: EGH 4032 / 058 - turntable with 2 stations Station 1 for SK 40 Station 2 for SK 50 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Item no. 5044: 1 gebr. Tool Presetting Device Fabr. ZOLLER, Type V 400 Z , Bauj. 2002

Other Info: Gereedschap Meetmachine MAKE   Zoller TYPE    Genius 3 S YEAR   2006 DIMENSIONS Length   Z Axis length : 600 mm Width    X Axis length : 175 MM Height   Y Axis length : 100 mm CNC Driven, Adjustable 3D CCD camera and led lightingZoller Genius 3 tool measuring machine

Tool presetting device make ZOLLER type H 4000 / H 4012/132Year of construction 1988Technical specifications:Turntable diameter: 750 mmNumber of tool holders: 4External dimensions approx: 2000 x 850 x 1700 mmWith- 2-axis digital display Zoller 6051- Profile projectorused, ready for operationPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

No. 5153: 1 gebr. Tool Presetting Device Fabr. ZOLLER
