5 WMW radial drilling machines used machines

Extension 1600 mm

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U drilling capacity steel/cast iron: mm power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Radial drilling machine BR 56 x 1600 Year of construction: approx. 1965 (estimate) equipped with coolant device and drilling table as optional accessories

Tool holder MK 5 Speed range 20-1200 infinitely variable in 3 rows 1/min Feed rate 0.063-0.63 mm/min Projection 300-1250 mm, quill travel 355 mm Distance from spindle head to base plate 375-1375 mm Swivel range boom 360° Connected load 5 kW

bore capacity in steel (diameter): . mm arm length: . mm workpiece height max.: . mm The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

arm length: 300... 1600 mm bore radius max./min: 1800 mm bore capacity in steel (diameter): 56 mm threading: max. 65 mm bore depth: 400 mm tool taper: MK 5 base plate: 1700 x 1000 mm turning speed range - drilling: 14...1800 U/min feed: 0,0315...1,6 m/min total power requirement: 4,5 kW weight of the machine ca.: 7,13 t dimensions of the machine ca.: m Reach: 300 – 1,600 mm Max. / min. drilling radius: 1,800 mm Drilling capacity in steel: 56 mm Tapping capacity: max. M65 Drilling depth (spindle stroke): 400 mm Spindle taper: Morse taper MT 5 Base plate: 1,700 × 1,000 mm Spindle speed range: 14 – 1,800 rpm Feed rates: 0.0315 – 1.6 mm/rev Total power requirement: 4.5 kW Machine weight: approx. 7.13 t Max. distance from spindle head to base plate: 1,600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Radial drilling machine, used radial drilling m/c, used Type: BR 56 x 1600 Manufacturer/ make: WMW Year built/ year of make: 1965 Extension/ length of arm: 300...1600 mm Ma. Drilling radius / max. drill. Radius: 1800 mm Drilling capacity at boring: 56 mm ( St 60 ) Drilling capacity at boring: 80 mm ( GGL 20 ) Thread cutting/ thread cutting: max. 65 mm ( St 36 ) 76 mm ( GGL 20 ) Drilling depth/ drilling depth: 400 mm Tool holder / taper in spindle: MK 5 Removal spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base plate/ base: 1700 x 1000 mm Speed range/ range of speeds: 14..1800 rpm Feed: 0.0315 .. 1.6 mm/U// mm per round Connection value: 7.13kW Weight: about 4.5 t

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

Key data: 63 1/min, 25 mm, 200 mm

Manufacturer: WMW Type: BKR 25 x 4 AI Stock number: 1023 Number of Spindles: 4 Spindle spacing: 475 mm Table working surface: 450 mm x 1900 mm Drilling capacity in steel: 25 mm Morse taper of spindle: MK 4 Connected load: 10.2 kW Weight: 3000 kg

Key data: 50 mm, 335 mm, 280 mm

Power: 7.8 kW Weight: 1,650 kg Table size: 630 x 500 Speed: 45 - 1,000 rpm Machine is ready for operation and can be dispensed immediately.

bore capacity in steel (diameter): 40 mm continious capacity: 25 mm throat: 315 mm bore stroke: 200 mm bore depth: 280 mm spindle taper MT: 4 feed range: 0,1-1,5 U/min number of feeds: 9 column diameter: ca. 230 mm table-size: 700 x 600 mm surface area: 450 x 560 mm distance spindle/base plate: 1100 mm dimensions: ca. 1000 x 700 x 2400 mm total power requirement: 2,6 kW weight of the machine ca.: 1,1 t emergency stop switch renewed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): / mm throat: / mm bore stroke: / mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 50 mm throat: 355 mm bore stroke: 280 mm spindle taper: MK 5 spindle head adjustment: vertikal 280 mm motorisch feed: 0,11-1,73/9step mm/min turning speeds: 32-1400/12step U/min table-size: 770 x 640 mm surface area: 630 x 500 mm base plate: 490 x 530 mm table travel: total power requirement: 8,1 kW weight of the machine ca.: 1,7 t dimensions of the machine ca.: 1,25 x 0,8 x 2,75 m Drilling capacity in steel: 50 mm Throat depth: 355 mm Spindle stroke: 280 mm Spindle taper: Morse taper MT 5 Vertical head adjustment: 280 mm (motorized) Feed rates: 0.11 – 1.73 mm/rev (9 steps) Spindle speeds: 32 – 1,400 rpm (12 steps) Table size: 770 × 640 mm Clamping surface: 630 × 500 mm Base plate: 490 × 530 mm Movable table: Yes Total power requirement: 8.1 kW Machine weight: approx. 1.7 t Space requirement (L × W × H): approx. 1.25 × 0.8 × 2.75 m Additiona ...

bore capacity in steel (diameter): 20 mm throat: 210 mm bore stroke: 100 mm total power requirement: 1,1 kW weight of the machine ca.: 165 kg Drilling capacity in steel: 20 mm Throat depth: 210 mm Spindle stroke: 100 mm (130 mm on some versions) Spindle taper: Morse taper MT 2 Max. distance from spindle to table: 450 mm Vertical head adjustment: 250 mm (350 mm on some older versions) Spindle speed range: 355 – 2,800 rpm Number of spindle speeds: 4 Table size: 340 × 280 mm Total power requirement: 1.1 kW Machine weight: approx. 163–165 kg Dimensions (L × W × H): approx. 620 × 480 × 1,280 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 20 mm throat: 250 mm bore stroke: 125 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: 4 Stk bore capacity in steel (diameter): 25 mm spindle distance: 475 mm table-size: 450 x 1900 mm morse taper: MK 4 total power requirement: 10,2 kW weight of the machine ca.: 3 t Number of spindles: 4 Drilling capacity in steel: 25 mm Spindle center distance: 475 mm Table size: 450 × 1,900 mm Spindle taper: Morse taper MT 4 Total power requirement: 10.2 kW Machine weight: approx. 3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:100 mm total power requirement:0,7 kW weight of the machine ca.:302 kg dimensions of the machine ca.: 620 x 800 x 1950 mm Table dimensions:350 x 250 mm spindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

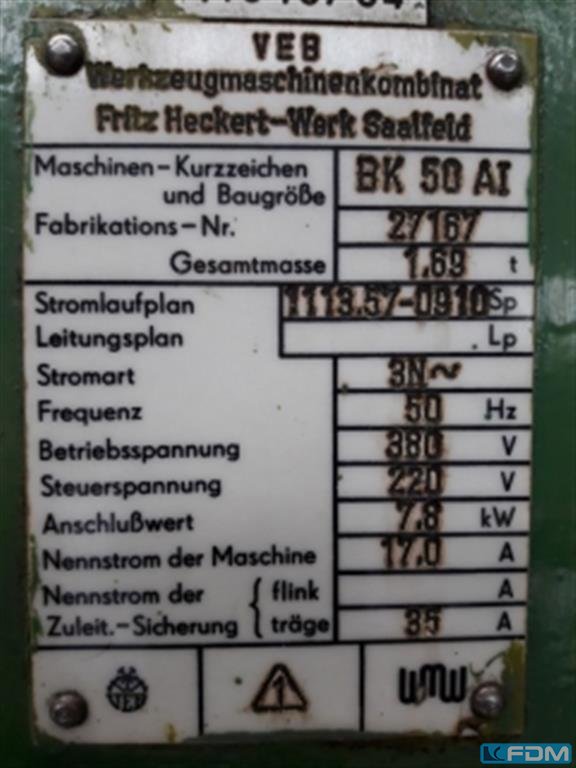

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm

We can offer several thread rolling machines with cylindrical dies, any size.
