436 WMW used machine for sale

WMW SI 4/1 Internal Grinding Machine YOM 52/1999 VEB Berliner Werkzeugmaschinenfabrik Grinding diameter 5-250 mm Max. grinding length 250 mm Max workpiece dia 370/450 mm (with/without safety cover) Spindle head speed 35-1400/min Work piece spindle speed 70-775 mm Max. table travel 560 mm Table speed stepless 0,5-6 m/min. Total power 16,5 kW Total Dimensions 3300x1440x2000 mm Machine 2200x1400x2000 mm Weight 4.8t.

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

Jig Boring Machine WMW BKoE 450 x 800 Travel X: 560 mm Travel Y: 400 mm Travel Z: 470 mm Spindle: Ø 90 mm Cone: CM4 Spindle exit: 150 mm Spindle speed: from 50 to 1600 RPM Table size: 450 x 800 mm Maxi loading capacity on table: 400 kg Scale3 axes HEIDENHAIN Automatic descent Voltage: 380 V Width with ends table: 2900 mm / without ends table: 1500 mm Depth:2500 mm Total height: 2600 mm Weight: 4,5 T

MAX DIAMETER 1500 MAX MODUL 15

Max diam 250 , max lenght 2000, 3 x heads , change gears

Pressing force 1000 kN Table size 750 x 560 mm, diarrhoea opening 100 mm Installation height 800 mm, stroke 500 mm Projection 360 mm Bear size 530x400 mm, 2 T-slots Ram speed: down 200 mm/sec, up 400 mm/sec Connection load approx. 21 kW Incl. Feeder WE16 for 160 mm bandwidth Coil tray and straightening unit Fabr. OFFICE; Type CA200/R40-7, YOC 1994 Reel, loop control Two-hand operation Manuals

various wedge shoes, set-up elements, machine feets

Clamping angle with T-slots Size 1600x1250x1000 mm and 1250x1000x750 mm

Extension 1600 mm

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

see picture for data. Table hoehen-adjustable. mass approx.: 1.55 x 0.8 x 2.1 m high

We can offer several thread rolling machines with cylindrical dies, any size.

Hand spindle press, used Balancier, used Type: PSHZ 25/I Pressing force / rated pressure: 25 t Stroke/ stroke: 250 mm Table size/ table size: 400x 500 mm Stössel/ ram: 200 x 500 mm Table opening / hole in table: 140 mm Weight: 0.9t

Extension / distance slide center to frame: 320 mm Sheet thickness / sheet thickness: 3.2 mm Cutting surface / cutting capacity: 1600 mmx2 Distance table pestle/ distance table slide: 417 mm Stroke adjustment / adjustment of stroke: 16...125 mm Stroke number/ number of strokes: 45 / min Pestle adjustable/adjustment of slide: 80 mm Table size / surface of bed: 800 x 630 mm Bumper size / surface of ram: 500 x 400 mm Slope of the stand / inclination of coulmn: 25 Power of main motor power: 4 kW Weight: 2.5 Specification: C-frame punching press, used

Radial drilling machine, used radial drilling m/c, used Type: BR 56 x 1600 Manufacturer/ make: WMW Year built/ year of make: 1965 Extension/ length of arm: 300...1600 mm Ma. Drilling radius / max. drill. Radius: 1800 mm Drilling capacity at boring: 56 mm ( St 60 ) Drilling capacity at boring: 80 mm ( GGL 20 ) Thread cutting/ thread cutting: max. 65 mm ( St 36 ) 76 mm ( GGL 20 ) Drilling depth/ drilling depth: 400 mm Tool holder / taper in spindle: MK 5 Removal spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base plate/ base: 1700 x 1000 mm Speed range/ range of speeds: 14..1800 rpm Feed: 0.0315 .. 1.6 mm/U// mm per round Connection value: 7.13kW Weight: about 4.5 t

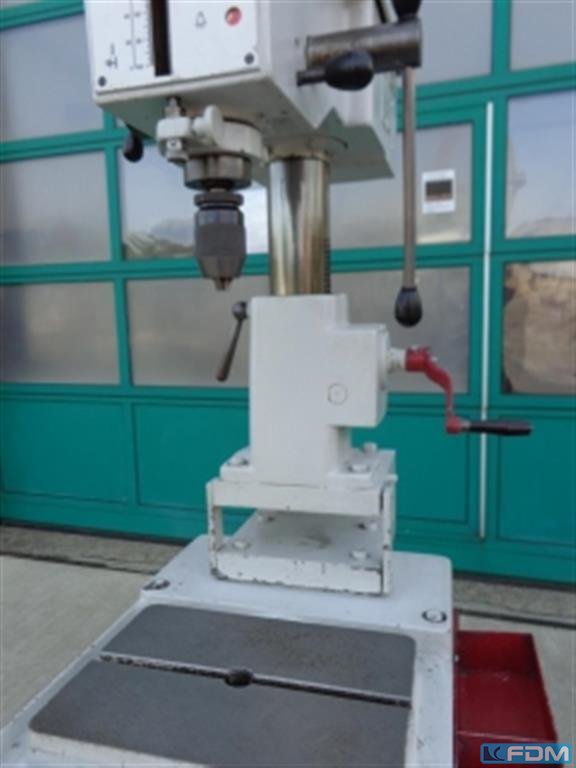

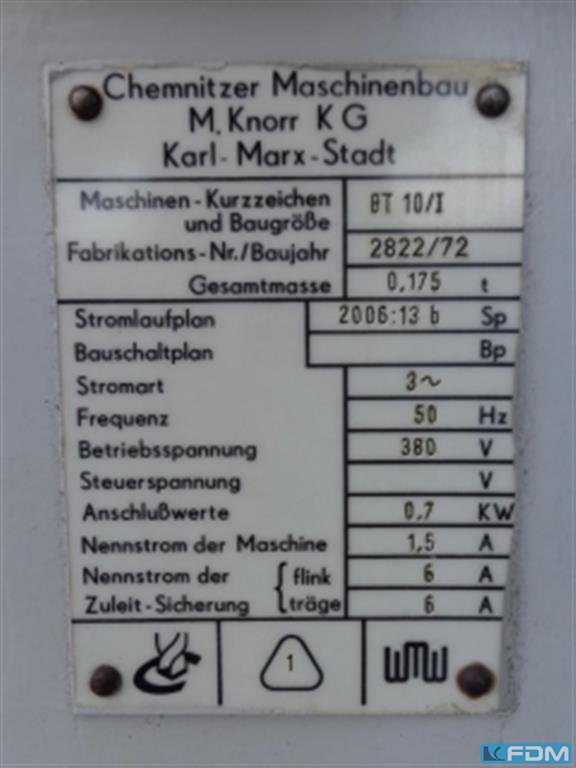

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:100 mm total power requirement:0,7 kW weight of the machine ca.:302 kg dimensions of the machine ca.: 620 x 800 x 1950 mm Table dimensions:350 x 250 mm spindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

pressure:10 t stroke:400 mm total power requirement:1,6 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:1100 x650 x 2050 mm dayligth:500 mm table-size:400 x 450 mm Documents:vorhanden

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

total power requirement:12 kW weight of the machine ca.:4,6 t

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

Automatic drill, drill press, drill press, stand drill, pillar drill -Spindle mount: MK 3 -Transmission -Automatic drill: with rapid traverse -Automatic drilling -Threading: automatic -Table size: 450 x 360 mm -Projection: 285 mm -Spindle stroke: 150 mm -Speed: 180-2000 rpm -Feed: 0.08-0.32 mm/rev -Dimensions: 900/1000/H2100 mm -Weight: 840 kg

Collet sleeves, collet, tool holder, tool holder, milling chuck, milling tool, collets -Collet chuck holders: Ø 1x12/2x18/2x20 mm -Price/Sale: complete -Weight: 1 kg

Bezel, stick, lynette -Max. Passage: Ø 65 mm -Tip height: 83 mm -Edition: gray cast iron -technical drawing with the photos -Dimensions: 250/280/H65 mm -Weight: 6 kg
