WMW HECKERT fss used machines

Key data: 1120 mm, 345 mm, 400 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 1/min Travel X/Y/Z 1120/345/400 mm Feed range X/Y 16 - 800 mm/min, Z 5 - 250 mm/min Rapid traverse Milling head swivel range +/- 45°, quill stroke 90 mm Connected load approx. 14 kW Incl. coolant device Electric tensioner, bracket cover

Various milling heads for milling machines and gear cutting machines, hobbing machines

Universal milling head, milling holder, milling extension, angle milling head -Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V -Recording output: SK50 -Recording: Input gear -Milling head: fully pivotable -Stroke: 72 mm -Transport dimensions: 850/650/H520 mm -Weight: 277 kg

Universal milling head, milling adapter, milling extension, angle milling head -Spare part of a: WMW HECKERT milling machine -Number: 1 piece angle milling head -Recording output: SK50 -Recording: input gear -Milling head: completely swiveling -Rezes recording: mm -Pitch circle: mm -Transport dimensions: 750/600/H530 mm -Weight: 296 kg

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Code 101237 Description Universal Cylindrical Grinder Make WMW Heckert Model SA 5 U x 630 Serial No. 3115 Year 1981 Grinding length, max. 630 mm Grinding diameter, max. 275 mm Centerheight 140 mm Max. Weight workpiece 125 kg Table tilting angle - 5° till + 11,5° Diam. Grinding wheel 500 mm Width Grinding wheel, max. 100 mm Motorpower grindingwheel 5,5 kW Speeds workpieceholder 31,5 – 710 rpm Total power 12,5 kVA 380 Volts Machine size L x W x H 3,9 x 2,3 x 1,6 meter Weight 4800 kg Accessories coolant with magnetic some tooling Condition Machine is in good condition

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 850 mm, 270 mm, 355 mm

Table width 315 mm, table length 1250 mm Tool holder SK 50 Speed range 28 - 1400 rpm Feed range 16 - 800 mm/min Travel x=850 mm, y= 270 mm, z=355 mm Connected load 8 kW Incl. Electric clamp horizontal Vertical head in X swivel with manual tightening Dispensing as present, no longer energized

FZWD 160x1600/1 Sabo Basis 160 Facing & Centering Machine WMW HECKERT Workpiece dia 20-160 mm Length 130-1600 mm Max. Diameter of Milling Cutter 200 mm Facing Spindle's Speeds 112-280 rpm Spindle's Speeds 560-1400 rpm Adjustable feed rate range 15 – 800 mm / min. Spindle ISO 50 Rapid traverse 6000 mm Max. stroke 230 mm Max. Depth of 6 mm Tool holder 4 - 20 mm Max. Feed path 60 mm Total connected load 20 kW Weight 4.5 t

FZWD 160x1600/1 Sabo Basis 160 Facing & Centering Machine WMW HECKERT Workpiece dia 20-160 mm Length 130-1600 mm Max. Diameter of Milling Cutter 200 mm Facing Spindle's Speeds 112-280 rpm Spindle's Speeds 560-1400 rpm Adjustable feed rate range 15 – 800 mm / min. Spindle ISO 50 Rapid traverse 6000 mm Max. stroke 230 mm Max. Depth of 6 mm Tool holder 4 - 20 mm Max. Feed path 60 mm Total connected load 20 kW Weight 4.5 t

Key data: 50 mm, 335 mm, 280 mm

Power: 7.8 kW Weight: 1,650 kg Table size: 630 x 500 Speed: 45 - 1,000 rpm Machine is ready for operation and can be dispensed immediately.

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U drilling capacity steel/cast iron: mm power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Heckert CWK 400 Built in 1995 Control Siemens 840 Travel X/Y/Z 650/650/680 mm Spindle speed up to 10,000 rpm HSK 40 Tool Changer Rotary table 400 x 500 mm, Conveyor Weight 12.5 t.

Quick clamping device, hydraulic clamping device, electro-hydraulic clamping device, -Manufacturer: WMW HECKERT, clamping device from milling machine FSS 315-V -Type: FHKN 3311 -Motor: VEM 0.12 kW -Dimensions: 440/150 / H220 mm -Weight: 24 kg

Rotary table, rotary indexing table, dividing head, dividing head -Manufacturer: WMW Heckert, rotary table type D 315 k TGL 28561/02 -Clamping surface: O 315 mm -Height: 140 mm -Groove: 14 mm -Dimensions: 615/540 / H150 mm -Weight: 83 kg

Brush cylindrical grinder, external cylindrical grinder, internal cylindrical grinder, centering grinder, center grinding machine, hydraulic universal cylindrical grinder, polishing machine -Manufacturer: WMW Heckert, Hydraulic universal cylindrical grinding machine -Spindem lotor: VEB 0.8/1 kW / 1410/2840 rpm -Hydraulic drive: ADDA 0.75 kW -Centre height: 270 mm -Max. material diameter: Ø 320 mm when converted -Brush: max. Ø 250 mm -Center distance: 420 mm -Dimensions: see photos -Base cabinet: with extensive accessories incl. -Dimensions: 1720/920/H1230 mm -Weight: 790 kg

Bench drill, pillar drill, column drill, column drill -Manufacturer: WMW Heckert, bench drilling machine type BT 12/1 with base frame -Clamping table: 340 x 280 mm -Travel: 370 mm -Spindle holder: MK2 -Projection: 215 mm -Speeds: 224/450/900/1800 rpm -Column: diameter 92 mm -Spindle stroke: 100 mm / depth stop with fine adjustment -Motor: VEB 0.4/0.7 kW with brake -Voltage: 380 V -Dimensions: 620/480/H1710 mm -Total weight: approx. 182 kg

Bench drill, pillar drill, column drill, column drill -Manufacturer: WMW Heckert, bench drilling machine type BT 2 -Clamping table: 340 x 280 mm -Travel: 350 mm -Spindle holder: MK2 -Projection: 215 mm -Speeds: 355/710/1400/2800 rpm -Column: diameter 93 mm -Spindle stroke: 100 mm / depth stop with fine adjustment -Motor: VEM 0.8/1.0 kW with brake -Voltage: 380 V -Number: 2x drill available -Price: per piece -Dimensions: 550/480/H1270 mm -Weight:157 kg/piece

bore capacity in steel (diameter): 20 mm throat: 210 mm bore stroke: 100 mm total power requirement: 1,1 kW weight of the machine ca.: 165 kg Drilling capacity in steel: 20 mm Throat depth: 210 mm Spindle stroke: 100 mm (130 mm on some versions) Spindle taper: Morse taper MT 2 Max. distance from spindle to table: 450 mm Vertical head adjustment: 250 mm (350 mm on some older versions) Spindle speed range: 355 – 2,800 rpm Number of spindle speeds: 4 Table size: 340 × 280 mm Total power requirement: 1.1 kW Machine weight: approx. 163–165 kg Dimensions (L × W × H): approx. 620 × 480 × 1,280 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1190 mm y-travel: 530 mm z-travel: 540 mm table-size: 1600 x 400 mm spindle drive: 11 kW tool taper: ISO 50 turning speeds: 28-1400 U/min feeds: 16-800 mm/U total power requirement: 21 kW weight of the machine ca.: 4,8 t dimensions of the machine ca.: m X-axis travel: 1,190 mm Y-axis travel: 530 mm Z-axis travel: 540 mm Table size: 1,600 × 400 mm Spindle motor: 11 kW Tool holder: ISO 50 Spindle speed range: 28 – 1,400 rpm Feed rate: 16 – 800 mm/min Total power requirement: 21 kW Machine weight: approx. 4.8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 850 mm y-travel: 270 mm z-travel: 355 mm tool taper: ISO 50 speeds of spindle (left/right): 25-1400 total power requirement: 3,8 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m X-axis travel: 850 mm Y-axis travel: 270 mm Z-axis travel: 355 mm Tool holder: ISO 50 Spindle speed (clockwise / counter-clockwise, infinitely variable): 25 – 1,400 rpm Total power requirement: 3.8 kW Machine weight: approx. 2 t Infinitely variable feed rates on all axes (X, Y and Z) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1120 mm y-travel: 350 mm z-travel: 400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

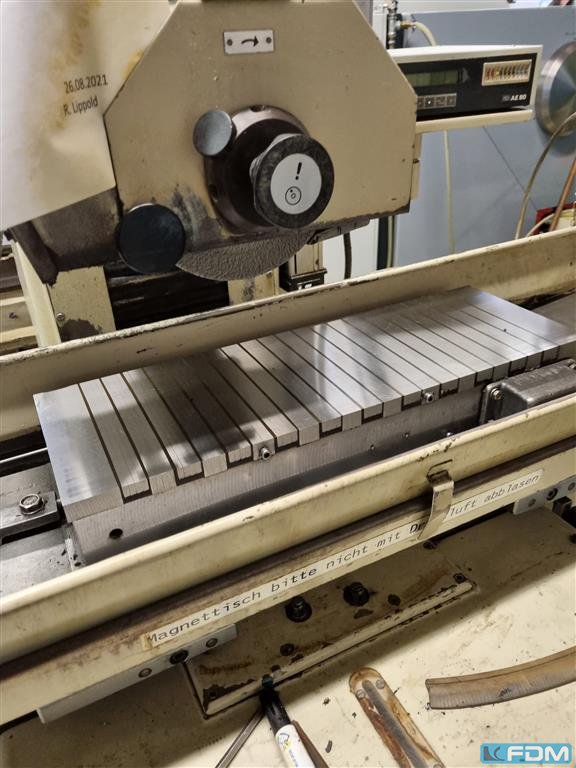

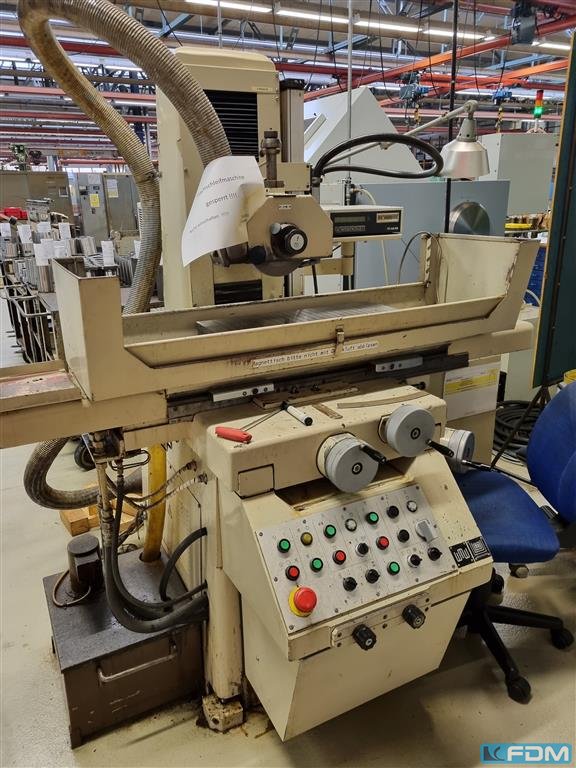

grinding length:600 mm grinding width:200 mm total power requirement:5 kW weight of the machine ca.:1,4 t dimensions of the machine ca.:3 x 3 m

max. load: 200.000 N 0: 275x120x75 0 weight: 12 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

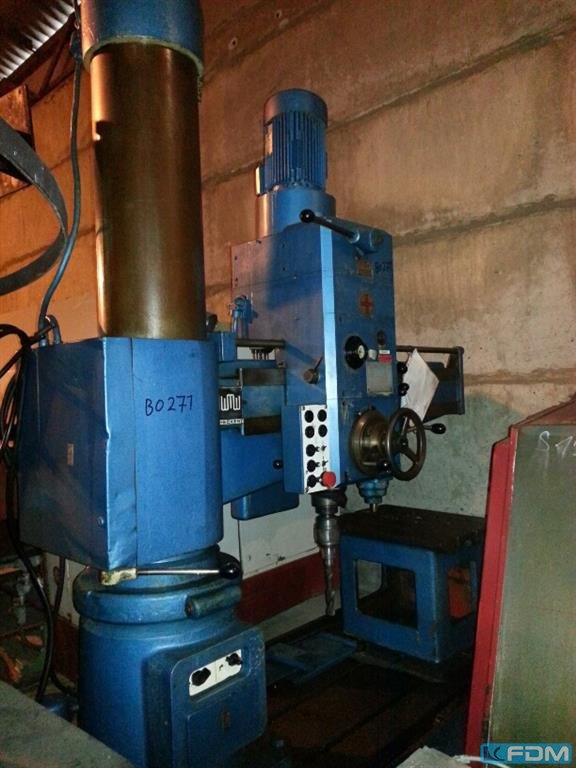

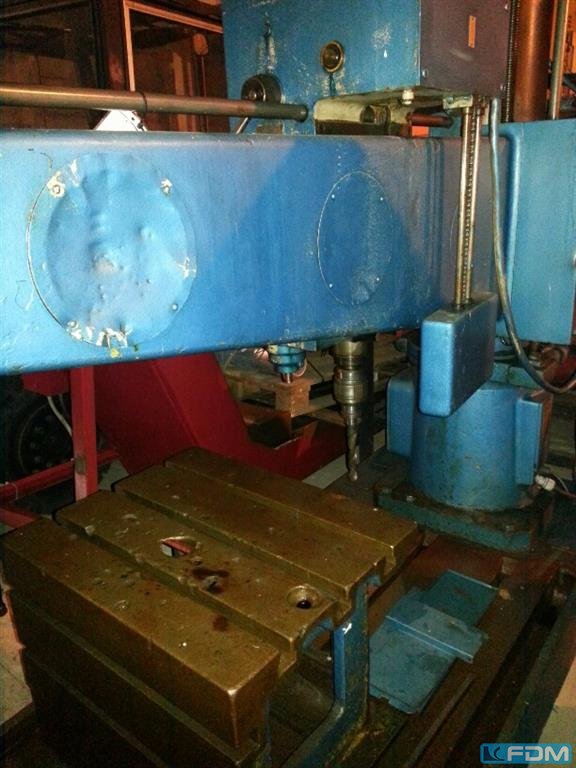

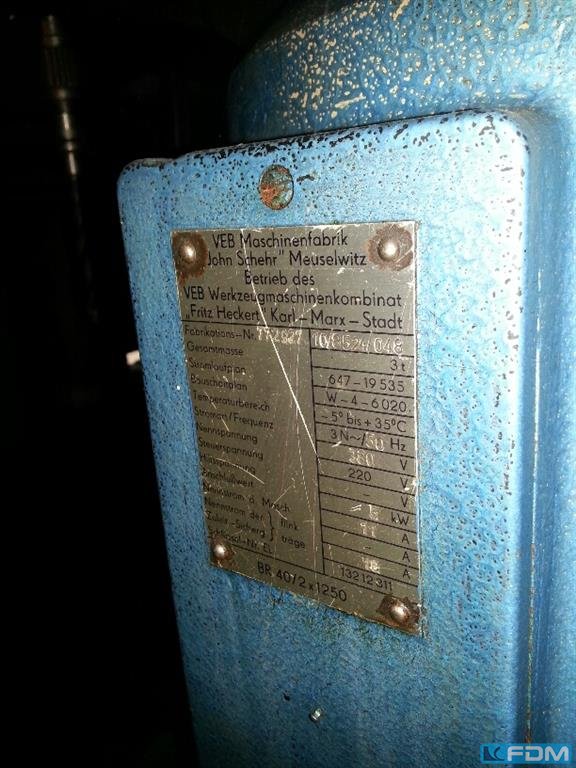

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm
