used WEILER commodor

Key data: 200 mm

CNC lathe Weiler Commodor B (Made in Germany) Lace lathe Manufacturer: Weiler Type: Commodor B Year of construction: 1997 El. Connected load: 4kW Weight: 1,500 kg WZ-Revolver: 4-fold WZ-Revolver Parat Trauwein RD2 Accessories: Div. 3-jaw chuck "Röhm Duro 200 KK6 UB" Various tool holders (without tools)

Weiler Commodor completely overhauled - not only repainted! Operating hours after the recovery zero! Technical data Max rotary diameter over bed: approx. 380 mm Max rotary diameter via support: approx. 190 mm Max rotary length: approx. 1000 mm Spindle passage: approx. 56 mm Speed range: approx. 25 - 2000 rpm Spindle nose: A 2 - 6 Drive power: approx. 4.0 kW Automatic Laengs and PlanVorschuebe: approx. 0.011 - 0.8 mm/U Tailstock: MK 4 Accessories: * Cooling agent with spaenew anne and spaen protection wall * Digital display * 3 baking lining * Multifix size B with 1 changeable bag Jusxbq Aeussere dimensions: L x W x H: approx. 2300 x 1200 x 1600 mm Weight: approx. 1600 kg Special price

It is a Weiler Commodor lathe, turning diameter 308 mm, above the support 190 mm, turning length 1000 mm, spindle 56 mm, tailstock MK4, motor 4 kW, 1600 kg, dimensions 2700 x 1500 x 1800, brand new quick clamping head 1 piece, new knife holders 10 pieces, knives + discs, drills etc.

WEILER COMMODOR 230 2-axle Heidenhain digital display GS - Identifier Tip height 230mm Center width 1000mm Turning diameter over bed 475mm Circulation diameter via face slide 270mm Rod passage 56mm Speed range 25-2000rpm Automatic longitudinal/flat feeds Thread / Metric / Inch Tailstock MK4 Quick-change steel holder with insert Coolant device Chip back wall Work lamp 2xNOT/OFF Feed protection Three-jaw chuck 200mm Machine feet Documentation Cjr8l82mnl Dimensions: LxWxH 2.5x1.5x1.7 meters Weight 1800 kg

Tip height 180 mm Top width 800 mm Turning diameter over bed max. 380 mm Turning diameter over slide to 190 mm Spindle bore 56 mm 13 speed 2000 RPM 7.5 kW Weight 1500 kg

turning length: 1000 mm turning diameter over bed: 380 mm turning diameter over slide rest: 190 mm number of spindle speeds: 25 - 2000 U/min. turning speeds: 18 Stk. spindle bore: Ø 56,0 mm tailstock quill taper MT: DIN 228 / MK 4 quill stroke: 150 mm bed width: 310 mm spindle taper: DIN 55027 / 6 feeds - longitudinal: 0,022 - 0,8 mm/U feeds - cross: 0,011 - 0,4 mm/U thread: M 0,3 - 10,0 mm voltage: 380 V total power requirement: 7,5 kW weight of the machine ca.: 1600 kg range L-W-H: 2320 x 1400 x 1600 mm ** Machine from a workshop for the disabled Lathe with precision ground and induction hardened bed. Very suitable e.g. for use in workshops and training centres. Furnishing: - Robust main lathe and spindle lathe with VARIO gear - 2 axis HEIDENHAIN digital display, front left - FORKARDT 3-jaw chuck Ø 200 mm, with spare jaws & chuck key - foldable lathe chuck protection - MULTIFIX steel ...

turning length: 1000 mm turning diameter over bed: 380 mm turning diameter over slide rest: 190 mm number of spindle speeds: 25 - 2000 U/min. turning speeds: 18 Stk. spindle bore: Ø 56,0 mm tailstock quill taper MT: DIN 228 / MK 4 quill stroke: 150 mm bed width: 310 mm spindle taper: DIN 55027 / 6 feeds - longitudinal: 0,022 - 0,8 mm/U feeds - cross: 0,011 - 0,4 mm/U thread: M 0,3 - 10,0 mm voltage: 380 V total power requirement: 7,5 kW weight of the machine ca.: 1600 kg range L-W-H: 2320 x 1400 x 1600 mm Lathe with precision ground and induction hardened bed. Very suitable, for example, for use in workshops and teaching facilities. Furnishing: - robust lead and pull spindle lathe - FORKARDT 3-jaw chuck Ø 200 mm, with chuck key - MULTIFIX steel holder - size B - with 3x inserts - movable tailstock, including keyless chuck - Chip protection back wall - EMERGENCY stop button at the front ...

HAMLET COMMODOR incl. Three-axis digital display Turning length max. 1000mm Turning diameter max. 380mm Turning diameter over support 190mm Rod passage 56mm Speed range 25-2000 rpm Automatic longitudinal/face feeds Eeipidd Thread/Metric/Inch/etc Drive power 4 KW Tailstock MK4 Three-jaw chuck - Röhm 200mm Quick-change bracket incl. 3 inserts Bed stop Chip back wall Coolant system Feed protection 2 x EMERGENCY /OFF Machine Documentation Dimensions: LxWxH 2.7x1.5x1.8 meters Weight approx. 1.6 tons

turning diameter over bed: 380 mm turning diameter over slide rest: 0 mm turning length: 950 mm centre distance: 1000 mm centre height: 180 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications: Center height: 190 mm Center width: 1000 mm Spindle bore: 56 mm Bed width: 305 mm Speeds: 25 - 2000 1/min Drive power: 4 kW Tailstock mount: MK 4 Quill stroke: 150 mm Feeds: 0.022 -0.800 mm/rev Weight, approx.: 1500 kg Dimensions (WxDxH), approx.: 2160 x 1120 x 1670 mm Equipment: - 2-axis digital display - 3-jaw lathe chuck - Quick-change holder System Multifix - Lead and tension screw safety device - Spindle protection with limit switch protection - Swivel steel holder protection - Rotating grain tip - Bed stop - Coolant device - Emergency stop push button - Machine light

Specifications: Center height: 190 mm Center width: 1000 mm Spindle bore: 63 mm Bed width: 305 mm Speeds: 25 - 2000 1/min Drive power: 5 kW Tailstock mount: MK 4 Quill stroke: 150 mm Feeds: 0.022 - 0.800 mm/rev Weight, approx.: 1500 mm Dimensions (WxDxH), approx.: 2160 x 1120 x 1670 mm Equipment: - 3-axis digital display - 3-jaw lathe chuck - Quick-change holder System Multifix - Lead and tension screw safety device - Spindle protection with limit switch protection - Bed stop - Rotating grain tip - Coolant device - Emergency stop push button - Machine light

Key data: 250 mm, 1000 mm, 380 mm

Hamlet of Commodor AC (Constant cutting speed) Year of construction 2004 Machine no. 3634 Circumferential diameter over bed 380mm Circulation diameter over face carriage 190mm Nominal power 5.5kW Spindle speeds 13-2000 rpm Spindle passage 56mm Center width 1000mm Tailstock MK4 Feed force 10kN Accessories/Equipment: - Three-jaw lathe chuck 200mm - Swivel jaws stepped inside and outside - Multifix B base holder incl. 2 tool holders - Coolant device - 3 axis digital display (hamlet) - Constant cutting speed -Operating instructions - Fixed and rotating bezel - Electrically locked chuck guard - Emergency stop - Multiple bed stops The machine has been technically tested and is in very good condition. The geometry was also checked and found to be very good (measured by the flat web layout) Reversal clearance face carriage 0.15mm Backlash upper slid ...

Article number: 27-06-005 Manufacturer: Trichter Weiler Mint condition Shipping time: All rights reserved. Year of construction: NEW L x W x H: ca.220x200x145mm Weight: approx. 1kg Suitable for: Hamlet Commodor Accessories  Mounting holes  Oil wiper plate Other accessories on request Price and other technical data on request

Article number: 04-03-111 Manufacturer: Weiler Very good general condition Machine partially overhauled Delivery time: on request - subject to prior sale Year of construction: ca.1991 L x W x H: approx. 2200x1200x1800mm Weight: approx. 1500kg Digital display: 3-axis digital display Sino *New* Dimensions: Max. turning diameter over bed: approx. Ø380mm Max. turning diameter via support: approx. Ø190mm Max.turning length: approx. 1000mm Rod passage: approx. Ø56mm Spindle: Speed range: approx. 25-2000 rpm Spindle nose: A 2-6 Drive power: approx. 4.0kW Automatic Longitudinal & Plan Feeds: Feed range: approx. 0.011–0.80 mm/rev Suitable for threads: Metric 0.30-10mm inches 80-2 3/4 g/'' Diametrical Pitch Thread 80-5.5 Dp Module 0.2-5 Tailstock: MK4 Accessories  3-axis digital display SINO *New*  3-jaw chuck 200mm *New*  Quick release holder size B + 1 in ...

Article number: 04-03-117 Manufacturer: Weiler Very good general condition Machine partially overhauled Delivery time: on request - subject to prior sale Year of construction: ca.1991 L x W x H: approx. 2200x1200x1800mm Weight: approx. 1500kg Digital display: 3-axis digital display Sino *New* Dimensions: Max. turning diameter over bed: approx. Ø380mm Max. turning diameter via support: approx. Ø190mm Max.turning length: approx. 1000mm Rod passage: approx. Ø56mm Spindle: Speed range: approx. 25-2000 rpm Spindle nose: A 2-6 Drive power: approx. 4.0kW Automatic Longitudinal & Plan Feeds: Feed range: approx. 0.011–0.80 mm/rev Suitable for threads: Metric 0.30-10mm inches 80-2 3/4 g/'' Diametrical Pitch Thread 80-5.5 Dp Module 0.2-5 Tailstock: MK4 Accessories  3-axis digital display SINO *New*  3-jaw chuck 200mm *New*  Quick release holder size B + 1 in ...

Article number: 04-03-165 Manufacturer: Weiler Very good general condition Machine partially overhauled Shipping time: All rights reserved. Year of construction: ca.1991 L x W x H: approx. 2200x1200x1800mm Weight: approx. 1500kg Digital display: 3-axis digital display Sino *New* Dimensions: Max. turning diameter over bed: approx. Ø475mm Max. turning diameter via support: approx. Ø270mm Max.turning length: approx. 1000mm Rod passage: approx. Ø56mm Spindle: Speed range: approx. 13-2000 rpm Spindle nose: A 2-6 Drive power: approx. 7.5kW Automatic Longitudinal & Plan Feeds: Feed range: approx. 0.014-1.00 mm/rev Suitable for threads: Metric 0.30 – 10 mm inches 80 – 2 3/4 Gg/" Diametrical – Pitch Thread 80 – 5.5 Dp Module 0.2 – 5 Tailstock: MK4 Accessories  3-axis digital display SINO *New*  3-jaw chuck 200mm *New*  Quick release holder size B + ...

Article number: 04-03-118 Manufacturer: Weiler Very good general condition Machine partially overhauled Delivery time: on request - subject to prior sale Year of construction: ca.1987 L x W x H: approx. 2200x1200x1800mm Weight: approx. 1500kg Digital display: 3-axis digital display Sino *New* Dimensions: Max. turning diameter over bed: approx. Ø380mm Max. turning diameter via support: approx. Ø190mm Max.turning length: approx. 1000mm Spindle nose: A 2-6 Drive power: approx. 4.0kW Automatic Longitudinal & Plan Feeds: Feed range: approx. 0.011–0.80 mm/rev Suitable for threads: Metric 0.30 – 10 mm inches 80 – 2 3/4 Gg/" Diametrical – Pitch Thread 80 – 5.5 Dp Module 0.2 – 5 Tailstock: MK4 Accessories  3-axis digital display SINO *New*  3-jaw chuck 200mm *New*  Quick release holder size B + 1 insert  Bed stop  Work light  Coolant Devi ...

Article number: 04-03-147 Manufacturer: Weiler Very good general condition Machine geometrically overhauled Delivery time: on request - subject to prior sale Year of construction: as good as new L x W x H: approx. 2200x1200x1800mm Weight: approx. 1500kg Digital display: 3-axis digital display Sino *New* Dimensions: Max. turning diameter over bed: approx. Ø380mm Max. turning diameter via support: approx. Ø190mm Max.turning length: approx. 1000mm Rod passage: approx. Ø56mm Spindle: Speed range: approx. 25-2000 rpm Spindle nose: A 2-6 Drive power: approx. 3.8kW Automatic Longitudinal & Plan Feeds: Feed range: approx. 0.011–0.80 mm/rev Suitable for threads: metric 0.30-10mm inches 80 – 2 3/4 gg/" Diametrical – Pitch Thread 80 – 5.5 Dp Module 0.2 – 5 Tailstock: MK4 Accessories  3-axis digital display SINO *New*  3-jaw chuck 200mm *New*  Quick r ...

WEILER COMMODOR 230 AC / with CE marking / 3-axis digital display Gxadgeq -Built in 1999 -Tip height 230mm -Center width 1000mm - Turning diameter over bed 475mm -Circulation diameter via face slide 270mm -Rod passage 56mm -Speed range 25-2000rpm (infinitely variable via potentiometer) • Automatic longitudinal/plan feeds -Thread/Metric/Inch/Pitch/ -Tailstock MK4 -Quick-release bracket with insert -Coolant device -Chip back panel -Feed protection electric -Three-jaw chuck approx. 200mm -2xEMERGENCY/OFF -Documentation Dimensions: LxWxH 2.6x1.5x1.7 meters / Weight 1800Kg

Accessories: -Three-jaw Chuck -Steel holder multi fix A -Lamp -Coolant Technical data: Tip height 120 mm Top width 450 mm Spindle passage 23 mm Spindle inner taper MK 4 Plan travel 150 mm Tailstock MK 2 Quill way 80 mm Manual 9 levels Speed range 2 travel of bolt turn 30 3000 rpm

Accessories: -Three-jaw Chuck -Steel holder multi fix A -Lamp -Coolant Technical data: Tip height 120 mm Top width 450 mm Spindle passage 23 mm Spindle inner taper MK 4 Plan travel 150 mm Tailstock MK 2 Quill way 80 mm Manual 9 levels Speed range 2 travel of bolt turn 30 3000 rpm

-Röhm three jaw Chuck ø 160 mm -Steel holder multi fix A -div. collets -Fixed bezel -Revolving bezel -Chuck -Nivelierelemente Technical data: Tip height 140 mm Top width 500 mm Spindle bore 38 mm Spindle speeds 15-3550 RPM. Machine weight approx. 750 kg

Description Steel holder Multifix type: B Plexiglass Chuck guard Three-jaw Chuck ø 200 mm Live Technical data: Tip height 160 mm Top width 800 mm Spindle bore 36 mm Speeds 24-2800 RPM Recording bayonet 5 (DIN 55022)

Weighing fraesing machine WEILER FHP750, table 750 / 200 mm, 550 / 180 / 400 mm

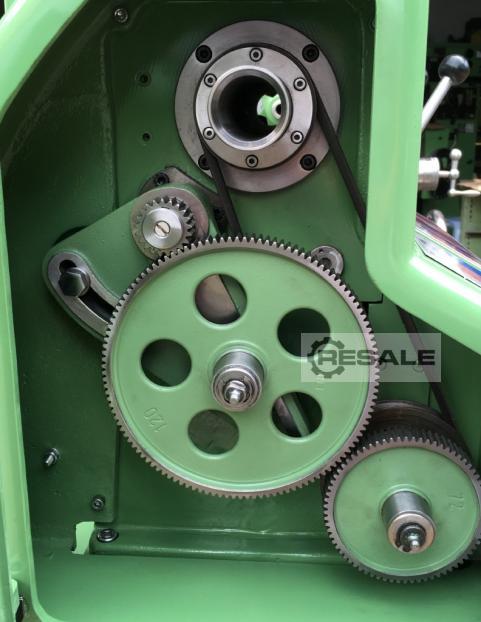

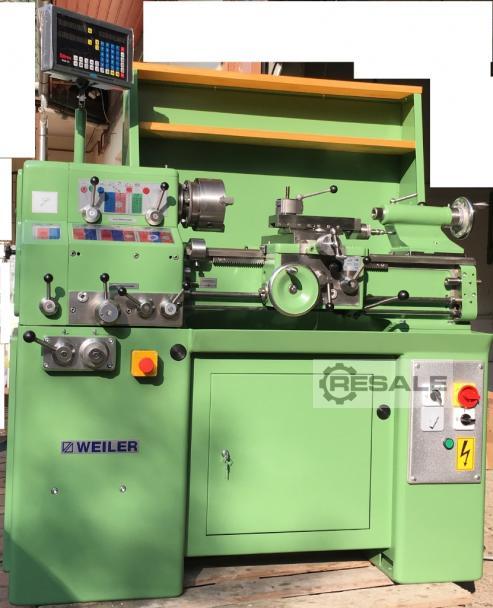

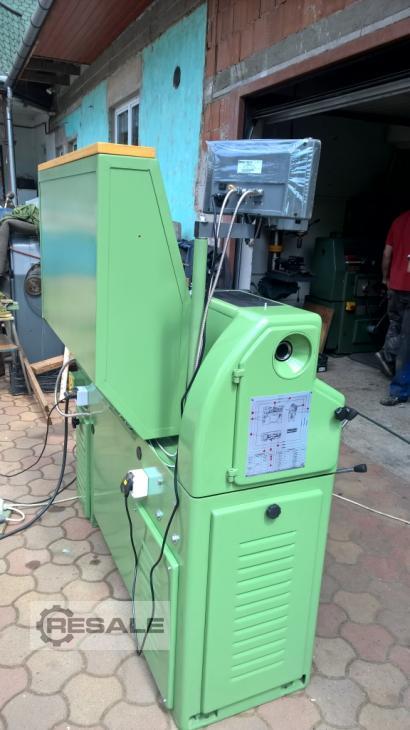

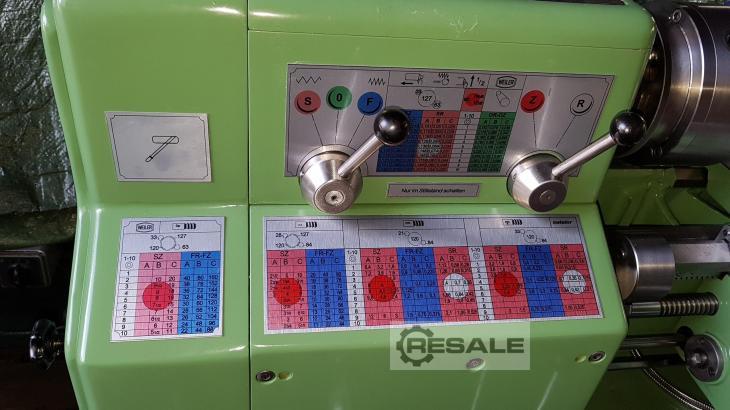

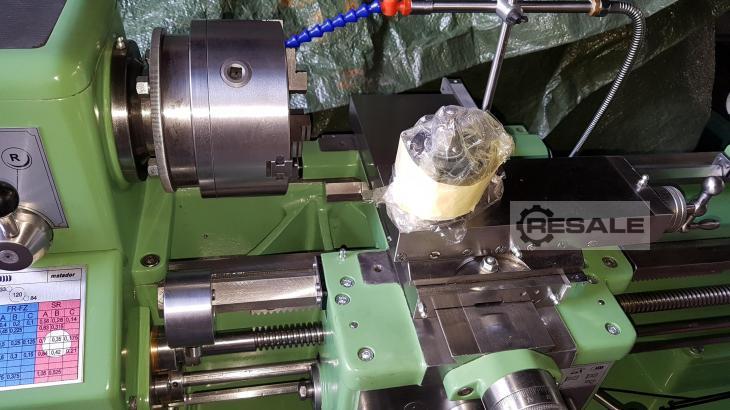

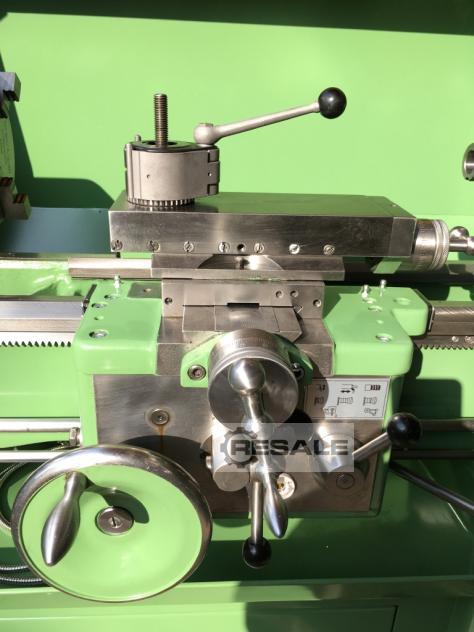

Weiler Matador completely overhauled - not only repainted! Operating hours after the recovery zero! Technical data Max turning diameter over bed: approx. 280 mm Max rotary diameter via support: approx. 160 mm Max rotary length: approx. 500 mm Fhjsswpru Spindle passage: approx. 36 mm Speed range: approx. 30 - 2850 rpm Spindle nose: 55022 Drive power: approx. 3.3 kW Automatic Laengs and PlanVorschuebe: approx. 0.011 - 0.8 mm/U Tailstock: MK 3 Accessories: * Cooling agent with spaenew anne and spaen protection wall * Digital display * 3 baking lining * Multifix size B with 1 changeable bag Aeussere dimensions: L x W x H: approx. 1420 x 700 x 1200 mm Weight: approx. 620 kg
