WALTER heli used machines

measuring range X-axis: 300 mm measuring range Y-axis: 290 mm measuring range Z-axis: 650 mm tool diameter: SK 50 mm Number of revolutions: 30 U/min max. workpiecediameter: 300 mm max. workpiece length: 500 mm max. workpiece weight: 40 kg accuracy +/-: 0,002 mm feeds:: Working speed: X/Y/Z: 80 mm/s dimensions of the machine ca.: 2,5 x 2,0 x 2,5 m weight of the machine ca.: 1,2 t total power requirement: 1 kVA Documents: Tool-Presetter WALTER - Heli Toolcheck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

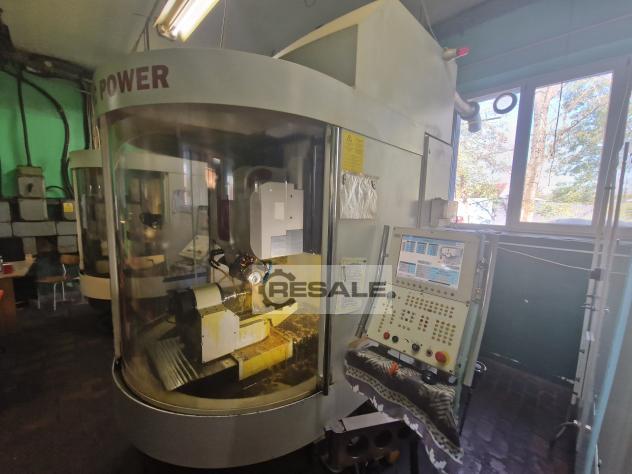

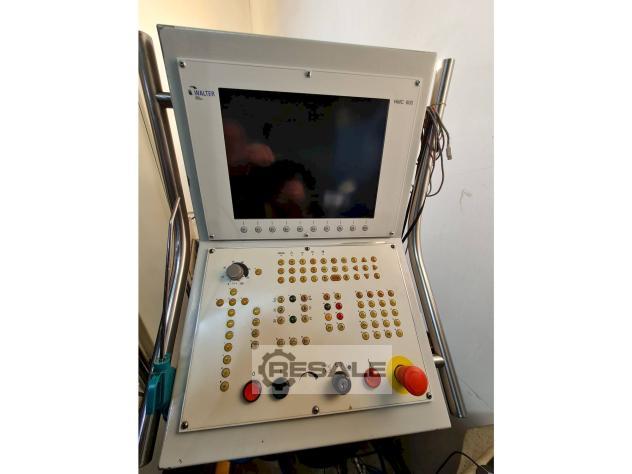

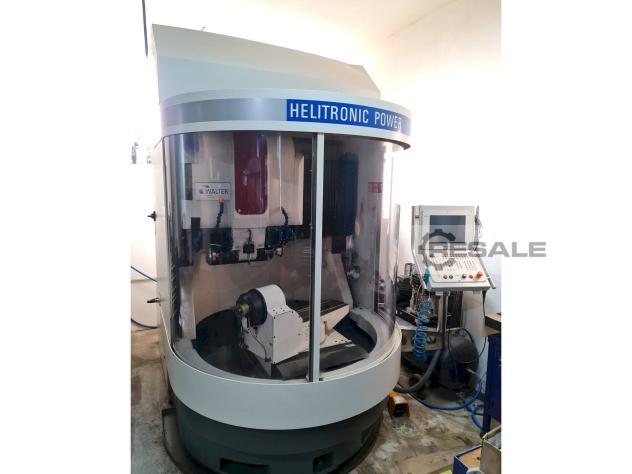

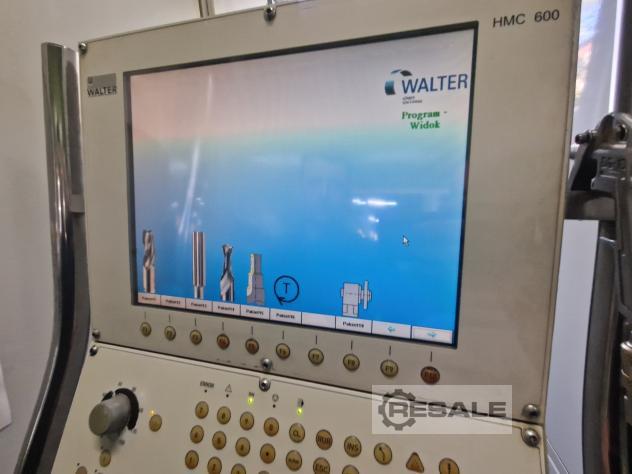

BRAND: WALTER YEAR: 2005 MODEL: HELITRONIC POWER APPLICATION TYPE: GRINDING LOCATION: CZECH REPUBLIC MACHINE TYPE: GRINDING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 4650 KG CONTROL UNIT BRAND: WALTER MODEL: HMC 600 XP MAIN DRIVE SPINDLE SPEED RANGE: 9500 1/MIN NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 460 MM Y-AXIS MOVEMENT: 320 MM Z-AXIS MOVEMENT: 660 MM A-AXIS MOVEMENT: 175 MM WORKPIECE WORKPIECE DRM: 320 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - SPINDLE POWER 11. 5 KW - SPINDLE DIAMETER 80 MM - MAX. DIAMETER OF GRINDING WHEEL 200 MM - HELITRONIC TOOL STUDIO SOFTWARE - RENISHAW PROBE - MIST COLLECTOR DSL - AC UNIT PLUMBERGER - 20PCS CLAMPS WITH GRINDING WHEELS, CALIBRATION MANDREL QUALITATIVE MACHINE BENEFITS: - VERY GOOD CONDITION - "RETROFITTED IN 2020:  ...

BRAND: WALTER YEAR: 2004 MODEL: HELITRONIC POWER APPLICATION TYPE: GRINDING LOCATION: POLAND MACHINE TYPE: GRINDING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 2427 MM MEASUREMENTS DEPTH: 2930 MM MEASUREMENTS HEIGHT: 2273 MM MACHINE WEIGHT: 4200 KG CONTROL UNIT BRAND: WALTER MODEL: HMC 600 MAIN DRIVE SPINDLE SPEED RANGE: 7000 1/MIN SPINDLE MOTOR POWER: 24 KW SPINDLE BORE: 80 MM NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 460 MM Y-AXIS MOVEMENT: 320 MM Z-AXIS MOVEMENT: 660 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - FIRE SUPPRESSION SYSTEM - TOP OIL MIST FILTER - MAX. GRINDING WHEEL DIAMETER: 200 MM QUALITATIVE MACHINE BENEFITS: - MACHINE IN VERY GOOD, WORKING CONDITION, READY FOR TEST. FULL DOCUMENTATION AVAILABLE.

Walter AG Helitronic Power CNC Universal 5-Axis Tool Grinding Machine CNC control HMC 400 CNC X-axis travel 400 mm Y-axis travel 250 mm Z-axis travel 580 mm C-axis (table rotation) ± 200° Max. grinding wheel diameter Ø 200 mm Spindle speed (grinding) 3000 / 6000 rpm If you have any questions about the machine, please do not hesitate to contact us by phone or e-mail. Feel free to check out our other listings for a full overview of our stock.

Walter Helitronic CNC Tool Grinding Machine - Grinding machine Hersteller [manufacturer]: Walter Type [ type]: Helitronic Control unit: Heidenhain TNC 360C Incl. handwheel Baujahr[construction year]: 10/2002 Travel path: X= 1500mm Y=500mm Z=450mm Workbench: L = 1800mm W=500mm Spindle [spindle]: swivel +-90° Feed speed [feed speed]: 10-4000mm/min Spindle rotation speed: 30-3000 rpm Feed force [feed force]: 10,000-15000N Tool holder: SK 50 after DIN2080 Weight: 7.000kg Approx. (W x D x H): 3.0m x 2.25m x 2.85m Incl. various accessories according to photos Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. +4917621834834 Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - u ...

Inv. Num. : 3483 Type: HELICHECK Producer: WALTER MASCHINENBAU Created: 2004 Parameters: The machine is in good technical condition and energized Accessories: Hydraulic clamps SK50

longitudinal feed: X: 490 mm Vertical feed: Y: 320 mm cross travel: Z: 660 mm Swivel range: C: +/- 200 ° Control: HMC 500 WWM Walter lenght tool piece capture: A: 175 mm ISO 50 Max. rpm: A: 60 min/-1 centre height: 145 (190) mm max. workpiecediameter: 320 mm max. workpiece length: 320 (350) mm resolution: 0,0001 ° Resolution: 0,0001 mm Grinding spindle:: spindle diameter: 80 mm grinding wheel diameter: max. 200 mm Max. rpm: 0 - 7.000 min/-1 driving power - grinding spindle: 24 kW max. Torque: 6 Nm total power requirement: 35 kVA weight of the machine ca.: 4,65 t dimensions of the machine ca.: 3,6 x 2,5 x 2,95 m Documents: pallet loading station: CNC - Tool-Grinding-Machine WALTER - Helitronic Power Production The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 12 kW, 4 t

Inv. Num. : 8947 Type: HELITRONIC POWER-F Producer: WALTER Created: 2011 Parameters: Control System: FANUC Series 31i-MODEL A5 Hours: 34489 h X-axis travel: 460 mm Travel travel Y: 320 mm Travel Z axis: 660 mm C-axis travel: 200 Spindle drive power: 11.5 kW Maximum spindle speed: 10500 1/min Maximum grinding wheel diameter: 200 mm Machine weight: 4200 kg

The original build year of this machine was 1998. It was overhauled at the end of 2013 by Walter and converted from HMC500 to Fanuc control. In 2014 it was returned to operation. Maintenance was carried out and the associated parts were replaced up until 2024. Protocols/logs are available. The spindle bearings were replaced with high-precision ball bearings 14 days ago. The spindle is now running with 0-1 µm accuracy and is very quiet. Suitable for regrinding and remanufacturing of wood and metal working tools of all kinds. Accessories: FANUC i15 Control Pallet loader cylindrical, Toolstudio Software Standard & Advanced Version 2.1 Toolstudio Software Drills Toolstudio Software Boost Toolstudio Calibration Probe Software package 1 (cylindrical mills) Software package 2 (tapered-spiral end mills) Software package 3 (drill bit and step drill) Software package 16 (warming-up program) Measu ...

The original build year of this machine was 1999. It was overhauled at the end of 2013 by Walter and converted from HMC500 to Fanuc control. In 2014 it was returned to operation. Maintenance was carried out and the associated parts were replaced up until 2024. Protocols/logs are available. Suitable for regrinding and remanufacturing of wood and metal working tools of all kinds. Accessories: FANUC i15 Control Pallet loader cylindrical, Toolstudio Software Standard & Advanced Version 2.1 Toolstudio Software Drills Toolstudio Software Step Tools Toolstudio Software Boost Toolstudio Calibration Probe Software package 1 (cylindrical mills) Software package 2 (tapered-spiral end mills) Software package 3 (drill bit and step drill) Software package 4 (step tools) Software package 6 (woodworking tools) Software package 8 (taps) Software package 16 (warming-up program) Software package 32 (contou ...

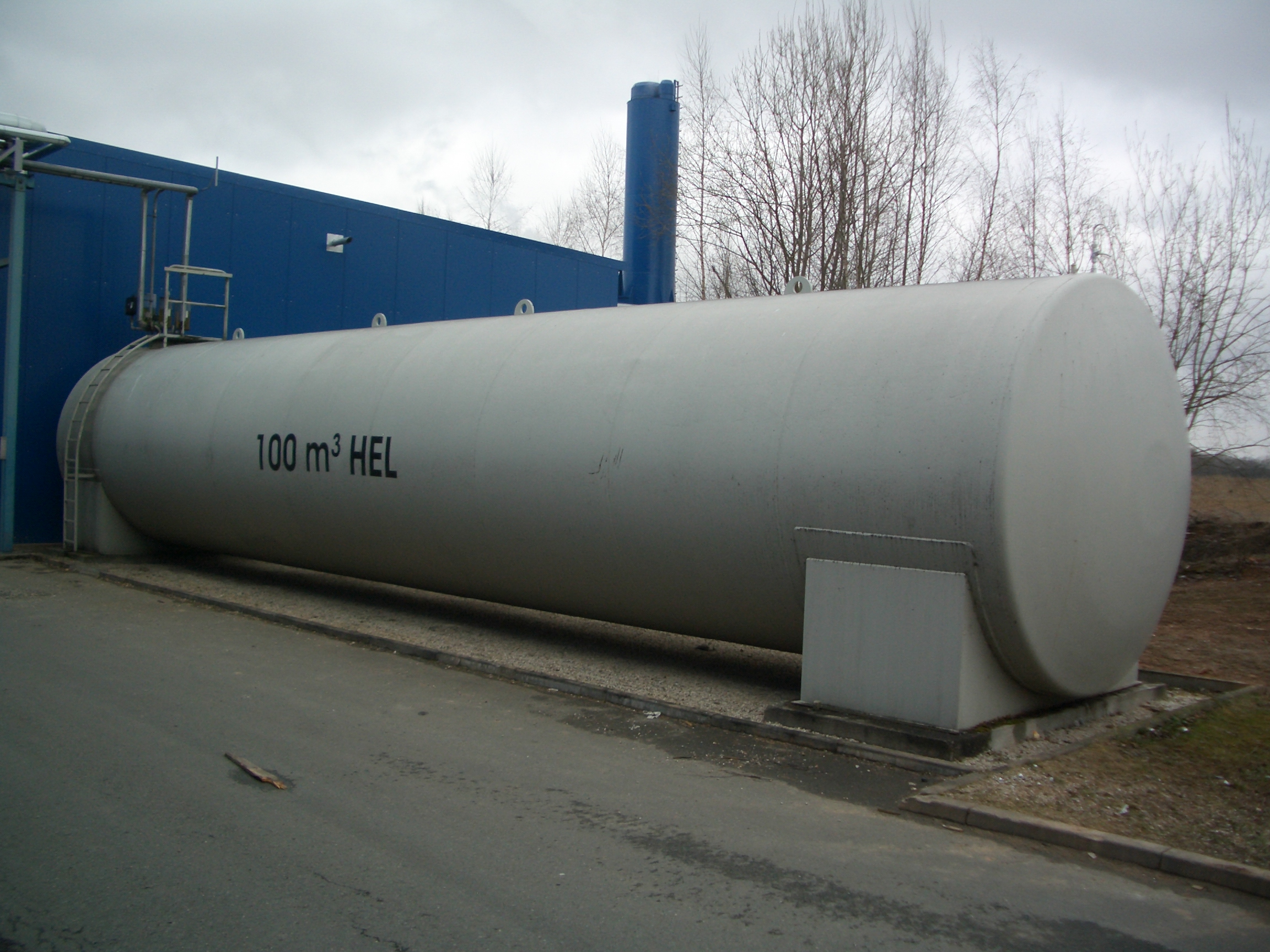

Heating oil tanks 100 m³ Tightness of the container with 2 bar pressure (according to test certificate) Test certificate as a double-walled tank available previous use as a heating oil tank Tank is preserved. Various accessories, etc. are available.

1 piece of plan knife head 210 mm 12 Cutting 1 piece corner corner fraeser WALTER 200 mm, F2010 12 cutting Further: Diverse crankshaft fraeser GFM

1 piece of plan knife head 210 mm 12 Cutting 1 piece corner corner fraeser WALTER 200 mm, F2010 12 cutting Further: Diverse crankshaft fraeser GFM

2 stubof disc sores WALTER 125 mm, F2052 1 stueck prism fraeser Walter F2052-460 170.6 / 171.2 2 piece disc freser WALTER 142 mm, F252-925

2 stubof disc sores WALTER 125 mm, F2052 1 stueck prism fraeser Walter F2052-460 170.6 / 171.2 2 piece disc freser WALTER 142 mm, F252-925

Jupiter JU 45 Walter Plant Machines Nr: + # 2055 Number of baking tongs 45 Upper engraving 5 x 5 mm Underengengravings 5 x 5 mm Edge yes Tool 22 ° Gas Propan Location: Germany The machine is used to make sweet, rotated squirrels with or without a rim and is sold with a tool for 22 °. The conveyor belt and stacking table are included. The machine is currently in storage.

Cylindrical storage tank, factory new Capacity: 60 cbm / Medium: Fuel oil Material: S235JR (St 37.2) raw inside, blasted outside, primed and painted in RAL 7035 - light grey Dimensions: 2,500 mm diameter, 12,650 mm full length Design: according to DIN 6616/2 or DIN EN 12285-2, double-walled Test pressure inner tank 2 bar test overpressure Double jacket 0.6 bar incl. control fluid in double jacket for above-level storage with test certificate and documentation Container equipped with GOK Lag 2000 and limit sensor as overfill protection Equipment: 1 dome 600 mm li.W. with cover, gasket and screws 3'' filling cable with TW coupling 3'' Vent with cap 1 1/4'' Suction line with reduction to 1'' 1'' for limiter GWG 23-Ro 1'' nit dipstick 2'' reserve 1 pair of permanently welded steel saddle feet 1 suspension ladder with pedestal, galvanized according to UVV  ...

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.

Waffle squirrel machine Walterwerk Jupiter JU 72 Price VB Built in 1988 Location Germany Energy supply: - Gas: natural gas - Number of baking plates: 72 - Engraving Outside: 10 x 10 mm - Engraving Inside: 10 x 10 mm - Plate size: 250 x 250 mm Machine consists of: oven, crossband, heart on heart device, packing tape Machine is currently stored.
