This 3-axis WALDRICH COBURG 30-15 S 2525 grinding machine was manufactured in 1991. It features a robust structure with dimensions of 11,500 x 6,610 x 5,170 mm and a weight of approximately 45,800 kg. Capable of handling workpieces up to 11,000 kg, it offers a grinding length of 3,500 mm and a grinding width of 1,450 mm. If you are looking to get high quality grinding capabilities consider the WALDRICH COBURG 30-15 S 2525 machine we have for sale. Contact us for more information.

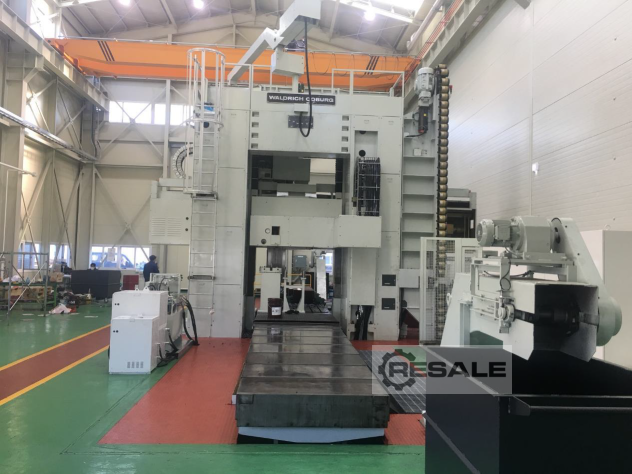

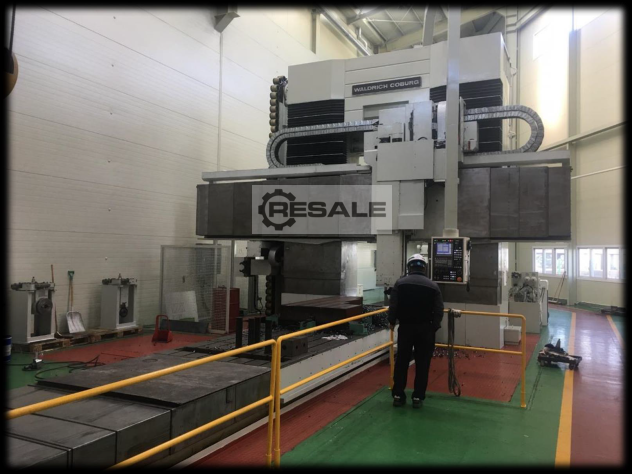

BRAND: WALDRICH COBURG YEAR: 2017 MODEL: 14-10FP150NC APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MILLING MACHINE AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: FANUC MODEL: 31I MAIN DRIVE SPINDLE SPEED RANGE: 5-2000 1/MIN TOOL TAPER: ISO 50 MOVEMENT X-AXIS MOVEMENT: 6700 MM Y-AXIS MOVEMENT: 4275 MM Z-AXIS MOVEMENT: 1000 MM W-AXIS MOVEMENT: 1250 MM TABLE OUTER LENGTH: 6000 MM OUTER WIDTH: 1600 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - DISTANCE BETWEEN COLUMNS: 2000 MM - DISTANCE BETWEEN SPINDLE NOSE AND TABLE SURFACE: 1750 MM - RAM SECTION: 500X500 MM - SPINDLE TORQUE: 3500 NM - ATC: 80 - ANGLE ATTACHMENT: 650L X 152D (MM)

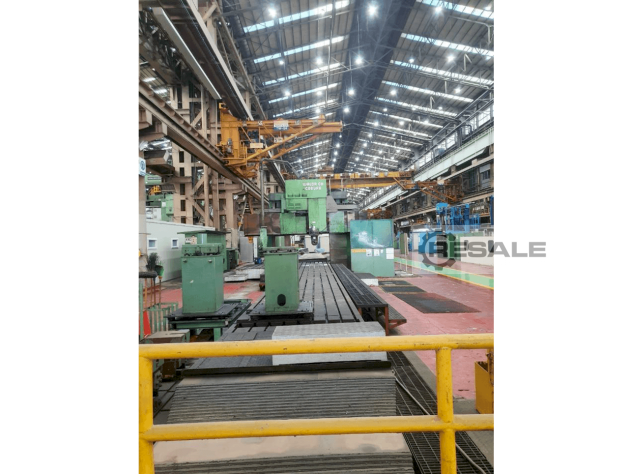

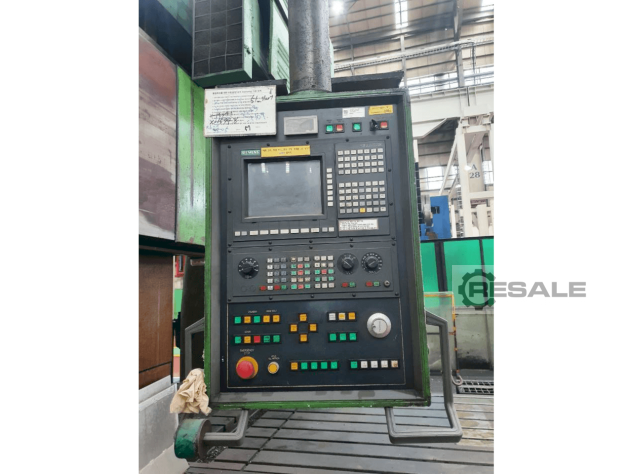

BRAND: WALDRICH COBURG YEAR: 1999 MODEL: - APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MILLING MACHINE AVAILABILITY: IMMEDIATELY Technical Information CONTROL UNIT BRAND: SIEMENS MODEL: 840C MAIN DRIVE SPINDLE SPEED RANGE: 6 - 750 1/MIN SPINDLE MOTOR POWER: 75 KW MOVEMENT X-AXIS MOVEMENT: 13741 MM Y-AXIS MOVEMENT: 2760 MM Z-AXIS MOVEMENT: 1000 MM W-AXIS MOVEMENT: 1565 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - DISTANCE BETWEEN COLUMNS 2,105MM - DISTANCE BETWEEN SPINDLE NOSE AND TABLE SURFACE 2,035MM - SPINDLE TORQUE 8,000NM - TABLE SIZE (TABLE 1, TABLE 2 SEPARATE) 1,800 X 6,500MM - TABLE SIZE (TABLE 1, TABLE 2 COUPLED) 1,800 X 13,000MM

Guideway Grinding Machine Waldrich Coburg -30-10 S 3640 Control: Siemens 840D Year of Make: 2012 Travel: X-axis 8,825 mm Y-axis 3,010 mm Z-axis 2,500 mm Table length 8,000 mm Table width 1,800 mm Table load: 18,000 kg Feed X-axis: 1 - 45,000 mm/min Feed Z-axis: 100 - 3,000 mm/min Universal Grinding Head S10 with 110 Degree Tilt / 2500 Rpm / 7.5 kW Vertical Grinding Head S30 with Ø 600 x 150 / 930 Rpm / 22 kW Double SIEMENS 840D controller on the left and right of the machine Automatic doors (4x) for easy access to the machine / load / clamping Hydraulic table drive with 18000 kg working load KNOLL HL650/4000 filtration system new 2023 Various grinding wheels Large Package Spare Parts/Ball Screws/Covers Renovation in 2012 for 1.5 million EUR

Key data: 6000 mm, 2200 mm, 2000 mm

CNC Guideway Grinding Machine Waldrich Coburg Way Grind 2000AC Year of construction 2013 Siemens 840D controller Table width 2,000 mm Grinding width 2,200 mm Distance between stand covers 2,200 mm Grinding height 2,000 mm Grinding length 6,000 mm Table longitudinal travel 6,825 mm Table load 8,000 kg/m Total table load max. 20,000 kg Max. grinding height: Universal grinding head 2,000 mm Circumferential grinding head 1,925 mm Table speed 1.1 - 1.2 m/min. - max. 10-14 m/min. Positioning accuracy +/- 1 mm Circumferential grinding head: Max. drive power 50 kW Spindle speeds 500 - 1100 rpm Grinding wheel dimensions: Diameter (max.) 600 mm Width 150 mm Inner diameter 150 mm Universal grinding head Drive power (max). 22 kW Spindle speeds 500 - 2500 rpm. Grinding wheel dimensions: Diameter (max.) 600 mm Width 100 mm Inner diameter 250 mm Gri ...

An old plano milling machine (guideway grinding machine) Waldrich Coburg is available. Bed length: 5500mm, bed width: 750mm, machine dimensions X/Y/Z: approx. 12000mm/300mm/3000mm, weight: approx. 37500kg. An on-site inspection is possible.

Upper support, cross support, cross table, cross slide table -Upper support comes from a Waldrich Coburg portal milling machine type: 12 D 3232-550 HL -Table surface: mm -Travel: x 350 mm/y 220 mm -Dimensions: 1380/1000/H800 mm -Weight: 800 kg

grinding length:12000 mm grinding width:2800 mm workpiece height:2510 mm max. workpiece weight:24.000 kg table surface area:11990 x 2500 mm distance between columns:2820 mm cross rail adjustment:2510 mm table feed:1 - 40 m/min total power requirement:110 kW weight of the machine ca.:151 t dimensions of the machine ca.:32,5 x 9 x 6,73 m Machine is in very good condition for grinding to the highest precision! In 2022, the mechanical components were reworked by WALDRICH COBURG at a cost of approx. EUR 600,000. With CNC control SIEMENS 840 D Universal grinding support ? 22 kW Swivelling grinding spindle ±110° Peripheral grinding wheel dimensions Ø 700 x 130 mm Vertical adjustment 1000 mm With dressing device Peripheral grinding support ? 30 kW Grinding wheel dimensions Ø 600 x 150 mm Vertical adjustment 230 mm With dressing device Coolant and filter unit Various grinding wheel holders

Heavy duty lathe Waldrich Distance between centers: 12000 mm Turning diameter: -Over bed: 2000 mm -Over cross slide: 1640 mm Weight of work piece: max 40 ton Spindle speed range, stepless: 1,5-92,5 rpm Year of manufacturing: 1960

x-travel: 9700 mm y-travel: 3500 mm z-travel: 640 mm w-axis: 3000 mm Control: Siemens type: 840D PL spindle diameter: 200 mm Spindle capacity: 85 Kw surface area: 9000x2800 mm Table load: 40000 kg high speed spindle taper ISO: 50 chip conveyor: coolant: total power requirement: kW weight of the machine ca.: 193,8 t dimensions of the machine ca.: 22,4x10,2x8,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description Waldrich Siegen CNC lathe for heavy machining Details Conversion to CNC 2006 Center distance 22,000 mm Maximum turning length Support 1: 20,000 mm Maximum turning length Support 2: 20,500 mm Largest turning diameter over support 1,600 mm Largest turning diameter above bed 2,000 mm Workpiece weight max. 70,000 kg Face plate diameter 2,000 mm Face plate speed, infinitely variable in 4 steps 1.2 - 75 rpm. Maximum torque at speed 5.65: 170,000 Nm Main motor 110 kW Largest clamping diameter on headstock ⌀ 920 mm Mounting in roller block (passable) 2 pieces 600 - 1290 mm Mounting in bezels (passable) 100 - 775 mm Control system Siemens SINUMERIK 840D Support 1 and 2 (to headstock) Displacement of the upper support 550 mm Displacement of the slider 400 mm Quick longitudinal adjustment (rapid traverse) 3,000 mm/min Q ...

Table length: 0 mm Table width: 0 mm Longitudinal X: 0 mm Cross Y: 0 mm Vertical Z: 0 mm Positions ATC: 0   Distance between uprights: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Table length: 8000 mm Table width: 2800 mm Travels: Y axis: 9000 mm Z axis: 1250 mm W axis: 2200 mm Distance table to spindle max.: 2806 mm Distance between columns: 3200 mm Table load max.: 64000 kg Taper in spindle: 60 ISO Spindle speeds: number (steps): 16 from: 20 rpm up to: 600 rpm Feeds: X axis from: 5 mm/min up to: 3000 mm/min Y axis from: 5 mm/min up to: 3000 mm/min Z axis from: 5 mm/min up to: 2000 mm/min W axis from: 5 mm/min up to: 750 mm/min Creep speeds: X axis: 5 - 3000 mm/min Y axis: 5 - 3000 mm/min Z axis: 5 - 2000 mm/min W axis: 5 - 50 mm/min Voltage 50 Hz 3x: 380 Volt Spindle motor: 100 kW Overall dimensions about: Length: 21000 mm Width: 7800 mm Height: 6622 mm

WALDRICH SEIGEN WST IV H80 X 12000 ROLL GRINDER YEAR: 1981 / INSTALLED 1982 MAXIMUM GRINDING DIAMETER: 78” ( 1981.2 mm) WITH 32” (812.8 mm) DIAMETER WHEEL *MAX DIAMETER CAPABILITY: 2500mm DISTANCE BETWEEN CENTERS: 472.40” (12000mm) MAXIMUM WORKPIECE WEIGHT: 176000 lbs. (80t) WHEEL OD MAXIMUM: 32.00” WHEEL WIDTH MAXIMUM: 4.00” WHEEL ID: 12.00” WHEEL SPINDLE POWER: 27 - 59/59 HP WHEEL DRESSER: BED MOUNTED ROLL WHEELHEAD TRAVEL: 25.60” TABLE TRAVEL: (WHEEL HEAD TRAVEL) 488.40”( 12405 mm) TABLE SPEED: (WHEELHEAD SPEED) 157.5 in/min (4000 mm/min) WHEEL SPINDLE SPEED: 450 - 1800 RPM Infinitely Variable WORKHEAD POWER: 1.9 - 59/59 HP WORKHEAD SPEED: .5 - 300 RPM WAYS: CAST IRON FULL HYDROSTATIC SLUDGE CONVEYOR: NONE COOLANT: YES FILTRATION SYSTEM: COMBINATION 2 CARTRIDGE AND FABRIC FILTER WAY COVERS: METAL TELESCOPIC POWER 3PHASE / 50-60 Hz / 200 - 5 ...

throat: 645 mm workpiece height max.: 550 mm stroke: 360 mm table diameter: 650 mm milling-head swivable +/-: 15/80 no. of strokes: 100 Hub/min total power requirement: 6 kW weight of the machine ca.: 4,3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

throat: 1410 mm workpiece height max.: 1150 mm stroke: 1400 mm table diameter: 1400 mm milling-head swivable +/-: 10 ram - range of adjustment: 750 mm pulling power: 50000 N workpiece weight: 10000 kg Ram stroke speed: 30 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 19000 mm y-travel: 7600 mm z-travel: 2000 mm w-axis: 5000 mm table surface area: 18500 x 5000 mm table load: max. 500 t distance between columns: 5500 mm power capacity - milling spindle: 110 kW tool taper: CAT #60 Control: FANUC 15i MB total power requirement: - kW weight of the machine ca.: 650 t Overhauled & modernized in 2007 equipped with: - CNC control FANUC 15i MB - 5 heads The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 13000 mm y-travel: 2750 mm z-travel: 3000 mm turning speeds: 600 U/min spindle taper ISO: 50 milling head: 4 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 10000 , 3950 , 2500

Used for machining large parts as well as many small workpieces. machine was modernized in 2021 Type of CNC FANUC control rack X axis 10000 mm Y axis 3950 mm Z axis 2500 mm Table length 8000 mm Table width 2800 mm Max load on table 60000 kg Max. spindle speed 2000 rpm ------------------- Length x width x height 171000.0 × 93300.0 × 67600.0 Weight 150000 kg The machine, equipped with a stable work table and indestructible components, allows tasks such as milling, drilling and tapping to be performed with the highest precision, guaranteeing maximum process optimization in a wide range of industries.

x-travel: 15500 mm y-travel: 6800 mm z-travel: 3400 mm Control: Siemens Sinumerik 840 D w-axis: 2000 mm table surface area: 15000 x 5000 mm passage width: 5900 mm Passage height: 5030 mm main drive motor: 150 kW spindle taper ISO: 60 milling head speed: 6-750 (2250) U/min workpiece weight: . t total power requirement: - kW weight of the machine ca.: ca 270 t dimensions of the machine ca.: - m modernized in 2008 and equipped with: - CNC control Siemens Sinumerik 840 Dsl - movable Portal - Coolant -- Coolant through spindle -- external Cooling - set of milling heads 9ea -- high speed spindle head SLA 23 / 3 SZ (2250 U/min) -- horizontal head WFU 2100 SZ / 500 S 22 -- WFU 500 SZ / 500 S 22 -- WFU 250 B / 500 S 22 -- EFK 40 E / 600 C 22 -- EFK 250 SZ / 850 S 22 -- horizontal head HSD 250 C / 1450 S 22 -- HS 800 C / 600 S 22 -- vertical head VL 300 SZ / 65 ...

x-travel: 6300 mm y-travel: 2200 mm workpiece height: 1835 mm Table area: 6000x1835 mm Rest: 2 Side head: 2 number of T-slots: 7 T-slot - distance: 240 mm T-slot - width: 28 mm bed length: 14650 mm column daylight: 2075 mm feed: 5-60 m/min workpiece weight: 15000 kg total power requirement: kW weight of the machine ca.: 55 t dimensions of the machine ca.: 14,65x4,37x4,05 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 900 mm Table load: 3000 kg Daylight: 580 stroke: 95-800 mm total power requirement: kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 6000 mm y-travel: 3500 mm z-travel: 1500 mm total power requirement: kW weight of the machine ca.: 161 t dimensions of the machine ca.: m x-travel 6000 mm y-travel 3500 mm z-travel 1500 mm CNC control 840 D Table load 12 t Table dimensions - lengthways 5000 mm Table dimensions - crossways 2500 mm ATC tool changing device 200-pos. Tool weight max. 30 kg Tool holder HSK A 100 Tool diameter 250 mm Tool length - max. 500 mm Spindle speed: 5 - 6000 rpm C-axis -10 to 370 deg B-axis 5 to -95 deg Column distance 3000 mm Machine weight approx. 161 t Space requirement approx. 20.5 x 11 x 6.3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 8400 mm grinding width: 1450 mm workpiece height: 1250 mm surface area: 8000 x 1250 mm table height over floor: 920 mm distance between columns: 1470 mm workpiece weight max.: 59700 kg weight of the machine ca.: 59,7 t dimensions of the machine ca.: 22 x 5 x 5 m Adjustment ranges: -Crossbeam, vertical 1250 mm -Grinding support, horizontal 3100 mm Adjustment speeds: -Machine table (X-axis) infinitely variable 1-45 m/min Table creep speed 5 m/min -Grinding support, horizontal (Y-axis) Rapid traverse 3000 mm/min Feed, step 0.001-0.099 mm Feed rate, continuous 100-3000 mm/min Creep speed 18+1 mm/min Tip infeed 0.001-0.019 mm -Crossbeam (W-axis) Rapid traverse 410 mm/min Table drive: -Oil transmission, Type Iv4 -Cylinder-Ø 185 mm -Piston rod Ø 130 mm -Drive motor 22 kW The data for this ad was created with ModulMWS - the  ...

workpiece diameter: 25-90 mm threading length: 3000 mm thread pitch: 2-16 mm total power requirement: 25 kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 6000 mm y-travel: 3500 mm z-travel: 1500 mm Control: 840 D table load: 12 t height over floor: 6300 mm table dimension - longitudinal: 5000 mm table dimension - cross: 2500 mm tool change unit: 200- fach weight of tools max.: 30 kg tool taper: HSK A 100 tool diameter: 250 mm tool length - max.: 500 mm spindle speed:: 5 -6000 U / min c-axis: -10 bis 370 ° b-axis: 5 bis -95 ° column daylight: 3000 mm total power requirement: kW weight of the machine ca.: 161 t dimensions of the machine ca.: 20,5 x 11 x 6,3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
