soraluce milling machines used for sale

A used S O R A L U C E CNC driving stand milling and drilling center FS 16000 Built in 2000 MAIN TECHNICAL DATA: Travel: Longitudinal (X): mm 16000 Senkr. (Z): mm 1600 Cross (Y): mm 1500 Milling and drilling spindle: Tool holder: ISO 50, DIN 69871 Auto. Tool tension: clamping force 15000 N Tightening bolt: DIN 69872 Form B (BT50) Spindle speeds: Special speeds: rpm 20-3000 Feeds: Feed range: mm/min 2-5000 Rapids: X-axis: mm/min 12000 Y- and Z-axis mm/min 15000 The machine is equipped with: - HEIDENHAIN control TNC 426 M. - Operator's platform in the X-direction with sliding door and Viewing windows against chip flight and splashing water. - Operator's console swivels mounted on the stage. - Automatic thermal expansion compensation of the Milling sliders. - Automatically indexing milling head. This milling head enables the fully automatic m ...

x-travel: 3500 mm y-travel: 900 mm z-travel: 1000 mm Control: heidenhain tnc 415B total power requirement: 22 /spindel kW weight of the machine ca.: 16.5 t dimensions of the machine ca.: 7.2x3.9x3.2 m Make SORALUCE Type Soramill SL 5000 Built in 1995 Control type HEIDENHAIN TNC 415 B Table size (mm) 5000 x 800 mm X out (mm) 3500 Y-off (mm) 900 Z-off (mm) 1000 Maximum table load 12,5 ton Speed (RPM) 20-. 2,000 Tool holder ISO 50 Feed along (mm/Rev) 5 - 10000 mm / min. Rapid traverse 12 mtr/min. Gesamtleistung(kW) 22 Length (mm) 7250 Width (mm) 3900 Height (mm) 3200 Weight 16500 kg Additional information Automatically indexierender Swivel Head with 2 x 144 positions (2.5 ° pitch) in two levels above the control programmable Cooling medium institution The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 4000 mm y-travel: 1000 mm z-travel: 1000 mm total power requirement: 22 kW weight of the machine ca.: 25 t dimensions of the machine ca.: 10.000 x 6.000 x 4.250 m Brand: Soraluce Type: Soramill 4 TF4 CNC brand: Heidenhain CNC model: TNC 415 B Year of make: 1995 Table length: 4.000 mm Table width: 1.000 mm X: 4.000 mm Y: 1.000 mm Z: 1.500 mm Spindle taper: ISO50 Speed: 3.000 RPM Huron milling head Motor: 22 kW Machine dimensions (lxwxh): 10.000 x 6.000 x 4.250 mm Machine weight: 25.000 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

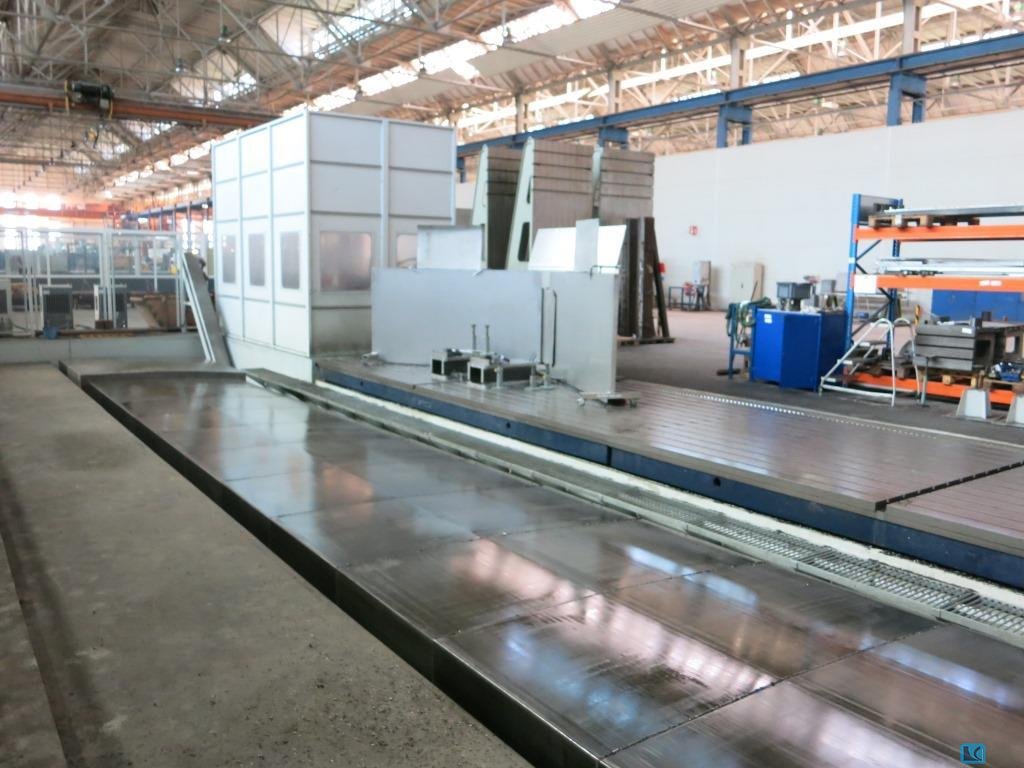

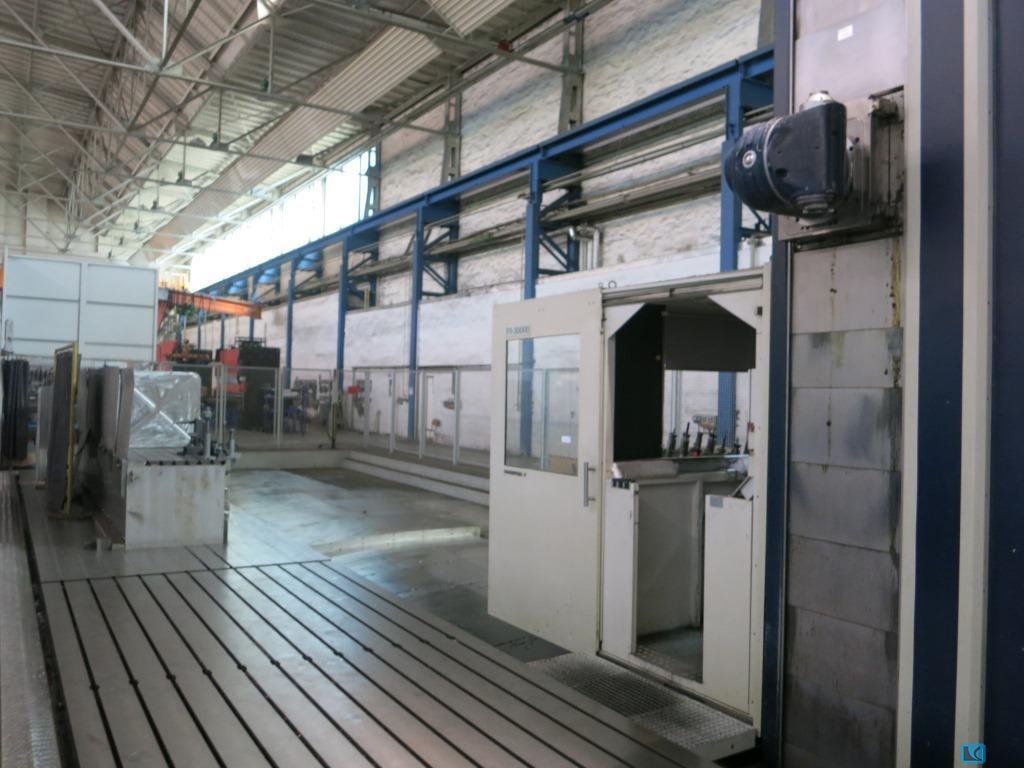

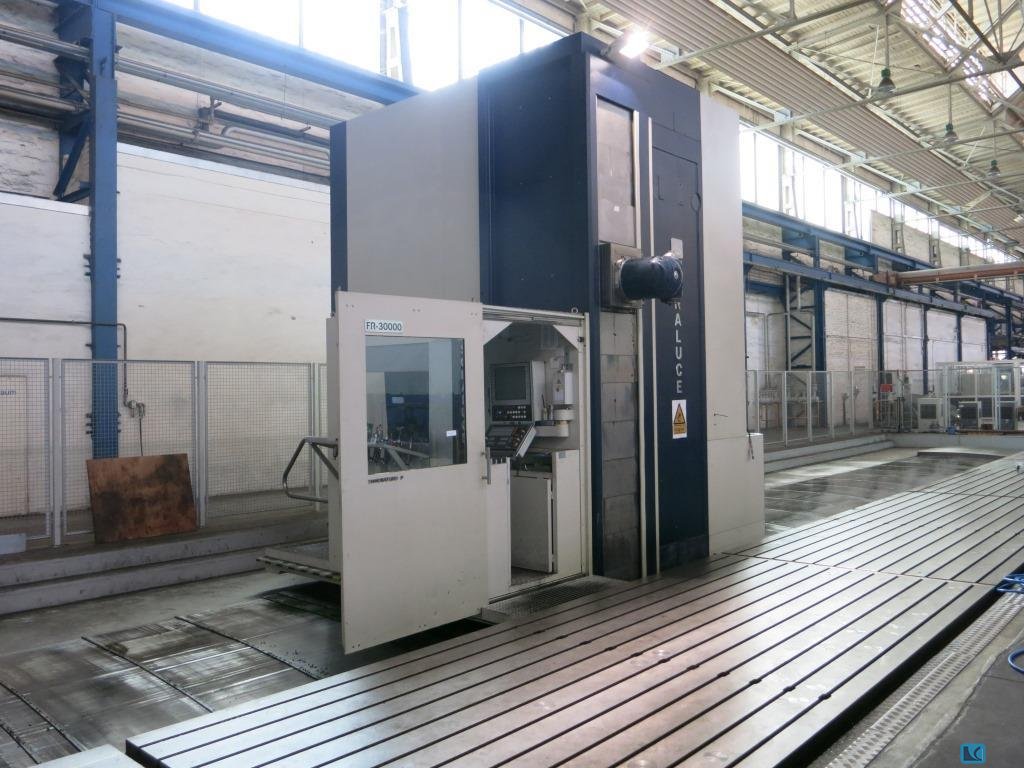

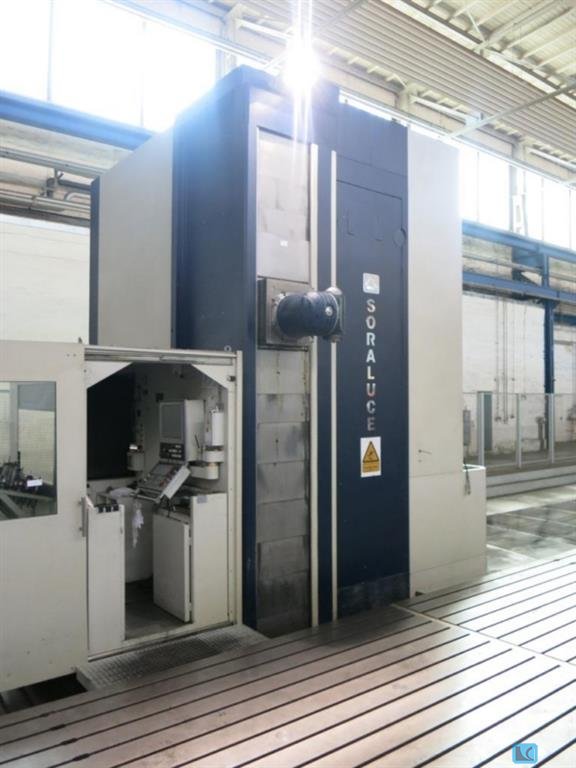

x-travel: 30000 mm y-travel: 3600 mm z-travel: 1900 mm Control: Heidenhain TNC 530i turning speed range - milling: 4000 U/min taper: DIN69871+AD spindle drive: 46 kW feed range - spindle head: 10000 mm/min rapid traverse: 25000 mm/min floor plate size:: 30000x3000 mm total power requirement: 85 kW weight of the machine ca.: t dimensions of the machine ca.: m Woeking hours: 9332 Machine number: 5619 Chipconveyor: 2x Angle plates: 4x Box table The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 5.500 mm y-travel: 1.400 mm z-travel: 1.000 mm control: HEIDENHAIN iTNC 530 clamping table: - surface area: 6.000 x 1.200 mm max. workpiece weight: 13.500 kg/m² Nc rotary table: - position: rechts, bündig integriert in Tischfläche surface area: Ø 1.000 mm positioning accuracy: 360 x 0,001 mm T-slot number x size: 12 x 22 Abstand 100 mm Universal Milling Head: _ Swiveling area front/back level: automatsich Indexing: 0,001 x 0,001° stepless Constant Power at 100 % ED: 28 kW Speed range, stepless: 15 - 5.000 min-1 max. torque: 815 Nm tool taper: SK 50 – DIN 69871 internal coolant system feed: durch das Spindelzentrum automatic tool changer ATC: - Tool places: 80 Plätze diameter of tools max.: 125/200 mm workpiece length: 400 mm weight of tools max.: 20 kg changing positions: vertikal /horizontal feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min rapid in X/Y/Z: 25.000 ...

Control Siemens ... Sinumerik 840D Sl Table dimensions ... 1600mm Axis X ... 8000mm Axis Y ... 1300mm Axis Z ... 1800mm Spindle speed ... 20-4000 rpm ISO 50 cooling ... 30bar Rapid traverse ... 35m/min Machine weight ... 36500kg

Key data: 8000 mm, 1300 mm, 2200 mm

1 new CNC travelling column milling machine Make: Soraluce Model: FL 8000 Year of manufacture: 2014/15 Spindle hours: 3242 Hours: 4261 Control: Siemens 840 D Solution Line Technical data: Travel distances X-Y-Z: 8000 x 1300 x 1800 mm Travel C-axis: 360 degrees Plate clamping area: 6000 x 2000 mm Tool holder: SK 50 Capto C8 Speed range up to: 4000 rpm. Main drive: 43 kw. Rapid traverse: 35 m/min. CNC rotary table: 1600 mm 250 rpm Weight approx.; 40 to. Equipment / Accessories: Tool magazine: Controlled universal milling head Conveyor Full enclosure Complete cooling water system electronic handwheel IKZ. Fibro Reversible Clamp Fibr ...

x-travel: 6.500 mm y-travel: 1.800 mm z-travel: 1.300 mm control: HEIDENHAIN TNC 640 clamping table: - surface area: 8.000 x 1.100 mm max. workpiece weight: 13.500 kg/m² Universal Milling Head: _ Swiveling area front/back level: automatsich Indexing: 2,5 x 2,5 ° Hirtverzahnung Constant Power at 100 % ED: 37 kW Speed range, stepless: 15 - 7.000 min-1 max. torque: 1.045 Nm tool taper: SK 50 – DIN 69871-AD internal coolant system feed: durch das Spindelzentrum automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/250 mm workpiece length: 400 mm weight of tools max.: 20 kg internal coolant system feed: durch das Spindelzentrum changing positions: vertikal /horizontal feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min rapid in X/Y/Z: 35.000 mm/min max. feed force X-Y-Z-axis: 16.000 N total power requirement: kW weight of the machine ca.: 34 t dimensions of ...

x-travel: 8.500 mm y-travel: 2.000 mm z-travel: 1.500 mm Control: HEIDENHAIN iTNC530 rapid travel x/y/z: 25.000 mm/min table-size: 10.000 x 1.350 mm table weight: max. 5 t/qm milling head: orthogonal 1° x 1° tool taper: SK- 50 number of spindle speeds: 4.000 U/min/rpm power capacity: 37 kW max. torque on the spindle: 900 Nm Internal cooling system: 15 bar tool change unit: 60 pos. handwheel: HR 410 Chip coveyor: Inkl. Machine on: 39.000 h Spindle hours: 16.000 h total power requirement: 75 kW weight of the machine ca.: 35 t dimensions of the machine ca.: 12,7 x 5,2 x 4,6 m Orthogonal milling head, water-cooled, with 1° indexing in 2 axes (360 positions in the rear plane and 270 positions in the front plane) 3D wireless probe M&H 20.41 Partition wall for parallel operation/setup Internal air blast Adapter for high-speed milling spindles with torque support Operator platform moves with  ...

Control Heidenhain TNC 640 Speed [rpm] 5000 Travel X/Y/Z [mm] 4500/1800/1300 General: Control Heidenhain TNC 640 Travel X/Y/Z 4,500/1,800/1,300 mm Speed 5,000 rpm Tool holder SK 50 Milling head (spindle): Technology Diagonal head with gear spindle Pitch 0.001° Speed 5,000 rpm Tool holder SK 50 Power max. 43 kW Torque max. 1,045 Nm Media Feedthrough KSS + Blown Air Work table: Clamping area 6,000 x 1,100 mm T-slots 6x 22H12, spacing 140 mm Tool magazine: Technology Chain Magazine Number of stations 40 Tool changer double gripper (horizontal/vertical) Tool diameter max. 125 (250) mm Tool length max. 400 mm Equipment / Accessories: Displacement measuring systems Directly in all axes Chip disposal chip conveyor Coolant supply IKZ system with filter, 20 bar Workpiece Measurement Radio Probe M&H Setup operation Electronic handwheel HR 510 Adaptive Cont ...

x-travel: 3.500 mm y-travel: Quer 1.300 mm z-travel: Senkr. 1.600 mm table-size: 3.800 x 1.200 mm T-slots: 7 x 22 H12 T-slot - distance: 140 mm Main drive: ED, 43 kW speeds: 20 - 4.000 U/min Torque: 900 Nm tool taper: ISO 50 DIN 69871 feeds: 16.000 mm/min rapid traverse feeds: 35.000 mm/min Control: HEIDENHAIN TNC 640 handwheel: HR 510 milling head -swivable: 2,5 x 2,5 Grad Main drive: 43 kW Internal cooling system: 5/20 bar chip conveyor: Scharnierband Inkl. : 40 fach Machine on: 11.584 Spindle hours: 4.222 h total power requirement: kW weight of the machine ca.: ca. 24 t t dimensions of the machine ca.: m SORALUCE TR 35 – HEIDENHAIN TNC 640 Like-New Condition – Only 4,222 Spindle Hours High-quality CNC bed milling and boring center featuring extensive equipment and the latest HEIDENHAIN TNC 640 control system. Technical Specifications Travels: X 3,500 / Y 1,300 / Z 1,600 mm Table S ...

x-travel: 10.000 mm y-travel: 2.200 mm z-travel: 1.300 mm control: HEIDENHAIN TNC 640 clamping table: - surface area: 11.000 x 2.000 mm max. workpiece weight: 10.000 kg/m² Universal Milling Head: _ Swiveling area front/back level: automatsich Indexing: 2,5 x 2,5 ° Hirtverzahnung Constant Power at 100 % ED: 43 kW Speed range, stepless: 15 - 5.000 min-1 max. torque: 900 Nm tool taper: SK 50 – DIN 69871-AD internal coolant system feed: durch das Spindelzentrum automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/250 mm workpiece length: 400 mm weight of tools max.: 20 kg internal coolant system feed: durch das Spindelzentrum changing positions: vertikal /horizontal feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min max. feed force X-Y-Z-axis: 16.000 N weight of the machine ca.: 40 t dimensions of the machine ca.: 18,2 x 6,0 x 4,9 m • Universal milling ...

Key data: 6500 mm, 2000 mm, 1200 mm

Testa automatica universale: indicizzazione automatica ogni 2,5° × 2,5° per la massima versatilità nelle lavorazioni multiangolo Magazzino utensili: automatico per rapidi cambi utensile e maggiore produttività Grazie alla sua ampia area di lavoro e alla testa universale automatica, la SORALUCE SP8000 è ideale per operazioni di fresatura, alesatura e foratura su componenti di grandi dimensioni destinati ai settori della meccanica generale, energia, stampi e costruzioni industriali. VISIBILE MONTATA FINO A FINE SETTEMBRE 2026!

Manufacturer SORALUCE Model TR-35 Year 2018 CNC HEIDENHAIN TNC 640 Table Table surface 3,860 x 1,200 mm. T-slots 7 x 22 H12 Distance between T-slots 140 mm. Maximum weight on table 9,650 kg. Routes and advances Longitudinal Course (X Axis) 3,500 mm. Transverse Course (Y-Axis) 1,300 mm. Vertical Course (Z Axis) 1,600 mm. Feeds (X/Y/Z) 16,000 mm/min Fast Forward Axles 35,000 mm/min Head Type Automatic Head 2.5º/2.5º ISO 50 Head Cone DIN 69871 AD Speed range 20-4,000 rpm Head power 43 kW Head torque 900 Nm Automatic tool loader Positions in Tool Loader 40 Maximum tool diameter with adjacent free positions 250 mm Maximum tool diameter with adjacent positions occupied 125 mm Maximum tool length 400 mm Maximum tool weight 20 kg Equipment Integral fairing INCLUDED Double longitudinal chip evacuator INCLUDED Cross chip evacuator INCLUDED Internal cooling 20  ...

Manufacturer SORALUCE Model SP-8.000 Year of Manufacture 2011 CNC HEIDENHAIN iTNC 530i Table Table surface 8,000 x 1,300 mm Max. permissible weight on table 5,000 kg/m2 Tours Longitudinal Course (X-Axis) 6,500 mm Transverse Length (Y-Axis) 2,000 mm Vertical Course (Z Axis) 1,500 mm Fast Forward Axles 25,000 mm/min Head Automatic head 1º / 1º INCLUDED 5-sided machining INCLUDED ISO 50 Head Cone DIN 69871A Head speed 20 – 4,000 r.p.m. No. of ranges 2 Main Motor Power 32 kW Torque 910 Nm Automatic tool loader Tool Loader Positions 40 Additional equipment Chip evacuator INCLUDED Heidenhain HR-550 FS Wireless Electronic Steering Wheel 2 extra tables (1000×400 mm) INCLUDED Air/oil head lubrication INCLUDED User platform INCLUDED M&H 20.41 MULTI wireless probe Others Total installed power 51 kW Machine Weight 26,800 kg.

Ref. -No.: 10373 Manufacturer: SORALUCE Year of construction: 2017 Type of control: CNC Control: Heidenhain 530i Storage location: Halberstadt Country of origin: Spanien X-Travel: 6500 mm Y-Travel: 1600 mm Z-Travel: 900 mm Table-Size (Lxw): 8000 x 900 mm Drive power spindle: 28 kW Swivel range milling head: 2,5 ° Tool Taper: SK 50 Feed rate: 15000 mm / min Further information: - Number of axes = 3 + 2 - incl. Swivel head

milling machine, year 2004, CNC 530. Used machine in good condition. More info & price on IndustrialBuyer.

Soraluce SLP-6000Year of manuf. : 2017 Control : Heidenhain TNC 640 Speed : 5000 rpmMovement X/Y/Z : 4500/1800/1300 mm____________Description:In General:Year of manufacture:2017Control system:Heidenhain TNC 640Travel range X/Y/Z:4,500/1,800/1,300 mmSpindle speed:5,000 rpmTool holder:SK 50Milling head (spindle):Technology:Diagonal head with gear spindleIndex:0.001°Speed:5,000 rpmTool holder:SK 50Max. power:43 kWMax. torque:1,045 NmCoolant supply:Coolant + blast airWorking table:Clamping surface:6,000 x 1,100 mmT-slots:6 x 22H12, spacing 140 mmTool magazin:Technology:Chain magazineNumber of stations:40Tool changer:Double gripper (horizontal/vertical)Max. tool diameter:125 (250) mmMax. tool length:400 mmEquipment:Position measurement systems:Direct scalesChip removal:Chip conveyorCoolant supply:Internal coolant system with filter, 20 barWorkpiece measurement:Funk M&H probeSet-up oper ...

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment

Code 71112 Description Radial drilling machine Make SORALUCE Modell TRO - 1250 Serial No. 2754 10406 Year 1975 Capacity in Steel 60 40 mm Capacity in Cast Iron 50 mm Thread cutting in Steel 60 M 30 Thread cutting in Cast Iron M 40 Spindle taper 5 MC Spindle radius: max / min 1400 / 450 mm Spindle traverse 950 mm Min / Max height spindle / top of base plate 300 – 1300 mm Arm traverse 700 mm Quill stroke 300 mm Number of speeds 12 Spindle speed range 25 – 1440 rpm Number of spindle feeds 6 Spindle feed range 0,08 – 0,99 mm/rev Baseplate size 1900 x 750 mm Clampsurface base plate 1200 x 650 mm Main motor 3,0 kW - 380 Volts Dimension of machine 2000 x 750 x 2150 ( max.2650 ) mm ( L x W x H ) Weight 2500 kg Accessoiries Box 600 x 450 x 400 mm Coolant elect ...

Tall: 3.000 mm, Weight: 2690 kg, Width: 915 mm, Long: 1.800 mm, Voltage: 220/380V, Spindle cone: MORSE 5, Total power: 7 CV, Ø of the spindle: 63 mm, Base width: 915 mm, Base length: 970 mm, Serial number: 7181319, Ø max. drill steel: 26 mm, Spindle travel: 355 mm, Max spindle column axis distance: 1030 mm, Maximum distance from table to spindle: 1500 mm, Minimum distance from the table to the spindle: 260 mm, Spindle speed range: 16, Maximum/minimum travel of the drill chuck spindle: 0,05/0,5, Spindle nose stock advance: 6, Minimum/maximum spindle speed: 40/2000r.p.m., Specification: Flagged

Radial drilling machine. Drlling capacity: 40-50mm. Arm of 1250mm. Taper Morse 5.

Radial drill Soraluce TR3-2500mm. 2500mm arm. Drilling in steel: 80mm. Drilling in cast iron: 100mm. Chuck spindle diameter: 110mm. Cone Morse 6. Speeds: 16 (20-1475rpm). Engine power: 10hp.

Travel X/Y/Z: 5500mm/1200mm/1800mm, milling head indexing: 2.5°, drive power: 28kW, spindle speed: 4000rpm, feed X/Y/Z: 25m/min, table diameter: 1600mm, table speed: 250rpm, max. workpiece weight: 8000kg, panel field dimensions X/Y/Z: 6000mm/2000mm/300mm, machine weight: approx. 16500kg, control: Heidenhain iTNC 530. Workpiece weight: 8000kg, panel field dimensions X/Y/Z: 6000mm/2000mm/300mm, machine weight: approx. 16500kg, control: Heidenhain iTNC 530. Including internal coolant supply and chip conveyor. Documentation available. On-site inspection is possible.

Used scrollable radial drill Soraluce TR1-1600. Arm: 1600mm. Displacement: 1800mm. Drilling capacity in steel: 60mm. Drilling capacity in cast iron: 80mm. Boring capacity in steel: 100mm. Boring capacity in cast iron: 120mm. Thread capacity in steel: 50mm. Thread capacity in cast iron: 70mm. Spindle diameter: 90mm. Spindle travel: 350mm. Number of speeds: 12. Power: 7,5hp. CE: Optional.

travel -x axis: 6.500 mm travel -y axis: Senkr. 2.000 mm travel -z axis: Quer 1.500 mm Control: HAIDENHAIN iTNC 530i table-size: 8.000 x 1.300 mm tool taper: ISO 50, DIN 69871A tool clamping: 20.000 Nm milling head -swivable: 144 pos. pro ebene 2,5 Grad Main drive: 32 kW spindle turning speed range: 20 - 4.000 U/min feeds: 2 x 19.2 / 26,1/21,1/18,1 Nm max. torque on the spindle: 910 Nm handwheel: HR 550 FS Tools changer: 40 pos. total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m SORALUCE SP 8000 – CNC Bed Milling and Drilling Center Manufacturer: Soraluce Model: SP 8000 Year of Manufacture: 2011 Control: Heidenhain iTNC 530 Technical Data • Travels X/Y/Z: 6,500 x 2,000 x 1,500 mm • Table Size: 8,000 x 1,350 mm • ISO 50 • Spindle Power: 32 kW • Torque: 910 Nm • Speed Range: 20 – 4,000 rpm • Rapid Travel X/Y/Z: 25,000 mm/min • Max. ...

ATC Chain 40 positons Max. tool size  Ø 125 x 400 mm Machine prepared for rotary table Chip conveyor Central lubrication Stroke with vertical head rotated 3300 mm

- Aiptek ATC 30 positions - Automatic head 2.5 x 2.5 Gr - Central lubrication - Machine housing with front doors - Large tool package

- FP Model ideal for variety of application Medium-Large size Components - Floor type milling boring machine - High dynamics with speeds of 35M/Min - INA linear guiding system  - Hydro mechanical clamping slides - Orthogonal milling head for machining at any desired angle - Y Travel = 2600 + 500 head upright = 3100 mm stroke in Y Axis

- Y Travel with head 180 = 3700 - Y from floorplate to spindle middle = 4200 mm - Chain ATC Tool changer 80 positions - Rotary table 1500 x 1500 with V-Axis 1500 mm - Table load 15.000 Kg - Optional Box table 3500 x 1000 x 1000 mm - Under power  - Spindle hours 9300 H

- FIBRO indexing rotary table 800 mm - Closed covered machine with doors for easy acces - Indexing head 2.5 x 2.5 Degrees - Automatic lubrication - Double chain chip conveyor - Under power 1e owner machine

Complete system with all accessories required for installation and operation, see below! Travels x = 7000 y = 1600 z = 800 / quill stroke w = 600mm General overhaul in 2007, year of production 1991: New control system Siemens Sinumerik 840D, new drive motors, guideways refurbished, new control cabinets. ECOCUT 1 was only operated for a few months thereafter Feed rate 12000 mm / min // w axis 6000 mm / min Xua2eg8fx Rotary table TDV 2 max. Workpiece weight 6t / clamping surface 1000x1000 Rotary table TDV 3 max. Workpiece weight 12t / clamping surface 1250x1600 Accessories: 2 like new angular crankset / chain tool change system / plate field / complete housing / Knoll funnel feeder / extraction / coolant system with belt filter All BWF fixators for installation of machine bed and panel

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. echnische data: External dimensions LxWxH: 1650x1440x1950 mm Weight: approx. 650 kg Clamping surface XxY: 930x630 mm Travel XxYxZ: 900x600x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reverse play: appr ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. Technical specifications: External dimensions LxWxH: 1970x2150x1950 mm Weight: approx. 950 kg Clamping surface XxY: 1230x1320 mm Travel XxYxZ: 1200x1300x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reve ...

End mill, end mill, cutter, shell cutter, milling head, angle cutter, shell angle cutter, angle end mill, prism cutter -Angle milling cutters: Attachment angle milling cutters, prism milling cutters -Type: Ø85 x 35 mm -Hole: Ø 27 mm -Quantity: 1x milling cutter available -Dimensions: Ø 85 x 35 mm -Weight: 0.8 kg

Product information \"Henninger Schnellauf - Milling Spindle Type 814 \" However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 814 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 4 - 25 mm - Gear ratio: 1:6 - Maximum speed ED 10%: 12,000 1/min - Maximum speed ED 80%: 10,000 1/min Auction-ID: A1-48483-31

Product information \"Henninger Schnellauf - Milling Spindle Type 801 \" However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 801 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 2 - 16 mm - Gear ratio: 1:6 - Maximum speed ED 70%: 6,000 1/min Auction-ID: A1-48483-28

Operating voltage: 400 v Ma.Nr.: 41636 HEIDENHAIN positioning and control TNC 131 / 135 Complete Dokunnetation (operating instructions, technical plans) exists. Errors excepted!

Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg

Table size: 500 x 1200 mm traverse path x: 1000 mm stroke y: 550 mm traverse path z: 600 mm spindle retainer: ISO 40 spindle speeds: 60-2700 rpm spindle drive: 10 kW Electr. Supply: 380 V, 20 kVA kW space: 3200 x 2800 x 2650 mm weight: 7.3 t

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

MAHO C Axis Machine Table - Table diameter: 600 mm Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with freight forwarder.

Table clamping surface: 500 x 1600 mm table movement x: 1220 mm table movement y: 500 mm table movement z: 500 mm spindle retainer: SK 50 spindle speeds: 56-2800 rpm feeds longitudinal & cross: 10-1800 mm / min feed vertically: 2.5-450 mm / min. Supply: 400 V, 16 kVA kW space: 2000 x 2250 x 2150 mm weight: 4500 kg

Universal milling machine. Hure head. Table size: 2000x480mm. Longitudinal travel: 1700mm. Cross travel: 400mm. Vertical travel: 575mm. ISO50. Motor power: 20cv. Weight: 5500Kgs. Dimensions: 2550x2380x2680.

Universal milling machine with automatic movement ram. Table size: 1600mmx320mm. Longitudinal travel: 1200mm. Cross travel: 300mm. Vertical travel: 600mm. ISO50. Hure head. Equipped with DRO Fagor.

Universal milling machine. Table size: 1400mmx300mm. Longitudinal travel: 1200mm. Cross travel: 320mm. Vertical travel: 500mm. ISO40. Hure head. Speeds: 12. (40-1800rpm). Motor power: 7Kw.

Vertical machining center Cincinnati Millacron Traverse path x 1270 mm Y: travel 660 mm Z: travel 660 mm CNC control: Acramatic 850SX Table size: 1,370 x 660 mm Table load: 910 kg Rapid traverse x/Y/Z: 15,000 mm / min. Spindle speeds: 60-8,000 rpm. Spindle recording: ISO 40 Distance from spindle - table min/max: 150/880 mm Tool changers: 21 items Equipped with:-cooling device -Hand Council operation -Complete instructions Country of origin: England Spindle motor: 9 kW Machine weight: 8.000 kg Machine WxDxH: 3,600 x 2.900 x 3.000 mm

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Technical Specifications - Bridgeport Series I Table Size / Work Surface 9" × 49" (≈ 299 mm × 1245 mm) T-slots 3 pieces, spacing 2.5" (≈ 64 mm), groove width 0.625" (≈ 16 mm) Travel X (Transverse) without Power Feed: 36" (≈ 914 mm) with power feed: 33" (≈ 838 mm) Travel Y (Transverse to Feed) 12" (≈ 306 mm) Quill Stroke (Drilling Spindle Stroke) 5" (≈ 127 mm) Knee Lift (Z-Axis of Table) 16" (≈ 406 mm) Ram Adjustment (Head Stem on Ram Slide) 12" (≈ 306 mm) Min. / Max. distance spindle axis to table nose (spindle/table nose distance) min: 2.5" (≈ 64 mm) Max: 18.25" (≈ 463 mm) Min. / Max. distance spindle to column front (minimum/maximum internal width) min: 6.75" (≈ 171 mm) max: 18.75" (≈ 476 mm) Spindle / Quill Spindle Diameter: 1.875" (≈ 48 mm) Quill Diameter: 3.375" (≈ 86 mm) Spindle holder (standard): R-8 Spindle motor / power 30 minute ...

AVIA FNE 40NC milling machine was built in 2001 in Poland by Fabryka Obrabiarek Precyzyjnych AVIA S.A. The machine is used for precision machining of workpieces with a maximum weight of 400 kg. The machining process is performed in three axes by means of a reliable spindle with stepless speed adjustment. The spindle, mounted on a swivel workhead, moves in the Z axis on precision vertical guides. All this is complemented by the easy-to-use HEIDENHAIN NC control system, in which even the most advanced programmes can be created in just a few steps. The AVIA FNE toolroom milling machine weighs 1900 kg. Technical data of the AVIA FNE 40NC metal milling machine - NC controller: HEIDENHAIN TNC 310 - feed in the X/Y/Z axis: 620/420/400 mm - rapid traverse in the X/Y/Z axis: 6000/4000/4000 mm/min - feed rate adjustment: stepless - maximum workpiece weight: 400 kg - horizontal work table  ...

Qty.1 Second-hand milling (scalping) line Mfc.: Torrington Type: 30" Slap Miller Speed: 500 rpm – 18 fpm Capacity: 1,9 m/dk

Universal milling machine. Table size: 1200mmx320mm. Longitudinal travel: 950mm. Cross travel: 300mm. Vertical travel: 500mm. ISO40. Hure head. DRO Fagor.

Table size: 440 x 1200 mm table movement x: 950 mm table movement y: 250 mm table movement z: 475 mm spindle retainer: ISA 40 spindle speeds: 40-1800 rpm feeds longitudinal & cross: 16-630 mm / min feed vertically: 5.6-224 mm / min. Supply: 380 V, 7.5 kVA kW space: 2150 x 2000 x 2100 mm weight: 2400 kg

Drilling capacity in steel: 32 mm Drilling capacity in cast: 40 mm Cutter head milling max.: 80 mm Projection: 220 mm Spindle speed: (12) 75-3200 RPM Spindle retainer: MK 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Milling head swiveling: - 90 ° to + 90 ° Distance from spindle / table: 60-485 mm Head height: 425 mm T - slot size: 14 mm S1 motor power output 100%: 1,1 / 1,5 kW (400 V) Motor power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H) : 1140 x 770 x 1500 mm Approximate weight: 287 kg without stand Features: Quick and easy change of speed using the gear selector switch Versatile application possibilities such as drilling, milling, thread cutting, … High running smoothness by polished, running in an oil bath gear gears Right - and the link run device for thread cutting Quill adjustment by means of ...

Standard ALB ear performance: 30 mm Thread cutting performance: M 20 (option) Thread: M 12 Spindle: MK 3 or SK 30 (option) Quill stroke: 100 mm Longitudinal / cross travel: 350/160 mm Distance spindle/cross table: 80 to 450 mm Table area: 600 x 240 mm Column diameter: 110 mm Total height: Max 1,920 mm Weight: 340 kg Motor pole shift bar: 0.8/1.5 kW Spindle speeds, continuous, selectable: 10 spindle speeds: 80-1,400 rpm 10 spindle speeds: 120-2,160 rpm 10 spindle speeds: 160-2,800 RPM Facilities: A versatile, accurate and handy drilling milling machine. The quiet-running drive and a perfect clamping of Quill guarantee good surfaces when milling. The headstock can be swung out. The stage is precise and precisely adjustable. Pitch 0.05 mm. clamping device for both axes. Full motor protection. Machine incl. Cabinet.

Vertical Milling Machine RAMBAUDI type RAMMATIC 600 Travel X 1260 mm Travel Y 690 mm Travel Z 600 mm Numerical Command NUM 1060 Cone SA 50 Table size 2000 x 600 mm Year of construction 1991 Voltage 380 V Depth 2500 mm Total height 4000 mm Weight approx 9 T

Vertical Milling Machine Droop & Rein type FS130 Travel X 2000 mm Travel Y 1000 mm Travel Z 1000 mm Spindle SA 50 Sensitive spindle exit: 200 mm Rotation from 31,5 to 1600 RPM Table size 2400 x 1070 mm Year of construction 1976 Throat depth 950 mm Head Tilt head Spindle motor 22 kW Scale HEIDENHAIN 3 axes New electrical panel in 2006 Voltage 380 V Width 3500 mm Depth 4700 mm Total height 4500 mm Weight 26 T

2 piece F. 17.3 2 piece F. 17.34 Milling machines with double head (duplex), with counter holder for horizontal milling

Table size: 254 x 1100 mm Table movement x: machine. u. v. hand 682 mm Table movement y: hand 380 mm Table movement z: hand 457 mm Milling head swiveling to: +/-90 or +/-45 ° Spindle retainer: ISO 40 Spindle speeds: 70-2300 rpm Quill feeds: 0.038 â 0.152 mm / min Spindle drive: 380 V, 2.2 kW Space: 1600 x 1600 x 2150 mm Weight: 1420 kg

x-280 ,y- 200 , Z 315 , Table dimensions 380x380/250x500 A lot of writings,much more than pictured

Table surface: 300 x 1300 mm Table movement x: 950 mm Table movement y: 220 mm Table movement z: 400 mm Spindle intake: MK 5 Spindle speeds: 25-1200 rpm Prests lengthwise & across: 7.5-635 mm/min Presens vertical: 3-250 mm/min Electr. Connection: 380 V, 7.5 kW Space requirement: 1670 x 1500 x 1750 mm Weight: 2600 kg

Technical data: Fixed angular table: Fixed angular table clamping area: 800 x 400 mm Max table load: 200 kg Working spindle: Tool holder horizontally and vertically: ISO 40 Power of the main drive motor / 100% ED: 2.2 kW Vertical milling head: Speed range, tiered: (12) 50 - 2000 rpm Drill pinole, stroke: 100 mm Swivel range: +/- 90° Travel: X-axis automatic/man.: 385/400 mm Y-axis automatic/man.: 185/200 mm Z-axis automatic/man.: 365/380 mm Feeds: Feed range: 0-650 mm/min Number of feeds: infinitely adjustable Rapid response: 1000 mm/min Characteristics: - Machine accuracy according to DIN 8615 - 3-axis digital displays FAGOR® Innova (option) - Spindle run max. 0.005 mm, incl. test protocol according to DIN 8615 (rolling bearing SKF®/NSK®) - Vertical milling head can be swivelled out for horizontal milling (without d ...

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Blade length 205 mm Max cutting performance Sheet R = 42 kg / mm2 4 mm Sheet R = 70 kg / mm2 3 mm Engine power 3 kW Number of beats / minutes 50 min Table dimension 625 x 954 mm Capacity of the oil tank 25 l Weight 500 kg The setting between the blades is fully automatic. Standard: - 1 set of knives at 30 ° (mounted on the machine) - 1 stop switch - 1 general circuit breaker - 1 stop adjustable and adjustable every 15° - Fill the first oil - Manual with installation and maintenance instructions and service keys.

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe

Table clamping area: 560 x 240 mm x-way: 300 mm y-way: 275 mm z-way: 200 mm Spindle holder: ISO 40 Spindle speeds: 40 - 2000 rpm Operating voltage: 380 V Total power requirement: 1.5 kW Space requirement: 1200 x 1100 x 1700 mm Weight: approx. 750 kg

Table clamping area: 310 x 1400 mm Table movement x: 950 mm Table movement y: approx. 325/345 mm Table movement z: approx. 500 mm Spindle speeds: 20 - 1500 rpm Feeds longitudinally and transversely: 18 - 620 mm/min Feeds vertical: 18 - 620 mm/min electr. Connection: 380 V kW Space requirement: 1900 x 1600 x 1750 mm Weight: approx. 1500 kg

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active

Universal milling machine vertically / horizontally from a training workshop Manufacturer Hermle Type FW801 Tool holder SK40 automatic feed in three axes Digital display in three axes Machine technically in very good condition under electricity ready for demonstration Technical data: Travel: x=350mm y=150mm z=220mm Spindle speeds from 50 to 3,150 rpm can be infinitely variable Feed speed infinitely adjustable via rotary pot from 10 to 5,000 mm/min, aisle Special price Used milling machine Hermle FW 801

- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg

Table clamping area: 190 x 710 mm Table movement x: 390/360 mm Table movement y: 150 mm Table movement z: 280 mm Spindle holder: SK 40 Spindle speeds: 100 - 3100 rpm Feeds longitudinal 0 - 600 mm/min electr. Connection: 380 V, approx. 1.5 kW Space requirement: 1400 x 1200 x 1500 mm Weight: approx. 680 kg

Table length: 10.800 mm Table width: 1.000 mm Table height: 200 mm Load capacity: 10 t/m Power motor spindle: 22 Kw Max. speed of turning: 1.700 rpm X Axis travel: 7.000 mm Vertical axis travel: 2.000 mm RAM travel: 1.000 mm Total installed power: 60 Kw Rapid feed rate: 15 mt/min CNC ECS 4801 Chip conveyor

REALMECA MINI C3X-CNC VERTICAL 1 phase machining milling machine Used for teaching begginers. Perfect condition

MAHO MH-700 with numeric control X, Y Table size: 800x300 Working area: X-450,Y-250,Z-300 Spindle taper: MK3 Feed range: 7-250mm/min Vertical head swiveling 90 degreess Power: 3KW Dimensions: 1300x1200x1700

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm
