makino milling machines used for sale

x-travel: 1000 mm y-travel: 1000 mm z-travel: 950 mm Control: FANUC Pro-3 feed X/Y/Z/-axis: 1 - 50.000 mm/min rapid traverse X/Y/Z: 50,00 m/min tool taper: HSK-A 100 turning speeds: 20 - 12.000 U/min spindle drive: 25 / 30 kW torque milling spindle: 420 Nm spindle diameter in front bearing: 110 mm B - axis: 360 x 0,001 ° size of pallet: 2x 800 x 800 mm table load capacity: 1.800 kg dimension of workpiece: 1.000 x 950 mm workpiece height max.: 1.000 mm tool piece magazine with: 188 tool length - max.: 475 mm tool diameter: 320 mm weight of tools max.: 20,00 kg total power requirement: 65,00 kW weight of the machine ca.: 30,00 t dimensions of the machine ca.: 8,00 x 5,30 x H3,50 m Horizontal machining center with FANUC Porfessional 3 control, NC rotary table, el. handwheel, chip conveyor, coolant filter KNOLL VRF 450/2300, through-spindle coolant, 188-station tool magazine. New spindle in ...

Year of construction: 2016 CNC controller: FANUC Professional 5 Axes X-axis travel mm: 550 Y-axis travel mm: 1000 Z-axis travel mm: 500 C-axis degrees: 360 (continuous rotation) / rotary encoder A-axis degrees: 150 (+30 120º) rotary encoder Feed rates m/min: X:32; Y,Z:40 Rapid traverse m/min: X,A,C:48; Y,Y:50; A,C:18 Worktable Table dimensions mm: 500 Maximum workpiece size (D x H) mm: 650x500 Max. workpiece weight kg: 350 Spindle Spindle speed rpm: 14000 Tool system Tool holder: HSK-A63 Tool magazine slots: 323 Tool changer: Pinza doble Max. Tool Diameter 70 With occupied neighboring places mm: 140 Max. Tool Length mm: 300 Max tool weight kg: 8 Equipment Electronic Handwheel Chip conveyor Measuring probe Machine running times Under power: 63813h Spindle Working: 30592h Basic machine dimensions / weight Length mm: 3550 Width mm: 2900 Height mm: 3200  ...

size of pallet:400x400 mm numbers of pallets:15 table load:400 kg weight of the machine ca.:0,060 t dimensions of the machine ca.:0,4 x 0,4 m 15 pallets for Makino A 55, size 400 x 400 with T-slots for sale

Type: Die-sinking EDM machine Number: 21958 Category: Die-sinking EDM machines / EDM Manafacture: Makino Model: EDAF 3 Year of construction: 2016 Travel: 450 x 350 x 350 mm [ X x Y x Z ] Table size X: 700 mm Table size Y: 500 mm max. workpiece size X: 850 mm max. workpiece size Y: 650 mm max. workpiece size Z: 400 mm max. workpiece weight: 800 kg C-axis Linear scales (X,Y,Z) Control Hyper i Super Spark iV Super Surface Super Edge (incl. MF 4) Super Surface Graphite EROWA Robot Interface (A-Type)

Control: Fanuc Profesional 5 Max.travel range: X 450 mm Y 650 mm Z 460 mm Spindle speed ? 18000 rpm Taper ? HSK 63 Tool changer ? 25 positon machine has spindle cooling, Erowa clamping system is available, measuring probe for parts set up, lase

Control: Fanuc Profesional 3 Max.travel range: X 450 mm Y 650 mm Z 460 mm Spindle speed ? 18000 rpm Taper ? HSK 63 Tool changer ? 25 positon machine has spindle cooling, Erowa clamping system is available, measuring probe for parts set up, lase

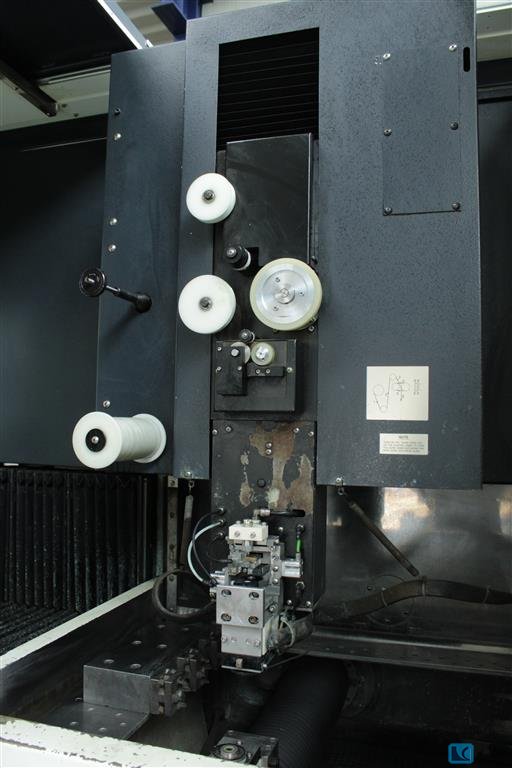

Control: Makino Generator: MGW-R Max.travel range: X 600 mm Y 400 mm Z 250 mm U x V axis travel +/- 75 mm Work tank dimensions: 920 x 600 mm Dialectric tank capacity: 900l Made in Japan

Control: Makino Generator: MGW-R Max.travel range: X 600 mm Y 400 mm Z 250 mm U x V axis travel +/- 75 mm Work tank dimensions: 920 x 600 mm Dialectric tank capacity: 900l Made in Japan

Generator: MGH5 max.travel range: X 800mm Y 500mm Z 400mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 32 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGF max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

Generator: MGF2 max.travel range : X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode / parts changer: Erowa UPC 5 position, ITS 72 - 90 position, ITS 148 - 15 position cooling device for dial

Generator: MGF2 max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode / parts changer: Erowa UPC 5 position, ITS 72 - 90 position, ITS 148 - 15 position cooling device for diale

Generator: MGF2 max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGF2 Max. Travel range: X 450mm, Y350mm, Z 350mm, C yes Clamping of tool: Erowa System ITS Clamping of parts: Erowa Sysem UPC Electrode / parts changer: Erowa UPC 10 position, ITS 72-90 position Cooling device, fire extuiguishing

Generator: MGF max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts: Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Erowa ITS / UPC Er

Generator: MGF2 max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGH max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

Generator: MGH max.travel range: X 800mm Y 500mm Z 400mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 32 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Erow

Generator: MGH5 max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGH max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

x-travel: 1000 mm y-travel: 1000 mm z-travel: 950 mm Control: FANUC total power requirement: - - - kW weight of the machine ca.: - - - t dimensions of the machine ca.: - - - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 900 mm, 500 mm, 450 mm

Inv. Num. : 7549 Type: F5 Produzent: MAKINO Erzeugt: 2013 Parametern: Steuerungssystem: FANUC Arbeitstischlänge: 1000 mm Arbeitstischbreite: 500 mm Anzahl der Stapelpositionen: 30 Stücke Anzahl der Achsen: 4 Stücke Maximale Vertikalspindeldrehzahl: 20.000 1/min Verfahrwege X-Achse: 900 mm Verfahrwege Y-Achse: 500 mm Verfahrwege Z-Achse: 450 mm Kegel: HSK 63 F Anzahl aller Werkzeuge: 30 Stücke Ausstattung: IKZ Werkzeughalter

Used machine in good condition. Available for immediate delivery. - Number of tool stations: 30 - Control: CNC - Max. workpiece weight: 17.600 kg - Max. tool weight: 66 kg - Axes: 4 - Weight: 77.175 - Dimensions (long x wide x high): 1.501 x 1.300 x 1.000 mm

EDAF-3 precise machining machine, ATC 32EA , XYZ Scale, Erowa chuck, micro machining circuit - Dimensions (long x wide x high): 2.314 x 3020 x 2660 mm - Working area (X x Y x Z): 850 x 650 x 400 mm - Max. electrode weight: 60 kg - Weight: 4.800 kg - Max. workpiece weight: 800 kg - Work table size (width x length): 700 x 500 mm - Control: Control CNC

Inv. Num. : 8267 Type: S56 Producer: Makino Created: 2009 Parameters: Control system: FANUC 310is Work table length: 1000 mm Work table width: 500 mm Maximum table load (uniform): 650 kg Maximum vertical spindle speed: 20000 1/min X-axis travel: 900 mm Y-axis travel: 500 mm Travel Z axis: 450 mm Cone: HSK-A63 Number of all tools: 30 pieces Machine height: 3063 mm Machine length: 3302 mm Machine width: 2570 mm Machine weight: 7500 kg

table length: 750 mm table width: 550 mm ampere: 60 A Control: Makino MGE20 x-travel: 600 mm y-travel: 400 mm z-travel: 250 mm workpiece weight: 450 kg tool change unit: 8 total power requirement: kW weight of the machine ca.: 5,00 t dimensions of the machine ca.: 3,00 x 3,50 x H3,00 m Die-sinking machine with control MAKINO MGE20 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

EDM machine Makino DUO64 vintage 2011.

CNC controller: FANUC Professional 5 Axes X-axis travel mm: 550 Y-axis travel mm: 1000 Z-axis travel mm: 500 C-axis degrees: 360 (continuous rotation) / rotary encoder A-axis degrees: 150 (+30 120º) rotary encoder Feed rates m/min: X:32; Y,Z:40; Rapid traverse m/min: X,A,C:48; Y,Y:50; A,C:18 Worktable Table dimensions mm: 500 Maximum workpiece size (D x H) mm: 650x500 Max. workpiece weight kg: 350 T-Slot version: 4x185H8 Spindle Spindle speed rpm: 20000 Tool system Tool holder: HSK-A63 Tool magazine slots: 323 Tool changer: pinza doble Max. Tool Diameter: 70 With occupied neighboring places mm: 140 Tool Magazine: Matrix Max. Tool Length mm: 300 Max tool weight kg: 8 Equipment Electronic Handwheel Chip conveyor Custom Macro common variables (100) Synchronized tapping Preparación para trabajar con robot Robot EROWA Helical  ...

The machine is in good technical condition, testing is possible after prior agreement. Machine on - 92331 h

A complete manufacturing cell with four horizontal machining centers Makino and a pallet storage and transport system is available. Makino A55: Travels X/Y/Z: 560mm/560mm/600mm, pallet dimensions X/Y: 400mm/400mm, max. table load: 500kg, max. workpiece diameter: 630mm, max. workpiece height: 1000mm, rapid traverse: 84m/min. Complete system dimensions: approx. 24000mm/8000mm, weight: approx. 8500kg. The images and videos show an identical system. The configuration of the offered and the illustrated cells is essentially identical. Documentation available. On-site inspection is possible.

This 3-axis Makino V55-A15 vertical machining center was manufactured in 1998. It features a CNC FANUC PROFESSIONAL 3 control system, a table size of 1000 x 500 mm, and a spindle speed of up to 15000 rpm. X, Y, Z travels are 900, 500, and 450 mm respectively. Includes a conveyor. If you are looking to get high-quality milling capabilities consider the Makino V55-A15 machine we have for sale. Contact us for more information.

This 3-axis Makino EDNC 30 die-sinking EDM machine was manufactured in 1998. It features travel paths of 300mm in X, 250mm in Y, and 250mm in Z, a table size of 500 × 350 mm, and can handle a maximum workpiece weight of 500 kg. Consider the opportunity to buy this Makino EDNC 30 die-sinking EDM machine. Contact us for more information about this machine.

x-travel: 800 mm y-travel: 750 mm z-travel: 770 mm Control: FANUC Prof 3/A rapid travel x/y/z: 30000 mm/min palets changer: 630 x 630 table weight: 1200 Kg spindle speed:: 14000 U/min spindle taper: HSK A 63 spindle motor: 30/25 kW tool change unit: 40 pos distance spindle center to table: 100-850 mm Internal cooling system: weight of the machine ca.: 17 t dimensions of the machine ca.: 7,9 x 4,2 x 3,3 m Equipped with: - Fanuc Professional 3/A CNC control - Coolant through spindle - Pallet changer - Tool changer (HSK-A63) - Knoll coolant system (renewed) - Chip conveyor - Mütek briquette press (2015) The machine has been used reliably in single-shift operation in recent years, operating hours: Spindle hours: The scope of delivery includes numerous HSK-63 tool holders – both those currently in the machine and a complete Euro pallet with additional tool holders. - Two clamping towers  ...

control: FANUC 16 MA-Pro 3 Number of axles: 4 St. x-travel: 900 mm y-travel: 800 mm z-travel: 970 mm b-axis: 0.001 ° size of pallet: 630 x 630 mm tool piece magazine with: 244 milling spindle: HSK100 spindle turning speed - stepless: -12000 U/min chip conveyor: kW misc. accessories: weight of the machine ca.: 20 t dimensions of the machine ca.: 6.5 x 3 x 3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

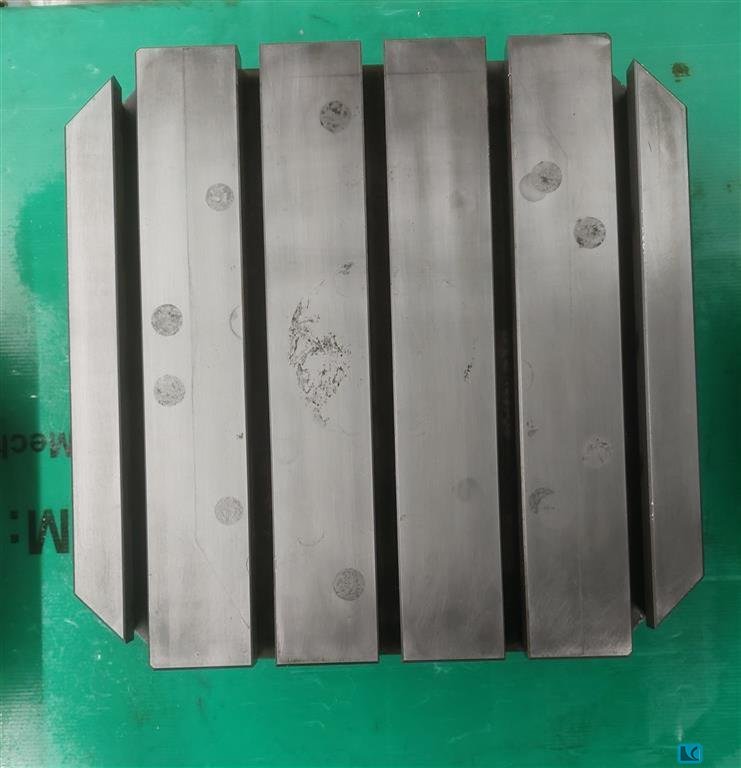

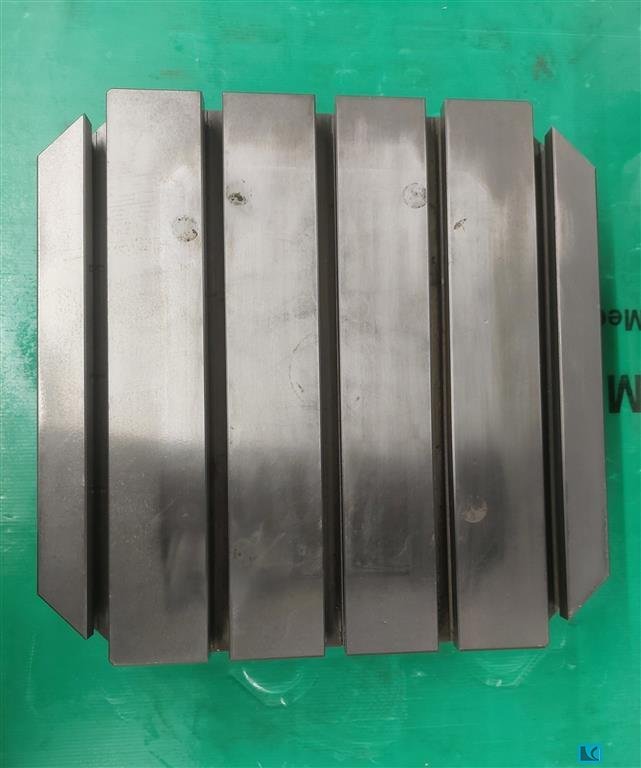

Basic pallets for MAKINO A77 /81 Dimensions 630 x 630 mm with T-slot spacing 125mm Several available !

Hexagonal tower Dimensions 500 x 500 x 500mm Height 930 mm Base plate 630 x 630mm Grid 40mm Double angle dimensions: 630 x 200 mm, height 760 mm, base plate 630 x 630mm, grid 40mm Square tower Dimensions 400 x 400mm Height 930 mm Base plate 630 x 630mm Grid 40mm

Key data: 500 mm, 1 mm, 500 mm

5-Axis CNC Vertical Machining Center with Pallet Pool Makino D500 Year of construction: 2011 Fanuc 310iS Professional 5 2-axis NC rotary and swivel table Erowa pallet handling system with 4 pallets Table size 400 x 400 mm C-axis 360° A-axis +30° ~ -120° X 500 mm Y 1,000 mm Z 500 mm Spindle speeds 300 – 3,000 rpm. 60-cavity tool magazine Offer number MV-6494

5 axle BAZ Makino D500 BJ 2010

This 3-axis Makino SNC 64-A15 was manufactured in 2001. It features a main spindle speed ranging from 300 to 30,000 rpm and a spindle motor power of 15 kW. The machine is equipped with a tool magazine holding 15 positions and offers a feed rate of up to 16,000 mm/min. If you are looking to get high-quality graphite and metal machining capabilities, consider the Makino SNC 64-A15 vertical machining centre we have for sale. Contact us for further details.

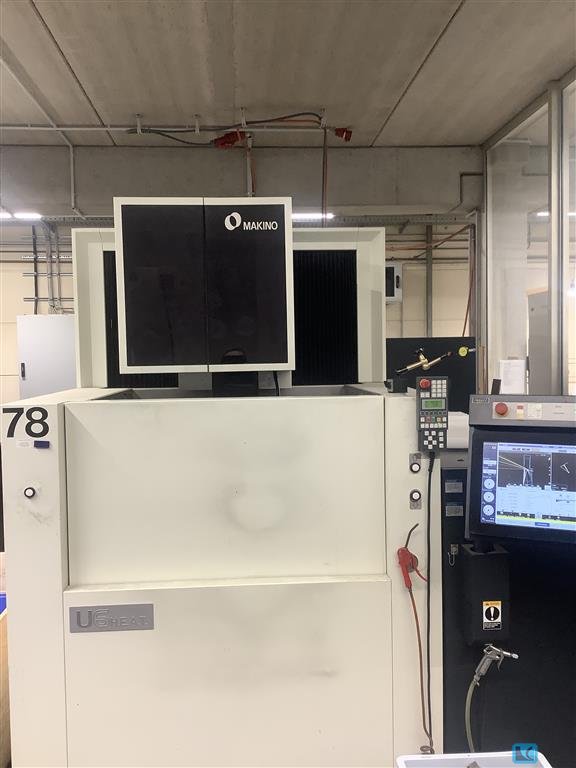

This 5-axis Makino U6 HEAT was manufactured in 2016. It features an impressive X-axis travel of 650 mm, Y-axis travel of 450 mm, and Z-axis travel of 420 mm. The machine has a maximum workpiece size of 1,000 x 800 x 400 mm and can handle a maximum workpiece weight of 1,500 kg. If you are looking to get high-quality wire EDM capabilities, consider the Makino U6 HEAT wire EDM machine we have for sale. Contact us for further details.

A horizontal CNC machining center Makino is available. Travel path X/Y/Z: 560mm/560mm/600mm, pallet dimensions X/Y: 400mm/400mm, max. workpiece weight: 500kg, indexing: 0.001°, rapid traverse: 84m/min, feed rate: 50m/min. Machine dimensions X/Y/Z: approx. 4650mm/1950mm/2850mm, weight: approx. 8600kg, control system: Fanuc System 16iM/Makino Professional 3. Documentation available. An on-site inspection is possible.

Inv. Num. : 9172 Type: EDNC 65 Producer: MAKINO Created: 1998 Parameters: Max. travel length of the X-axis: 650 mm Max. travel length of the Y-axis: 450 mm Max. travel length of the Z-axis: 350 mm Maximum electrode weight: 100 kg

Horizontal machining center Manufacturer: Makino Type: a51-A60 Year of Make: 2004 Control: CNC FANUC System 16 iM Travel: X/Y/Z: 560 x 560 x 500 mm Distance from table centre to spindle nose: 70 – 570 mm Swivel height from pallet surface max.: 900 mm Permissible swivel space in the working area: 630 mm Tool magazine: 60 memory locations Max. loading weight: 180 kg T command can be freely assigned to 4 digits Tool change time: 0.9 sec. Tool dimensions max.: Ø 70 mm, 360 mm long Tool weight max.: 8 kg Spindle unit 50 – 12,000 min/min. Spindle unit with tool holder f. Cone hollow shafts according to DIN 69893 HSK-A63 Tool tightening force: 29 kN Pallet changing system, integrated into the machine Pallet change time: 7 sec. Pallet changer with storage of the 2 pallets in the Alternating cycle on storage station Pallet holder rotatable, index 90°  ...

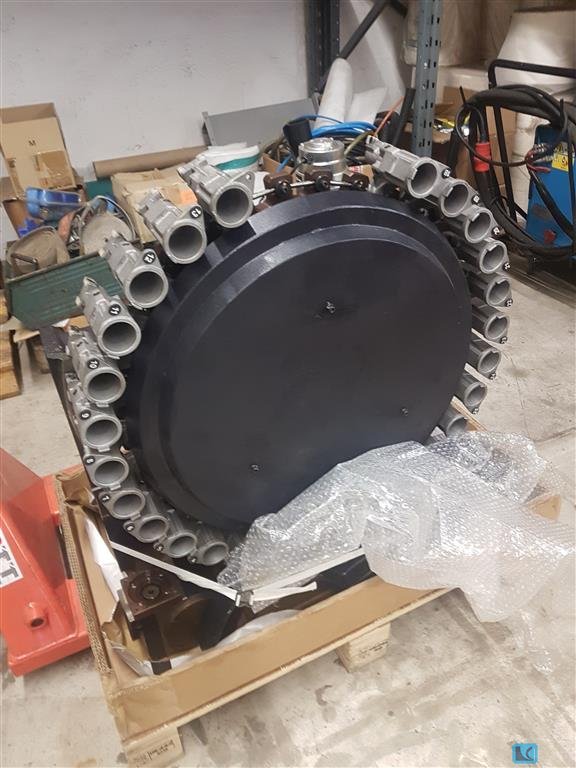

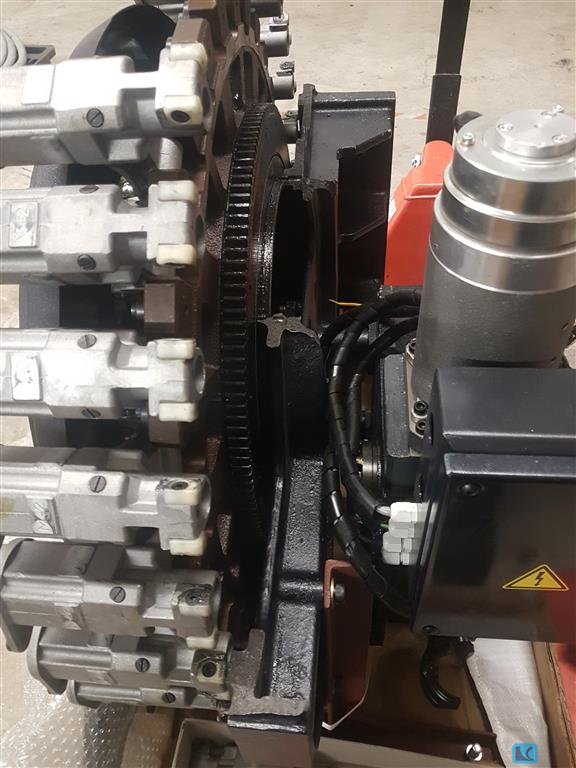

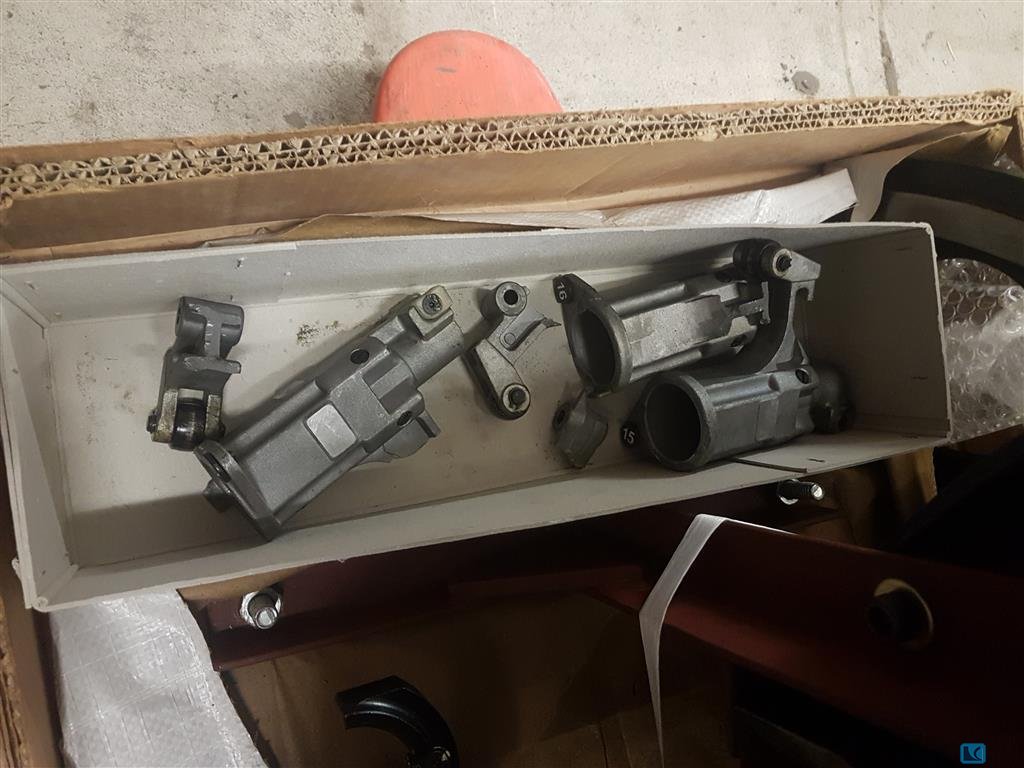

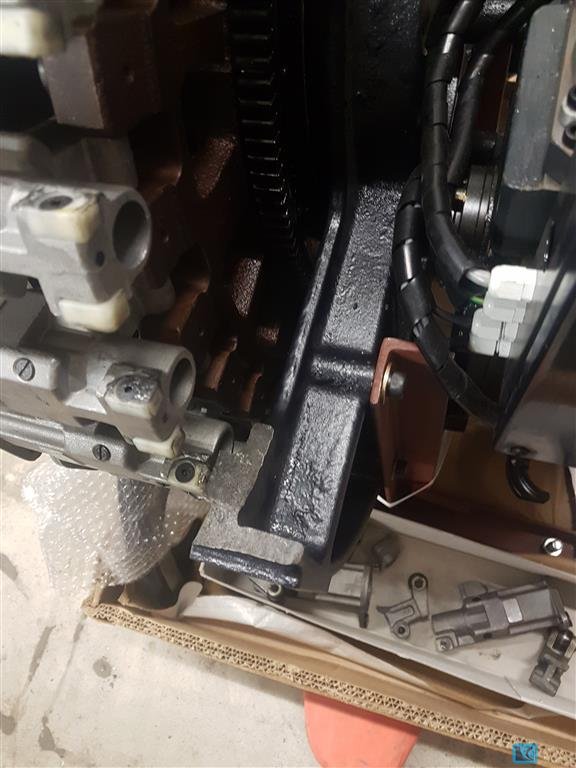

We are selling a new unused but defective tool magazine with tool changer for a Makino PS 95. The magazine body was broken in two parts with a crane hook during unloading of the machine from its transport box. Also some tool pots are damaged. Can be repaired or used as spare parts

x-travel:650 mm y-travel:450 mm z-travel:420 mm control:MAKINO Hyper i U-axis:± 75 mm V-axis:± 75 mm max. size of workpiece LxWxH:1000 x 800 x 400 mm workpiece weight:max. 1500 kg Table dimensions:910 x 710 mm weight of the machine ca.:5 t Dimensions (L/W/H):3 x 3 x 2,3 mm Memory:10 GB Wire EDM in good condition.

table length:920 mm table width:600 mm ampere:13,2 A weight of the machine ca.:6 t dimensions of the machine ca.:2,46 x 2,24 x 2,33 m X-axis:600 mm y-axis:400 mm Z-axis:260 mm max. table load:1500 kg The dimensions for transport are: wide 2240 mm x high 2330 mm x deep 2460 mm weight approx. 6000 kg.

Complete system with all accessories required for installation and operation, see below! Travels x = 7000 y = 1600 z = 800 / quill stroke w = 600mm General overhaul in 2007, year of production 1991: New control system Siemens Sinumerik 840D, new drive motors, guideways refurbished, new control cabinets. ECOCUT 1 was only operated for a few months thereafter Feed rate 12000 mm / min // w axis 6000 mm / min Xua2eg8fx Rotary table TDV 2 max. Workpiece weight 6t / clamping surface 1000x1000 Rotary table TDV 3 max. Workpiece weight 12t / clamping surface 1250x1600 Accessories: 2 like new angular crankset / chain tool change system / plate field / complete housing / Knoll funnel feeder / extraction / coolant system with belt filter All BWF fixators for installation of machine bed and panel

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. echnische data: External dimensions LxWxH: 1650x1440x1950 mm Weight: approx. 650 kg Clamping surface XxY: 930x630 mm Travel XxYxZ: 900x600x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reverse play: appr ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. Technical specifications: External dimensions LxWxH: 1970x2150x1950 mm Weight: approx. 950 kg Clamping surface XxY: 1230x1320 mm Travel XxYxZ: 1200x1300x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reve ...

End mill, end mill, cutter, shell cutter, milling head, angle cutter, shell angle cutter, angle end mill, prism cutter -Angle milling cutters: Attachment angle milling cutters, prism milling cutters -Type: Ø85 x 35 mm -Hole: Ø 27 mm -Quantity: 1x milling cutter available -Dimensions: Ø 85 x 35 mm -Weight: 0.8 kg

Product information \"Henninger Schnellauf - Milling Spindle Type 814 \" However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 814 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 4 - 25 mm - Gear ratio: 1:6 - Maximum speed ED 10%: 12,000 1/min - Maximum speed ED 80%: 10,000 1/min Auction-ID: A1-48483-31

Product information \"Henninger Schnellauf - Milling Spindle Type 801 \" However, the Henninger quick-opening milling spindles are not highly sensitive devices. They are suitable for everyday production The Henninger quick-opening milling spindles are not only used with carbide milling cutters or when processing non-ferrous metals, but also for processing steel and casting. Even if the machines reach the required speeds, , people like to use the high-speed milling spindle to clean the machines. and to prevent dimensional deviations due to heating of the headstock. - Type: Quick-run - Milling spindle type 801 - Tool holder SK 40 - Tool holder collets: yes - Collet range: Ø 2 - 16 mm - Gear ratio: 1:6 - Maximum speed ED 70%: 6,000 1/min Auction-ID: A1-48483-28

Operating voltage: 400 v Ma.Nr.: 41636 HEIDENHAIN positioning and control TNC 131 / 135 Complete Dokunnetation (operating instructions, technical plans) exists. Errors excepted!

Table clamping surface: 600 x 1100 mm traverse path x: 800 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: by hand approximately 50 mm of spindle speeds: 63-3150 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x/y/z 4.5/2,6/3 m / min. Supply: 380 V, 5.5 kW space: 3000 x 2500 x 2030 mm weight: 4000 kg

Table size: 500 x 1200 mm traverse path x: 1000 mm stroke y: 550 mm traverse path z: 600 mm spindle retainer: ISO 40 spindle speeds: 60-2700 rpm spindle drive: 10 kW Electr. Supply: 380 V, 20 kVA kW space: 3200 x 2800 x 2650 mm weight: 7.3 t

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

Table clamping surface: 630 ø mm traverse path x: 600 mm traverse path y: 450 mm traverse path z: 500 mm Quill stroke: hand 80 mm spindle retainer: ISO 40 spindle speeds: 20-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse rate: 4 m / min. Connection: 380V kW space: 2000 + 850 x 2000 x 2000 mm weight: 3300 kg

Stroke x: 600 mm traverse path y: 400 mm traverse path z: 400 mm spindle retainer: ISO 40 spindle speeds: 80-4000 rpm stufenl feeds. adjustable: 0,1-1500 mm / min rapid traverse: x & y/z 4/2.5 m / min. Supply: 380 V, 16 kVA kW space: 2450 x 2200 x 1900 mm weight: 2250 kg

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

MAHO C Axis Machine Table - Table diameter: 600 mm Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with freight forwarder.

Table clamping surface: 500 x 1600 mm table movement x: 1220 mm table movement y: 500 mm table movement z: 500 mm spindle retainer: SK 50 spindle speeds: 56-2800 rpm feeds longitudinal & cross: 10-1800 mm / min feed vertically: 2.5-450 mm / min. Supply: 400 V, 16 kVA kW space: 2000 x 2250 x 2150 mm weight: 4500 kg

Universal milling machine. Hure head. Table size: 2000x480mm. Longitudinal travel: 1700mm. Cross travel: 400mm. Vertical travel: 575mm. ISO50. Motor power: 20cv. Weight: 5500Kgs. Dimensions: 2550x2380x2680.

Universal milling machine with automatic movement ram. Table size: 1600mmx320mm. Longitudinal travel: 1200mm. Cross travel: 300mm. Vertical travel: 600mm. ISO50. Hure head. Equipped with DRO Fagor.

Universal milling machine. Table size: 1400mmx300mm. Longitudinal travel: 1200mm. Cross travel: 320mm. Vertical travel: 500mm. ISO40. Hure head. Speeds: 12. (40-1800rpm). Motor power: 7Kw.

Vertical machining center Cincinnati Millacron Traverse path x 1270 mm Y: travel 660 mm Z: travel 660 mm CNC control: Acramatic 850SX Table size: 1,370 x 660 mm Table load: 910 kg Rapid traverse x/Y/Z: 15,000 mm / min. Spindle speeds: 60-8,000 rpm. Spindle recording: ISO 40 Distance from spindle - table min/max: 150/880 mm Tool changers: 21 items Equipped with:-cooling device -Hand Council operation -Complete instructions Country of origin: England Spindle motor: 9 kW Machine weight: 8.000 kg Machine WxDxH: 3,600 x 2.900 x 3.000 mm

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Technical Specifications - Bridgeport Series I Table Size / Work Surface 9" × 49" (≈ 299 mm × 1245 mm) T-slots 3 pieces, spacing 2.5" (≈ 64 mm), groove width 0.625" (≈ 16 mm) Travel X (Transverse) without Power Feed: 36" (≈ 914 mm) with power feed: 33" (≈ 838 mm) Travel Y (Transverse to Feed) 12" (≈ 306 mm) Quill Stroke (Drilling Spindle Stroke) 5" (≈ 127 mm) Knee Lift (Z-Axis of Table) 16" (≈ 406 mm) Ram Adjustment (Head Stem on Ram Slide) 12" (≈ 306 mm) Min. / Max. distance spindle axis to table nose (spindle/table nose distance) min: 2.5" (≈ 64 mm) Max: 18.25" (≈ 463 mm) Min. / Max. distance spindle to column front (minimum/maximum internal width) min: 6.75" (≈ 171 mm) max: 18.75" (≈ 476 mm) Spindle / Quill Spindle Diameter: 1.875" (≈ 48 mm) Quill Diameter: 3.375" (≈ 86 mm) Spindle holder (standard): R-8 Spindle motor / power 30 minute ...

AVIA FNE 40NC milling machine was built in 2001 in Poland by Fabryka Obrabiarek Precyzyjnych AVIA S.A. The machine is used for precision machining of workpieces with a maximum weight of 400 kg. The machining process is performed in three axes by means of a reliable spindle with stepless speed adjustment. The spindle, mounted on a swivel workhead, moves in the Z axis on precision vertical guides. All this is complemented by the easy-to-use HEIDENHAIN NC control system, in which even the most advanced programmes can be created in just a few steps. The AVIA FNE toolroom milling machine weighs 1900 kg. Technical data of the AVIA FNE 40NC metal milling machine - NC controller: HEIDENHAIN TNC 310 - feed in the X/Y/Z axis: 620/420/400 mm - rapid traverse in the X/Y/Z axis: 6000/4000/4000 mm/min - feed rate adjustment: stepless - maximum workpiece weight: 400 kg - horizontal work table  ...

Qty.1 Second-hand milling (scalping) line Mfc.: Torrington Type: 30" Slap Miller Speed: 500 rpm – 18 fpm Capacity: 1,9 m/dk

Universal milling machine. Table size: 1200mmx320mm. Longitudinal travel: 950mm. Cross travel: 300mm. Vertical travel: 500mm. ISO40. Hure head. DRO Fagor.

Table size: 440 x 1200 mm table movement x: 950 mm table movement y: 250 mm table movement z: 475 mm spindle retainer: ISA 40 spindle speeds: 40-1800 rpm feeds longitudinal & cross: 16-630 mm / min feed vertically: 5.6-224 mm / min. Supply: 380 V, 7.5 kVA kW space: 2150 x 2000 x 2100 mm weight: 2400 kg

Drilling capacity in steel: 32 mm Drilling capacity in cast: 40 mm Cutter head milling max.: 80 mm Projection: 220 mm Spindle speed: (12) 75-3200 RPM Spindle retainer: MK 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Milling head swiveling: - 90 ° to + 90 ° Distance from spindle / table: 60-485 mm Head height: 425 mm T - slot size: 14 mm S1 motor power output 100%: 1,1 / 1,5 kW (400 V) Motor power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H) : 1140 x 770 x 1500 mm Approximate weight: 287 kg without stand Features: Quick and easy change of speed using the gear selector switch Versatile application possibilities such as drilling, milling, thread cutting, … High running smoothness by polished, running in an oil bath gear gears Right - and the link run device for thread cutting Quill adjustment by means of ...

Standard ALB ear performance: 30 mm Thread cutting performance: M 20 (option) Thread: M 12 Spindle: MK 3 or SK 30 (option) Quill stroke: 100 mm Longitudinal / cross travel: 350/160 mm Distance spindle/cross table: 80 to 450 mm Table area: 600 x 240 mm Column diameter: 110 mm Total height: Max 1,920 mm Weight: 340 kg Motor pole shift bar: 0.8/1.5 kW Spindle speeds, continuous, selectable: 10 spindle speeds: 80-1,400 rpm 10 spindle speeds: 120-2,160 rpm 10 spindle speeds: 160-2,800 RPM Facilities: A versatile, accurate and handy drilling milling machine. The quiet-running drive and a perfect clamping of Quill guarantee good surfaces when milling. The headstock can be swung out. The stage is precise and precisely adjustable. Pitch 0.05 mm. clamping device for both axes. Full motor protection. Machine incl. Cabinet.

Vertical Milling Machine RAMBAUDI type RAMMATIC 600 Travel X 1260 mm Travel Y 690 mm Travel Z 600 mm Numerical Command NUM 1060 Cone SA 50 Table size 2000 x 600 mm Year of construction 1991 Voltage 380 V Depth 2500 mm Total height 4000 mm Weight approx 9 T

Vertical Milling Machine Droop & Rein type FS130 Travel X 2000 mm Travel Y 1000 mm Travel Z 1000 mm Spindle SA 50 Sensitive spindle exit: 200 mm Rotation from 31,5 to 1600 RPM Table size 2400 x 1070 mm Year of construction 1976 Throat depth 950 mm Head Tilt head Spindle motor 22 kW Scale HEIDENHAIN 3 axes New electrical panel in 2006 Voltage 380 V Width 3500 mm Depth 4700 mm Total height 4500 mm Weight 26 T

2 piece F. 17.3 2 piece F. 17.34 Milling machines with double head (duplex), with counter holder for horizontal milling

Table size: 254 x 1100 mm Table movement x: machine. u. v. hand 682 mm Table movement y: hand 380 mm Table movement z: hand 457 mm Milling head swiveling to: +/-90 or +/-45 ° Spindle retainer: ISO 40 Spindle speeds: 70-2300 rpm Quill feeds: 0.038 â 0.152 mm / min Spindle drive: 380 V, 2.2 kW Space: 1600 x 1600 x 2150 mm Weight: 1420 kg

x-280 ,y- 200 , Z 315 , Table dimensions 380x380/250x500 A lot of writings,much more than pictured

Table surface: 300 x 1300 mm Table movement x: 950 mm Table movement y: 220 mm Table movement z: 400 mm Spindle intake: MK 5 Spindle speeds: 25-1200 rpm Prests lengthwise & across: 7.5-635 mm/min Presens vertical: 3-250 mm/min Electr. Connection: 380 V, 7.5 kW Space requirement: 1670 x 1500 x 1750 mm Weight: 2600 kg

Technical data: Fixed angular table: Fixed angular table clamping area: 800 x 400 mm Max table load: 200 kg Working spindle: Tool holder horizontally and vertically: ISO 40 Power of the main drive motor / 100% ED: 2.2 kW Vertical milling head: Speed range, tiered: (12) 50 - 2000 rpm Drill pinole, stroke: 100 mm Swivel range: +/- 90° Travel: X-axis automatic/man.: 385/400 mm Y-axis automatic/man.: 185/200 mm Z-axis automatic/man.: 365/380 mm Feeds: Feed range: 0-650 mm/min Number of feeds: infinitely adjustable Rapid response: 1000 mm/min Characteristics: - Machine accuracy according to DIN 8615 - 3-axis digital displays FAGOR® Innova (option) - Spindle run max. 0.005 mm, incl. test protocol according to DIN 8615 (rolling bearing SKF®/NSK®) - Vertical milling head can be swivelled out for horizontal milling (without d ...

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Blade length 205 mm Max cutting performance Sheet R = 42 kg / mm2 4 mm Sheet R = 70 kg / mm2 3 mm Engine power 3 kW Number of beats / minutes 50 min Table dimension 625 x 954 mm Capacity of the oil tank 25 l Weight 500 kg The setting between the blades is fully automatic. Standard: - 1 set of knives at 30 ° (mounted on the machine) - 1 stop switch - 1 general circuit breaker - 1 stop adjustable and adjustable every 15° - Fill the first oil - Manual with installation and maintenance instructions and service keys.

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe
