chiron boring mills and machining centers used for sale

Manufacturer: Chiron Model: FZ 08K S Magnum SK Year of Manufacture : 2007 Type of Machine : Vertical Machining Center Factory overhaul: 2017 (Chiron CMS) Operating hours: approximately 22,500 h CNC control: Siemens 840D (PCU 20 / NCU 572.4) Spindle: water-cooled motor spindle, 15,000 rpm Spindle last replaced: September 2025 Last major service: October 2025 (Chiron, 4,000 h interval) NC swivel head swivel range: -20 degrees / +115 degrees Travel X / Y / Z: 450 mm / 270 mm / 310 mm Rapid traverse X / Y / Z: 75 m/min Acceleration X / Y / Z: 1g / 1.5g / 2g Tool positions: 40 x HSK-A 40 Chip-to-chip time: 2.6 seconds vertical (DIN) --------------------------------------------------------------- Equipment and Accessories Included Rotary table package AWU 160 with D105 mm (positioning axis) Hainbuch Spanntop collet chuck D100 6th side machining attachment Part removal hand ...

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

FZ15KS HIGH SPEED 4 axis vertical machining center X: 550mm Y: 400mm Z: 360mm 4th axis original Peiseler CNC Siemens 840D Table surface 1050 x 450mm Toolchanger 48 posts ISO 40 Spindle speeds up to 12000 1/min with 4th axis Renishaw broken tool detector Coolant through spindle swarf conveyor Can be inspected under power in our warehouse. Mimu machine tools (Italy)

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

BAZ Chiron FZ18W

General Manufacturer: Chiron Type: DZ 28 P five axis Year of manufacture: 2023 Control: Siemens Sinumerik 840D SL Travels: X 1,200 mm Y 1,100 mm Z 800 mm Rapid traverse: X 120 m/min Y 75 m/min Z 75 m/min Axle acceleration: X 1.0 g Y 0.8 g Z 1.5 g Main spindle drive Speed: up to 20,000 rpm 2-axis torque swivel device 2 x face plates diameter: 479 mm Swivel axis as A-axis Swivel angle: ± 120° Swivel radius: 700 mm Bridge dimension: max. 2,400 mm Repeatability: ± 5" Speed: 42 1/min NC rotary table as C-axis Clamping force: 25 kN +/- 15 % per clamping segment Repeatability: ± 5" Speed: 100 1/min Loading and unloading station for tools Tool Stations: 2 x 36 Tool shank: HSK-A 63 DIN 69893 Tool diameter: max. 78 mm Tool diameter with free adjacent spaces: max. 160 mm Tool length: max. 450 mm Tool weight: max. 10 kg Tool change time: approx. 0.9 s Ma ...

Vertical machining center Chiron FZ08W :::SPECIFICATIONS::: CNC Model: Fanuc CNC version: 21M Tool connection: HSK 32 Spindle power: 3,7Kw Number of spindle revolutions: 15000 Number of tools: 12 X Axis Stroke: 300mm Y Axis Stroke: 250mm Z Axis Stroke: 250mm Rapid feeds linear axes X Y Z: 40 40 60m/min Guides: roller Pallet change: yes Pallet size: 550 x 300mm Maximum load allowed: 200Kg Rotopallet: yes Chip evacuator: carpet :::D IMENSIONS AND WEIGHT::: Length: 2600mm Width: 1400mm Height: 2100mm Weight: 2200Kg

Inv. Num. : 7911 Type: FZ 12 WM Producer: Chiron Created: 2011 Parameters: Control system: Fanuc Series 21iM Switch-on hours: 94645 h Hours: 45953 h Work table length: 850 mm Work table width: 350 mm X-axis travel: 550 mm Y-axis travel: 300 mm Z-axis travel: 425 mm Machine height: 2600 mm Machine length: 2800 mm Machine width: 1800 mm Equipment: Grips

BAZ Chiron FZ 12 S

Key data: 2000 mm, 500 mm, 550 mm

Specifications: Manufacturer: Chiron Type: Mill 2000 high speed Control: Heidenhain TNC 530 Year of Make: 2013 Travels: X 2,000, Y 500, Z 550 mm Working spindle Speed: 12,000 rpm Start table Dimensions L/W: 2,600 x 550 mm Table load: 1,000 kg Tool/movement Tool holder: SK40 Tool changer: 40-fold Measuring system: direct X/Y/Z Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Conveyor Preparation FK7 Loading automatically "opening and closing" Tub flushing

5 axle BAZ Chiron FZ 12 KS BJ 2003 more technical data and more pictures on request,

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

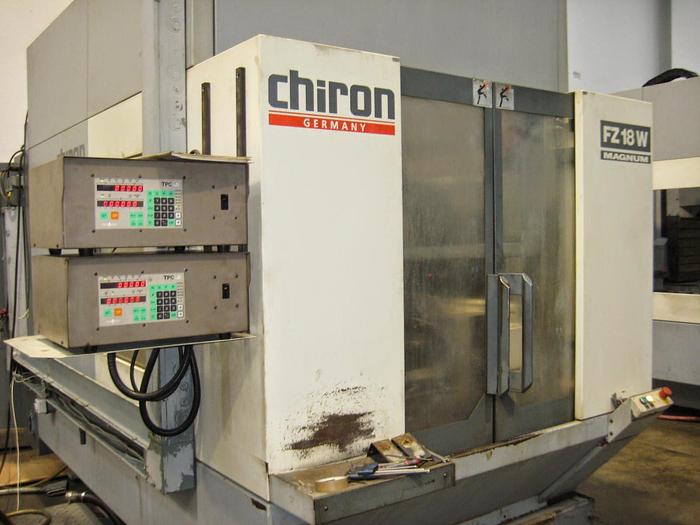

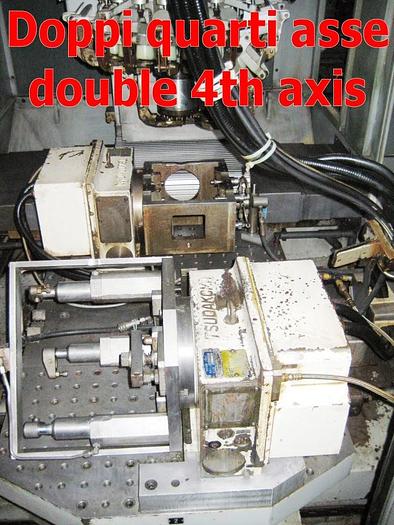

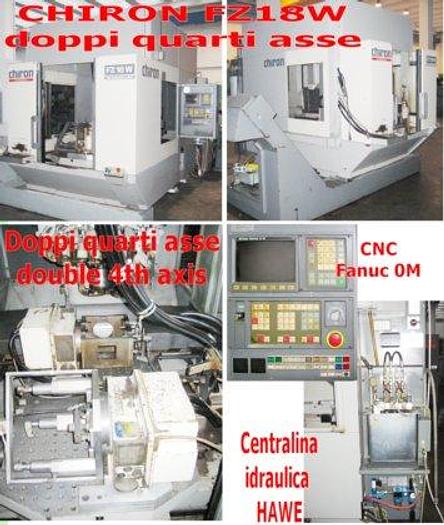

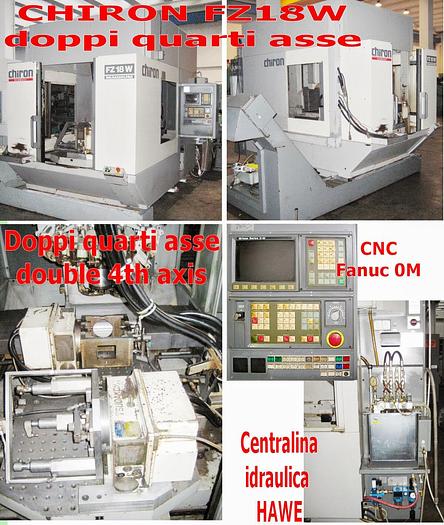

CHIRON MODEL FZ18W MAGNUM 4 axisVertical machining center with rotopallet and double 4th axis20 TOOLSISO 40Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kWX = 625Y = 400Z = 400Rapids 40m/minTable area: 2 x 900 x 470- TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos.- original HAWE hydraulic unit - FANUC 0m be inspected under power in our warehouse.Mimu Machine tools Italy

Machine details Bearing number 1105-03038 Machine type Machining Center - Vertical Make CHIRON Type FZ12 WM Built in 1997 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time immediately Freight base freely loaded from location Technical details x-path 550 mm y-path 300 mm z-way 425 mm Tool holder SK 40 Control Siemens 810 Total power requirement 12 KVA Machine weight approx. 4.0 t Transport dimensions LxWxH 2.05x3.05x3.0 m Information Machine is located in the technical GOOD CONDITION with interchangeable plate 2 X 4th axis PEISELET PT 160 WITH SIEMENS 810 WITH HYDROLIC CLAMPING IN THE TABLE 24 FACH WERCKZEUGWECHSLER

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

Twin pallet vertical machining center CHIRON FZ15KW Highspeed Spindle 12000 RPM Rapids asse Z 60m/min 2005 Pallet 2 x 660 x 400 mm X 550 Y 400 Z 360 coolant through spindle 48 tools HSK63 swarf conveyor CNC Siemens 840D This Machine can be inspected and tested under power in our warehouse in Gussago BS Italy

Machine Details Stock-No. 1105-03574 Type of machine Machining Center - Vertical Make CHIRON Type FZ12 WM Year of manufacture 1995 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EXW -free on truck Technical details x-travel 550 mm y-travel 300 mm z-travel 425 mm tool taper SK 40 control Siemens 810 total power requirement 12 KVA weight of the machine approx. 4.0 t transport dimensions LxWxH 2,05x3,05x3,0 m Additional information chiron fz 12 wm with changeable plate with 2 x 4. axis PEISELER WIth CONTROL SIEMENS 810 TOOLS SK 40

Machine Details Warehouse number 1105-03697 Machine Type Machining Center - Vertical Brand CHIRON Type FZ 08 S Year of construction 1998 Control type CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately - pre-sale Freight base from stock HAGUENAU FRANCE Technical details x-travel 300 mm y-travel 250 mm z-travel 250 mm Total power requirement 8 kW Machine weight approx. 1.8 t Information very well maintained 3 axles BZ CHIRON FZ 08 with FANUC 18 I M - speeds up to 10000 rpm - rapid traverses up to 60 m ! HSK 30

Key data: 1200 mm, 400 mm, 425 mm

Inv. Num. : 4455 Type: FZ 16L Producer: CHIRON Created: 1987 Parameters: Control system: Siemens Sinumerik System 3 Work table length: 1880 mm Work table width: 475 mm Mechanical feed length axis X: 1200 mm Mechanical feed length axis Y: 400 mm Mechanical feed length axis Z: 425 mm Machine height: 4000 mm Machine length: 2400 mm Machine width: 2800 mm Machine weight: 3500 kg

Key data: 550 mm, 450 mm, 500 mm

Machine Details Stock-No. 1105-03698 Type of machine Machining Center - Vertical Make CHIRON Type FZ 15 W HI SPEED Year of manufacture 2001 Type of control CNC Storage location FRANCE Country of origin france Delivery time ready for delivery Freight basis EX WORK Price Technical details X-Travel 550 mm Y-Travel 400 mm Z-Travel 425 mm control SIEMENS 840 D table surface area 600 X 350 mm tool taper ISO SK 40 spindle turning speed - stepless 20 - 12,000 rpm Feed Stepless 0 - 60,000 mm/min Rapid Traverse 60 m/min feed force X/Y axis 5.000 N feed force Z axis 10.000 N Tool Magazine: 20 diameter of tools max. 65 mm tool diameter with 2 vacant positions 150 mm Tool length - max. 220 mm Spindle diameter in front bearing 70 mm max. torque on the spindle max. 180 Nm Distance between table/spindle 280 - 705 mm distance between spindle/column 480 mm Milling capaci ...

x-travel: 4500 mm y-travel: 630 mm z-travel: 630 mm control: Siemens type: 810 M Tool changer: 40 Pos. spindle taper: ISO: 40 spindle turning speed range: 20-7100 U/min table surface area: 5100x680 mm spindle drive: 38 kW T-slot - width: 18 mm chip conveyor: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MAKE CHIRON MODEL MILL 800 5 axis 5 axis machininng center (milling/turning from bar) Under power in our warehouse in Gussago BS Italy Mimu Machine tools CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs 90fjsieew Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min/max 5/65 mm L= 600-1200 mm Highspeed (2) 60m/min. Spindl ...

Vertical machining center CHIRON FZ08W 2 pallets 12 HSK32 tools Spindle 15000 rpm HSK-32 rotopallet (2 pallets) CNC Fanuc 21iM chip conveyor The machine is under power in our warehouse in Gussago BS. Mimu Machine Tools Gussago BS Italy, CNC type: Fanuc 21iM, 2 pallets: Yes, Number of pallets: 2, Spindle speed RPM: 15000

5 axis machininng center (milling/turning from bar), Under power in our warehouse, MAKE CHIRON, MODEL MILL 800 5 axis, CNC Fanuc 18iMBS (5 simoultaneous axis 1), X, Y, Z (mm) 800 – 500 - 550, Rapids (Highspeed) 60 m/min, Swivelling head CNC controlled (B axis) +/- 100°, Turning spindle Peiseler, Milling spindle 12.000 giri / 140 Nm (v nota 2), Tools 65, Tool type HSK-A 63 DIN 69893, Tool-change time 1,5 sec (v nota 3), Table 1400x500, Max table load 1200 kgs, Coolant through spindle 70 bar (see note 4), CNC controlled clamping/rotating unit for 6th face machining (v. nota 5), Pressurised linear encoders, Swarf conveyor, Renishaw-ready, Y.O.M. 2006, Weight 7500 kgs, Turning package, Max dia 65mm, RPM: 15 / 4500, Max 42,5 KW / 90 Nm., Hydraulic clamping 800 Nm., Bar loader ILS-RBK- 10012 65, Diameters min/max 5/65 mm L= 600-1200 mm, Highspeed (2), 60m/min., Spindle 20-12.000 min.â ...

Chiron FZ18W Magnum, rotopallet, 1999, CNC Siemens 840D, X 630 Y 400 Z 425, tables (2) 850x450mm, 20 tools, ISO 40 / 18kW / 140 Nm, 40m/min, HAWE hydraulics, automatic doors, swarf conveyor, 6 ton, 3,6 x 2,25 x 2,85, machine can be inspected under power in our warehouse, Mimu Machine Tools (Italy)

CHIRON MODEL FZ18W MAGNUM 4 axis Vertical machining center with rotopallet and double 4th axis 20 TOOLS ISO 40 Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kW X = 625 Y = 400 Z = 400 Rapids 40m/min Table area: 2 x 900 x 470 - TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos. - original HAWE hydraulic unit - FANUC 0M 1995 Can be inspected under power in our warehouse Mimu machine tools (Italy), X: 625, Y: 400, Z: 600, 4th axis: Yes, (2x) Tsudakoma 360 000 pos.

Vertical machining center, CHIRON FZ08KW, 2 pallet, 15000 RPM, HSK40A, CNC Fanuc 21iM, The machine is visible in our warehouse in Gussago BS. M i m u Machine Tools Gussago BS Italy The machining center is a machine tool equipped with a numerical control capable of performing multiple mechanical operations with a single set-up on multiple surfaces of the same work piece. It is generally equipped with several motion axles and one automatic tool exchange system and sometimes multiple pallets

Manufacturer: Chiron Model: FZ15 S High Speed Year of Manufacture: 2007 Operating Hours: 48,000 h Find more here - / Contact us at -

Four Chiron CNC machining centers are available. Travel X/Y/Z: 1250mm/840mm/550mm, rapid traverse X/Y/Z: 60m/min, speed: 12000rpm, power: 22.5kW, torque: 140NM, tool positions: 24, tool holder: HSK-63, max. tool length: 320mm, machine weight: approx. 10000kg, control: Siemens 840D. Including IKZ, chip conveyor and Fibro swivel axis. Documentation available. On-site inspection is possible. Individual sale possible.

A machining center is available. Travel X/Y/Z: 550mm/400mm/425mm, A-axis: +/-100°, rapid traverse: 40m/min, speed: 10500rpm, tool positions: 20, tool holder: SK40, table load: 300kg, control: Siemens Sinumerik. The screen of the machine is defective. Documentation available. On-site inspection is possible.

A machining center Chiron, which was completely overhauled in 2013, is available. Travel path X/Y: 6000mm/630mm, rapid traverse: 60m/min, tool positions: 92, tool holder: HSK-A63, speed: 12000rpm, torque: 140Nm, milling axes: 5, weight: approx. 20000kg, control: Siemens S840D, operating hours: 77344h. Includes scraper belt conveyor, OKZ preparation, Knoll VRF 250 vacuum rotary filter, high-pressure pump (70bar), emulsion mist extraction (2x800m³/h), central partition for pendulum machining, hydraulic unit (210bar), and Kohn linear clamping system with 8x hydraulic vices Multi 2000MFS 125/680 HD. Documentation available. An on-site inspection is possible.

Manufacturer: Chiron Model: MILL 6000 high speed with NC swivel head Year of Manufacture: 2004 Major overhaul: 2013 Operating hours: 77,374 h Weight: 19,500 kg Power Supply: 3/N/PE ~ 50/60 Hz Working Voltage: 400 V Control Voltage: 220/24 V Power Consumption: 52 kVA Rated Current: 75 A Fuse: 80 A Last spindle replacement: March 2021 (approx. 7,300 spindle hours since) Technical Data: - Control: Siemens 840D (PCU50, NCU572.4) - NC swivel head - Travel paths: X 6,000 mm / Y 630 mm - Rapid feed: X / Y / Z = 60 m/min - Motor spindle: 12,000 rpm, 140 Nm - Tool change time (chip-to-chip): 3.0 sec (vertical), 4.7 sec (horizontal) - Tool magazine: 92 tool positions, HSK-A63 Find more here - / Contact us at -

Key data: 450 mm, 270 mm, 310 mm

Chiron FZ08K S Magnum Work table: length 770mm, width 290mm (clamping surface) Rigid table with chip tray for optimum chip fall during wet and dry machining. With raster drilling pattern: M16 x diameter 15 H7 x 50mm Rapid traverse: 75m/min in X, Y and Z axis Max. speed [rpm]: 3000 Dimensions/Weight: Length [m]: 2.308, Width [m]: 1.405, Height [m]: 2.447 Total weight [Kg]: 3400 Electronics: Control type: Siemens CNC control 840D (PCU 50 / NCU 572.3, 6 measuring circuits, 1 channel) incl. 10.4" TFT color screen/full keyboard OP010S Control Panel Logic Windows NT/XP Machine connection: Voltage [V]: 400 / 230 + 6% / -10% - 50Hz/N/Pe Frequency [Hz]: 50/60Hz Type of current: three-phase current Power: 14kVA

Key data: 630 mm, 400 mm, 500 mm

Chiron FZ 18 W, NC machine: 5-axis machine Interference circle diameter [mm]: 630 with variaber Wz alternating plane Plate size: Workpiece changing device 0 / 180° weight-dependent, Self-regulating thanks to self-learning speed control Transport load per side Ø - max. 400Kg with stainless steel centre partition Clamping area 2 x 940 x 470mm² with threaded and fitting hole grid: M16x Ø 15H7x50mm Workpiece change time: approx. 3.7sec. weight-dependent, Self-regulating thanks to self-learning speed control Workbench: Two-axis NC rotary table Type ATU 200/AWU 160, Fabr. PEISELER Face plates Ø 180mm with centering hole A50 + Ø 012 Fixing pin Ø 16H7 and 4x M10 in bolt circle 104.8 Center height 174mm with horizontal axis of rotation Dimension to upper edge of face plate with vertical axis of rotation 263mm Sub-range 5, axis 360° continuous, 4th axis 0-90° S ...

Key data: 450 mm, 270 mm, 310 mm

Chiron FZ08KS Magnum, NC machine: 3-axle Workbench: Length [mm]: 770, Width [mm]: 290 Table information: Rigid table with chip tray for optimal chip fall for wet and dry machining Clamping area: 770mm x 290mm with raster drilling pattern M16 x 15H7 x 50mm Table load: max. 500 kg Rapid traverse: X and Y axis 40m/min, Z axis 60m/min Max. speed [rpm]: 1500 Dimensions/Weight: Length [m]: 2,308, Width [m]: 1,405, Height [m]: 2,447 Total weight [Kg]: 3400 Electronics: Control Type: Siemens CNC Control 84OD PCU 50 / NCU 572.4, 6 measuring circuits, 1 channel incl. 10.4" TFT color screen / full keyboard OPO10S Windows NT Control Panel Logic NO RAM 256KB Machine connection: Voltage [V]: 400 / 230V t 107o - 50Hz/N/PE Frequency [Hz]: 50/60Hz Type of current: three-phase current Power: 13kVA Remark Accessories: Pressure monitoring of internal cooling

Travel X/Y/Z: 800mm/550mm/550mm, tool holder: HSK63, spindle speed: 12000rpm, tool positions: 65, control: Siemens 840D, spindle hours: approx. 16000h. 3-axis robot System 3R Transformer WorkMaster, year of manufacture: 2008, transfer weight: 150kg, stroke: 1500mm, pallet positions: 2x12. Including System 3R GPS 240 zero-point clamping system, Knoll chip conveyor, Knoll paper band filter, Blum LaserControl laser measuring system, Renishaw 3D probe, and oil mist extraction. Documentation available. An on-site inspection is possible.

CHIRON FZ18 S CNC machining center with SK40 rotary table integrated as 4-axis in the control system Control: SIEMENS NUMERIK 810 Not in operation since 2016

Travel X/Y/Z: 2000mm/610mm/630mm, tool holder: SK40, spindle speed: 9000rpm, tool stations: 40, rapid traverse: 60m/min, table dimensions X/Y: 2100mm/720mm, max. table load: 1000kg. Control: Siemens Sinumerik 840D, operating hours: 18272h. Including conveyor and coolant system. Documentation available. An on-site inspection is possible.

Manufacturer: Chiron Model: DZ 12K W Year of Manufacture: 2010 - High-speed CNC machining system by Chiron - Equipped with 4th axis and integrated rotary table for high productivity - Includes Knoll chip conveyor - Includes water treatment plant Find more here - / Contact us at -

CHIRON FZ08 KS Magnum High Speed Plus (HSP) High-Speed Machining Center (HSP) TECHNICAL FEATURES: Year: 2006 NC Type: FANUC 18i-MB5 Number of axes: 7 X-axis travel: 450 [mm] Y-axis travel: 270 [mm] Z-axis travel: 310 [mm] X, Y and Z fast travel speed: 75000 [mm/min] Maximum diameter in bar turning spindle: 32 [mm] Maximum speed Turning spindle: 8000 [rpm] Maximum power turning spindle: 12 [kW] A-axis angular travel: 360 [°] A-axis indexing accuracy: 0.001 [°] B-axis angular travel: -20° / +115 [°] B-axis indexing accuracy: 0.001 [°] Pin Attachment: HSK40 Maximum speed Spindle: 30000 [rpm] Number of tool magazine stations: 40 Turning part by robot (6th side machining): Yes RS232 Port: Yes Installed power: 17 [kVA] Supply voltage: 400 [V] Operating hours: 9911 [h] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW p ...

General Manufacturer: Chiron Type: DZ 12 W Magnum high speed plus Control: Siemens 840D Year of Make: 2016 Travels: X 550 mm Y 400 mm Z 400 mm Rapid traverse X/Y/Z: 75 m/min Operating hours: 14,709 h Working spindle Speed: 20,000 rpm Torque: 29 Nm Power: 24 – 36 kW Tool holder: HSK 63A Double spindle spindle spacing: 250 mm Tool changing table Dimensions L/W: 660 x 950 mm Tool/movement Tool changer: 32-fold Dimensions and weight Weight: approx. 9,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Spindle coolers IKZ high-pressure system with belt filter Knoll KF150/500 Chip conveyor Probes Renishaw Oil mist extraction Blum Laser Measurement

General Manufacturer: Chiron Type: DZ 08 W Magnum high speed Control: Siemens 840D Year of Make: 2015 Travel: X 450 mm Y 270 mm Z 310 mm Rapid traverse X/Y/Z: 75 m/min Working spindle Speed: 18,000 rpm Tool holder: HSK 40-A Tool/movement Tool changer: 16-speed Dimensions and weight Weight: approx. 3,600 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Workpiece changing table IKZ Coolant System with Belt Filter Knoll Chip conveyor Oil mist extraction Probes Blum Laser Measurement

Travel X/Y/Z: 650mm/400mm/425mm, table dimensions X/Y: 545mm/540mm, max. table load: 500kg, speed: 10000rpm, tool stations: 20, rapid traverse: 30m/min, feed rate: 20m/min. Machine dimensions X/Y/Z: approx. 3400mm/2100mm/2800mm, weight: approx. 5500kg. On-site inspection is possible.

This CHIRON MILL 2000 Vertical Machining Center was manufactured in the year 2003. It is equipped with a Siemens Sinumerik control unit. The machine has a spindle speed of 12000 rpm.

This 4-axis CHIRON DZ 18 W vertical machining center was manufactured in 2021. Consider the opportunity to buy this CHIRON DZ 18 W vertical machining center. Contact us for more information.

This 4-axis CHIRON FZ 15 KWM HS vertical machining center was manufactured in 2012. If you are looking to get high-quality milling capabilities, consider the CHIRON FZ 15 KWM HS machine we have for sale. Contact us for more information.

This 4-axis CHIRON DZ18W was manufactured in 2018. Ideal for precision vertical machining, this model offers robust construction and reliable performance. Consider the opportunity to buy this CHIRON DZ18W vertical machining centre. Contact us for more information.

This 3-axis CHIRON Mill 6000 SK was manufactured in 2004, featuring a high-speed motor spindle at 12,000 rpm and a travel range of X 6,000 mm, Y 630 mm, Z 550 mm. It includes a 5-axis milling package, 92 tool positions, and a Marposs collision monitoring system. Ideal for long part machining up to 6,000 mm and pendulum machining. If you are looking to get high-quality milling capabilities consider the CHIRON Mill 6000 SK machine we have for sale. Contact us for more information.

This 4-axis CHIRON FZ 15 W Magnum HS vertical machining center was manufactured in 2014. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this CHIRON FZ 15 W Magnum HS vertical machining center. Contact us for more information.

CHIRON FZ 08K S Magnum HSP High-Speed CNC Machining Center TECHNICAL FEATURES: Year: 2007 NC Type: FANUC 18i-MB5 Number of axes: 7 X-axis travel: 450 [mm] Y-axis travel: 270 [mm] Z-axis travel: 310 [mm] X, Y and Z fast travel speed: 75000 [mm/min] Maximum diameter in bar turning spindle: 32 [mm] A-axis angular travel: 360 [°] A-axis indexing accuracy: 0.001 [°] B-axis angular travel: -20° / +115 [°] B-axis indexing accuracy: 0.001 [°] Pin Attachment: HSK40 Maximum speed Spindle: 30000 [rpm] Number of tool magazine stations: 40 Installed power: 17 [kVA] Supply voltage: 400 [V] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW probe type TS27R x1 Spindle Cooling Unit x1 watering tray x1 unit for 6th side machining x1SCHUNK gripping system x84 HSK40 Type Tool Holder x14 Collet Type F35 x1 Electrical Cabinet Air C ...

A CNC machining center Chiron factory-overhauled by the manufacturer in 2017 is available. Travel path X/Y/Z: 450mm/270mm/310mm, NC head swivel: -20°/115°, tool positions: 40, tool holder: HSK-A40, speed: 15000rpm, control: Siemens 840D, operating hours: approx. 22500h. Including rotary table package AWU 160 with D105, collet chuck, handling, bar feeder Irco SiMag 100.1-3000, through-coolant preparation, scraper belt conveyor (1050mm), duplex filter Mahle, vacuum rotary filter Knoll VRF 400, approx. 500 tool holders HSK-A40 and various spare parts. Documentation vorhanden. An inspection on site is possible.

This 4-axis CHIRON FZ 18 W was manufactured in 1993. It features dual 4th axes and is equipped with a SIEMENS SINUMERIK control system, enhancing its precision and efficiency. The addition of a chip conveyor aids in maintaining a clean work environment. Consider the opportunity to buy this CHIRON FZ 18 W vertical machining center. Contact us for more information about this machine.

This CHIRON FZ 12 W was manufactured in 1995. A vertical machining center featuring a SK30 spindle mount, maximum spindle speed of 10,000 rpm, and a tool magazine with 12 positions. It includes a Sinumerik 810D control system and rapid traverse rates up to 40 m/min. Table size measures 660 x 350 mm. Consider the opportunity to buy this CHIRON FZ 12 W vertical machining center. Contact us for more information.

CONTROLS   CNC controls SIEMENS 840 D SL WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 210 mm   Y-axis travel: 270 mm   Z-axis travel: 360 mm SPINDLE / HEAD   spindle revolutions (max): 40000 /min   tool fixture: HSK A40 TOOL MAGAZINE   number of positions: 64 AUTOMATIC WORKLOAD EQUIPMENT   workpiece manipulator: articulated robot   number of store positions: 32 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 9000 kg ATTACHMENTS   chip conveyor: yes   coolant unit: yes   band filtration unit: yes   closed cabin: yes Operating hours: Spindle 1: 4050 h, Spindle 2: 11,114 h Internal cooling 70 bar Fanuc  ...

CONTROLS   CNC controls SIEMENS 840D SL 4.8 WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 210 mm   Y-axis travel: 270 mm   Z-axis travel: 360 mm SPINDLE / HEAD   spindle revolutions (max): 40000 /min   tool fixture: HSK A40 TOOL MAGAZINE   number of positions: 72 AUTOMATIC WORKLOAD EQUIPMENT   workpiece manipulator: articulated robot   number of store positions: 36 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 8500 mm   space requirements -front/back-: 2500 mm   total weight approx.: 6000 kg ATTACHMENTS   central lubrication system: yes   chip conveyor: yes   coolant unit: yes &n ...

This 3-axis CHIRON FZ 12 KW vertical machining center was manufactured in 2012. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. The machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine.

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 550 mm   Y-axis travel: 320 mm   Z-axis travel: 360 mm TABLE   table surface (left-right): 820 mm   workpiece load (max): 500 kg SPINDLE / HEAD   spindle revolutions (max): 24000 /min   tool fixture: HSK A50 AXIS DRIVES   rapid traverse: 75000 mm/min TOOL MAGAZINE   number of positions: 24 AUTOMATIC WORKLOAD EQUIPMENT   workpiece manipulator: articulated robot   store type: table changer   number of store positions: 2 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7700 kg ATTACHMENTS   guideway covers: yes &n ...

This 4-axis CHIRON Mill 2000 High Dynamics was manufactured in 2018. It features a single-spindle head, HSK-A 63 tool holder, and a maximum spindle speed of 20,000 rpm. The machine offers X-axis travel of 2000 mm, Y-axis travel of 630 mm, and Z-axis travel of 550 mm, with rapid traverse speeds of 75 m/min. Consider the opportunity to buy this CHIRON Mill 2000 High Dynamics vertical machining centre. Contact us for more information about this machine.

This 4-axis CHIRON DZ15KWM HS was manufactured in 2011. Ideal for precision vertical machining, this model offers robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the CHIRON DZ15KWM HS machine we have for sale. Contact us for more information.

This 3-axis CHIRON FZ08W was manufactured in 2006. A vertical CNC machining center featuring a Fanuc 21i-M series control, it offers X, Y, Z travels of 300 mm, 250 mm, and 250 mm respectively. It includes a table size of 550 x 300 mm, a spindle speed of 10,000 rpm, and a 12-position tool magazine. Consider the opportunity to buy this CHIRON FZ08W vertical machining center. Contact us for more information.

This 5-axis CHIRON FZ18W was manufactured in 2019, featuring a FANUC 31i-B5 control system and continuous 5-axis control. It boasts a spindle speed of up to 12,000 rpm, a tool capacity of 70, and rapid traverse rates of 75 m/min. Ideal for complex machining tasks with its automatic pallet changer and dual rotary tables. If you are looking to get high-quality milling capabilities consider the CHIRON FZ18W machine we have for sale. Contact us for more information.

This 5-axis CHIRON FZ 08K S Magnum SK was manufactured in 2007. It features a Siemens 840D control unit, with impressive travels of 450 mm in the X-axis, 270 mm in the Y-axis, and 310 mm in the Z-axis. The machine includes a 40-position tool changer and a high-pressure coolant system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08K S Magnum SK vertical machining centre we have for sale. Contact us for further details.

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

Travel X/Y/Z: 1600mm/400mm/425mm, table dimensions X/Y: 2000mm/400mm, max. table load: 350kg, tool positions: 12, tool holder: SK30, speed: 6300rpm, feed rate: 10m/min, rapid traverse: 20m/min, machine dimensions X/Y/Z: approx. 4000mm/2300mm/2800mm, weight: approx. 5000kg, control: Siemens Sinumerik. The hoses, the Y-axis cover, and the battery (data loss) are in need of repair. An on-site inspection is possible.

5 axis machininng center (milling/turning from bar) Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4)

MAKE CHIRON MODEL MILL 800 5 axis 5 axis machininng center (milling/turning from bar) Under power in our warehouse in Gussago BS Italy Mimu Machine tools CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs 90fjsieew Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min/max 5/65 mm L= 600-1200 mm Highspeed (2) 60m/min. Spindl ...

CNC Manufacturing Center Mill 2000 Commissioning 2007 4 - 5 axis machine Siemens 840 D Commuting X axis 2000 mm y axis 500 mm Z axis 550 mm 40 tool slots Rigid table with chip tray Clamping surface 2600 mm 550 mm with 3 T-slots High-speed package Rapid traverses 60 m/min Speed 20 - 12,000 rpm Coolant pump 30 bar 900 liters 2 extraction units as air purifiers Automatic grease lubrication 2x Rinsing gun Single-shift operation Spindle has been renewed and much more. The machine can be viewed under power

axis stroke (X,Y,Z): 550 x 300 x 425 mm Number of spindle head vertical: 0 St. Number of spindles head horizontal: 0 St. Number of tools: 0 St. Dust suction hood: --- mm Number of milling agregates: --- St. working dimensions: --- mm Year: 1998 Boring power: --- mm Speed of boring spindles: --- U/min. Speed: --- U/min. Required air-pressure: bar Diameter of the saw arbor: mm total power requirement: kw Weight: kg Dimensions (L/W/H): mm Motor output: kW Capacity: kg/h Sawing unit: Sawblade tiltable: ° Saw blade diameter: mm Control: Siemens Sinumerik The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 550 mm y-travel: 320 mm z-travel: 420 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used machine in good condition. Available for immediate delivery. - Power source : 30 kVA - Control: CNC HEIDENHAIN TMC 530 - Tool magazine capacity: 20 # - Maximum tool diameter ?: 65 mm - Weight: 7.5 t

2012 Chiron DZ 12 KWM HS 328-03 Profile CNC machining centre Chiron milling machine - double-spindle - with pallet changer - HSK-A63 Accessories and tools are not included. We still have a few holders (shrink fit chucks) that we can provide. A chip conveyor from Knoll is included, as well as a cooling tower from DeltaTherm. Technical data Year of construction 2012 Axis travel: X 550 / Y 400 / Z 360 mm Spindle distance in X-axis: 250mm Weight: 7700kg Tool magazine: 16 places per spindle Tool holder HSK-A63 Fanuc 31i-A5 - 5-axis contouring control Fanuc tool life monitoring Integrated workpiece changing device IWW 0/180° Spindle speed 15000 rpm, max. 45Nm Speed acceleration / deceleration from 0 to 12000 rpm in 0.6 seconds Chip conveyor with scraper belt Coolant system KF 150/FKA500 Chiron maintenance instructions on screen Operating hours and parts counter Oil-fre ...

Vertical CNC Machining Center Chiron FZ 08K S Magnum SK with NC swivel head, rotary table package, bar loader, and removal device. - Operating Hours: 30,682 h - Last Spindle Replacement: 10/2021 Technical Data: - Control System: Siemens 840D (PCU 20 / NCU 572.4) - NC Swivel Head: Swivel Range -20° / +115° - Motor Spindle: Water-cooled, 15,000 RPM - Travel Paths: X 450mm / Y 270mm / Z 310mm - Rapid Traverse (X/Y/Z): 75 m/min. / Acceleration X 1g / Y 1.5g / Z 2g - Tool Slots: 40, HSK-A 40, Span-to-Span Time 2.6 sec. vertical Additional Equipment: - Preparation for Bar Processing - Rotary Table Package: AWU 160 with D105mm (Positioning Axis) - Collet Chuck: Hainbuch Spanntop D100 - Additional Device: 6th Side - Handling and Removal Device for Finished Parts - Bar Loader: IRCO SiMag 100.1-3000 (Round and Profile Material) - Flushing Gun - Machine Preparation for IKZ - High Pressure: 7 ...

: 2 Number of axles: 4 St. tool taper: HSK 63 toll turrets: 60 weight: 9600 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 2000 mm y-travel: 425 mm z-travel: 425 mm Number of working hours: lässt sich nicht auslesen h cooling: Kühlung ja : max. 10.500 : ja control: Simens Sinumerik 810 weight: 6700 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

serial number: 143-86 x-travel: 550 mm y-travel: 300 mm z-travel: 425 mm Number of working hours: 58046 h cooling: Innen nein : max. 10.500 : nein control: Simens Sinumerik 810D weight: 4600 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travel X/Y/Z: approx. 1600mm/400mm/425mm, table dimensions X/Y: 1500mm/400mm, tool holder: SK40, tool positions: 20, spindle speed: 5000rpm, machine dimensions X/Y/Z: approx. 4000mm/2500mm/2900mm, weight: approx. 7000kg, control: Siemens Sinumerik System 3, operating hours: approx. 19855h. Including approx. 12 tool holders. Documentation available. An on-site inspection is possible.

bore capacity in steel (diameter): 10 mm throat: 0 mm bore stroke: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 550 mm y-travel: 320 mm z-travel: 420 mm b-axis: -45 / +180 ° c-axis: 360 ° 0 Control: SIEMENS 840D SL spindle taper: A-50 spindle turning speed - stepless: 12000 U/min tools in tool magazin: 64 total power requirement: 36 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 3 x 5 x 3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 6000 mm y-travel: 630 mm z-travel: NC-Schwenkkopf mm Control: total power requirement: -- kW weight of the machine ca.: 19,5 t required space: -- m Condition: Used Specification: Vertical CNC machining center Chiron MILL 6000 high speed with NC swivel head Year of manufacture 2004, completely overhauled in 2013 by the manufacturer Chiron - Siemens 840D (PCU50, NCU572.4) - NC swivel head - Long part machining up to max.: 6,000 mm - Machining of the front side, horizontal with swivel head right/left - Pendulum machining via center partition wall max.: 1,773 mm - 4 hydraulic double vices - High-speed package: - Motor spindle D 12,000 rpm, 140 Nm - Travel distance X: 6,000 mm / Y: 630 mm - Rapid traverse in X/Y/Z: 60 m/min - Production package: - Crown belt conveyor, ejection height 1,050 mm - IKZ preparation - KNOLL VRF250 vacuum rotary filt ...

Year of construction 2012 Siemens Control 840D Remote diagnostics and teleservice On-screen maintenance instructions 5-axis milling package Rigid table with integrated rotary table Kessler DTE 520 max. speed 1000 rpm Travel X/Y/Z 2000/685/630 mm NC swivel head with headstock NC swivel axis +- 100° - direct measuring system Speed range 20,000 rpm Direct displacement measurement systems Tool changer with 92 places Rapid traverse 40 - 40 - 40 m/min Axle acceleration 0.25 g Chip conveyor (hinge belt) Coolant system HL 450 / 900 (IKZ) Chip gun Coolant recooling unit Additional tub flushing Machine preparation for air through the spindle Extraction for the working area Safety package MILL 2000 reinforced cab with safety washers Zero-point clamping system NSL tur 570-5-Z for DTE 520 Mitfahrende Chiron Lasercontrol Single F295 Tool breakage detection Probes Renishaw OMP ...
