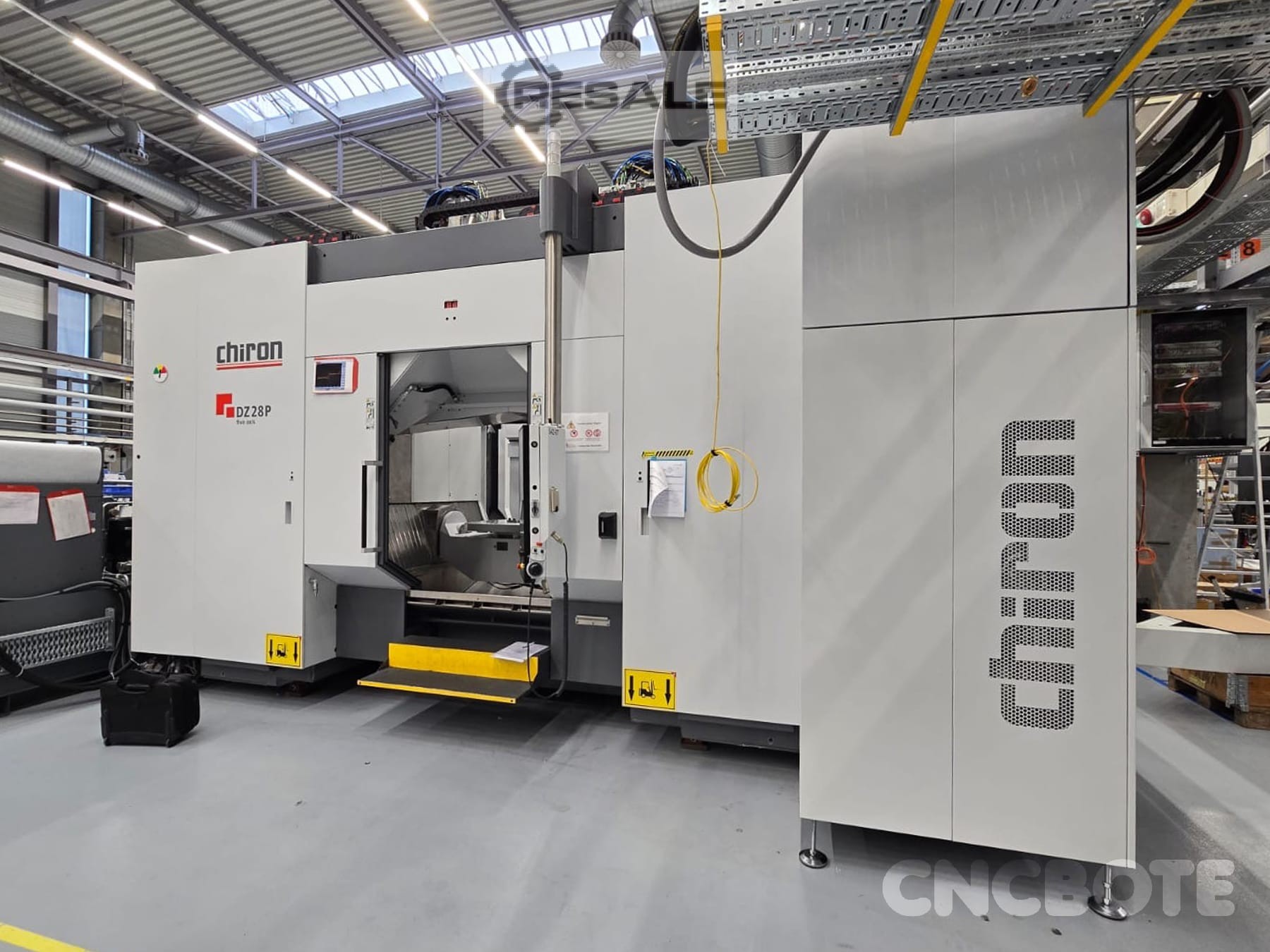

Processing Centers CHIRON DZ 28 P five axis

General
Manufacturer: Chiron
Type: DZ 28 P five axis
Year of manufacture: 2023
Control: Siemens Sinumerik 840D SL
Travels: X 1,200 mm Y 1,100 mm Z 800 mm
Rapid traverse: X 120 m/min Y 75 m/min Z 75 m/min
Axle acceleration: X 1.0 g Y 0.8 g Z 1.5 g

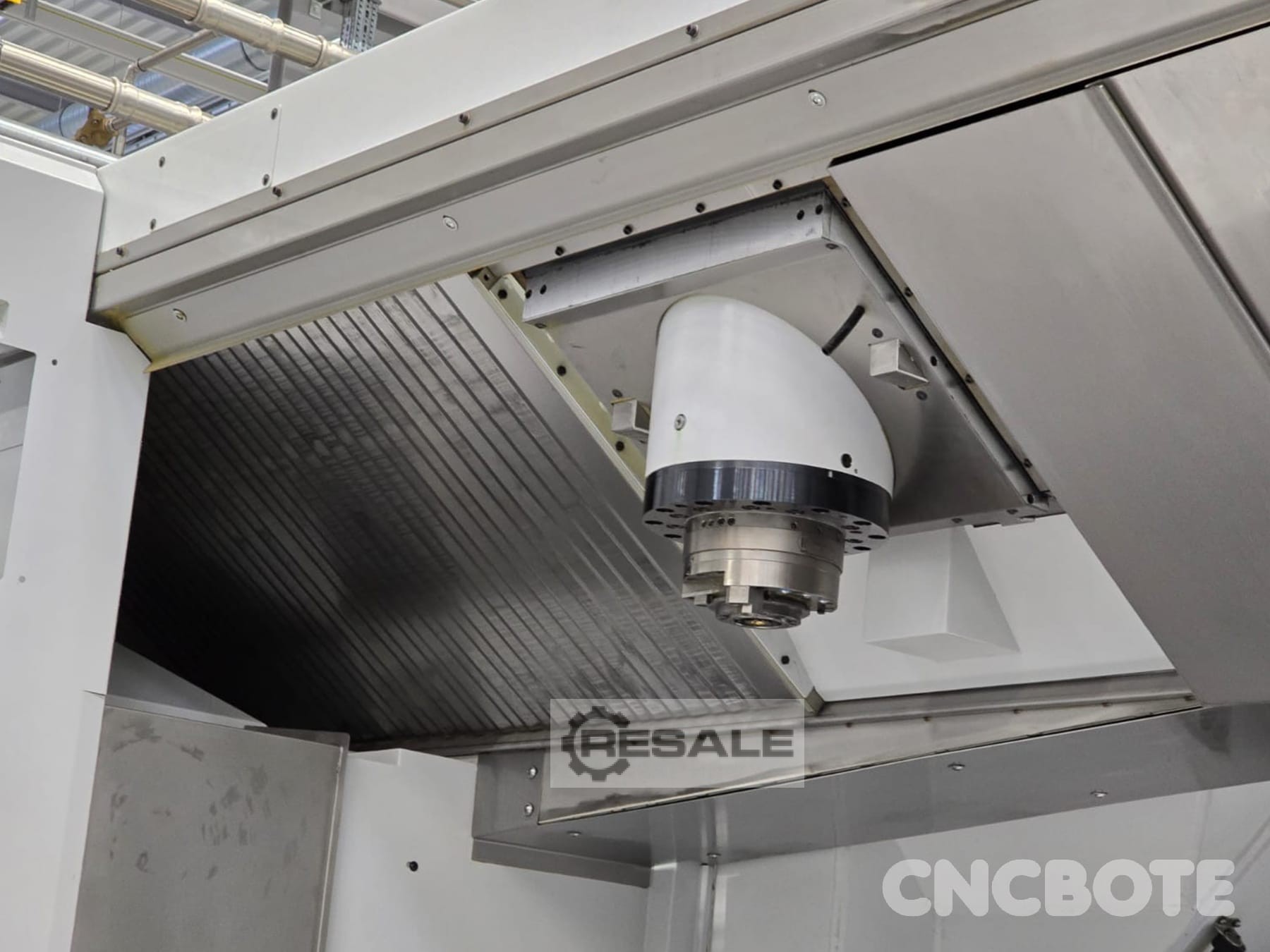

Main spindle drive
Speed: up to 20,000 rpm

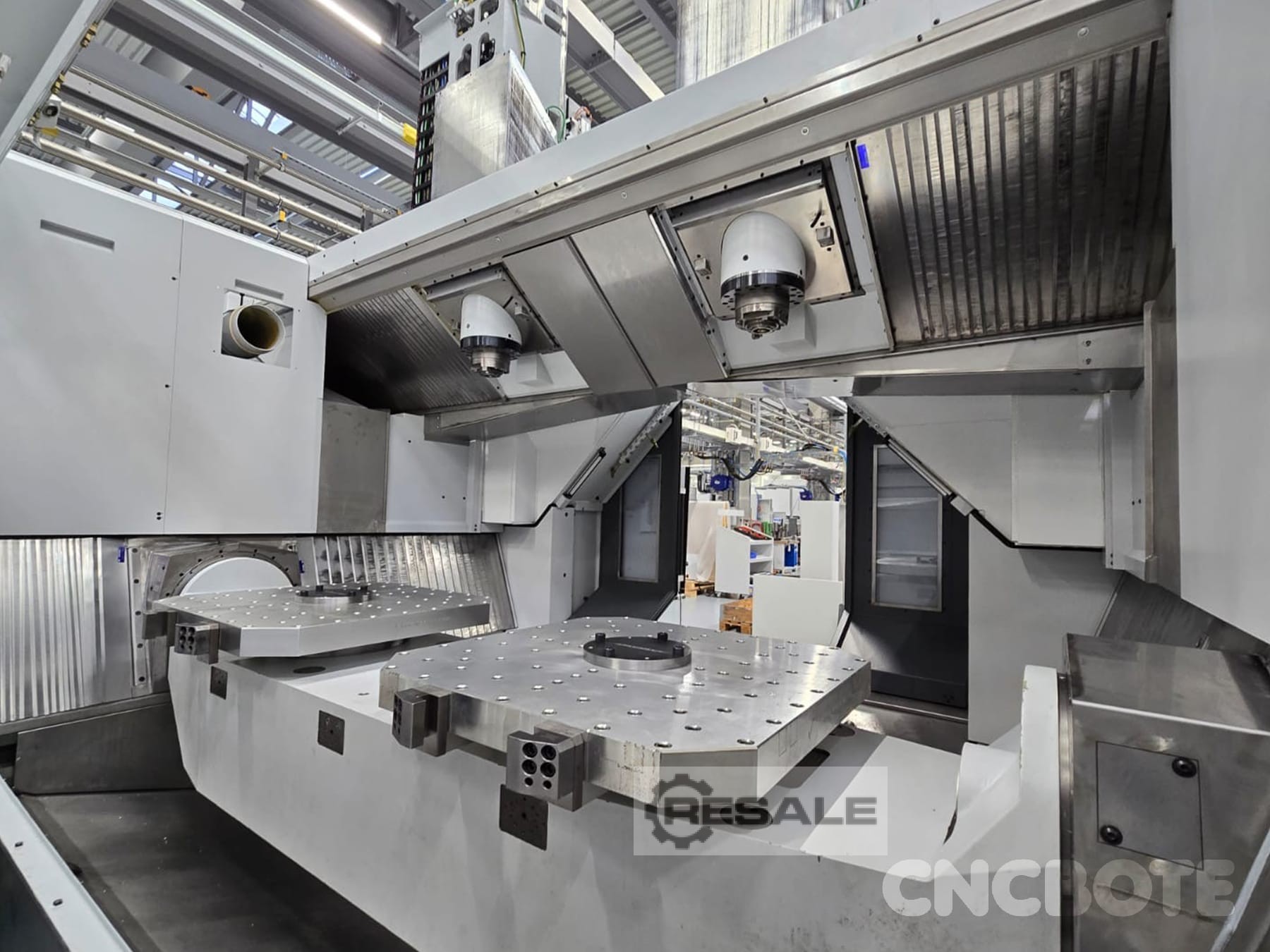

2-axis torque swivel device
2 x face plates diameter: 479 mm

Swivel axis as A-axis
Swivel angle: ± 120°
Swivel radius: 700 mm
Bridge dimension: max. 2,400 mm
Repeatability: ± 5"
Speed: 42 1/min

NC rotary table as C-axis
Clamping force: 25 kN +/- 15 % per clamping segment
Repeatability: ± 5"
Speed: 100 1/min

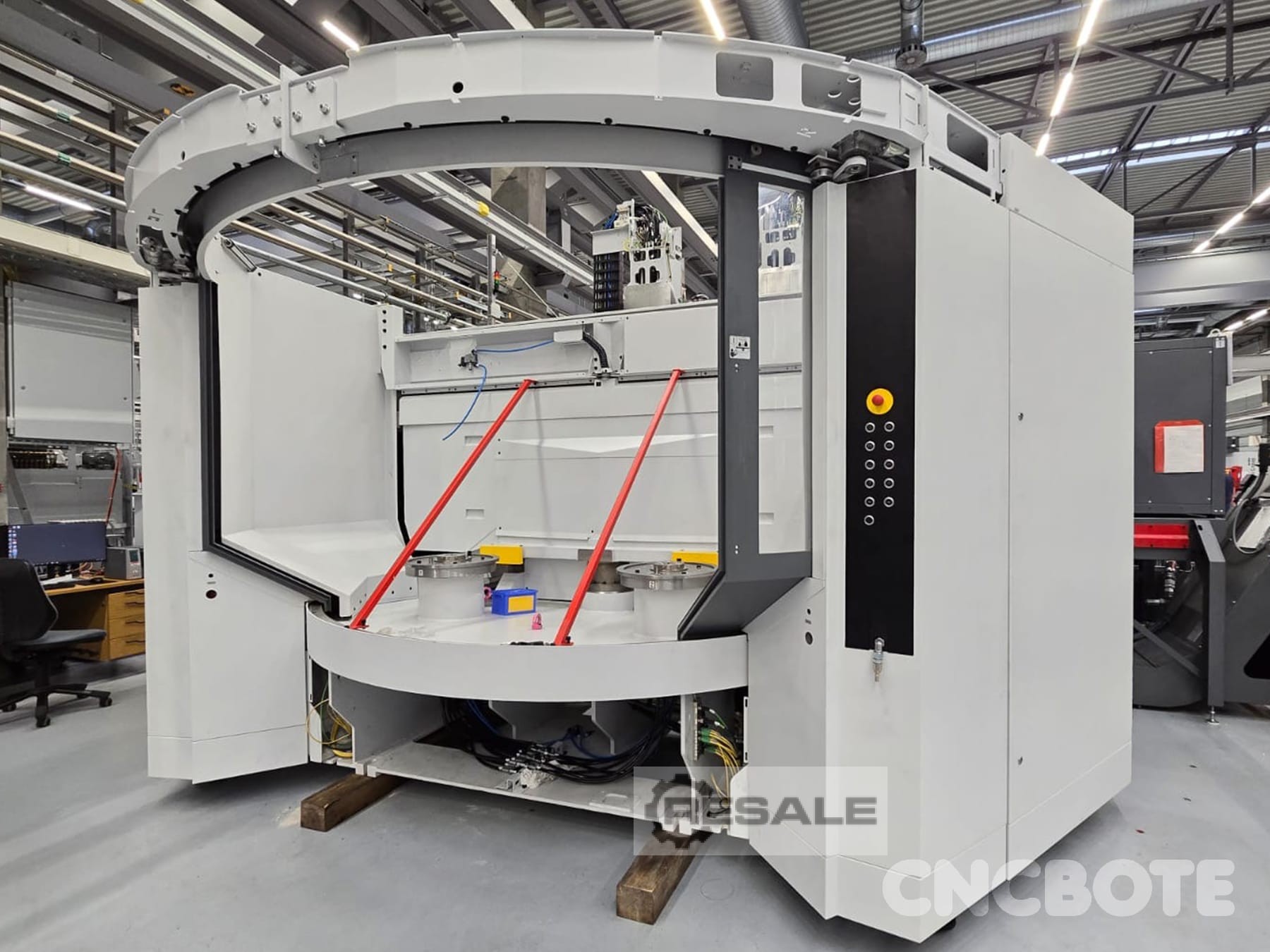

Loading and unloading station for tools
Tool Stations: 2 x 36
Tool shank: HSK-A 63 DIN 69893
Tool diameter: max. 78 mm
Tool diameter with free adjacent C51251480 spaces: max. 160 C51251480 mm
Tool length: max. 450 mm
Tool weight: max. 10 kg
Tool change time: approx. 0.9 s

Mains connection
Frequency: 50 Hz
Connection voltage: 3×400 volts ± 10%
Compressed air: 6 bar +1 bar in all operating runs
Voltage socket: 230 volts ± 10%

Condition
Condition: Used
Functional: tested and fully functional

seller offer No. resale 145540
