REF-2476 ULMA ETNA HITECH VERTICAL FORM-FILL-SEAL MACHINE Vertical form-fill-seal machine (VFFS) Manufacturer: ULMA Model: ETNA HITECH 280X Machine no.: 60281145 Year: 2009 Power: 7kW Voltage: 400V Overall dimensions: width 150 cm, length 220 cm, height 200 cm.
REF-2720 ULMA ATLANTA FLOW WRAPPER WITH PHOTOELECTRIC EYE AND DOUBLE SEALING JAW Manufacturer: ULMA Model: ATLANTA Year: 1998 Horizontal flow pack wrapper (HFFS) equipped with photoelectric eye. Double film reel and double sealing jaw. Voltage: 380 V / 50 Hz / 16 A / 3Ph Total power: 3,5 kW Output: up to 250 p/min (depending on film and product) Pneumatic consumption: 50 litres/min; 6 bar Sealing jaw dimensions: 200 x 50 mm (WxH) Overall dimensions: 7,000 x 1,300 x 1,650 mm (LxWxH) Weight: approx. 910 kg

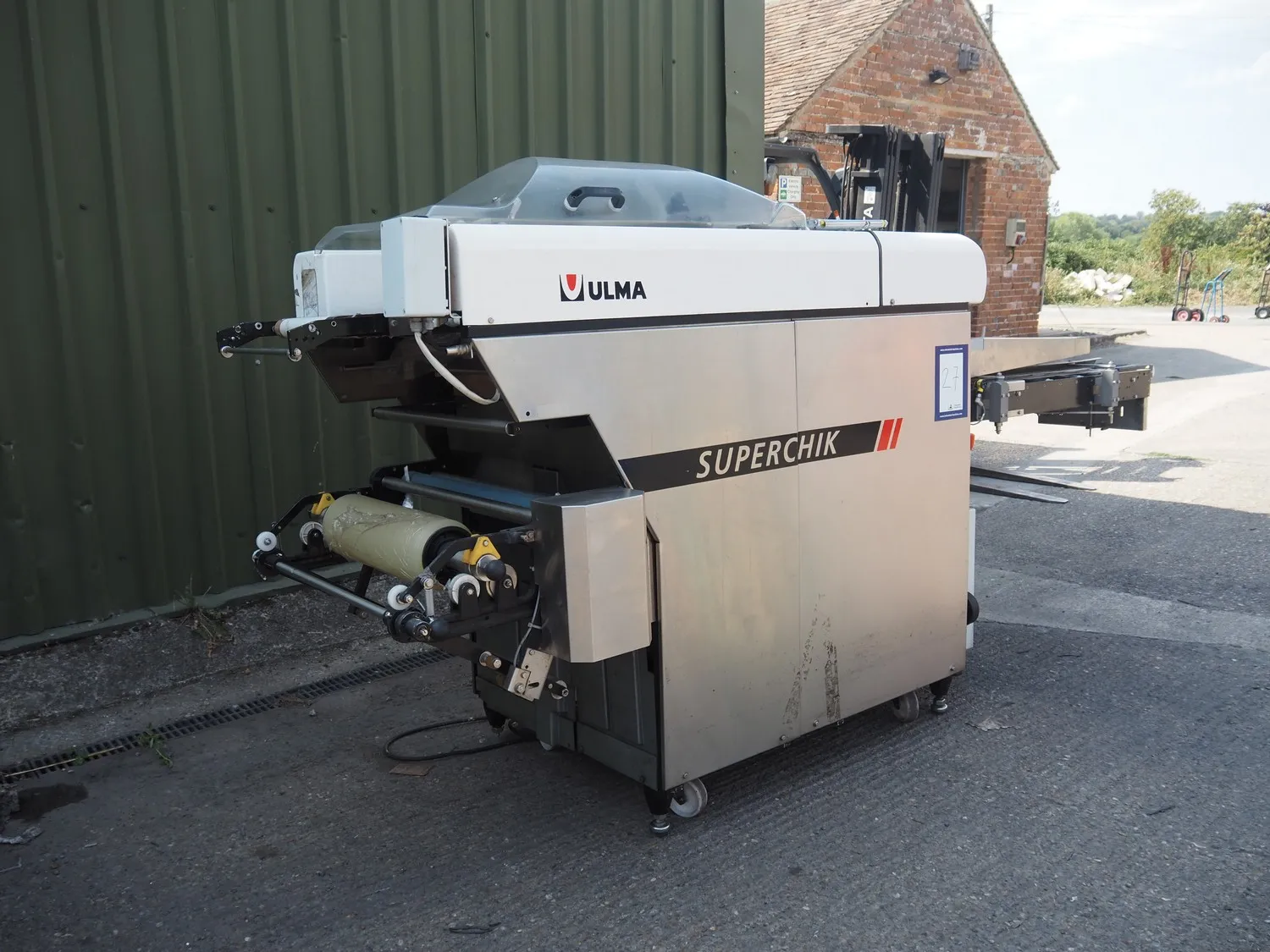

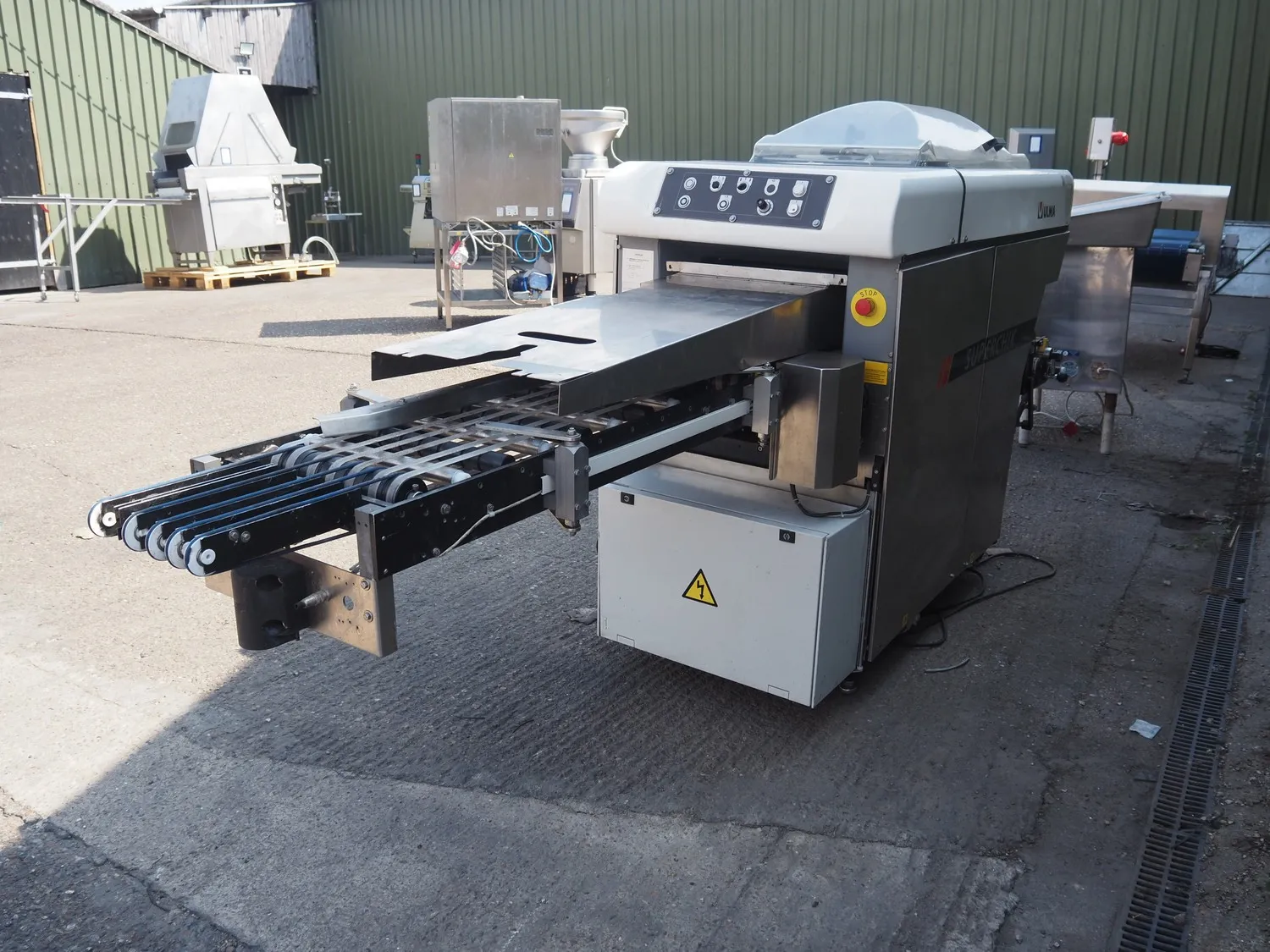

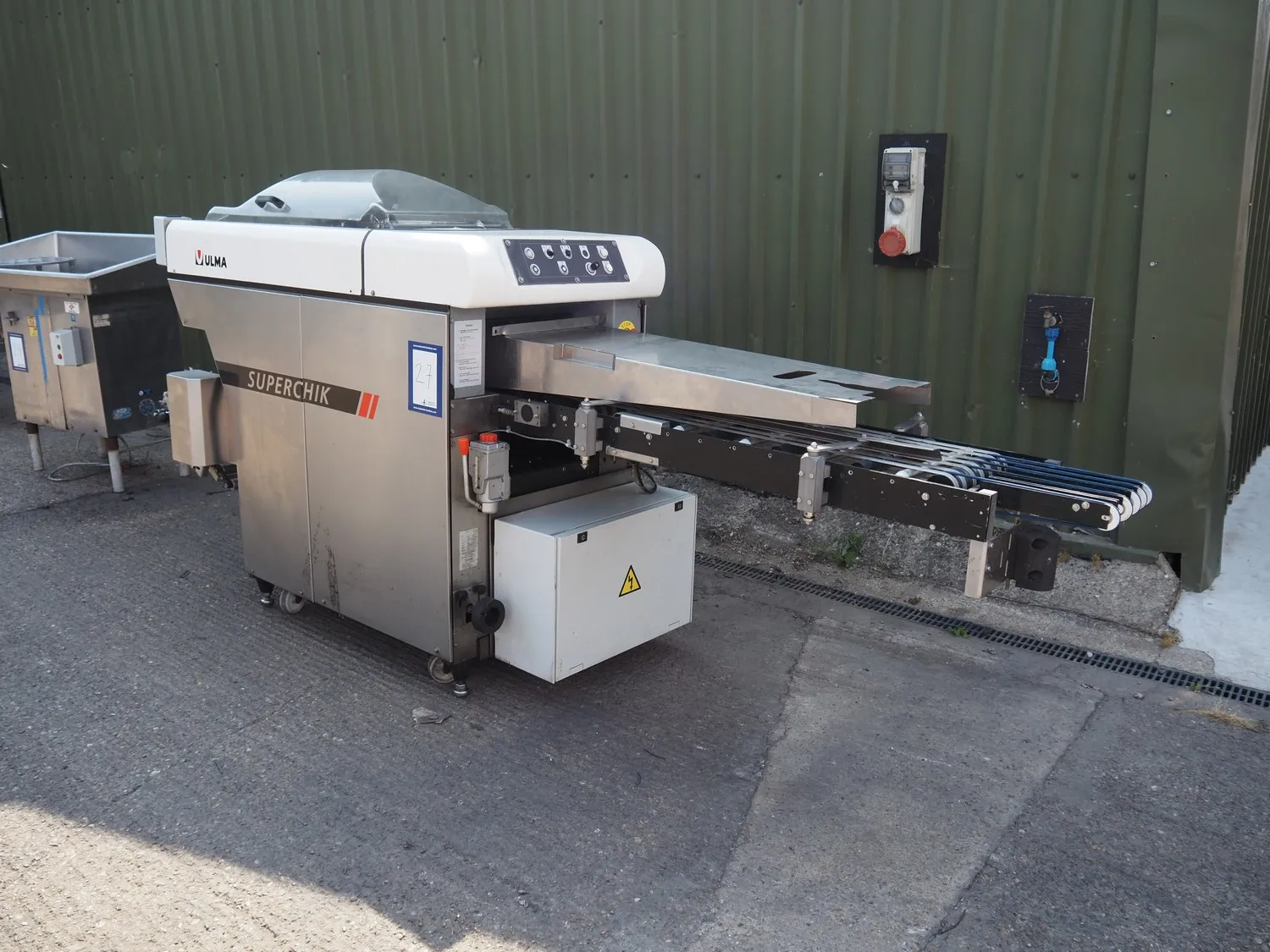

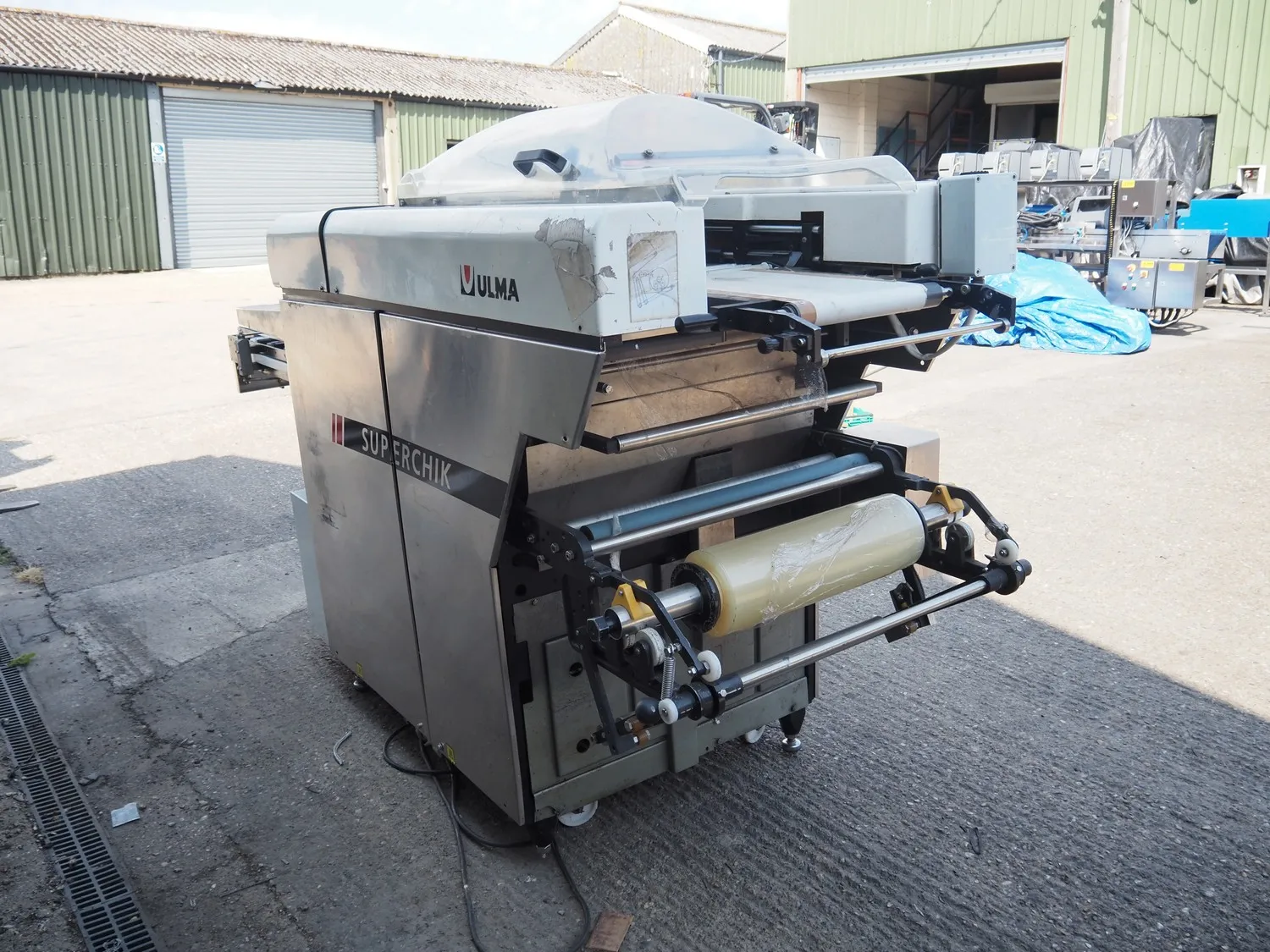

Ulma Stretch Wrapper Model: Super Chik 2 units available, 1996 & 1997 Regularly serviced and maintained Good condition
Used packaging machine made by Ulma, model: TF Optima 416. New: 2000.
REF-0 ULMA SLX-305 L-SEALER WITH TR-100 SHRINK TUNNEL Automatic angular L” sealing machine with shrink tunnel. Manufacturer: ULMA. 1) Sealer model SLX 305: − Year: 2020 − Serial no.: 4515898 − 400 V / 50 Hz / 3.5 A / 3PH − Total power: 2.6 kW − Overall dimensions: 2,400 x 1,500 x 1,720 mm (LxWxH) − Maximum sealing bar dimensions (max. package dimensions): 550 x 550 x 200 mm (LxWxH) − This machine can be used not only for packaging with shrink film (when used together with the shrink tunnel), but also with non-shrink film 2) Shrink tunnel model TR 100: − Year: 2020 − Serial no.: 1511748 − 380 V / 50 Hz / 25 A / 3PH − Total power: 24 kW − Overall dimensions: 2,000 x 1,400 x 1,200 mm (LxWxH) − Chamber length: 1,335 mm − Aperture: 400 x 230 mm (WxH) Overall dimensions of the set: 4,000 x 1,500 x 1,720 mm (LxWxH)
Used thermopacking machine from Ulma, model TF-SUPRA. Year of production 2006. The machine uses two types of foil. The lower foil is plastic and, passing through the forming station under the influence of heat and stretching, takes the shape of the mold, creating a package. Once the foil has cooled, it moves to the loading area where the products are placed into the package, this function can be performed manually or automatically using special assistive devices. After filling the molds, the upper foil is placed above the mold and welded to it, it is possible to simultaneously create a vacuum in the package and fill it with protective gas. Ultimately, the cutting station separates the packages into individual or groups that leave the machine in exactly the condition in which the recipient is to receive them.
Used vertical wrapping machine by Ulma model VTC 700. New 2008. Vertical Fulfillment Wrapping Machine (VFFS) that forms a package with three seals. Designed for continuous packaging at high production speeds of up to 140 cycles/min. The VTC 700 machine is specially designed for continuous wrapping of many different types of products. The machine is extremely flexible in terms of changing the moulding size to allow for different portions and has the versatility to adapt to any type of film. Combine these features with the level of electronics specification and you have one of the most technologically advanced machines available on the market. Standard features: - Stainless steel version. - Servo-driven cross seal jaws (2 servo motors). - Servo driven film transport (2 servo motors). - Open front frame design. - Film spool holders with pneumatic wedges. - One-piece and eas ...
Packaging machine made by ULMA, model Alaska. New 2000. Technical data: -Speed 65 pcs/min. -Electrical power 5 kW, 220/400V, 50/60 Hz. -Pressure 7 bar. -Weight 1200 kg
Height=2 m, Overall length= 1.05 m, Overall width= 4.76 m, Net weight= 750 kg,
Height=1.81 m, Overall length= 1.07 m, Overall width= 3.4 m, Net weight= 735 kg,
THERMOFORMER, ULMA, TYPE: TF-OPTIMA Technical description: Format: (x4) 114 x 159 mm Power supply: 380-440 V/50-60 Hz Power : 30 kW Dimensions: 6600 x 1100 x 2050 mm
