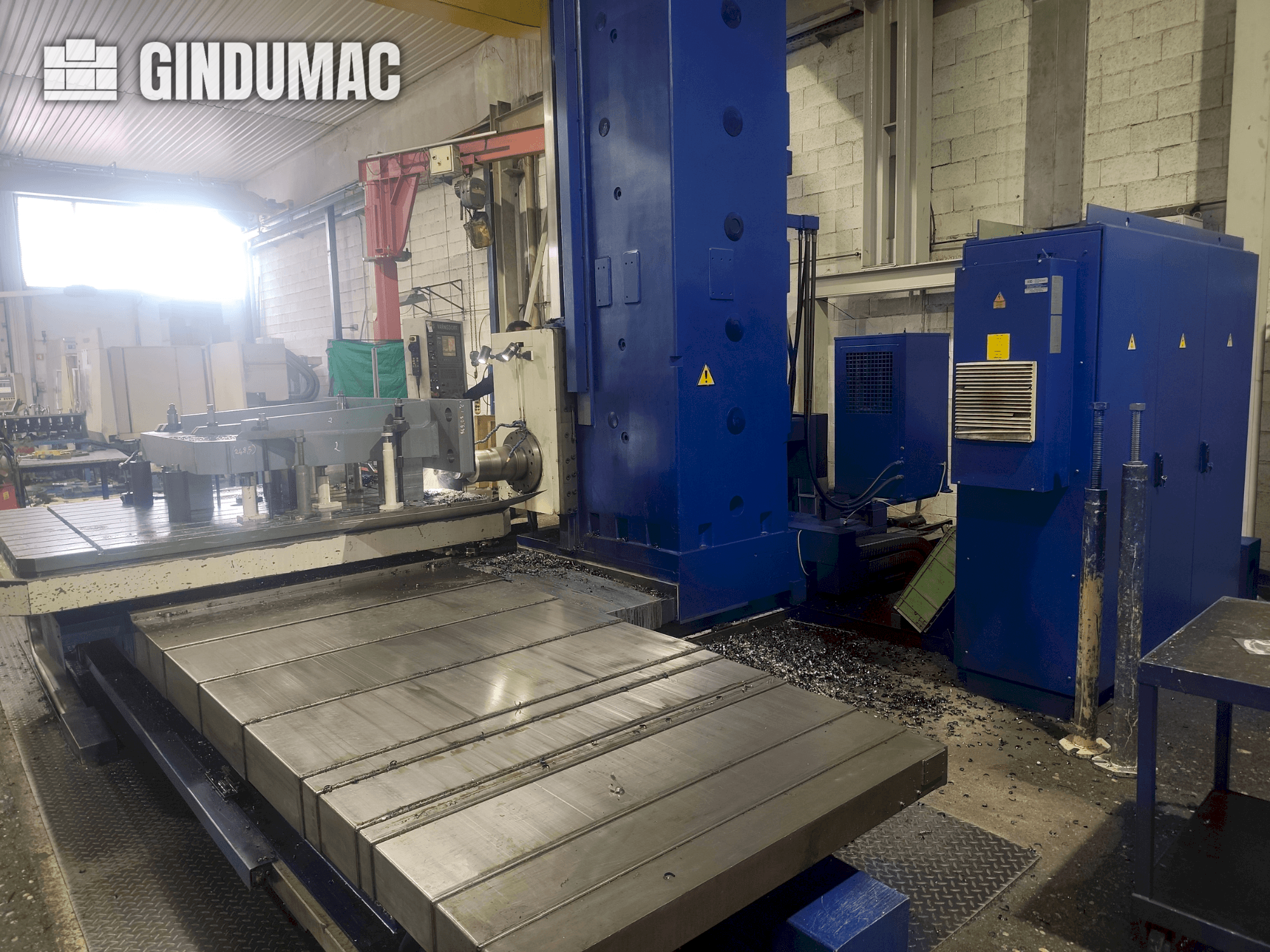

This 5-axis TOS Varnsdorf WHN130 was manufactured in 2007. It features a horizontal boring and milling machine with a table size of 1800 × 1800 mm and a spindle diameter of 130 mm. The machine includes a rotary table and is controlled by an NCT-104 system. Consider the opportunity to buy this TOS Varnsdorf WHN130 boring machine. Contact us for more information.

This 5-axis TOS WHN 13.8 boring machine was manufactured in 1996. It features a working spindle diameter of 130 mm, X-axis travel of 3500 mm, Y-axis travel of 2000 mm, and a Z-axis travel of 1250 mm. The rotary table clamping surface measures 2200 x 1800 mm, supporting a maximum workpiece weight of 12,000 kg. If you are looking to get high-quality boring capabilities, consider the TOS WHN 13.8 machine we have for sale. Contact us for more information.

This 4-axis TOS WHN 13.8 CNC boring machine was manufactured in 1980 and retrofitted in 2001. It features a working spindle diameter of 130 mm, a clamping cone 50 ISO, and a spindle speed of 2500 rpm. The machine supports a table load capacity of 12000 kg and includes SIEMENS motors and drives. If you are looking to get high-quality boring capabilities, consider the TOS WHN 13.8 CNC machine we have for sale. Contact us for more information.

TOS WHN 130 MC used machine Specifications System Heidenhain TNC 426 Working range Spindle diameter 140 [mm] Taper in the spindle ISO 50 Table transverse adjustment (X) 3000 [mm] Vertical headstock adjustment (Y) 2000 [mm] Vertical travel (Z) 1250 [mm] Spindle stroke (W) 560 [mm] 2X Clamping surface 1800 x 1600 [mm] Speed range 10 - 2500 [rpm] Main motor output 37,0 [kW] Max. workpiece weightƒ 8000 [kg] Accessories Tool changer for 60pcs Tool cooling Chip conveyor

Key data: 130 mm, 3000 mm, 2000 mm

Inv. Num. : 6957 Type: WHN 13 Produzent: TOS Erzeugt: 1976 Parametern: Arbeitstischlänge: 1800 mm Arbeitstischbreite: 1800 mm Maximale Tischbelastung (gleichmäßig): 120.000 kg Verfahrwege X-Achse: 3000 mm Verfahrwege Y-Achse: 2000 mm Verfahrwege Z-Achse: 800 mm Spindeldurchmesser: 130 mm DRO

Inv. Num. : 7260 Type: WHN 13.4 A Producer: TOS Created: 1986, GO 2003 Parameters: Control system: MEFI CNC 859 Work table length: 1800 mm Work table width: 1600 mm Maximum table load (uniform): 12 t Maximum spindle speed: 1098 1/min X-axis travel: 3000 mm Y-axis travel: 2000 mm Z-axis travel: 800 mm W-axis travel: 1250 mm Spindle diameter: 130 mm Cone: ISO 50 Machine height: 3900 mm Machine length: 6200 mm Machine width: 5930 mm Machine weight: 32 t

1x CNC Table Boring Machine Manufacturer: TOS Type: WHQ Year of Make:1997 Control: Heidenhain TNC 426 in 5-axis X-axis 2000mm Y-axis 1400mm Z-axis 1250mm W-axis. 710 mm B-axis 360 degrees Spindle diameter : 112mm Spindle mount: ISO 50 Spindle speed max: 2000 rpm Table clamping surface: 1400x 1600mm Tool changer: 60 places Chip Conveyor: Yes

Inv. Num. : 8206 Type: WHN 13.4B Producer: TOS Created: 1986 Parameters: Control system: Mefi CNC 859 Work table length: 1600 mm Work table width: 1600 mm Maximum spindle speed: 800 1/min X-axis travel: 2000 mm Y-axis travel: 2000 mm W-axis travel: 1250 mm Spindle diameter: 130 mm Machine weight: 32000 kg 2024: Complete replacement of lubricating oil dispensers Spindle bearing repair (new bearings) Replacing the engine with an overhauled engine

Inv. Num. : 8239 Type: WHN 13 CNC Producer: TOS Created: GO 2004 Parameters: Control system: MEFI X-axis travel: 3500 mm Y-axis travel: 2000 mm Travel distances Z-axis: 1200 mm

1 x CNC bench boring machine in cross-bed design Manufacturer: TOS Type WH13 CNC Year of manufacture 1997 Control: TNC 426 Heidenhain 5-axis X-3500 mm Y-2000 mm Z-1250 mm B-800 mm B-360 Degree Table clamping surface: 1600 x 1800 mm Table load: 12 t Spindle diameter: 130 mm Spindle mount: ISO 50 Spindle speed: max. 1500 rpm Condition: Very good. The machine was only used for repair purposes; no contract manufacturing. Spindle hours: 22,054 Program runtime: 15.661

Inv. Num. : 5387 Type: WHN 13 A Producer: TOS Created: 1979 Parameters: Control system: Heidenhain TNC 310 Work table length: 1800 mm Work table width: 1800 mm Maximum table load (uniform): 12000 kg Number of axes: 4 pieces X-axis travel: 3510 mm Y-axis travel: 2040 mm Travel distances Z-axis: 1200 mm Mechanical feed length axis W: 800 mm Cone: ISO 50 Spindle diameter: 130 mm Machine height: 4420 mm Machine length: 7334 mm Machine width: 6960 mm Machine weight: 32 t Equipment: Rotary work table Cross arrangement of the beds Retractable work spindle Hydraulic reinforcement of the axles Trapezoidal lead screw Condition 70%

Boring mill Manufacturer: TOS Type: WHQ 13.8 CNC Year of Make: 2000 CNC control: Heidenhain iTNC 530 Completely overhauled in 2022 Report available Travel: X/Y/Z: 3,500 x 2,500 x 1,250 mm Table length: 2,200 mm Table width: 1,800 mm Max. workpiece weight: 1,200 kg Spindle Ø: 130 mm Spindle speed max.: 3,000 rpm Spindle motor power: 37 kW Dimensions: LxWxH approx.: 7,500 x 6,950 x 4,000 mm Weight: 40 tons.

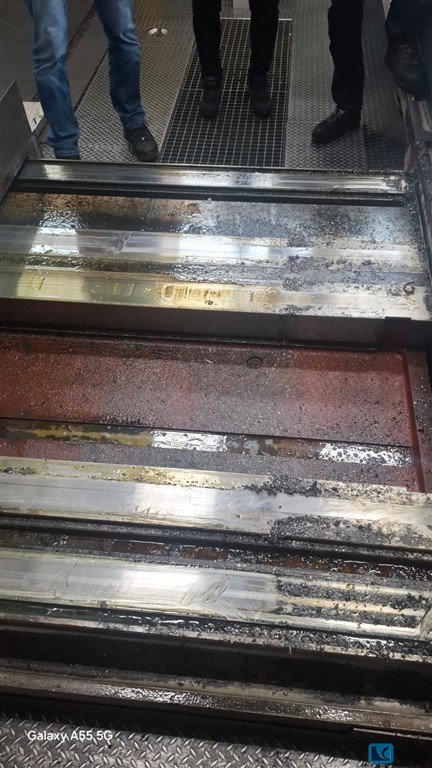

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg

X=3500mm Y=2000mm Z=1250mm W=800mm H=360° spindle 130 mm, ISO 50, max. 1600 rpm table 1600 x 1800 mm with a load of 12000 kg with Siemens electric and CNC Heidenhain TNC 415B Oil cooled: Schimpke. Dismantled. The machine has been used very little = in very good technical condition.

Control Heidenhain TNC 355 Spindle diameter Ø 130 mm Horizontal Spindle Travel (W) 800 mm Taper ISO 50 P.D.B. Table 1,600 x 1,800 mm Max. load 12 Ton Cross travel (X) 3,500 mm Vertical travel headstock (Y) 2,000 mm Longitudinal travel (Z) 1,250 mm RPM 5 – 1,100 kW 32 Volts 400 Cycles 50

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2500 mm z-travel: 1250 mm w-axis: 800 mm b-axis: 360 ° spindle turning speed range: 1000 U/min transmission ratio: 4 Control: Heidenhain type: 355 table surface area: 1800x2200 mm Table load: 12000 kg spindle taper ISO: 50 width of T-slots: 22 mm T-slot - distance: 160 mm Feed: 1-6000 mm/min table rotating: 1,5 U.min-1 total power requirement: 80 KVA weight of the machine ca.: 36 t dimensions of the machine ca.: 7,7x7,2x4,9 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

HBM WHN 13.8 B, new 1986, CNC control system Heidenhain

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2000 mm z-travel: 1250 mm w-axis: 800 mm b-axis: 360 ° spindle turning speed range: 12,5-900 U/min Control: Heidenhain type: 155 table surface area: 1800x1600 mm Table load: 12000 kg spindle taper ISO: 50 width of T-slots: 22 mm T-slot - distance: 160 mm Feed: 1-6000 mm/min table rotating: 360 ° angular milling head: total power requirement: 80 KVA weight of the machine ca.: 36 t dimensions of the machine ca.: 7,7x7,2x4,9 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2500 mm z-axis: 1250 mm W-axis (spindle longitudinal): 800 mm : ISO 50 P.D.B : 1800x2500 mm : 12 t : 3000 Hertz : 400 total power requirement: 37 kW weight of the machine ca.: t dimensions of the machine ca.: m ATC 40 positions Safety guarding Coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 4000 mm y-travel: 3000 mm z-travel: 2000 mm w-axis: 800 mm table:: 1800 x 2500 table load: 20 t feed range: 4 - 5000 mm/min spindle turning speed range: 10 - 3000 U/min spindle taper ISO: 50 spindle motor: 37 kW rapid traverse: 10 m/min Control: Heidenhain iTNC 530 total power requirement: 70 kW weight: 39 t range L-W-H: 8,5 x 8,6 x 5,5 mm equipped with - CNC control Heidenhein iTNC 530 & handwheel - 60-fold tool changer (ISO 50) - NC rotary table 1800 x 2500mm, 20t - IKZ and external coolant supply 20bar - chip conveyor - spindle support The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2500 mm z-travel: 1600 mm w-axis: 800 mm b-axis: 360 ° table:: 1800 x 2200 table load: 25 t feed range: 10000 mm/min spindle turning speed range: 10 - 3000 U/min spindle taper ISO: 50 spindle motor: 37/46 kW rapid traverse: 10 m/min Control: Heidenhain TNC 640 total power requirement: 70 kW weight: 38 t range L-W-H: 8,5 x 8,6 x 5,5 mm Equipped with: - Heidenhein iTNC 640 CNC control & HR 510 handwheel - HUI 50 automatic milling head - 40-position tool changer (ISO 50) - B-axis in rotary table - Heidenhain optical scales - NC rotary table - Coolant system with paper belt filter, Coolant through Spindle 20bar - Chip conveyor - Heidenhain TS 460 measuring probe - Movable operating platform - Pfannenberg oil cooler - Central lubrication ca 4450h Spindle Hours The data for this ad was created with ModulMWS - the software solution of Logo ...

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2000 mm z-travel: 1250 mm w-axis: 800 mm b-axis: 360 ° table:: 1800 x 2200 spindle turning speed range: 3000 U/min feed range: 4 - 3000 mm/min table load: 12 t spindle taper ISO: 50 spindle motor: 37 kW rapid traverse: 10 m/min Control: Heidenhain iTNC 530 b-axis: 360 ° total power requirement: ca 70 kW weight: 36 t range L-W-H: 8 x 8 x 3,5 m equipped with: - CNC control Heidenhein iTNC 530 & handwheel - clamping table 1800 x 2200mm, 12t -- full B-axis with 360,000 positions - coolant - IKZ 20bar & extern cooling - BLUM TC 60 Taster - without chip conveyor ca 11500 Spindle Hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter:221,44 mm x-travel:2.000 mm y-travel:2000 mm z-travel:1.250 mm b-axis:360 ° table-size:1600 x 1800 mm max. workpiece weight:12.000 kg Work spindle:130 mm tool adaptor:SK 50 Tool changer:60 - Fach Ø Flange Hollow Spindle:221,44 mm Max. Ø centering cone:180 mm spindle stroke:800 mm turning speeds:400 ? 1600 U/min feed::bis 8000 U/min Table rotation axis B:1,5 U/min weight of the machine ca.:32 t Control pedestal, electrically height-adjustable approx. 1200 mm, Sawdust Conveyor,

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 Lifting operator platform External tool cooling Spindle clamping support
