3 TOS bench type drilling machines used machines

Inv. Num. : 8602 Type: W 9 Producer: TOS Created: 1975 Parameters: Work table length: 950 mm Work table width: 950 mm Maximum weight of the workpiece: 3000 kg Spindle diameter: 90 mm Maximum spindle speed: 1800 1/min X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 900 mm Machine weight: 11000 kg Equipment: DRO

Inv. Num. : 9019 Type: W 100 A Producer: TOS Generated: Parameters: Work table length: 1250 mm Work table width: 1250 mm X-axis travel: 1600 mm Y-axis travel: 1120 mm Travel travel Z-axis: 1250 mm

Inv. Num. : 9274 Type: W 75 Producer: TOS Created: 1985 Parameters: Work table length: 950 mm Work table width: 950 mm Maximum table load (uniform): 3000 kg Maximum spindle speed: 1800 1/min X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 900 mm Machine weight: 10000 kg

Key data: 58 mm

We can offer a Toshiba extruder. 58/40, year 2010, stopped, working condition.

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

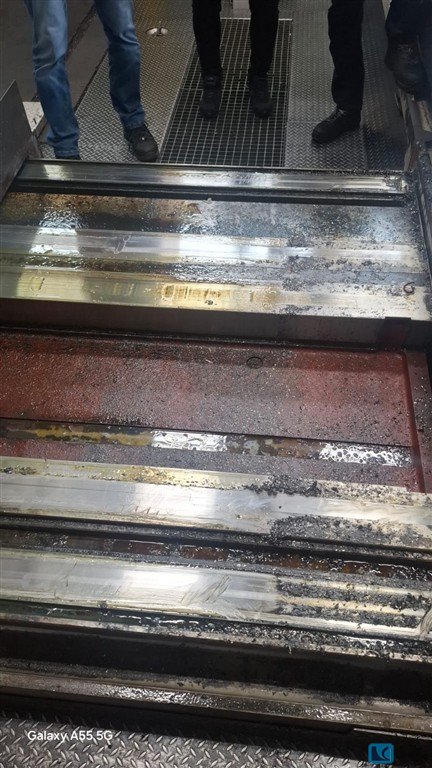

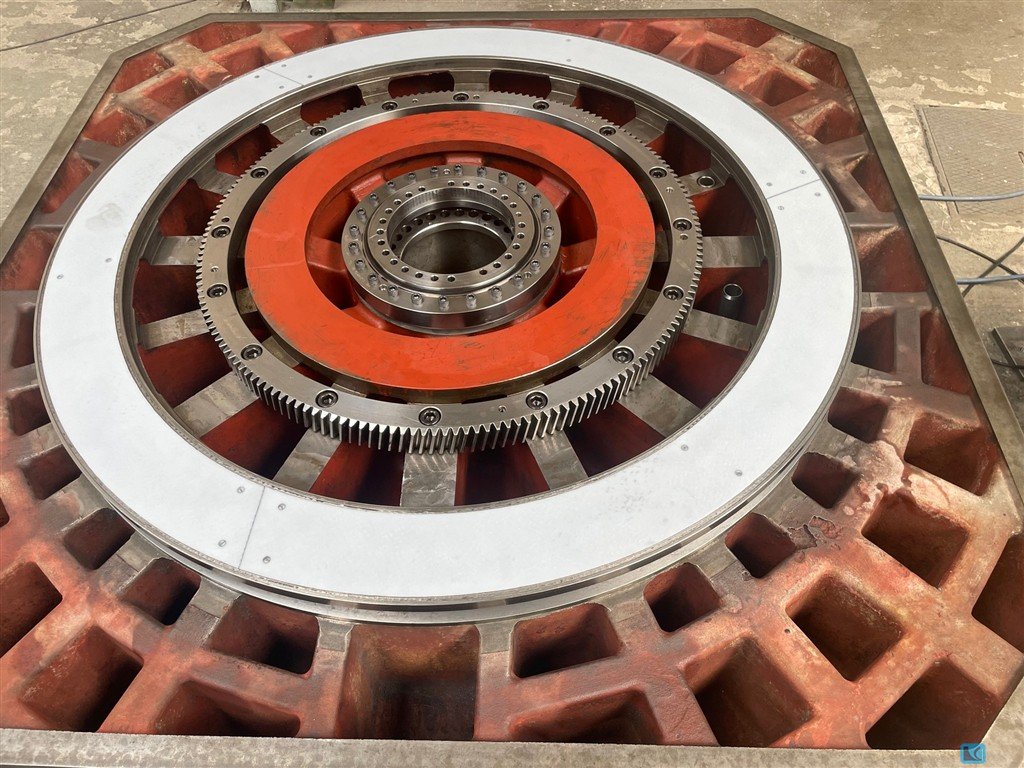

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

bore capacity in steel (diameter): 50 mm arm length: 1500 mm workpiece height max.: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1610008 Type of machine Radial drill Make MAS Type VO 50 Admision in drilling spindle MT 5 Max. drill capacity 50 mm Base dimensions 1820 x 986 mm Speeds (Rpm) 28 - 2500 Feeds (mm/R) 0,5 - 2 Lenght (mm) 3250 Width (mm) 1120 Height (mm) 3396 Weight 4550 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bohrleistung in Stahl (-Ø: 50 mm throat: 1500 mm workpiece height max.: 1380 mm Bohrleistung in Guß (-Ø: 60 mm Abstand Spindelmitte bis Säule: 320 - 1250 mm swival range +/-: 180 ° base plate surface area: 2640 x 1000 mm max. torque on the spindle: 310 Nm Bohrspindel-Ø/ Aufnahme: 75 mm /MK 5 bore spindle stroke: 310 mm spindle turning speed range: 28 - 2500 U/min feed:: 0,05 - 2 mm/U power capacity: 4 kW weight of the machine ca.: 4,3 t cube table 500 x 500 x 500 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

core boring: 70-560 mm bore depth: 20000 mm drilling diameter: 70-500 mm core boring capacity in St 60 - reboring: special: 560-1000 mm workpiece diameter: 3200 mm workpiece weight: 200 t faceplate diameter: 2900 mm speed of boring spindle:: 100 - 500 U/min feed range: 3 - 2000 mm/min boring spindle drive: 55 kW spindle head drive: 150 kW workpiece turning speeds: 230 U/min control: Fanuc total power requirement: - kW weight of the machine ca.: - t 2010 Retrofitted equipped with: - Fanuc Control - 4-Jaw Chuck - Oil Pressure Head - Boring Head - Drill Head - 2-Point Rollers Steady Rest (4) - 3 Point Steady Rest (2) - Bar Rest (2) - Coolant & Coolant Piping - Chip Conveyor - Honing Oil Tank & Honing Tool Bars The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 60 mm Center of spindle to wall or column: min./max. 320 - 160 mm spindle turning speed range: 20 - 2.500 U/min quill stroke: 310 mm total power requirement: 4 kW weight of the machine ca.: 4.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 110 mm x-travel: 2000 mm y-travel: 1500 mm z-travel: 1450 mm table surface area: 1400 x 1600 mm taper ISO: 50 spindle speed:: 2 - 2500 Control: TOSNUC 7-3 total power requirement: 22 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travel X/Y/Z: 3000mm/2300mm/1600mm, travel W: 700mm, max. table-to-spindle distance: 2300mm, table dimensions X/Y: 1800mm/2200mm, max. table load: 10000kg, spindle diameter: 130mm, spindle speed: 2500rpm, rapid traverse X/Y/Z: 10m/min, rapid traverse W/B: 5000mm/min/500mm/min, feed X/Y/Z: 4m/min, tool holder: BT50, tool positions: 38, positioning accuracy X/Y/Z: +/-0.008mm, positioning accuracy W: +/-0.012mm, repeatability X/Y/Z: +/-0.004mm, repeatability W: +/-0.008mm. Machine dimensions X/Y/Z: approx. 7050mm/7200mm/4800mm, weight: approx. 37000kg, control: TOSNUC-888. Documentation available. An on-site inspection is possible. The machine is located in China.

Long belt Sanders for intermediate lacquer sanding Technical data: Grinding width: max 2,300 mm, min. 200 mm Workpiece height 8-200 mm 1.Schleifbandmasse 100-120 mm x 9000 mm 2.Schleifbandmasse 150 mm x 9000 mm Pressure plate tape measures 10 x 7280 mm Speed 4-12.5 m / min Suitable for intermediate lacquer sanding Grinding motor power kW 10/16 Total power: 20 kW Machine dimensions approx. B 4590 x L 2344 x H 1640 mm Engine weight 2150 kg

machine has live spindle for drilling and grinding face plate diameter mm 800 max. workpiece diameter mm 1000 max. workpiece height mm 750 max. diameter of external working mm 1000 Z axe mm 630 face plate revolutions 1 5 – 500 rpm main motor output kW 30 (40) machine dimensions length mm 4900 height mm 3830 width mm 4485 machine weight kg 16000 machine had DRO Tesla NS 642

Machine weight: 39,000 kg Faceplate diameter 2000 mm number of supports: 2 pcs. Dimensions : Height 6280 mm width 6600 mm length 4800 mm Extras: Right support with turret head, left and side - sliders. Digital indication of NS 114. Technical condition at the time of sale: Defective rotary amplifier main drive-replacement is required. Require replacement of cables and wires external piping:-machine control cabinets. Repair and adjustment of electrical parts. Not operated since 1994 The maximum dimensions of a workpiece Height 1300 mm Diameter of 2000 mm Weight 15 000 kg

Table clamping area: 290 x 1250 mm Table movement x: 800 mm Table movement y: 360 mm Table movement z: 450 mm Milling head pivotable: 90/45 ° Spindle holder: ISA 40 Spindle speeds: 56 - 4500 rpm Pinolene stroke: 125 mm Pinolene feeds: 0.035; 0,14; 0.7 mm/min Spindle drive: 1.8/2.4 kW Space requirement: 2000 x 1900 x 2300 mm Weight: 1700 kg

Peak height: 160 mm Tip width: 1500 mm Grinding wheel dimensions: 500 x 127 x 40 mm Grinding wheel speeds: 1570/2050 rpm electr. Connection: 380 V kW Space requirement: 4400/6400 x 2000 x 1400 mm Weight: approx. 4000 kg

Tech. Data and more info on request

Ø board: 1250 mm Maximum turnerable: 1500 mm Useful height: 1355 mm Vertical crossbar stroke: 800 mm Ram vertical stroke: 1000 mm Toolholder number: 15 Table pruned: 12000 kg CNC Tesla NS 642 C Fast: 8 m/min Power: 40 kW Weight: 27.2 ton

Code 1810 DESCRIPTION CNC Universal milling machine Make TOS Model FNG 63 CNC S/N 16663 Year 1991 Control Heidenhain TNC 355 Table 1120 x 630 mm Longitude ( X – axis ) table 800 mm Vertical ( Y – axis ) table 500 mm Cross ( Z – axis ) spindle 630 mm Spindle movement ( H/V ) 100 mm Spindle taper 40 ISO Speeds 20 - 4000 rpm Feeds X-Y-Z 1 – 7500 mm/min Rapides 7,5 m/min Spindle motor 11 kW – 380 Volts Accessories Table 1120 x 630 mm Coolant Condition Machine is in normal condition

table length: 2200 mm table width: 2200 mm table load: 16 t Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1210063 Type of machine CNC Rotary table Make TOS Type SK 16 Build in nb X-stroke (mm) 1500 Additional information Table size 2200 x 2200 mm max. table load 16 ton controlled by a machine with a Heidenhain TNC 426 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BN 102 C Producer Tos Swing 280 mm Distance between centres 630 mm Cross table adjustment 250 mm Longitudinal table adjustment 510 mm Vertical milling head adjustment 290 mm Machine weight 1000 kg

Inv. Num. : 6305 Type: SKJ 20 Produzent: TOS Erzeugt: 1982 Parametern: Tischdurchmesser: 2000 mm Maximales Werkstückgewicht: 15000 kg Max. Werkstückhöhe: 1200 mm Maximale Tischdrehzahl: 170 1/min Gewicht: 35000 kg

Inv. Num. : 6598 Type: SK 12 Producer: ZPS Created: 1964, GO 1994 Parameters: Table diameter: 1180 mm Clamping plate speed: 5.3-225 1/min Max. turning diameter: 1350 mm Max. workpiece height: 900 mm Max. workpiece weight: 5000 kg Length: 2360 mm Width: 3860 mm Height: 4260 mm Weight: 18300 kg
