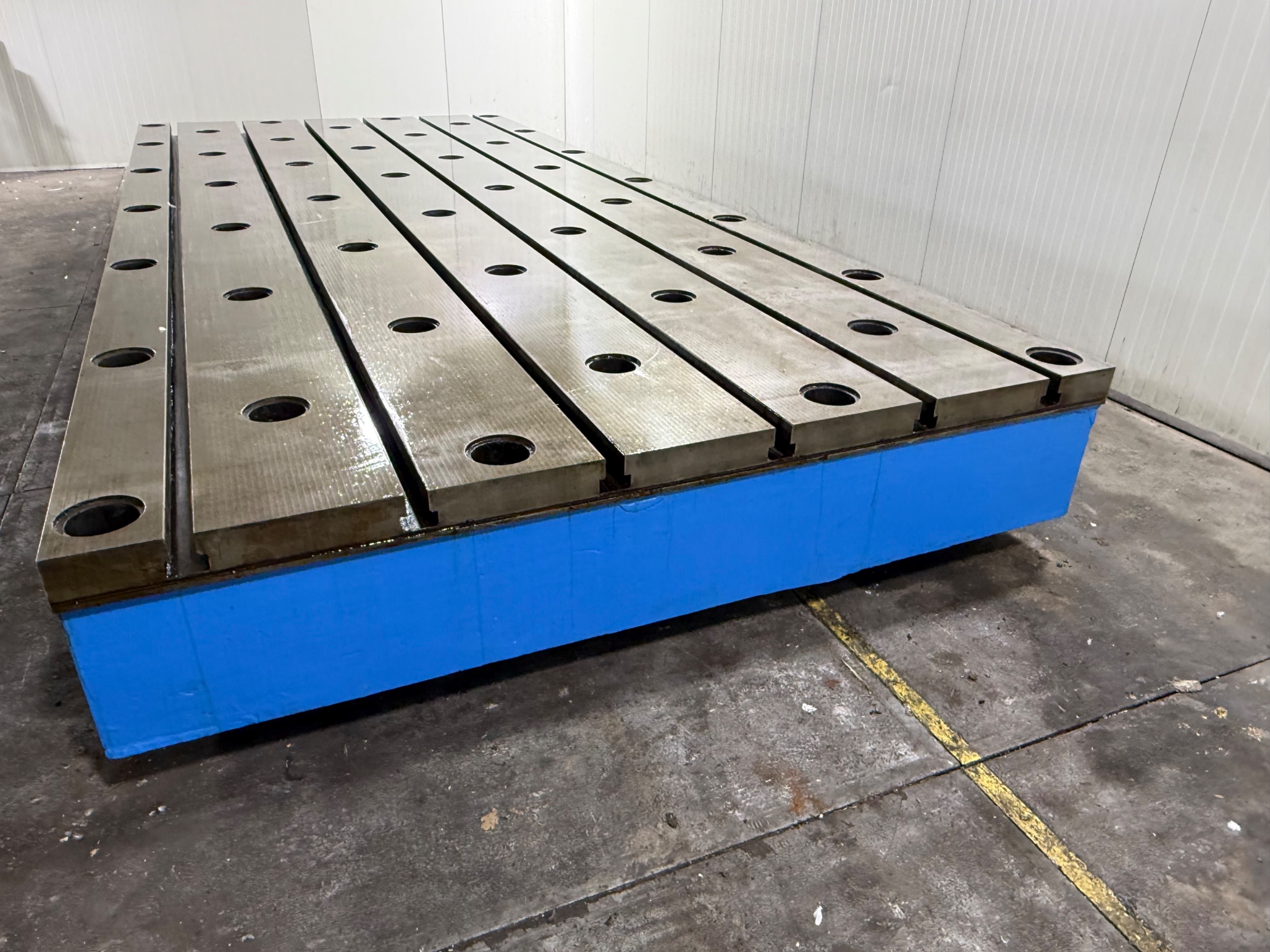

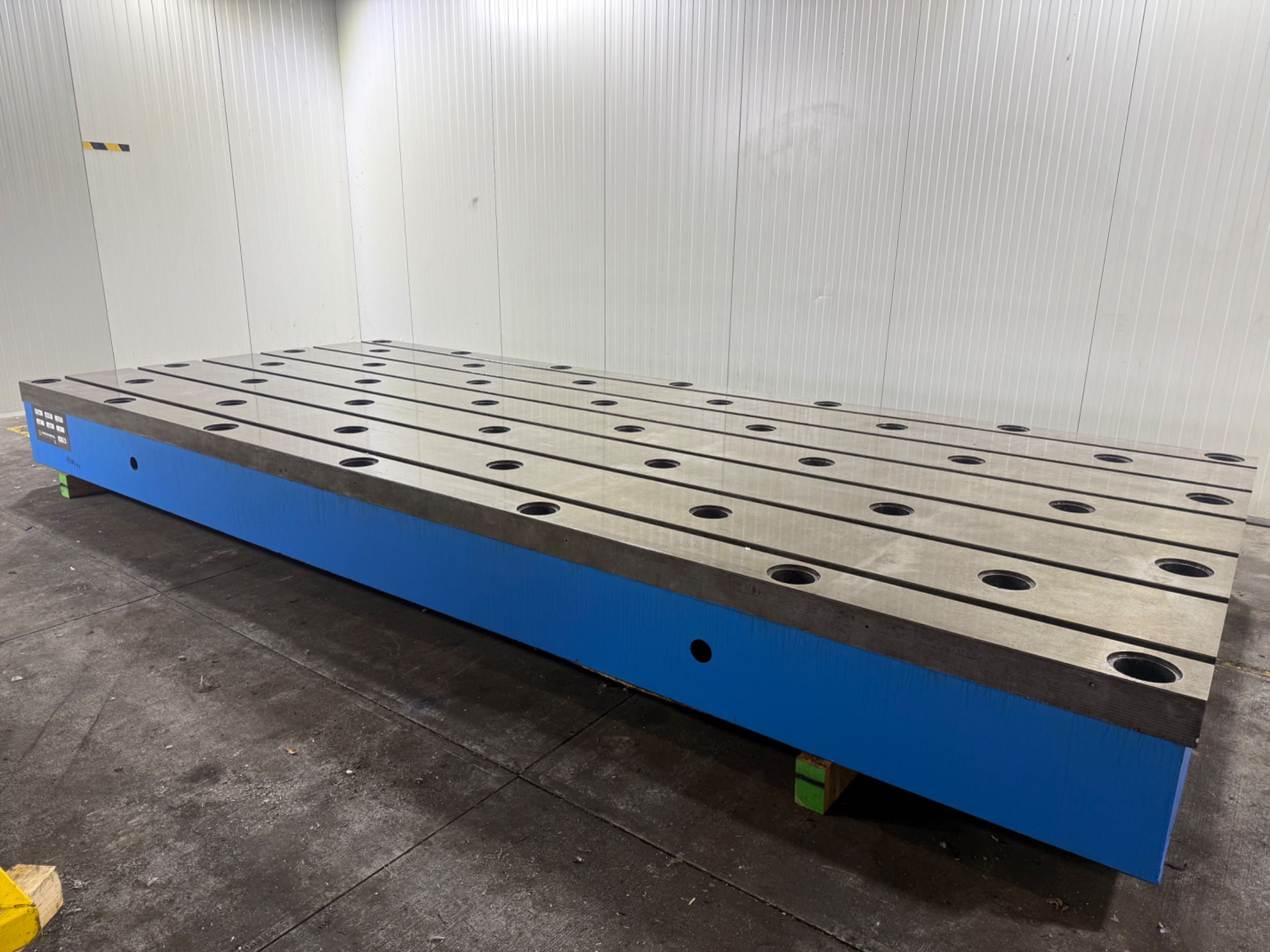

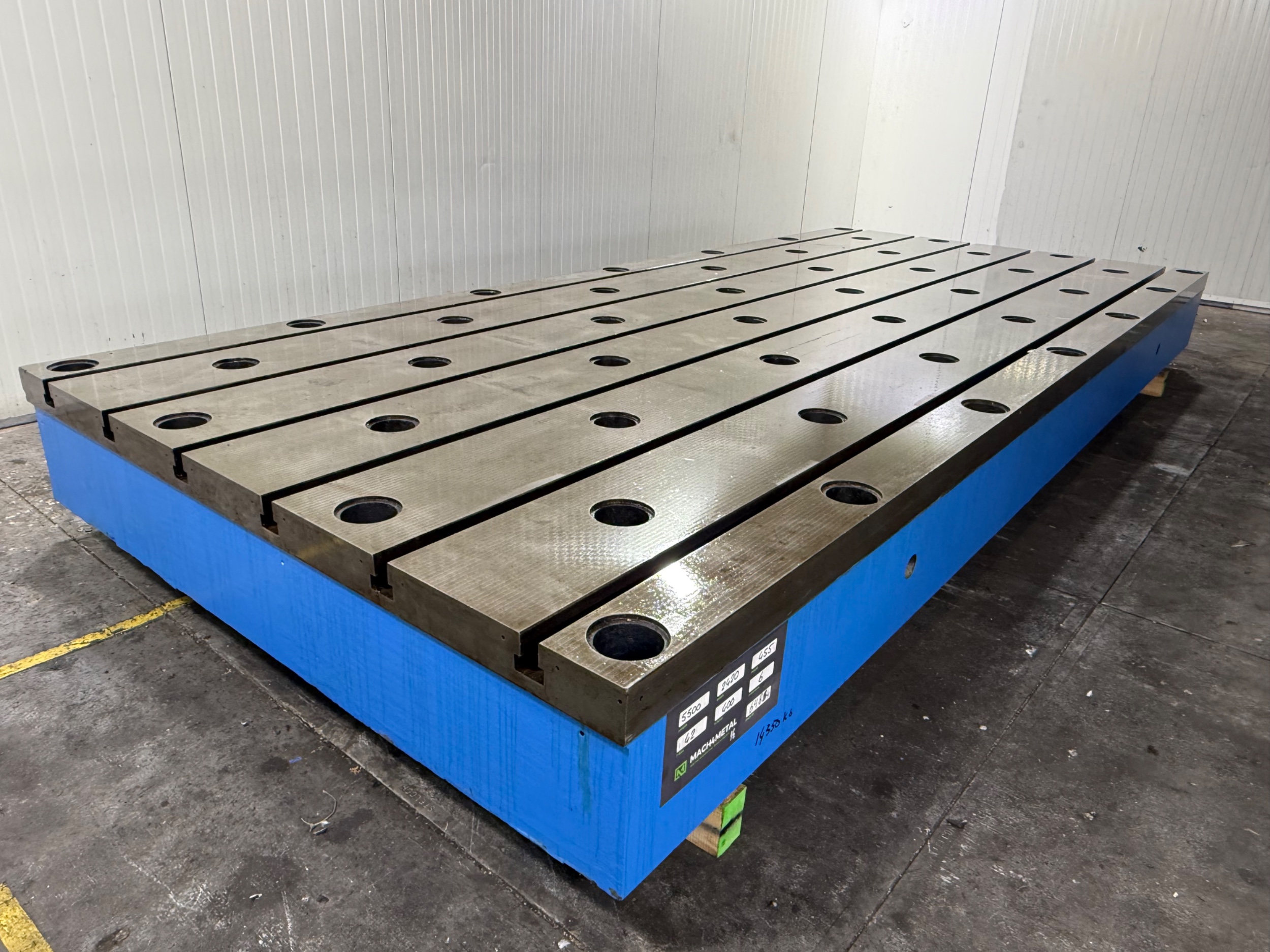

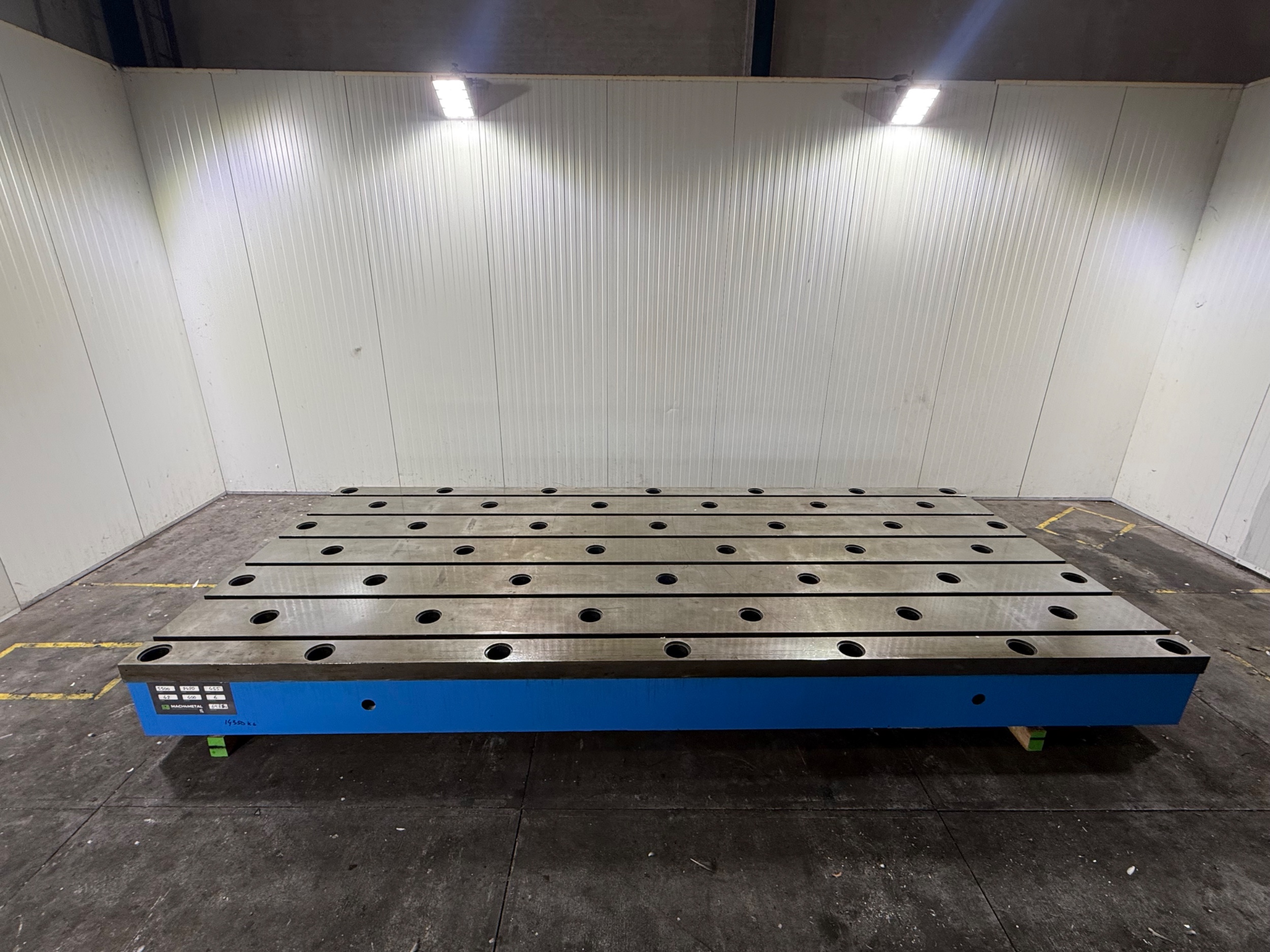

Clamping plate 5,000 mm x 1,980 mm x H 300 mm made of cast iron, with 6 pieces T - grooves with 35 mm width, manufactured according to DIN876, the T - grooves manufactured according to DIN650 - H12.
Clamping plate 5,000 mm x 2,000 mm x H 400 mm made of cast iron with 10 pieces T - grooves with 35 mm width, manufactured according to DIN876, the T - grooves manufactured according to DIN650 - H12.
Plate plate made of cast iron with longitudinal grooves and mounting holes, manufactured according to DIN876, the T - grooves manufactured according to DIN650 - H12. - 4 plates with dimensions 3,000 mm x 1,200 mm x H 300 mm.
Technical data: working surface: 2500 x 3000 mm Table load: 30 to. The mounting pad height: 240 mm Number of T-slots: 10 Rotation speed: 0.008 ? 0.45/rpm Power: 7,5 kW
- 8 units Precision Leveling wedges - BILZ PK4/72 - Size 200 x 200 x 80 mm - Load 38.000 N/pc - Levelling +5 to - 7 mm
Clamping plate with T-slots, plate field, welding table, welding table, plate boring mill -Width: 1100 mm -Length: 2250 mm -Height: 200/100 mm -Working height: 820 mm -with supporting ribs -Groove width: 24 mm -Weight: approx. 2000 kg
Clamping plate, marking plate, measuring plate, measuring table, surface plate, marking plate -Manufacturer: Stolle, clamping plate with support ribs -Length: 2005 mm -Width: 1500 mm -Plate thickness: 40 mm -Plate: with support ribs -Transport dimensions: 1500/2005/H500 mm -Weight: 1800 kg
Clamping plate, marking plate, measuring plate, measuring table, straightening plate, marking plate -Manufacturer: Stolle, clamping plate: with support ribs -Length: 2490mm -Width: 1000mm -Plate thickness: 40 mm -Plate: with supporting ribs (without straightening blade, not included) -Transport dimension: 2490/1000/H910 mm -Weight: 1500 kg
Clamping plate, marking plate, measuring plate, measuring table, straightening plate, marking plate -Manufacturer: Stolle, clamping plate: with support ribs -Length: 2495mm -Width: 1500mm -Plate thickness: 40 mm -Plate: with supporting ribs (without straightening blade, not included) -Transport dimension: 2495/1500/H810 mm -Weight:2370 kg
Clamping plate with T-slots, plate field, welding table, welding table, plate boring mill -Width: 1100 mm -Length: 1300 mm -Height: 200/100 mm -Working height: 820 mm -with supporting ribs -Groove width: 24 mm -Weight: approx. 1000 kg
Clamping plate with T-slots, plate field, welding table, welding table, plate boring mill -Width: 1100 mm -Length: 1300 mm -Height: 200/100 mm -Working height: 820 mm -with supporting ribs -Groove width: 24 mm -Groove spacing: approx. 100 mm -Transport dimensions: 1300/1100/H820 mm -Weight: approx. 1000 kg
