Fully Automated Forging Hammer Line (2023) SCHULER KG H 6.3 B (63 KJ) Line Description The complete line consists of the following machines: Tilting Device, Stahlmann Step Conveyor, Stahlmann Cold conveyor belt Conductive Heating System, Stahlmann, E89, 2023 Transfer Gripper Hot Conveyor Belt with Lifting Device 2 Forging robot, Kuka, KR 30-3F, 2010 Safety Fence with Safety Doors Short-Stroke Die Forging Hammer, Schuler, KG H 6.3 B, 2023 Discharge / Extraction Robot, Kuka, KR 150/2, 2010 Output Station, Stahlmann, 2010 Technical Details (2023) Short-Stroke Die Forging Hammer SCHULER KGH 6.3B Machine identification data Name: Short-Stroke Die Forging Hammer Model: KGH 6.3B Machine number: 119820 Year of manufacture: 2023 Operational parameters Working capacity max. 63 kJ Max. impact frequency 98/min Max. usable impact rate ...
Specifications: Capacity 63 tons Stroke rate 140 h/min Projection 250 mm Plunger stroke 8-100 mm Table , WxD approx. 700 x 480 mm Installation height approx. 400 mm
Specifications: Capacity 63 tons 2 strokes 105 rpm and 140 rpm large projection 450 mm ! Plunger stroke 8-100 mm Plunger adjustment approx. 70 mm Table , WxD approx. 700 x 780 mm Plunger, W x D approx. 450 x 280 mm
Schuler PE4s 50/800 High Speed Press Manufacturer: Schuler Type: PE4s 50/800 High-speed press 61/21 600/3 Pressing force: 50 t Projection: 800 mm Stroke rate /min: 125-300 Plunger stroke: 40 mm Kohler unwinding reel 500.1 M We sell a large number of paternosters. The devices are in operation until 30.06.2021. After the purchase, there are also the documents for it From 01.07.21 the devices are ready for collection. Dismantling and transport by the buyer. Location is Hildesheim The dismantling, loading, as well as transport can alternatively be offered by us. In addition to about 50 paternosters, countless other machines are available. After purchase, the amount is due within 7 working days. Please also note our other offers. Have fun browsing and buying.
Capacity: 50 ton Projection: 225 mm Stroke: 320 p/min Large table: 500 x 800 mm
Pressure total: 250 ton Ram stroke: 70 / 250 mm Slide adjustment: 160 mm Ejector in ram: 20 ton Ejector stroke in ram: 10 mm Shut height (stroke down, adjustment up): 520 mm Free lateral opening F-B: 1.300 mm Table surface area : 1.600 x 1.600 mm Slide area: 1.600 x 1.600 mm Number of strokes: 0 - 50 s.p.m. Required power: 33 kW Height over floor approx.: 5.500 mm Weight of machine approx.: 58 ton Roll feeder Material width: 1250 mm Material thickness: 0,3 - 1,6 mm Control: Siemens S7
pressure:100 t throat:315 mm stroke:30 - 160 mm no. of strokes:40 /min distance table/ram, max. stroke up, adjustment up:460 mm table surface area:910 x 680 mm Hole in the table:400 mm table height over floor:800 mm passage to the back:400 mm ram surface:630 x 400 mm ram adjustment:80 mm power requirement:7,5 kW weight:7,5 t dimensions (WxDxH):1,7 x 2,0 x 3,0 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical ram counterbalance:pneumatic
pressure:3500 t stroke:900 mm Distance table / ram, stroke down:1000 mm distance table / ram, stroke up:1900 mm table surface area:3150 x 2150 mm ram surface:3150 x 2150 mm Total Weight of Tool max.:30,0 t Weight of Tool Top Part max.:20,0 t speed down:400 mm/s working speed:0,9 - 9,2 mm/s Hydraulic Operating Pressure:280 bar oil volume:5500 l rated current:760 A voltage:400 V frequency:50 Hz power requirement:425 kW weight:231,0 t
Pressure:080 t throat:280 mm stroke:20 - 120 mm no. of strokes:42 - 125 /min distance table/ram, max. stroke up, adjustment up:510 mm table surface area:700 x 560 mm hole in the table:280 mm table height over floor:800 mm passage to the back:320 mm ram surface:560 x 350 mm ram adjustment:72 mm Weight:5,2 t Dimensions (WxDxH):1,6 x 1,6 x 2,6 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical
pressure:025 t throat:200 mm stroke:8 - 80 mm no. of strokes:60 - 180 /min distance table/ram, max. stroke up, adjustment up:330 mm table surface area:560 x 400 mm hole in the table:150 mm table height over floor:800 mm passage to the back:240 mm ram surface:355 x 220 mm ram adjustment:50 mm weight:3,0 t dimensions (WxDxH):1,0 x 1,4 x 2,2 m infinitely variable drive:Stöber overload protection in ram:mechanical NEW electrical controls:Pilz
pressure:025 t throat:200 mm stroke:8 - 80 mm no. of strokes:180 /min distance table/ram, max. stroke up, adjustment up:330 mm table surface area:550 x 400 mm hole in the table:60 mm table height over floor:800 mm passage to the back:200 mm ram surface:355 x 220 mm ram adjustment:50 mm power requirement:2,7 kW weight:2,5 t dimensions (WxDxH):1,2 x 1,8 x 2,4 m overload protection in ram:mechanical
Pressure:250 t stroke:30 mm no. of strokes:60 - 500 /min Distance between columns:1500 mm distance table/ram, max. stroke up, adjustment up:390 mm table surface area:1580 x 1100 mm hole in the table:1270 x 300 mm table height over floor:1470 mm side window:600 mm ram surface:1500 x 900 mm ram adjustment:100 mm material width:500 mm material thickness:0,5 - 1,5 mm coil weight:6,5 t coil internal diameter:420 - 560 mm coil external diameter:1500 mm power capacity:45,0 kW Weight:44,0 t Dimensions (WxDxH):3,3 x 1,8 x 4,5 m clutch:pneumatisch ram adjustment:motorisch double decoiler:LH 2-1,5-500 straightening machine:R 500 roll feed:mechanisch; Schuler, WK 8-500
pressure:160 t throat:400 mm stroke:30 - 200 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:600 mm table surface area:1000 x 770 mm table height over floor:810 mm hole in the table:360 mm Passage to the back:450 mm ram surface:710 x 450 mm ram adjustment:110 mm power requirement:15,0 kW weight:10,5 t Dimensions (WxDxH):1,7 x 2,0 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic
pressure:063 t throat:250 mm stroke:8 - 100 mm Stroke rate:60 - 160 / min Distance table/ram, max. stroke up, adjustment up:415 mm Table surface area:710 x 500 mm Hole in the table:250 / 280 mm Table height above floor:800 mm Passage to the back:290 mm Ram surface:450 x 280 mm Ram adjustment:63 mm Weight:4,3 t Dimensions (WxDxH):1,5 x 1,7 x 2,7 m infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
pressure:063 t throat:250 mm stroke:8 - 100 mm Stroke rate:47 - 140 / min Distance table/ram, max. stroke up, adjustment up:415 mm Table surface area:710 x 480 mm Hole in the table:280 / 250 mm Table height above floor:800 mm Passage to the back:290 mm Ram surface:450 x 280 mm Ram adjustment:63 mm Weight:4,0 t Dimensions (WxDxH):1,5 x 1,6 x 2,7 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 infinitely variable drive:PIV clutch:pneumatic overload protection in ram:mechanical
pressure:125 t stroke:25 fix mm no. of strokes:70 - 700 /min distance between columns:1150 mm distance table/ram, max. stroke up, adjustment up:400 mm table surface area:1150 x 1000 mm hole in the table:900 x 220 mm side window:650 mm ram surface:990 x 850 mm ram adjustment:60 mm material width:250 mm material thickness:2,5 mm power requirement:46,5 kW weight:29,5 t roll feed:mechanical, Schuler, WK 8-250
pressure:40 t throat:220 mm stroke:8 / 88 mm table pass:ø- abgesetzt 225/200 mm ram head dimension:400 x 250 mm distance table/ram:228 mm stroke adjustable from - to:30 - 140 mm ram adjustment:63 mm thickness of bolster:80 mm no. of strokes:70 Hub/min total power requirement:5,5 kW weight of the machine ca.:2600 kg dimensions of the machine ca.:1100 x 1300 x 2300 mm Documents:vorhanden

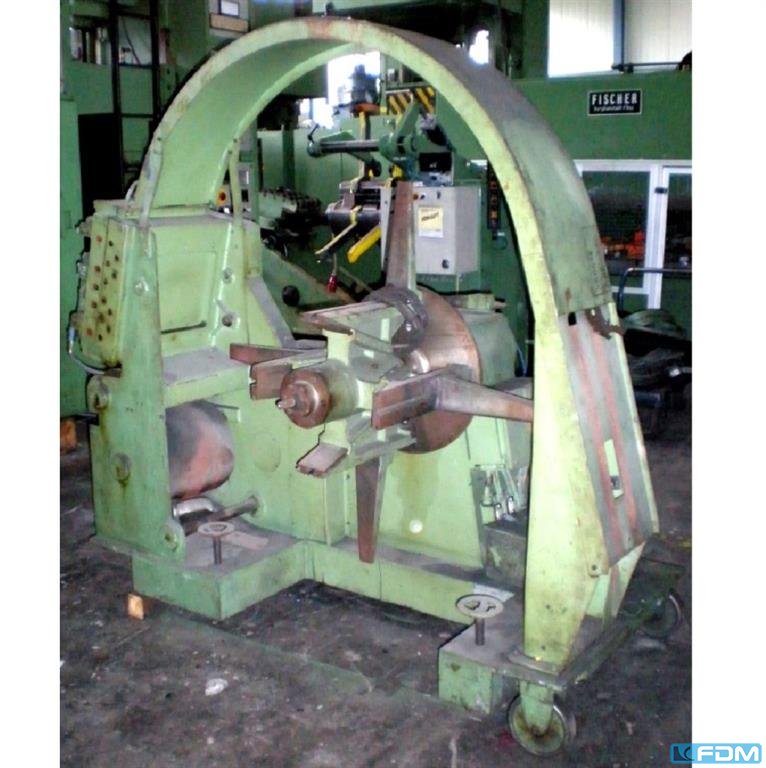

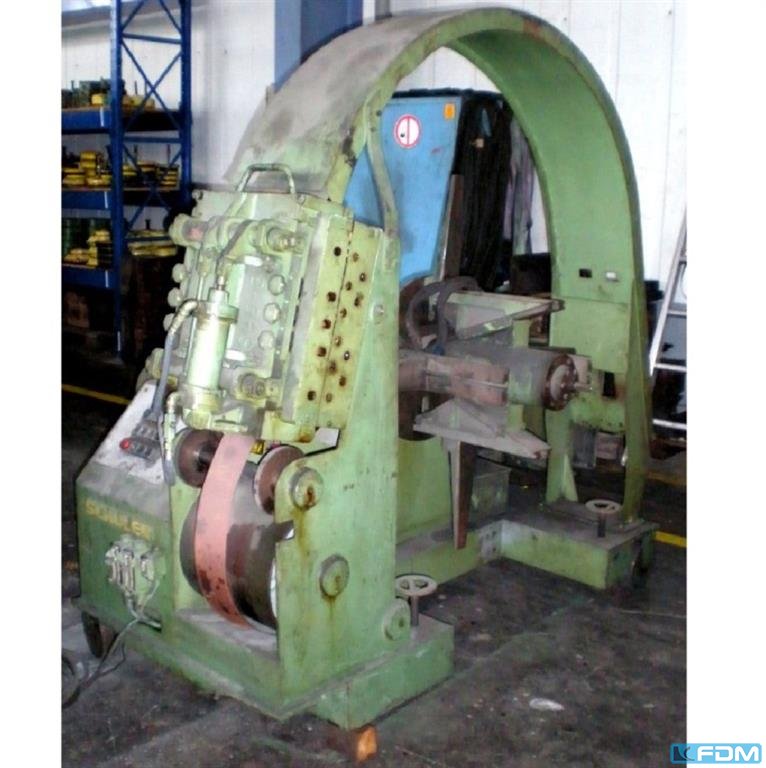

material width:320 mm coil weight:2,6 t material thickness:0,5 - 2,0 mm coil internal diameter:400 - 510 mm coil external diameter:1200 mm no. of straightening rolls:7 straightening roll diameter:50 mm number of draw-in rolls:2 band speed:0 - 30 m/min power capacity:1,5 kW weight:1,5 t
nominal force:100 t stroke:320 mm no. of strokes:35 /min distance between columns:360 / 250 mm Distance table/ram, max. stroke up, adjustment up:500 mm table surface area:320 x 450 mm table height over floor:660 mm ram surface:250 x 280 mm spindle diameter:125 mm power capacity:3,0 kW weight:4,5 t Dimensions (WxDxH):2,0 x 1,6 x 3,1 m
pressure:063 t throat:450 mm stroke:8 - 100 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:720 x 800 mm hole in the table:280/250 mm table height over floor:800 mm passage to the back:290 mm ram surface:450 x 280 mm ram adjustment:63 mm power requirement:7,5 kW weight:4,7 t dimensions (WxDxH):1,3 x 2,0 x 2,65 m clutch:pneumatisch overload protection in ram:mechanisch
material width: 650 mm coil weight: 15 t material thickness: 16 mm The year of construction is estimated, the system is as good as new The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Pressure total: 800 ton Ram stroke: 700 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1500 mm Free frontal opening L-R: 3800 mm Free lateral opening F-B: 1450 x 1100 mm Table surface area : 3500 x 1900 mm Slide area: 3500 x 1900 mm Die cushion capacity in table: 150 ton Die cushion stroke: 250 mm Die cushion pad area: 2780 x 1570 mm Number of strokes: 7 - 18 s.p.m. Required power: 120 kW Height over floor approx.: 9510 mm Weight of machine approx.: 260 ton
Radius cutter, finger cutter, end mill, milling cutter -Six-cutter -Finish cutter -Shaft: Ø 25 mm -Diameter: 32 mm -Usable length: 70 mm -Angle: 60° -Type: HSS -Quantity: 4 pieces -Sale/Price: complete -Weight: 4 kg
End mill, shank mill, milling cutter -Four-cutter -Roughing end mill -Diameter: 16 mm -Usable length: 20 mm -Type: HSSE -Quantity: 17 pieces -Sale: only complete set -Weight: 4 kg
bushing cut-off diameter range 8-18 mm number of dies 5 number of stations (incl. cut off) 6 shaft length under head 120 mm cutting length 140 mm output - pieces/min 60-170 press power 100 to
Pressure total: 1200 ton Ram stroke: 600 mm Slide adjustment: 500 mm Shut height (stroke down, adjustment up): 1250 mm Free frontal opening L-R: 3550 mm Table surface area : 3500 x 2700 mm Slide area: 3500 x 2700 mm Die cushion capacity in table: 240 ton Die cushion stroke: 250 mm Ejector in ram: 95 ton Ejector stroke in ram: 150 Number of strokes: 10 - 16 s.p.m. Height over floor approx.: 9000 mm Weight of machine approx.: 280 ton
Pressure total: 1500 ton Ram stroke: 1100 mm Slide adjustment: 500 mm Shut height (stroke down, adjustment up): 1500 mm Free frontal opening L-R: 4600 mm Table surface area : 4500 x 2500 mm Slide area: 4500 x 2500 mm Die cushion capacity in table: 250 ton Die cushion stroke: 250 mm Ejector in ram: 150 ton Ejector stroke in ram: 150 mm Number of strokes: 6 - 18 s.p.m. Required power: 200 kW Height over floor approx.: 9000 mm Weight of machine approx.: 400 ton
Pressure total: 1200 ton Ram stroke: 600 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1600 mm Free frontal opening L-R: 4550 mm Table surface area : 4500 x 2700 mm Slide area: 4500 x 2700 mm Die cushion capacity in table: 225 ton Die cushion stroke: 200 mm Number of strokes: 9 s.p.m. Height over floor approx.: 9000 mm Weight of machine approx.: 344 ton
pressure: 200 t nominal power: 2000 kN stroke length max.: 1700 mm working feed: 50 mm/sec weight of tools max.: 50000 kg voltage: 400 V table-size: 4.800 x 2.400 mm total power requirement: 99 kW weight of the machine ca.: 113 t dimensions of the machine ca.: m passage width: mm stroke: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Pressure total: 800 ton Ram stroke: 700 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1475 mm Free frontal opening L-R: 3700 mm Free lateral opening F-B: 2300 mm Table surface area : 3600 x 2200 mm Slide area: 3500 x 2070 mm Die cushion capacity in table: 150 ton Die cushion stroke: 250 mm Die cushion pad area: 2780 x 1570 mm Ejector in ram: 60 ton Ejector stroke in ram: 150 mm Number of strokes: 7 - 21 s.p.m. Required power: kW Height over floor approx.: 9510 mm Weight of machine approx.: 260 ton
