Control Siemens ... Sinumerik 840 D Max.workpiece diameter ... 3200mm Turntable diameter ... 3000mm Max.table load... 14000kg Max. workpiece height ... 2200mm Axis Z ... 1155mm Max. workpiece weight ... 14000 kg Main engine power ... 81 kW Floor space... DXŠXV 7200x6400x6600mm The machine is in very good condition,
Stock number 1210059 Machine Type Rotary Table Make SCHIESS Type 25/30 Control type X-way (mm) 2,000 Table dimensions (mm) 3,000 x 2,500 Table swivel (degrees) 360 Information Max. table load 40 ton
Key data: 4000 mm, 5000 mm
Specifications Control SIEMENS SINUMERIK 840 Dsl Main dimensions and travels Face plate diameter 4,000 mm Circumferential diameter (max.) 5,000 mm Workpiece height (max.) 5,000 mm Total height of the machine 9,250 mm Maximum workpiece weight 80,000 kg Table base Y Horizontal table displacement 2,500 mm Crossbar Vertical adjustment of the crossbeam 3,200 mm in 50 steps Crossbeam Support (Right) Horizontal adjustment support - 2740 + 2740 mm Vertical displacement of the chisel slider 1,800 mm Cross-section of the chisel slider 250x210 mm Side Support (Right) Vertical adjustment support -25 + 2170 mm Horizontal displacement of the chisel slider 1,000 mm Cross-section of the chisel slider 250x210 mm Turning diameter max./min. 4,500/2,500 mm Main Drive: Main motor power 100 kW Face plate speed range 0.63 – 63 rpm. Maximum torque at the ...
Specifications Control Siemens Sinumerik 840 Dsl Main dimensions and travels Face plate diameter 3,500 mm Circumferential diameter (max.) 4,000 mm Workpiece height (max.) 3,000 mm Total height of the machine 7,250 mm Maximum workpiece weight 50,000 kg Table base Y Horizontal table displacement 2,000 mm Crossbar Vertical adjustment of the crossbeam 1,500 mm in 50 steps Crossbeam Support (Right) Horizontal adjustment support -25 + 2170 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool Stations Crossbeam Support (Left) Horizontal adjustment support -25 + 2170 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool Changer Main Drive: Main motor power 100 kW Face plate speed range 1-100 rpm. Maximum torque at the face plate 100 ...
Technical data of used Schiess Froriep Boring Machine: CNC: Siemens 840 D Maximum transversal travel X axis: 13.770 mm Maximum vertical travel Y axis: 5.000 mm Z axis: 1.780 mm W axis: 950 mm V axis rotating support plane: 2.000 mm Rotating table dimensions: 5.000 x 3.500 mm Fixed table dimensions: 7.500 x 4.300 mm Maximum permissible load on the table: 120 ton Spindle power: 100 kW Spindle revolutions per minute: 710 rpm
CNC LATHE SCHIESS STC 460 3 axis with Fanuc OI TC Year 2005 Turret 12 Position VDI 30 Tailstock Chipconveyer Max Swing over bed : 520 mm Max turning length : 550 mm
Travel X-axis 9,500 mm Y-axis 4,100 mm Z-axis 950 mm W-axis 900 mm Main spindle speeds (infinitely adjustable): 3.15 - 1000 rpm Spindle motor power 58 kW Feed speed (infinitely adjustable): X-axis 0.1 - 9600 mm/min Y-axis 0.1 - 5600 mm/min Z-axis 0.1 - 5600 mm/min W-axis 0.1 - 5600 mm/min Accessories: Plate field: 6 x 4 m (CNC-controlled B- and V-axis) Table: 2 x 2 m (CNC-controlled B- and V-axis)
faceplate diameter:2500 mm swing diameter:2500 mm swing diameter:2500 mm turning height:2500 mm turning speed range - faceplate:1,8 - 140 U/min workpiece weight max.:15.000 kg feeds: 0,03 - 6,3 mm/U rapid speed:2 m/min cross rail adjustment:2150 mm max. ram stroke:1500 mm power capacity:55 kW weight of the machine ca.:32 t dimensions of the machine ca.:4,1 x 7,6 x 6,0 m 1 turret head 1 RAM head

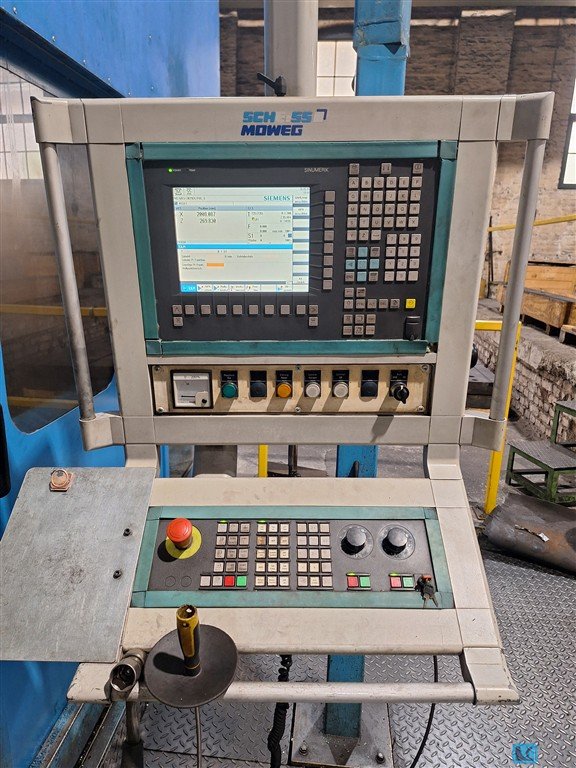

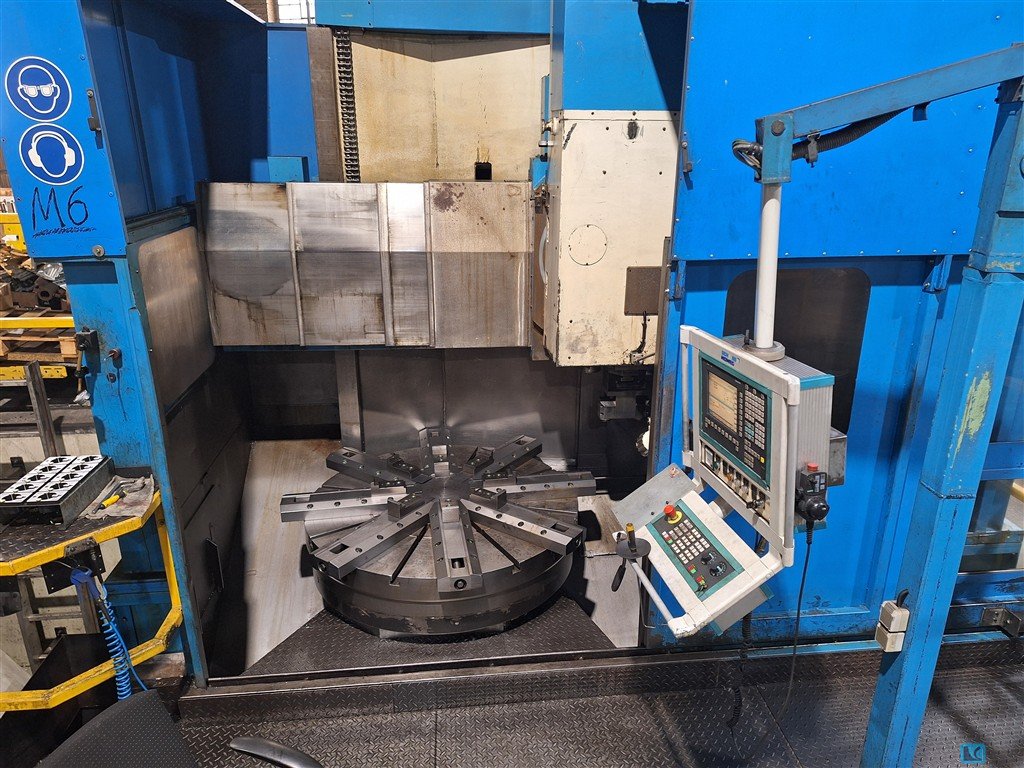

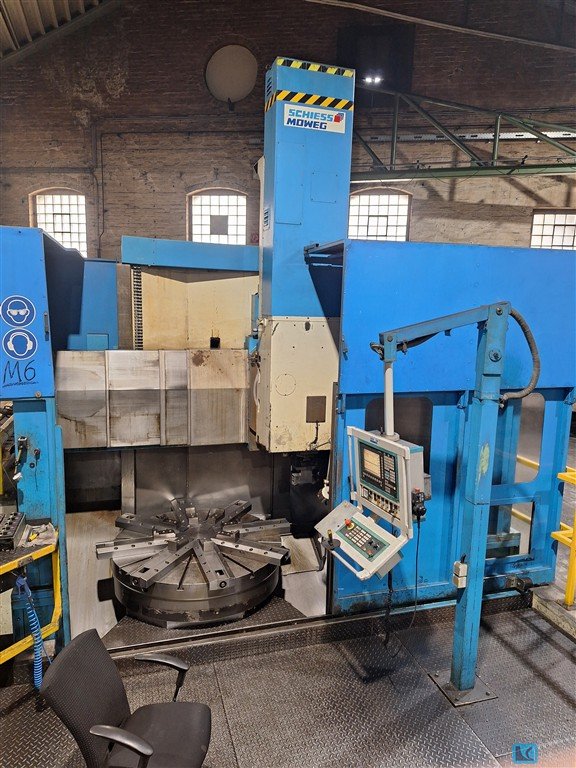

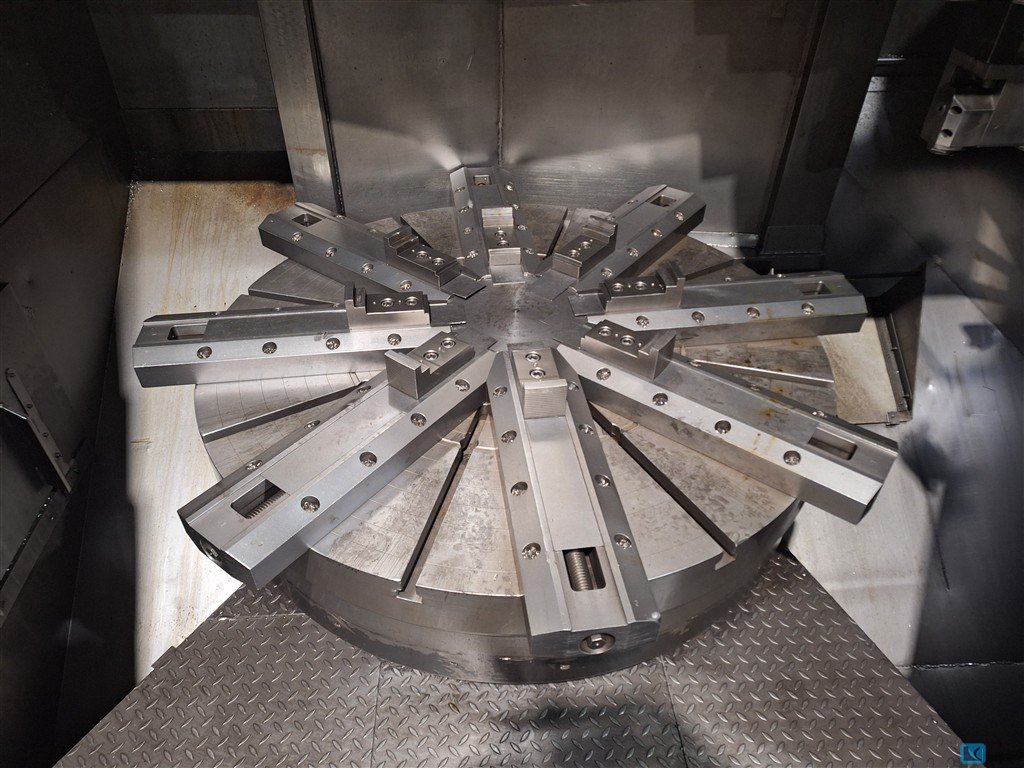

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

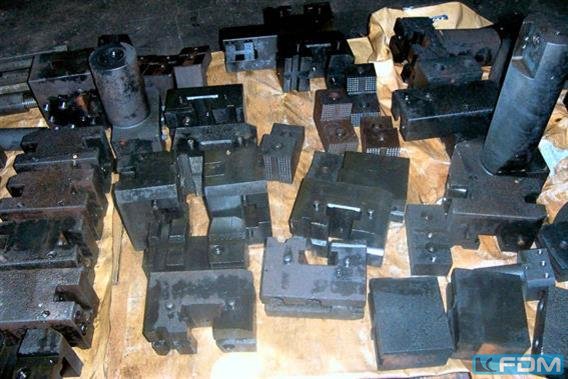

pitch taper:50 Aufnahme Detailed price on request depense on version and nos. ca. 500 - 1500 EUR + VAT /piece Diverse toolholders matching SCHIESS-VTL´s with SK 50 taper and T-slot clamping design! Diverse fixed boring bars in different dia. and length. Diverse boring bar adapter plates to adapt different boring bars. Diverse normal toolholders for toolshank 40 mm in version left or right
faceplate diameter: 2500 mm Thickness: 240 mm T-slot - distance: 175 mm total power requirement: . kW weight of the machine ca.: . kg dimensions of the machine ca.: . m Optional with 4 jaws €3750 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
faceplate diameter: 2500 mm Thickness: 240 mm T-slot - distance: 175 mm total power requirement: . kW weight of the machine ca.: . kg dimensions of the machine ca.: . m Optional with 4 jaws €3750 With bed from Schiess KZ 250 Optionally, a Schiess KZ 250 drive gear can be purchased for €9,500 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created ...
faceplate diameter: 2500 mm turning height: 1500 mm turning diameter over bed: 2700 mm turning speeds: 1,9 - 60 (16x) U/min voltage: 380 V total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
faceplate diameter: 2950 mm swing diameter: 3200 mm turning height: 3500 mm table load: 20 t feed range: 3000 mm/min main drive motor: 70 kW milling drive: 16,1 kW Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC-control FAGOR 8070 C-axis with 360,000 positions Milling head Inspection under power in the factory possible. Machine location is Spain. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
faceplate diameter: 5500 mm swing diameter: 6000 mm turning height: 4400 mm Control: FAGOR 8055 cross rail adjustment: 3000 mm ram adjustment: 1500 mm workpiece weight: 100 t faceplate speeds:: 1 - 25 U/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Retrofit in 2015 with CNC-control FAGOR 8055 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
spindle diameter: 160 mm x-travel: 10500 mm y-travel: 4000 mm spindle taper: ISO 50 z-travel: 950 mm turning speeds: 3,15-1000 U/min transmission ratio: 4 spindle power: 58 kW Support sleeve: 340x400 mm w-travel: 900 mm Feed: x 0,12-9600 mm/U Feed: y/z/w 0,1-5600 mm/U Plate area: 39,5 m² Plate: 5400x3500 mm Plate: 5900x3500 mm T-slot - distance: 365 mm T-slots: 35/75 mm Thickness of the plate: 360 Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or ...
faceplate diameter: 5500 mm swing diameter: 6000 mm turning height: 4400 mm turning speeds: - U/min main drive motor: - kW Control: FAGOR 8055 workpiece weight max.: 100 t ram stroke each side: 1500 mm cross rail - adjustment: 3000 mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m equipped with: - CNC Control 8055 - 1ram on Crossbeam The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
faceplate diameter: 1600 mm swing diameter: 1800 mm turning height: 1500 mm control: Siemens chip conveyor: Tool changer: type: 840 D mm workpiece weight: 10000 kg slide adjustment: 1000 mm ram head dimension: 240x240 mm turning speeds: 250 U/min main drive: 45 kW Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data fo ...
faceplate diameter: 1600 mm swing diameter: 2000 mm turning height: 1600 mm Control: Siemens Sinumerik 805 turning speeds: 1-250 U/min Table load: 12000 kg Control system manufacturer Siemens type Sinumerik 805 Accessories and cabinets can be purchased optionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solu ...
Ref. -No.: 10361 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens, Heidenhain, Fanuc - Configurable as required Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Support sleeve diameter: 130 mm X-Travel: 3000 mm Y-Travel: 2000 mm Z-Travel: 1600 mm Spindle stroke: 800 mm B-Axis: 360 ° W-Axis: 800 mm Spindle Taper: SK50 Max. Tool Weight: 25 kg Clamping Area: 1250 x 1250 (or configurable as required) mm T - groove width: 22 mm T - slot spacing: 160 mm Swivelling: Configurable as required ° Numbers Of Tools In Magazin: 40, 60, 120, 200, 240 Spindle Speed: 2900 RPM Max. Torque: 2500 Nm Drive Capacity - Spindle Motor: 41 kW
Ref. -No.: 10362 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens - Heidenhain - Fanuc (configurable) Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Spindle Speed Max.: 3500 RPM Pallet diameter: 1600 mm Max. machining diameter: 2000 mm Number of claw boxes: 4 pc Clamping force per claw box: 55 kN Number of radial T-slots: 8 Max. speed for turning: 140 min-1 Max. speed for milling: 5 min-1 Max. torque for turning: 27000 Nm Max holding power: 36 kN positioning speed: 3000 mm Adjustment from center to right: 850 mm Shift from center to right (head and tool change): 2750 mm Adjustment from center to left: 850 mm Max feed rate: 2000 mm / min Max rapid traverse speed: 20000 mm / min Max. Feed force: 30 kN cross-section: 280 x 240 mm Max. cutting force when turning: 36 kN Max Spindle Torque: 1200 Nm Pressure: 6 bar Air requ ...
turning diameter: 220 mm turning length: 200 mm control: Siemens Sinumerik total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
4 pcs. rope pulleys for counter weight of a FB 225 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
table length: 3000 mm table width: 2500 mm table load: 40 t total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Stocknumber 1210059 Type of machine Rotary table Make SCHIESS Type 25/30 Type of control X-stroke (mm) 2.000 Table dimensions (mm) 3.000 x 2.500 Table rotation (degrees) 360 Additional information Max. tableload 40 ton The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
