used QUASER mv

Quaser MV154/PL CNC Vertical Machining Center GSA dividing head X : 1020 mm Y : 500 mm Z : 500 mm Machine is in good working condition

Quaser MV204 CNC Vertical Machining Center Machine has been worked in defense sector 10 dividing head X : 1270 mm Y : 700 mm Z : 610 mm Machine is in very good condition

Quaser MV204 C CNC Vertical Machining Center Machine is in excellent condition Mitsubishi control unit 12 000 rpm spindle speed

Quaser MV154APC/F12 CNC Vertical Machining Center Fanuc control unit X : 700 mm Y : 530 mm Z : 560 mm Double Table - size is 800 mm x 500 mm Machine is in good working condition

Quaser MV154EL CNC Vertical Machining Center X : 1020 mm Y : 530 mm Z : 560 mm Machine can be seen in working condition

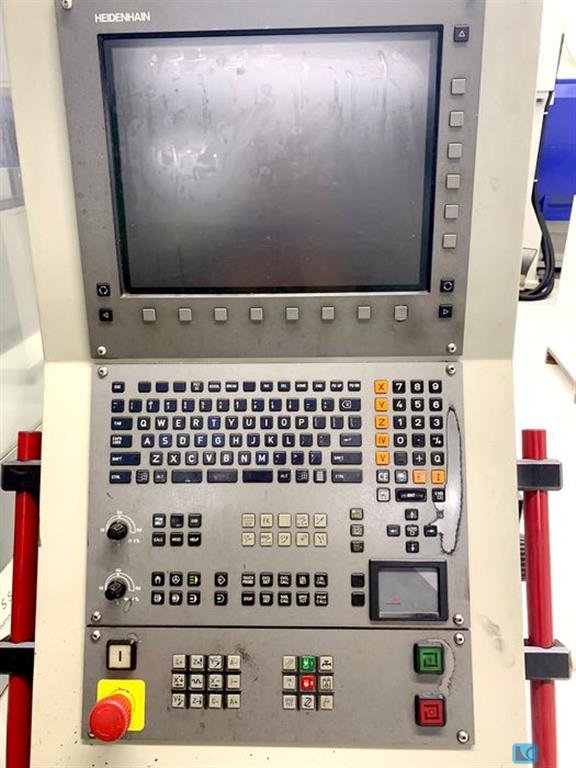

Year of construction 2003 Control Heidenhain iTNC 530 Table size 280mm Table load 200kg A-axis +/- 110 degrees B-axis 360 degrees X-axis displacement 700mm Y-axis displacement 590mm Z-axis displacement 480mm Spindle 15000 rpm Rapid passage 32m / min Automatic tool changer Yes, Big Plus spindle system Number of tools32 Tool length 280 mm Tool diameter 88 mm or 125 mm with adjacent pocket area Tool weight 7 kg Input400 / 3 / 50hz 33kW Equipment gap conveyors, coolant, handwheel, oil cooler Features Fully enclosed guarding Length 4000 mm Width 3000mm Height 3000 mm Net weight actually 9,490 kg. / 9.4 tons.

x-travel: 700 mm y-travel: 590 mm z-travel: 480 mm Control: HEIDENHAIN ITNC 530 a-axis: +-110,0. 001º ° c-axis: 360, 0.001 ° rapid travel x/y/z: 32.000 mm/min Tools changer: 30 pos. max. workpiece length: 280 mm max. workpiece weight: 7 kg chip conveyor: Inkl. kW Internal cooling system: 20 bar handwheel: HEIDENHAIN HR 310 Machine on: 13.975 h Spindle hours: 6.258 h total power requirement: 30 KVA weight of the machine ca.: 8,2 t dimensions of the machine ca.: 2.220 x 2.650 x 2.855 mm -pallets 3 Working Tables / Pallets Table 1 Size Ø280 mm. Table 2 Size Ø 500 mm. Table 3 Size 600x400 mm. Max weight allowed on table 265 kg Min-max distance over table 150-760 mm. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table length: 900 mm Table width: 500 mm Longitudinal X: 700 mm Cross Y: 530 mm Vertical Z: 560 mm Positions ATC: 30   Positions APC: 1   CNC Brand: Fanuc 3-axis CNC machine (VMC)QUASER - MV154/E12 MACH-ID 7657 Make: QUASER Type: MV154/E12 Control: FANUC Year: 2007 X - Travel:               700mm Y - Travel:               530mm Z - Travel:               560mm Table Length:             900mm Table Width:              500mm Table load:               500 Feed rate X-Axis:         32000mm/min. Feed rate Y-Axis:         32000mm/min. Feed rate Z-Axis:         24000mm/min. S ...

Key data: 1020 mm, 600 mm, 560 mm

Quaser MV 204 II Vertical machining center QUASER MV 204 II with 4th axis Year of construction 2001 Control : CNC control FANUC 18-M Location : Warehouse Hultfred - Sweden Warranty : none Transport : on request Commissioning : on request Specifications X-travel 1020 mm Y-travel: 600 mm Z-travel 560 mm ATC: 32 positions, double arm changer Spindle speed 10000 rpm ISO 40 Spindle motor 15 kW Working feed rate 1-20000 mm/min Rapid traverse 32 m/min Machine dimensions 2200x2650x2830 mm Weight of machine 7500 kgs Other equipment : - NC rotary axis - Tailstock for rotary axis -Conveyor

Table length: 1200 mm Table width: 635 mm Longitudinal X: 1020 mm Cross Y: 600 mm Vertical Z: 560 mm Positions ATC: 0   Positions APC: 0   CNC Brand: Fanuc CNC Model: Series 18 M MAKE   Quaser TYPE    MV 204 YEAR    1999 SPECIFICATIONS X - Travel    1.020 mm Y - Travel    600 mm Z - Travel    560 mm bed / plano / portal / moving column     VMC Controll    Fanuc Series 18 - M Table Length x Width    1.200 x 635 mm Table load in kG   635 Kg Spindle Taper     ISO 40 kW power on spindle   15 kW Spindle speeds / ranges    10.000 Rpm Coolant true spindle / Bar   20 Bar Number off controlled axis  3 DIMENSIONS Length    2.650 mm Width     2.200 mm Height     2.8 ...

Table length: 1200 mm Table width: 635 mm Longitudinal X: 1020 mm Cross Y: 600 mm Vertical Z: 560 mm Positions ATC: 0   Positions APC: 0   CNC Brand: Fanuc CNC Model: Series 18 M MAKE   Quaser TYPE   MV 204 II YEAR  2001 SPECIFICATIONS X - Travel  1.020 mm Y - Travel     600 mm Z - Travel     560 mm bed / plano / portal / moving column    VMC Controll   Fanuc Series 18 - M Table Length x Width   1.200 x 635 mm Table load in kG    635 Kg Spindle Taper   ISO 40 kW power on spindle   15 kW Coolant true spindle / Bar    20 Bar Number off controlled axis    4 DIMENSIONS Length    2.650 mm Width      2.200 mm Height     2.850 mm incl. Chip Conveyor incl. Internal cooling Sy ...

Quaser MV 184C Vertical Machining Center Machine is like new condition

Key data: 1400 Heidenhain, 700 iTNC 530, 1200

Table length: 1400 mm Table width: 700 mm Longitudinal X: 1200 mm Cross Y: 700 mm Vertical Z: 610 mm Positions ATC: 30   Positions APC: 0   CNC Brand: Heidenhain CNC Model: iTNC 530 Make: QUASER Type: MV204CV Control: HeidenHain iTNC530 YOP: 2005 X – Travel:              1.200mm Y – Travel:              700mm Z – Travel:              610mm Table Length:            1.400mm Table Width:             700mm Table load:              1.000Kg Feed rate X-Axis:        36.000mm/min. Feed rate Y-Axis:        36.000mm/min. Feed rate Z-Axis:        36.000mm/min. Spindle Taper:            ...

Manufacturer QUASER Model MV204IIU / 10 Year 12/2002 CNC HEIDENHAIN ITNC530 3 Working Tables / Pallets Table 1 Size Ø280 mm. Table 2 Size Ø 500 mm. Table 3 Size 600×400 mm. Max weight allowed on table 265 kg Min-max distance over table 150-760 mm. Axis Longitudinal Traverse (X Axis) 700 mm Cross Traverse (Y Axis 590 mm Vertical Traverse (Z Axis) 480 mm Titling spindle head range (A Axis) ±110º A Axis positioning 0.001º Table turning (C Axis) 360º C Axis positioning 0.001º Rapid Feed (X/Y/Z Axis) 32.000 mm/min Working Feed (X/Y/Z Axis) 15.000 mm./min. Spindle Spindle Speed 10.000 r.p.m. Taper BT-40 Power 15/33 kW Torque 192/189 Nm. ATC ATC Positions 32 ATC system RANDOM Max Tool length 280 mm. Max Tool weight 7 kg Other Equipment Chip Conveyor INCLUDED Internal Coolant 20 Bar INCLUDED Coolnat tank capacity 280 l. Electrical cabinet coolant IN ...

BRAND: QUASER YEAR: 2004 MODEL: MK603HPD APPLICATION TYPE: MILLING LOCATION: ITALY MACHINE TYPE: MACHINING CENTERS (HORIZONTAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: FANUC Technical Information GENERAL DATA MEASUREMENTS WIDTH: 3675 MM MEASUREMENTS DEPTH: 4510 MM MEASUREMENTS HEIGHT: 3100 MM MACHINE WEIGHT: 13000 KG CONTROL UNIT BRAND: FANUC MODEL: SERIES 18I-MB MAIN DRIVE SPINDLE SPEED RANGE: 15000 1/MIN NUMBER OF AXIS: 4 MOVEMENT X-AXIS MOVEMENT: 710 MM Y-AXIS MOVEMENT: 610 MM Z-AXIS MOVEMENT: 610 MM TABLE OUTER LENGTH: 500 MM OUTER WIDTH: 500 MM TABLE LOAD: 500 KG Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TABLE SURFACE THREADED HOLES - SPINDLE CONNECTION DIN 6987-1 - NUMBER OF TOOLS CAPACITY 60 - MAX DIAMETER TOOL D. 80- D. 150 - MAX LENGTH TOOL (FROM THE REFERENCE LINE) 350MM - MAX WEIGHT ...

x-travel: 800 mm y-travel: 700 mm z-travel: 610 mm Control: Siemens 828 D total power requirement: kW weight of the machine ca.: 8,7 t dimensions of the machine ca.: m ONLY 2800 HOURS SPINDLE WORKS Description The QUASER MF vertical machining centres are highly versatile, offering high speed, high powered machining with 4+1 and full 5-axis machining capability along with large X-axis machines with a compact footprint. Superb build quality and stability for high volume production, toolroom and subcontract machining environments. Specification Table size 500mm diameter Travels – X/Y/Z axes 800 x 700 x 610 mm A Axis + 30 deg ~ -120 deg C Axis 360 deg continous Maximum swing 630 mm Table surface to spindle nose -25mm ~ 585mm Spindle nose to tilting centre at 90 deg -25mm ~ 585mm Maximum work piece of size 630mm dia x 300mm Table load capacity 300kg Spindle taper BT40 Spindle options 10,00 ...

VERTICAL MACHINE CENTER Make : QUASER Model : MK60IIS CNC : Fanuc series 18MC Axis travel: -X (Longitudinal movement of column) = 1020mm -Y (Cross movement column) = 610mm -Z (Vertical movement of spindle head) = 560mm Table: -Table size = 1050x550x2 -Table loading capacity = 300kg x2 Spindle -Max. Spindle speed = 10.000 min^-1 -Type of spindle taper hole = ISO 40/BT40 -Tool storage capacity = 40 [80] Machine size: -Machine height = 3080mm -Floor space (with chip conveyer & 20 bar tank) = 2660x4380mm -Mass of machine = 11500kg

Inv. Num. : 6291 Type: MF630/15C Producer: Quaser Generated: 2017 Parameters: Control system: Heidenhain iTNC 640 Number of synchronized axes: 5pcs Minimum vertical spindle speed: 20 1/min Maximum vertical spindle speed: 15000 1/min Travel X-axis: 800 mm Travel Y-axis: 700 mm Travel Z-axis: 610 mm Maximum tool weight: 300 kg Machine height: 2530 mm Machine length: 3710 mm Machine width: 3230 mm Machine weight: 9050 kg Equipment: Workpiece probe Renishaw Jigs Axis X Y Z C A Tools

Machine Details Stock-No. 1105-03857 Type of machine Machining Center - Vertical Make QUASER Type MK 60 II Year of manufacture 1998 Type of control CNC Storage location HAGUENAU FRANCE Country of origin taiwan Delivery time immediately Freight basis EX WORK Technical details X-Travel 1020 mm Y-Travel 610 mm Z-Travel 560 mm tool taper BT 40 spindle drive 25 kW spindle turning speed range 60 - 10000 rpm tool change unit 24-speed BT 40 tool changing time 4 sec table-size 1200 x 635 mm table load capacity - central/maximum 500 kp Rapid Travel X/Y/Z 30 m/min Feeds X/Y/Z -STEPLESS 20000 mm/min total power requirement 40 kVA Additional information CNC control HEIDENHEIN TNC 426 complete covering, A.T.C. for 24 tools BT 40 TABLE 1200 X 635 25 KW 10000 RPM CHIP CONVOYER

Quaser MF 630 five-axis milling machine. CNC control system Siemens 828D Travel in X/Y/Z axis (mm) 800/700/610

BRAND: QUASER YEAR: 2015 MODEL: MF 630C PRODUCTION HOURS: 4761 APPLICATION TYPE: MILLING LOCATION: SLOVAKIA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 3705 MM MEASUREMENTS DEPTH: 2520 MM MEASUREMENTS HEIGHT: 3230 MM MACHINE WEIGHT: 8750 KG CONTROL UNIT BRAND: SIEMENS MODEL: SINUMERIK 828D MAIN DRIVE NUMBER OF SPINDLES: 1 SPINDLE SPEED RANGE: 12000 1/MIN NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 800 MM Y-AXIS MOVEMENT: 700 MM Z-AXIS MOVEMENT: 610 MM WORKPIECE WORKPIECE DRM: 630 MM WORKPIECE WEIGHT: 300 KG TABLE OUTER LENGTH: 500 MM OUTER WIDTH: 500 MM TOOLS SLOTS IN STORAGE: 30 MAX WEIGHT: 7 KG MAX TOOL DIAMETER: 76/125 MM MAX TOOL LENGTH: 280 MM TYPE OF TOOL HOLDER: SK 40 MEDIA CHIP CONVEYOR: YES INTERNAL COOLING: YES Additional Information MAC ...

BRAND: QUASER YEAR: 2011 MODEL: MK603SP/12B APPLICATION TYPE: MILLING LOCATION: PORTUGAL MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 4650 MM MEASUREMENTS DEPTH: 2930 MM MEASUREMENTS HEIGHT: 3300 MM MACHINE WEIGHT: 2000 KG CONTROL UNIT BRAND: FANUC MODEL: 18I-MB. MAIN DRIVE SPINDLE SPEED RANGE: 12000 1/MIN SPINDLE MOTOR POWER: 30KW NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 1020 MM X-AXIS FEED FORCE: 32000 MM/MIN Y-AXIS MOVEMENT: 610 MM Z-AXIS MOVEMENT: 600 MM TABLE OUTER LENGTH: 1050 MM OUTER WIDTH: 550 MM TABLE LOAD: 300 KG TOOLS SLOTS IN STORAGE: 48 MAX WEIGHT: 7 KG MAX TOOL DIAMETER: 125 MM TYPE OF TOOL HOLDER: BT-40. Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - DISTANCE FROM TABLE SURFACE TO TREE CENTER:130-730 MM - TOOL SEL ...

QUASER MK-60 Milling machine with two pallets 1993 with Fanuc O-M 3 axis machine. Work normally with robotic arm and 30 place for magazine tools. CAT 40. With Chip Conveyer. VMC. Weight 8500kg Axis X 610.0 mm Axis Y 510.0 mm Axis Z 510.0 mm

Inv. Num. : 7212 Type: MF 630C Producer: Quaser Created: 2015 Parameters: Control system: Siemens 828D Table diameter: 500 mm Number of synchronized axes: 5 pieces Maximum vertical spindle speed: 12000 1/min X-axis travel: 800 mm Y-axis travel: 700 mm Z-axis travel: 610 mm Cone: SK 40 Maximum tool length: 280 mm Workpiece diameter: 630 mm Maximum tool diameter: 76.2 mm Max. tool weight: 7 kg Machine weight: 8750 kg Equipment: Tools Workpiece Probe Renishaw OMP40 ECO Cooler Rinsing gun Rinsing chips from the work area Spiral conveyors

Key data: 1000 mm, 530 mm, 560 mm

Quaser MV 154 PL, Control Heidenhain iTNC 530, Year of construction 2008, Travel X/Y/Z 1000/530/560 mm, Tool changer 30 times, Tool holder SK 40, Blowing air through the spindle, IKZ 20 bar, External cooling, Scraper tape chip conveyor, Bkut2g0ceh9 3D touch probe, infrared receiver, Temperature-controlled oil cooling system, thermal compensation, Spindle replacement 2021,
