used ORMA npc

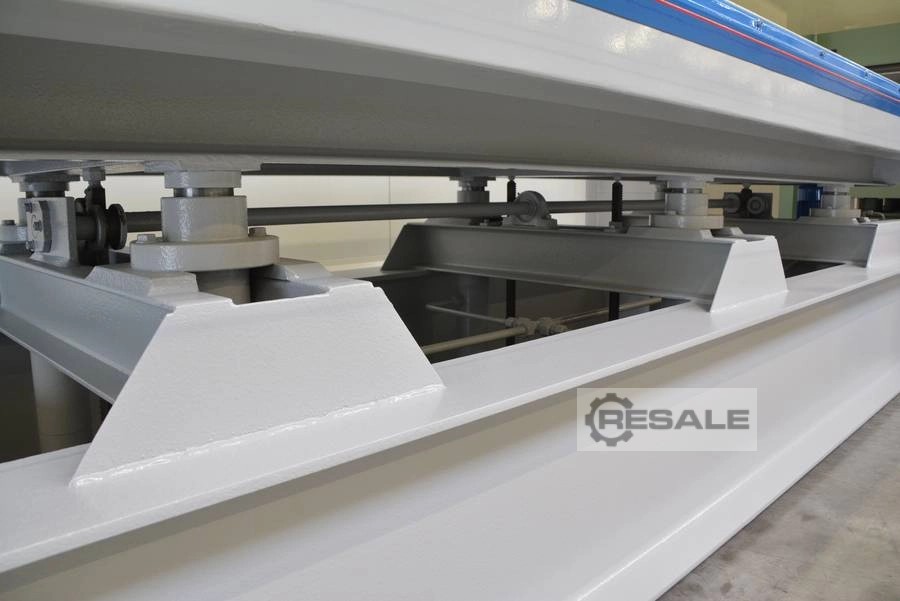

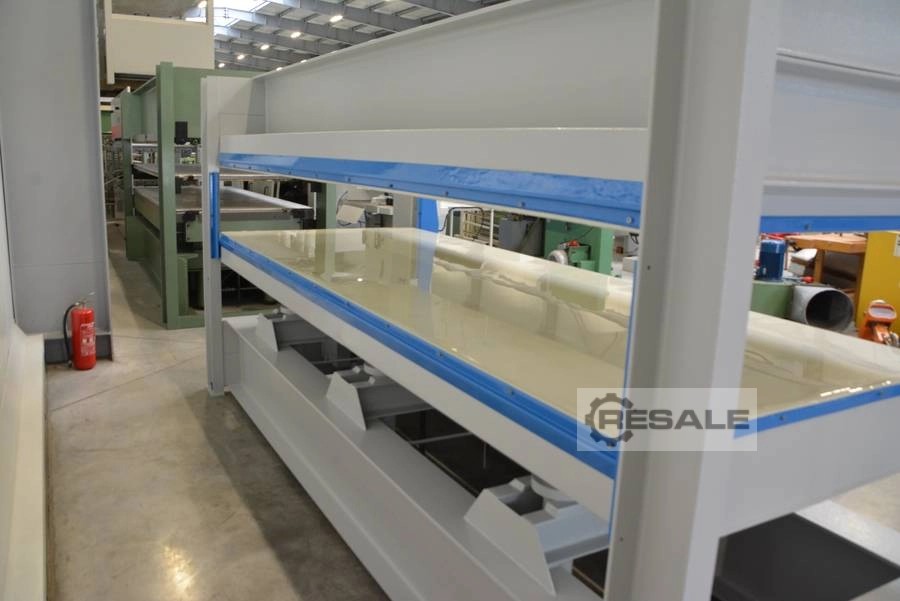

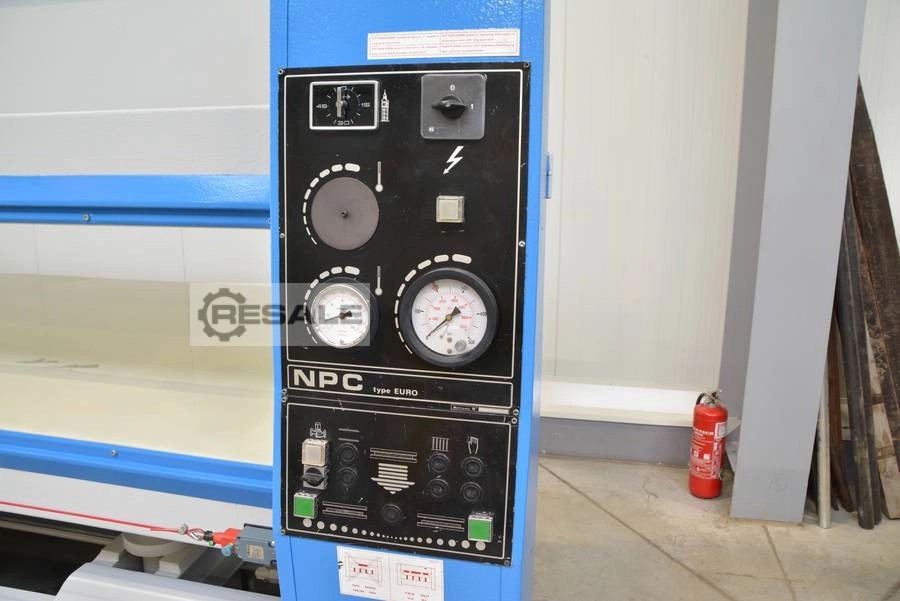

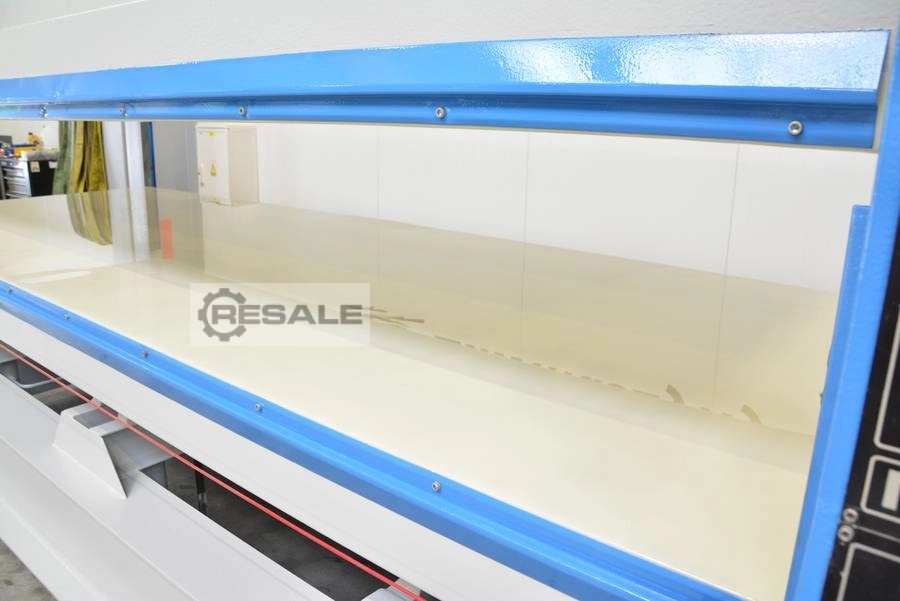

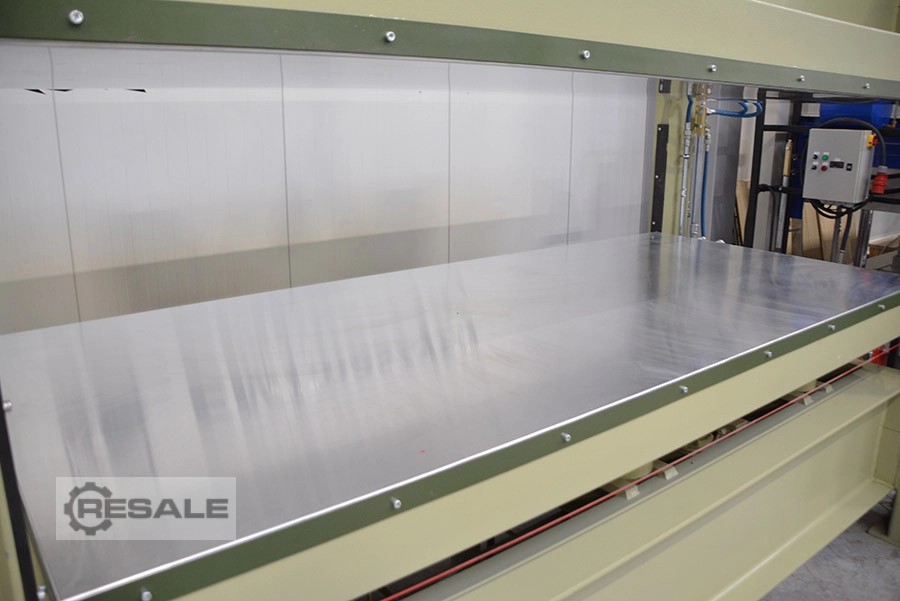

SECOND-HAND HOT PRESS ORMA MOD. NPC-6/100 - New PLC with TOUCH SCREEN - Platens dimensions 2500X1300 mm - Additional plate - N. 6 cylinders - CE rules - Year 2001 - Kw 2.2 - Complete with manual and CE certificate

Veneer press Brand: ORMA Type: NPC/DIGIT 6/90 New machine Technical datas: Press area: 2500x1300 mm Amount cylinder: 6 Lift & max. press opening: 400 mm Total pressure: 90t Electro-heater 18 kW for thermo-oil (up to 120°C) Optional: - Aluminium coating - 650 mm stroke - Parallelism control by sensor - Extra charge for down stroke design - Extra charge for temperature up to 150°C - Extra charge for temperature up to 200°C - Mylar protection foil 350,00 ? per panel - Pressure plate covered with glass fiber fabric Teflon - Hardware for Industry 4.0

Hot press Make: ORMA Type: NPC/DIGIT 6/95 New machine Technical datas: Press area: 3000x1300 mm Amount cylinder: 6 Lift & max. press opening: 400 mm Total pressure: 90t Electro-heater 18 kW for thermo-oil (120°C) Optional: - Aluminium coating for panels - 650 mm stroke - Parallelism control by sensor - Extra charge for down stroke design - 4 side loading - Max. temperature up to 150°C - Max. temperature up to 200°C - Mylar protection foil - Pressure plate covered with glass fier fabric Teflon - Hardware for Industry 4.0

Hot plate press (electric) Brand: ORMA Type: NPC 6/120 new machine Technical data: Heating plates: 3500x1300mm Cylinder: 6 pieces Press force: 120t Stroke/opening dimension: 450mm Connection value: 28.8kW (ELKOM plates) Options: - Intermediate plate - Anodized surface for ELKOM panels - Parallelism sensor á 1,000.00 EUR - Pressing mechanism from above (fixed lower plate) - Max. temperature till 150°C - Max. temperature till 200°C - 4-sided loading possible - Mylar protective film - Fiberglass Teflon protection - Hardware for Industry 4.0

SPECIFICATIONS: Hydraulic hot press Dimensions of the work table mm: 3,000 x 1,300 Mounted serpentine table Maximum temperature: 120°. Number of pistons: 6 diameter Ø 65 mm Installed capacity KW: 30,5 Complete with intermediate plate Diathermal oil operation Complete with electric oil boiler

Description: • Heated veneer press • Serial number A1430106 • Total installed power 16 KW • Working surface 3000 x 1300 mm • Maximum opening approx. 400 mm • Total force 70 T • 6 pressure cylinders diameter approx. 70 mm, hydraulic motor power 1.50 KW-1420 rpm • Pressure and pressing temperature are adjustable • Heating of the plates by electric resistances Approx. Onsite Dimension. (l x w x h): 3,460 x 1,700 x 1,900 mm, weight approx.: 3,500 kg

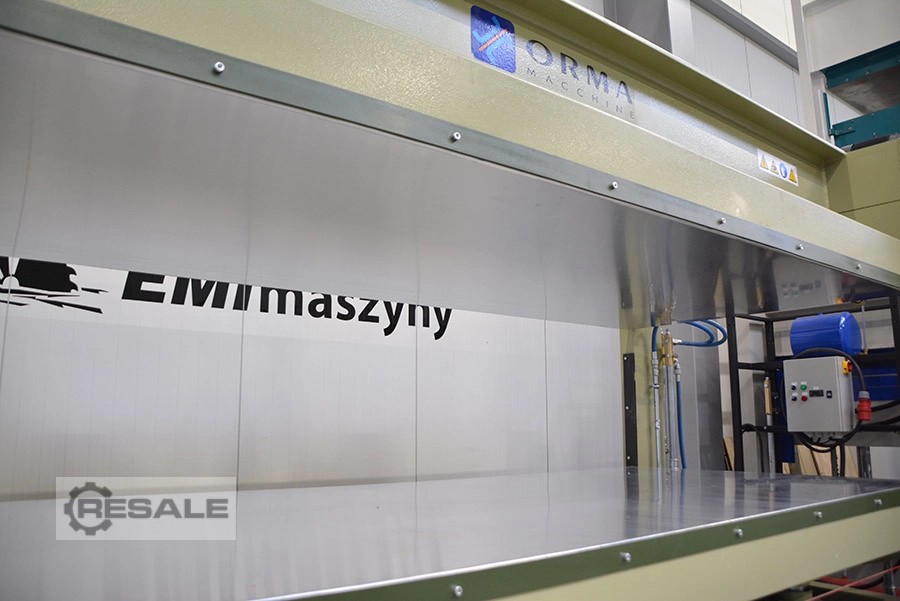

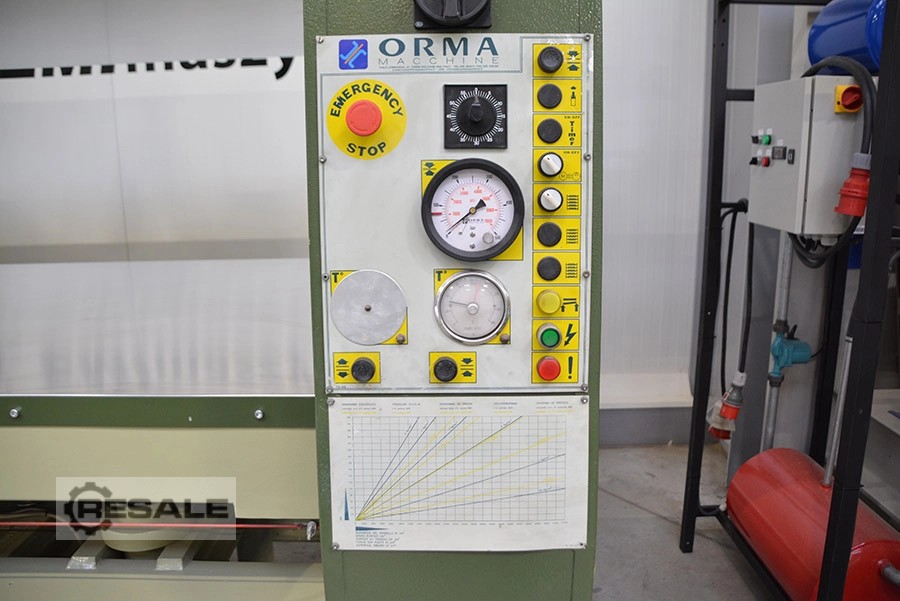

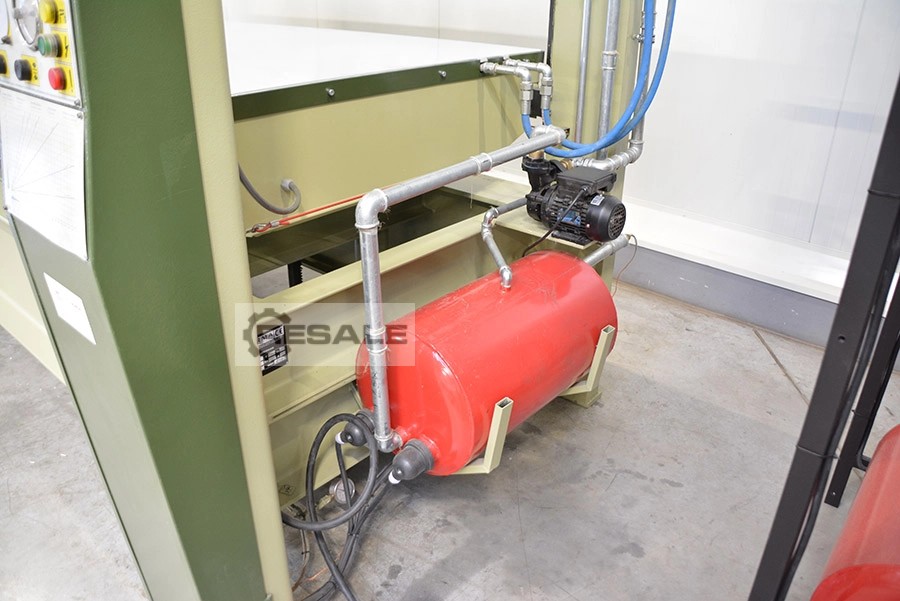

Shelf press ORMA NPC 300 6/110 Shelf dimensions 3000x1300mm Number of hydraulic pistons: 6 Piston rod diameter 70mm Heated press with water CE Certified

Converter, power supply, power supply unit, switching power supply unit, medium-voltage switchgear, switchgear, medium-voltage switchgear, switchgear block, secondary switchgear -Manufacturer: Ormazabal, secondary switchgear type CGM.3-P -Rated voltage: up to 36 kV -Rated current: up to 630 A -techn. Data: see photo nameplate -Individual components / accessories: see photos -Number: 5x switchgear block available -Price per piece -Dimensions: 480/1035 / H1750 mm -Weight: 246 kg

3 trays Table length: 3250 mm Machine is in excellent condition It has been used as spare machine in factory.

Converter, power supply, power supply unit, switching power supply unit, medium-voltage switchgear, switchgear, medium-voltage switchgear, switchgear block, secondary switchgear -Manufacturer: Ormazabal, switchgear block type GAE630 1M5-9 -Rated voltage: up to 24 kV -Rated current: up to 630 A -techn. Data: see photo nameplate -Individual components: see photos -Number: 2x switchgear block available -Price per piece -Dimensions: 850/755 / H1995 mm -Weight: 414 kg

HF Press Manufacturer Ormamacchine High-frequency continuous belt press Manual glue application incl. Laying table / filling bed 5000 x 1400 mm Press 4600 x 1400 mm Roller conveyor outlet 5000 mm Workpiece thickness max 200 mm Side printing cylinder 10 Pressing force 110 t RF Generator 40 Kw Dimension: 16000 x 3200 mm

Maximum panel dimensions (for 3D wrapping) 1240x2740 mm Pressing cylinders 6 pcs Piston diameter 140 mm Piston stroke 190 mm Total maximum counter pressure 200 T Pneumatic pressure at work (max) 5 Kg/cm Room height 160 mm Upper and lower flange 40 + 20 mm Part size / manual pin placement area (maximum) 1250x2550 mm Minimum foil width 1400 mm Minimum plate thickness 15 mm Working height (distance from the floor to the level of the loading tray) 930 mm Maximum temperature of the heating liquid 130°C Air tank capacity 500 liters Total installed power 50 kW Dimensions (L x W x H) 11500x2950x2550 mm Weight 12800 kg In accordance with CE standards

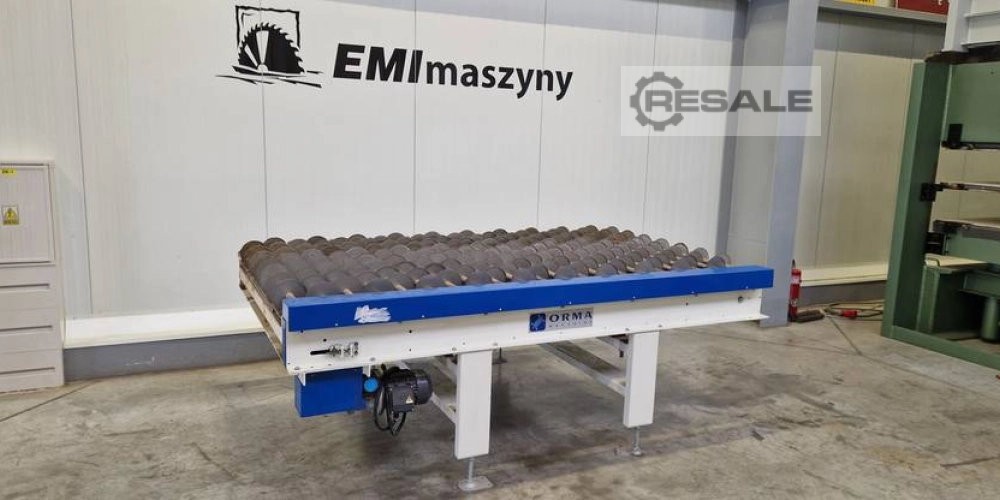

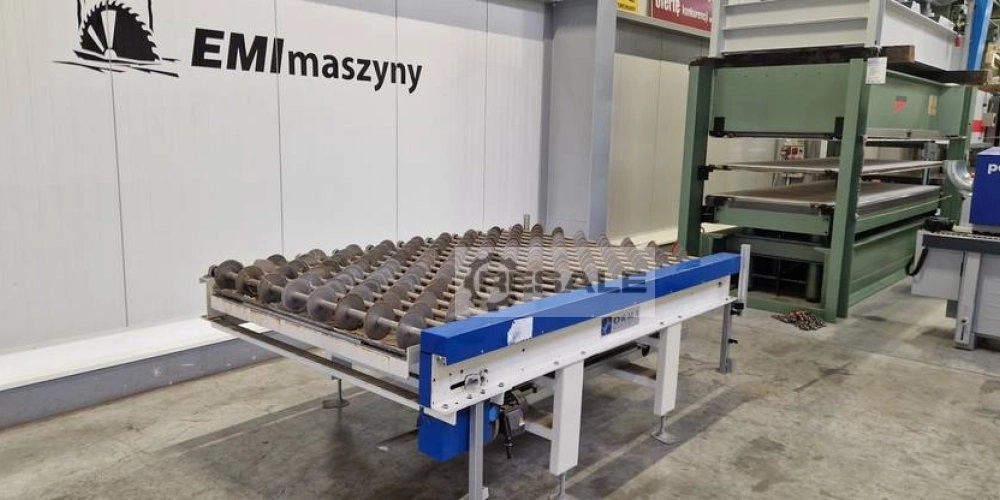

SPECIFICATIONS: 01 Hydraulic press ORMA LS/R-45/13 Dimensions: 4500 x 1300 mm 08 Piston Ø 70 mm 02 Piston with rack-and-pinion plunger Stroke: 200 mm 01 Loading roller conveyor 4500 x 2200 mm 01 Unloading roller conveyor 4500 x 1300 mm (with stop) ACCESSORIES: 01 Generator HF with 40 Kw 01 Double roll gluer 01 Manipulator ELEPHANT 200 kg Length: 4000 mm

Key data: 500

ORMAL (DIEFFE) dowel cutter model TT500 with: - fast-moving blade D=500mm - Blade motor 7.5 hp, Volt 380 - cutting section from 40x40mm to 130x140mm - Automatic loader with transport clamp for the bars - magazine length 5 m (open at the back, can carry longer bars) - production capacity up to 45 cuts per minute of 80x80xL=80mm dowels - overall dimensions approx. 6 x 1.8 m - complete with electrical panel CE standard machine

ORMA disc gluing and screwing machine according to CE standards 4-roll gluing machine model I/413 with: - Working width 1300mm - Useful working height 100mm - double motorization, kw 0.75+0.75 - coating rollers D=250mm - dosing rollers D=180mm - with automatic brush washer Disc route with: - Useful working dimensions 3000x1300mm - Mechanical variable speed drive - with final photocells Year 2007, machines according to CE standards.

Code: 0238 Brand: ORMAMACCHINE Model: 30/6 Hydraulic cold press for panels, furniture, customised furnishings, kitchens, composite materials, insulation materials, aluminium and various materials Platen dimensions mm 3000 x 1200 Opening width mm 450 N° 6 cylinders Motor power Hp 1,5 Dismountable press Overall dimensions mm 3300 x 1500 x 2000 h Weight kg 1500

Flat grinding machine, Fabr. HK-Orion, Type 630Z NPC-K, Serial No. 205810888

Technical data Table length: 1100 mm Table width: 600 mm Grinding length: 1200 mm Grinding width: 550 mm Grinding height: 400 mm Table load max.: 750 kg Longitudinal travel (X-axis): 1300 mm Transversal travel (y axis): 470 mm Automatic cross-feed: stepless up to: 2.5 m/min Table speeds: stepless from: 1 m/min up to: 30 m/min Automatic vertical feed: up to: 300 mm/min Diameter of grinding wheel: 400 mm Width of the grinding wheel: 100 mm Wheel int. diameter: 127 mm Grinding wheel speeds: from: 1440 rpm Voltage 50 Hz 3x: 400 Volt Grinding spindle motor: 7.5 kW Machine´s weight about: 6700 kg Overall dimensions machine: Length: 4800 mm Width: 2300 mm Height: 2300 mm Various accessories: Coolant system Paper filter facility: 460 mm Magnetic plate: Length: 1200 mm Width: 500 mm Wheel trueing attachment Digital readout number of axis:: X - Z Manufacturer: Heidenhain Lamp Central lubrif ...

Max. grinding length/ width: 600/ 375mm, max. working height: 465mm, max. load: 300kg, groove width: 16mm, length: 3300mm, width: 2700mm, height: 2380mm, weight: 3.5t, including accessories and documentation, was maintained regularly.

Description: Sanding area  ,900 x 375 x 435 mm, serial number 207680988 table surface area l x w : 1550x370 mm, weight approx.: 3,000 kg, Approx. Onsite Dimension. (l x w x h): 4,500 x 2,200 x 2,600 mm

grinding length:850/1000 mm grinding width:375 mm workpiece height:375 mm Clamping area:1550x370 mm total power requirement:9 kW space requirements approx. LxWxH:4,80 x 2,25 x 2,40 m Total weight, approx.:4300 kg max. workpiece weight:350 kg Used Surface grinding machine, manufactured EFA type AMBASSADOR 4/2 VA IZ, Baujar 1975 Machine with automatic feed in all 3 axes. Machine cleaned and tested by qualified technician Functionality tested. Surface grinding machine in perfect condition, ready for production. Accessories: - Electric - magnetic - table size 400x200mm, with a straight pole - demagnetising devise - wheel dresser mounted laterally on the grinding wheel, manually operated - wet grinding - 1 piece grinding wheel flange - 1 set of machine set up devises - Technical documentation in German - With diaform - device For more information, see the Appendix. Payment: 100% before loadin ...

Gear pump Axial Piston Pump Overhauled by the manufacturer + conserved Manufacturer: Rexroth Type: A11VO60EP2G / 10R-NPC12N00H-S Further details and scope of delivery can be found in the Photographs. Grey and red lacquered available. Color may therefore differ from the images. for more information see pictures.

the pump is used, ready for use mpumpe Type CLFE 250 V Volume flow 250 m³/h Vacuum 0.98 bar Motor power 7.5 kW Speed 1400 rpm Weight 276 kg >> oil renewed 10W - 40 HD >> air filter renews 6 pcs MANN C711/1 Npcqnh3o >> test run performed >>>The pump had been stored for at least 30 years

grinding length:7000 mm grinding width:1450 mm workpiece height:1000 mm distance between columns:1510 mm Clamping area:7.270 x 1.250 mm table load:35 t table speeds:1-50 m/min grinding wheel dia. x width:horizontaler Stößel: 630x180 mm spindle drive:horizontaler Stößel: 22 kW vertical movement:250 mm grinding wheel dia. x width:universal Stößel: 500x50 mm spindle drive:universal Stößel: 7 kW vertical movement:450 mm spindle motor:7,5 kW pivoting angle:universal Stößel: 45 Grad weight of the machine ca.:65 t Machine size (LxWxH):20.200 x 8.150 x 4.920 mm :PLC SIEMENS SIMATIC OP 27 grinding wheel with flange:diverse Used Surface grinding machine, ELB, type SWN 8 NPC-K. Machine cleaned and tested by qualified technician Functionality tested. Surface grinding machine in perfect condition, ready for production. Payment: 100% before loading the machine Warranty: none

grinding length:850 mm grinding width:610 mm table load:1000 kg grinding wheel speeds:1450 U/min loading area:800x400 mm dimensions of grinding wheel:400x60x127 mm weight of the machine ca.:5300 kg Used Surface grinding machine, ELB, type SWN 8 NPC-K. Machine cleaned and tested by qualified technician Functionality tested. Surface grinding machine in perfect condition, ready for production. Payment: 100% before loading the machine Warranty: none
