Year: 1979 Capacity: 25 l /min Motor: 0,75 kW Working pressure: 13 bar - Input with threaded supports DN 15 DN 25 - Output with threaded supports DN 25 - With friction geared motor for stepless speed control - Mobile chassis - With cable and CE plug Measurements and Weight: Length: 1400 mm Width: 410 mm Height: 1020 mm Weight: kg
Type: 2NL20A Year: 1979 Capacity: 205 l /min Motor: 0,75 kW Working pressure: 19 bar - Input with threaded supports DN 15 DN 25 - Output with threaded supports DN 25 - Mobile chassis - With cable and CE plug Measurements and Weight: Length: 1530 mm Width: 420 mm Height: 1050 mm
Machine: eccentric screw pump Manufacturer: Netzsch Type: 3 NE 08 Machine number: 253173 Year of construction: 1994 Capacity: approx. 300 l / h Engine: Dietz Drezhal: 1390 RPM KW: 0.55 Voltage: 400V Connection suction side: 3/4 inch Connection pressure side: 3/4 inch Length: 800 mm
Attachment: eccentric screw pump Manufacturer: Netzsch Type: NE 69 A Machine number: 253233 Year of construction: 1994 Capacity: 25m 3/h Engine: Dietz KW: 5.5 Voltage: 400V Connection suction side: DN 100 Port side: DN 100 Length: 2300 mm
Attachment: eccentric screw pump Manufacturer: Netzsch Type: NE 30B Machine number: 235197 Year of construction: 1992 Power: 0.2-1.4 m3/h Pressure: 0-6 BAR Motor: Stöber 1.1 kW, 400 V Inlet connection: DN 50 Port side: DN 50 Length: 1500 mm Miscellaneous: electrical Verstellgetrieb with ventilation Condition: used, ready
Attachment: eccentric screw pump Manufacturer: Netzsch Type: NM031BY Machine number: 321637 Year of construction: 2001 Power: 90-1500 l / h Speed: 24-400 rpm. Pressure: 0-16 BAR Motor: 1,5 kW, 400 V North, Connection suction side: DN 70 Port side: DN 70 Length: 1700 mm Condition: used, ready
Attachment: eccentric screw pump Manufacturer: Netzsch Type: NM031BY02512B Machine number: 409232 Year of manufacture: 2009 Output: 200-300-350 l / h Pressure: 4-6-8 bar Motor: Lenze Speed: 1410 RPM. Inlet connection: DN 50 Port side: DN 50 Length: 1200 mm Condition: used, ready for operation (new stator)
Submersible pump Manufacturer: Netzsch Type: 4NT04 Length: approx. 1,80 m Characteristics of the immersion pump -insensitive to Sandy shares in the pumped liquid -pulsation promotion -very high suction capacity The immersion pump offers you: -low life cycle costs -high pressure stability -exact dosing accuracy Advantages of the immersion pump -Operation possible at high water content in oil -Reliability for oils with high viscosity -ready to use media with high fixed material freight Submersible pump is still unused, so as new and in very good condition!
Stainless steel agitator container 150 l. with screw quirl, for the disconnection and mixing of solids and liquids before grinding, injection etc., incl. drive 3.6 kW via gear motor, lid with sight glass, stirring shaft with propeller (200 mm , with oxide ceramic coating). Very good condition.
Attachment: eccentric screw pump used Manufacturer: Netsch Type: NE 30 A Commissions No.: 305699 Machine number: 115945 Year of construction: 1980 Capacity: 2, 1 m³/h at 6 bar Speed: 355 1/min
used, kpl. 1 year warranty, plate size 1000 x 1000 mm, 90 plates, closed outlet, 30 mm cake thickness, pressure 15 bar, capacity approx. 2300 liters, filter area 153m2, dimensions 8500 x 1600 x 2100 mm, weight 14,000 kg hydraulics, engine, automatic. Plate transport, with or without filter cloths
used, kpl. 1 year warranty, plate size 800 x 800 mm, 60 plates, open outlet, 25 mm cake thickness, pressure 15 bar, capacity approx. 800 liters, filter area 64m2, dimensions 6000 x1300 x 1500 mm, weight 5800 kg, motor hydraulics, drip plate, filtrate channel, with or without filter cloths
used, kpl. 1 year warranty, plate size 630 x 630 mm, 40 plates, open outlet, 30 mm cake thickness, pressure 7/15 bar, capacity approx. 384 liters, filter area 17m2, dimensions 4500 x 1200 x 1500 mm, weight 350 kg, motor hydraulics, automatic. Plate transport, drip plate, filtrate channel, with or without filter cloths
used, kpl. 1 year warranty, plate size 400 x 400 mm, 30 plates, open outlet, 25 mm cake thickness, pressure max. 10 bar, capacity approx. 90 liters, filter area 8m2, dimensions 2500 x 700 x 1200 mm, weight 700 kg, motor hydraulics, drip plate, filtrate channel, with or without filter cloths
used, kpl. 1 year warranty, plate size 470 x 470 mm, 30 plates, open outlet, 25 mm cake thickness, pressure max. 15 bar, capacity approx. 130 liters, filter area 11m2, dimensions 2800 x 800 x 1200 mm, weight 850 kg, motor hydraulics, drip plate, filtrate channel, with or without filter cloths
Mixing hopper with 2 paddle mixers Feed screw down Pump speed control Type: NM045SP02512B Com.: 35300131 MaschNr.: 289249 Year of construction: 1997 Condition very good Pump motor Flender in ex e II Performance: 3.6 kW, 1440 min-1 Transmission Lenze speed controlled 1 Paddle mixer: speed controlled N1-n2 = 28-143 min-1 Browse gear : KW 1.35 in Exx 2. Paddle mixer: 120 min-1, 1.35 kW in Exx Dimensions: LWH = 2800x500x700mm Weight: 600 kg Mixing and pumping of viscous products with solids
Type: NL 20 A Com.: 70 50 17 02 MaschNr.: 271872 Year of construction: 1996 unused Engine water cooled (0.75 kW) speed controlled transmission Pharmaausfuehrung Dimensions: LWH = 1400x300x450mm Weight: approx. 70 kg
Type: NUP 60 Machine number.: 218338 Com.: 205639 Year of construction: 1990 with screw feeder and paddle mixers Stöber gear Type R76-1027-750-4 No.: 874256 Rpm: 136-680 RPM Drive motor: DIETZ No.: 3807028 403195 B5/300 Power: 7,5 kW Paddle mixer power: 1,5 kW Mixing trough attachment approximately 150 l stainless steel Dimensions: LWH = 2400x630x1150mm with switchgear Weight: 600 kg
Make: Netzsch Type: NES 30A No.: 40500562 / 01 Machinenr.: 255281 Year of construction: 1994 very good condition Gear: Stöber Type: C002N-0041-D90 L4 No.: 1088609 n = 330 min-1 Engine make: DIEZ Power: 1, 5kW Dimensions: LWH = 1300x250x270mm Weight: approx. 80 kg 2. Pump: identical, but with an off switch and adapter onto screw approx. 50 l Total height: 900 with funnel
Cat-nr. 13-0211 in a very good condition Testing water by 22°C back pressure at 1 bar Pressure: 4,0 bar capacity: 1.500 litres/h Motor: 0,55 kW Connection: inlet/outlet: DN 40 according to DIN 32676 - can be changed on request for an additional charge surcharge: infinitely variable via frequency converter Measurements and Weight: Height: 73 cm Length: 141 cm Width/Depth: 45 cm Weight: 56 kg The pump is tested; 100% function guarantee! For more Information please contact us under: Phone +49(0)9353-909050 Fax: 09353-9090522, Mobile: 0171-6518248 Subject to prior sale. All prices are valid Ex-Works, excl.VAT. Freight Charges: depending on dimensions and destination.
Used eccentric screw pump Nemo pump unit 4NE15A Built: 1997 Design: IMB3 Power: 0.75 KW Voltage: 230/400 V Speed: 624 rpm Machine No.: 284285 Direction of rotation: to the left, seen on drive shaft
Used eccentric screw pump Netzsch Type: NM090SY02S12B Machine number: 355338 Built: 2004 Flow rate: 18/36 m3/h Pressure: 10 Bar Speed: 125/150 rpm pol switchable in 2 stages
Used eccentric screw pump Type: NM090SY02S12B Machine number: 355339 Built: 2004 Flow rate: 18/36 m3/h Pressure: 10 Bar Speed: 125/150 rpm pol switchable in 2 stages
Chamber filter pressing rack Netzsch uses benefit length: 3,500 mms record transport unilaterally not available the machine served as a spare part bearer, is entire incl. wheel tins.
used chamber filter press / filter press Netzsch 1200 x 1200 record size: 1200x1200mm cake thickness: 30 mms benefit length: 8,200 mms chamber number: 120piece filter pressure: 15 bars record transport: at the side automatically

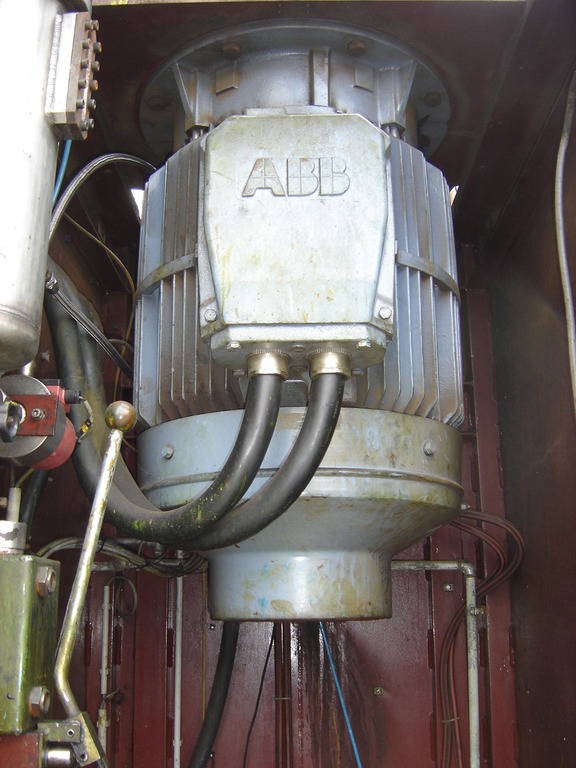

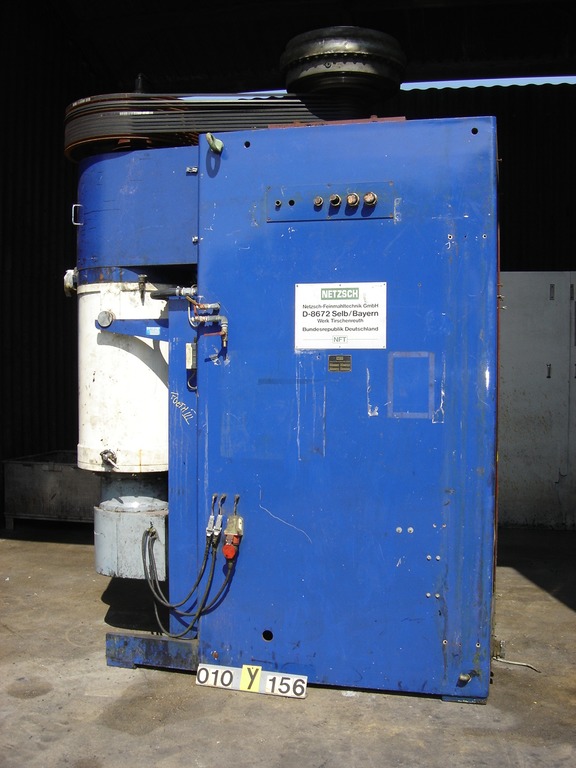

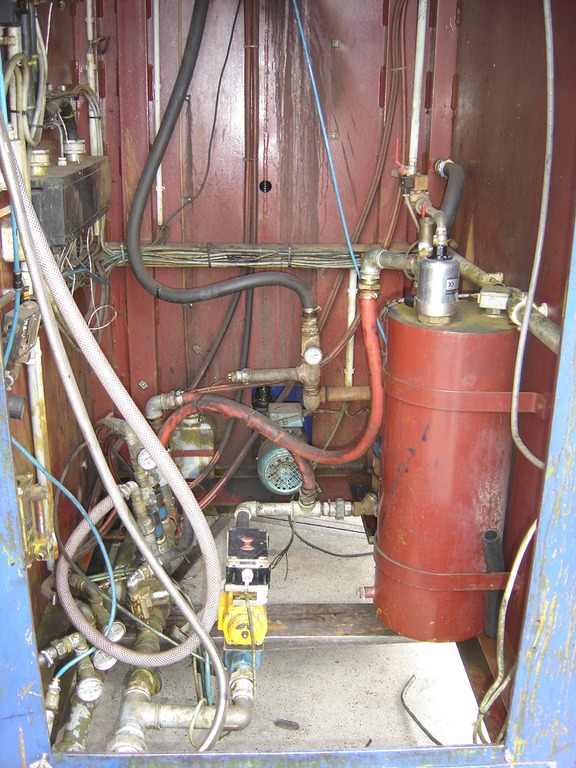

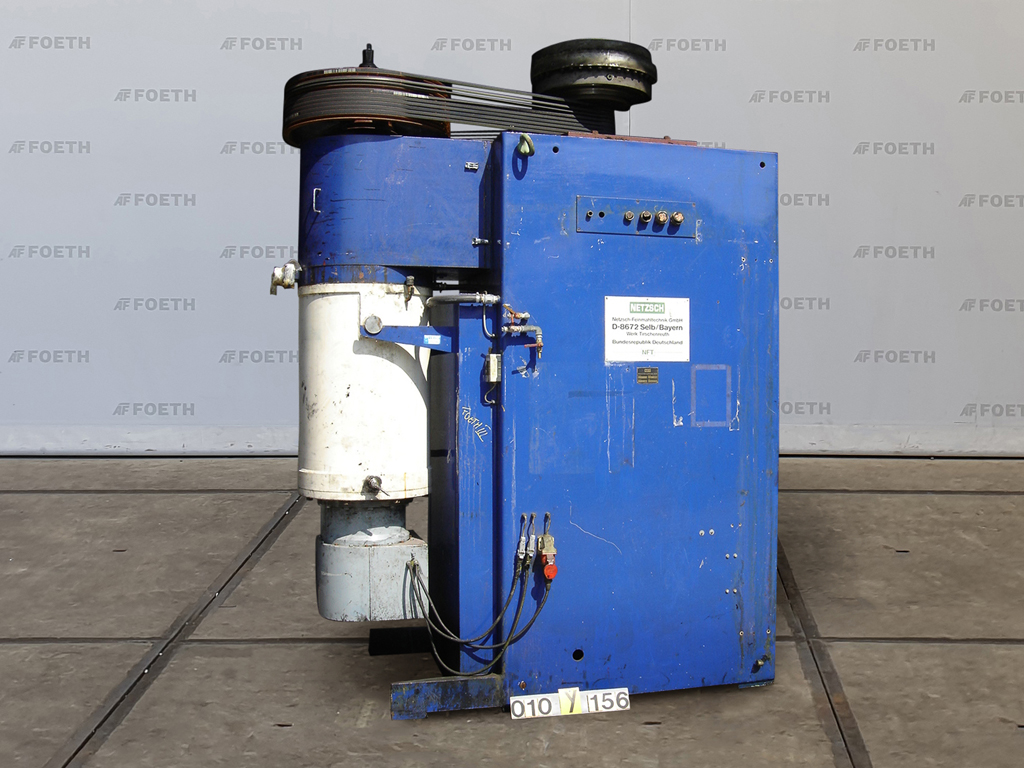

General SKU010Y156 MakeNetzsch TypeRM-100 GK, Figur 576.95 No.204.389 Year of construction1992 LocationBarneveld Main Features Volume100 Ltr. Motor90 KW Specified Features - Sand mill Vertical sandmill(1x) Capacity100 Ltr Housing dimensions dia. 535mm With mechanical sealcheck With jacketcheck Rotor jacketedcheck Motor90,0 KW, 380/660 Volt Information With switchgearcheck Floorspace2,6x1,1 M Total height3,4 M Weight5000 KGSand millsDiscountNetzschMills > Sand millsDiscountBrand > Netzsch What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
General SKU122N606 MakeNetzsch TypeLMJ 2 (506.02) No.204 842 Year of construction1983 LocationBarneveld Material Housing materialStainless steel Main Features MaterialStainless steel Volume2.5 Ltr. Motor4 KW Specified Features - Sand mill MaterialStainless steel Horizontal sand mill(1x) Capacity2,5 Ltr. With jacketcheck Motor± 4 KW, Ex With variable speed drivecheck Capacity5-50 Ltr./Hr. With pumpcheck Motor0,25 KW Information With switchgear(0,6x0,3x0,9 M) Floorspace1,1x0,8 M Total height1,5 MSand millsDiscountNetzschMills > Sand millsDiscountBrand > Netzsch What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
General SKU288S384 MakeNetzsch Feinmahltechnik GmbH (D) Type606 No.204586 Year of construction1979 LocationBarneveld Main Features MaterialStainless steel Volume1750 Ltr. Motor75 KW Specified Features - Dissolver MaterialStainless steel Dissolver( propeller stirrer) Shaft length800mm Disc diameter(propeller) dia. 400mm Between shaft and frame640mm With scrapercheck Motor75 kW 380/660 Volt Speed scraper13 Rpm With pans2x Capacity1750 Ltr., 1250 Ltr. Pan sizesdia. 1295x1350mm, 1295x980 mm Outletdia. 80mm With hydraulic liftingcheck Motor1.1 kW 380/220 Volt Information Floorspace2.5x1.8 M Total height2.7 M Weight2800 Kg Extra Specifications: Incl. aluminium platform on wheels. Floorspace 1.5x2.1 M, Height standing area 650mm, Total height 1.8 M Catalysts & fillersSolventsDetergent & surf.Other pharmaceuticsLubricants & oleoOther feedDyes & pigmentsMinerals & i ...
