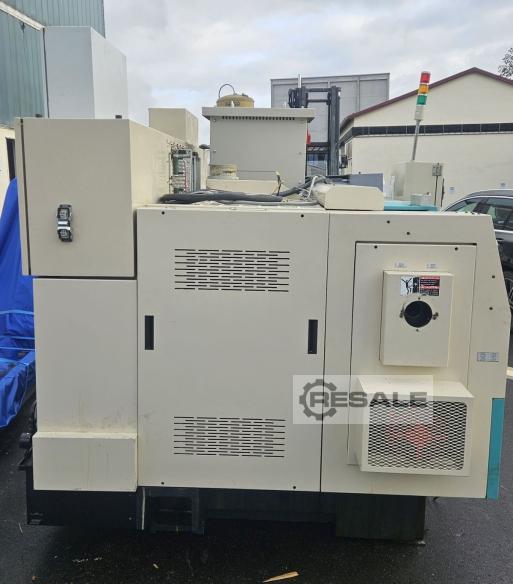

CNC Multiple Spindel Turning Lathes MURATEC MT12

Year of construction 2006

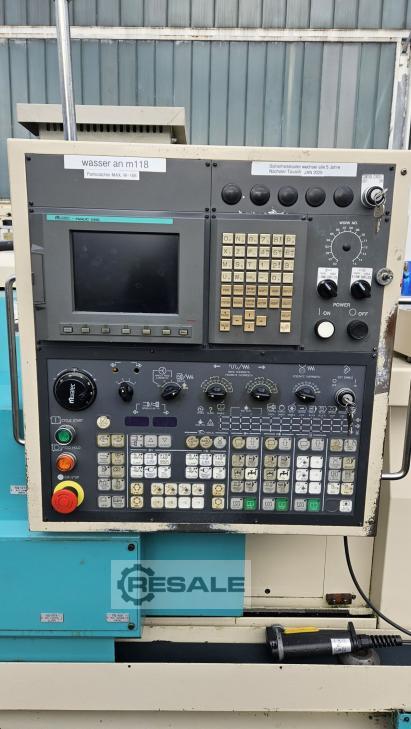

Fanuc Control 16 TC
max. turning diameter 210 mm
X-axis X1 / X2 mm 200
Z-axis (left side) Z1 mm 200 .
Z-axis (right side) Z2 mm 650
Bar diameter 45 mmLongitudinal travel
Planweg

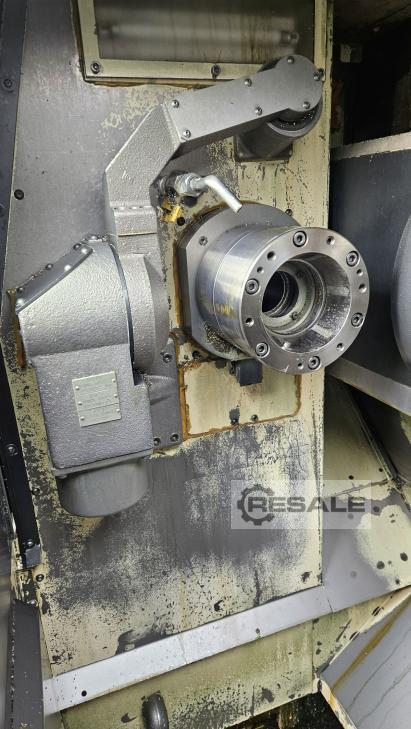

Spindle head
Spindle bore
max. turning diameter 210 mm
Spindle speed 4500 rpm
Spindle power 2 x 11 kW
Spindle nose A2-5
Rapid traverse X-Z axis 24 m/min
Rapid traverse right spindle 32 m(min

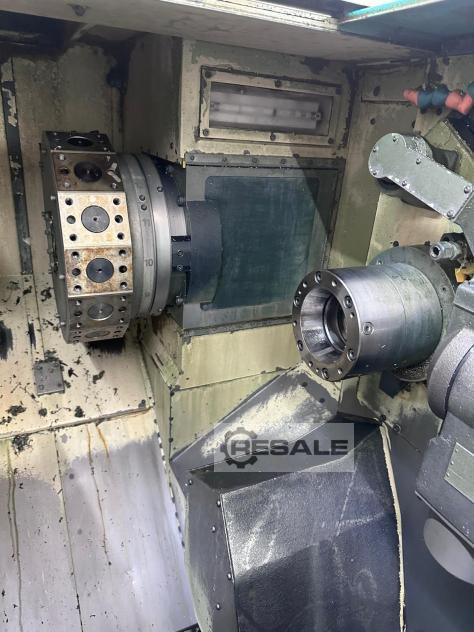

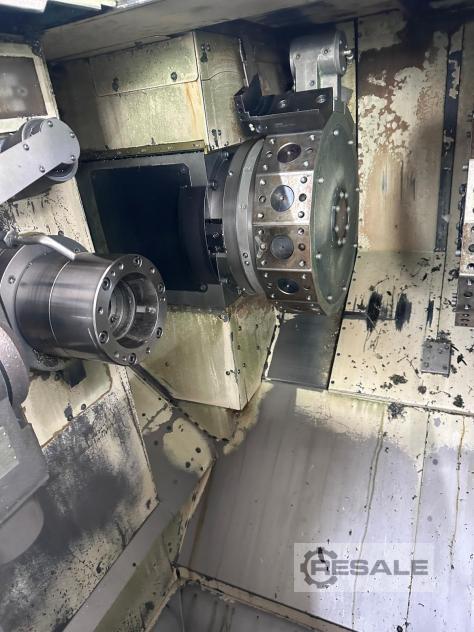

2 x turret (tool carrier) for 15 tools, driven, VDI40
Indexing time 0.25 sec.

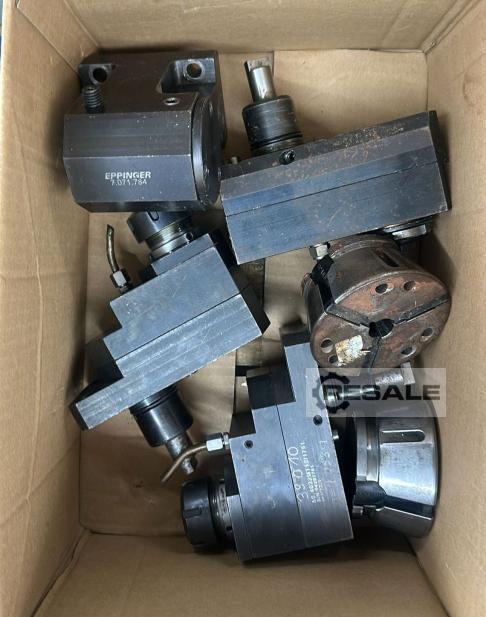

Powered Tools 12
Tool holder VDI 40
Quill stroke 120 mm
Recording MK 5

Accessories: Bar feeder (not original to this machine)
Chip conveyor, 3 driven tools.
seller offer No. resale 168158060
