Locking block for die casting machine GDK2500 by Frech, PADS1117.400, Parker, overhauled-as good as new Special price If you have a VAT number, we will be happy to issue you an invoice without VAT. Refurbished! The locking block was overhauled by Parker, is in the original packaging and is in an immediately usable, top condition. The locking block can be viewed, checked and picked up at any time. We will also be happy to send you a sketch of the execution or deliver the goods to your address. Locking block, Parker, PADS1117.400, Suitable for the GDK 2500 machines from Frech/Müller Weingarten The block was still delivered to machines from Müller Weingarten and has SAE connections. Art. 937009 Weight 650kg Attention: We offer various columns, adjustment nuts, tie bar expansion nuts and 2 piece nuts from: IDRA D330, D300, D260, D250, Oleopress/OP Die Casting: D285, D ...

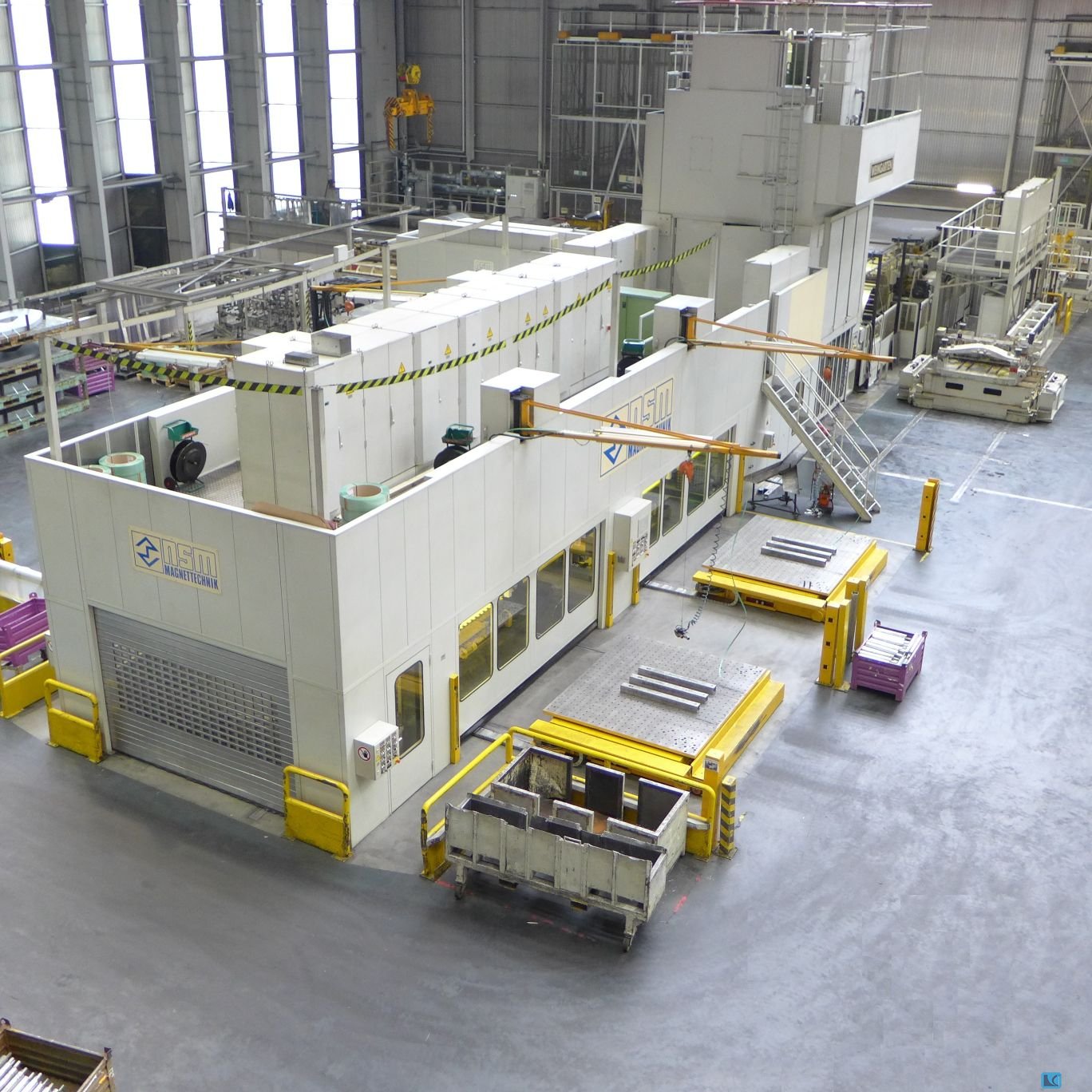

sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...

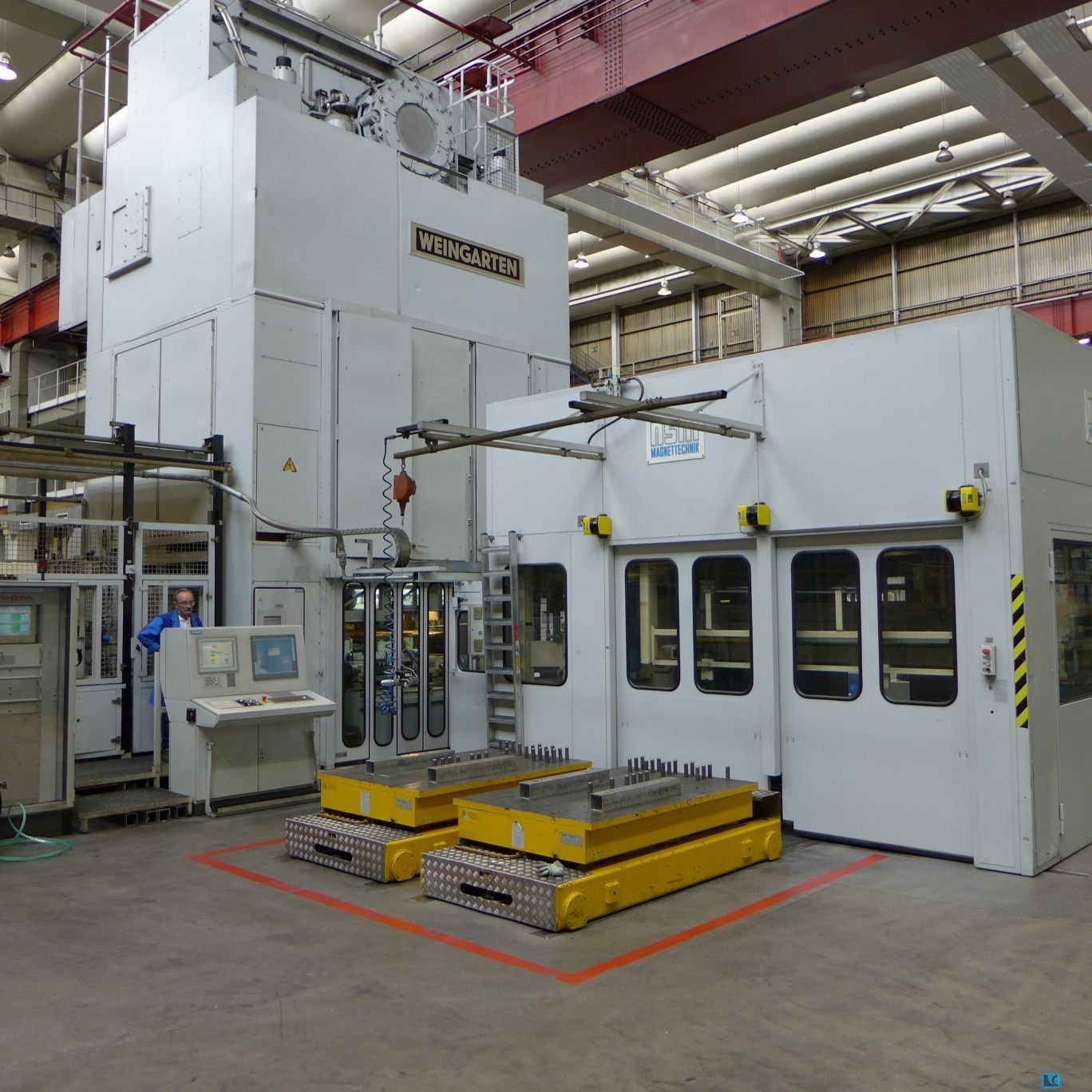

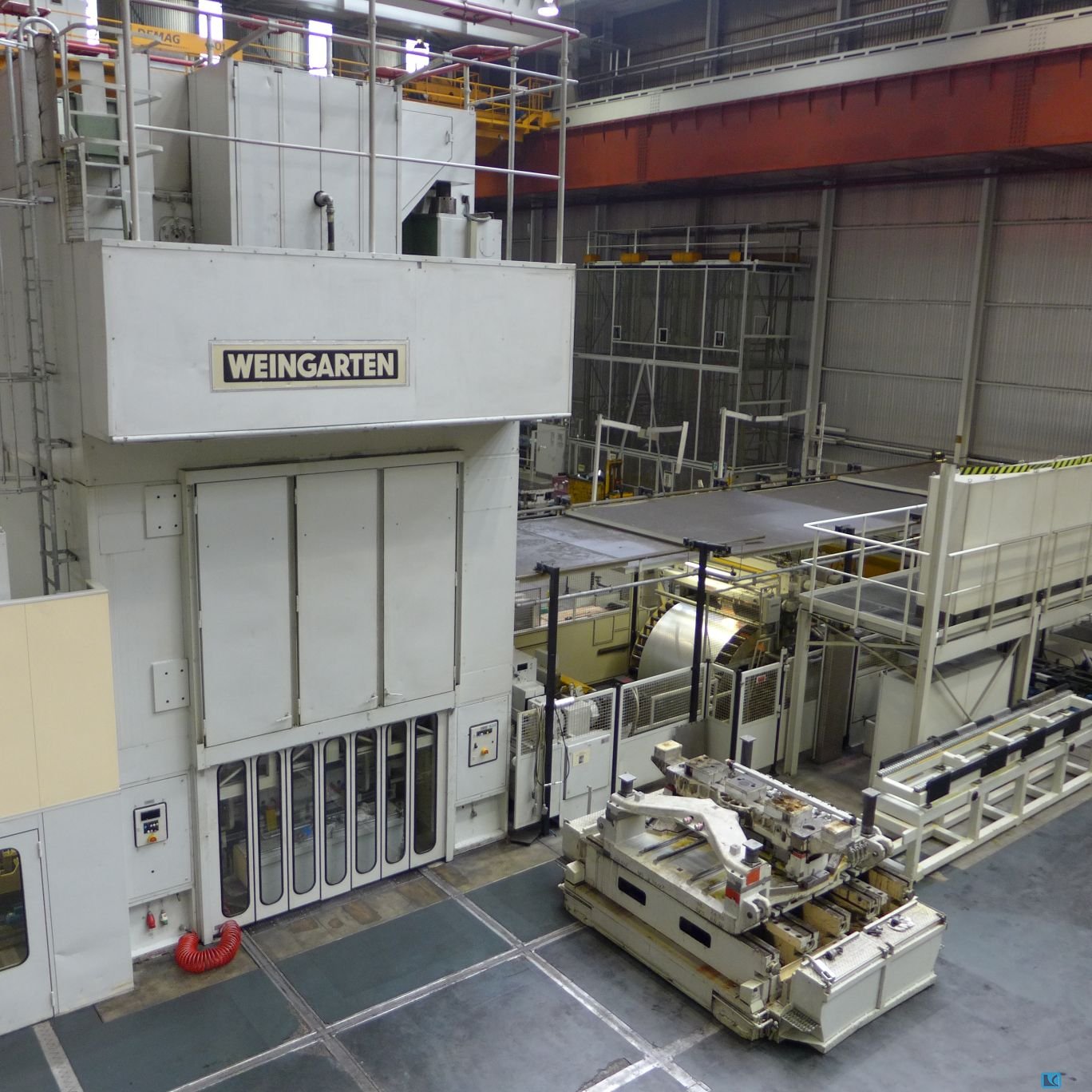

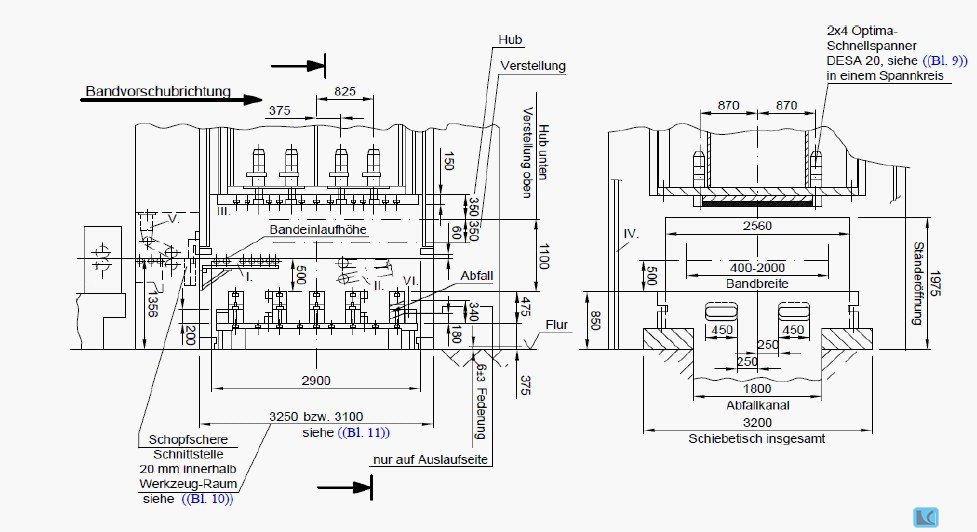

pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...

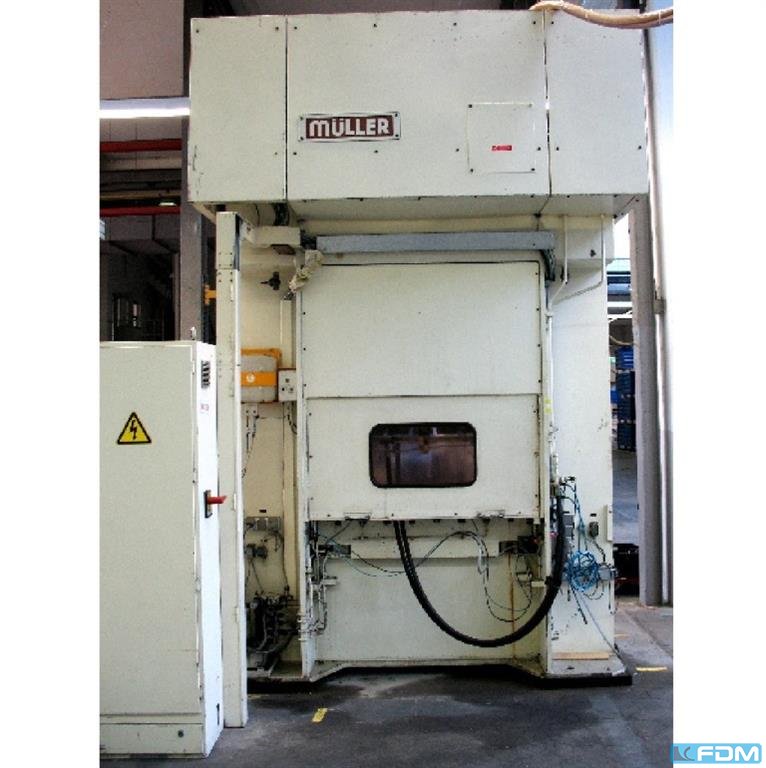

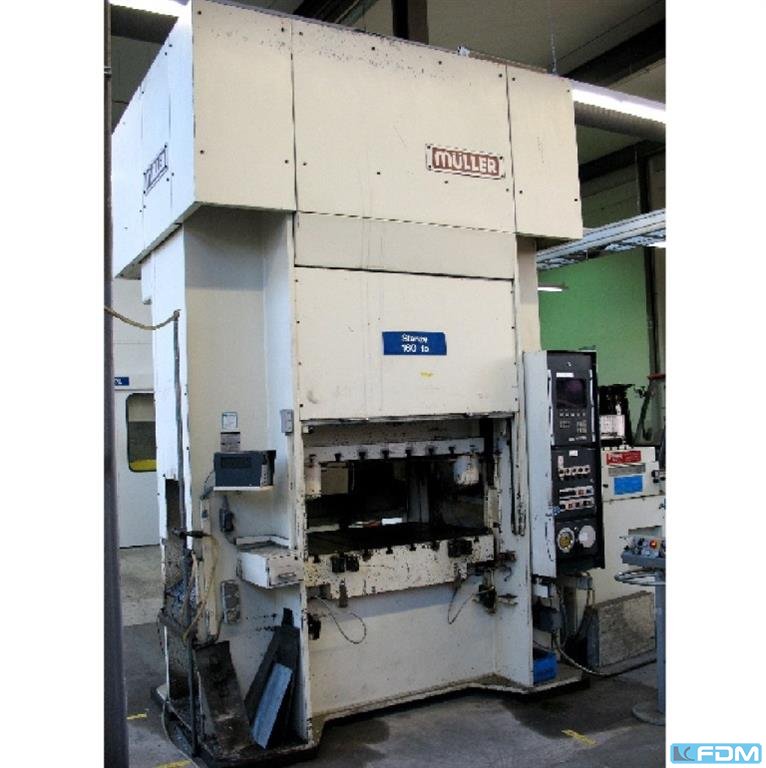

pressure:160 t distance between columns:1360 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:950 mm side window:640 mm ram surface:1300 x 900 mm power requirement:45,0 kW weight:16,0 t Dimensions (WxDxH):2,5 x 2,1 x 4,1 m cutting impact cushioning:hydraulic

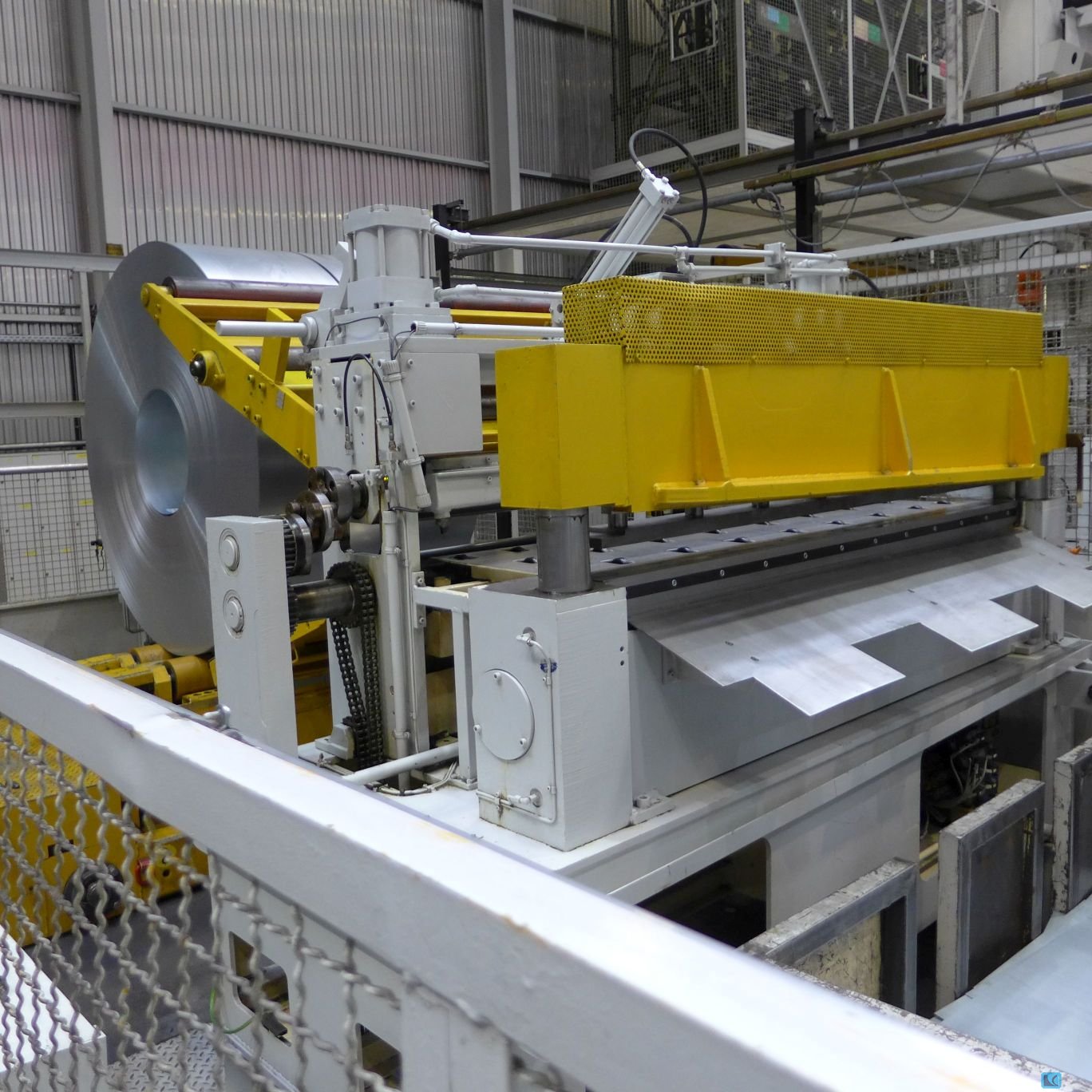

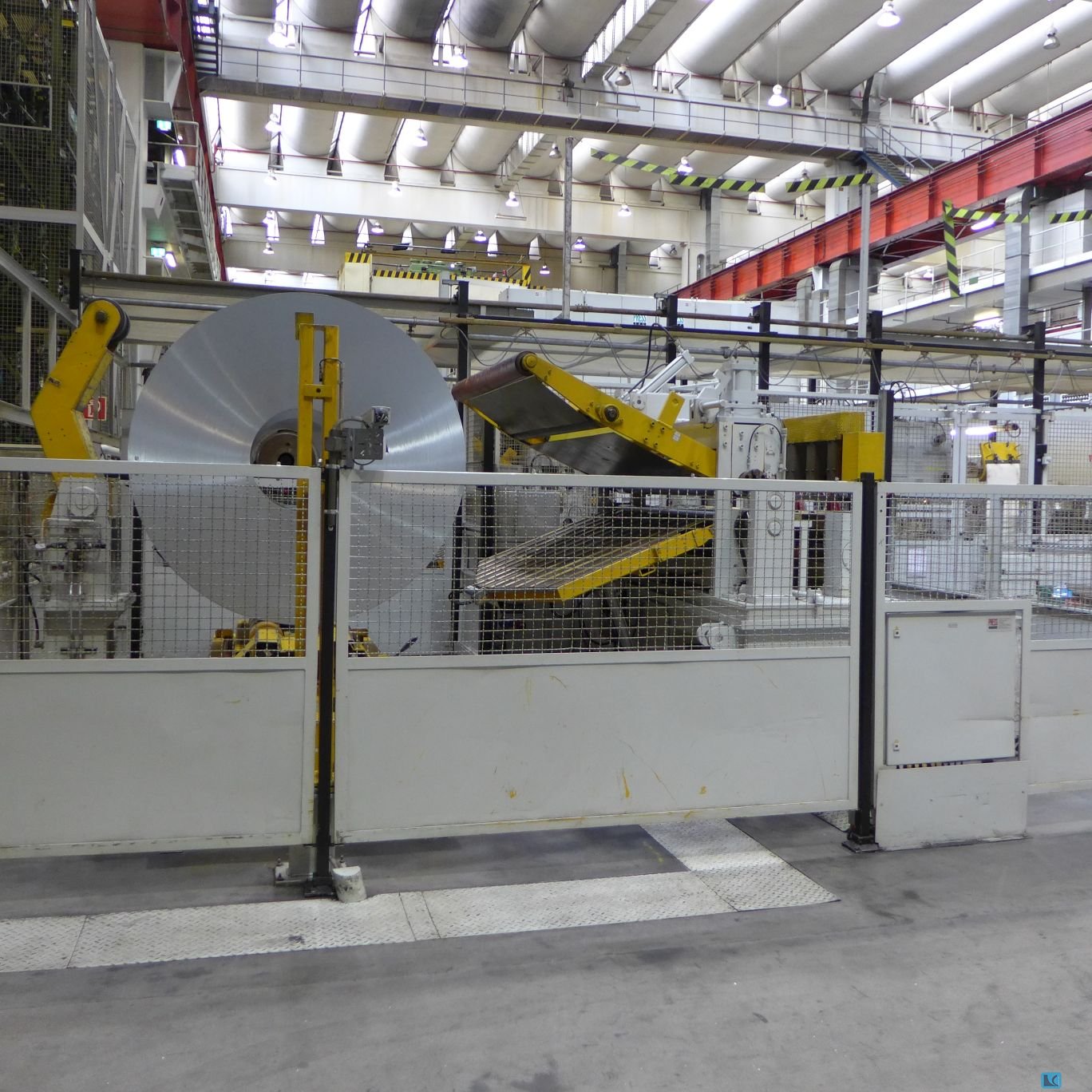

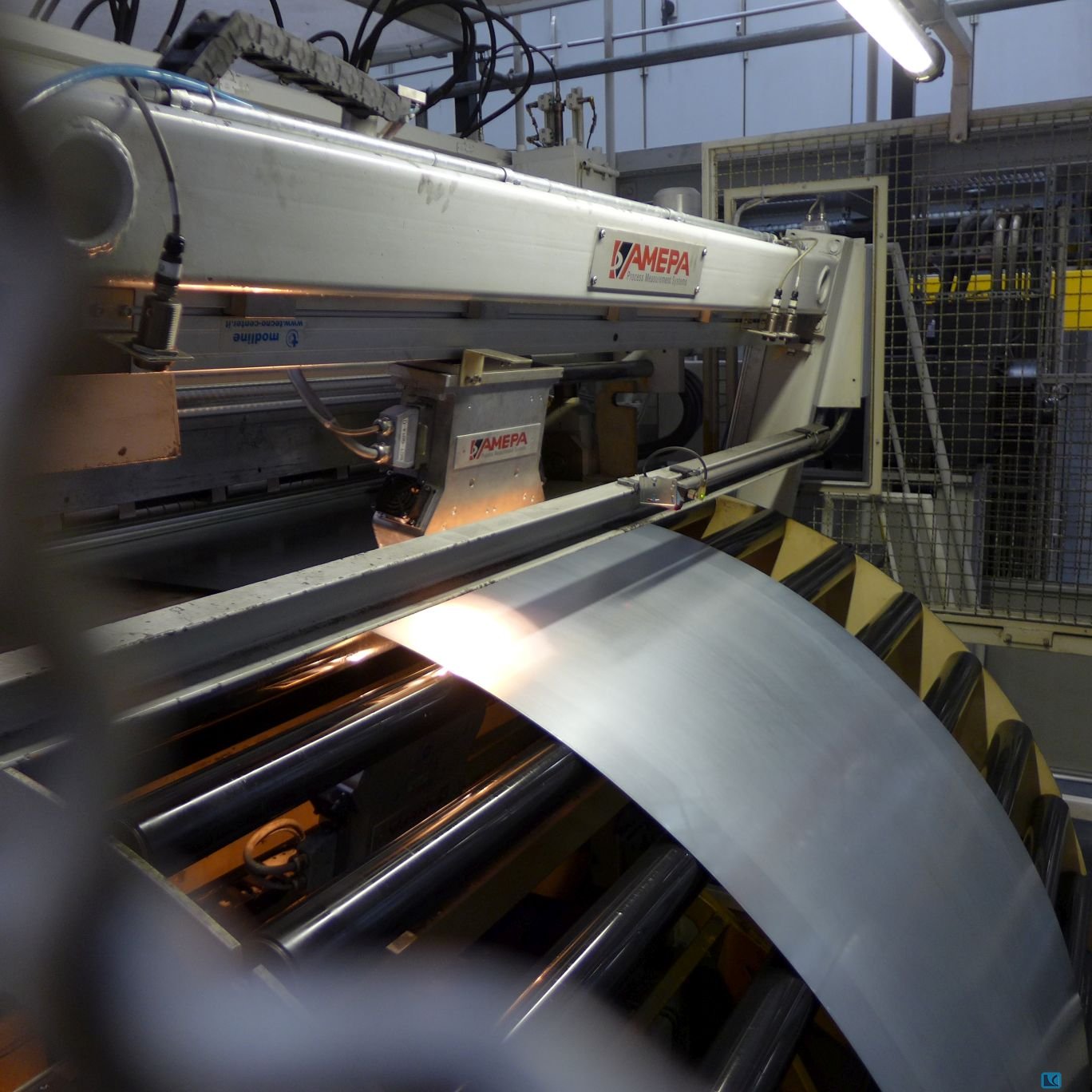

band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm
pressure:160 t distance between columns:1340 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:930 mm side window:600 mm ram surface:1300 x 900 mm speed down:367 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:15,0 t Dimensions (WxDxH):2,5 x 2,2 x 4,0 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 foundation pit:not necessary

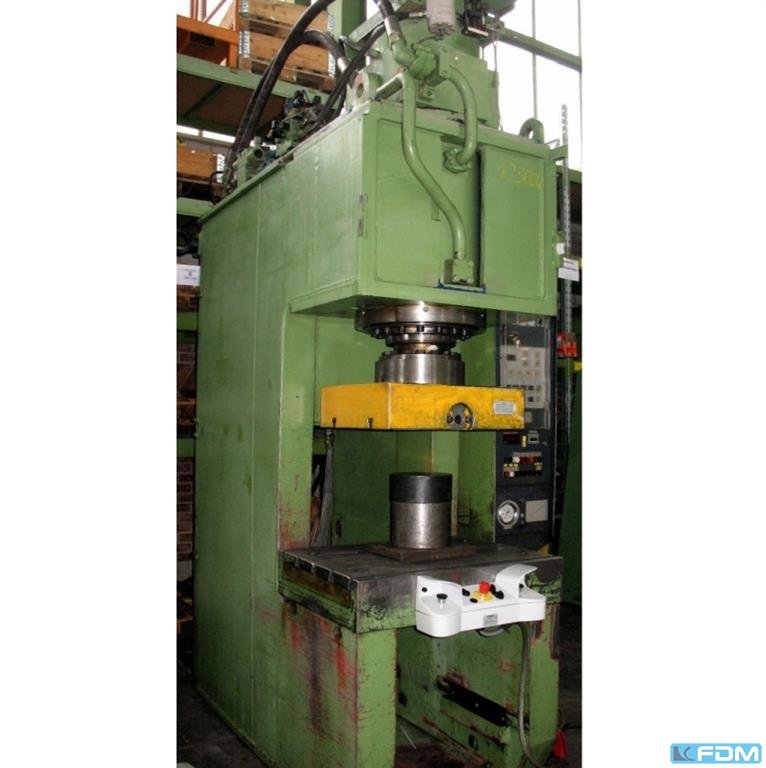

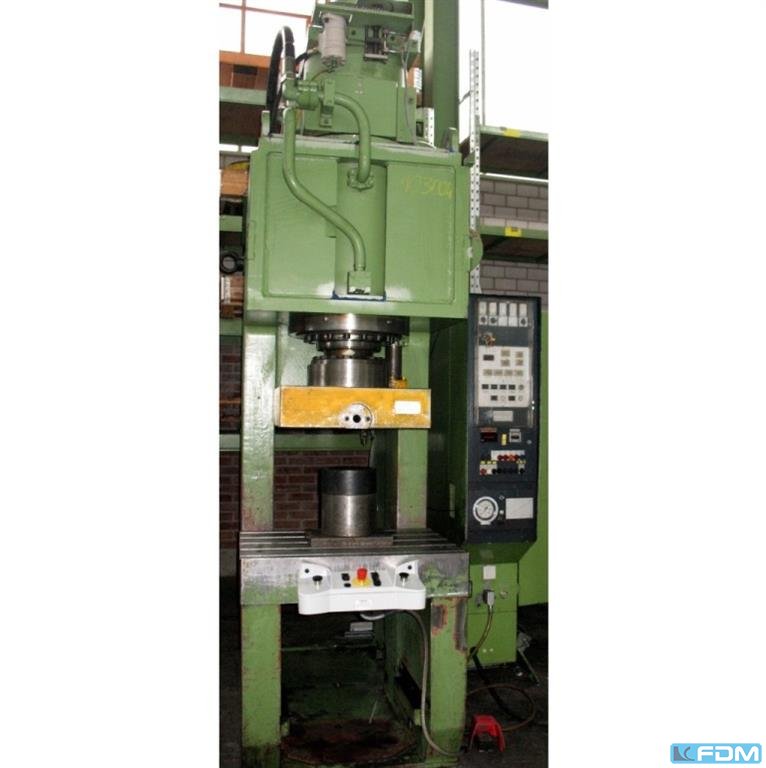

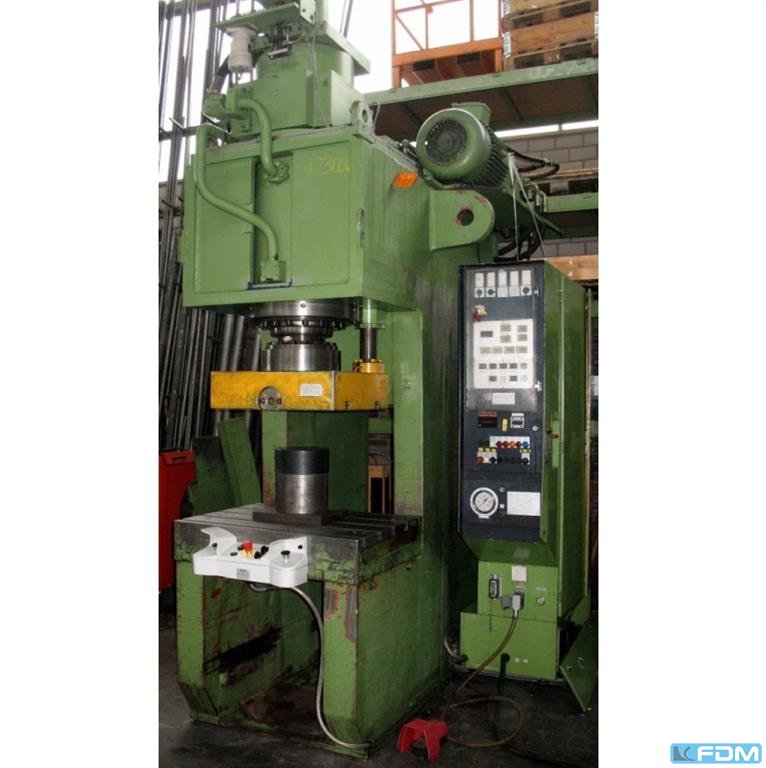

pressure:160 t throat:360 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:920 x 700 mm Hole in the table:150 mm table height over floor:960 mm passage to the back:590 mm ram surface:620 x 560 mm speed down:390 mm/s speed up:390 mm/s working speed:58 mm/s power requirement:30,0 kW weight:16,0 t dimensions (WxDxH):1,6 x 2,5 x 3,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanisch
CONTROLS PLC SIEMENS SIMATIC PRESS DESIGN table cushion: yes PRESS FORCES total force (nominal): 630 to PRESS TABLE table surface (left-right): 2500 mm table surface (front-back): 1300 mm DIE CUSHION (TABLE CUSHION) cushion force: 250 to stroke: 400 mm cushion plate surface (left-right): 2450 mm cushion plate surface (front-back): 1250 mm
pressure: 1000 t distance between columns: 5000 mm stroke: 500 mm Height of centres: 400 mm Motor output: kW reus: U/min Overall size: 6000 x 2500 mm Weight: 1000 kg Distance between centres: 3500 mm total power requirement: kW weight of the machine ca.: 220 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 63 t distance between columns: 0 mm stroke: 160 mm table surface area: 630 x 500 mm dayligth: 400 mm total power requirement: kW weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
