Model
(Manufacturer: MORI SEIKI)
X-AXIS STROKE: 840 MM Y-AXIS STROKE: 860 MM Z-AXIS STROKE: 840 MM TABLE SIZE: 630 X 630 MM TABLE CAPACITY: 1,200 KG SPINDLE POWER: 30/25 KW ROTATION SPEED: 12,000 RPM ATTACHMENT: BT 50 NASOMANDRINO/PALLET DISTANCE: 50-810 MM SPINDLE-PLANK DISTANCE: 150-990 MM TOOL WAREHOUSE: 120 STATIONS MAX. WORKPIECE HEIGHT: 1000 MM CONTROL: MSG-502 YEAR OF BUILD: 2002
turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...
x-travel:800 mm y-travel:460 mm z-travel:510 mm total power requirement:20 kW weight of the machine ca.:8 t Vertical Processing Centre 20kW is the nominal value. The spindle only needs 7.5kW. It looks like 15kW will be enough.
standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...
standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm ...

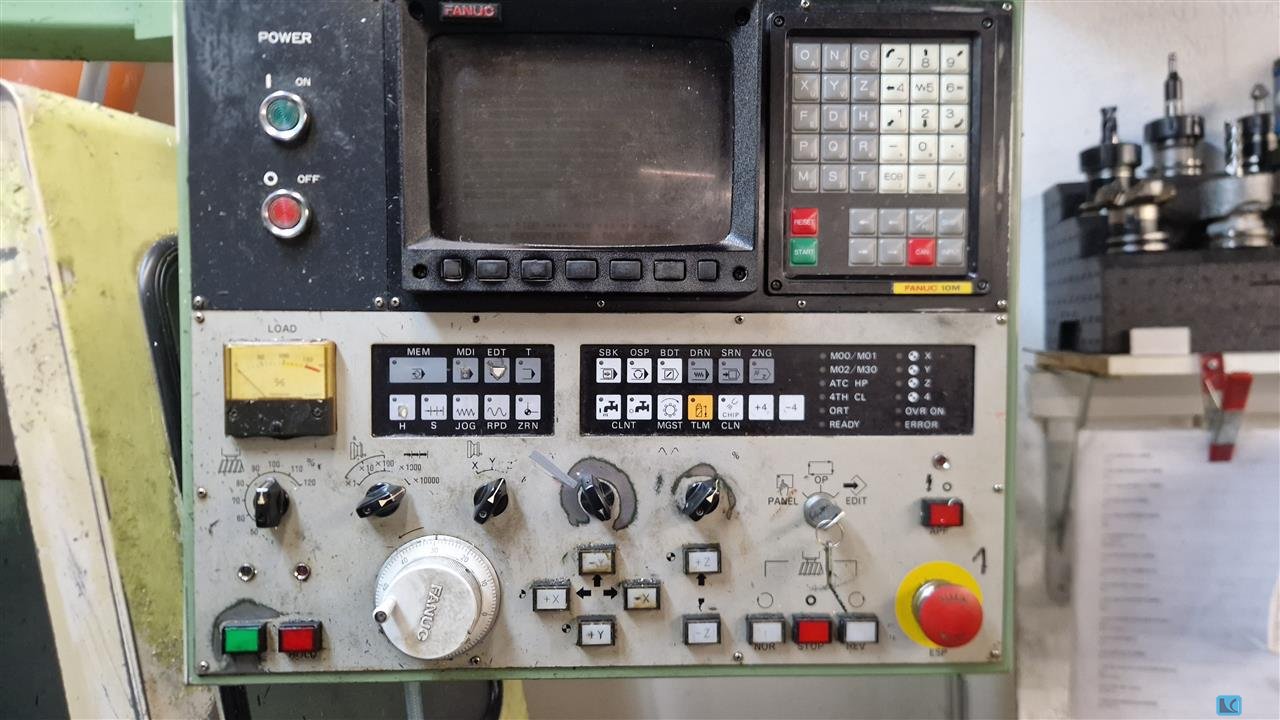

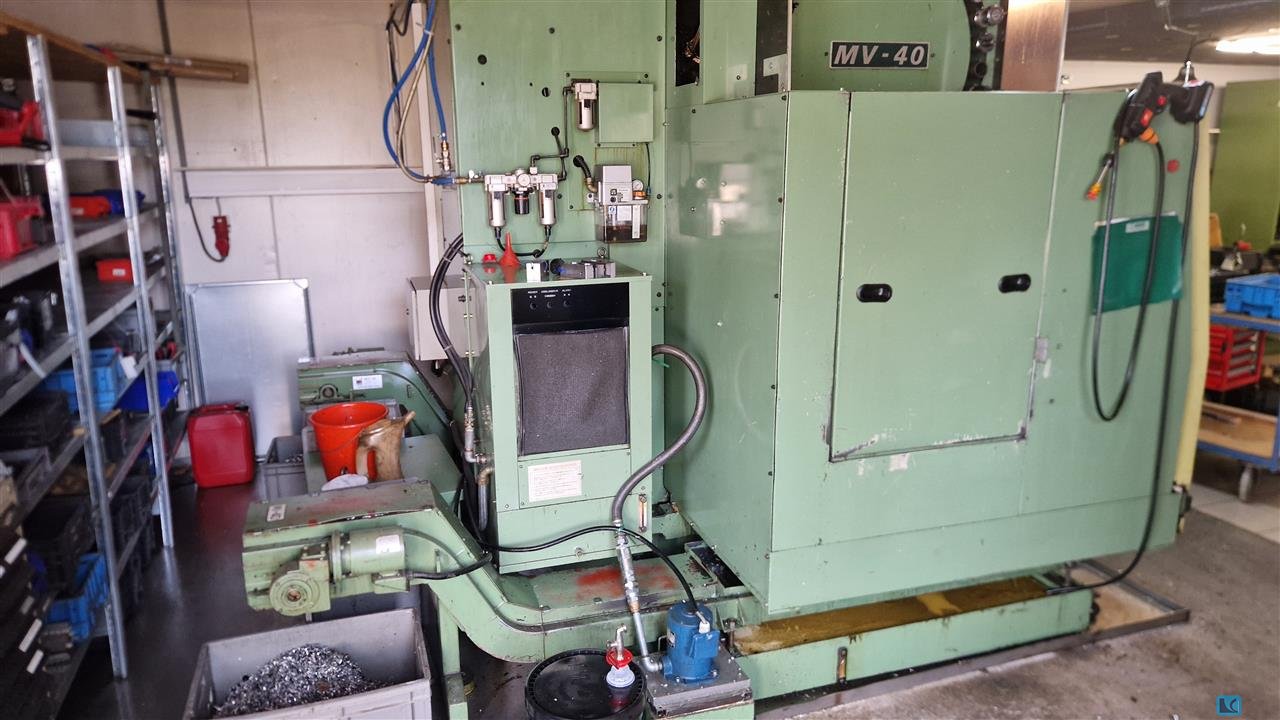

x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"
x-travel:1400 mm y-travel:1200 mm z-travel:1350 mm control:MSX- 701 Mapps III table surface area:800 x 800 mm rapid traverse:50 m/min table rotating:360.000 x 0,001 B-Achse ° table load:2,0 t numbers of pallets:2 turning speed range:8000 1/min power capacity - milling spindle:37 kW no. of tools in the magazine:60 Stück tool taper:HSK-A 100 weight:31 t dimensions:5,9 x 3,48 x 3,68 m Equipment: - Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping - Parts program memory 1 MB - Knoll 70 bar high pressure and filter system - Electrostatic oil dust collector LTA - elect. hand wheel - renishaw probe - abso- scale i X/Y/Z- axis - 5 free m- funktions - 48 extra off sets - dual ballscrews on X/Y/Z- axis
x-travel:630 mm y-travel:600 mm z-travel:650 mm control:MSC 502 (Fanuc 16) Spindle RPM:12000 1/min spindle drive:22 / 18,5 kW rapid travel x/y/z:32 m/min Pallet dimension:500x500 mm numbers of pallets:2 table load:0,5 t working diameter:max. 610 mm Number of tool station:60 BT40 max. tool length:360 mm max. tool weight:12 kg tool changing time:1,3 sec B-axis positioning (non continuous):1 total power requirement:50 kVA weight of the machine ca.:14 t dimensions of the machine ca.:3,3 x 5,8 x 3,2 m spindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options: ATC 60 tool stations, High pressure coolant trough spindle interface,
A Mori Seiki CNC turning and milling center with counter spindle including automation is available. Tool turrets: 3, tool stations: 3×16, live tools: all stations, X-axis travel: 210mm, Z1/Z2/Z3-axis travel: 300mm/810mm/300mm, main spindle bore: 55mm, spindle speed: 6000rpm, automation robot: LR Mate 200iC 5L, payload: 5kg, reach: 892mm, repeatability: 0.03mm. Machine dimensions X/Y/Z: approx. 3800mm/2700mm/2500mm, weight: approx. 8900kg, control: Fanuc 31i-A, power-on hours: 101035h, operating hours: 68322h, process hours: 34697h. Including an automated CO2 fire detection system, transformer, machine extraction system, 4× workpiece carriers and an automatic diameter detection system. Documentation available. An on-site inspection is possible.
A Mori Seiki CNC turning and milling center with counter spindle including automation is available. Tool turrets: 3, tool stations: 3×16, live tools: all stations, X-axis travel: 210mm, Z1/Z2/Z3-axis travel: 300mm/810mm/300mm, main spindle bore: 55mm, spindle speed: 6000rpm, automation robot: LR Mate 200iC 5L, payload: 5kg, reach: 892mm, repeatability: 0.03mm. Machine dimensions X/Y/Z: approx. 3800mm/2700mm/2500mm, weight: approx. 8900kg, control: Fanuc 31i-A, power-on hours: 101035h, operating hours: 68322h, process hours: 34697h. Including an automated CO2 fire detection system, transformer, machine extraction system, 4× workpiece carriers and an automatic diameter detection system. Documentation available. An on-site inspection is possible.
This 5-axis MORI SEIKI ZT1500YB was manufactured in 2005. It features a maximum turning diameter of 190 mm and a maximum turning length of 235 mm. The machine includes a robust turret with 12 stations and a rapid traverse speed of up to 24,000 mm/min. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI ZT1500YB horizontal turning machine we have for sale. Contact us for further details.
turning diameter: 176 mm turning length: 570 mm swing diameter: 510 mm working diameter: 420 mm travel -z axis: 570 mm travel -x axis: 245 mm spindle bore: 43 mm diameter of quill: 85 mm quill stroke: 120 mm Spindle Speed: 60-6.000 U/min. rapid power traverse in X-and Z direction: 24 m/min total power requirement: 5,5 kW control: MSG-805 V weight of the machine ca.: 3.400 kg dimensions of the machine ca.: 2000x1700x1800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
A Mori Seiki CNC lathe is available. Swing diameter over bed/slide: 450mm/300mm, max. turning diameter: 160mm, turning length: 525mm, travel X/Z: 135mm/560mm, bar capacity: 42mm, spindle bore: 52mm, spindle nose: JIS A2-5, spindle speed: 5000rpm, power: 7.5kW, torque: 172Nm, tool stations: 12, tailstock taper: MK4, quill diameter: 75mm, quill stroke: 80mm, rapid traverse: 12m/min. Machine dimensions X/Y/Z: approx. 2500mm/1500mm/1700mm, weight: approx. 3250kg, control: Fanuc Series 15-T. Documentation available. An on-site inspection is possible.
x-travel: 800 mm y-travel: 530 mm z-travel: 510 mm Control: MSC 504 Mori Seiki Main spindle:: turning speeds: max. 10.000 min/-1 power capacity - main spindel: 15 / 11 kW tool taper: SK 40 spindle bearing diameter: 70 mm distance spindle /table: 150 - 660 mm work table:: table surface area: 1.100 x 600 mm max. table load: 800 kg T-slots: 6x 18 mm table height over floor: 900 mm turret:: number of toolpositions: 30 pos. tool taper: SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 125 mm max. tool length: 300 mm max. tool weight: 8,0 kg change-time tool to tool: 1,3 sec change-time chip to chip: 4,1 - max. 9,2 sec feeds:: rapid traverse ( X / Y / Z ): 36 / 36 / 20 m/min feed speeds: max. 6.000 mm/min Tipp feed: 1 - 5.000 mm/min total power requirement: 27 kVA weight of the machine ca.: 6,1 t dimensions of the machine ca.: 3,5 x 3,0 x 2,8 m Documents: Chip conveyor: Co ...
x-travel: 800 mm y-travel: 530 mm z-travel: 510 mm Control: MSC 504 Mori Seiki Main spindle:: turning speeds: max. 10.000 min/-1 power capacity - main spindel: 15 / 11 kW tool taper: SK 40 spindle bearing diameter: 70 mm distance spindle /table: 150 - 660 mm work table:: table surface area: 1.100 x 600 mm max. table load: 800 kg T-slots: 6x 18 mm table height over floor: 900 mm turret:: number of toolpositions: 30 pos. tool taper: SK 40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 125 mm max. tool length: 300 mm max. tool weight: 8,0 kg change-time tool to tool: 1,3 sec change-time chip to chip: 4,1 - max. 9,2 sec feeds:: rapid traverse ( X / Y / Z ): 36 / 36 / 20 m/min feed speeds: max. 6.000 mm/min Tipp feed: 1 - 5.000 mm/min total power requirement: 27 kVA weight of the machine ca.: 6,1 t dimensions of the machine ca.: 3,5 x 3,0 x 2,8 m Documents: Chip conveyor: Co ...
This 3-axis MORI SEIKI NLX 2500M was manufactured in 2011. It features a maximum turning diameter of 366 mm and a maximum turning length of 705 mm. The machine is equipped with a powerful spindle motor of 18.5 kW and a turret with 12 positions for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NLX 2500M horizontal turning machine we have for sale. Contact us for further details.
CNC lathe with driven tools, year 1999, CNC MSC-501. Used machine in good condition. More info & price on IndustrialBuyer.
turning diameter: 200 mm turning length: 393 mm control: MSX 853 weight of the machine ca.: 3,5 t total power requirement: kW dimensions of the machine ca.: m MSX 853 cnc control 3-jaw chuck diameter 210mm 12-fold revolver C-axis driven tools tail stock coolant device chip conveyor Technische Daten: / technical details Drehdurchmesser / turning diameter 200 mm Drehlänge / turning lenght 393 mm X-Weg / X-travel 160 mm Z-Weg / Z-travel 450 mm max. Drehzahl Spindel / max. spindle speed 50-3000 UpM /rpm Eilgang X/Z / rapid feed X/Z 24/30 Anzahl der Revolverplätze / number of tool places 12 max. Stangendurchmesser / max. bar diameter 51 mm Antriebsleistung Spindel / drive capacity spindle 13,5 kW Gewicht ca. / weight ca. 3500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are n ...
turning diameter: max. 356 mm turning length: 705 mm control: MSX 850 III MAPPS Mitsubishi greates pass round over bed: 923,8 mm Swing dia. over traverse guideway: 755 mm standard turning dia.: 275 mm Main spindle:: max. spindle speed: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bearing diameter: 140 mm spindle bore: 91 mm max. bar capacity: 80 mm chucking diameter: 305 mm C-Axis: 0,001 ° Subspindle:: Spindle speed range subspindle: max. 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle nose: JIS A2-5 spindle bearing diameter: 85 mm spindle bore: 43 mm chucking diameter: 210 mm C-Axis: 0,001 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Shank diameter: 26 mm Drill shank diameter: 50 mm Spindle speed - driven tool stations: max. 6.000 min -1 turret change time: 0,25 sec. axis stroke:: x-a ...
This 3-axis MORI SEIKI DuraVertical 5100 was manufactured in 2007. It features an X-axis travel of 1,050 mm, Y-axis travel of 530 mm, and Z-axis travel of 510 mm. The machine has a robust table size of 1350 x 600 mm and a maximum table load capacity of 1000 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI DuraVertical 5100 vertical machining center we have for sale. Contact us for further details.
x-travel: 560 mm y-travel: 510 mm z-travel: 510 mm Control: MSC 502 distance spindle center to table: 50 - 650 mm distance Spindlenose and center of table: 100 - 610 mm Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 22 / 18,5 kW tool taper: MAS BT-40 spindle bearing diameter: 70 mm pallet changer:: numbers of pallets: 2 size of pallet: 400 x 400 mm max. workpiecediameter: 580 mm max. workpiece height: 650 mm b - axis: switching time: 90°: 2,5 sec change time of pallets: 6,0 sec Tool-Presetter:: number of toolpositions: 60 pos. tool taper: MAS BT-40 max. tool diameter: 80 mm max. tool-dia with free toolbox: 125 mm max. tool length: 300 mm max. tool weight: 8 kg change-time tool to tool: 1,5 sec change-time chip to chip: 3,7 sec feeds:: rapid traverse ( X / Y / Z ): 32 m/min feed speeds: 1 - 24.000 mm/min Tipp feed: 0 - 1.260 mm/m ...
This 4-axis MORI SEIKI NLX 2500Y was manufactured in 2013. It features a maximum swing over bed of 742 mm and a maximum turning diameter of 366 mm. The machine includes a powerful spindle motor with 18.5 kW and a maximum spindle speed of 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NLX 2500Y horizontal turning machine we have for sale. Contact us for further details.
This 5-axis MORI SEIKI NL 2500 SY was manufactured in 2009. It features a maximum spindle speed of 4,000 rpm, a Y-axis travel of ±60 mm, and a Z-axis travel of 795 mm. The machine is equipped with a robust turret capacity of 12 stations and offers simultaneous turning and milling capabilities. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NL 2500 SY turn-mill centre we have for sale. Contact us for further details.
This 8-axis MORI SEIKI NZ-2000/T2/Y2 was manufactured in 2008. It features a twin-spindle design with a maximum Z-axis travel of 810 mm and X-axis travel of 210 mm. The machine is equipped with two turrets, each with 16 stations, suitable for complex multi-process turning and milling operations. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NZ-2000/T2/Y2 turn-mill centre we have for sale. Contact us for further details.
This 4-axis MORI SEIKI NH 4000 DCG was manufactured in 2010. It features an X-axis travel of 560 mm, Y-axis travel of 560 mm, and Z-axis travel of 630 mm. The machine has a spindle speed of 14,000 rpm and a tool magazine capacity of 60 positions. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NH 4000 DCG horizontal machining centre we have for sale. Contact us for further details.
This 4-axis MORI SEIKI NV-5000α1/40 was manufactured in 2006. It features an X-axis travel of 800 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1,100 × 600 mm with a maximum table load capacity of 1,000 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NV-5000α1/40 vertical machining centre we have for sale. Contact us for further details.
This 4-axis MORI SEIKI SV-400 was manufactured in 1998. It features a table size of 900 × 500 mm and impressive travels of 600 mm in the X-axis, 430 mm in the Y-axis, and 460 mm in the Z-axis. The machine includes a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 30 stations. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI SV-400 vertical machining centre we have for sale. Contact us for further details.
