used MONFORTS knc

This Monforts Knc 5 Lathe was manufactured in the year 1999. The machine has a spindle speed of 2-2800 rpm.

turning diameter: 630 mm turning length: 200 mm control: MTC K turning diameter over slide rest: 360 mm turning speeds: 1800 U/min 3-jaw chuck: 315 mm Holder Multifix: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BRAND: MONFORTS YEAR: 1999 MODEL: KNC 5 APPLICATION TYPE: TURNING LOCATION: GERMANY MACHINE TYPE: LATHE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 1550 MM MEASUREMENTS DEPTH: 2830 MM MEASUREMENTS HEIGHT: 1790 MM MACHINE WEIGHT: 3300 KG MAIN DRIVE SPINDLE SPEED RANGE: 2-2800 1/MIN SPINDLE MOTOR POWER: 11-15 KW Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - PEAK WIDTH: 1080/1580 MM - SWING DIAMETER OVER BED: 500 MM - SWING DIAMETER OVER CROSS SLIDE: 290 MM - TRAVEL OF THE CROSS SLIDE: 265 MM - DISPLACEMENT OF THE UPPER SUPPORT: 140 MM - BED WIDTH: 360 MM - WIDTH OF CROSS SLIDE: 220 MM - BED SLIDE GUIDE LENGTH: 615 MM - TURNING TOOL CROSS-SECTION: 32X25 MM

Control: SIEMENS / MTC K Max.turning length: 1000 mm Max swing diametr over bed: 500 mm Quick Change Toolposts:1 Coolant tank:100l Made in Germany

This MONFORTS KNC6 x 2000 Lathe was manufactured in the year 1994 in Germany. It is equipped with a MONFORT CTK control unit.

Center distance: 1500mm, rotational speed: 3-2800/min, max. swing over bed/ slide: 500/ 290mm, controls: Monforts Control-System K, weight: 3.3t, with accessories, without tools.

Center width: 1500mm, max. turning diameter: over bed: 500mm, over cross slide: 290mm, max. spindle speed: 2800rpm, control: Monforts Control-System K, weight: 3300kg. Including Coromant Capto with inserts, workbench without tools, grating.

turning diameter: 555 mm turning length: 1500 mm turning diameter over slide: 290 mm 3-jaw-chuck diameter: 315 mm make: Röhn control: Monforts MTCK quick change tool holder: Multifix C steady: turning speeds: 2-2800 U/min transmission ratio: 3 face slide travel: 235 mm spindle passage: 70 mm tailstock quill taper MT: 5 total power requirement: kW weight of the machine ca.: 3 t dimensions of the machine ca.: 2,9x1,6x1,8 m About usmore than 400 machines in the warehouse over 12000 m² storage area, crane capacity 70 tmore than 1000 items accessories for your workshopYou want to sell machines production lines or your company, then talk to us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 800 mm turning length: 2000 mm control: Monfort R&D turning diameter over slide: 520 mm spindle hollow: 88 mm total power requirement: 53 kW weight of the machine ca.: t dimensions of the machine ca.: 4,2x2,2x1,9 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 290 mm turning length: 3000 mm swing dia.: 650 mm swing diameter over face slide: 350 mm spindle bore diameter: 71 mm number of controlled axis: 2 control: Monforts EuroTurn turning speed range: 2- 1800 U/min rapid speed: 10/5 m/min tail stock: MK 6 number of tapers in turret head: Multifix C bed width: 550 mm power requirement: 21/15 kW max. torque on the spindle: 3320 Nm dimensions: m weight of the machine ca.: 6,5 t Used Teach in lathe in good condition Zubehör: - 3 jaw chuck - Multifix C with Capto quick change tool - coolant system - steady - chip conveyor - 4 mech. gear steps (2- 225/ 4- 450/ 8- 900/ 16- 1800 rpm) - electric break main motor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 500 mm turning length: 1000 mm control: MONFORTS CONTROL control: SYSTEM MTC-K turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,1 t dimensions of machine L x W x H: 2,88 x 1,68 x 2,18 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 500 mm turning length: 1500 mm control: MONFORTS CONTROL control: SYSTEM EURO TURN turning diameter over bed slide: 290 mm spindle bore: 70 mm spindle turning speed range: 3 - 2800 U/min spindle power: 15 kW max. torque on the spindle: 1530 Nm spindle head: DIN 55027 Gr. 8 feed power X/Z axis: 11300 N rapid travel - longitudinal/face: 10 / 5 m/min bed width: 360 mm travel of cross-slide: 265 mm upper slide travel: 140 mm turning tool - shaft cross cut: 32 x 25 mm tailstock quill diameter: 80 mm tailstock quill stroke: 160 mm tailstock taper MT: 5 total power requirement: kW weight of the machine ca.: 3,3 t dimensions of machine L x W x H: 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Ref. -No.: 10374 Manufacturer: MONFORTS Year of construction: 2000 Type of control: Zyklen gesteuert Control: MONFORTS Control Storage location: Halberstadt Country of origin: Germany

Ref. -No.: 10369 Manufacturer: MONFORTS Year of construction: 2005 Type of control: CNC Control: MTCK/Euro Turn Storage location: Halberstadt X stroke: 450 mm Z - stroke: 3850 mm Centre Distance: 3970 mm Feed Capacity - Z: 20,7 kN Feed Capacity - X: 10,1 kN Rapid Travel Speed X-Axis: 4 m / min Rapid Travel Speed Z-Axis: 5 m / min Tailstock Quill Diameter: 125 mm Tailstock Quill Stroke: 200 mm Circumference diameter over slideway: 830 mm Circumferential diameter over radial slide: 540 mm spindle taper diameter: 140 (Metrisch) mm Quills Morse taper: MK6 Max swing diameter: 900 mm

Ref. -No.: 10366 Manufacturer: MONFORTS Year of construction: 2000 Type of control: CNC Control: EURO TURN Storage location: Halberstadt Country of origin: Deutschland Machine length: 5000 mm Machine width: 1970 mm Machine Height: 1800 mm X stroke: 370 mm Z - stroke: 2880 mm Chuck diameter: 200/250/315 mm Centre Distance: 3040 mm Spindle Head: DIN 55027 - 8x220 Feed Capacity - Z: 18,9 kN Feed Capacity - X: 11,3 kN Rapid Travel Speed X-Axis: 5 m / min Rapid Travel Speed Z-Axis: 10 m / min Circumferential diameter over radial slide: 350 mm Max swing diameter: 720/630 mm travel of the cross slide: 375 mm Spindle head max. passage for violent material: 68 mm Spindle head max. passage for bare material: 70 mm Tailstock outside diameter of the quill: 110 mm Tailstock maximum quill stroke: 210 mm Tailstock inner cone: MK6 Type Further information: Additional lubricating oil tank approx. 6l

Ref. -No.: 10365 Manufacturer: MONFORTS Year of construction: 1997 Type of control: CNC Control: MTC K Storage location: Halberstadt Country of origin: Deutschland Machine-No.: 178.05 Machine length: 5200 mm Machine width: 2110 mm Machine Height: 1995 mm Weight Of The Machine Ca.: 6,850 (Ohne Späneförderer und Kühlmittelbehäter) t X stroke: 455 mm Z - stroke: 2850 mm Chuck diameter: 315/400/500 mm Centre Distance: 3000 mm Spindle Head: DIN 55027 - 11x290 Feed Capacity - Z: 23,9 kN Feed Capacity - X: 11,3 kN Rapid Travel Speed X-Axis: 6,8 m / min Rapid Travel Speed Z-Axis: 4 m / min Circumferential diameter over radial slide: 540 mm Max swing diameter: 830 mm travel of the cross slide: 450 mm Spindle head max. passage for violent material: 88 mm Spindle head max. passage for bare material: 90 mm Tailstock outside diameter of the quill: 125 mm Tailstock maximum quill stroke: 20 ...

Ref. -No.: 10313 Manufacturer: MONFORTS Year of construction: 2001 Type of control: CNC Control: EUROTURN Storage location: Halberstadt Country of origin: Deutschland Machine-No.: 164 01 Machine length: 6200 mm Machine width: 2110 mm Machine Height: 1995 mm Weight Of The Machine Ca.: 7,7 t X stroke: 450 mm Z - stroke: 3850 mm Chuck diameter: 315/400/500 mm Turning Diameter: 630 mm Turning Length: 3000 mm Centre Distance: 3985 mm Spindle Head: DIN 55027 - 11x290 Feed Capacity - Z: 23,9 kN Feed Capacity - X: 11,3 kN Rapid Travel Speed X-Axis: 4 m / min Rapid Travel Speed Z-Axis: 5 m / min Tailstock Quill Diameter: 125 mm Tailstock Quill Stroke: 200 mm Space requirement: 7500 x 3500 mm Circumferential diameter over radial slide: 540 mm mm spindle taper diameter: 140 mm Jaw chuck diameter: 400 mm jaw continuity: 102 mm Quills Morse taper: 6 Max swing diameter: 830 mm travel of the cross slid ...

centre distance: 2600 mm weight: 8 t : multifix: : 900 mm serial number: 152/03 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: 255 mm centre distance: 1080 mm turning diameter over bed: 500 mm turning diameter over slide: 290 mm turning length: 1000 mm spindle taper: KK 8 DIN 55027 control: SIEMENS bed width: 360 mm spindle bore: 70 mm turning speed range: 2 - 2800 U/min rapid travel - longitudinal/face: 10 / 5 m/min quick change toolholder: MULTIFIX Typ B / CAPTO drive capacity - spindle motor: 11,0 kW taper in tailstock-quill: MK 5 dia. of quill: 80 mm quill stroke: 160 mm coolant: voltage: 400 V total power requirement: 16,0 kVA weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,85 x 1,60 x 1,80 m chip conveyor: 4,00 x 0,40 x 1,50 m - Serial-No.: 346 / 03 - control: SIEMENS - quick change tool holder MULTIFIX - coolant equipment - machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Chuck diameter 315mm Face slide travel 375mm top slide travel 195mm SN 172/05 Voltage 400 V 3/PE 50 Hz Power 23 KVA Drehlänge: 2,000 mm, turning diameter over bed: 650 mm, turning diameter over slide: 350 mm, spindle bore: 80 mm, turning speed range: 2-1800 rpm, weight approx.: 6,500 kg, Approx. Onsite Dimension. (l x w x h): 4,100 x 2,000 x 2,000 mm

turning diameter: 302 mm turning length: 600 mm control: Siemens type: 810 T tail stock: Tool changer: 12 Pos. tool taper: VDI 30 chip conveyor: 3-jaw-chuck diameter: 200 mm swing diameter: 400 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 530 mm turning diameter: 150 mm spindle passage: 65 mm control: SIEMENS 840 C travel x1: 175 mm travel y1: +/- 70 mm travel z1: 433 mm travel x2: 175 mm travel y2: +/- 70 mm travel z2: 433 mm spindle turning speed range: 38 - 4000 U/min C-axis: 2 x tool turret: 2 x 12 Pos. number of driven tool stations: 2 x 12 total power requirement: 33 kW dimensions of machine L x W x H: 3,95 x 2,49 x 2,6 m Accessories: collet fixtures on main spindle and sub spindle, one collet for main spindle and one for sub spindle, various tool holders (for driven tools as well), various spindle reductions, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

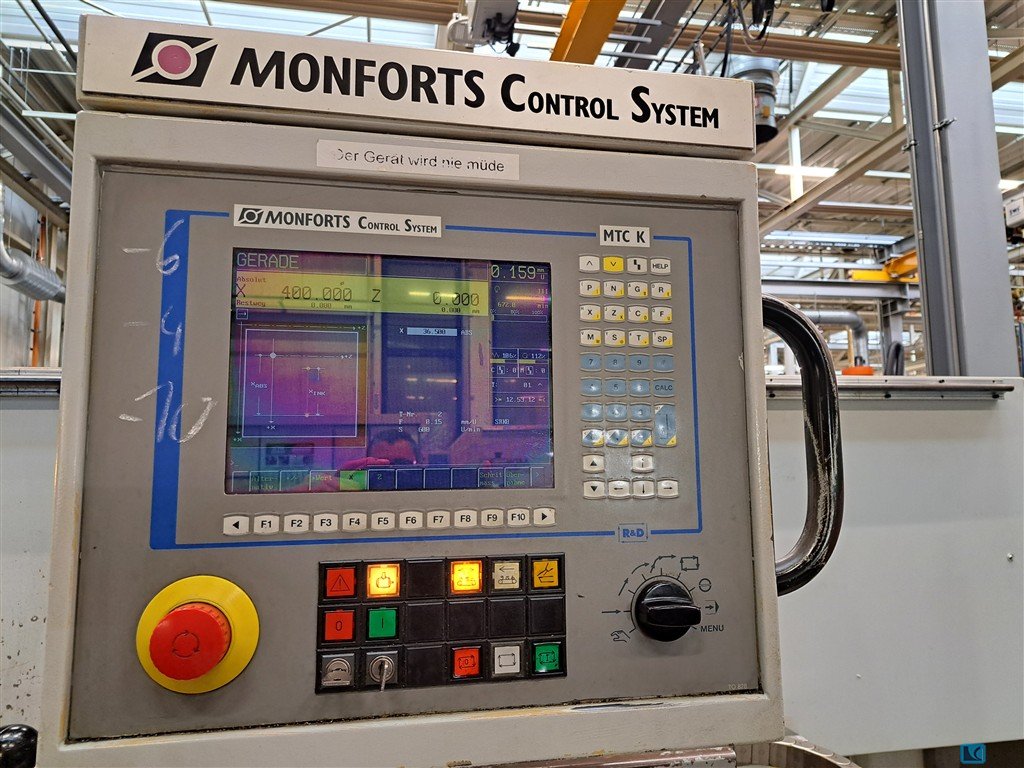

Turning diameter: 0 mm Turning length: 0 mm Turret positions: 0 Positions ATC: 0   Number controlled axis: 0   CNC Brand: 0 CNC Model: 0 Control: MONFORTS CONTROL SYSTEM MTC Technical data Centre height: 250 mm Distance between centres: 1500 mm Swing over cross-slide: 290 mm Swing over bed: 500 mm Taper in spindle: DIN 55027 Carriage: Transversal strocke (X axis): 265 mm Spindle speeds: number (steps): 3 from: 3 rpm up to: 2800 rpm Taper in tailstock: Morse taper: 5 MT Spindle stroke: 160 mm Spindle diameter: 80 mm Rapid traverse X: 5 m/min Rapid traverse Z: 10 m/min Spindle motor: 16.5 kW Voltage 50 Hz 3x: 400 Volt Total power required: 16 kVA Machine´s weight about: 3000 kg Various accessories: 3-jaw chuck diameter: ROTA-S 250 mm 4-jaw chuck diameter: 250 mm Set of jaws Set of jaws hard Travelling steady Lamp Tailstock Coolant system Interface serial port RS 232 Chip conveyor  ...

Monforts RNC7 Type of machine: CNC lathe Manufacturer: Monforts Model: RNC 7 Year of manufacture: 1991 Control: Fanuc Technical data: Travel X/Z 415/1100mm, tool measurement, tailstock, Röhm lathe chuck, spindle speed 4000 min-1, disc turret with VDI60 interface, number of tool places: 12, turning length (max.) 1000mm, revolving Ø over bed (max.) 720mm, revolving Ø over radial slide (max.) 550mm, dimensions: 4930x2790x2200mm without chip conveyor, weight: approx. 12000kg

- LNS Quick Load Servo 80 S2 short bar loading magazine (for mounting on the lathe) - Tools + tool trolley - Collets - Control 840D
