123 MIKRON used machine for sale

Travel distances: 500 x 450 x 400 mm [ X x Y x Z ] Number of axles: 5 Rotary swivel table HEM 500 U 3+2 Control: Heidenhain iTNC 530 Spindle holder: ISO 40 / BT 40 Spindle speed: 12000 rpm Tool changer: 30 - fold Drive power : 20 kW Torque : 75 Nm Rapid traverse: 30 m/min Spindle cooling Conveyor Diameter 500 mm IKZ 20 bar ITC 5X Intelligent Thermal Control Oil trap Minimum quantity lubrication Oil mist extraction Blowing air through tool screw Mobile handwheel Glass scales Encoder B-axis Encoder C-axis Tool probing system (TS27R OMP40 Probe

WE OFFER VERY NICE CONDITION - MIKRON WF3 S technical details: X-travel longitudinal 500 mm Y-travel cross 500 mm Z-travel vertical 380 mm spindle speed 12-steps 50-2240 UpM /rpm feed 1-750 mm/min spindle taper SK40 table size 800x445 mm drive capacity 7 kW weight 1650 kg

Mikron C Axis Machine Table - with Heidenhain control 430 - Siemens server motor - Table: 60 x 110 cm - 4th axis, diameter: 50 cm - Weight: 650 kg Good condition fully functional can be visited and tried out on site. Shipping also abroad. Sightseeing: Basically, I would like to point out that the article, in order to avoid misunderstandings, can be viewed before the purchase and tested under electricity. Please ask questions before buying to avoid ambiguity. For general questions or an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale excepted. VAT will be shown separately on my invoices. Shipping with freight forwarder.

Mikron VCP 800 2007 Built in 2007 Control Heidenhain iTNC 530 Travel X-800mm , Y-650mm , Z-500mm Working spindle: Spindle speed max. 12000rpm. Tool magazine: Number of tool slots 36 Machine table: Clamping area 800 x 650mm Accessories: Inner coolant supply - Belt filter system 20Bar Conveyor

Micron WF 61 C Equipped with a controlled round table Workspace X-axis: 800mm Y-axis: 500mm Z-axis: 460mm Table: 1000 x 500mm Number of working spindle speeds: 21 Speed range 40-4000 rpm Pinole movement vertical: 90mm Feed speed in all 3 axes: 1-3000 mm/min

X-travel: 700 mm Y-travel: 550 mm Z-travel: 450 mm Control Heidenhain Atek HS Plus Spindle taper HSK 40E Spindle speed 42.000 rpm ATC 24 positions Clamping table 900 x 550 mm Weight of the machine ca. 6,5 t VIDEO: abcs://youtu.be/V4PdQu-AYcA

Gear hobbing machine MIKRON 102 Max. workpiece diameter 120 mm Max. Modul 2 Max. lenght of teeth 130 mm Min./max.nr of teeth 6 – 325 Angle on helical gears 0 – 90 °

Table clamping surface: 500 x 1000 mm stroke x: 630 mm traverse path y: 500 mm traverse path z: 460 mm Quill stroke: hand 45 mm spindle retainer: ISA 40 spindle speeds: 31.5-3150 rpm stufenl feeds. adjustable: 1-3000 mm / min rapid traverse: x/y 6 / z 4 m/min. Supply: 380 V, 6/8 kW space: 1800 x 2120/2600 x 2020 mm weight: 3100 kg

x-travel:600 mm y-travel:500 mm z-travel:450 mm weight of the machine ca.:3,5 t

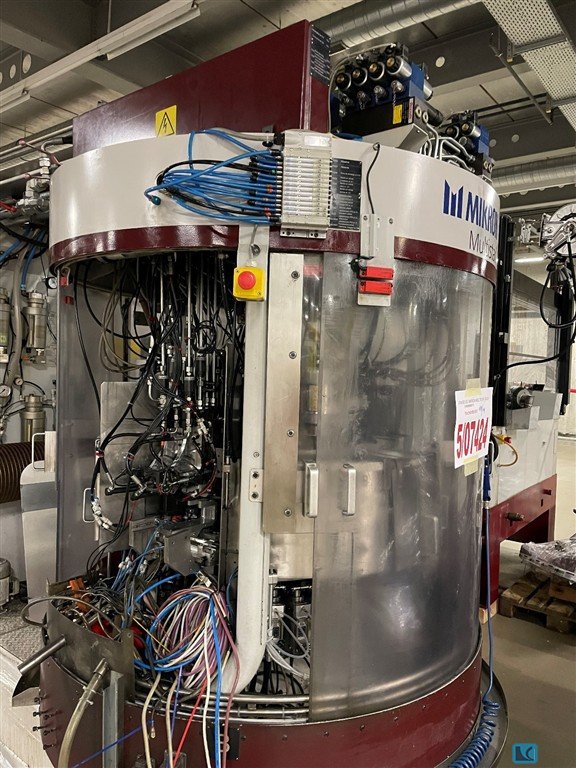

Article: Transfer machine Manufacturer: Mikron Type: Multistep XS Yob: 2007 Number of modules: 4 (1 loading module, 3 process modules) Number of spindles: 6 Rotational speed : 15.000 rpm Control: Bosch Rexroth MTX Coolant unit: Knoll VRF450/2100 Extraction: Elektrostat / LTA 3D tool path correction 5/6-axis transfórmation Machine dimensions: 9.300 mm x 3.400 mm x 3.500 mm Wight per processing module: 4,5 t Wight per loading module: 2,5 t Clamping force: 10 kN Workpiece cange chip-to-chip time: 6s Workpiece: Diameter: 140 mm, Length: 180 mm, Weight: 21 kg Tool changer: Tools (2 discs with 12 positions) / processing module: 22 Weight of tool disc: 5 kg Max. tool weight: 2,5 kg Max. free tool length: 186 mm Max. tool diameter: 63 mm Max. tool diameter with free position: 105 mm Shortest chip-to-chip time:

x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine with toolchanger, Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device oroginal table included

x-travel: 600 mm y-travel: 450 mm z-travel: 450 mm control: Heidenhain iTNC530 total power requirement: kW weight of the machine ca.: 6100 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine (without toolchanger), Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device

x-travel: 800 mm y-travel: 600 mm z-travel: 500 mm control: Heidenhain iTNC 530 total power requirement: kW weight of the machine ca.: 8300 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

stations:24 weight of the machine ca.:3,5 t ·Precise serial production of part families and demanding workpieces ·Table index repeatability of ± 2.5 µm ·24 stations with up to 44 machining units for very high output rates ·Ideal for high volume production with fast cycle times

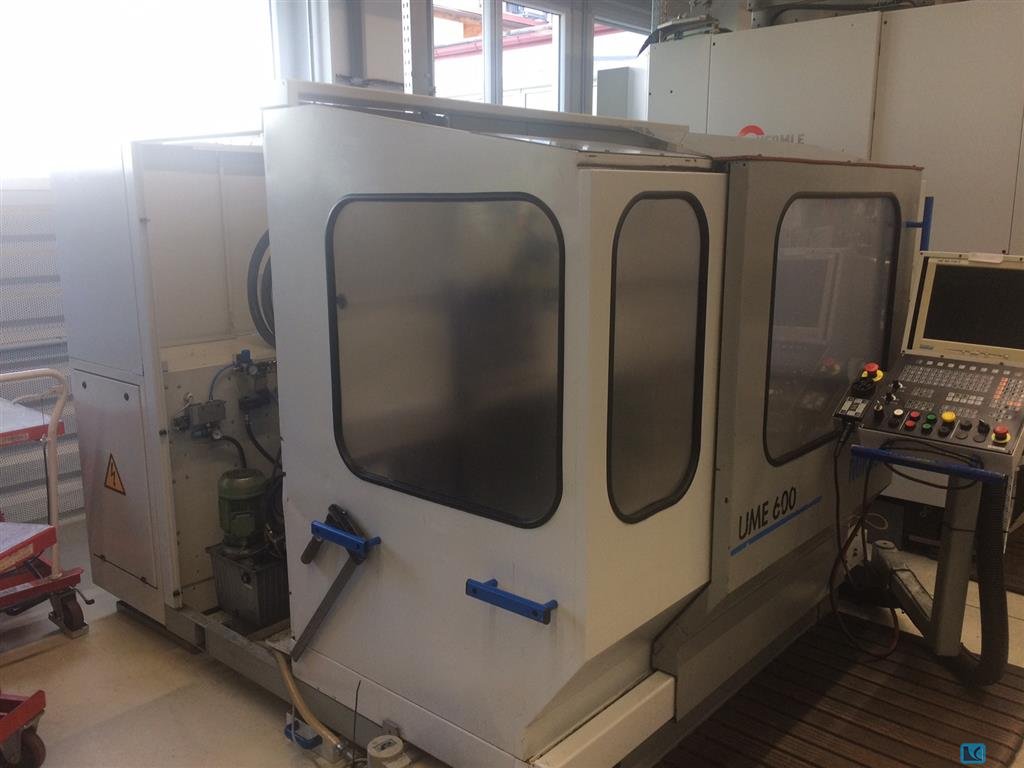

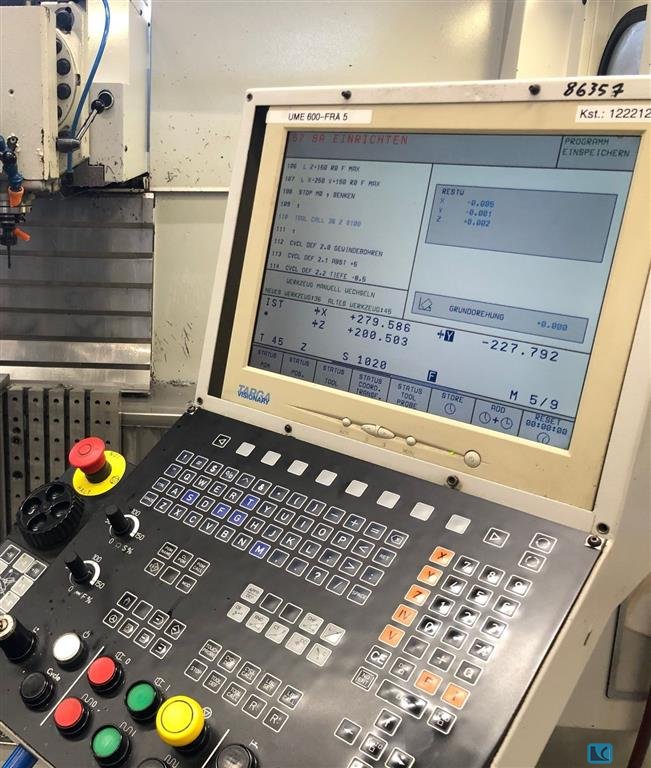

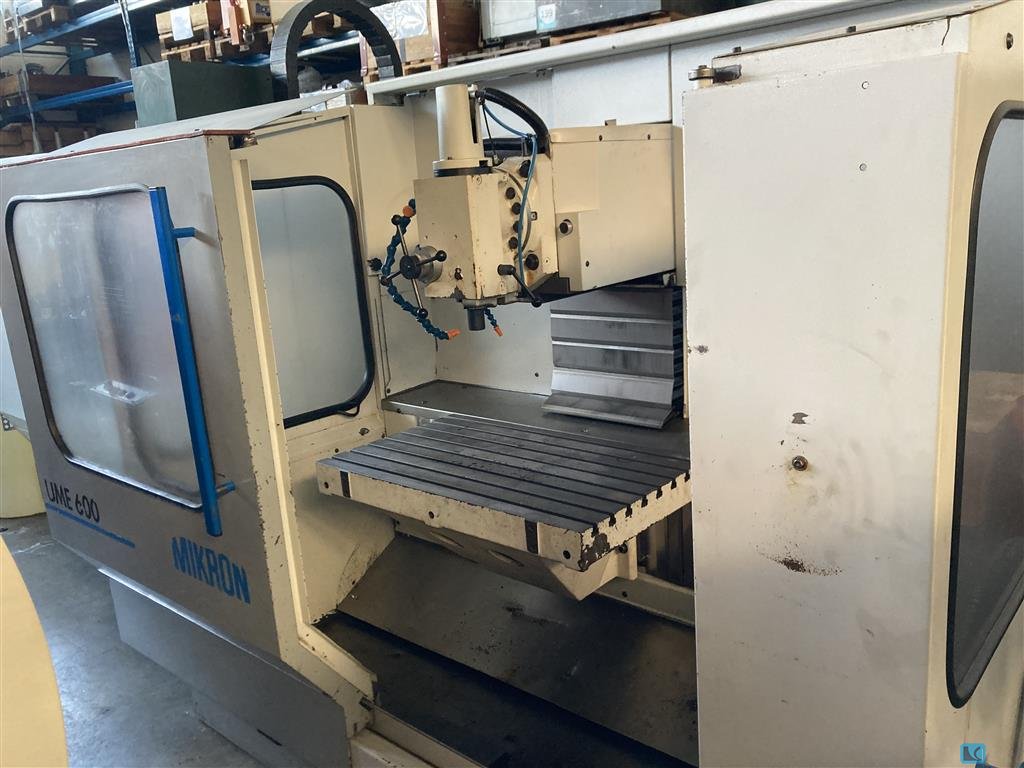

Manufacturer: Mikron Model: UME600 Year of manufacture: 1995 Type of Machine: CNC milling machine Control unit: Heidenhain TNC407 Spindle taper: SK 40 Spindle speed: max. 5,000 rpm Feed rate: max. 10,000 mm/min Table size: approx. 900 × 530 mm Travel paths: X 600 mm / Y 500 mm / Z 450 mm without automatic tool changer Motor power: max. 9 kW Weight: approx: 3,200 kg Condition: - Used, good overall condition - Fully functional and ready for use Equipment / Accessories: - coolant pump - machine vice - 3D probe - Various collet sets / tool holders SK 40 - Toolbox with worktop and hand vice - Further accessories available upon request Find more here - / Contact us at -

Clamping table, clamping angle, T-slot table, rotary table, milling machine table -Manufacturer: Mikron, milling machine table T-slot table from CNC machining center UME 600 -Table surface: 530 x 900 mm -T grooves: groove width 14 mm, groove spacing 63 mm -Transport dimensions: 900/530/H390 mm -Weight: 248 kg

Tool changer chain, chain magazine, tool changing system, tool magazine -Manufacturer: Mikron, tool changer from CNC machining center Mikron UME 600 -for: max. 22 shots -Intake: SK40 -Dimensions: 1200/1150/H860 mm -Transport weight: 294 kg

PLC controller, electronic modules, PLC module, plug-in card circuit board, circuit board -Manufacturer: Mikron, Electronic module circuit board for operating unit TCD22, original packaging -Type: WW TCD 22 Art.No. 104.73.20.041 -Cardboard dimensions: 410/310/H65 mm -Weight: 0.6 kg

CONTROLS   CNC controls HEIDENHAIN ITNC 530 WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 5   X-axis travel: 600 mm   Y-axis travel: 450 mm   Z-axis travel: 450 mm   rotating range B-axis from: -115 °   rotating range B-axis up to: 30 °   rotating range C-axis from: 0 °   rotating range C-axis up to: 360 ° TABLE   clamping surface diameter: 450 mm   workpiece load (max): 200 kg SPINDLE / HEAD   spindle revolutions (max): 20000 /min AXIS DRIVES   rapid traverse X: 22000 mm/min TOOL MAGAZINE   number of positions: 220 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4400 mm   space req ...

CNC control, control panel, machining center operator panel, control unit, control panel, control unit -Manufacturer: Mikron, operating unit from CNC milling machine Mikron UME 600 -Type: TCD 22 - DIN 8659 -Printed circuit board: WW TCD 22 control unit 104.73.20.042 -Individual components: see photos -Dimensions: 480/240/H160 mm -Weight: 5.3 kg

PLC control, electronic modules, PLC module, plug-in card circuit board, circuit board, circuit board -Manufacturer: Mikron, electronic module circuit board from CNC milling machine Mikron UME 600 -Type: 958 78 11 200 -Dimension: 145/110/H55 mm -Weight: 0.4 kg

Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron UME 600 -Motor: Siemens 380V 3.7/5.25 kW see photo nameplate -Speed: 1500/9000 rpm -Spindle head: SK40 mount -Dimensions: 1550/560/H735 mm -Weight: 555 kg

CNC control, control panel, machining center operator panel, control unit, control panel, control unit -Manufacturer: Mikron, operating unit -Type: TCD 22 - DIN 8659 -Printed circuit board: WW TCD 22 control unit 104.73.20.042 -Individual components: see photos -Dimensions: 480/130/H240 mm -Weight: 5 kg

Main spindle with drive motor, universal milling head, milling holder, milling extension, angle milling head, upper support, upper slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper support tool slide from CNC milling machine Mikron WF 51C/155 -Motor: AEG 380V 8 kW 1400/2850 rpm -Dimensions: see photos / technical. drawing -Dimensions: 1700/580/H700 mm -Weight: approx. 525 kg

Ball screw with nut, transroll screw, ball screw nut, lead screw, threaded rod, threaded bolt, threaded rod, ball screw, linear bearing, precision ball screw -Manufacturer: Mikron, ball screw from CNC milling machine Mikron WF 51C/155 -Thread length: 540 mm -Shaft: Ø 32 mm -Dimensions: see photos -Dimensions: 870/140/H130 mm -Weight: 18kg

Universal machining center, CNC tool milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine -function tested -Clamping table: 800 x 445 mm -Travel: X/Y/Z 500/500/385 mm -Spindle holder: SK40 -quill stroke: 90 mm -Speeds from: 31.5 to 3150 rpm -Coolant device -Dimensions: 1475/1770/H2000 mm -Weight: 1966 kg

x-travel: 500 mm y-travel: 500 mm z-travel: 400 mm table-size: 900 x 530 mm control: Heidenhain TNC 355 tool adaptor: ISO 40 | | turning speed range: 40- 4000 U/min rapid speed: 5 / 6 m/min feed speeds: 2 - 3000 | mm/min | power requirement: 6 kW table load: 350 kg dimensions: 2,6 x 1,8 x 2,2 m weight: 2,6 t Univers. milling machine 3 axis - external electric handweel - housing - universal head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
