MBF synchrofill used machines

Used Filling Monoblock MBF Synchrofill for Spirits up to 12000 bph This machine delivers high efficiency and precision in bottling lines for alcoholic beverages. As a result, this triblock combines rinsing, filling, and capping functions, ensuring seamless integration into production lines. Manufactured in 2001, it meets stringent technical standards and provides reliable performance for high-capacity operations. Technical Structure of the Filling Monoblock MBF Synchrofill The monoblock uses a PLC S7, which optimizes control over production parameters. To illustrate, the machine features: 36 rinsing heads that clean bottles effectively before filling 36 filling heads that utilize a gravity and light depression filling system, which suits spirits like vodka 5 capping heads that securely seal each bottle with precision In addition, the machine processes bottles clockwise and accommodates b ...

Overview This filling monoblock was manufactured by MBF in 2001 and is designed for the filling of hot fruit juice (up to 95°C). The Synchrofil LV operates with an atmospheric (gravity) filling system and includes an integrated capping unit for aluminum screw caps (MCA standard). The machine is equipped with 35 filling valves and 4 rolling capping heads. It is adjusted for 1.0 L and 0.5 L VdF glass bottles with a diameter of 89.5 mm. The machine runs clockwise l-r and reaches a capacity of up to 7,000 bottles per hour. It is equipped with automatic speed control, CIP tank for automatic cleaning, and closure control systems. Technical Data manufacturer: MBF model: Synchrofil LV 1200-35 / 240-4V year of manufacture: 2001 condition: used filling system: atmospheric (gravity) filling temperature: up to 95°C number of filling valves: 35 number of capping heads: 4 (rolling heads) closure typ ...

A hot beverage filling and capping machine MBF is available. Filling stations: 35, capping heads: 4, bottle type: VdF, bottle volume: 1000ml/500ml, max. filling temperature: 95°C, screw cap: MCA aluminum standard, cap dimensions X/Y: 28mm/15mm, filling capacity: 7000bottles/h, bottle height (1l): 306.5mm, machine dimensions X/Y/Z: approx. 3400mm/2300mm/2600mm. Documentation available. On-site inspection is possible.

Used Used Filling Monoblock MBF SYNC. 1200-35/240-4V: Year: 2001 Condition: Good Used Filling Monoblock MBF SYNC. 1200-35/240-4V: Model: SYNC. 1200-35/240-4V Year: 2001 Speed: 7.000 bph Direction of rotation: clockwise For hot fruit juice and cold wine Diameters of the bottle used: 89,5 mm Filler ? Number of valves: 35 ? Type of filling: gravity One capper 4 rolling heads for aluminum screw caps with MCA standard closure ? Size of caps: 28?15 mm ? Caps distribution system: drop-feed GENERAL DATA Safety protections Machine dimensions: Width 3.40 m x Height 2.60 m x Depth 2.30 m Code: QT 737 More details: https://bottlingscout.com

Used Used Filling Monoblock MBF 36.8.4: Year: 2002 Condition: Good Used Filling Monoblock MBF 36.8.4: Model: syncrofil 36/144OLV-6/360R Year: 2002 Speed: bph 7800 Product: Wine For glass bottles Direction: Clockwise Composed of: Filler 36 valves ? Low vacuum ? Valve Type: Mechanical ? Valve functions: vacuum before filling and gas injection 2 capper: 8 heads natural straight cork and 4 heads screw cap ? Screw cap diameter and height measurements: 30?60 ? Vacuum system before capping, on cap ? Gas injection system before capping, on screw cap RINSER PROMEC Model: EVOLUTION 1R 8 32 141 EL Year: 2013 Water Speed: 8000 bph 32 clamps Automatic carousel height adjustment Nozzle type: Fixed Single water treatment GENERAL DATA Accident prevention protections present Code: QT 734 More details: https://bottlingscout.com

Used Used Filling Monoblock MBF 20.25.4.3: Year: 2006 Condition: Good Used Filling Monoblock MBF 20.25.4.3: SYNCHROFILL 20-25-4-3 Model Year: 2006 Direction of travel: clockwise Speed: 5,500 BPH Rinser with 20 clamps Fixed nozzle Single treatment Electric height adjustment Water filtration system at rinser inlet Filler with 25 valves Light pressure Electro-pneumatic filling valves Electric tank height adjustment Bottle level adjustment adjustable from operator panel Vacuum system before filling 4-head corker for straight cork Vacuum system, inert gas injection and vacuum before corking Cap elevator included 3-head aluminum screw corker for Stelvin cork (30?60) Pneumatic cap lift included Speed adjustment via inverter Touchscreen operator panel PLC HAKKO ELETTRONICS Code: QT 715 More details: https://bottlingscout.com

Used Used Filling Monoblock MBF 18.18: Year: 2010 Condition: Good Used Filling Monoblock MBF 18.18: Model: 72018-72018 LVDX Year: 2010 Speed: 4.000 BPH Direction: Counterclockwise Type of bottles: Glass bottles RINSER 18 clamps Fixed nozzle Single treatment FILLER 18 mechanical valves Type of filling: Gravity filling Safety protections Code: QT 752 More details: https://bottlingscout.com

Used Used filling monoblock MBF 50.70.12.10: Year: 2003 Condition: Good Used filling monoblock MBF 50.70.12.10 Year: 2003 Speed: 16.000 bph Direction: Counterclockwise Model: 50.70.12.10 ? gravity filling Rinser 50 clamps Fixed nozzle Double treatment Electropneumatic valves System to aspire water?s drops by vacuum pump Filler 70 valves Electropneumatic filling valves Adjustment levels by electric panel Corker 12 heads ? Natural straight cork Capper 10 heads ? Crown cap 26mm CIP washing Dust? aspire system Universal cochlea Touch screen Hour been used: 4.000 Safety protections. Code: QT 272 More details: https://bottlingscout.com

Used Used Filling Monoblock MBF 20.20.4: Year: 2000 Condition: Good Used Filling Monoblock MBF 20.20.4: Model: syncrofill 960.20960.20360.4 Year: 2000 Speed: 6.000 bph Direction of rotation: clockwise Type of bottle: glass bottle Rinser 20 pliers ? Type of nozzle: fixed ? 1 treatment ? Type of treatments: water Filler 20 valves ? Type of filling: light depression One capper 4 head ? Type of workable caps: Natural Straight Cork Safety protections Code: QT 747 More details: https://bottlingscout.com

Used Used filling monoblock MBF 45.45.9.5: Year: 2001 Condition: Good Used filling Monoblock MBF 45.45.9.5 | 10.000 Bph Year: 2001 Speed: 10.000 Bph Direction: Clockwise Rinser 45 Clamps Single treatment Fixed nozzle Filler 45 Valves | Low vacuum Inert gas injection system before filling Corker 9 heads | Natural Straight Cork Vacuum system before capping Capper 5 heads | Screw Cap 30X60 e 31,5X18 Safety protections Complete of microfiltration system ACRAM Code: QT 619 More details: https://bottlingscout.com

Used Used filling monoblock MBF 16.20.3R: Year: 2001 Condition: Good Used filling monoblock MBF 16.20.3R Brand: MBF Year: 2001 Speed: 4.000 bph Direction: Clockwise Model: 16.20.3R Product: still wine Rnser 16 clamps ? single treatment Filler 20 valves Gravity filling Fixed nozzle Capper 3 heads ? natural straight cork Size and diameter of supported bottles (formats): 0.37 LT and 1.5 LT cylindrical Nitrogen injection before capping Safety protections Code: QT 698 More details: https://bottlingscout.com

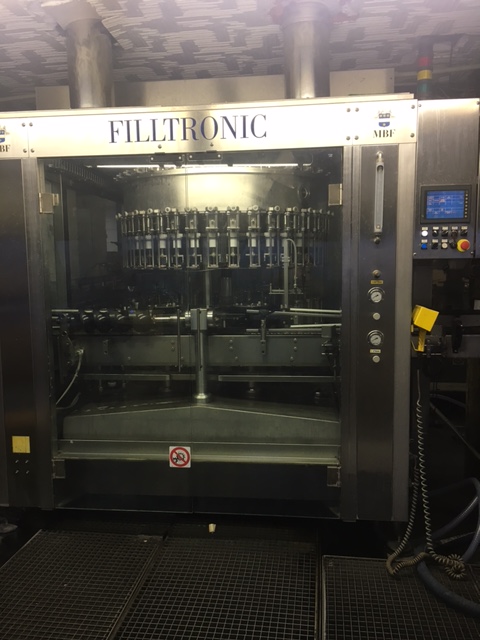

Used Used Filler MBF Filltronic 36V 7.000 bph: Year: 2026 Condition: As Is Model: Filltronic Year: 2004 Speed: 6.000 BPH da 1 l Speed: 7.000 BPH da 0.75 l Rotation direction: clockwise 36 mechanical valve Filling type: light depression Universal clamps Electric height adjustment Safety protections Code: T 210 More details: https://bottlingscout.com

Used Used Complete Bottling Line MBF 9.500 bph: Year: 2015 Condition: Good Used Complete Bottling Line MBF: Speed: 9,000 BPH with Cork cap 9,500 BPH with aluminum screw cap Ape depalletizer Model: Depal 2010 Year: 2015 Speed: 60 layers/hour Automatic operation Type of operation: by layer Workable pallet dimensions: 1200 mm x 800 mm; 1200 mm x 1000 mm Automatic layer removal system Pallet warehouse MBF triblock Model: Synchrofill 1440.40F1/1440.40LV/360.6R/360.5V Directions: Counterclockwise Rinser Single treatment 40 clamps Electric adjustment height Fixed nozzle Type of treatment: water Filler 40 valves Electric tank height adjustment Filling type: light vacuum Mechanical valve Valve functions: gas injection before filling, automatic level adjustment system by operator?s panel Corker 6 heads for natural straight corks. Cork size: minimum height 34 mm; maximum height 54 mm Electric head  ...

-with mobile mixing tank MBF500 /RF and tilting device KV 1000 -Working volume: 100 to max. 500 litres -Gross volume: 550 liters -Max. pressure: pressureless -Weight: approx. 2.4 tons -Control voltage: 230V/50Hz

Slide belt magnetic conveyor, magnetic slide conveyor DGS System GmbHZ conveyor, sliding belt system, conveyor belt, magnetic belt conveyorType no.: MBF 326P31,75 Containment no.: 44489-10 Year of construction 2017Slide width 300 mmDistance of permanent magnets 250 mmInsertion length approx. 3400 mm (up to assembly box)Insertion length approx. 3900 mm (without assembly box)Insertion height 210 mmSlide-in width housing 370 mm Insertion width Thread mounts for adjustable feet 410 mm Insertion width on the assembly box 470 mm Discharge head - discharge height approx. 1040

HAMBURGER LINE – HANDTMANN VF-612 + VERBUFA TYPE MBF-1 MACHINE AFTER GENERAL OVERHAUL YEAR OF PRODUCTION 12-2012 – START 2013 CURRENTLY UNDER TECHNICAL INSPECTION CONDITION OF NEW MACHINES WARRANTY FOR COMPONENTS AND MECHANICAL PARTS 3 - MONTHS

Machine Details Stock-No. 1105-03856 Type of machine CNC Lathe Make COLCHESTER Type TORNADO T 6M Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Great Britain Delivery time immediately Freight basis EX WORK Technical details turning diameter 440 mm turning length 450 mm control FANUC 21 ITB total power requirement 15 kW Weight of the machine approx. 4 t Additional information NICE COLCHESTER T 6M FROM 2006 FANUC 21 ITB CUCK TAILSTOCK SWARF CONVEYOR VDI 30 TURRET 12 P LIVE TOOLS BARFEEDER MBF 1000 INCLUD

The MBF with integrated flattening belt was specially developed for shaping handmade burgers, tartare and minced steak. In addition, this machine forms a wide variety of products into balls, discs and sticks. The Verbufa wide conveyor belt forming machine guarantees a high production capacity. In combination with the Handtmann vacuum filling machine and the Verbufa fill flow divider, a very high and consistent weight accuracy is guaranteed. This not only ensures lower costs, but also contributes to more sustainable production. Demonstration machine/demonstration machine of a factory representative

Verbufa Forming Machine with Integrated Flattening Belt (MBF COEX) The latest series of Verbufa COEX forming machines with wide conveyor belt and integrated flattening belt is the solution for a high production capacity of filled products. The MBF COEX machine has been specially developed for the intelligent and efficient shaping and portioning of stuffed products such as potatoes, cheese, meatballs and croquettes. With the integrated flattening belt, this forming machine is also ideal for the production of stuffed burgers. The MBF is available with 2 to 16 product streams and a conveyor belt of 400, 600, 800 or 1000 mm width. Demonstration/demonstration machine of a factory representative

CNC lathe Type: Tornado T 220 M Manufacturer: Colchester Year: 2002 Control: Fanuc Series 21i-T Driven tools Spindle bore: 65 mm Bar feeder: Tornado MBF 1000 Revolver head Sauter New Roem hydraulic clamping cylinder Tailstock after complete overhaul New spindle bearings in 2022 Tool holders Machine in good condition, under power. Find more here - / Contact us at -

Vacuum filler MBV / Italy Type Synchrofill Hot filling 35 filling stations + SV4 screw capper Short tube Max. approx. 7,000 containers / h Container 1.00 liter glass bottle Year of construction 2000 FILM AVAILABLE - PLEASE REQUEST

consisting of: frame shelf, loading magazine: 15-fold, max. loading length: 6,000 mm, automatic feeder, bending unit, power: 3.87 kVA, dead weight: 2,530 kg, with separate control unit, type: MBF372, switch/control cabinet system with cooling unit, Fabr. RITTAL

Used complete line for still wine - 5000 BPHTechnical Specifications & Performance DataThis used bottling line is configured for glass bottle handling with a comprehensive sequence from filtration to case packing and palletizing. It is a second hand solution engineered for industrial packaging and beverage production, integrating well-known European manufacturers. The configuration covers rinsing, filling, capping (flush cork and aluminum), capsule application (heat-shrink and polylaminate), adhesive labeling, and end-of-line packaging.Container type: Glass bottlesCore monoblock: MBF Syncrofill 1200.25/1200.30LV/360.4SR/240.4AV/240 (rinsing–filling–capping)Filtering: Seitz Orion plate filtration groupBottle preparation: SICK Blancamat 8 bottle washer (pre-labeling)Capsule application: Nortan Prisma 40 (heat-shrink), Robino & Galandrino Astra 6 (polylaminate)Labeling: Cavagnino  ...

Used complete line for still wine - 8000 BPHTechnical Specifications & Performance DataThis used bottling line is engineered for reliable beverage production and downstream industrial packaging at up to 8,000 bph. The configuration integrates an MBF filling monoblock (2002) composed of a rinser, filler, and capper, specifically designed for straight cork (flush-to-mouth) application. The line further features a ROBINO & GALANDRINO POKER Z 6/8 (2002) capsuling and shrink-wrapping machine, followed by APE Impianti case handling and KOSME labeling technology. This setup offers robust performance for second-hand applications and flexible format management typical of glass and PET bottle operations.Production speed: 8,000 bottles per hourFilling Monoblock: MBF (Year 2002) – Rinser, Filler, CapperCapping System: Straight cork (flush-to-mouth / tappo raso)Capsuling/Shrinkage: ROBINO & GALA ...
