Key data: 500 mm, 1 mm, 500 mm
5-Axis CNC Vertical Machining Center with Pallet Pool Makino D500 Year of construction: 2011 Fanuc 310iS Professional 5 2-axis NC rotary and swivel table Erowa pallet handling system with 4 pallets Table size 400 x 400 mm C-axis 360° A-axis +30° ~ -120° X 500 mm Y 1,000 mm Z 500 mm Spindle speeds 300 – 3,000 rpm. 60-cavity tool magazine Offer number MV-6494
Hexagonal tower Dimensions 500 x 500 x 500mm Height 930 mm Base plate 630 x 630mm Grid 40mm Double angle dimensions: 630 x 200 mm, height 760 mm, base plate 630 x 630mm, grid 40mm Square tower Dimensions 400 x 400mm Height 930 mm Base plate 630 x 630mm Grid 40mm

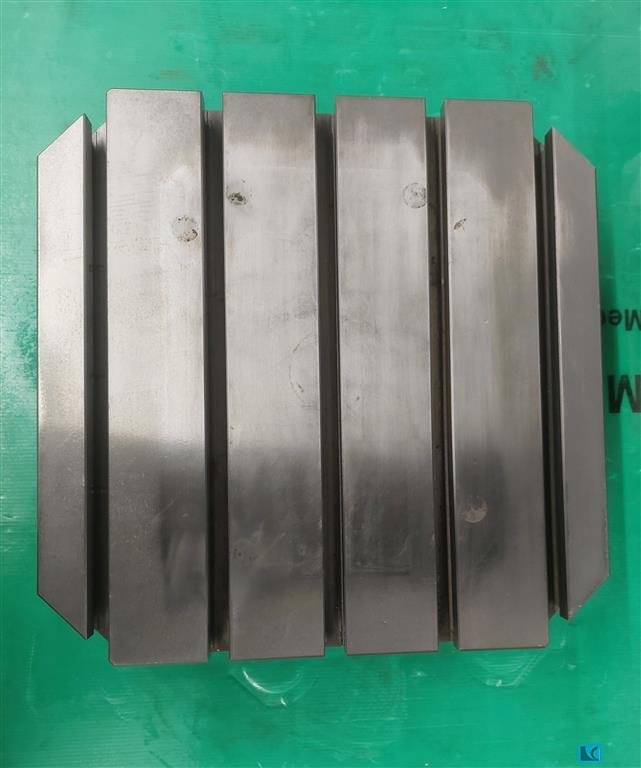

Basic pallets for MAKINO A77 /81 Dimensions 630 x 630 mm with T-slot spacing 125mm Several available !
The machine is in good technical condition, testing is possible after prior agreement. Machine on - 92331 h
CNC controller: Fanuc Series 18i Axes X-axis travel mm: 650 Y-axis travel mm: 500 Z-axis travel mm: 450 Rapid traverse m/min: 150-600 Feed rates m/min: 40 Rapid traverse m/min: 40 Worktable Table dimensions mm: 800x450 Maximum workpiece size (D x H) mm: 800 x 450 x 450 Max. workpiece weight kg: 400 Spindle Spindle speed rpm: 13000 Spindle drive power kW: 18/22 Spindle torque Nm: 95/117 Tool system Tool holder: ISO 40 Tool magazine slots: 20 With free neighboring places mm: 120 With occupied neighboring places mm: 114 Max. Tool Length mm: 300 Max tool weight kg: 8 Tool-to-tool time s: 1.3 Chip-to-chip time s: 4.5 Equipment High pressure pump Rated power kVA Basic machine dimensions / weight Length mm: 2315 Width mm: 2760 Height mm: 2805 Weight kg: 7300
CNC controller: FANUC Professional 5 Axes X-axis travel mm: 550 Y-axis travel mm: 1000 Z-axis travel mm: 500 C-axis degrees: 360 (continuous rotation) / rotary encoder A-axis degrees: 150 (+30 120º) rotary encoder Feed rates m/min: X:32; Y,Z:40; Rapid traverse m/min: X,A,C:48; Y,Y:50; A,C:18 Worktable Table dimensions mm: 500 Maximum workpiece size (D x H) mm: 650x500 Max. workpiece weight kg: 350 T-Slot version: 4x185H8 Spindle Spindle speed rpm: 20000 Tool system Tool holder: HSK-A63 Tool magazine slots: 323 Tool changer: pinza doble Max. Tool Diameter: 70 With occupied neighboring places mm: 140 Tool Magazine: Matrix Max. Tool Length mm: 300 Max tool weight kg: 8 Equipment Electronic Handwheel Chip conveyor Custom Macro common variables (100) Synchronized tapping Preparación para trabajar con robot Robot EROWA Helical ...
EDM machine Makino DUO64 vintage 2011.
:::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc CNC Version: Professional L Tool holder: HSK 50 Spindle power: 15Kw Number of spindle speeds: 8000 Number of tools: 22 X-axis travel: 400mm Y-axis travel: 400mm Z-axis travel: 400mm Fast feeds linear axes X Y Z: 60m/min Guides: roller Pallet type: continuous Maximum allowable load: 400Kg High refrigerant pressure: yes External tank system with filter: yes Chip conveyor: belt Other technical data: Table diameter 400 mm with single cube THE MACHINE HAS NO PALLET CHANGER AND 'WITH A SINGLE ROTARY TABLE VERY PRECISE AND FAST MACHINE :::D DIMENSIONS AND WEIGHT::: Length: 3200mm Width: 1280mm Weight: 5000Kg
Inv. Num. : 8267 Type: S56 Producer: Makino Created: 2009 Parameters: Control system: FANUC 310is Work table length: 1000 mm Work table width: 500 mm Maximum table load (uniform): 650 kg Maximum vertical spindle speed: 20000 1/min X-axis travel: 900 mm Y-axis travel: 500 mm Travel Z axis: 450 mm Cone: HSK-A63 Number of all tools: 30 pieces Machine height: 3063 mm Machine length: 3302 mm Machine width: 2570 mm Machine weight: 7500 kg
Key data: 650 , 500 , 450
CNC controller: FANUC Professional 3 Axes X-axis travel mm: 650 Y-axis travel mm: 500 Z-axis travel mm: 450 Distance spindle nose - table surface mm: 150 - 600 Worktable Table dimensions mm: 1.000 x 450 Max. workpiece weight kg: 400 Spindle Spindle speed rpm: 12.000 Spindle drive power kW: 18/22 Tool system Tool holder: ISO 40 Tool magazine slots: 20 Equipment Chip conveyor various rigid tools High pressure pump Basic machine dimensions / weight Length mm: 2.355 Width mm: 3.447
Key data: 900 mm, 500 mm, 450 mm
Inv. Num. : 7549 Type: F5 Produzent: MAKINO Erzeugt: 2013 Parametern: Steuerungssystem: FANUC Arbeitstischlänge: 1000 mm Arbeitstischbreite: 500 mm Anzahl der Stapelpositionen: 30 Stücke Anzahl der Achsen: 4 Stücke Maximale Vertikalspindeldrehzahl: 20.000 1/min Verfahrwege X-Achse: 900 mm Verfahrwege Y-Achse: 500 mm Verfahrwege Z-Achse: 450 mm Kegel: HSK 63 F Anzahl aller Werkzeuge: 30 Stücke Ausstattung: IKZ Werkzeughalter
Type: Die-sinking EDM machine Number: 21958 Category: Die-sinking EDM machines / EDM Manafacture: Makino Model: EDAF 3 Year of construction: 2016 Travel: 450 x 350 x 350 mm [ X x Y x Z ] Table size X: 700 mm Table size Y: 500 mm max. workpiece size X: 850 mm max. workpiece size Y: 650 mm max. workpiece size Z: 400 mm max. workpiece weight: 800 kg C-axis Linear scales (X,Y,Z) Control Hyper i Super Spark iV Super Surface Super Edge (incl. MF 4) Super Surface Graphite EROWA Robot Interface (A-Type)

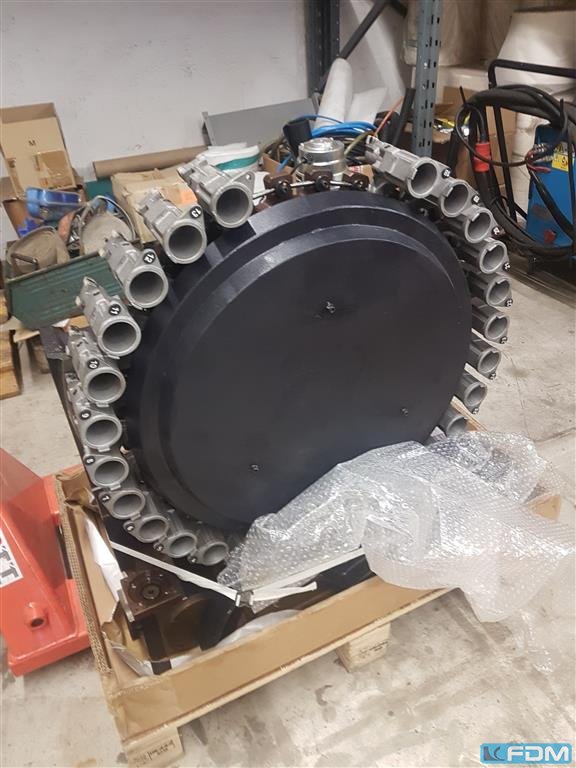

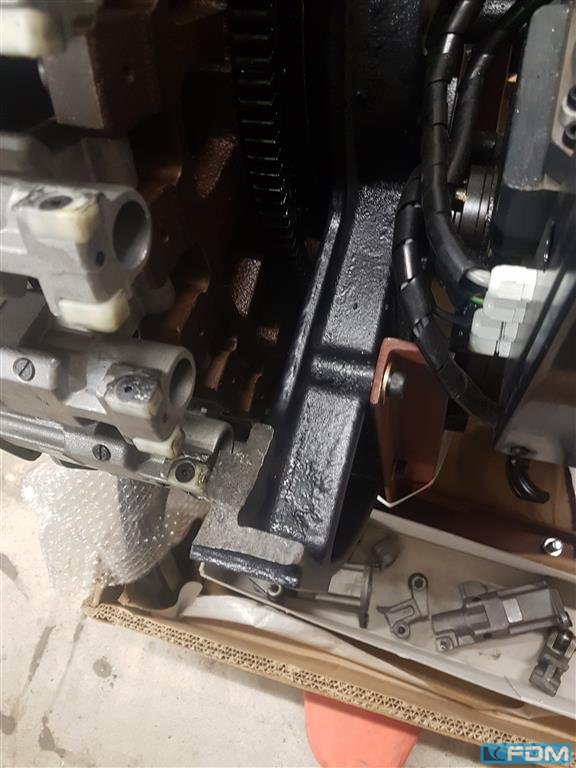

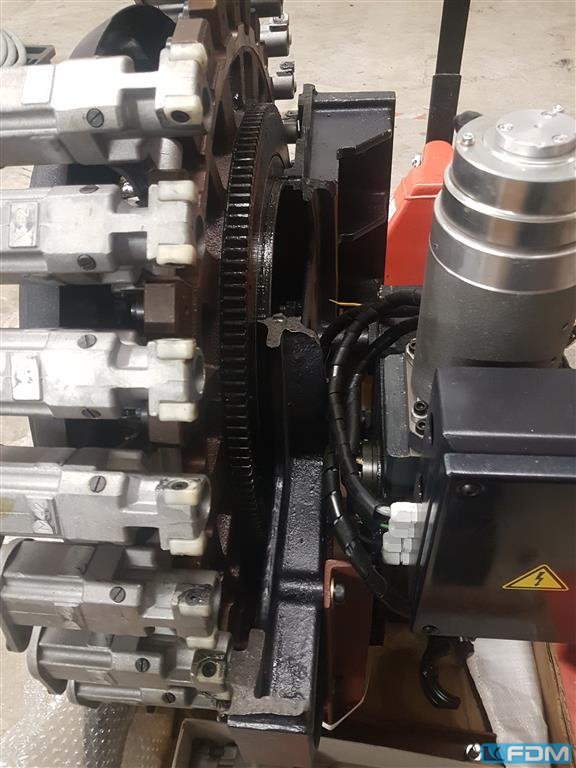

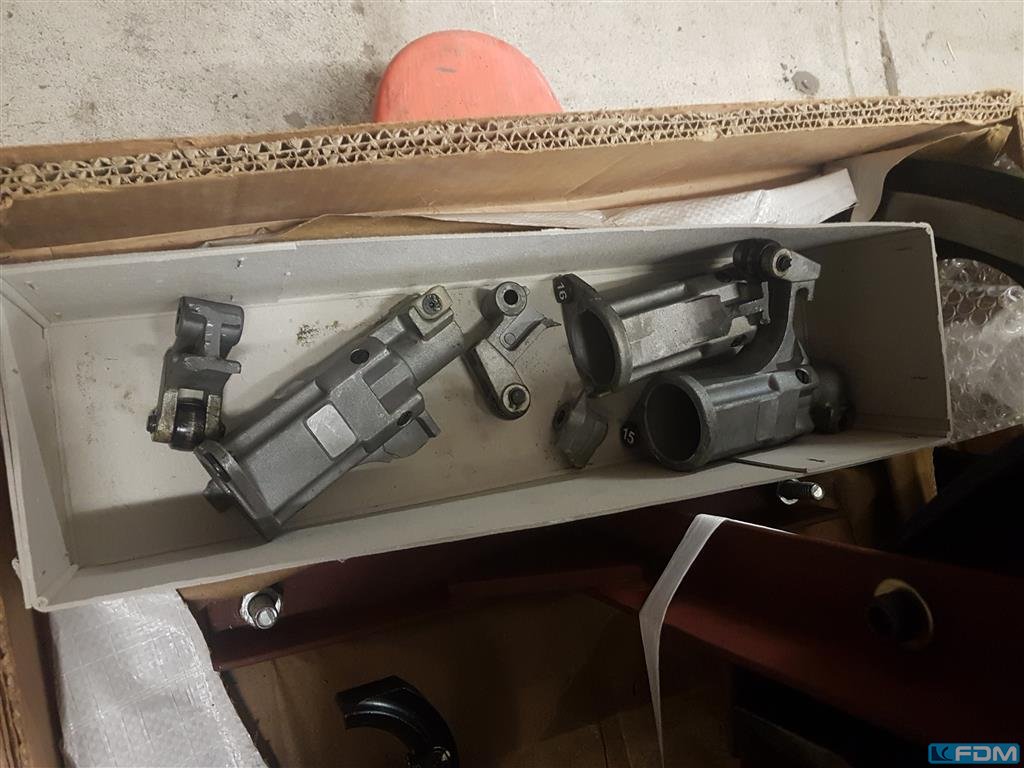

We are selling a new unused but defective tool magazine with tool changer for a Makino PS 95. The magazine body was broken in two parts with a crane hook during unloading of the machine from its transport box. Also some tool pots are damaged. Can be repaired or used as spare parts

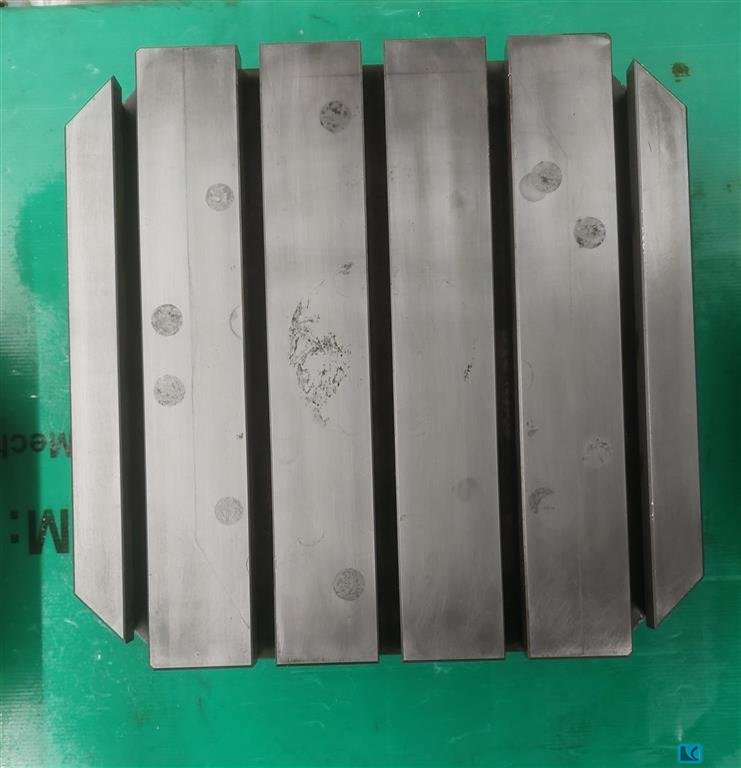

size of pallet:400x400 mm numbers of pallets:15 table load:400 kg weight of the machine ca.:0,060 t dimensions of the machine ca.:0,4 x 0,4 m 15 pallets for Makino A 55, size 400 x 400 with T-slots for sale
table length:920 mm table width:600 mm ampere:13,2 A weight of the machine ca.:6 t dimensions of the machine ca.:2,46 x 2,24 x 2,33 m X-axis:600 mm y-axis:400 mm Z-axis:260 mm max. table load:1500 kg The dimensions for transport are: wide 2240 mm x high 2330 mm x deep 2460 mm weight approx. 6000 kg.
This 3-axis Makino SNC 64-A15 was manufactured in 2001. It features a main spindle speed ranging from 300 to 30,000 rpm and a spindle motor power of 15 kW. The machine is equipped with a tool magazine holding 15 positions and offers a feed rate of up to 16,000 mm/min. If you are looking to get high-quality graphite and metal machining capabilities, consider the Makino SNC 64-A15 vertical machining centre we have for sale. Contact us for further details.
control: FANUC 16 MA-Pro 3 Number of axles: 4 St. x-travel: 900 mm y-travel: 800 mm z-travel: 970 mm b-axis: 0.001 ° size of pallet: 630 x 630 mm tool piece magazine with: 244 milling spindle: HSK100 spindle turning speed - stepless: -12000 U/min chip conveyor: kW misc. accessories: weight of the machine ca.: 20 t dimensions of the machine ca.: 6.5 x 3 x 3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 800 mm y-travel: 750 mm z-travel: 770 mm Control: FANUC Prof 3/A rapid travel x/y/z: 30000 mm/min palets changer: 630 x 630 table weight: 1200 Kg spindle speed:: 14000 U/min spindle taper: HSK A 63 spindle motor: 30/25 kW tool change unit: 40 pos distance spindle center to table: 100-850 mm Internal cooling system: weight of the machine ca.: 17 t dimensions of the machine ca.: 7,9 x 4,2 x 3,3 m Equipped with: - Fanuc Professional 3/A CNC control - Coolant through spindle - Pallet changer - Tool changer (HSK-A63) - Knoll coolant system (renewed) - Chip conveyor - Mütek briquette press (2015) The machine has been used reliably in single-shift operation in recent years, operating hours: Spindle hours: The scope of delivery includes numerous HSK-63 tool holders – both those currently in the machine and a complete Euro pallet with additional tool holders. - Two clamping towers ...
This 3-axis Makino EDNC 30 die-sinking EDM machine was manufactured in 1998. It features travel paths of 300mm in X, 250mm in Y, and 250mm in Z, a table size of 500 Ã 350 mm, and can handle a maximum workpiece weight of 500 kg. Consider the opportunity to buy this Makino EDNC 30 die-sinking EDM machine. Contact us for more information about this machine.
This 4-axis Makino a81 horizontal machining center was manufactured in 2011. It features a robust 630Ã630 mm pallet, capable of handling a maximum load of 1200 kg, and a spindle speed range of 20â10000 minâ1. The machine offers a rapid traverse rate of 50000 mm/min, enhancing productivity. Ideal for complex machining tasks, consider the opportunity to buy this Makino a81 horizontal machining center. Contact us for more information about this machine.
This 3-axis Makino V55-A15 vertical machining center was manufactured in 1998. It features a CNC FANUC PROFESSIONAL 3 control system, a table size of 1000 x 500 mm, and a spindle speed of up to 15000 rpm. X, Y, Z travels are 900, 500, and 450 mm respectively. Includes a conveyor. If you are looking to get high-quality milling capabilities consider the Makino V55-A15 machine we have for sale. Contact us for more information.
x-travel: 1000 mm y-travel: 1000 mm z-travel: 950 mm Control: FANUC Pro-3 feed X/Y/Z/-axis: 1 - 50.000 mm/min rapid traverse X/Y/Z: 50,00 m/min tool taper: HSK-A 100 turning speeds: 20 - 12.000 U/min spindle drive: 25 / 30 kW torque milling spindle: 420 Nm spindle diameter in front bearing: 110 mm B - axis: 360 x 0,001 ° size of pallet: 2x 800 x 800 mm table load capacity: 1.800 kg dimension of workpiece: 1.000 x 950 mm workpiece height max.: 1.000 mm tool piece magazine with: 188 tool length - max.: 475 mm tool diameter: 320 mm weight of tools max.: 20,00 kg total power requirement: 65,00 kW weight of the machine ca.: 30,00 t dimensions of the machine ca.: 8,00 x 5,30 x H3,50 m Horizontal machining center with FANUC Porfessional 3 control, NC rotary table, el. handwheel, chip conveyor, coolant filter KNOLL VRF 450/2300, through-spindle coolant, 188-station tool magazine. New spindle in ...
A complete manufacturing cell with four horizontal machining centers Makino and a pallet storage and transport system is available. Makino A55: Travels X/Y/Z: 560mm/560mm/600mm, pallet dimensions X/Y: 400mm/400mm, max. table load: 500kg, max. workpiece diameter: 630mm, max. workpiece height: 1000mm, rapid traverse: 84m/min. Complete system dimensions: approx. 24000mm/8000mm, weight: approx. 8500kg. The images and videos show an identical system. The configuration of the offered and the illustrated cells is essentially identical. Documentation available. On-site inspection is possible.
control: FANUC Professional 6 Number of axles: 4 St. x-travel: 900 mm y-travel: 900 mm z-travel: 1020 mm b-axis: 0.001 ° size of pallet: 630 x 630 mm tool piece magazine with: 136 milling spindle: HSK100 spindle turning speed - stepless: 10000 U/min type of pallet-changer: FASTEMS FPC1500 chip conveyor: kW misc. accessories: weight of the machine ca.: 20 t dimensions of the machine ca.: 10 x 5 x 3.5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
control: FANUC 310 is-A Number of axles: 4 St. x-travel: 730 mm y-travel: 730 mm z-travel: 650 mm b-axis: 0.001 ° size of pallet: 500x500 mm tool piece magazine with: 60 milling spindle: HSK63 spindle turning speed - stepless: 50-12000 U/min chip conveyor: kW misc. accessories: weight of the machine ca.: 10 t dimensions of the machine ca.: 3.0 x 5.0 x 3.0 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: --- mm y-travel: --- mm z-travel: --- mm Control: --- total power requirement: --- kW weight of the machine ca.: 9,3 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
table length: 750 mm table width: 550 mm ampere: 60 A Control: Makino MGE20 x-travel: 600 mm y-travel: 400 mm z-travel: 250 mm workpiece weight: 450 kg tool change unit: 8 total power requirement: kW weight of the machine ca.: 5,00 t dimensions of the machine ca.: 3,00 x 3,50 x H3,00 m Die-sinking machine with control MAKINO MGE20 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

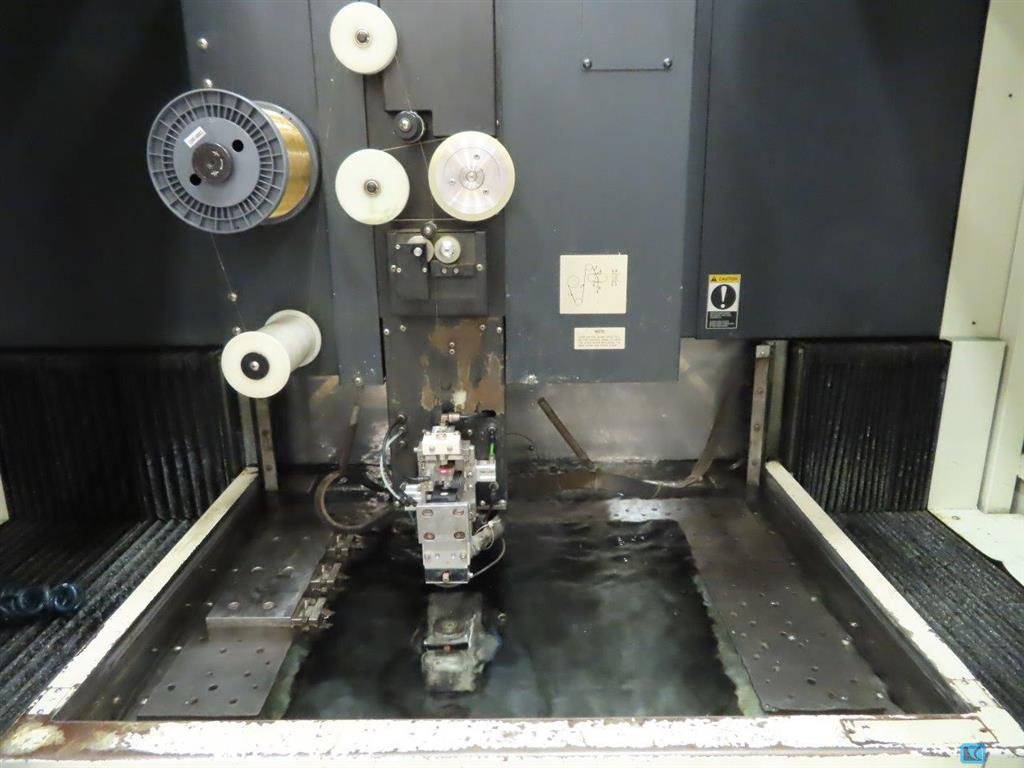

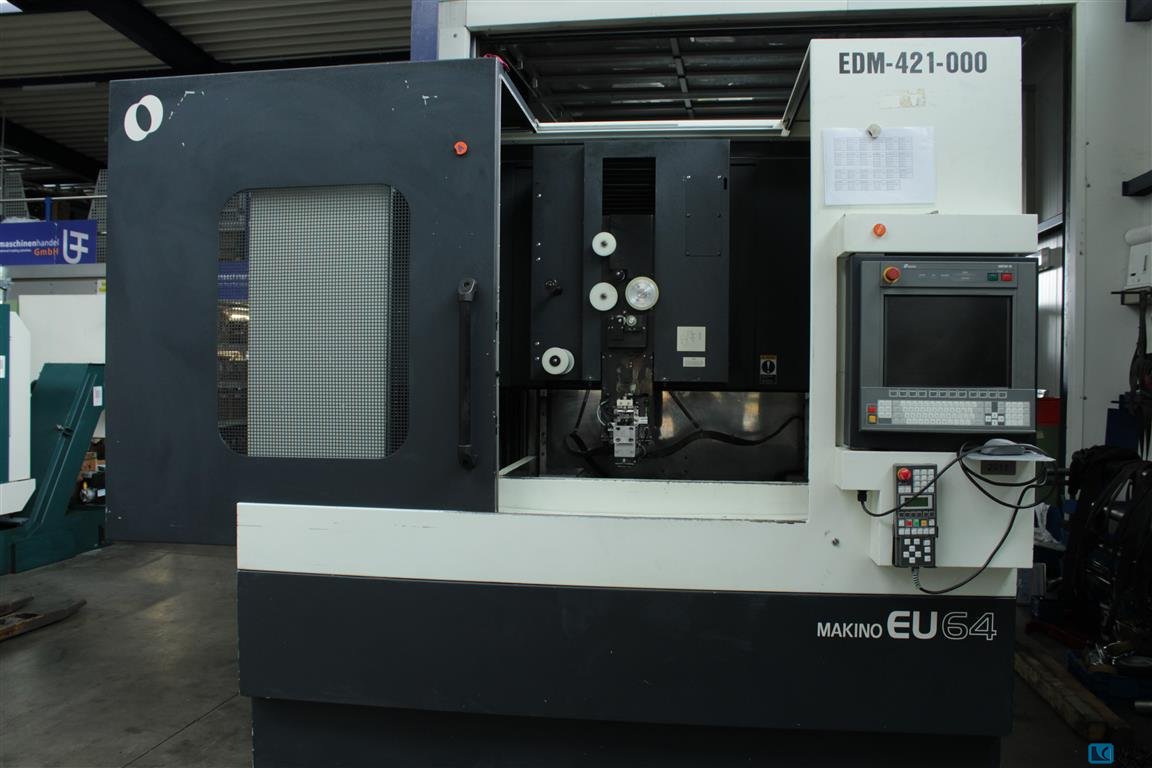

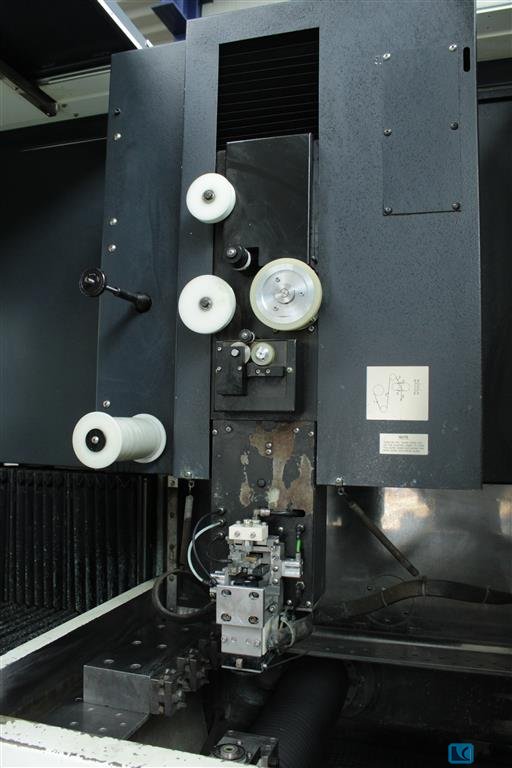

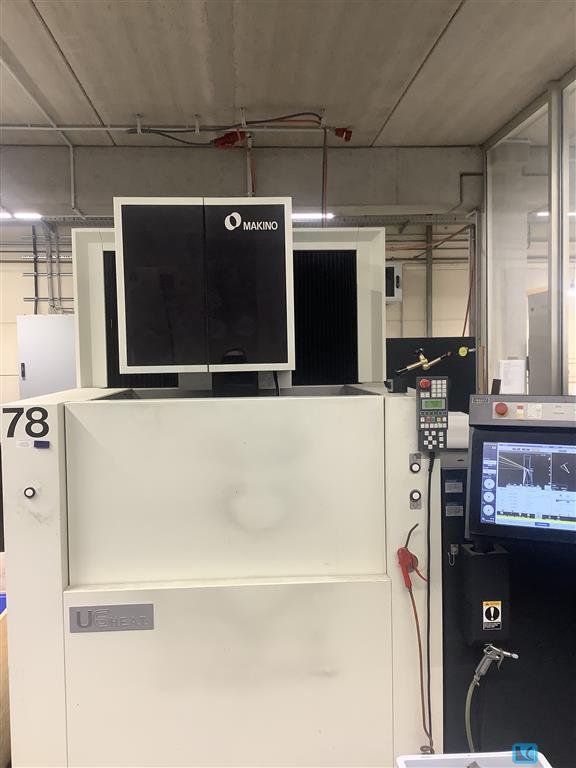

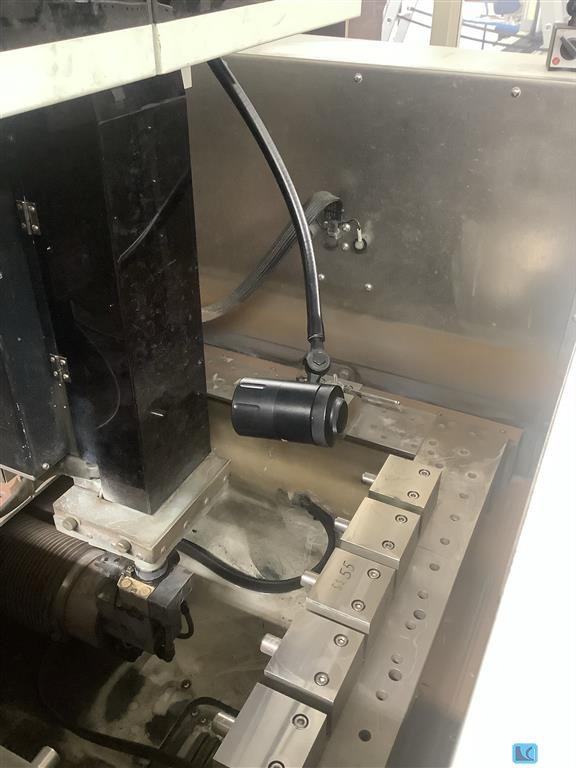

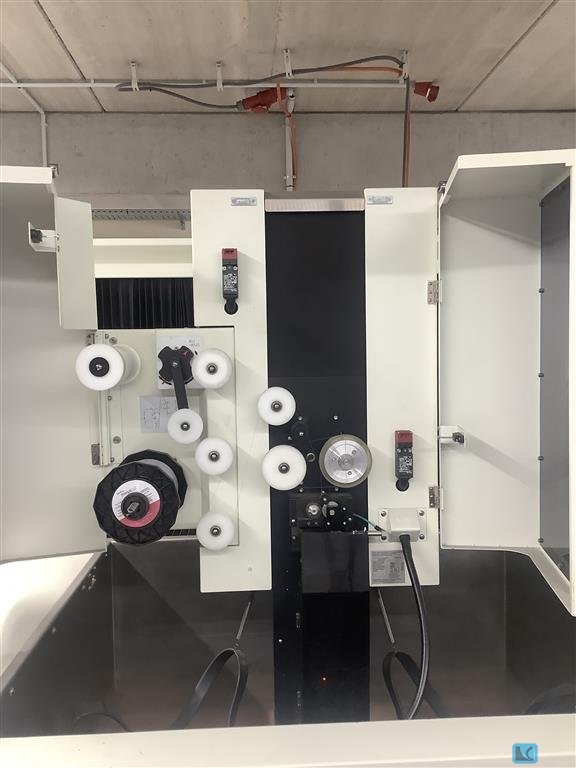

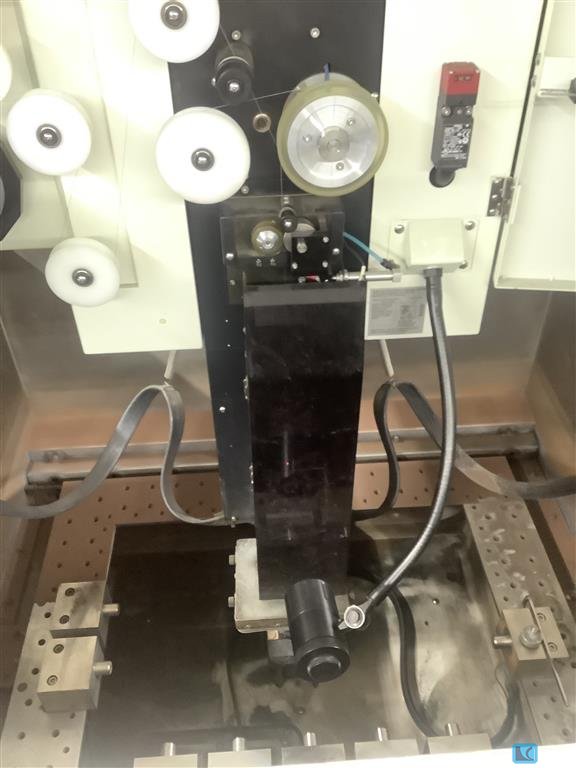

travel -x axis: 450 mm travel -y axis: 300 mm travel -z axis: 320 mm travel -u axis: +/- 50 mm travel - v: +/- 50 mm control: MGW-S3 positioning accuracy: +/- 0,015 mm repeatability: +/- 0,015 mm table dimension (L x W): ~ 580 x 730 mm max. size of workpiece LxWxH: ~ 730, 580, 300 mm max. workpiece weight: ~ 800 kg Overall size: ~ 3.100 x 3.100 x 2.300 mm weight of the machine: ~ 3.400 kg Wire Eroding Machine | MAKINO - EU43 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: EU 43 | EU-43 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
