used KRONES linatronic

Producer: Krones construction year: In 1997 type: Linatronic achievement: 36000 b/h Kontrole: -lye - mouth - side wall - ground

Performance: 40 000 b / h -Control of dirt and damage on the side walls and the bottom of the bottles. -Double presence control of liquid (caustic soda) via detection of infrared and high frequency; -Check the status of the head of bottles (damage) -Oryginal technical documentation (Germany language) -additional parts

Krones EBI empty bottle Inspector along with contour detection module and ejector tables Krones bottle inspector along with contour detection module: • Type: Krones Linatronic • Production year: 2012 • Capacity: 60 000 bottle/hours • Work direction: form left to right Possible detections: • Rest of the liquid (infrared) • Double control of residual soda (high frequency) • Neck damage control • Sidewall control modules • Damaged bottles discard • Separate rejection of dirty bottles • Detection of the contour of the bottle • Detection of the color of bottle • Separate rejection of a bottle with wrong contour or color The system includes: • KRONES Linatronic Inspector • Contour detection module • Ejection table behind the Inspctor • Ejection table behind the contour detection module

Krones Linatronic Empty Bottle Inspector, built in 2013, type 735, set up on 330 ml + 500 ml + 330 ml handle + 500 ml handle Krones Empty bottle inspector, Year: 2013, Type 735, adjusted to 330 ml + 500 ml + 330 ml clip lock swing stopper bottle + 500 ml clip lock swing stop bottle.

Max. output: 30,000 bottles/h, format: 0.33/ 0.5l.

Output: 39,600/h, additional accessories are available.

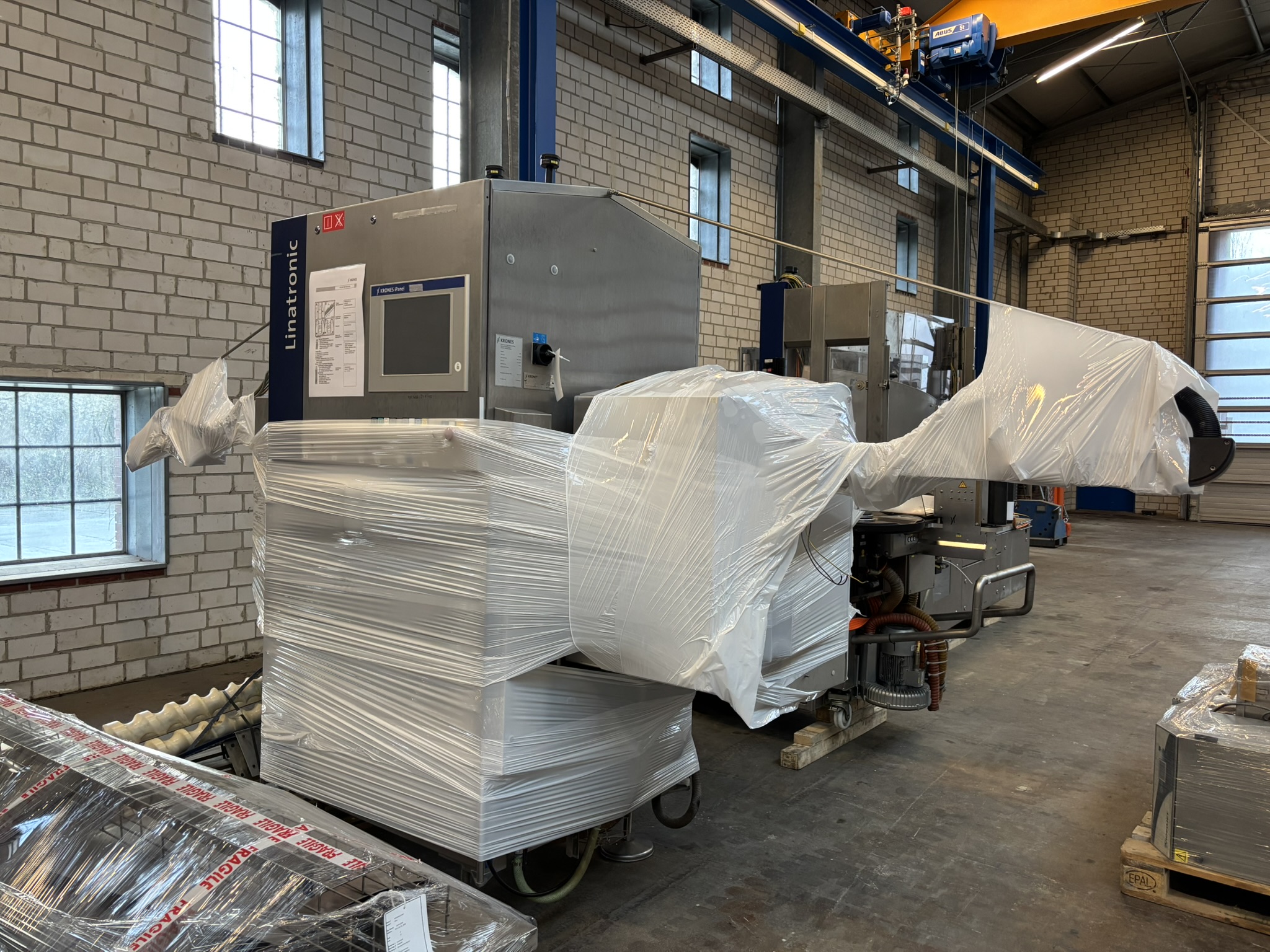

Overview The empty bottle inspector Linatronic was manufactured 2011 by German company Krones. The machine is already dismantled. Techn. Details Running direction: left-right Detections: Ground inspection Camera Sealing surface inspection camera  Thread inspection camera with cone optics  Sidewall inspection camera  Residual liquid and residual caustic detection By high frequency By infrared  Design of muzzle illumination DualFlash for more precise inspection of the sealing surface Scope of delivery Ejector before machine   Rejector belt for color and break in bucket, Rejector belt to return to washing machine

Overview  The empty bottle inspector was built in 2000 by the German manufacturer Krones. Since 2015, many of the machines components, such as the computer, touch screen, cameras, back panel, drive and vacuum blower, have been replaced. The machine is still running until mid-March 2024 and can be inspected.  Technical details  Output: 50,000 bph  Last used for:  0.33l Steinie, Gourmet, Longneck 0.5l Longneck, NRW, EURO  Inspection modules Bottom inspection camera Sealing surface inspection camera Thread inspection camera with cone optics Side wall inspection camera Contour detection and color detection with camera Residual liquid and residual caustic detection By means of high frequency By means of infrared Mouth illumination design  DualFlash for more precise inspection of the sealing surface Accessories/scope of delivery Return to the bottle washer        Ejector Various spa ...

ZZ 40 | BOTTLE INSPECTOR KRONES YEAR: 2007 SPEED: 25.000 BPH MODEL: LINATRONIC K735-398 MANUALS AVAILABLE: YES INSPECTIONS: PARETI - FONDO - LIQUIDI – FILETTO PLC SIEMENS S7 SPARE PARTS AVAILABLE: YES SAFETY PROTECTIONS

One Way Glass Bottle Filling Line 50000 bph for Beer and CSD Complete, very good condition non-returnable glass bottle line from depalletizer to palletizer featuring Krones 110 over pressure filling valve Sensometic VP-VI filler with automatic pressure control system, Krones bottle inspectors and labelling machine, Kisters Combiline automatic case packing machine, SEN twin deck bottle pasteuriser, and Italian Ementi (Mecra’s sister company) depal and palletizing system. This line was commissioned in year 2019 with completely overhauled (ecomac) filling block, Sipac conveyors from year 2016, brand new Krones inspectors etc. This line has been filling beers in 20 different sizes of glass bottles from 300ml to 650ml but it can fill any CSD. Line is still in operation Manufacturers: Krones, Kisters, Mecra, Sipac, Ementi, SEN Commissioned: in year 2019 Products: Beer and CSD Cont ...

Overview This complete filling line for single-use glass was delivered in 2019. Commissioning was stopped in Q1 2020, and resumed in Q4 2021. The line has been running 2/3 days per week since Q4 2021. The line can do 20 variations of bottles including 300ml, 330ml, 500ml, 568ml & 650ml. Components Depalletiser | Emmeti | MT565 | 2016 Siemens Simatic controls, Harford control panel. Bottle outfeed conveyor, plastic chain-link 1400 mm x 9.6 m with tapered outfeed on stainless steel supports. Krones Glideliner Accumulator with tapered outfeed, 850 mm to 350 mm wide Empty bottle inspector | Krones | Linatronic | 2003 60,000 bottles per hour Throughfeed stainless steel slat chain conveyor Height adjustable legs complete with dust canopy. Left to right orientation Filling block for glass | Krones |  2003 rebuilt 2018, installed 2019 Capacity: 50.000 bottles/h at 0,33 l long-neck glass bottle  ...

Bottle inspector KRONES Linatronic K725426 Recognition IRIS Control Siemens S7-300 Pusher Power: 66,000 bph at 0.5L Year of construction 2007 Operating hours: 39.673h on touch Control Siemens S7-300 Bottles: brown colourless Crown cork mouth The machine has been overhauled every year so far and has received a new gearbox in 2020. +++ Bottle inspector KRONES Linatronic K725426 IRIS recognition Control Siemens S7-300 Discharge group (pusher) Capacity: 66,000 bph at 0.5L year of construction 2007 Operating hours: 39.673h at touch Control Siemens S7-300 bottles: Brown colorless Crown cork mouth The machine has been overhauled every year so far and received a new gearbox in 2020.

1 Qty. 1 Second-hand Palletiser Mfc.: Kettner Type: KR51-238 Capacity: 20 000 btl./h Built: 2001 2 Qty. 1 Second-hand Wrapping Machine Mfc.: Robopack Type: Rotaplat 2000A Capacity: 20 000 btl./h Built: 2001 3 Qty. 1 Second-hand Bottle inspector Mfc.: Krones Type: Linatronic 712-288 Capacity: 36 000 btl./h Built: 1998 4 Qty. 1 Second-hand Monoblok (Filling & Labelling Machine) Mfc.: Krones Type: K126-690 Capacity: 36 000 btl./h Built: 1998 5 Qty. 1 Second-hand Labelling Machine Mfc.: Krones Type: Universella 723-A47 Capacity: 20 000 btl./h Built: 1993 6 Qty. 1 Second-hand Bottle rinsing machine Mfc.: Sipron AG Type: C2-5000 Capacity: 20 000 btl./h Built: 1993

CAP.: 10 000 L/H

Year: 1989 Type: Monoblok VKVCF 72/12 Bottle type: 0,5l glass Efficiency: 28500 b/h Operation mode: pressure Technical data: -72 filling valves -12 crowning heads -double evacuation -vaccum pump

Palletizer KRONES PRESS UNI, production year 2007 Along with the conveyors presented in the layout. • Palletizer for collective packages, capacity: approx. 50 pallets / h for specific palletizing formats, • Top loading, packs served in 2 tracks, • Pallet magazine, • A feeder for cardboard pads with a magazine for cardboard pads, • Control cabinet based on Siemens S7 control, • A platform for the operator in accordance with the dimensions presented in the layout, • Operator Panel, Packs and pallet conveyors in accordance with the presented layout 1. Empty pallets infeed conveyors 2. Packs conveyors

Tray labels

Machine is in perfect condition. All mechanical, electric parts were overhauled or changed to completely new. Along with the machine we provide 1 set of equipment for a clients bottle and basic change parts for a 2 years production. Capacity: 22500 b/h 18 months guarantee.

Krones Solomatic Right-to-law machine Ma-No. 018-D53 Torso-chest back labeling Hot melt device for sealing labels Central lubrication Height GDB program + 0.75 / 0.25 excl. Gluing via lifting motor 2 label magazines 2 aggregates external control cabinet Heuft Spectrum TX with Pusher Format parts, gripper heads and screws available Krones Solomatic Right-hand machine Ma-No. 018-D53 Body-chest-back labeling Hot melt gluing device for sealing labels Central lubrication Height adjustment GDB program + 0,75 / 0,25 excl. Gluing via lifting motor 2 Label Magazines 2 aggregates external switch cabinet Heuft Spectrum TX with pusher Format parts gripper heads and screws available

fully automatic Wasserentgaser, CIP capable, autom. Valves, Hilge pump, Sihi vacuum degassing, 40,000 litres / h

Labeller , Manufacturer : Krones Type: Canmatic 600-10 Year of manufacture: 1992 Yield: 12,000 x 1.5l. bottles. / hourly 17,000 x 0.5l. bottles. / hourly ROUND PAPER LABELS tooling formats: 0.5, 0.7 and 1.5 l

Krones bottle labelling machine, 6 heads, type: 480-6 year of construction: 1997, 2 Graseby labelling units, plastic belt.

Krones Typ 18-8-8 labeling machine from 1984, completely overhauled in 2015.

Krones Robust labeller The machine is located in Spain.

With documentation, was overhauled in 2011 and fitted with a new control system.
